CS302 - Digital Logic & Design

Lesson No. 07

DIGITAL CIRCUITS AND OPERATIONAL CHARACTERISTICS

1. DC Supply Voltage

TTL based devices work with a dc supply of +5 Volts. TTL offers fast switching speed,

immunity from damage due to electrostatic discharges. Power consumption is higher than

CMOS. The TTL family has six different types of devices characterized by different power

dissipation and switching speeds. The series of TTL chips are:

Standard TTL

74S

Schottky TTL

74AS

Advanced Schottky TTL

74LS

Low-Power Schottky TTL

74ALS

Advanced Low-Power Schottky TTL

74F

Fast TTL

The Standard, the Schottky, the Advanced Schottky, the Low-Power Schottky, the

Advanced Low-Power Schottky and the FAST TTL series are characterized by their switching

speed and power dissipation. The Standard TTL is the slowest and consumes more power

and the Advanced low power Schottky has the fastest switching speed and low power

requirements.

CMOS technology is the dominant technology today and used in large scale ICs and

microprocessors. CMOS technology is characterized by low power dissipation with slow

switching speeds. There are two categories of CMOS in terms of the dc supply voltage. The

3.3 v CMOS series is characterized by fast switching speeds and very low power dissipation

as compared to the 5 v CMOS series.

+5 V CMOS

o 74HC and 74HCT

High-Speed

o 74AC and 74ACT

Advanced CMOS

o 74AHC and 74AHCT

Advanced High Speed

3.3 V CMOS

o 74LV

Low voltage CMOS

o 74LVC

Low-voltage CMOS

o 74ALVC

Advanced Low voltage CMOS

2. Logic Levels and Noise Margin

The TTL and CMOS circuit operating at +5 or 3.3 Volts respectively are designed to

accept voltages in a certain range as logic 1 and 0. The input and output logic levels for CMOS

and TTL are shown in the figure 7.1. The VIH and VIL indicate the acceptable voltage ranges for

the input logic high and low respectively. Similarly VOH and VOL indicate the acceptable output

voltage range for logic high and low respectively.

CS302 - Digital Logic & Design

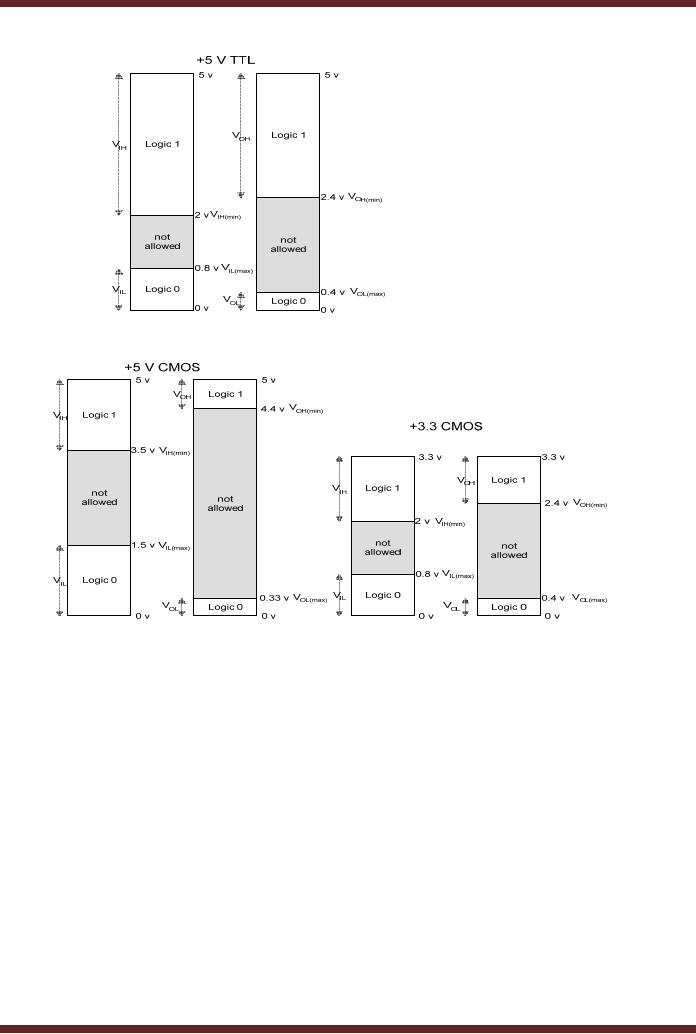

Figure 7.1

Logic Levels for TTL and CMOS Series

a) TTL Logic Levels

At the input of any TTL logic gate logic high `1' or a logic low `0' signal is applied.

· VIH is the input voltage range of Logic high signal with a range of 2 to 5 volts.

· VIH(min) is the minimum acceptable input range for a logic high signal. (2 volts)

· VIL is the input voltage range of Logic low signal with a range of 0 to 0.8 volts.

· VIL(max) is the maximum acceptable input range for a logic low signal. (0.8 volts)

The output of any TTL logic gate can be at logic high `1' or logic low `0'.

· VOH is the output voltage range of Logic high signal with a range of 2.4 to 5 volts.

· VOH(min) is the minimum acceptable output range for a logic high signal. (2.4 volts)

· VOL is the output voltage range of Logic low signal with a range of 0 to 0.4 volts.

· VOL(max) is the maximum acceptable output range for a logic low signal. (0.4 volts)

b) CMOS 5 Volt series Logic Levels

At the input of any CMOS 5 volt series logic gate logic high `1' or a logic low `0' signal is

applied.

CS302 - Digital Logic & Design

VIH is the input voltage range of Logic high signal with a range of 3.5 to 5 volts.

VIH(min) is the minimum acceptable input range for a logic high signal. (3.5 volts)

VIL is the input voltage range of Logic low signal with a range of 0 to 1.5 volts.

VIL(max) is the maximum acceptable input range for a logic low signal. (1.5 volts)

The output of any CMOS 5 volt series logic gate can be at logic high `1' or logic low `0'

· VOH is the output voltage range of Logic high signal with a range of 4.4 to 5 volts.

· VOH(min) is the minimum acceptable output range for a logic high signal.(4.4 volts)

· VOL is the output voltage range of Logic low signal with a range of 0 to 0.33 volts.

· VOL(max) is the maximum acceptable output range for a logic low signal. (0.33 volts)

c) CMOS 3.3 Volt series Logic Levels

At the input of any CMOS 3.3 volt series logic gate a logic high `1' or a logic low `0'

signal is applied.

· VIH is the input voltage range of Logic high signal with a range of 2 to 3.3 volts.

· VIH(min) is the minimum acceptable input range for a logic high signal. (2 volts)

· VIL is the input voltage range of Logic low signal with a range of 0 to 0.8 volts.

· VIL(max) is the maximum acceptable input range for a logic low signal. (0.8 volts)

The output of any CMOS 3.3 volt series logic gate can be at logic high `1' or logic low `0'

· VOH is the output voltage range of Logic high signal with a range of 2.4 to 3.3 volts

· VOH(min) is the minimum acceptable output range for a logic high signal. (2.4 volts).

· VOL is the output voltage range of Logic low signal with a range of 0 to 0.4 volts.

· VOL(max) is the maximum acceptable output range for a logic low signal. ( 0.4 volts).

The valid output voltages representing logic high and low are confined to certain

voltage ranges. For example, low-power 3.3 volt CMOS chips output logic high voltage ranges

between 2.4-3.3 volts and logic low ranges between 0-0.4 volts. Output voltages that are not

within the specified ranges can cause logic circuits to malfunction.

A low-power 3.3v CMOS AND gate will accept a voltage of 2.1 volts as a valid logic

high input. However, a voltage of 1.9 volts is unacceptable as an input between 0.8-2.0 volts

will give unpredictable results, therefore input voltages within this range is not allowed.

Wires in electronic circuits pick up noise from adjacent conductors. Noise is unwanted

voltage that is induced in the circuit due to high-frequency electromagnetic radiation. The

unwanted noise can affect the performance of a logic gate and the digital circuit.

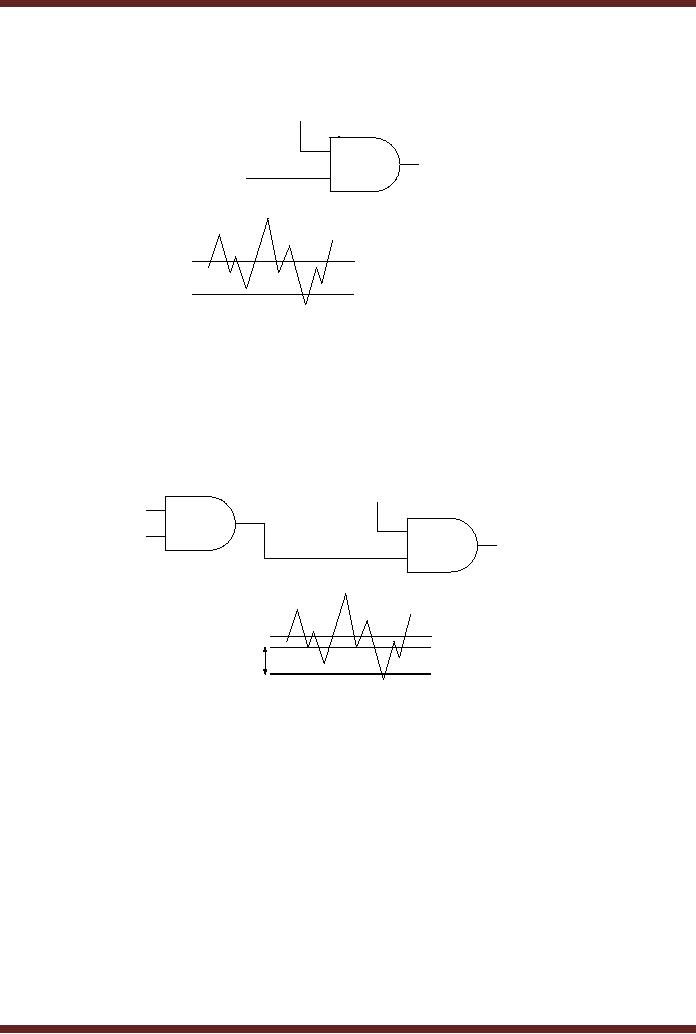

Effect of Noise on the Operation of a CMOS AND Gate

A CMOS 5 volt series AND gate is shown. Figure 7.2. Input A of the AND gate is

permanently connected to logic high of +5 volts. Input B of the AND gate is connected to the

output of some other gate. The signal at input B of the AND gate can vary between logic 0 and

logic 1.

Consider that the input B is at logic High state with VIH = 4.2 volts which is within the

valid CMOS VIH voltage range of 5 to 3.5 volts. A voltage generated due to some external

noise (shown by the zigzag line) rides on the 4.2 volt signal. A sharp dip in the input voltage

due to the noise brings the input voltage down to 3 volts for a very short duration. The 3 volt

input is below the minimum input voltage limit of 3.5 volts for logic high input voltage and within

CS302 - Digital Logic & Design

the not allowed voltage range. This dip in the voltage even for a short duration will result in an

output of logic low for a short interval of time.

VIN

VIH = 4.2 v

VIH(min) = 3.5 v

EfVec= ofvNoise on CMOS AND gate

f IH t 3

Figure 7.2

Effect of Noise on the Operation of a CMOS AND Gate circuit

Two CMOS 5 volt series AND gates are connected together. Figure 7.3 The first AND

gate has both its inputs connected to logic high, therefore the output of the gate is guaranteed

to be logic high. The logic high voltage output of the first AND gate is assumed to be 4.6 volts

well within the valid VOH range of 5-4.4 volts. Assume the same noise signal (as described

earlier) is added to the output signal of the first AND gate.

VOH = 4.6 v

VOH(min) = 4.4 v

VNH = 0.9 v

VIH(min) = 3.5 v

Noise Margin High

Effect of Noise VIn = 3.4OS AND gate circuit

oH CM v

Figure 7.3

The sharp dip due to noise brings the VOH voltage down to 3.4 volts with reference to

the VOH of 4.6 volts. 3.4 volts is lower than the VIH(min) of 3.5 volts required by the input of the

second AND gate, the circuit will thus malfunction.

Since VOH(min) is guaranteed to be at 4.4 volts therefore a noise signal being added to

4.4 volts can bring VOH voltage down to a minimum of 3.5 volts which is the acceptable

minimum range for VIH. Anything below 3.5 will cause the second gate to malfunction. Thus the

second AND gate can tolerate a maximum variation of 0.9 volts for its logic high input or has a

`Noise Margin' of 0.9 volts.

Noise Margin

Noise margin is a measure of the circuit's immunity to noise. The high-level and low-

level noise margins are represented by VNH and VNL respectively.

CS302 - Digital Logic & Design

VNH = VOH(min) VIH(min)

VNL = VIL(max) VOL(max)

CMOS 5 volt series Noise Margins

· VNH = VOH(min) VIH(min) = 4.4 - 3.5 = 0.9 v

· VNL = VIL(max) VOL(max) = 1.5 0.33 = 1.17 v

CMOS 3.3 volt series Noise Margins

· VNH = VOH(min) VIH(min) = 2.4 2.0 = 0.4 v

· VNL = VIL(max) VOL(max) = 0.8 0.4 = 0.4 v

TTL 5 volt Noise Margins

· VNH = VOH(min) VIH(min) = 2.4 - 2.0 = 0.4 v

· VNL = VIL(max) VOL(max) = 0.8 0.4 = 0.4 v

The CMOS 5 volts and the 3.3 volts series can not be mixed.

For CMOS 5 volt series the high-level noise margin is 0.9 volts. That is, the logic high

output of the gate would never be below 4.4 volts. Even if it is below 4.4 volts due to some

external noise, the input will consider any voltage above 3.5 volts to be logic high. So CMOS 5

volt series gates can withstand noisy signals riding on logic high inputs up to a noise margin of

0.9 volts. Similarly, low-level noise margin is 1.17 volts (1.5-0.33).

The VNH high-level and VNL low-level noise margins for TTL 5 volt and CMOS 3.3 series

are 0.4 volts and 0.4 volts respectively. Therefore in noisy environments, CMOS 5 volt series

based digital system perform better.

3. Power Dissipation

Logic Gates and Logic circuits consume varying amount of power during their

operation. Ideally, logic gates and logic circuit should consume minimal power. Advantages of

low power consumption are circuits that can be run from batteries instead of mains power

supplies. Thus portable devices that run on batteries use Integrated circuits that have low

power dissipation. Secondly, low power consumption means less heat is dissipated by the

logic devices; this means that logic gates can be tightly packed to reduce the circuit size

without having to worry about dissipating the access heat generated by the logic devices.

Microprocessors for example generate considerable heat which has to be dissipated by

mounting small fans.

Generally, the Power dissipation of TTL devices remains constant throughout their

operation. CMOS device on the other hand dissipate varying amount power depending upon

the frequency of operation.

a) Power Dissipation of TTL Devices

When a TTL logic gate output is in a logic high state it draws out a current from the dc

power supply. It is said to be sourcing current. The high current is designated by ICCH, typical

value for ICCH is 1.5 mA when VCC = 5 V. When a TTL logic gate output is in a logic low state it

sinks a current designated by ICCL = 3.0 mA when VCC = 5 V. The figure 7.4 shows an AND

gate connected to output a logic high `1'. It thus draws a current ICCH from the voltage supply

VCC.

CS302 - Digital Logic & Design

+5 v

+5 v +5 v

ICCH

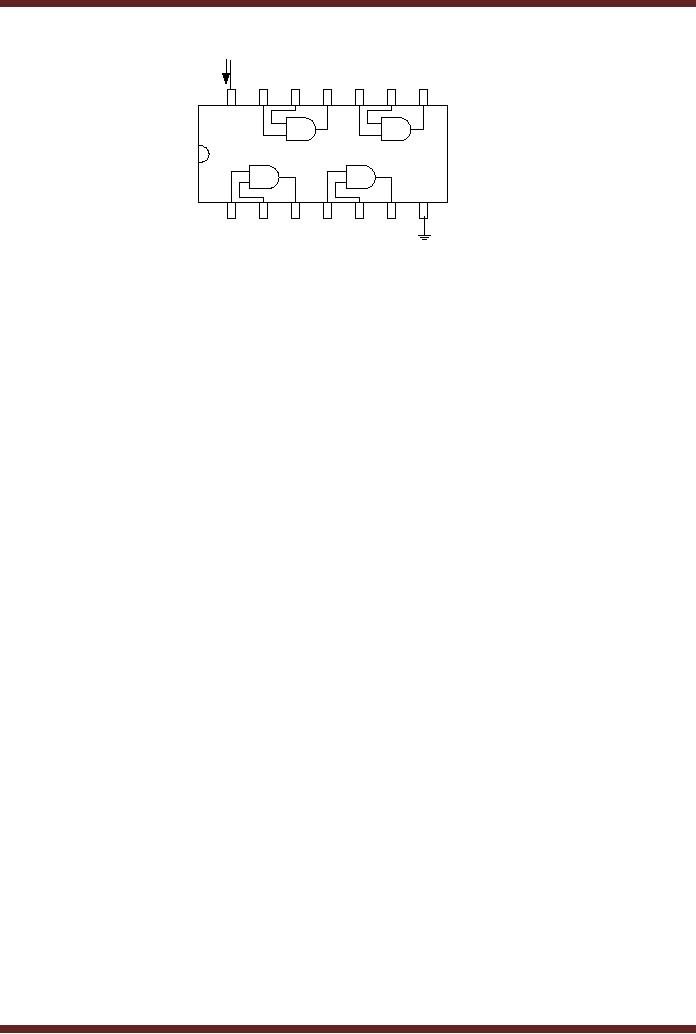

7408

Four 2-Input AND Gate

Figure 7.4

Power dissipation of a TTL AND gate

When any one of the AND gate input is connected to low, the output becomes low and

it sinks current ICCL. An AND Gate which has one of its input connected to a clock which

continuously changes from logic high to low sets the AND gate output to high and low

respectively for every one half of the clock cycle. Thus the AND gate sources and sinks

currents ICCH and ICCL respectively.

The power dissipated by a gate is VCC x ICC. The power dissipated would be different

for a gate having a logic high output and logic low output. The average power dissipated is

determined, based on a 50% duty cycle, that is, the gate is pulsed and its output switches

between high and low for every one half of the cycle.

PD = VCC(ICCH + ICCL)/2

Power Dissipation in TTL circuits is constant over its range of operating frequencies.

For example, the power dissipation of a LS TTL gate is a constant 2.2 mW.

b) Power Dissipation of CMOS Devices

The transistors used in CMOS logic present a capacitive load instead of the resistive

load in TTL based logic. Each time a CMOS logic gate switches between low and high, current

has to be supplied to the capacitive load. The typical supply current is 5 mA for a duration of

20-30 nsec. As the frequency of operation increases, there would be more of these current

spikes occurring per second, thus the average current drawn from the voltage source

increases.

Power Dissipation in CMOS circuits is frequency dependent. It is extremely low under

static (dc) conditions and increases as the frequency increases. Total Dynamic Power

dissipation of a CMOS circuit is

PD = PT + PL

where PT is the internal power dissipation of the gate

PL is the external power dissipation due to the external capacitive load

PD = CPD.VDD2.f + CL.VDD2.f

PD = (CPD+ CL).VDD2.f

where CPD is the internal power dissipation capacitance

CL is the external load dissipation capacitance

VDD is the supply voltage

f is the transition frequency of the output signal

CS302 - Digital Logic & Design

The power dissipation of a HCMOS gate is 2.75 μW under static conditions and 170 μW at

100 KHz.

4. Propagation Delay

When ever a signal passes through a gate it experiences a delay. That is, a signal

applied to the input of a gate does not result in an instantaneous response. The output of a

gate is delayed with respect to the input. The delay in the output is known as the Propagation

Delay.

The Propagation Delay of a gate limits the frequencies at which the gate can work.

Higher the Propagation Delay lower is the frequency at which the gate can operate. Smaller

the Propagation Delay higher the frequency at which the gate can operate. A Gate with a

Propagation Delay of 3 nsec is faster than a gate with a 10 nsec delay.

There are two Propagation Delay times specified for Logic Gates. Figure 7.5

tPHL The time between a specified reference point on the input pulse and a corresponding

reference point on the resulting output pulse, with the output changing from high level to

low level.

tPLH The time between a specified reference point on the input pulse and a corresponding

reference point on the resulting output pulse, with the output changing from low level to

high level.

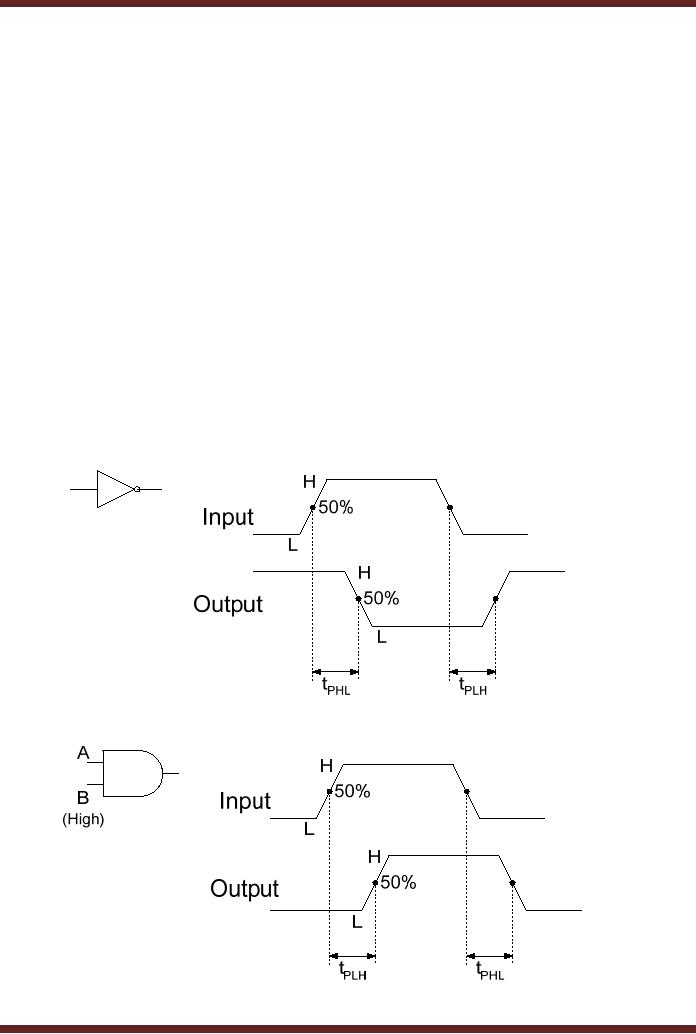

Figure 7.5

Propagation delay of an NOT & AND gates

CS302 - Digital Logic & Design

The output of the NOT gate changes from high to low after a delay of time specified by

tPHL after the input changes from low to high. The output of the NOT gate changes from low to

high after a delay of time specified by tPLH after the input changes from high to low. The delay

time is measured at the 50% transition mark.

The input B of the AND gate is permanently connected to logic high, where as input A

varies between High and Low. The output of the AND gate changes from low to high after a

delay of time specified by tPLH after the input changes from low to high. The output of the AND

gate changes from high to low after a delay of time specified by tPHL after the input changes

from high to low. The delay time is measured at the 50% transition mark. Generally, the tPLH

and tPHL propagation delay times are same.

The effect of Propagation Delay on the operation of a digital circuit can be explained

with the help of an example. Consider a Cricket Stadium, entry to the Cricket Stadium is

through three gates, each manned by a security guard who allows the spectator into the

stadium after checking the ticket. Assume that the security guards at Gates A, B and C take 1,

1.5 and 2 minutes respectively to check the ticket and allow the spectator into the stadium.

Assuming equal number of spectators queuing up at the three gates, the queue at gate C after

30 minutes is the longest as the guard at Gate C has the longest Propagation Delay.

5. Speed-Power Product (SPP)

An important parameter is the Speed-Power Product which is used as a measure of

performance of a logic circuit taking into account the propagation delay and the power

dissipation.

The SPP = tPPD expressed in Joules (J), the unit of energy. Lower the SP product better is the

performance.

6. Fan-Out and Loading

The fan-out of a logic gate is the maximum numbers of inputs of the same series in an

IC family that can be connected to a gate's output and still maintain the output voltage levels

within the specified limits. Fan-out parameter is associated with TTL technology. CMOS

circuits have very high impedance therefore fan-out of CMOS circuits is very high but depends

upon the frequency because of capacitance effects.

Fan-out is specified in terms of unit loads. A unit load for a logic gate equals one input

to a like circuit. Consider a 7400 NAND gate. The output current at logic high is IOH = 400 μA.

The input current at logic high is IIH = 40 μA. Thus a gate at logic high can source current to

another gate connected to its output.

Similarly, the output current at logic low is IOL = 16 mA. The input current at logic low is

IIL = 1.6 mA. Thus a gate output at logic low can sink current from another gate connected to

its output.

Unit Loads = IOH/IIH = IOL/IIL = 400 μA/40 μA = 16 mA/1.6 mA = 10

CS302 - Digital Logic & Design

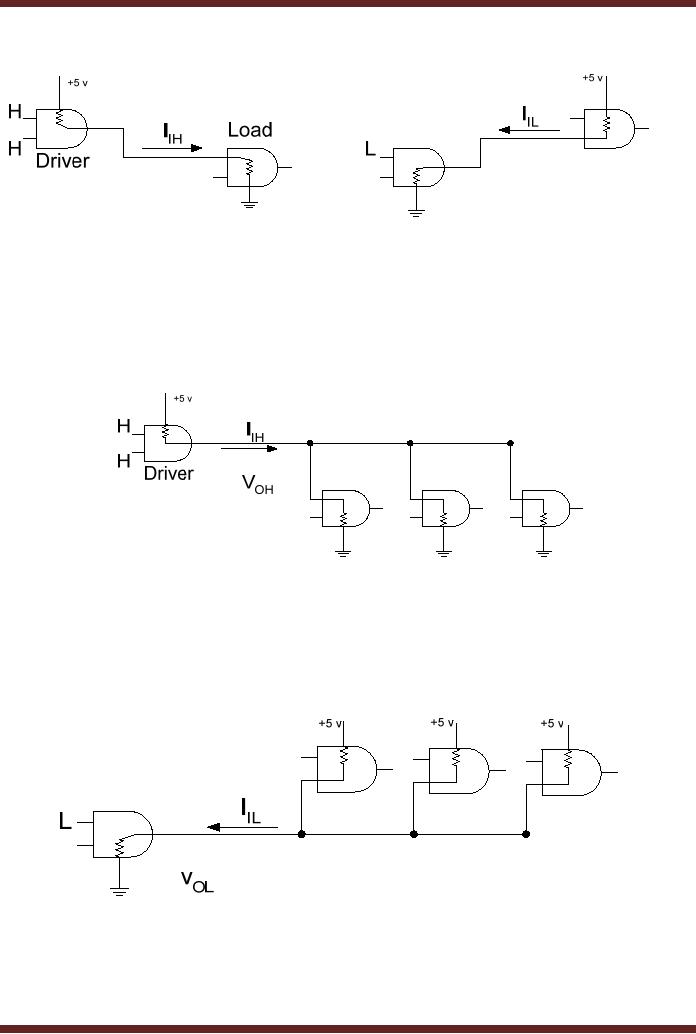

Figure 7.6

AND Gate Sourcing and Sinking Current

As more gates (Loads) are connected to the driving gate the loading on the driving

gate increases. The total current sourced by the driving gate increases. As the current

increases the internal voltage drop increases causing the output voltage VOH to decrease. If

excessive number of gates are connected the output voltage VOH drops below the VOH(min)

reducing the High-level noise margin, thus compromising the circuit operation. Also as the

source current increases the power dissipation increases. Figure 7.7.

Figure 7.7

AND Gate Sourcing Current

The total sink current also increases with each load gate that is added. As the sink

current increases the internal voltage drop of the driving gate increases causing VOL to

increase. If excessive number of loads are connected, VOL exceeds VOL(max) and the Low noise

margin is reduced.

Figure 7.8

AND Gate Sinking Current

CMOS loading is different from TTL loading as the type of transistors used in CMOS

circuits presents a capacitive load to the driving gate. When the output of the driving gate is

high the input capacitance of the load gate is charging and when the output of the driver gate

CS302 - Digital Logic & Design

is low the load gate is discharging. When more load gates are added the input capacitance

increases as input capacitances are being connected in parallel. With the increase in the

capacitance, charging and discharging time increases, reducing the maximum frequency at

which the gate can operate. Figure 7.9

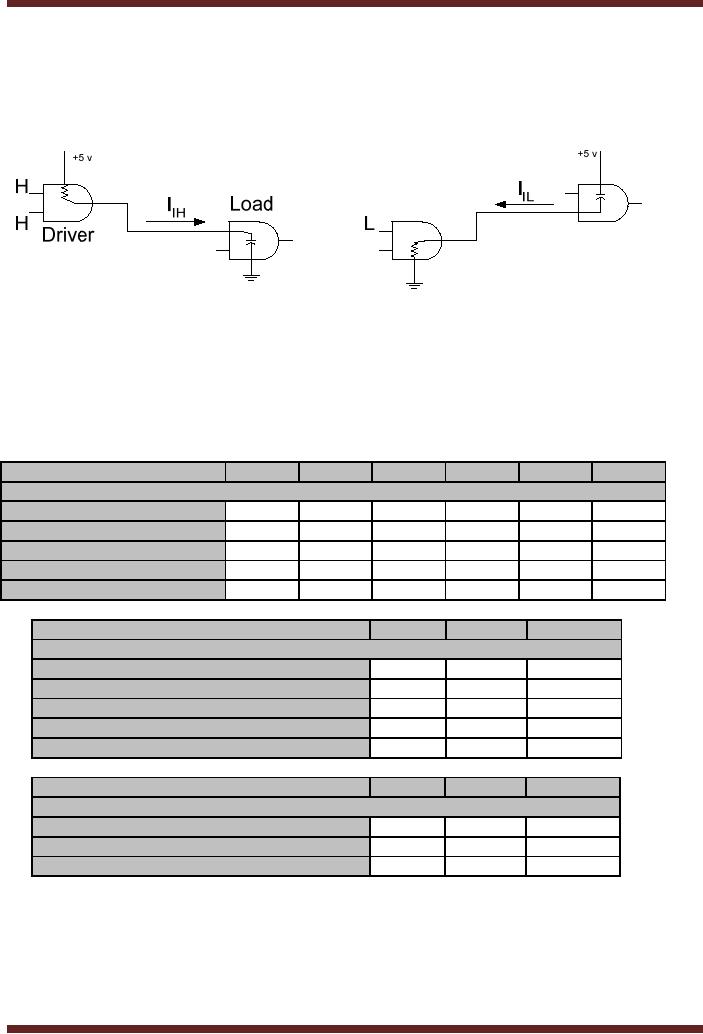

Figure 7.9

CMOS AND Gate Sourcing and Sinking Current

The fan-out of a CMOS gate depends upon the maximum frequency of operation.

Fewer the load gates, greater the maximum frequency of operation.

Different TTL series are characterized by switching speed and power consumption as

shown in the table. Table 7.1

74S

74LS

74AS

74ALS

74F

Performance Rating

Propagation Delay (ns)

9.5

1.7

Power Dissipation (mW)

1.2

Speed-Power product (pJ)

13.6

4.8

Max. Clock Rate (MHz)

125

200

100

Fan-out (same series)

74HC

74AC

74AHC

Performance Rating

Propagation Delay (ns)

3.7

Power Dissipation (mW) Static

0.00275

0.0055

0.00275

Power Dissipation (mW) Dynamic 100KHz

0.0625

0.08

0.0625

Speed-Power product (pJ) at 100KHz

1.125

0.4

0.23

Max. Clock Rate (MHz)

160

170

74LV

74LVC

74ALVC

Performance Rating

Propagation Delay (ns)

4.3

Power Dissipation (mW) Static

0.0016

0.0008

Max. Clock Rate (MHz)

100

150

Table 7.1

Operational Characteristics of TTL and CMOS families

Table of Contents:
