NOR Gate as a Universal Gate

The NOR gate is also used as a Universal Gate as the NOR Gate can be used in a

combination to perform the function of a AND, OR and NOT gates.

4. NOT Gate Implementation

A NOT gate can be implemented using a NOR gate by connecting both the inputs of

the NOR gate together. By connecting the two inputs together, the combinations with

dissimilar inputs become redundant. The Function Table of the 2-input NOR Gate reduces to

that of the NOT gate. Figure 6.1

Logical NOR

Operation

Inputs

Output

Figure 6.1

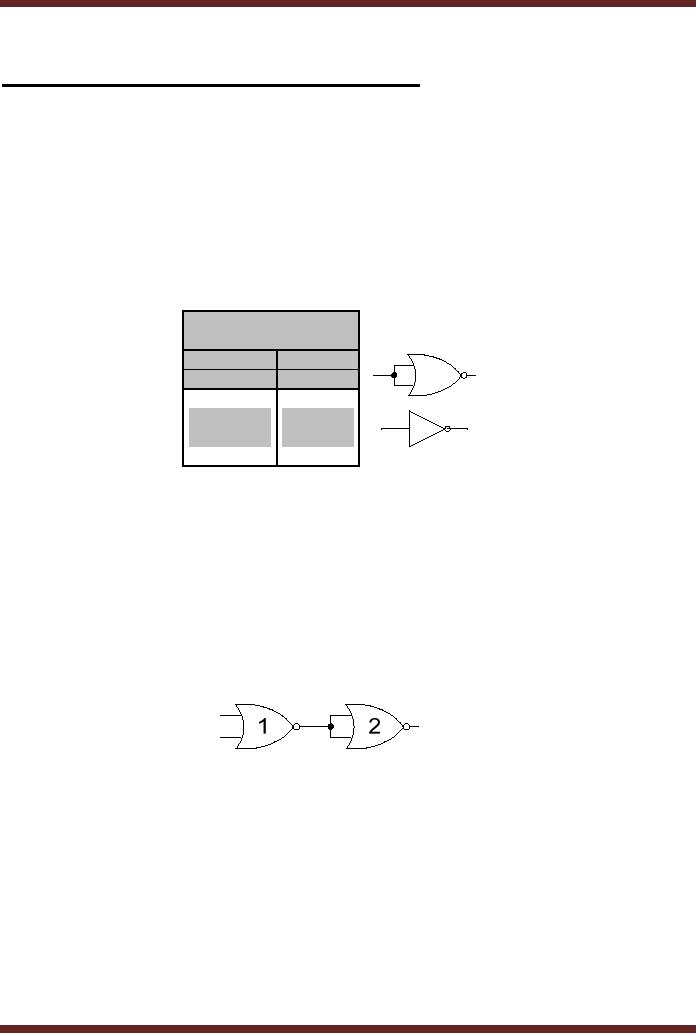

Implementing a NOT Gate using a NOR gate

5. OR Gate Implementation

A NOR Gate performs the OR-NOT function. Removing the NOT gate at the output of

the NOR gate results in an OR gate. The effect of the NOT gate at the output of the NOR gate

can be cancelled by connecting a NOT gate at the output of the NOR Gate. The two NOT

gates cancel each other out. A NOT Gate implemented using a NOR gate (2) is connected to

the output of a NOR gate (1). Figure 6.2.

Figure 6.2

Implementing an OR Gate using two NOR gates

6. AND Gate Implementation

An AND Gate can be implemented using a combination of three NOR gates. The

implementation is based on the alternate symbolic representation of the AND gate. The AND

gate is represented as an OR gate with bubbles at the inputs and outputs. Figure 5.13. The

two bubbles at the input can be replaced by two NOT gates (1) & (2) implemented using two

NOR gates. If the two bubbles are removed from the two inputs, the OR gate with the bubble

at the output represents a NOR gate (3). Figure 6.3

CS302 - Digital Logic & Design

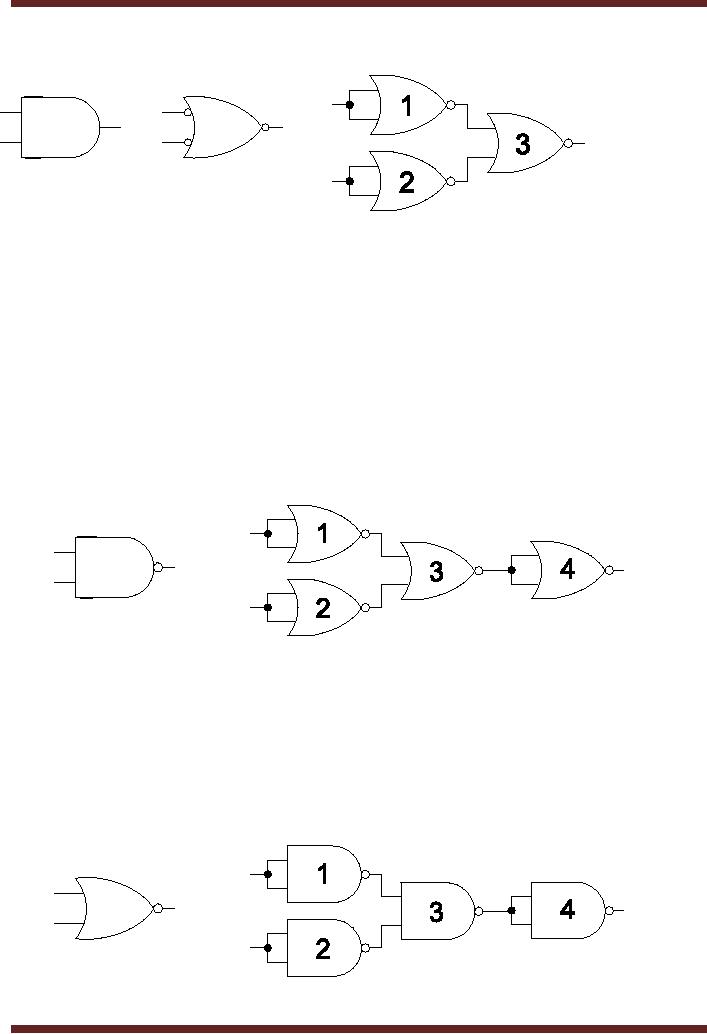

Figure 6.3

Implementing an OR Gate using three NOR gates

NAND-NOR Universal Gates

NAND and NOR gates are known as Universal Gates as they can be used to

implement any of the three fundamental gates, AND, OR and NOT. The NAND Universal Gate

can also be used to implement a NOR gate. Similarly, a NOR gate can be used to implement a

NAND gate.

1. NAND gate Implementation using NOR gates

The AND gate implementation using three NOR gates is shown in figure 6.3. A NAND

gate implementation requires addition of an inverter (NOT) gate at the output. The NOT gate is

implemented using a NOR gate. Figure 6.4. NOR gates 1, 2 and 3 implement the AND gate.

NOR gate 4 implements the NOT gate connected at the output of the NAND gate.

Figure 6.4

Implementing a NAND Gate using four NOR gates

2. NOR gate Implementation using NAND gates

The OR gate implementation using three AND gates is shown in figure 5.20. A NOR

gate implementation requires addition of an inverter (NOT) gate at the output. The NOT gate is

implemented using a NAND gate. Figure 6.5. NAND gates 1, 2 and 3 implement the OR gate.

NAND gate 4 implements the NOT gate connected at the output of the NOR gate.

Figure 6.5

Implementing a NOR Gate using four NAND gates

CS302 - Digital Logic & Design

NAND and NOR Gate Applications

The output of a NAND is 0 when all inputs to the NAND gate are 1s. This property of

the NAND gate can be used to activate an operation when any of the inputs to the NAND gate

are deactivated. A NOR gate on the other hand generates an output of 1 when all inputs to

NOR gate are deactivated. The output is deactivated when any input is activated.

A warehouse is used to store industrial chemicals. Toxic fumes produced by the

chemicals are removed from the ware house and dispersed in the atmosphere through three

exhaust fans. The three exhaust fans should be continuously working to remove the

dangerous toxic fumes. If any one or more fans fail an alarm should be activated to signal the

failure of one or more exhaust fans.

An electronic circuit connected to each fan generates a 1 to indicate a working fan. If

the fan fails the circuit generates a 0 output. The outputs of the three fans are connected to the

three inputs of a NAND gate. When all fans are working the input to the 3-input NAND gate is

111 and the corresponding output is a 0. When any one fan fails the output of NAND gate

becomes 1 activating an alarm connected to the output of the NAND gate. Figure 6.6

Figure 6.6

A NAND gate based exhaust fan failure detection system

A Washing Machine has three sensors to check for washing machine lid open, washing

tub filled to minimum level and weight of cloths and water in the tub. If the lid of the Washing

machine is open or the water is below the minimum level or the washing machine has been

overloaded the appropriate sensor generates an output of 1. The outputs of the three sensors

are connected to the inputs of a 3-input NOR gate. During the normal operation of the

Washing Machine all the sensors output a 0. The corresponding output of the NOR gate is a 1.

If an erroneous condition is detected by any one or more sensors, the corresponding sensor

output(s) is set to 1, setting the NOR gate output to a 0. The NOR gate output is connected to

the main switch which switches off the washing machine. Figure 6.7.

Figure 6.7

A NOR gate based Washing Machine Controller

CS302 - Digital Logic & Design

Exclusive-OR and Exclusive-NOR Gates

The XOR and XNOR gates are frequently used in Digital Logic. These two additional

gates are used to detect dissimilar and similar inputs respectively.

1. Exclusive-OR Gate

The Exclusive-OR Gate or XOR Gate performs a function that is equivalent to the

combination of NOT, AND and OR gates. XOR gates are extensively used in digital

applications; therefore XOR gates are available as basic components. Most commonly used

XOR Gates have two inputs. The XOR gate is represented by symbol shown in figure 6.8.

Figure 6.8

Symbolic representation of XOR Gate

The function performed by the XOR gate is represented by the Function Table for a

two input XOR Gate. Figure 6.9. The function table for a 3, 4 or multiple input XOR Gate is

similar. The output of an XOR gate is 1 when the inputs are dissimilar and a 0 when all the

inputs are the same.

Logical XOR

Operation

Inputs

Output

Figure 6.9

Function Table of an XOR Gate

The expression describing the operation of the two inputs XOR Gate is F = A ⊕ B . The

⊕ is an XOR operator and the expression for multiple input XOR Gates is

F = A ⊕ B ⊕ C ⊕ .....N , where N is the total number of inputs.

The timing diagram of the two input XOR gate with the input varying over a period of 7

time intervals is shown in the diagram. Figure 6.10.

CS302 - Digital Logic & Design

Figure 6.10

Timing diagram of operation of a XOR gate

2. Exclusive-NOR Gate

The Exclusive-NOR Gate or XNOR Gate performs a function that is equivalent to the

combination of NOT, AND and OR gates. XNOR gate is extensively used in digital

applications; therefore XNOR gates are available as basic components. Most commonly used

XNOR Gates have two inputs. The XNOR gate is represented by symbol shown in figure 6.11.

Figure 6.11

Symbolic representation of XNOR Gate

The function performed by the XNOR Gate is represented by the Function Table for a

two input XNOR Gate. Figure 6.12. The function table for a 3, 4 or multiple input XNOR Gate

is similar. The output of an XNOR gate is 1 when the all the inputs are same and a 0 when the

inputs are dissimilar.

Logical XNOR

Operation

Inputs

Output

Figure 6.12

Function Table of an XNOR Gate

The expression describing the operation of the two inputs XNOR Gate is F = A ⊕ B .

The expression for multiple input XNOR Gates is F = A ⊕ B ⊕ C ⊕ .....N , where N is the total

number of inputs.

The timing diagram of the two input XNOR gate with the input varying over a period of

7 time intervals is shown in the diagram. Figure 6.13.

CS302 - Digital Logic & Design

Figure 6.13

Timing diagram of operation of a XNOR gate

XOR and XNOR Gate Applications

XOR and XNOR gates are used to detect dissimilar and similar inputs. This property of

XOR and XNOR gates is used to detect odd and even number of 1s in a Parity Detection

Circuit.

Consider the three XOR gate logic circuit which is used to detect odd number of 1's in

a 4-bit binary input combination. Figure 6.14

Figure 6.14

XOR gate based Odd number of 1s detector

A 4-bit binary number 0000 applied at the inputs A, B, C and D respectively of XOR

gates 1 and 2. The output of XOR Gates 1 and 2 is 0 and 0. The output of XOR gate 3 is also

zero. Similarly, a binary number 0011 applied at the inputs A, B, C and D respectively. The

output of XOR gate 1 with inputs 00 is 0. The output of XOR gate 2 with inputs 11 is 0. The

output of gate 3 is 0. Thus the output indicates that the binary number 0011 does not have odd

number of 1's. Consider the binary number 1011 applied at the inputs A, B, C and D

respectively. The output of XOR gate 1 with inputs 10 is 1. The output of XOR gate 2 with

inputs 11 is 0. The output of gate 3 is 1. Thus the output indicates that the binary number 1011

has odd number of 1's

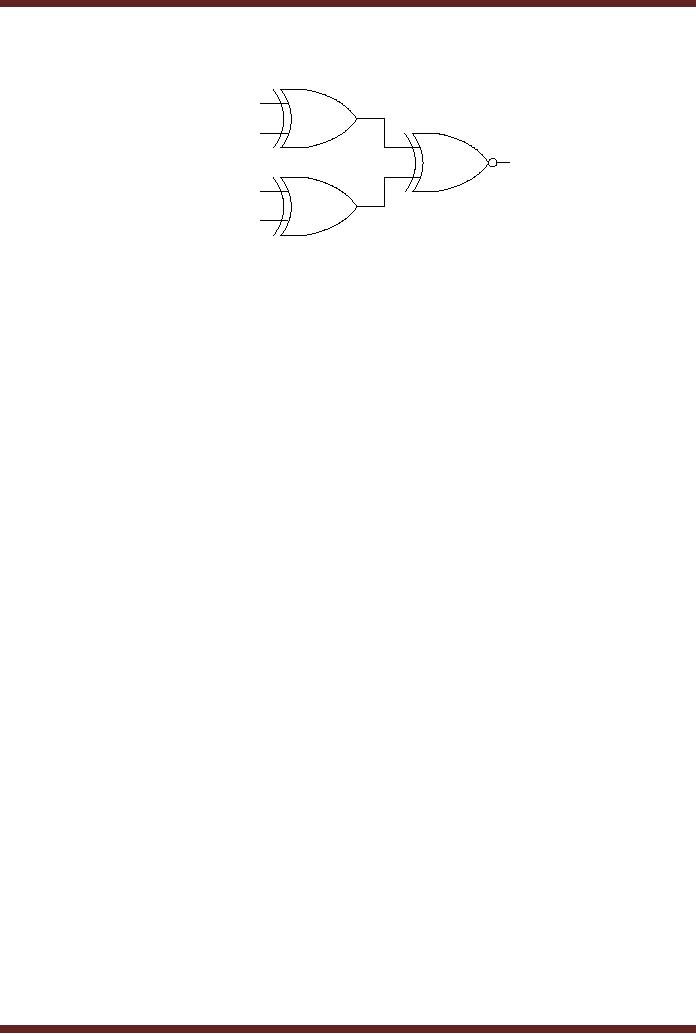

The logic circuit based on two XOR and a single XNOR gate which is used to detect

even number of 1's in a 4-bit binary input combination. Figure 6.15

CS302 - Digital Logic & Design

Figure 6.15

XOR-XNOR gate based Even number of 1s detector

A 4-bit binary number 0000 applied at the inputs A, B, C and D respectively of XOR

gates 1 and 2. The output of XOR Gates 1 and 2 is 0 and 0. The output of XNOR gate 3 is a 1.

Similarly, a binary number 0011 applied at the inputs A, B, C and D respectively. The output of

XOR gate 1 with inputs 00 is 0. The output of XOR gate 2 with inputs 11 is 0. The output of

XNOR gate 3 is also a 1. Thus the output indicates that the binary number 0011 has even

number of 1's. Consider the binary number 1011 applied at the inputs A, B, C and D

respectively. The output of XOR gate 1 with inputs 10 is 1. The output of XOR gate 2 with

inputs 11 is 0. The output of XNOR gate 3 is 0 because of dissimilar inputs. Thus the output

indicates that the binary number 1011 does not have even number of 1's.

Digital Circuits and Operational Characteristics

The Logic Gates discussed provide the basic building blocks for implementing the large

digital systems. The logic gates discussed so far has been described in terms of the functions

they perform. Practical implementation of digital systems by using the logic gates in

combination requires some additional information. For example, theoretically the output of an

Inverter can be connected to the inputs of an unlimited number of AND Gates. However, the

practical limitation to the circuit shown is that the total current sourced by the Inverter is

distributed amongst the 10 AND Gates. The Inverter is not able to provide the total current

required by the ten AND gates. The current sunk by each AND gate is not enough to drive the

AND gate circuitry thus its behavior is unpredictable resulting in unpredictable behavior of the

system.

The binary 1 and 0 are represented by +5V and 0 V. What if the output of an AND Gate

is +3 V? Does this output voltage level represent a binary 1 or 0? If the output of the AND Gate

is connected to the input of an Inverter, what would be the response of the Inverter? Another

important aspect is the frequency of the input signal. Electronic circuits operate at certain

frequencies. If the frequency of the input signal increases beyond the operational specification

of the circuit, the circuit will not be able to respond fast enough resulting in unpredictable

behavior.

Digital circuits that depend upon battery for their power should consume low power to

allow the device to function for longer periods of time before replacing or recharging the

battery. Thus the digital system should be implemented keeping in view the power

requirements of the application.

CS302 - Digital Logic & Design

TTL/CMOS NOT Gate Operation

Logic Gates are implemented using transistors. These transistors are connected in

various combinations to form a switching circuit. The transistor itself is configured to work like

a switch. On the application of a bias voltage the transistor is switched on and by removing the

bias voltage the transistor is turned off. Different technologies are used to manufacture the

Logic Gates based on the transistors. The performance or the Operational characteristics of a

Logic Gate are determined by the transistors and the technologies used to implement the

switching transistors. Certain technologies allow transistor and thereby the Logic Gates to

operate at high frequencies. Other technologies allow transistors to operate with low voltages,

consuming minimal power, similarly certain other implementation technologies allow very

dense logic circuits to be manufactured.

The Inversion function of the NOT gate is performed by the switching circuit shown

in figure 6.16. The Bipolar Junction Transistor (BJT) based NOT shown on the left is switched

on when a Voltage is applied at the base of the BJT. The transistor when switched on short

circuits the VCC, the output voltage is therefore 0 volts. When the BJT base pin is connected to

0 volts, the transistor is switched off. The Vo/p is at potential VCC = 5 Volts. The actual

implementation is different.

Figure 6.16

BJT & CMOS based NOT Gate Implementation

The CMOS based implementation, shown on the right, uses a P-type and a N-type

MOSFETs. When the input is connected to +V, the P-type MOSFET is switched off and the N-

type MOSFET is switched on. The Vo/p is at ground potential. When the input is connected to

ground, the P-type and N-type MOSFETs are switched on and off respectively. The Vo/p is at

potential VDD = 5 Volts.

Integrated Circuit Technologies

The practical implementation of the Logic gates is through the Integrated Circuits (IC)

technologies. The logic gates implemented through these technologies are available to be

connected and practical implementation of a digital circuit. Different types of Integrated Circuit

technologies are used to implement the digital circuits. These technologies differ in terms of

the circuit density, power consumptions, frequency response etc.

CMOS: Complementary Metal-Oxide Semiconductor

CS302 - Digital Logic & Design

The most extensively used technology, characterized by low power consumption,

switching speed which is slower but comparable to TTL. Has higher chip density than

TTL. Due to high input impedance is easily damaged due to accumulated static charge

TTL: Transistor-Transistor Logic

Extensively used technology, characterized by fast switching speed and high power

consumption

Offers a wide variety of gates, devices, arithmetic units etc.

ECL: Emitter-Coupled Logic

Used in specialized applications where switching speed is of prime importance such as

high speed transmission, high speed memories and high speed arithmetic units.

PMOS: p-channel and NMOS: n-channel MOS transistor

PMOS and NMOS technologies are used in LSI requiring high chip density. Large

memories and microprocessors are implemented using these technologies

These ICs have very low power consumption.

E CMOS: a combination of CMOS and NMOS technologies

Used to implement Programmable Logic Devices

Types of IC Logic Gates

The most common form of logic Gate ICs are listed. To identify and use the Integrated

Circuits or ICs in implementing logic circuits, some sort of identification code has to be used

which is printed on the IC package.

Logic Gates are identified by the codes. The prefix 74 is used to identify a commercial

version of the device from the military version device identified by the prefix 54. Military

versions are designed to withstand harsh and severe environmental conditions. The XX part of

the code identifies the switching speed of the gate.

74XX00

Quad 2-input NAND Gate

74XX02

Quad 2-input NOR Gate

74XX04

Hex Inverter

74XX08

Quad 2-input AND Gate

74XX10

Triple 3-input NAND Gate

74XX11

Triple 3-input AND Gate

74XX20

Dual 4-input NAND Gate

74XX21

Dual 2-input AND Gate

74XX27

Triple 3-input NOR Gate

74XX30

Single 8-input NAND Gate

74XX32

Quad 2-input OR Gate

74XX86

Quad 2-input XOR Gate

74XX133

Single 13-input NAND Gate

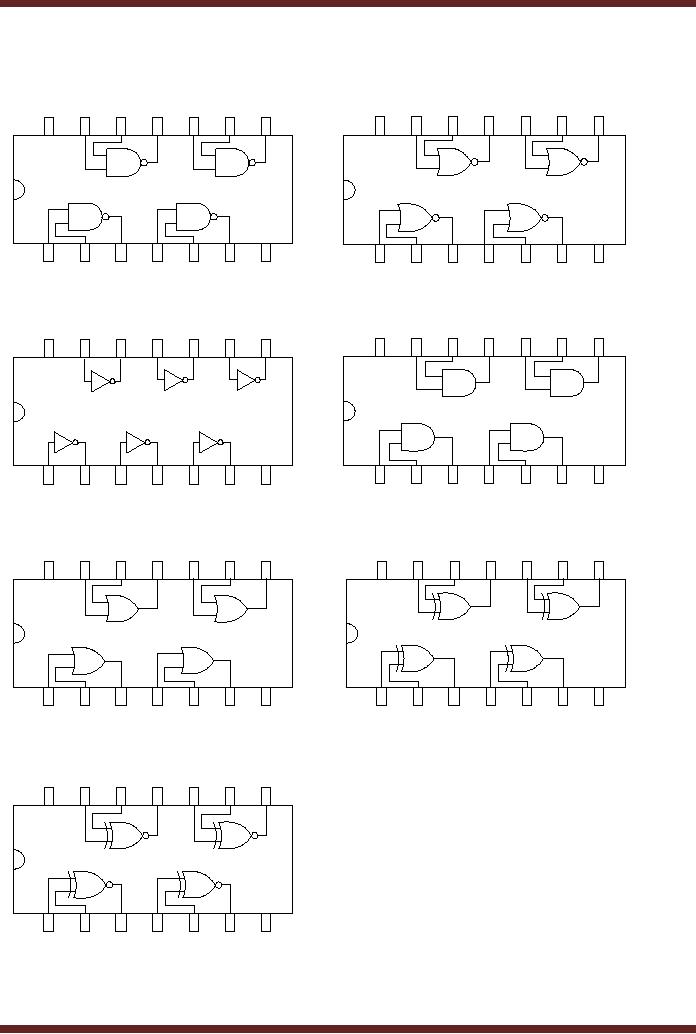

The Integrated Circuit packages of the seven gates that have been discussed so far

are shown. Figure 6.17. The 7408 14-pin chip has 4 or Quad, 2-input AND gates. The input

pins and the output pins of each of the four gates are shown. To use any one or all four gates

the appropriate pins are connected. Pins 7 and 14 are connected to ground and Supply

voltage respectively.

The 7432 14-pin IC package has 4 or Quad, 2-input OR Gates. Connections to the OR

gates are identical to those of the 7408 AND gate IC. The 7404 14-pin chip has 6 or hex,

inverters. The input and output connections of each of the 6 NOT gates are shown. Pins 7 and

14 are used for ground and supply voltage respectively.

CS302 - Digital Logic & Design

The 7400, Quad, 2-input NAND Gate IC, the 7402, Quad, 2-input NOR Gate IC, the

7486, Quad, 2-input XOR Gate IC and the 74266, Quad, 2-input XNOR Gate IC are similar.

7400

7402

Four 2-Input NAND Gate

Four 2-Input NOR Gate

7408

7404

Four 2-Input AND Gate

Hex Inverters

7432

7486

Four 2-Input OR Gate

Four 2-Input XOR Gate

74266

Four 2-Input XNOR Gate

Figure 6.17

Commonly used Integrated Circuit Logic Gates

CS302 - Digital Logic & Design

Performance Characteristics and Parameters

A number of performance characteristics and parameters determine the suitability of a

particular IC technology for a particular application. The important parameters that are

considered whilst designing Digital Logic Circuits are mentioned briefly.

· DC Supply Voltage:

o The supply voltage at which the Gate operates

· Noise Margin:

o The maximum and minimum voltages that represent binary 0 and 1 respectively. These

voltage ranges determine the suitability of a gate to work in noisy environments.

· Power Dissipation:

o Gates consume power during their operation. The power dissipation varies with the

frequency at which these gates operate.

· Frequency Response and Propagation Delay:

o Gates do not instantaneously switch to a new output state after the inputs are changed.

The delay between the input and output limits the frequency at which the inputs to a

logic gate can be changed and the logic circuit can operate.

· Fan-Out:

o The number of gates that can be connected to the output of a single gate.

Table of Contents:
