FLASH MEMORY ARRAY

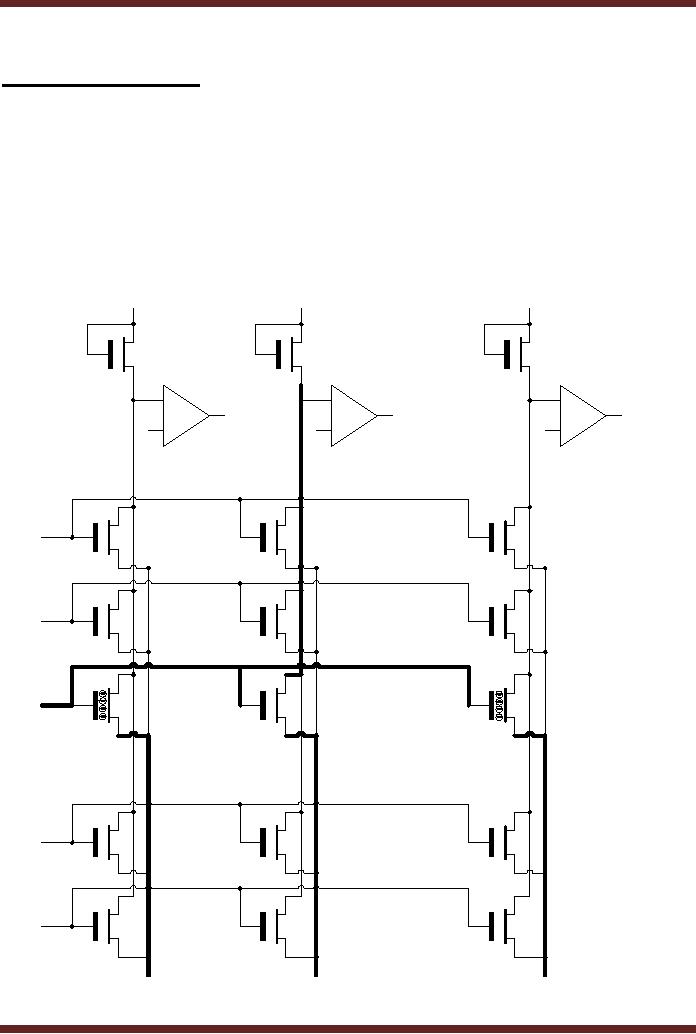

The FLASH Memory array is arranged in the form of rows and columns. The row line is

connected to the Control Gate of each MOS transistor which implements a single bit storage

cell. The number of such MOS transistors in a row generally depends upon the size of the data

value stored at each location. A byte value stored at a location requires 8 cells activated by a

single row. Only a single row is selected at a time to select the appropriate cells. The Source

terminals of all the transistors arranged in a column are connected to a column line. Similarly,

the transistors in the second column have their Source terminals connected together.

Generally, if the size of the data stored is a byte, the memory has eight column lines

connecting the Source of the corresponding transistor cells in each column together. Figure

42.1.

Active Load

Comparator

Data

Out 0

Out 1

Out 7

Logic 1

Reference

Logic 1

Logic 0

Output

Row

Select 0

Row

Select 1

Row

Select 2

Stored

Logic 0

Logic 1

Logic 0

Row

Select n-1

Row

Select n

Column

Select 0

Select 1

Select 7

Figure 42.1

FLASH Memory Array

423

CS302 - Digital Logic & Design

When a row is selected, (row 2 is shown to be selected in the figure) all the transistors

which have their Gate terminals connected to the row select line are activated. A current flows

through the selected transistor if the corresponding column select line is activated and the

transistor Gate has no charge stored. In the figure, the column select 0 line is activated

however no current flows through the selected transistor as the transistor gate has a stored

charge. The column select 1 line is activated and a current flows through the transistor in the

second column as the transistor gate has no stored charge. Similarly, no current flows through

the transistor in the last column when the column select 7 line is activated as the transistor

gate has a stored charge.

Thus no current flows through a column line if the selected cells has a charge stored

on the transistor gate. If some of the selected cells in a row have charges stored while others

do not have charges stored then current will not flow in columns corresponding to the cells

which have charges stored, while columns having current flowing through them correspond to

cells having no charge. The presence of current in a column produces a voltage drop across

an active load connected at the end of each column line, while an absence of current doesn't

produce a voltage drop across the active load. The voltage drop produced across each active

load is separately compared with a reference voltage by a comparator circuit. If there is a

voltage drop across the active load due to flow of current, the comparator output is a 0. If the

voltage drop across the active load is 0 volts due to absence of current the comparator output

is a 1. The presence or absence of current in a column line is based on the binary 1 and 0

stored in the cell. Thus the comparator output is opposite to the information stored.

Memory Summary

A summary of memory types and their characteristics are shown. Table 42.1. The

Static Ram (SRAM) is non-volatile and is not a high density memory as a latch is required to

store a single bit of information. Implementation of a latch requires almost six transistors. The

Dynamic Ram is also non-volatile however it offers high density memories as each storage cell

requires a single transistor and a capacitor. ROMs and PROMs retains information

permanently even if the supply voltage is removed. Since a single transistor is used to store a

logic 0 or 1 therefore ROMS and PROMs are high density memories. EEPROMs allow data to

be read or written however the ability to change the data without having to remove the

EEPROM chip from a circuit board requires extra logic. Thus EEPROM memories are not high

density memories.

Memory

Non-Volatile

High Density

One-Transistor

In-System

Type

Cell

Write ability

SRAM

Yes

DRAM

Yes

ROM

Yes

EPROM

Yes

EEPROM

Yes

FLASH

Yes

Table 42.1

A summary of Memory Types

Special Type of Memories

Two types of memories namely the first in-first out (FIFO) memory and last in-first out

(LIFO) are implemented using shift registers. These memories are used in specific

applications.

424

CS302 - Digital Logic & Design

First In-First Out (FIFO) Memory

Digital systems receive data or transfer data to devices that are operating at different

data rates. A Computer (microprocessor), for example, receives data from the Keyboard as a

user types in the information. The keyboard is a very slow device which generates data at a

rate of few bytes per second. The microprocessor on the other hand is very fast and can

processes information at very high data rates. Devices that operate at different data rates can

not be connected to each other directly through their data lines because the devices that

operate at very high data rates are slowed down to the data rate of the slow device. For

example, if a microprocessor is connected directly to a keyboard it would be waiting for data

from the keyboard. During the waiting period the microprocessor would not be processing any

information and would be lying idle. Practically, a microprocessor is connected to a keyboard

through a keyboard buffer which is a temporary memory where the keyboard writes its data

(the keystrokes). The microprocessor instead of waiting for the keyboard is kept busy

processing information. When ever the microprocessor needs to use the information typed

through the keyboard it accesses the keyboard buffer and reads the necessary information.

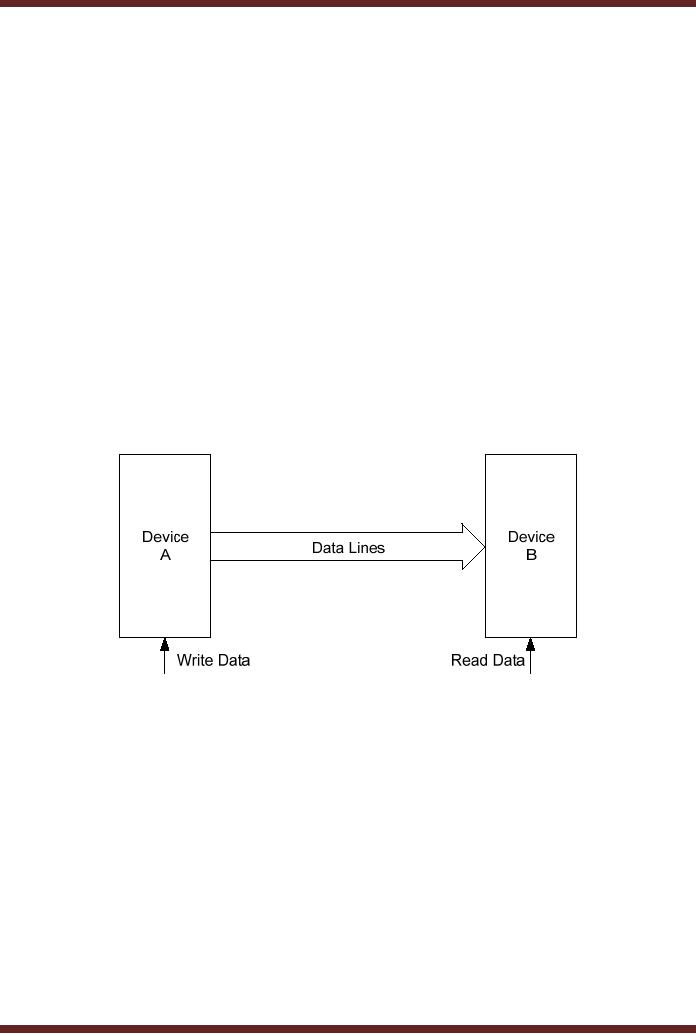

Two devices operating at the same data rates are shown to be connected directly through their

data lines. Figure 42.2a. Since, device A produces data at the same rate at which the device B

consumes the data, the two devices can be connected together through their data lines

without the use of the buffer. Device A is configured to write data to the data lines and device

B is configured to read the data from the data lines.

Figure 42.2a Devices A and B operating at same data rates

The keyboard buffer is an example of a FIFO memory. In the FIFO scheme data is not

accessed randomly from any location as in RAM and ROM memories where any location can

be accessed by specifying the location address. In the FIFO memory the data which is written

into the memory first is the first one to be read out. As mentioned above, FIFO memories are

used to connect two digital devices that produce and consume data at different rates.

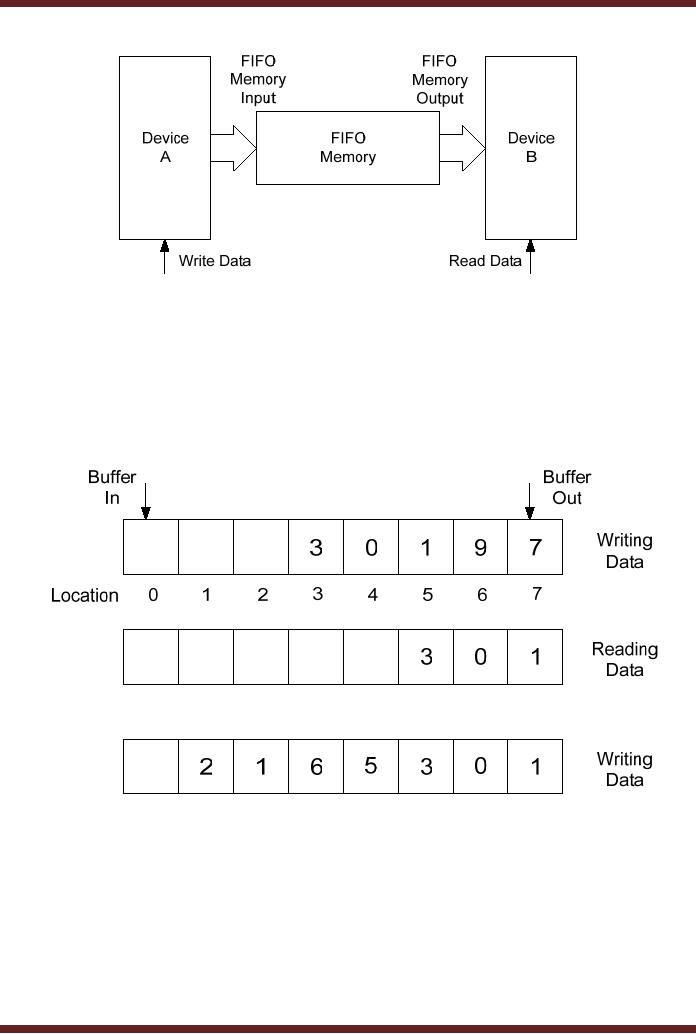

Assuming that Device A produces data at a certain rate and device B consumes the data at a

different rate. A FIFO memory is connected between the output of device A and the input of

device B, the data produced by device A is written into the FIFO memory. The device B reads

the data from the FIFO memory in the same sequence as was written by the device A. Figure

42.2b.

425

CS302 - Digital Logic & Design

Figure 42.2b FIFO Memory connecting two communicating devices

The FIFO memory is implemented using shift registers with a control circuitry that allow

the data entered at the FIFO input to be stored at the FIFO output when the FIFO memory is

empty. Addition data that is entered at the FIFO input is shifted to the appropriate location in

the FIFO memory. When the data at the FIFO output is consumed by a device, the stored data

within the FIFO memory is shifted forward so that the second data to be input into the FIFO

memory is placed at the FIFO memory output. Figure 42.2c.

Figure 42.2c Writing and Reading from FIFO Buffer

In the diagram data is produced by the device in the sequence 7, 9, 1, 0 and 3. The

data is written in the FIFO buffer maintaining the sequence in which the data values are

produced. Device B consumes the first two values 7 and 9 leaving the values 1, 0 and 3 in the

buffer. The data values in the buffer are shifted towards the head of the buffer to create space

for more data values to be written. Device A produces four new data values 5, 6, 1 and 2

which are appended into the buffer in the available empty locations.

426

CS302 - Digital Logic & Design

Figure 42.3

FIFO Implementation using four 8-bit Shift Registers

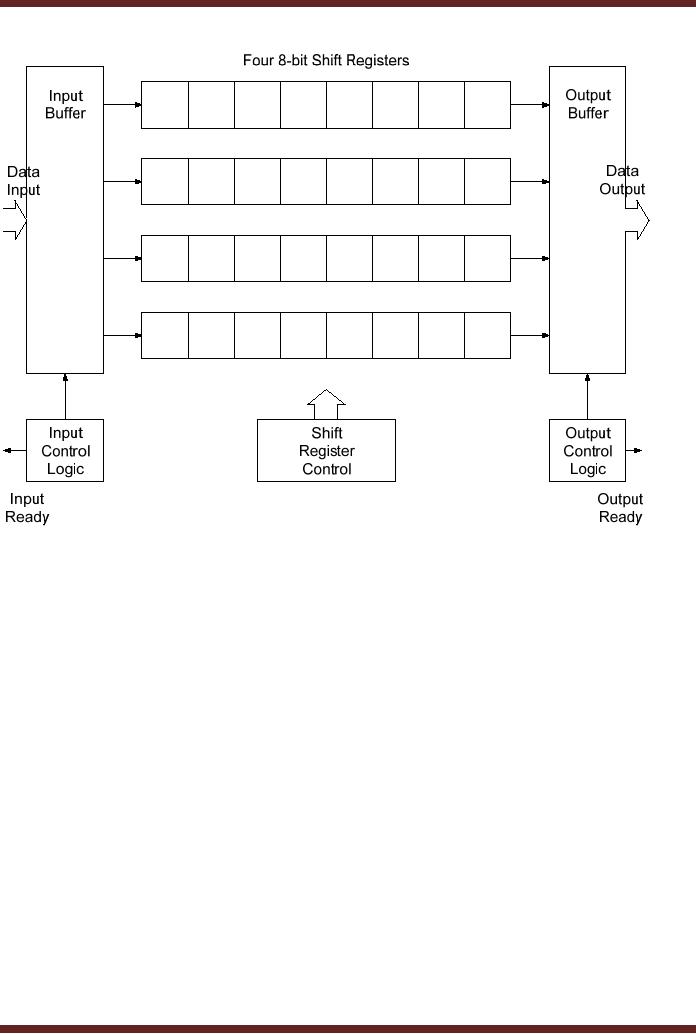

The FIFO Implementation using four, 8-bit shift registers is shown. Figure 42.3. Data

(4-bit data) to be written into the FIFO buffer is placed in the Input Buffer which is shifted to

appropriate location by the Shift Register Control circuit. When the data is stored in the FIFO

buffer at the appropriate location the Input Buffer is ready to accept more data for temporary

storage in the FIFO buffer. The Input Control Logic circuit indicates the availability of the Input

Buffer for latching new data values by activating the Input Ready control signal. The data is

read out from the FIFO buffer through the Output Buffer. Data at the Buffer Out location is

latched in by the Output Buffer from where the device can read the data. Once the data is read

the Shift Control circuitry updates the buffer by shifting the buffer contents towards the right.

The right most data value in the buffer is moved to the Output Buffer latch for reading by the

device. The Output Ready signal is activated to indicate the availability of data for reading.

Implementing FIFO memory using RAM

Shift register based FIFO memory is used in digital systems designed for specific

applications where small sized buffers are used to allow transfer of data between two devices

operating at different data rates. Such digital systems either have no RAM or very small RAM

for storing variables. Computers implement FIFO memory by reserving a part of their RAM

memory for use as buffers. The Keyboard buffer for example is implemented by reserving a

part of the RAM. When RAM is used as FIFO memory, two registers are used to point to the

FIFO Buffer Out and Buffer In respectively. The two registers hold the addresses of the

locations of the Buffer Out and Buffer In respectively, which are updated as new data is written

into the buffer and previous data is read out from the FIFO buffer. Implementation of the FIFO

buffer in RAM is usually takes the form of a circular buffer. Figure 42.4.

427

CS302 - Digital Logic & Design

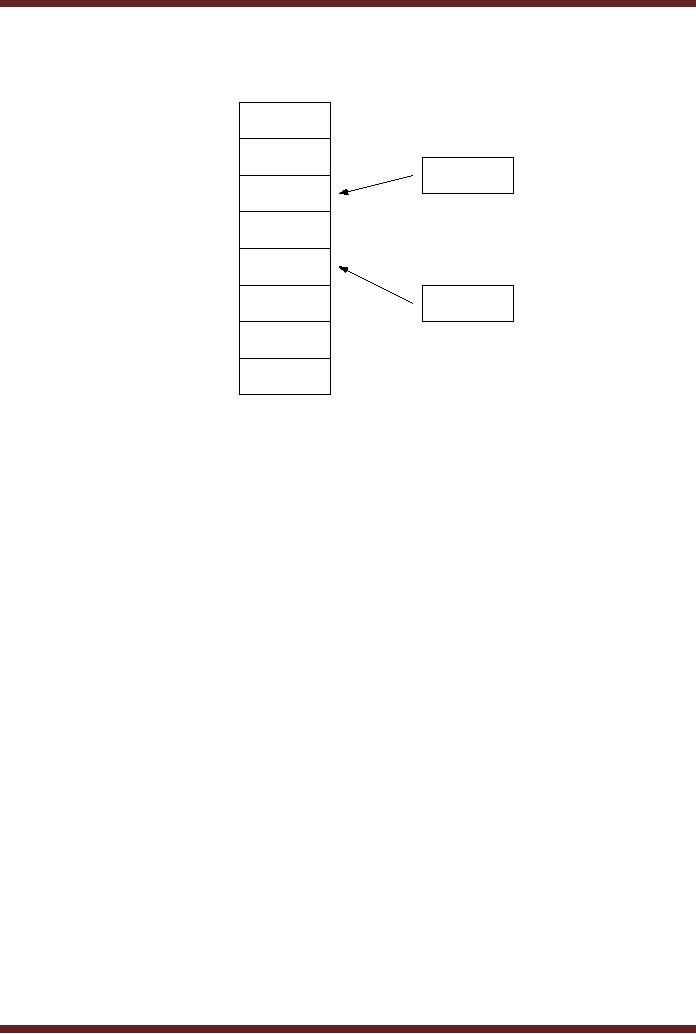

Location

Buffer Output

Address Register

Buffer Input

Address Register

Figure 42.4

Implementation of a FIFO buffer using RAM
