CS302 - Digital Logic & Design

Lesson No. 40

DECODING LARGE MEMORIES

Large memories such as the 16 KB memory have row and column decoders that split

the input address into a row address and a column address and activate a row and column

select lines respectively. The row and column select lines select a location in the memory

array. The memory is arranged in a two-dimensional manner instead of the linear address

method discussed earlier. The reason for adopting a row and column decoder to

independently but simultaneously select a location by its unique row and column number is to

speed up the decoding process. As the memories get larger the decoders that decode and

select a unique memory location also become very large with large number of gates. Due to

the increased level of gates of the decoding circuitry the delay in decoding the input address

increases, thereby slowing the memory access. A large address split into row and column

addresses and separately decoded by row and column decoders requires comparatively

smaller decoders with fewer number of gates resulting in fast decoding times and thereby

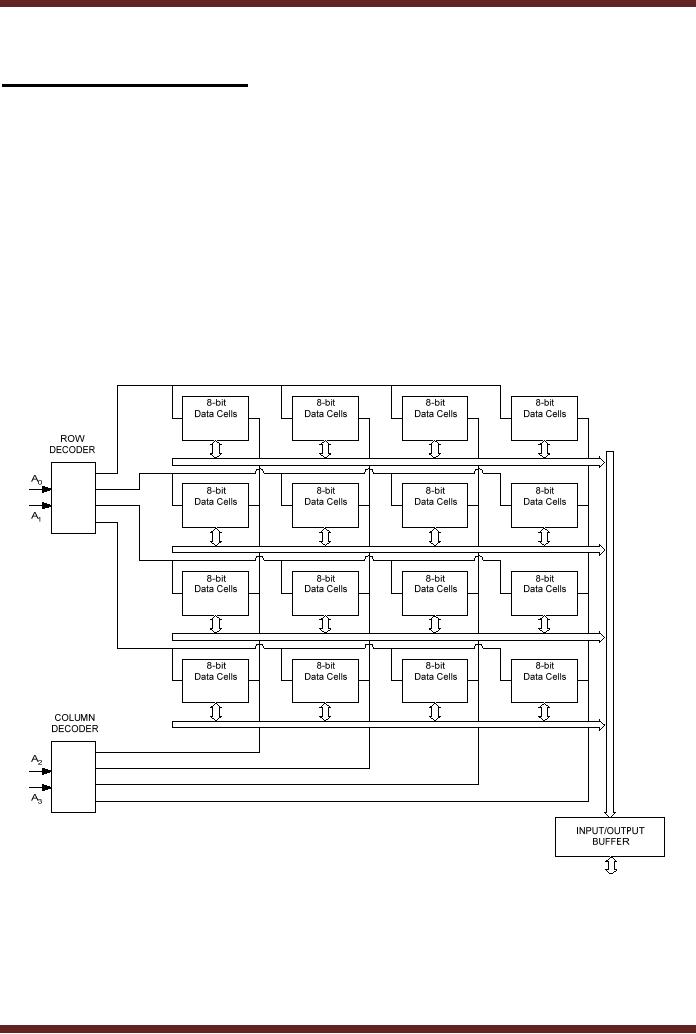

faster memory access. The block diagram of a memory using row and column decoders is

shown. Figure 40.1.

Figure 40.1

Memory array decoded by Row and Columns Decoders

Detail circuitry of the Input/Output Buffer is shown which manages the control of the

Data In and Data Out lines. Figure 40.2. When the W, write signal is active and the memory

chip is selected CS, the top AND gate is selected and the bottom AND gate is disabled. The

data applied at the Data In/Out bi-directional lines is stored in the selected latches. When the

W signal is inactive and the CS and OE signals are active the bottom AND gate is selected

403

CS302 - Digital Logic & Design

which enables the tri-state buffers connected at the end of the data out lines leading from the

latch outputs. This allows data from the selected latches to be available on the Data In/Out

lines.

Figure 40.2

Input/Output Data Circuit

The Reading and Writing of data is done by activating the various memory signals in a

proper sequence. The Memory Read Cycle controls the memory for reading of data and a

Memory Write Cycle controls the memory for writing of data.

Memory Read Cycle

The timing diagram of the read cycle is shown. Figure 40.3. To read data from the

memory, the Read Cycle is initiated by applying the address signals. The valid address needs

to be maintained stable for a specified duration tRC the read cycle time. Next, the CS and

the OE signals are activated, after a delay of tGQ, the output enable access time measured with

respect to the high-to-low transition of the OE signal, valid data appears on the data lines.

The tAQ, address access time is measured from the beginning of the valid address that

appears on the address lines to the appearance of valid data on the data lines. The time tEQ

measures the chip enable access time which is the time for the valid data to appear after the

high-to-low transition of the chip select signal CS .

Memory Write Cycle

The timing diagram of the write cycle is shown. Figure 40.4. To write data to the

memory, the Write Cycle is initiated by applying the address signals. The valid address needs

to be maintained stable for a specified duration tWC the write cycle time. Next, the CS and

the WE signals are activated. The write enable signal WE is activated after a minimum time of

ts(A) the address setup time which is measured from the beginning of the valid address. The

time for which the WE signal remains active is known as the write pulse width. After the

WE signal becomes active the data that is to be written in the memory at the addressed

location is applied at the data lines. The WE signal must remain valid after data is applied at

the data input lines and must remain valid for a minimum time duration tWD. The data must

remain valid for a time th(D), hold time after the WE signal is deactivated.

404

CS302 - Digital Logic & Design

Figure 40.3

Timing diagram of a Read Cycle

Figure 40.4

Timing diagram of a Write Cycle

Synchronous Burst SRAM

RAM chips are subdivided into Asynchronous RAM (ASRAM) and Synchronous Burst

RAM (SB SRAM).The Static memory described is an Asynchronous SRAM, the operation of

which does not depend upon the clock signal. The read and write operations are carried out

asynchronously. Synchronous SRAM uses a clock signal which is used by the microprocessor

to synchronize its activities to synchronize the read and write operations for faster operation.

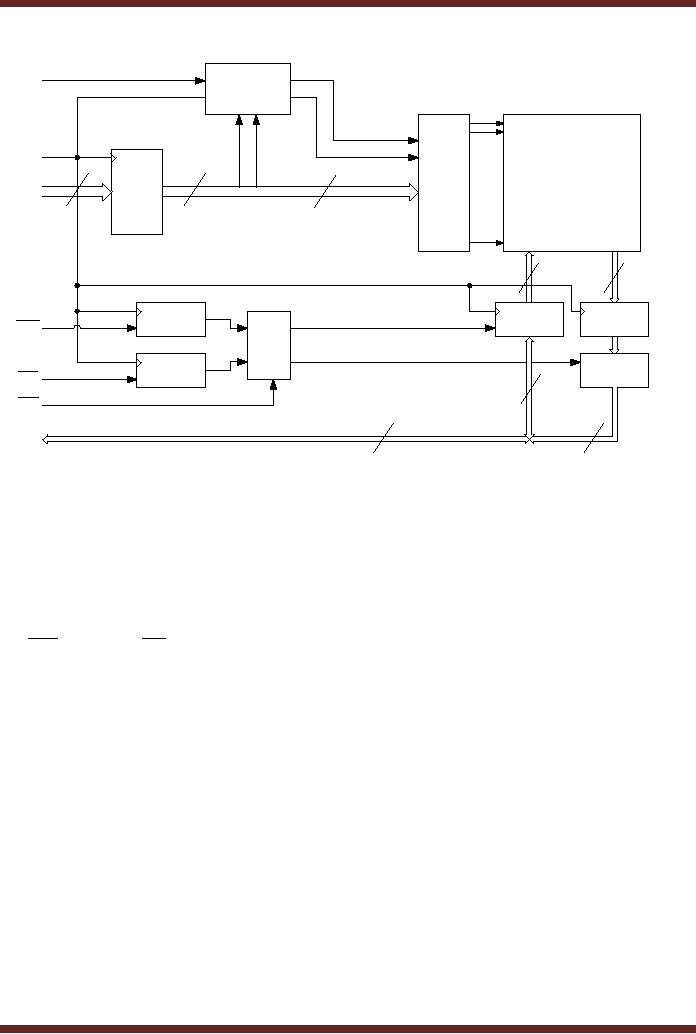

The block diagram of a Synchronous Burst SRAM is shown. Figure 40.5.

405

CS302 - Digital Logic & Design

BURST

A0'

CONTROL

Burst Logic

A1'

CLK

Address

Decoder

16K x 8

(row

Address

Memory Array

column)

A0-A13

External Address

Write

Data Input

Data Output

Data I/O

Control

Enable

Output

Buffers

I/O0-I/O7

Data Input/Output

Figure 40.5

Block diagram of a Synchronous Burst RAM

Synchronous RAM is very similar to the Asynchronous RAM, in terms of the memory

array, the address decoders, read/write and enable inputs. In the Asynchronous memory the

various input signals are asynchronous and are not tied to the clock, whereas in the

Synchronous memory all the inputs are synchronized with respect to the clock and are latched

into their various registers on an active clock pulse edge. In the diagram, the external address,

the WE and the CS external signals are latched in on a positive clock transition

simultaneously. The data that is to be written into the memory is also latched into the Data

Input Register at the same positive clock transition. For a read operation the data is latched in

the Data Output register on the positive clock transition. There are two variations of the

Synchronous SRAM, the Flow-through and the Pipelined SRAM. In the Flow-through SRAM

there is no Data Output Register so the data is asynchronously available on the data lines

during a read operation. In the Pipelined version there is a Data Output Register which latches

in the data read from the memory array.

The Synchronous SRAM also has a Burst feature which allows the Synchronous

SRAM to read or write up to four locations using a single address. When an external address

is latched in by the Address register, the lower two bits of the address are connected to the

Burst logic circuitry which internally increments the addresses at each clock transition

producing four different addresses 00, 01, 10 and 11. For example, if an external base

address of 37A0 H is stored in the Address Register, the Burst Logic circuitry produces

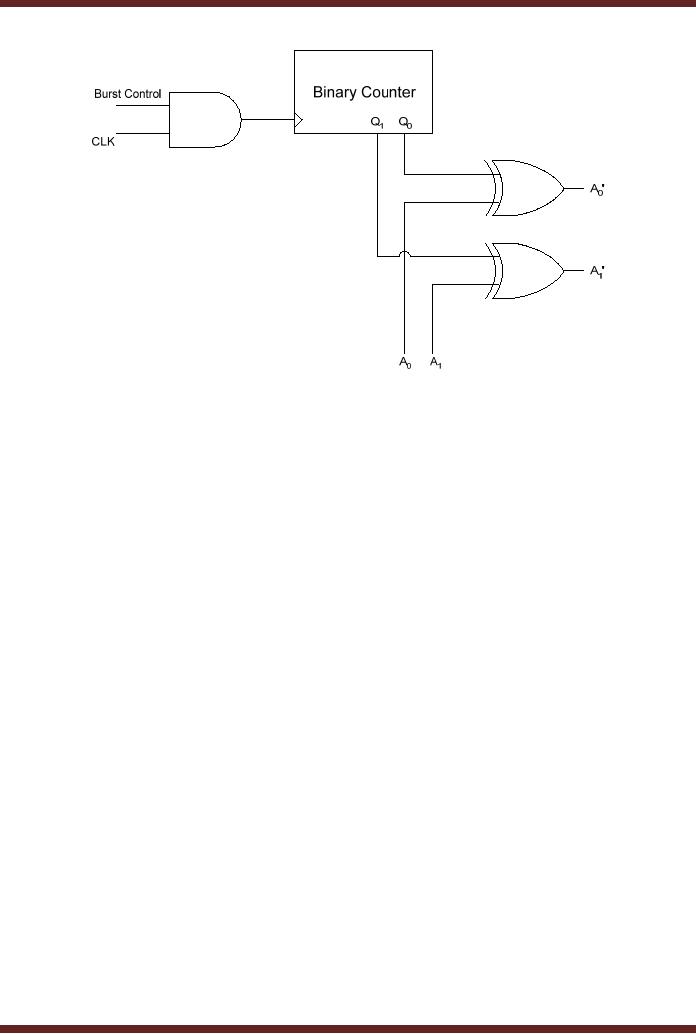

addresses 37A0, 37A1, 37A2 and 37A3. The detailed Burst Logic circuit is shown. Figure 40.6.

406

CS302 - Digital Logic & Design

Figure 40.6

Burst Logic Circuit

Dynamic RAM

A static RAM uses a latch to store a single bit of information. Four gates are used to

implement a latch. In terms of transistors, 4 to 6 transistors are required to implement a single

storage cell. In order to build memories with higher densities, a single transistor is used to

store a binary value. A single transistor can not store a binary value however it is used to

charge and discharge a capacitor. A single memory cell is thus implemented using a single

transistor and a capacitor which occupy lesser space as compared to the six transistors which

are used to implement a single Static RAM cell. Thus the density of the capacitor based

memory is significantly increased. The capacitor based memory is known as a Dynamic RAM

(DRAM). The drawback of DRAM is the discharging of the capacitor over a period of time.

Unless the capacitor is periodically recharged all the information stored in terms of binary bits

in a capacitor based memory array is lost. The extra circuitry required to refresh the capacitor

complicates the operation of the DRAM.

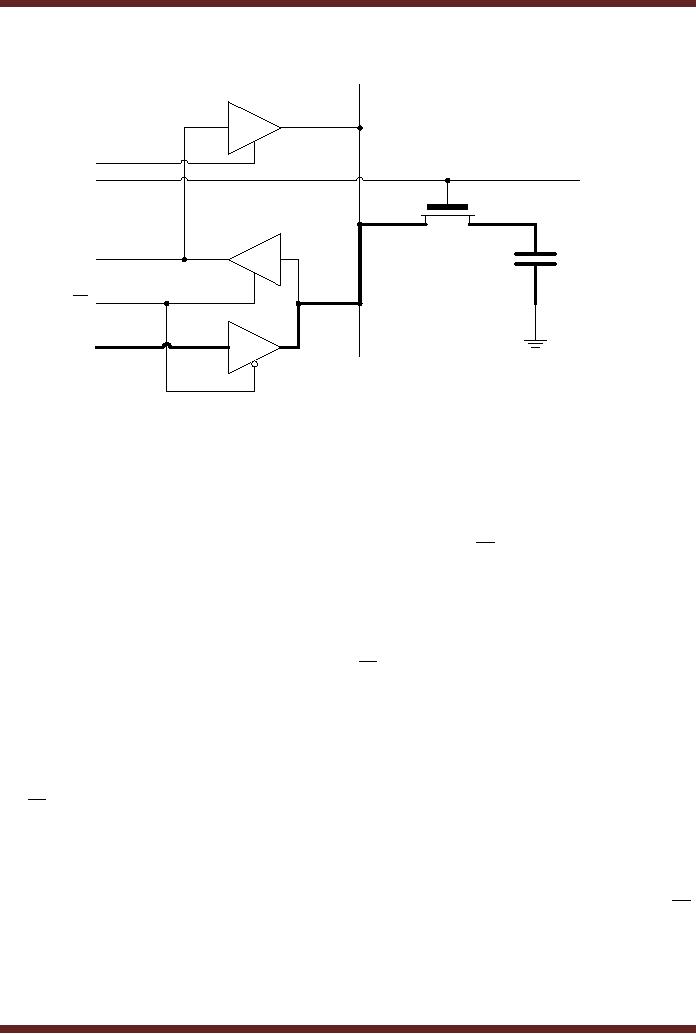

The circuit diagram of a single DRAM capacitor based memory cell is shown.

Fig

40.7a. The capacitor is connected through a MOSFET which connects or disconnects

the

column line at B to the capacitor at D. If the row is set at logic high the MOSFET connects

the

column line to the capacitor. If the row line is set to logic low the MOSFET disconnects

the

column line form the capacitor.

407

CS302 - Digital Logic & Design

Column

Refresh

Buffer

Refresh

Row

Output Buffer/

Sense Amplifier

MOSFET

Capacitor

DOUT

R/W

DIN

Bit line

Input

Buffer

Figure 40.7a Writing a 1 or 0 into the DRAM cell

A write operation allows a logic 1 or 0 to be stored in a DRAM cell (capacitor). The

appropriate cell is selected by specifying the address of the memory location which is decoded

and the row connecting the desired cell is activated. The R / W signal is set to logic low

indicating a write operation which enables the tri-state Input Buffer. The logic 1 which is to be

stored in the memory cell is applied at the DIN data line which is available at A on the column

line. The row line is selected (set to logic high) which allows the MOSFET to connect column B

to capacitor D. The capacitor is charged to logic 1 voltage level via ABD. Figure 40.7a. A Write

operation to store logic 0 in a DRAM cell is similar. The appropriate row is selected by

specifying the storage location address. The R / W signal is set to logic low which enables the

Input Buffer. The logic 0 to be stored in the DRAM cell is applied at the DIN which is stored on

the capacitor via ABD. Figure 40.7a. The thick line in the diagram indicates the data path from

DIN to the storage capacitor.

The read operation is accomplished by specifying the address of the location from

which data is to be read. The DRAM address decoder activates the appropriate row. The

R / W signal is set to logic high which enables the output buffer. The logic 1 or 0 stored on the

capacitor is available at DOUT through path DBA. Figure 40.7b.

The capacitor can not retain the charge, therefore it has to be periodically charged

through a refresh cycle. The Refresh Buffer is enabled by setting the Refresh signal to high.

The input of the Refresh Buffer is connected to the output buffer/sense amplifier. The R / W

signal is set to logic high during the Refresh cycle allowing the information stored on the

capacitor to be available at the output of the Output Buffer/Sense amplifier. The information is

feed back to the capacitor through the Refresh Buffer via path CBD. Figure 40.7c.

408

CS302 - Digital Logic & Design

Column

Refresh

Buffer

Refresh

Row

Output Buffer/

Sense Amplifier

MOSFET

Capacitor

DOUT

R/W

DIN

Bit line

Input

Buffer

Figure 40.7b Reading a 0 or 1 from the DRAM cell

R/W

Figure 40.7c Refreshing a DRAM cell

Address Multiplexing

DRAM chips use address multiplexing to reduce the number of address lines by half.

The address required to select a memory location is split into row and column addresses. To

409

CS302 - Digital Logic & Design

access a DRAM location for reading or writing of information the row address is first applied at

the address lines. The row address is latched by the Row Address Latch of the DRAM

memory chip. The column address is applied next at the same address lines. The column

address is latched by the Column Address Latch. Two signals RAS and CAS are used as

strobe signals to control the Row Address and Column Address latches respectively. The

external address lines are multiplexed as the same set of address lines are used to apply the

row address and the column address at different time instances. The outputs of the Row

Address Latch and the Column Address Latch are connected to the Row and Column

Decoders which select a single row and column line selecting the storage cell to be accessed.

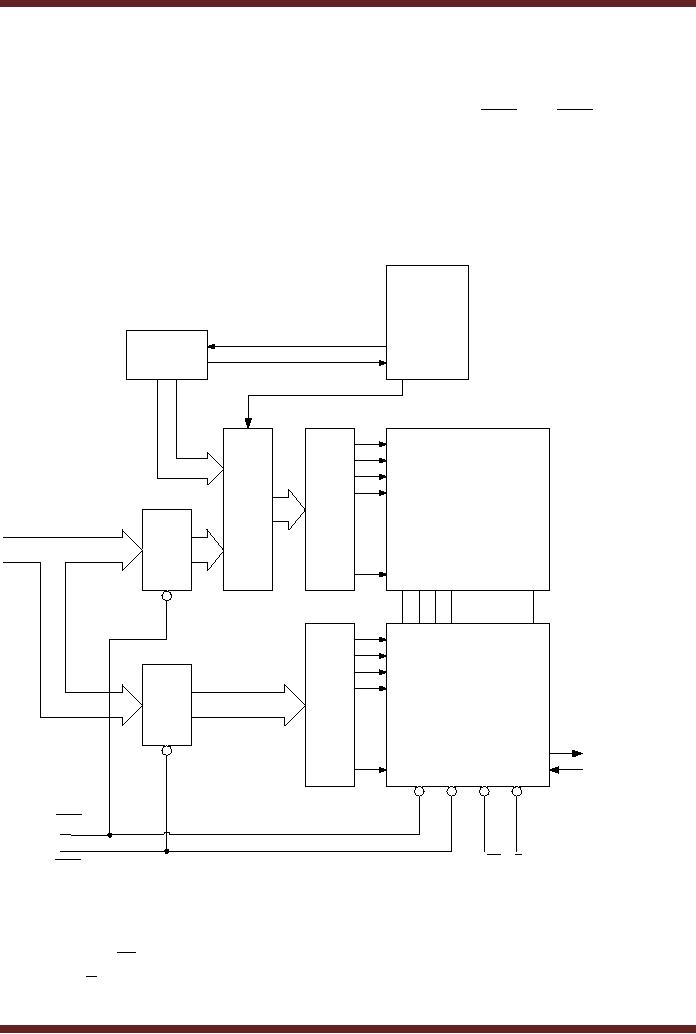

Figure 40.8

Refresh

Control

and

Refresh

Timing

Counter

Row

Decoder

Address

Memory Array

Lines

1024 rows x

A0-A9

1024 columns

Row

Address

Data

Latch

Selector

Input/Output Buffers

and

Sense Amplifiers

Column

DOUT

Address

Latch

DIN

Column

Decoder

RAS

R/W

CAS

Figure 40.8

Circuit Diagram of a 1M x 1 DRAM

The R / W signal controls the Reading and Writing of data through the DOUT and DIN

lines. The E signal enables the DRAM chip. The refresh cycle is controlled by the Refresh

Control and Timing circuit which configures the Data Selector to select row addresses

410

CS302 - Digital Logic & Design

generated by the refresh counter. During the refresh cycle all memory cells connected to the

selected row are refreshed simultaneously. Therefore, a 1M bit DRAM arranged as 1024 rows

and 1024 columns is refreshed by selecting all the 1024 rows in a sequence.
