CS302 - Digital Logic & Design

Lesson No. 37

REDUCED NUMBER OF INPUT LATCHES

The number of latches used to store the external inputs can be reduced to two if the

REQ1, FLOOR1 and OPEN button outputs (pressed when elevator is on the first floor) are

stored on one latch and the REQ2, FLOOR2 and OPEN button outputs pressed when elevator

is on the second floor) are stored on the second latch. This also simplifies the Boolean

expressions required to generate the excitation inputs for the next states. The next state table

for REQ1, FLOOR1 and OPEN inputs indicates that the REQ1 can be pressed at any time

either on the first floor or the second floor. The FLOOR1 request can also be pressed at any

time, however if the elevator is already on the first floor then requests for FLOOR1 can be

discarded. Similarly, if OPEN button is pressed when the elevator is on the first floor is

considered as a valid request. The Boolean expressions that set the latch SR1 is

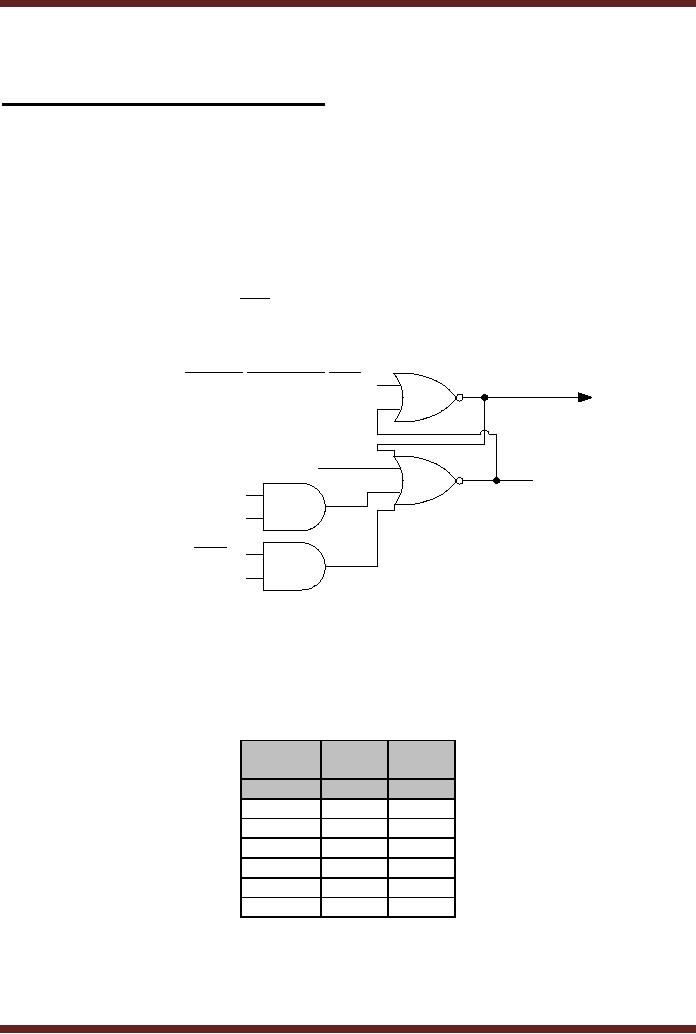

REQ1 + FLOOR1.DIR + OPEN.DIR . The circuit diagram of the SR1 latch is shown. Figure

37.1.

Re set

DOOR.MOTION.DIR

REQ1

DIR

FLOOR1

Set

DIR

OPEN

Figure 37.1 SR1 latch which stores the status of the REQ1, FLOOR1 and OPEN buttons

The DIR variable indicates the current floor. IF DIR=0, the elevator is on the first floor and if

DIR=1, the elevator is on the second floor. Similarly, the OPEN input sets the SR1 latch when

it is pressed when the elevator is on the first floor. The simplified next state table for inputs

REQ1, FLOOR1 and OPEN in terms of SR1 latch is shown. Table 37.1.

Present

State

SR1=0

SR1=1

W1(000) x

C1(100) C1

UP(110) x

W2(001) C2

C2(101) C2

DO(111) x

Table 37.1

Simplified State table for Elevator Control for REQ1, FLOOR1 and OPEN inputs

377

CS302 - Digital Logic & Design

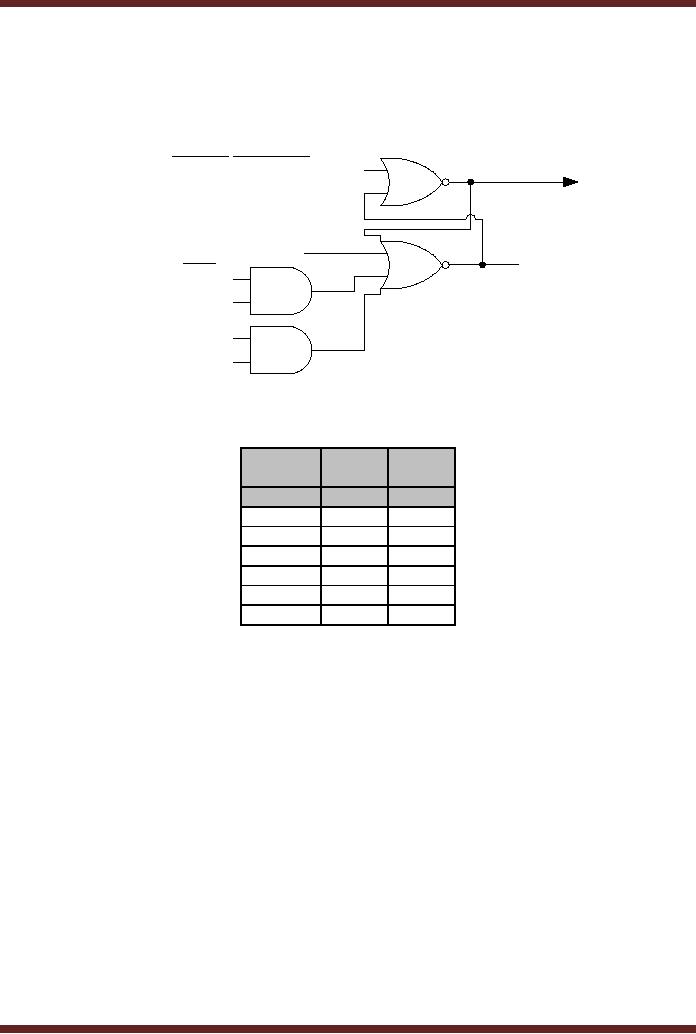

The state of inputs REQ2, FLOOR2 and OPEN can similarly be represented by

setting/resetting the second latch SR2. The circuit diagram and the Boolean expression can

similarly be represented. Figure 37.2 and Table 37.2.

Re set

DOOR.MOTION.DIR

REQ2

DIR

FLOOR2

Set

DIR

OPEN

Figure 37.2 SR2 latch which stores the status of the REQ2, FLOOR2 and OPEN buttons

Present

State

SR2=0

SR2=1

W1(000) C1

C1(100) C1

UP(110) x

W2(001) x

C2(101) C2

DO(111) x

Table 37.2

Simplified State table for Elevator Control for REQ2, FLOOR2 and OPEN inputs

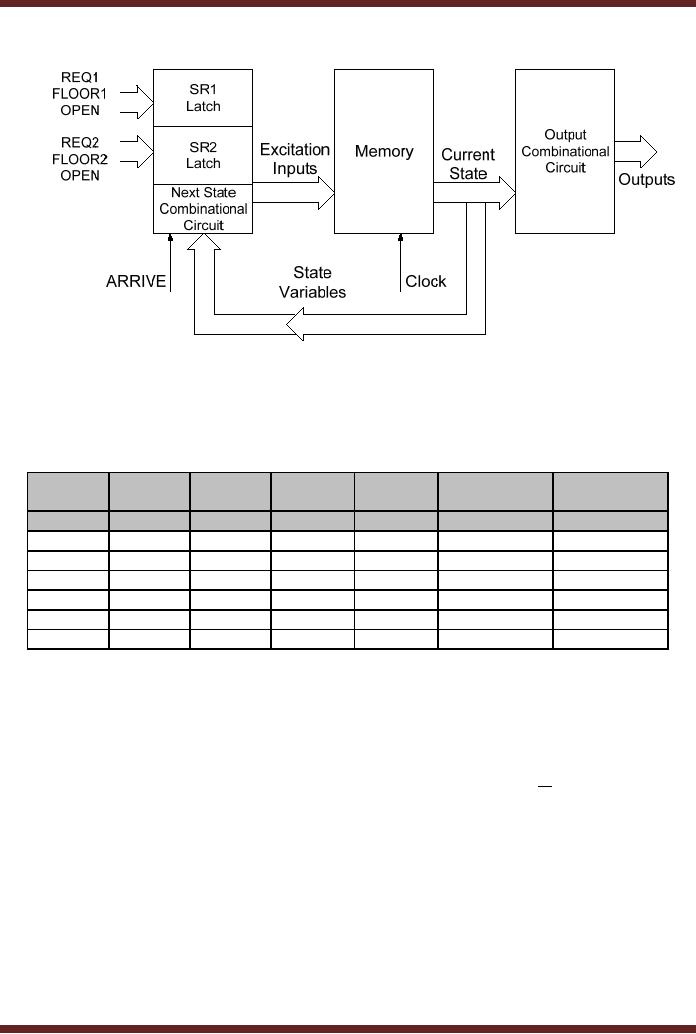

The modified Block diagram of the Elevator State Machine which uses the two SR1,

SR2 latches instead of the previously discussed five latches is shown. Figure 37.3. The Next

State Combinational Circuit block is replaced by latches SR1 and SR2 which handle the

REQ1, FLOOR1, REQ2, FLOOR2 and OPEN external inputs. The external input ARRIVE is

connected to the Next State Combinational circuit along with the Present State inputs which

determine the excitation inputs for the memory element.

378

CS302 - Digital Logic & Design

Figure 37.3 Modified Block diagram of the Elevator State Machine

The Next State Table for the Elevator State Machine based on the inputs SR1, SR2

and ARRIVAL is shown. Table 37.3. The Next State table is implemented using the two

simplified state tables, table 37.1 and table 37.2 and the ARRIVE input.

Present

Next State

State

SR1=0

SR1=1

SR2=0

SR2=1

ARRIVAL=0

ARRIVAL=1

W1(000)

C1(100)

UP(110)

C1(100)

W1(000)

C1(100)

UP(110)

W2(001)

C2(101)

DO(111)

C2(101)

DO(111)

C2(101)

W2(001)

DO(111)

W1(000)

Table 37.3

The Next State Table based on SR1, SR2 and ARRIVAL inputs

The ABEL Input file for Elevator State Machine

The main declaration and definition sections of the ABEL input file for the Elevator

State Machine are described. Table 36.4.

The SR1, SR1_, SR2, SR2_ variables are the S-R latch Q and Q outputs for latches

SR1 and SR2. These latches are implemented using the AND-OR gates of the PLD device,

there outputs are available at the output pins 16, 17, 18 and 19 of the GAL16V8 device. These

outputs are generated by combinational circuits therefore these outputs are defined as

ISTYPE `com.buffer'. These outputs are feed back to the AND gate array for connection to the

D flip-flops. The outputs from the three D flip-flops, DOOR, MOTION and DIR are declared as

ISTYPE `reg.buffer' as these three outputs are the outputs of the sequential circuit D flip-flops

in the OLMC modules. Table 36.4a.

379

CS302 - Digital Logic & Design

Pin Declaration

CLK, !OLE

1,11;

REQ1, REQ2

2,3;

FLOOR1, FLOOR2, OPEN, ARRIVE Pin

4, 5, 6, 7;

SR1, SR1_

16, 17 ISTYPE `com.buffer';

SR2, SR2_

18, 19 ISTYPE `com.buffer';

DOOR, MOTION, DIR

12, 13, 14 ISTYPE `reg.buffer';

Table 36.4a

Pin Declarations of the Elevator Input and Output signals

The operation of the Sequential state machine in the ABEL file is defined in the form of

a State diagram instead of Boolean expressions. Before defining the State Diagram, all the

states are defined. The six states can be defined using the statement WAIT1 = [0,0,0],

CLOSE1 = [1,0,0] etc. The alternate method for defining the states is by prefixing the binary

number with ^B. Table 37.4b.

State Definition

CONSTATE = [DOOR, MOTION, DIR];

WAIT1

= ^B000;

CLOSE1

= ^B100;

= ^B110;

WAIT2 = ^B001;

CLOSE2

= ^B101;

DOWN = ^B111;

Table 37.4b

State Definition of the Elevator Controller

The statements defining the State diagram for the Elevator State Machine are derived from the

State Table. Table 37.3. The State Diagram definition is defined in Table 37.4c.

State Diagram

State_diagram CONSTATE

State WAIT1:

if (SR2) then UP else CLOSE1;

State CLOSE1:

if (SR2) then UP else if SR1 then WAIT1 else CLOSE1;

State UP:

if (ARRIVE) then WAIT2 else UP;

State WAIT2:

if (SR1) then DOWN else CLOSE2;

State CLOSE2:

if (SR1) then DOWN else if SR2 then WAIT2 else CLOSE2;

State DOWN:

if (ARRIVE) then WAIT1 else DOWN;

Table 37.4c

State diagram for the Elevator Controller

The equations defining the Set and Reset input for the two latches SR1 and SR2 are defined

in the Equation Definition part of the ABEL input file. The CONSTATE.CLK = Clock is used to

indicate that the CONSTATE state variables change on a clock transition. Table 37.4d. The

`FB' indicates that the DOOR, MOTION and DIR output signals are feed back to the AND gate

array.

380

CS302 - Digital Logic & Design

Equation Definition

CONSTATE.CLK = Clock;

SR1 = REQ1 # !DIR.FB & OPEN # DIR.FB & FLOOR1 # !SR1_;

SR1_ = (!DOOR.FB & !MOTION.FB & !DIR.FB) # !SR1;

SR2 = REQ2 # !DIR.FB & OPEN # DIR.FB & FLOOR2 # !SR2_;

SR2_ = (!DOOR.FB & !MOTION.FB & DIR.FB) # !SR2;

Table 37.4d

Equations for the latches SR1 and SR2

A separate GAL16V8 is used to implement the 7-Segment floor display and the Up and

Down direction arrows. The floor display circuit is a combinational circuit which uses the

MOTION and DIR inputs two determine the floor number and the direction of the display

arrow.

Design Example: Traffic Signal Control System

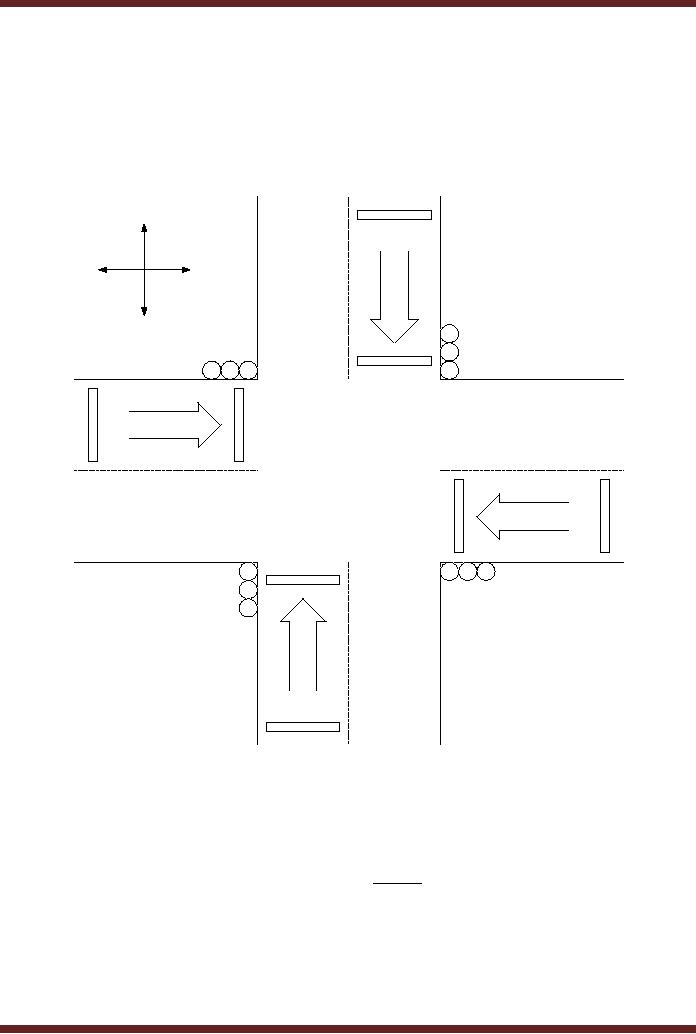

A road intersection is shown on the diagram. Figure 37.4. On each section of the road

two sensors determine the presence and arrival of vehicles. Sensor 1 is activated if a car is

waiting and Sensor 2 is activated when an arriving vehicle passes over the sensor. The

sensors installed on the North and South section of the road are connected together and

determine the presence of vehicle(s) on the North-South section of the road. The sensors

installed on the East and West section of the road are connected together and determine the

presence of vehicle(s) on the East-West section of the Road. During the day when traffic flow

is heavy at the intersection, the traffic light is cycled every 5 minutes. That is, the traffic signal

controlling the North-South section is Green for 5 minutes and then Red for 5 minutes,

Similarly, the traffic signal controlling the East-west section is Red for 5 minutes and Green for

the next 5 minutes. During the night when traffic is relatively light it stops a car for a maximum

time of 1 minute, unless a car approaches the intersection on the cross road in which case the

traffic signal turns red and stops the approaching car and allows the waiting car to proceed.

For example, a car is waiting at South approach of the intersection. A car approaching the

intersection on the cross road from the East direction is stopped and the waiting car on the

South section is allowed to proceed. The approaching car is detected by Sensor 2 installed on

the East road section. If no other cars are arriving at the intersection the waiting car on the

East approach is allowed to proceed after 1 minute.

Traffic Signal Controller Inputs and Outputs

The State Machine which controls the Traffic Signal has several inputs and outputs.

The inputs are the

· NSSR: The NSSR is activated when a car is over either of the four sensors on the North-

South section of the road

· EWSR: The EWSR is activated when a car is over either of the four sensors on the East-

West section of the road

A Timer is used to count the 5 minute and 1 minute traffic signal cycle during the day and

night. Two signals LTIME and STIME provide the timing inputs to the State Machine.

· LTIME:

The LTIME signal is activated if 5 minutes have elapsed; the signal remains

active unless the timer is reset.

· STIME:

The STIME signal is activated if 1 minute has elapsed; the signal remains

active unless the timer is reset.

The outputs of the State Machine are

· NSGrn:

The Green signal controlling the traffic on the North-South section

· NSYel:

The Yellow signal controlling the traffic on the North-South section

381

CS302 - Digital Logic & Design

NSRed: The Red signal controlling the traffic on the North-South section

EWGrn: The Green signal controlling the traffic on the East-West section

EWYel:

The Yellow signal controlling the traffic on the East-West section

EWRed: The Red signal controlling the traffic on the East-West section

TMRST: The Reset signal which resets the timer after the LTIME or the STIME signals

are activated to indicate a time interval of 5 and 1 minutes respectively.

North

West

East

South

G Y R

Sensor 1

RYG

Traffic Signal

Sensor 2

Figure 37.4 The Traffic signals and sensors at a Traffic Intersection

Assuming that the initial state is the NSG (North-South Green) State, during the day time the

LTIME timer output is available as an input signal to the State Machine. As long as LTIME is

inactive the State Machine remains in its current state NSG, otherwise it switches to the next

state NSY (North-South Yellow). During the night time the STIME timer output is available as

an input signal to the State machine. If the STIME is inactive the State Machine remains in its

current state NSG, otherwise it switches to the NSY state. If a car arrives at the East-West

cross road it is made to stop, that is when EWSR.NSSR , the state NSG remains unchanged.

If cars arrive on both the NS and EW sections, both the cars have to be stopped and the state

changes to NSY. If a car arrives at the NS section it has to be stopped therefore the state

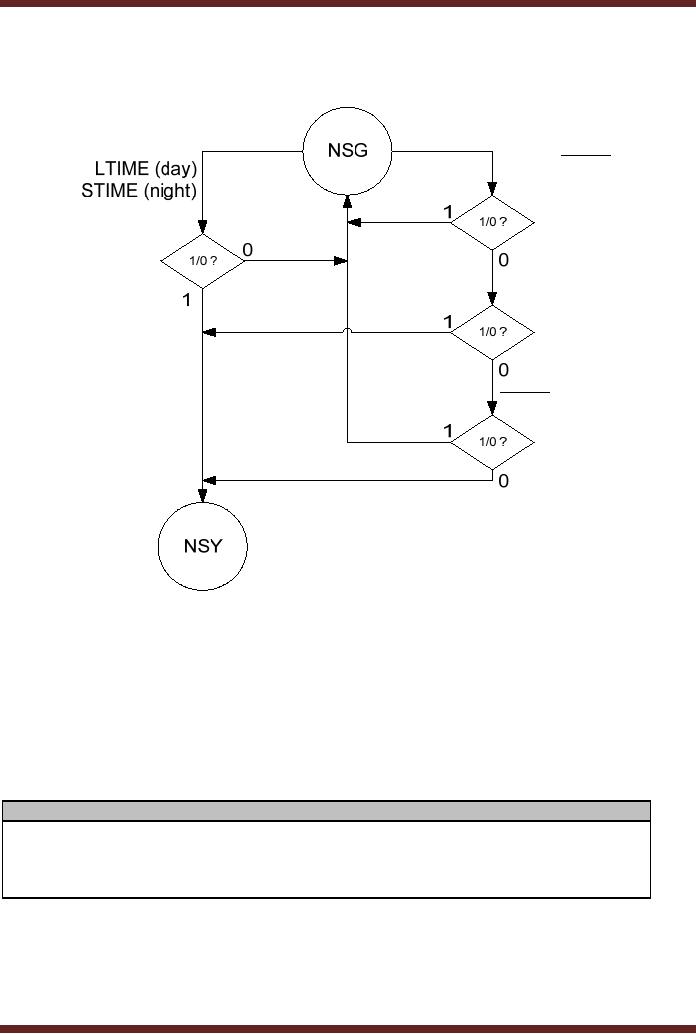

changes to NSY. The information is represented by a flowchart. Figure 37.5

382

CS302 - Digital Logic & Design

The State Machine can be implemented using a GAL16V8 device. The declaration and

definition parts of the ABEL input file for the Traffic Light Controller are described in tables.

Table 37.5

EWSR.NSSR

NSSR

Figure 37.5

Flow chart of conditions which switch the state from NSG to NSY

The pin declaration defines the pins for the CLOCK, NSSR, EWSR, LTIME and STIME

inputs to the Traffic Light Controller and the pins for the Q0, Q1, Q2 State variable outputs and

the Timer reset TMRST outputs. The state variable outputs are available from the D flip-flops

of the OLMC modules and are available in the inverted form, therefore they are defined of type

`reg.invert'. The TMRST signal is an active low signal which resets the counter when the

Controller switches to certain states. The TMRST is an active low signal and is based on a

combinational circuit therefore its is defined of type `com.invert'. Table 37.5a

Pin Declaration

CLOCK, !OLE

pin 1, 11;

NSSR, EWSR, LTIME, STIME

pin 2, 3, 8, 9;

Q0, Q1, Q2

pin 17, 16, 15 ISTYPE `reg.invert';

TMRST

pin 14 ISTYPE `com.invert';

Table 37.5a

Pin Declarations for the Input and Output pins to the Controller circuit

383

CS302 - Digital Logic & Design

Definitions

TRSTATE = [Q2, Q1, Q0];

NSG

= [ 0 , 0, 0];

NSY

= [ 0, 0, 1];

NSY2

= [ 0, 1, 1];

NSR

= [ 0, 1, 0];

EWG

= [ 1, 1, 0];

EWY

= [ 1, 1, 1];

EWY2

= [ 1, 0, 1];

EWR

= [ 1, 0, 0];

Table 37.5b

State definitions for the Traffic Light Controller

State Diagram TRSTATE

State NSG:

if (!STIME) then NSG

else if (LTIME) then NSY

else if (EWSR & !NSSR) then NSG

else if (EWSR & NSSR) then NSY

else if (!NSSR) then NSG

else NSY;

State NSY:

goto NSY2;

State NSY2:

goto NSR;

State NSR:

goto EWG;

State EWG:

if (!STIME) then EWG

else if (LTIME) then EWY

else if (NSSR & !EWSR) then EWG

else if (EWSR & NSSR) then EWY

else if (!EWSR) then EWG

else EWY;

State EWY:

goto EWY2;

State EWY2:

goto EWR;

State EWR:

goto NSG;

Table 37.5c

State Diagram for the Traffic Light Controller

The Controller operation is defined by using a State Diagram. Before defining the State

Diagram the States have to be defined. The Traffic Light Controller has eight states. Each

State is defined using three state variables. The state assignment used restricts the bit

changes when switching from one state to the next to a single bit. Table 37.5b.

The ABEL State Diagram statements define each state and the transition to the next

state. The transition from the present state NSG to the next state NSG or NSY depending

upon the external inputs is defined in State Diagram statements. Table 37.5c.

384

Table of Contents:
