CS302 - Digital Logic & Design

Lesson No. 23

APPLICATION OF S-R LATCH

Digital systems use switches to input values and to control the output. For example, a

keypad uses 10 switches to enter decimal numbers 0 to 9. When a switch is closed the switch

contacts physically vibrate or `bounce' before making a solid contact. The switch bounce

causes the voltage at the output of the switch to vary between logic low and high for a very

short duration before it settles to a steady state. Figure 23.1a. The variation in the voltage

causes the digital circuit to operate in an erratic manner. An S-R latch connected between the

switch and the digital circuit prevents the varying switch output from reaching the digital circuit.

Figure 23.1b.

In the figure 23.1a when the switch is moved up to connect the resistor to the ground,

the output voltage fluctuates between logic 1 and 0 for a very brief period of time when the

switch vibrates before making a solid contact. The output voltage settles to logic 0 when a

solid contact is made. The active-low input S-R latch shown in figure 23.1b prevents the output

signal from varying between logic 1 and 0. When the switch is moved from down position to up

position, the R input is set to 1 and S input is set to 0, which sets the Q output of the S-R latch

to 1. The S input varies between 0 and 1 due to switch `bounce', however the S-R latch

doesn't change its output state Q when S = 1 and R = 1.

Figure 23.1a The output of a switch connected to Logic High

+5 v

Output

Active-low

Input

S-R

Latch

+5 v

Figure 23.1b The switch connected through an S-R latch

224

CS302 - Digital Logic & Design

Figure 23.1c The switch connected through an S-R latch

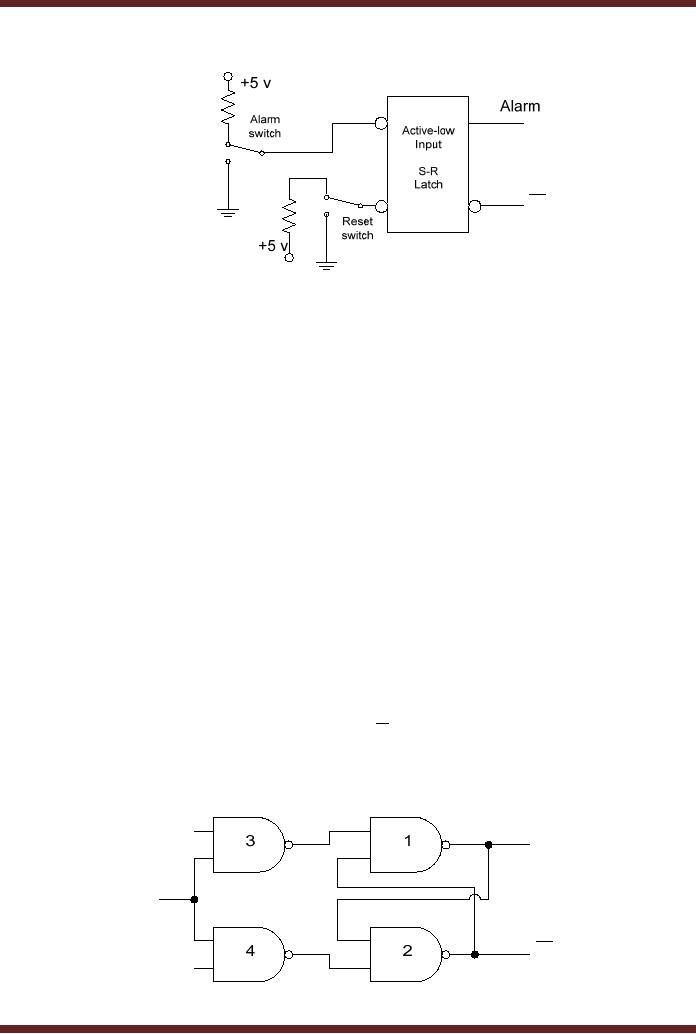

The circuit diagram in figure 23.1c shows a burglar alarm circuit. The alarm switch is

connected to logic high connecting the S input to logic high. The alarm is activated by setting

the reset switch to ground connecting the R input to 0 volts. This sets the Q output of the latch

to 0. The switch is reset to logic high. When an intruder opens a door the alarm switch is

connected to ground or logic 0. The set input is set to logic 0, setting the Q output to logic 1

and activating the alarm. If the door is closed the alarm switch is reconnected to logic 1,

however the Q output is maintained at logic 1 and the alarm continues to sound as S=1 and

R=1 which maintains the output. The alarm can only be disabled by reconnecting the reset

switch to ground.

The S-R NAND gate based latch is available in the form of an Integrated Circuit. The

74LS279 IC has four S-R latches which can be used independently.

The Gated S-R Latch

The gated S-R latch has an enable input which has to be activated to operate the latch.

The circuit diagram of the gated S-R latch is shown. Figure 23.2. In the gated S-R circuit, the S

and R inputs are applied at the inputs of the NAND gates 1 and 2 when the enable input is set

to active-high. If the enable input is disabled by setting it to logic low the output of NAND gates

3 and 4 remains logic 1, what ever the state of S and R inputs. Thus logic 1 applied at the

inputs of NAND gates 1 and 2 keeps the Q and Q outputs to the previous state. The logic

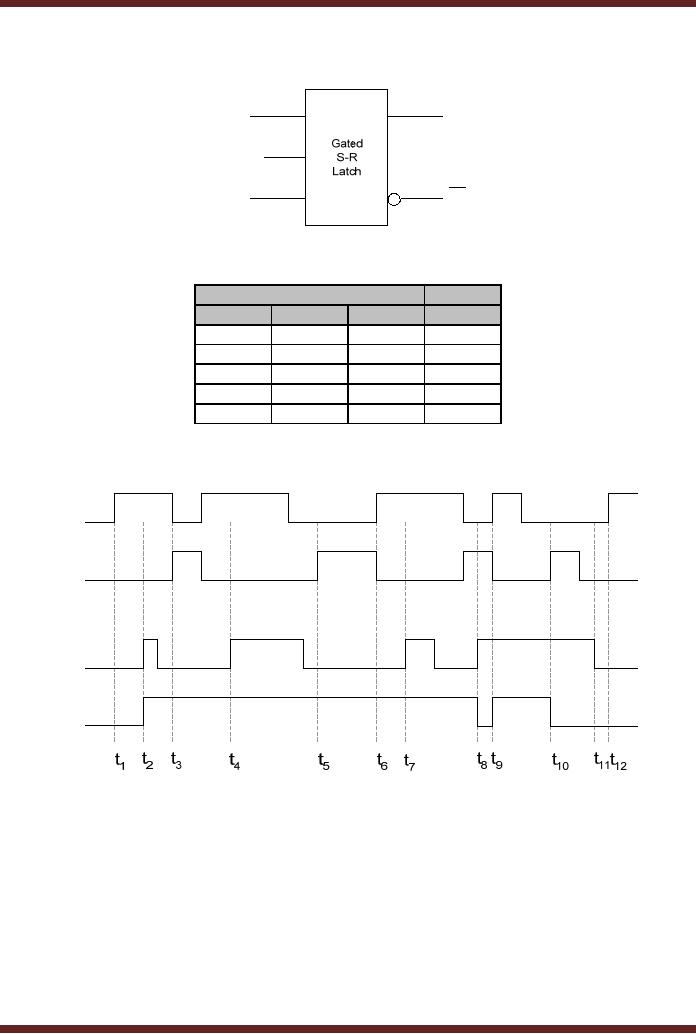

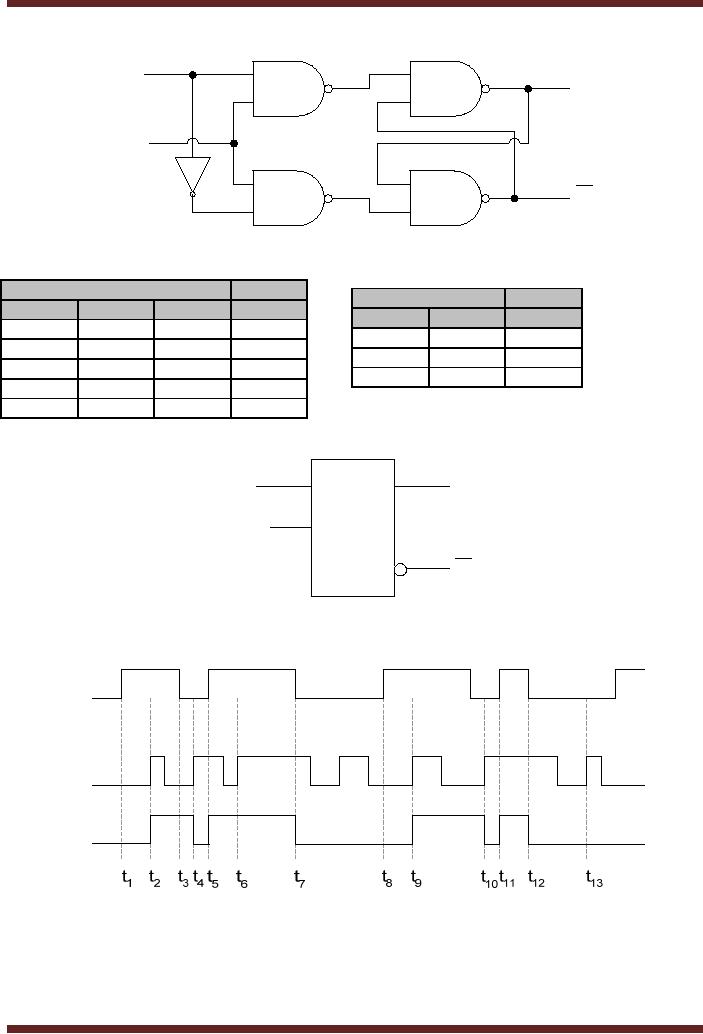

symbol of a gated S-R latch is shown in figure 23.3. The Truth Table of the gated S-R latch is

shown in table 23.1. The timing diagram showing the operation of the gated S-R latch is

shown in figure 23.4

Figure 23.2

Gated S-R Latch

225

CS302 - Digital Logic & Design

Figure 23.3

Logic Symbol of a Gated S-R Latch

Input

Output

Qt+1

invalid

Table 23.1

Truth-Table of a gated S-R Latch

Figure 23.4

Timing diagram of a gated S-R latch

The Gated D Latch

If the S and R inputs of the gated S-R latch are connected together using a NOT gate

then there is only a single input to the latch. The input is represented by D instead of S or R.

Figure 23.5. The gated D-latch can either have D set to 0 or 1, thus the four input

combinations applied at the S-R inputs of an S-R latch reduce to only two input combinations.

Table 23.2. The logic symbol of a gated D-latch is shown in figure 23.6. The timing diagram of

the operation of a D-latch is shown in figure 23.7. The Q output of the D latch is seen to be

following the D input.

226

CS302 - Digital Logic & Design

Figure 23.5

Gated D Latch

Input

Output

Input

Output

S (D)

Qt+1

Invalid

Table 23.2

Truth-Table of a gated D Latch

Gated

Latch

Figure 23.6

Logic Symbol of a Gated D Latch

Figure 23.7

Timing diagram of a gated D latch

Application of Gated D Latch

The D latch is available in the form of an Integrated Circuit. The 74LS75 has four D

latches which can be used independently. The gated D latch can be used to store binary

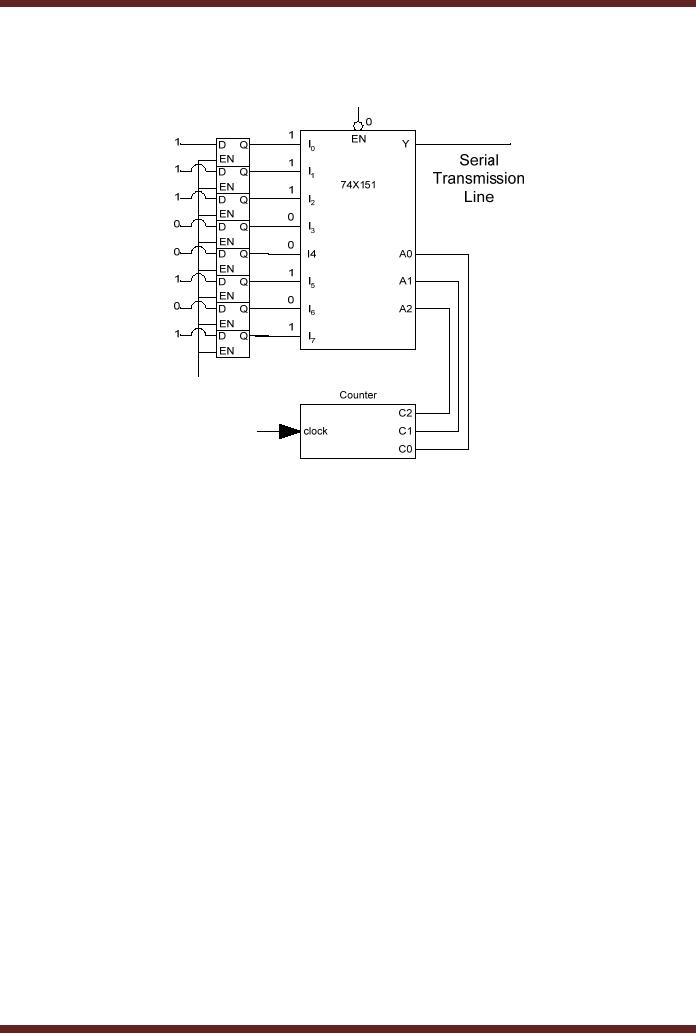

information. The circuit shown in figure 23.8 uses the gated D-latches connected at the input

227

CS302 - Digital Logic & Design

of 1-of-8 multiplexer to store a byte value (parallel). The multiplexer accesses each bit value

stored in the D-latch and routes it to the output. Thus the 8-bit (byte) parallel data is converted

into serial data.

Figure 23.8

Gated D-latch used to store parallel data

Edge-Triggered Flip-Flop

Flip-Flops are synchronous bi-stable devices, known as bi-stable multivibrators. Flip-

flops have a clock input instead of a simple enable input as discussed earlier. The output of

the flip-flop can only change when appropriate inputs are applied at the S and R inputs and a

clock signal is applied at the clock input. Flip-flops with enable inputs can change their state at

any instant when the enable input is active. Digital circuits that change their outputs when the

enable input is active are difficult to design and debug as different parts of the digital circuit

operate at different times.

In Synchronous systems, the output of all the digital circuits changes when a clock

signal is applied instead of the enable signal. The change in the state of the digital circuit

occurs either at the low-to-high or high-to-low transition of the clock signal. Since the transition

of the clock signal is for a very short a precise time intervals thus all digital parts of a Digital

system change their states simultaneously. The low to high or high to low transition of the

clock is considered to be an edge. Three different types of edge-triggered flip-flops are

generally used in digital logic circuits.

S-R edge-triggered flip-flop

D edge-triggered flip-flop

J-K edge-triggered flip-flop

Each flip-flop has two variations, that is, it is either positive edge-triggered or negative edge

triggered. A positive edge-triggered flip-flop changes its state on a low-to-high transition of the

clock and a negative edge-triggered flip-flop changes its state on a high-to-low transition of the

clock. The edge-detection circuit which allows a flip-flop to change its state on either the

positive or the negative transition of the clock is implemented using a simple combinational

228

CS302 - Digital Logic & Design

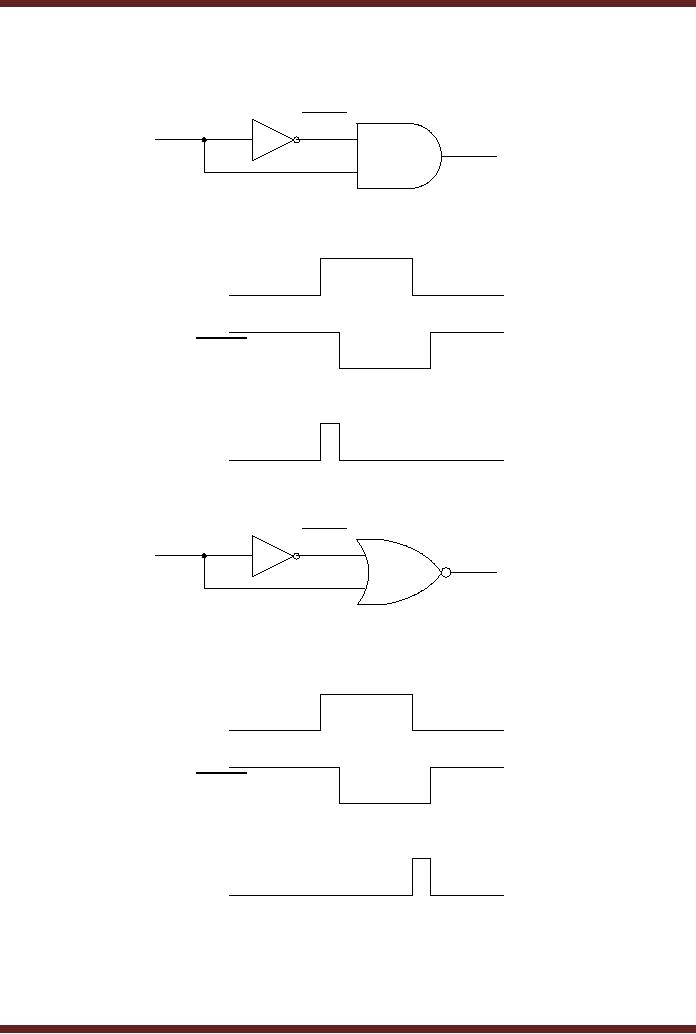

circuit. The edge detection circuit that detects the positive and the negative clock transition are

shown in figure 23.9.

CLK

CLK PULSE

Figure 23.9a Positive clock edge detection circuit

CLK

CLK PULSE

Figure 23.9b Timing diagram of the Positive clock edge detection circuit

CLK

CLK PULSE

Figure 23.9c Negative clock edge detection circuit

CLK

CLK PULSE

Figure 23.9d Timing diagram of the Negative clock edge detection circuit

Edge-Triggered S-R Flip-flop

229

CS302 - Digital Logic & Design

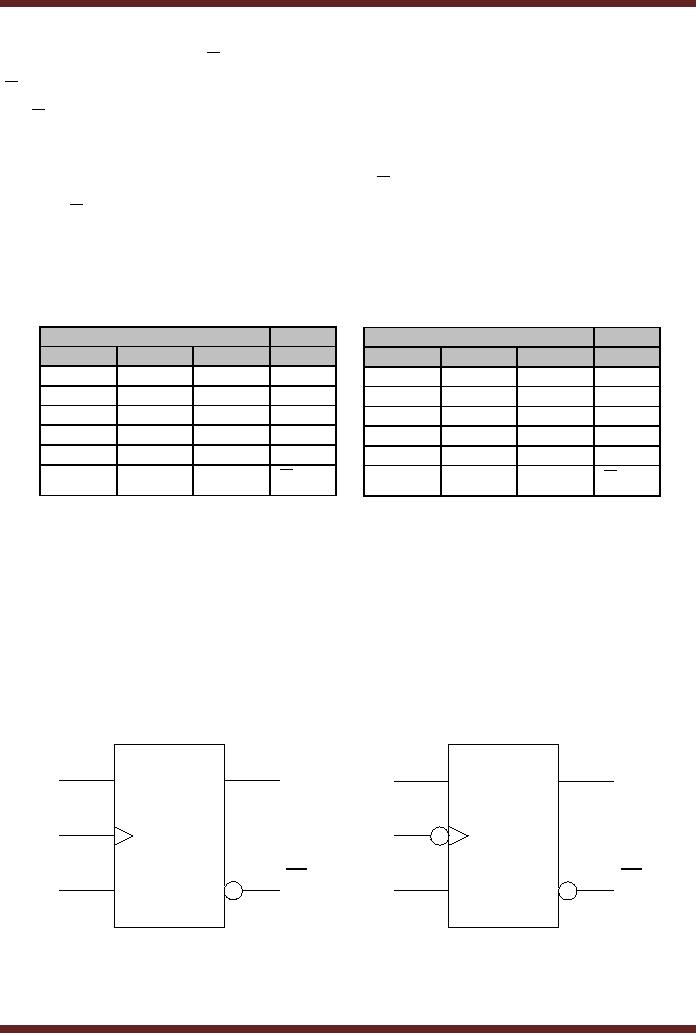

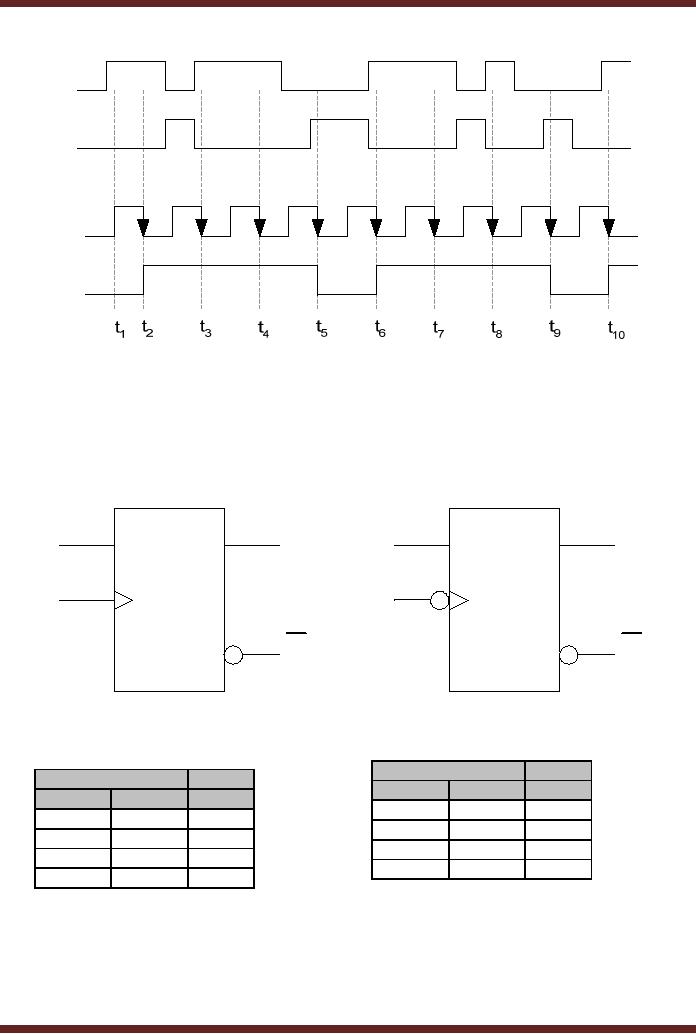

The Logic symbols of a positive edge and a negative edge triggered S-R flip-flops are

shown in figure 23.10. The truth table of the two S-R flip-flops are shown. Table 23.3. The

timing diagrams of the two S-R flip-flops are shown in figure 23.11.

S-R

CLK

Flip-Flop

Figure 23.10 Logic Symbol of Positive and Negative edge triggered S-R flip-flops

Input

Output

Input

Output

CLK

Qt+1

CLK

Qt+1

↓

↑

↓

↑

↓

↑

↓

invalid

↑

invalid

Table 23.3

Truth-Table of Positive and Negative Edge triggered S-R flip-flops

CLK

Figure 23.11a Timing diagram of a Positive Edge triggered S-R flip-flop

230

CS302 - Digital Logic & Design

CLK

Figure 23.11b Timing diagram of a Negative Edge triggered S-R flip-flop

Edge-Triggered D Flip-flop

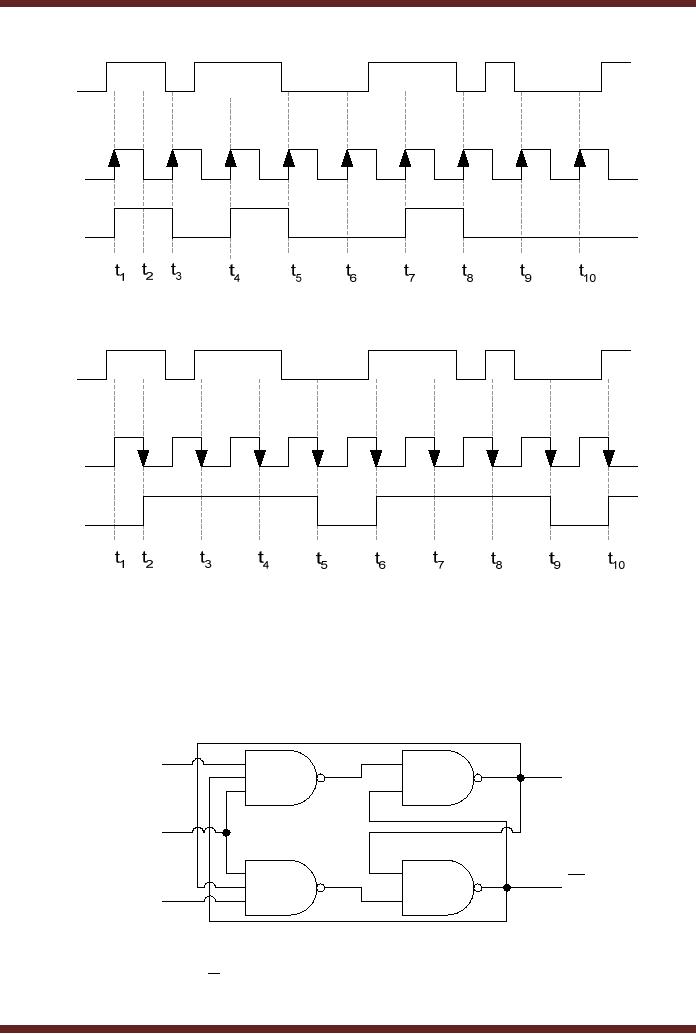

The Logic symbols of a positive edge and a negative edge triggered D flip-flops are

shown in figure 23.12. The truth table of the two D flip-flops are shown. Table 23.4. The timing

diagrams of the two D flip-flops are shown in figure 23.13.

CLK

Flip-Flop

Figure 23.12 Logic Symbol of Positive and Negative edge triggered D flip-flops

Input

Output

Input

Output

CLK

Qt+1

CLK

Qt+1

↓

↑

↓

↑

Table 23.4

Truth-Table of Positive and Negative Edge triggered D flip-flops

231

CS302 - Digital Logic & Design

CLK

Figure 23.13a Timing diagram of a Positive Edge triggered D flip-flop

CLK

Figure 23.13b Timing diagram of a Negative Edge triggered D flip-flop

Edge-Triggered J-K Flip-flop

The J-K flip-flop is widely used in digital circuits. Its operation is similar to that of the S-

R flip-flop except that the J-K flip-flop doesn't have an invalid state, instead it toggles its state.

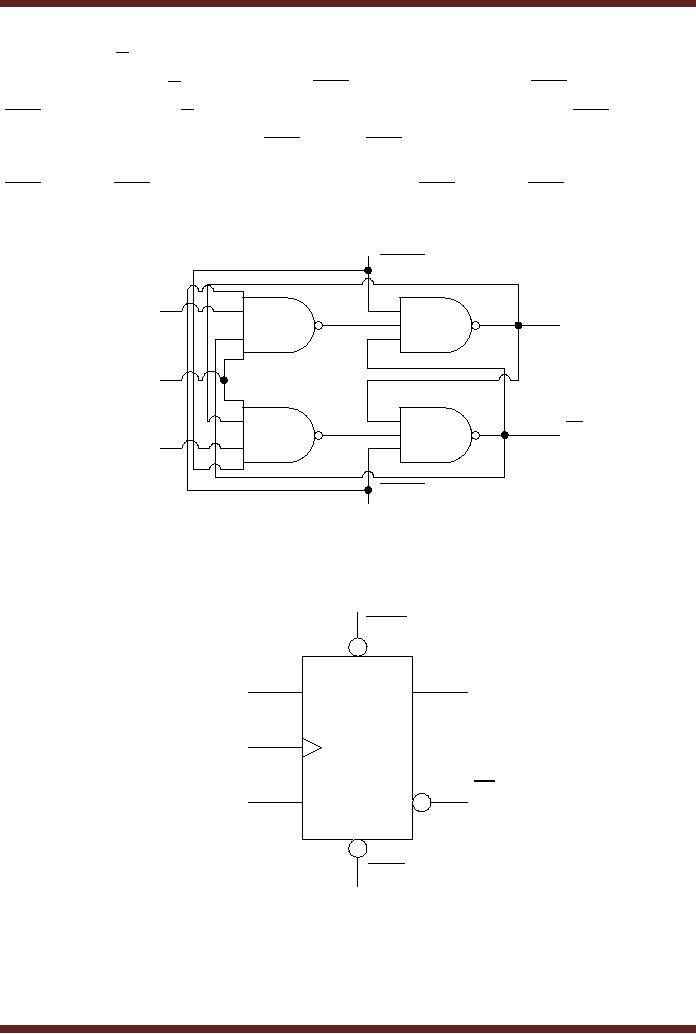

The circuit diagram of a J-K edge-triggered flip-flop is shown in figure 23.14

CLK

Figure 23.14 Edge-triggered J-K flip-flop

Consider the Q and Q output of the J-K flip-flop set to 1 and 0 respectively and 0 and 1

respectively. Four set of inputs are applied at J and K, the effect on the outputs is as follows.

232

CS302 - Digital Logic & Design

J = 0 and K =0

With Q=1 and Q =0, on a clock transition the outputs of NAND gates 3 and 4 are set to

logic 1. With logic 1 value at the inputs of NAND gates 1 and 2 the output Q and Q remains

unchanged. With Q=0 and Q =1, on a clock transition the outputs of the NAND gates 3 and 4

are set to logic 1. With logic 1 value at the inputs of NAND gates 1 and 2 the output Q and Q

remains unchanged.

Thus when J=0 and K=0 the previous state is maintained and there is no change in the

output.

J = 0 and K =1

With Q=1 and Q =0, on a clock transition the output of NAND gate 3 is set to logic 1.

The output of the NAND gate 4 is set to 0 as all three of its inputs are at logic 1. The logic 1

and 0 at the inputs of the NAND gates 3 and 4 respectively resets the Q output to 0 and Q to

1. With Q=0 and Q =1, on a clock transition the output of NAND gate 3 is set to logic 1. The

output of the NAND gate 4 is also set to 1 as the input of the NAND gate 4 is connected to

Q=0. The logic 1 and 1 at the inputs of the NAND gates 3 and 4 respectively retains the Q and

Q to 0 and 1 respectively.

Thus when J=0 and K=1 the J-K flip-flop irrespective of its earlier state is rest to state

Q=0 and Q =1.

J = 1 and K =0

With Q=1 and Q =0, on a clock transition the output of NAND gate 4 is set to logic 1.

The output of the NAND gate 3 is also set to 1 as its input connected to Q is at logic 0. Thus

inputs 1 and 1 at inputs of NAND gates 1 and 2 retain the Q and Q output to 1 and 0

respectively. With Q=0 and Q =1, on a clock transition the output of NAND gate 4 is set to

logic 1. The output of the NAND gate 3 is set to 0 as all its input are at logic 1. Thus inputs 0

and 1 at inputs of NAND gates 1 and 2 sets the flip-flop to Q=1 and Q =0.

Thus when J=1 and K=0 the J-K flip-flop irrespective of its output state is set to state

Q=1 and Q =0.

J = 1 and K =1

With Q=1 and Q =0, on a clock transition the output of the NAND gates 3 and 4 depend

on the outputs Q and Q . The output of NAND gate 3 is set to 1 as Q is connected to its input.

The output of NAND gate 4 is set to 0 as all its inputs including Q is at logic 1. A logic 1 and 0

at the input of gates 1 and 2 toggles the outputs Q and Q from logic 1 and 0 to 0 and 1

233

CS302 - Digital Logic & Design

respectively. With Q=0 and Q =1, on a clock transition the output of NAND gate 3 is set to 0 as

Q and the output of NAND gate 4 is set to 1. A logic 0 and 1 at the input toggles the outputs Q

and Q from logic 0 and 1 to 1 and 0 respectively.

In summary when J-K inputs are both set to logic 0, the output remains unchanged. At

J=0 and K=1 the J-K flip-flop is reset to Q=0 and Q =1. At J=1 and K=0 the flip-flop is set to

Q=1 and Q =0. With J=1 and K=1 the output toggles from the previous state. The truth tables

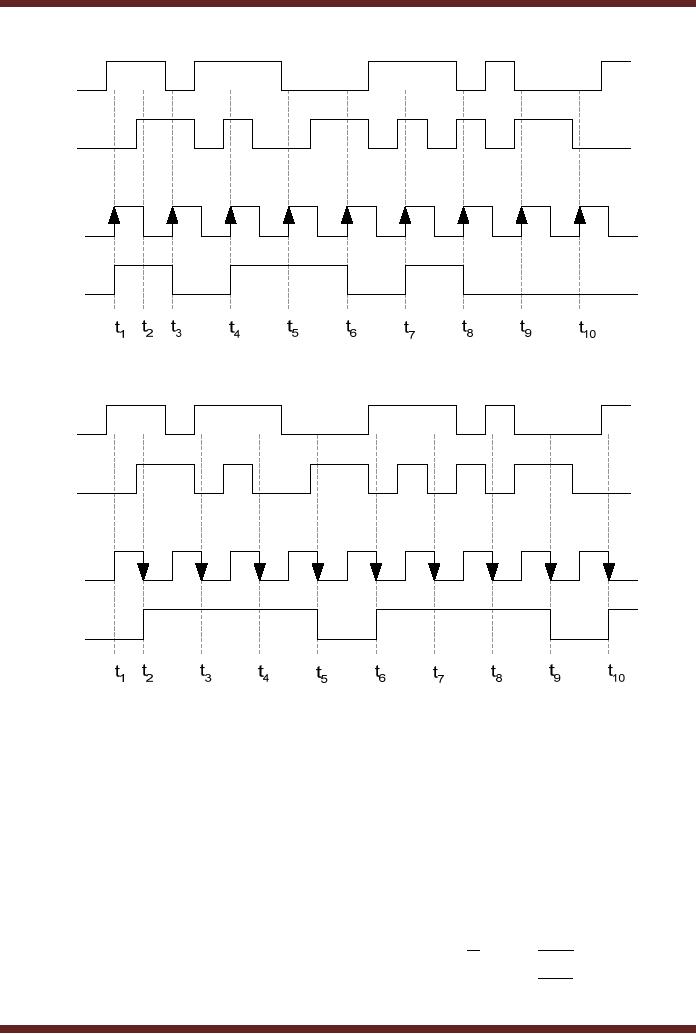

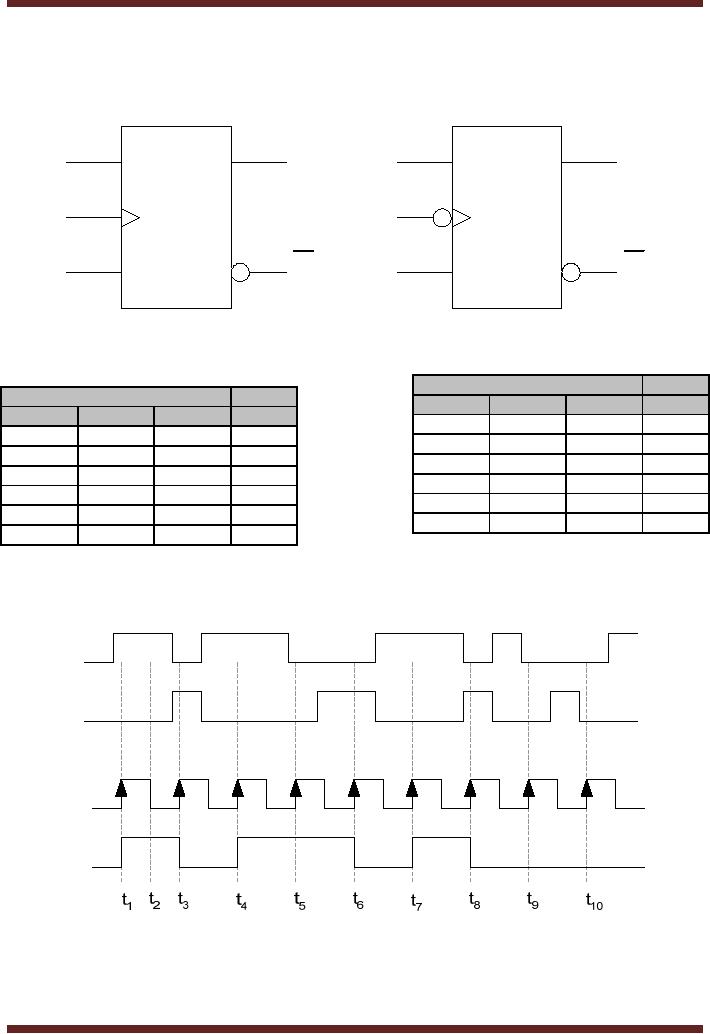

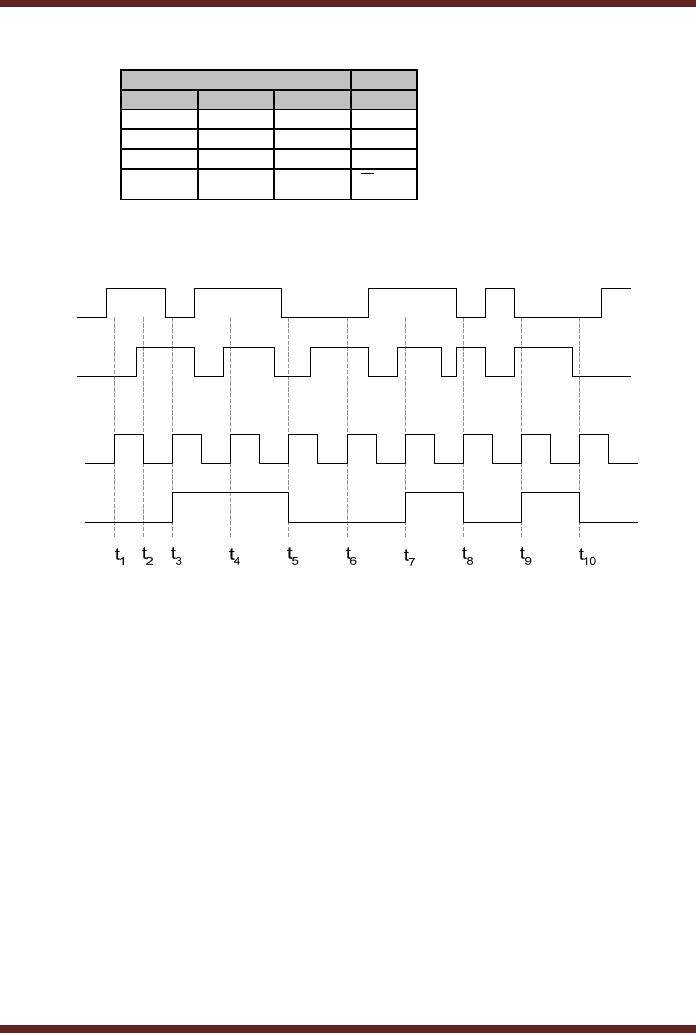

of the positive and negative edge triggered J-K flip-flops are shown in table 23.5. The logic

symbols of the J-K flip-flops are shown in figure 23.15. The timing diagrams of the J-K flip-

flops are shown in figure 23.16.

Input

Output

Input

Output

CLK

Qt+1

CLK

Qt+1

↑

↓

↑

↓

↑

↓

↑

↓

Table 23.5

Truth-Table of Positive and Negative Edge triggered J-K flip-flops

J-K

CLK

Flip-Flop

Figure 23.15 Logic Symbol of Positive and Negative edge triggered J-K flip-flops

234

CS302 - Digital Logic & Design

CLK

Figure 23.16a Timing diagram of a Positive Edge triggered J-K flip-flop

CLK

Figure 23.16b Timing diagram of a Negative Edge triggered J-K flip-flop

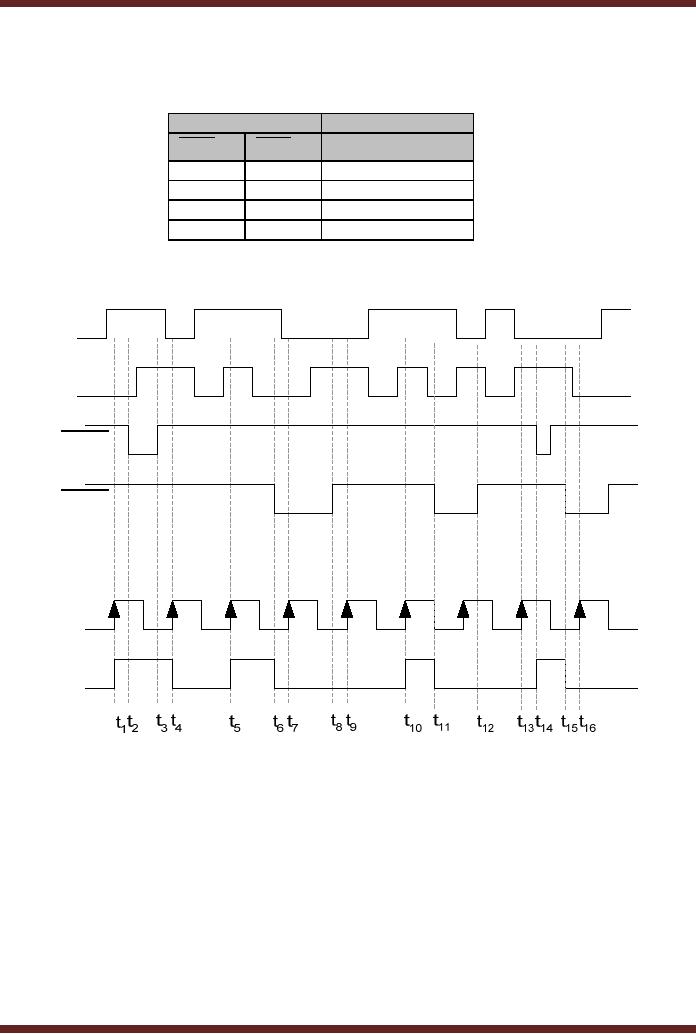

Asynchronous Preset and Clear Inputs

The S-R, J-K and D inputs are known as synchronous inputs because the outputs

change when appropriate input values are applied at the inputs and a clock signal is applied at

the clock input. If there is no clock transition then the inputs have no effect on the output.

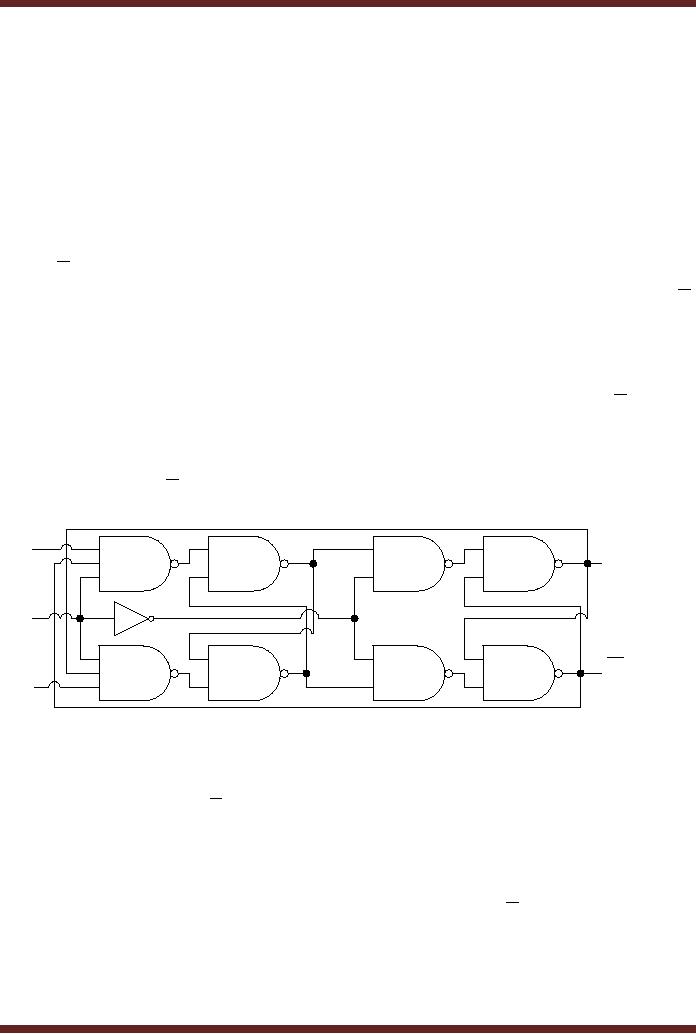

Digital circuits require that the flip-flops be set or reset to some initial state before a new set of

inputs is applied for changing the output. The flip-flops are set-reset to some initial state by

using asynchronous inputs known as Preset and Clear inputs. Since these inputs change the

output to a known logic level independently of the clock signal therefore these inputs are

known as asynchronous inputs. The circuit diagram of a J-K flip-flop with Preset and Set

Asynchronous inputs is shown in figure 23.17. The asynchronous inputs override the

synchronous inputs thus to operate the flip-flop in the synchronous mode the asynchronous

inputs have to be disabled. To preset the flip-flop to Q=1 and Q =0 the PRE input is set to 0

which sets the Q output to 1 and the output of NAND gate 4 to 1. The CLR input is set to 1

235

CS302 - Digital Logic & Design

which sets the Q output to 0 as all three inputs of the NAND gate 2 are set to 1. The flip-flop

is cleared to Q=0 and Q =1 by setting the PRE input is set to 1 and the CLR input is to 0. The

CLR input set to 0 sets Q =1 it also sets the output of NAND gate 3 to 1. The PRE input set to

1 sets the output Q to 0. When the PRE and the CLR inputs are used inputs J and K have no

effect on the operation of the flip-flop. To use the flip-flop with synchronous inputs J-K, the

PRE and the CLR inputs are set to logic 1. Setting PRE and the CLR to logic 0 is not

allowed.

PRE

CLK

CLR

Figure 23.17 J-K flip-flop with Asynchronous Preset and Clear inputs

Figure 23.18 shows the logic symbol of a J-K edge-triggered flip-flop with synchronous and

asynchronous inputs.

PRE

J-K

CLK

Flip-Flop

CLR

Figure 23.18 Logic Symbol of a J-K flip-flop with Asynchronous inputs

The truth table of a J-K flip-flop with Asynchronous inputs is shown in table 23.4. The timing

diagram describes the effect of asynchronous inputs on the operation of the flip-flop. Figure

23.10

236

CS302 - Digital Logic & Design

Input

Output

Qt+1

CLR

PRE

Invalid

Clocked operation

Table 23.4

Truth table of J-K flip-flop with Asynchronous inputs

PRE

CLR

CLK

Figure 23.10 Timing diagram of a J-K flip-flop with Preset and Clear inputs

The 74HC74 Dual Positive-Edge triggered D flip-flop

The edge-triggered D flip-flop with asynchronous inputs is available as an Integrated

Circuit. The 74HC74 has dual D-flip-flops with independent clock inputs, synchronous and

asynchronous inputs.

The 74HC112 Dual Positive-Edge triggered J-K flip-flop

The edge-triggered D flip-flop with asynchronous inputs is available as an Integrated

Circuit. The 74HC112 has dual J-K-flip-flops with independent clock inputs, synchronous and

asynchronous inputs.

Master-Slave Flip-Flops

Master-Slave flip-flops have become obsolete and are being replaced by edge-

triggered flip-flops. Master-Slave flips have two stages each stage works in one half of the

237

CS302 - Digital Logic & Design

clock signal. The inputs are applied in the first half of the clock signal. The outputs do not

change until the second half of the clock signal. As mentioned earlier the use of edge-triggered

flip-flip is to synchronize the operation of a digital circuit with a common clock signal. The

master-slave setup also allows digital circuits to operate in synchronization with a common

clock signal. The circuit diagram of the master-slave J-K flip-flop is shown in figure 23.11. The

Master-Slave flip-flop is composed of two parts the Master and the Slave. Both the Master and

the Slave are Gated S-R flip-flops. The Master-Slave flip-flop is not synchronised with the

clock positive or negative transition, rather it known as a pulse triggered flip-flop as it operates

at the positive and negative clock cycles.

Consider that the J-K inputs of the flip-flop are set at 1 and 0 respectively. The outputs

Q and Q are initially set at 1 and 0 respectively. During the positive half of the clock gates 3

and 4 are both enabled by the clock signal. The output of gate 3 is set to 1 due to the Q

output set at 0. Similarly the output of gate 4 is also set at 1 due to the K input set at 0. The

outputs of gates 1 and 2 remain unchanged as the inputs to gates 1 and 2 are both logic 1.

Assume the outputs of gates 1 and 2 to be 1 and 0 respectively. During the positive half cycle,

the clock input to gates 7 and 8 is inverted therefore both the gates are disabled and their

output is set to logic 1. With logic 1 at the inputs of gates 5 and 6 the output Q and Q remains

unchanged throughout the positive half of the clock cycle. During the negative half of the clock

cycle the Master flip-flop is disabled and the output of the Master flip-flop remains fixed during

the negative half cycle. The Slave flip-flop is enabled and the 1 and 0 outputs of the Master

flip-flop set the Q and Q output to 1 and 0 respectively.

CLK

MASTER

SLAVE

Figure 23.11 Master-Slave flip-flop

Initially, if the Q and Q outputs are 0 and 1 respectively, setting the J and K inputs to 1

and 0 respectively sets the output to 1 and 0 respectively. During the positive half of the clock

the Master flip-flop is enabled, the output of gate 3 is set to 0 as the J, Q and CLK inputs are

all at logic 1. The output of gate 4 is set to 1 as the K input is logic 0. These inputs set the

output of the Master flip-flop at gates 1 and 2 to logic 1 and 0 respectively. During the negative

half of the clock cycle the Slave flip-flop is enabled the output Q and Q are set to logic 1 and 0

respectively.

The truth-table of the master-slave flip-flop is shown in table 23.5. The timing diagram

of the master-slave flip-flop is shown in figure 23.12.

238

CS302 - Digital Logic & Design

Input

Output

CLK

Qt+1

Pulse

Table 23.5

Truth table of the Master-Slave J-K flip-flop

CLK

Figure 23.12 Timing diagram of a Master Slave J-K flip-flop

Flip-Flop Operating Characteristics

The performance of the flip-flop is specified by several operating characteristics

mentioned in the data sheets of the flip-flops. The important operating characteristics are

· Propagation Delay

· Set-up Time

· Hold Time

· Maximum Clock frequency

· Pulse width

· Power Dissipation

Propagation Delay

The propagation delay time is the interval of time when the input is applied and the

output changes. Four different types of Propagation Delays are measured.

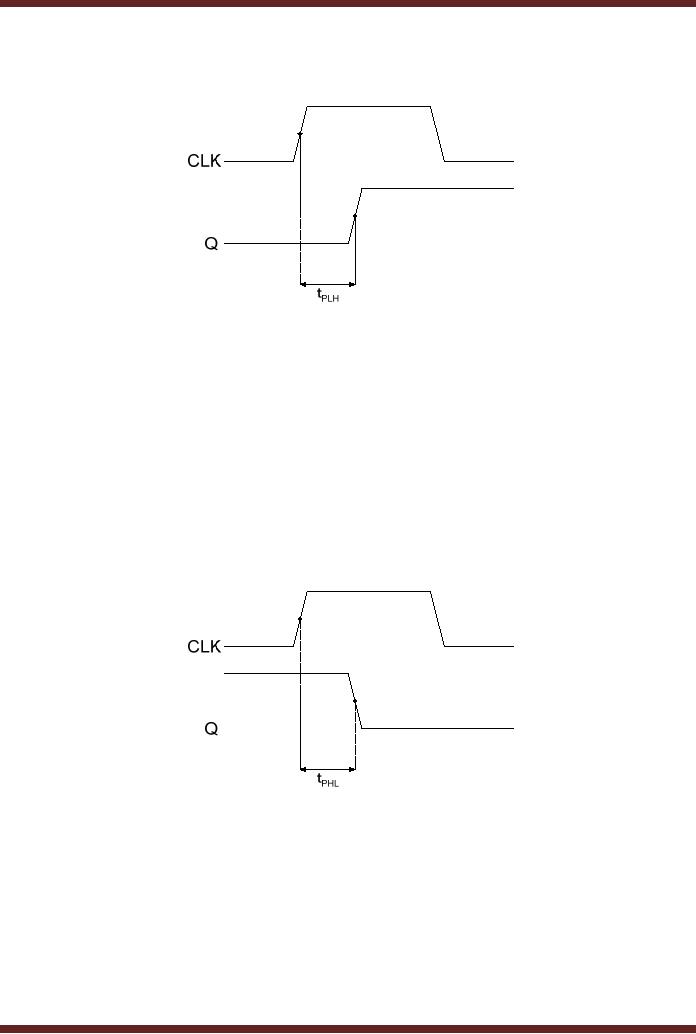

1. Propagtaion Delay tPLH measured with respect to the triggering edge of the clock to the

low-to-high transition of the output. Figure 23.13. On a positive or negative clock transition

the flip-flop changes its output state. The Propagation Delay is measured at 50% transition

239

CS302 - Digital Logic & Design

mark on the triggering edge of the clock and the 50% mark on the low-to-high transition of

the output that occurs due to the clock transition.

Figure 23.13 Propagation Delay, clock to low-to-high transition of the output

2. Propagtaion Delay tPHL measured with respect to the triggering edge of the clock to the

high-to-low transition of the output. Figure 23.14. On a positive or negative clock transition

the flip-flop changes its output state. The Propagation Delay is measured at 50% transition

mark on the triggering edge of the clock and the 50% mark on the high-to-low transition of

the output that occurs due to the clock transition.

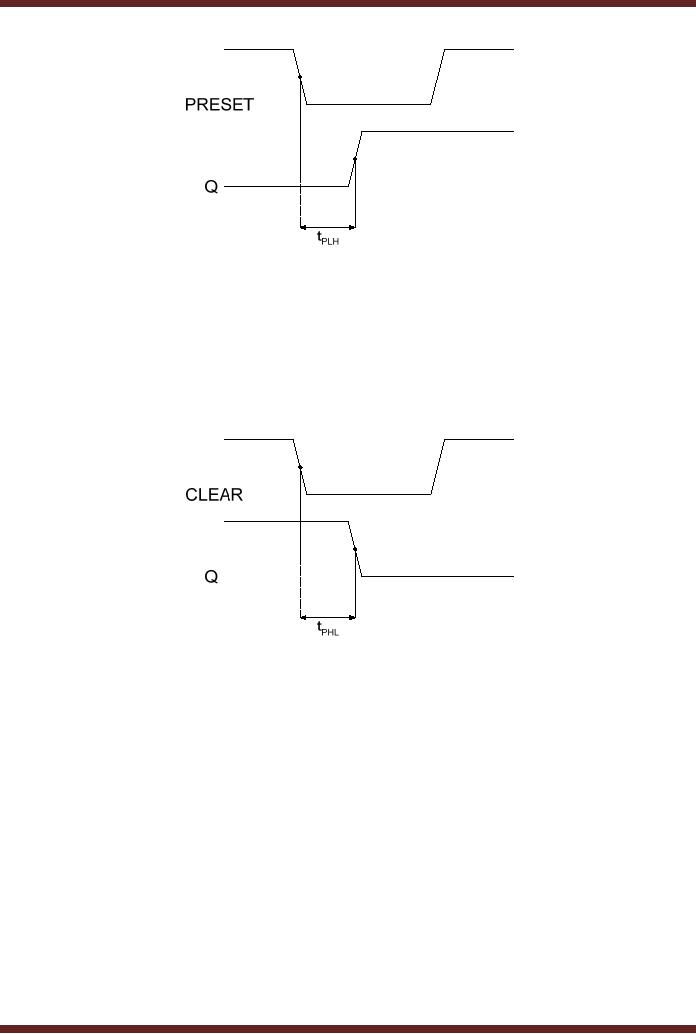

3. Propagtaion Delay tPLH measured with respect to the leading edge of the preset input to the

low-to-high transition of the output. Figure 23.15. On a high-to-low transition of the preset

signal the flip-flop changes its output state to logic high. The Propagation Delay is

measured at 50% transition mark on the triggering edge of the preset signal and the 50%

mark on the low-to-high transition of the output that occurs due to the preset signal.

Figure 23.14 Propagation Delay, clock to high-to-low transition of the output

240

CS302 - Digital Logic & Design

Figure 23.15 Propagation Delay, preset to low-to-high transition of the output

4. Propagtaion Delay tPHL measured with respect to the leading edge of the clear input to the

high-to-low transition of the output. Figure 23.16. On a high-to-low transition of the clear

signal the flip-flop changes its output state to logic low. The Propagation Delay is

measured at 50% transition mark on the triggering edge of the clear signal and the 50%

mark on the high-to-low transition of the output that occurs due to the preset signal.

Figure 23.16 Propagation Delay, clear to high-to-low transition of the output

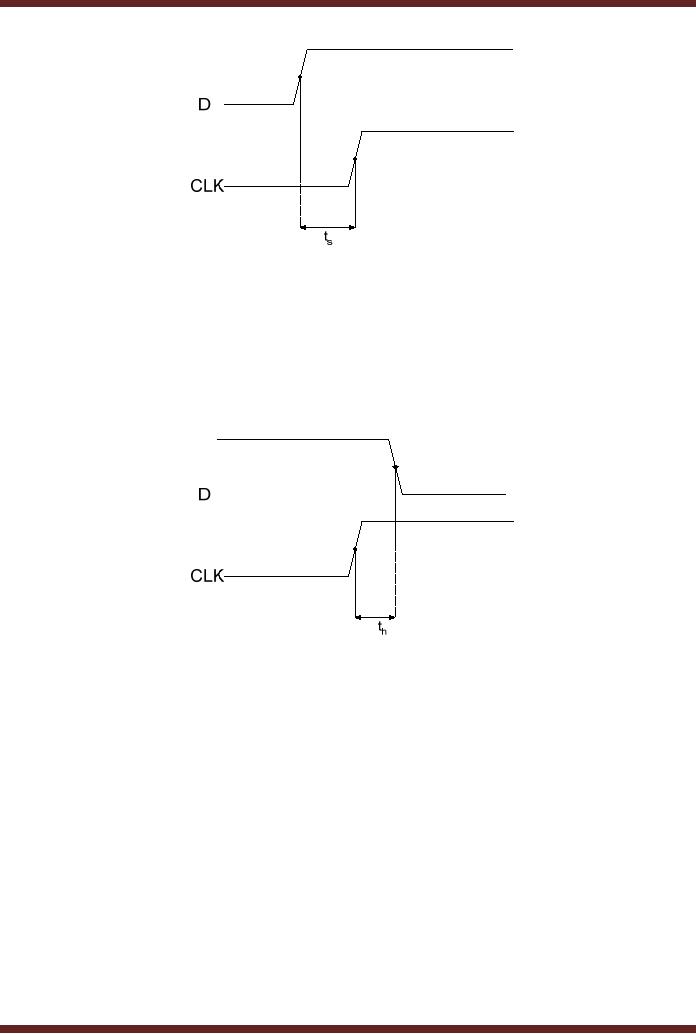

Set-up Time

When a clock transition occurs at the clock input of a flip-flop the output of the flip-flop

is set to a new state based on the inputs. For the flip-flop to change its output to a new state at

the clock transition, the input should be stable. The minimum time required for the input logic

levels to remain stable before the clock transition occurs is known as the Set-up time. Figure

23.17.

241

CS302 - Digital Logic & Design

Figure 23.17 Set-up time for a D flip-flop

Hold Time

The input signal maintained at the flip-flop input has to be maintained for a minimum

time after the clock transition for the flip-flop to reliably clock in the input signal. The minimum

time for which the input signal has to be maintained at the input is the Hold time of the flip-flop.

Figure 23.18

Figure 23.18 Hold time for a D flip-flop

Maximum Clock Frequency

A flip-flop can be operated at a certain clock frequency. If the clock frequency is

increased beyond a certain limit the flip-flop will be unable to respond to the fast changing

clock transitions, therefore the flip-flop will be unable to function. The maximum clock

frequency fmax is the highest rate at which the flip-flop operates reliably.

Pulse Width

A flip-flop uses the clock, preset and clear inputs for its operation. Each signal has to

be of a specified duration for correct operation of the flip-flop. The manufacturer specifies the

minimum pulse width tw for each of the three signals. The clock signal is specified by minimum

high time and minimum low time.

Power Dissipation

A flip-flop consumes power during its operation. The power consumed by a flip-flop is

defined by P = Vcc x Icc. The flip-flop is connected to +5 volts and it draws 5 mA of current

during its operation, therefore the power dissipation of the flip-flop is 25 mW.

242

CS302 - Digital Logic & Design

A digital circuit is made of a number of gates, functional units and flip-flops. The total

power requirement of each device should be known so that an appropriate dc power source is

used to supply power to the digital circuit.

243

Table of Contents:
