CS302 - Digital Logic & Design

Lesson No. 19

DEMULTIPLEXER

A Multiplexer has several inputs. It selects one of the inputs and routes the data at the

selected input to the single output. Demultiplexer has an opposite function to that of the

Multiplexer. It has a single input and several outputs. The Demultiplexer selects one of the

several outputs and routes the data at the single input to the selected output. A demultiplexer

is also known as a Data Distributor.

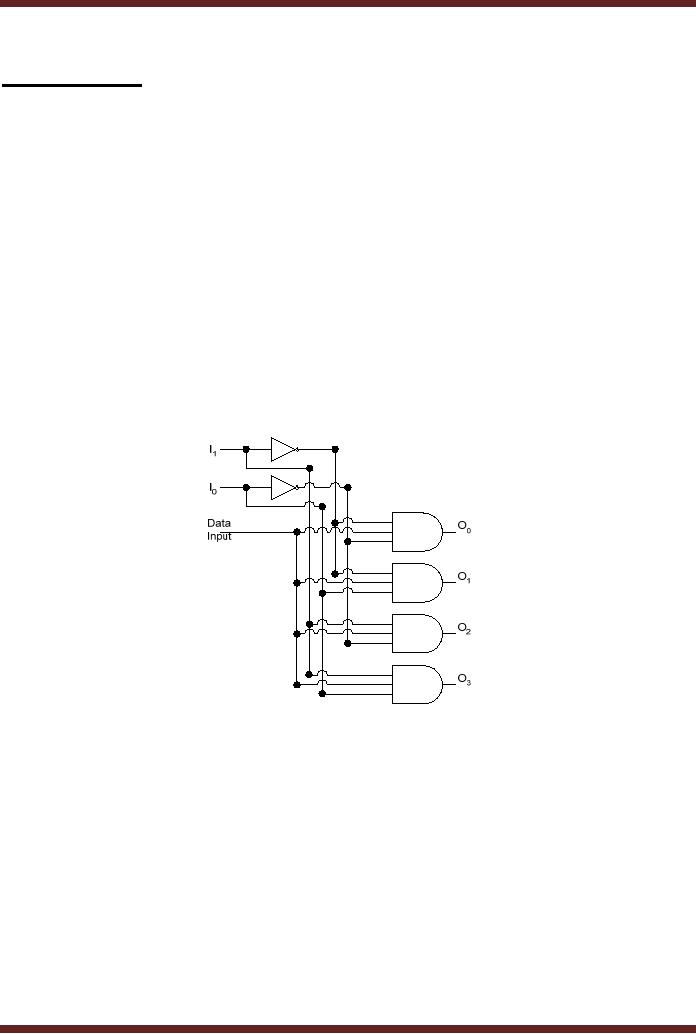

The circuit diagram of a 1-to-4 line Demultiplexer is shown. Figure 19.1. The circuit if

compared to that of the 2-to-4 Decoder. The Decoder enable input is used as the

Demultiplexer data input. A Demultiplexer is not available commercially. A Demultiplexer is

available as a Decoder/Demultiplexer chip which can be configured to operate as a

Demultiplexer or a Decoder.

The circuit of the 1-to-4 Demultiplexer is similar to the 2-to-4 Binary Decoder

described earlier figure 16.9. The only difference between the two is the addition of the Data

Input line, which is used as enable line in the 2-to-4 Decoder circuit figure 16.10. Assuming the

select inputs I1 and I0 are set to 1 and 0 respectively. The O2 output is set to 1 if the Data input

is 1 or it is set to 0 if the Data input is 0.

Figure 19.1

1-to-4 Demultiplexer

Applications of Demultiplexer

Demultiplexer is used to connect a single source to multiple destinations. One use of

the Demultiplexer is at the output of the ALU circuit. The output of the ALU has to be stored in

one of the multiple registers or storage units. The Data input of the Demultiplexer is connected

to the output of the ALU. Each output of the Demultiplexer is connected to each of the multiple

registers. By selecting the appropriate output data from the ALU is routed to the appropriate

The second use of the Demultiplexer is the reconstruction of Parallel Data from the

incoming serial data stream. Serial data arrives at the Data input of the Demultiplexer at fixed

time intervals. A counter attached to the Select inputs of the Demultiplexer routes the incoming

serial bits to successive outputs where each bit is stored. When all the bits have been stored,

data can be read out in parallel. Figure 19.2

178

CS302 - Digital Logic & Design

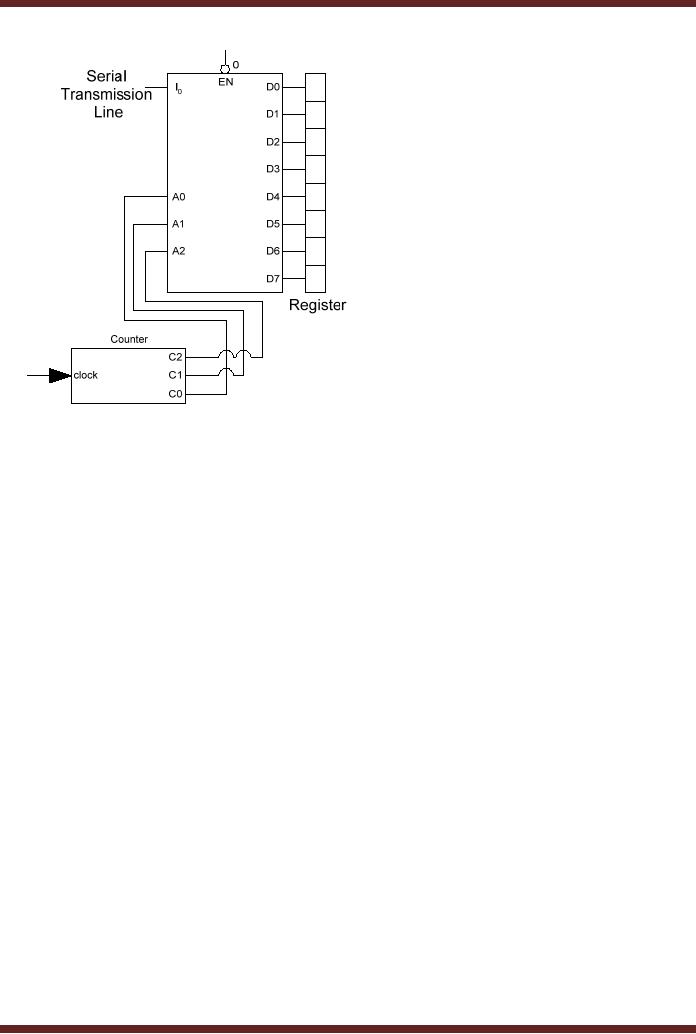

Figure 19.2

Demultiplexer as a Serial to Parallel Converter

Programmable Logic Devices

Programmable Logic Devices are used in many applications to replace the Logic gates

and MSI chips. PLDs save circuit space and reduce and save the cost of components in a

Digital Circuit. PLDS consists of Arrays of AND gates and OR gates that can be programmed

to perform specific functions.

Programmable Arrays of AND Gates and OR Gates

The array is essentially a grid of conductors that forms rows and columns with a fuse

connecting each column conductor with each row conductor. The fuses can be blown to

disconnect a particular column from a particular row. The OR gate array consists of the grid

and OR gates. Similarly the AND gate array consists of the grid and AND Gates. Figure 19.3

Each column conductor in the grid represents a single variable or its complement. A

grid of several column conductors represents several variables and their complements. Each

OR and AND gate in the array is connected to each of the variables through horizontal

conductors. When all the fuses are intact, all variables are present at the inputs of all the OR

and AND gates. The OR and AND gates can be configured to have specified literals

connected to their inputs by blowing away appropriate fuses which are blown through

programming. A programmed OR array has sum terms at the output of its OR gates. Similarly

a programmed AND array has product terms at its output. Figure 19.4

179

CS302 - Digital Logic & Design

Fusible Link

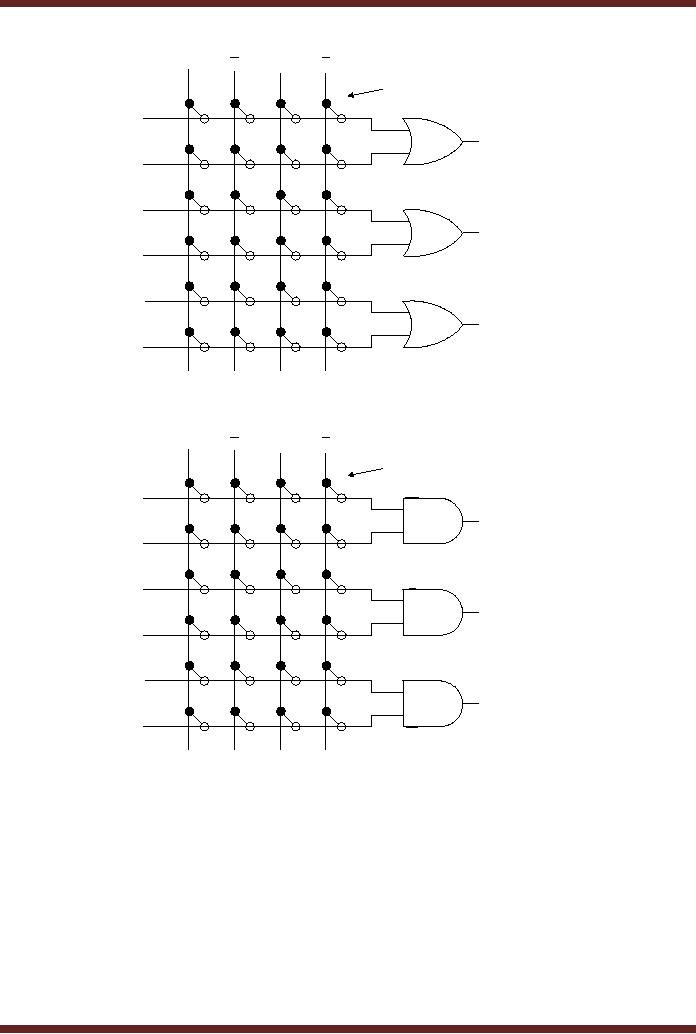

Figure 19.3a OR Gate Array

Fusible Link

Figure 19.3b AND Gate Array

180

CS302 - Digital Logic & Design

A +B

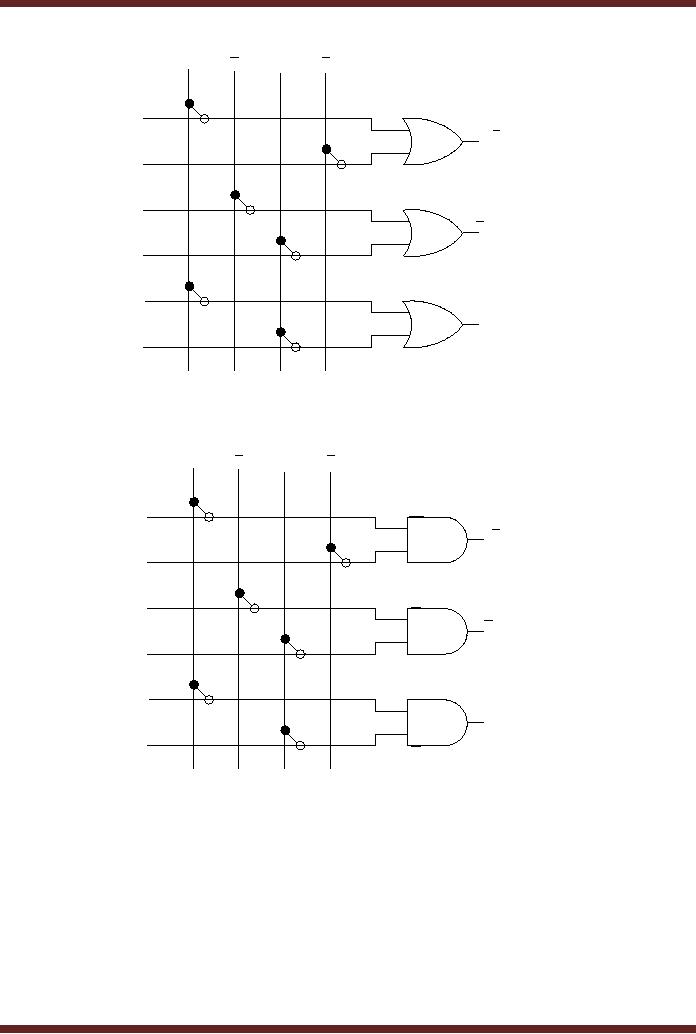

Figure 19.4a Programmed OR Gate Array

Figure 19.4b Programmed AND Gate Array

An alternate implementation of the grid is with no fuses, the grid column and row

conductors are not connected to each other. A specific column conductor can be connected to

a row conductor by shorting the column and row conductors. Both the methods in which a fuse

is blown to disconnect a column from a row and the shorting method in which a column is

connected to a row can only be done once. Thus when an array has been configured to

perform a function it can not be reprogrammed.

Programmable Logic Devices have an array of AND gates and an array of OR gates

either or both of which can be programmed. There are different types of PLDs, they are

181

CS302 - Digital Logic & Design

classified according to their architecture which allows either both the arrays to be programmed

or only one of the two arrays.

1. Programmable Read-Only Memory (PROM)

The PROM consists of a fixed non-programmable AND array configured as a decoder

and a programmable OR array. Figure 19.5. The PROM is used as a storage device which

stores information at addressable locations. It has limited applications and is not used as a

logic device. PROM architecture and details are discussed in latter lectures.

2. Programmable Logic Array (PLA)

The PLA consists of a programmable AND array and a programmable OR array.

Figure 19.6. It has been designed to overcome the limitations of a PROM. PLA is also known

as a Field-Programmable Logic Array as it can be programmed by the user and not by the

manufacturer.

Input 1

Output 1

Input 2

Output 2

Fixed

Programmable

AND array

OR array

Output m

Input n

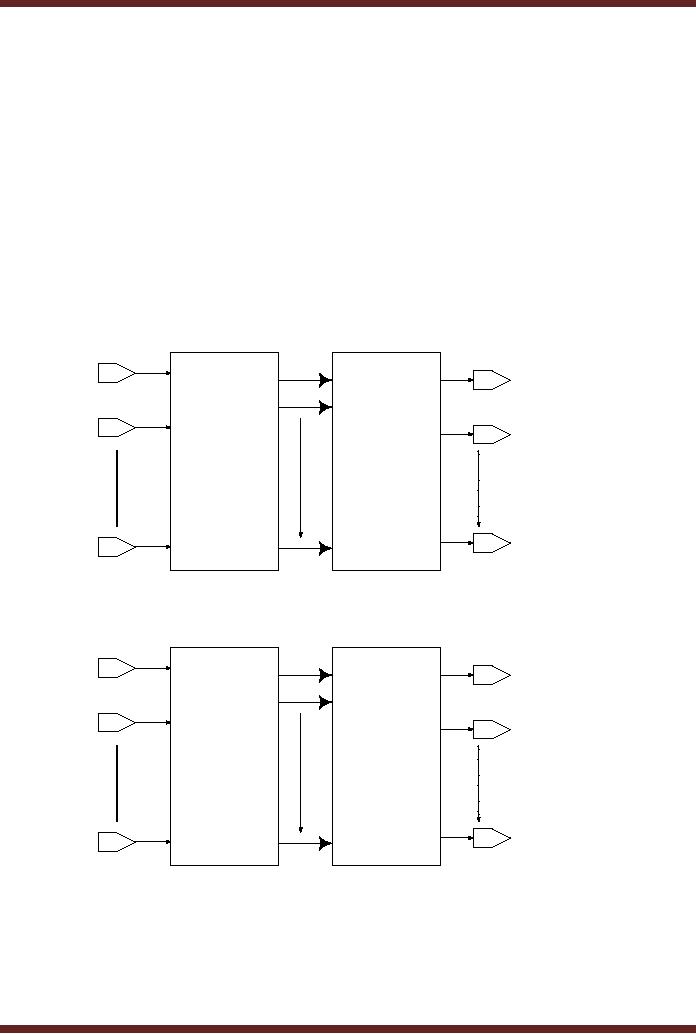

Figure 19.5

Block diagram of a PROM

Input 1

Output 1

Input 2

Output 2

Programmable

AND array

OR array

Output m

Input n

Figure 19.6

Block diagram of a PLA

3. Programmable Array Logic (PAL)

The PAL has been designed to overcome the longer delays and the complex circuitry

associated with the PLA due to two programmable arrays. The PAL has programmable AND

array and a fixed OR array. Figure 19.7

182

CS302 - Digital Logic & Design

Output 1

Input 1

Input 2

Output 2

Fixed

Programmable

AND array

OR array

and output logic

Output m

Input n

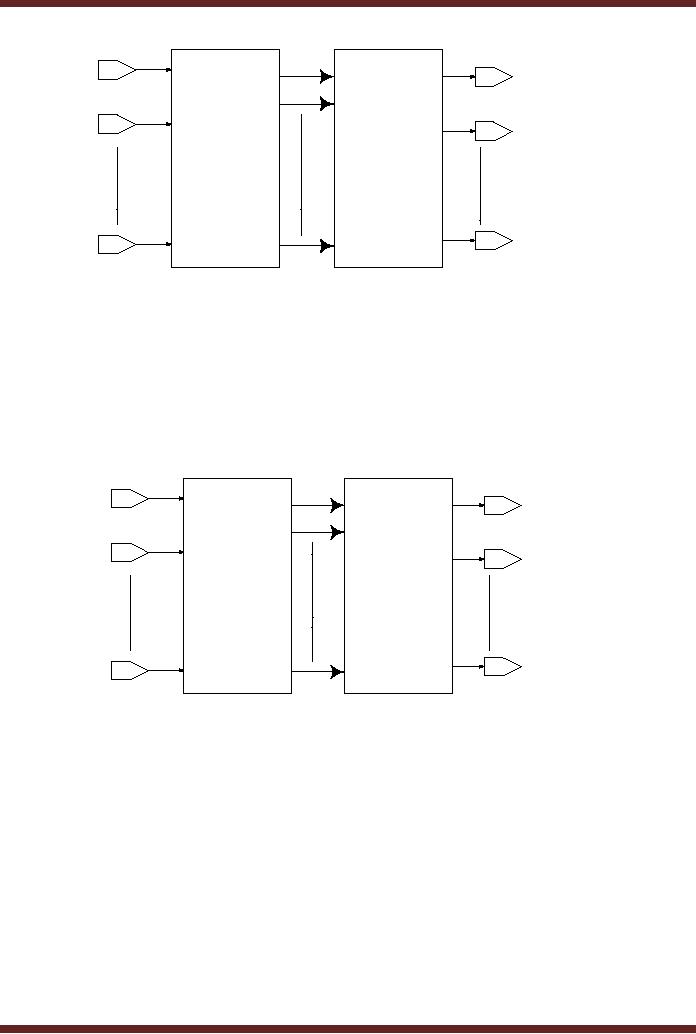

Figure 19.7

Block diagram of a PAL

4. Generic Array Logic (GAL)

The GAL has a reprogrammable AND array and a fixed OR array with programmable

output logic. Figure 19.8. The main difference between GAL and PAL are the reprogrammable

AND array which can be programmed again and again, unlike PAL AND array which can be

programmed once. GAL uses E2CMOS technology which is Electrically Erasable CMOS

instead of Bipolar technology and fusible links. The other difference is the programmable

outputs.

Output 1

Input 1

Input 2

Output 2

Fixed

Programmable

AND array

OR array

and

Programmable

output logic

Output m

Input n

Figure 19.8

Block diagram of a GAL

All the four PLD devices use AND arrays followed by OR arrays. Therefore they all

allow implementation of Sum-of-Product Boolean expressions.

PAL Circuit and Programming

A simplified PAL structure is shown where the AND array has been programmed to

generate three product terms which are added together by the OR array. Figure 19.9

183

CS302 - Digital Logic & Design

AB + AB + AB

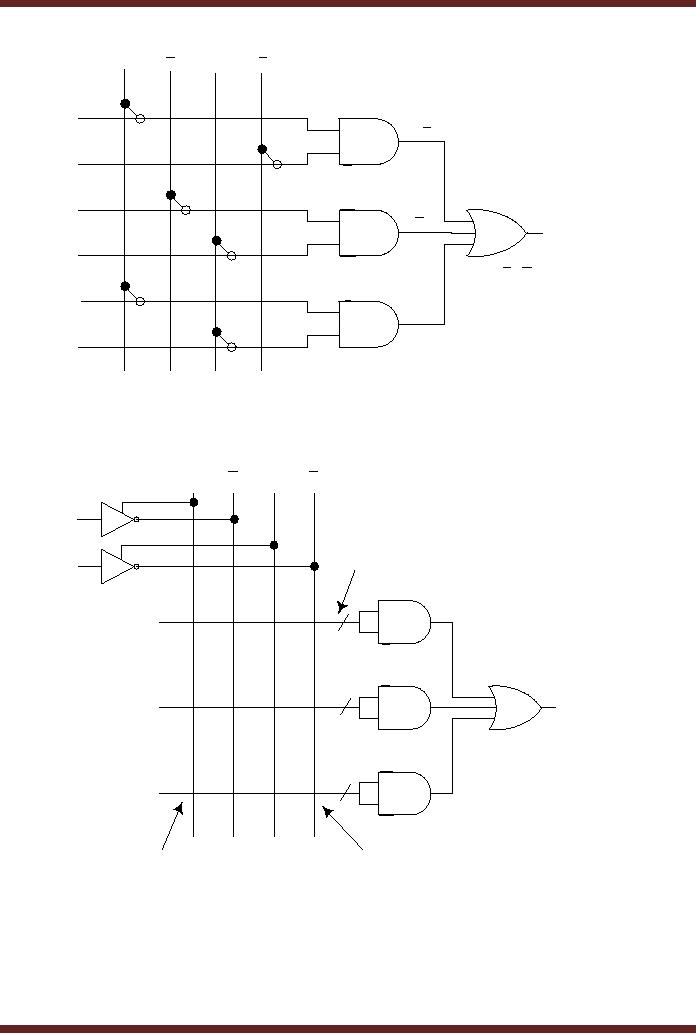

Figure 19.9

PAL programmed to implement an SOP function

Input Lines

Input Buffers

Single Line with slash represents

multiple AND gates inputs

Fuse Intact

Fuse Blown

(Connection)

(no Connection)

Figure 19.10 Simplified diagram of programmed PAL

PALs have many inputs and multiple outputs connected through a large number of

AND gates and OR gates. Drawing the circuit diagram of a PAL having multiple gates each

having multiple inputs becomes difficult. PALs have Buffers at the inputs which produce the

actual variable and its complement. The multiple input lines to an AND gate array are

represented by a single line with a slash indicating the number of inputs. The cross indicates

184

CS302 - Digital Logic & Design

the fuses that are intact showing a connection between the vertical line and horizontal line of

the AND array. Figure 19.10

PAL Outputs

PALs typically have 8 or more inputs to the AND array and 8 or less outputs from the

fixed OR array. Some PALs have combined inputs and outputs that can be programmed as

either inputs or outputs. PAL output logic can be configured according to the application of the

PAL. The modified block diagram representing a PAL showing the output of the OR Array

connected to output logic which allows the outputs to be configured is shown in figure 19.11.

The three types of outputs are

· Combinational Output used for an SOP function and is available as an active-high or

active-low output. Figure 19.12a

· Combinational Input/Output is used when the output is connected back to the input of the

PAL or if the output pin is used as an input only. Figure 19.12b

· Programmable polarity output is used to either select the output function or its complement

by programming an XOR gate at the output. Figure 19.12c

Output

Input 1

Output 1

Logic

Output

Input 2

Output 2

Fixed

Programmable

Logic

AND array

OR array

Output

Output m

Logic

Input n

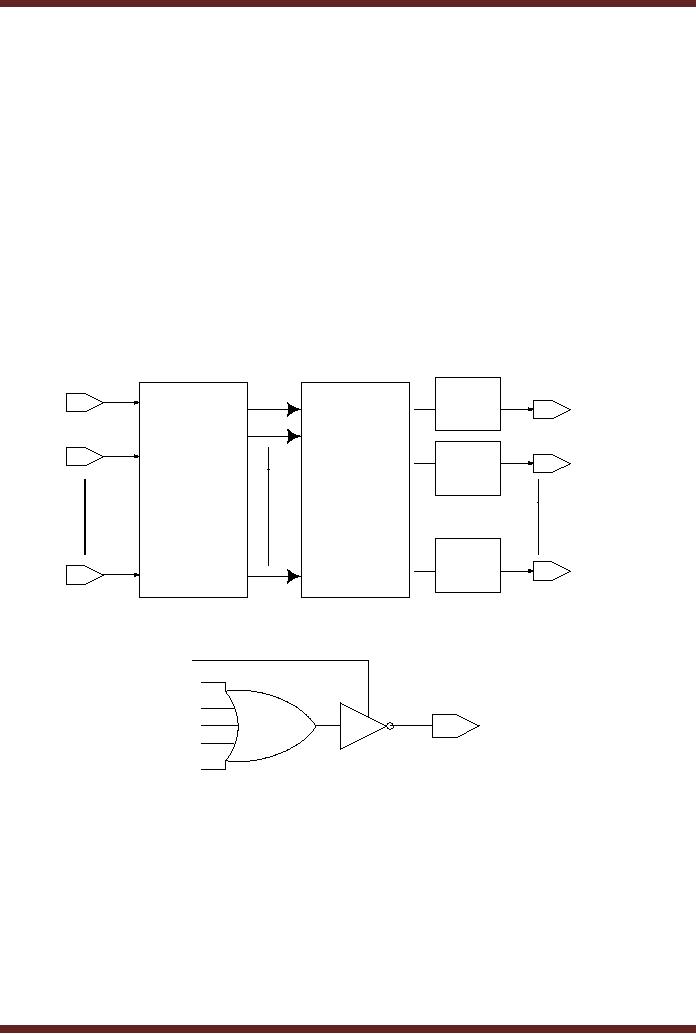

Figure 19.11 Block diagram of a PAL with programmable outputs

From AND

Output

gate array

Figure 19.12a Combinational Output with active-low output

The output of the OR gate from the OR gate Array is shown to be connected to a tri-

state buffer input. The tri-state buffer can be activated or deactivated through the control line

shown connected to its side. The Combinational Output for an SOP function is implemented by

activating the tri-state buffer which allows the output of the OR gate to be inverted by the tri-

state buffer and passed to the output of the PAL device. An active-high output can be obtained

if the PAL device has active-high output tri-state buffers.

185

CS302 - Digital Logic & Design

From AND

Input /

gate array

Output

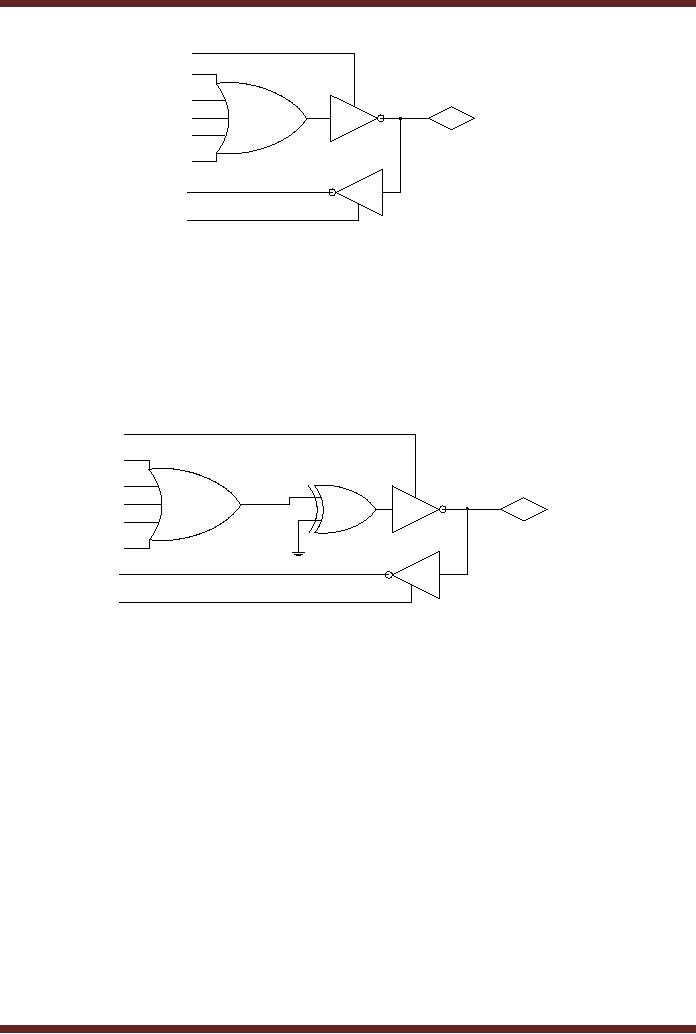

Figure 19.12b Combinational Input/Output with active-low output

The Combinational input/output function is used when the output of the OR gate has to

be connected back to the input of the AND Gate. As shown in the figure the output of the tri-

state buffer is connected to the input of an inverting and non-inverting buffer which allows the

inverted and non-inverted outputs of the OR gate to be connected to the input of the AND gate

array. Secondly, by deactivating the tri-state buffer connected at the output of the OR Gate,

the output pin is configured as an input pin. External signals connected to the output pin are

passed to the input of the AND array.

Input /

From AND

Output

gate array

Figure 19.12c Programmed Polarity output

The Programmed Polarity output has the output of the OR gate connected through an

XOR gate to the tri-state buffer. The XOR gate allows the output of the OR gate to be set to

active-high or active-low. When the second input of the XOR gate is connected to ground, the

output of the XOR gate is the same as the output of the OR gate. When the fuse of the XOR

gate input is blown to set the input to logic high, the output of the XOR gate is opposite of the

OR gate output.

PAL Identification

PALs come in different configurations they are identified by unique number. The

numbers begin with the prefix PAL followed by two digits that indicate the number of inputs

followed by a letter L active-low, H active-high or P programmable polarity followed by a single

or two digits that indicate the number of outputs. In addition to the standard number there may

be suffixes which specify the speed, package type and temperature range. Figure 19.13

186

CS302 - Digital Logic & Design

P A L 10 L 8

Programmable array Logic

Eight Outputs

Active Low output

Ten Inputs

Figure 19.13 Standard PAL Numbering

PLA Circuit and Programming

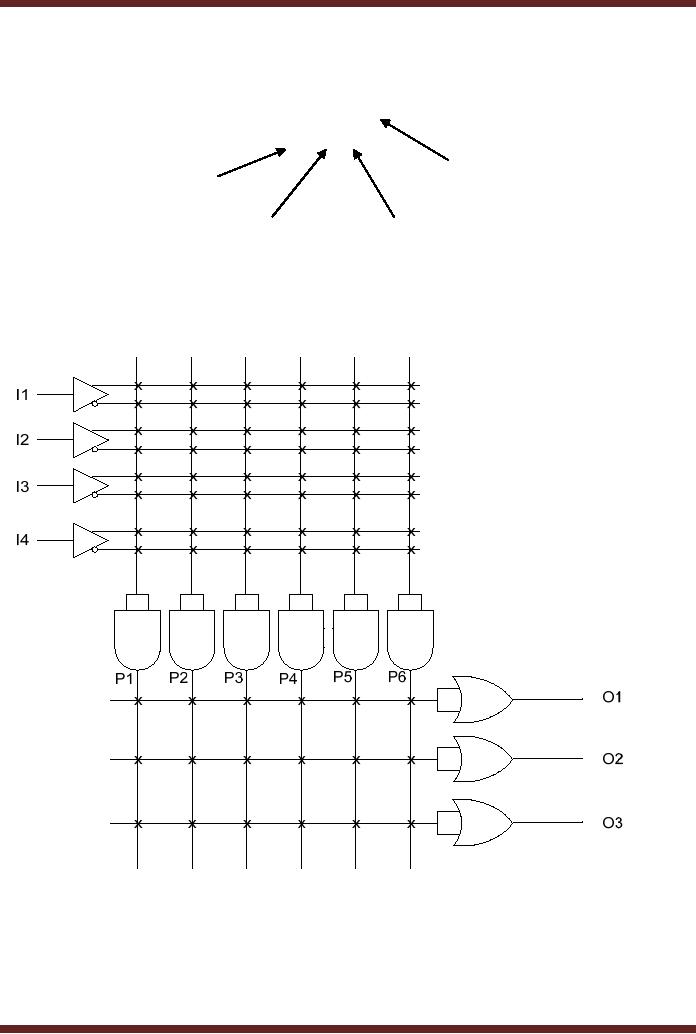

Figure 19.14 A 4 x 3 PLA Device

Programmable Logic Array as mentioned earlier has a programmable AND and OR

arrays. A PLA can be programmed to implement any Sum-of-Product logic expressions,

limited by the parameters of the PLA device. The limitations are

· Number of inputs (n)

· Number of outputs (m)

187

CS302 - Digital Logic & Design

Number of product terms (p)

Such a device is described as an n x m PLA device with p product terms. The simplified

diagram of a PLA 4 x 3 device is shown in the figure 19.14. The four inputs I1, I2, I3 and I4 are

shown connected through input buffers to the input of the AND gate array. The Input buffers

provide the un-complemented and complemented input signals. Each of the 6 AND gates

which provide six product terms P1, P2, P3, P4 P5 and P6 have 8 inputs. The outputs of each

of the six AND gates are connected to the input of the OR gate array. Each of the three OR

gates six inputs. Each OR gate can thus perform a sum operation on six product terms.

The PLA allows both its AND Gate array and the OR gate array to be programmed

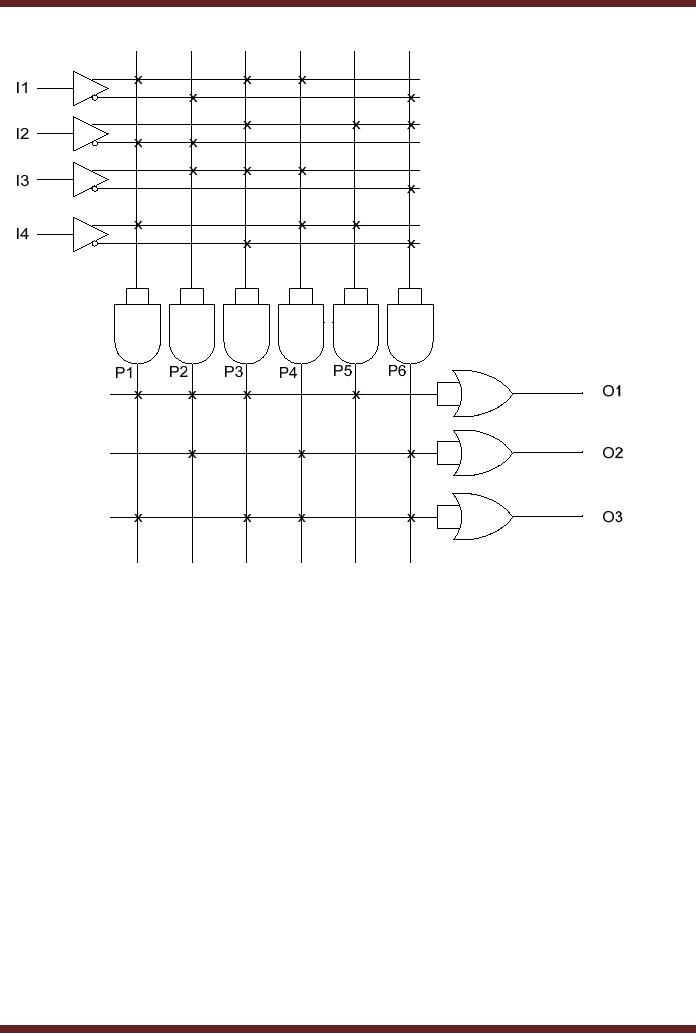

independently. The 4 x 3 PLA programmed with three separate functions is show in figure

19.15. The product terms generated are

P1 = I1.I2.I4

P2 = I1.I2.I3

P3 = I1.I2.I3.I4

P4 = I1.I3.I4

P5 = I2.I4

P6 = I1.I2.I3.I4

The first OR gate sums product terms P1, P2, P3 and P5, the fuses for these product terms

are seen to be intact. The second OR gate sums the product terms P2, P4 and P6. The third

OR gate sums the product terms P1, P3, P4 and P6. The three sum-of-product terms are

O1 = I1.I2.I4 + I1.I2.I3 + I1.I2.I3.I4 + I2.I4

O2 = I1.I2.I3 + I1.I3.I4 + I1.I2.I3.I4

O3 = I1.I2.I4 + I1.I2.I3.I4 + I1.I3.I4 + I1.I2.I3.I4

188

CS302 - Digital Logic & Design

Figure 19.15 Programmed 4 x 3 PLA Device

189

Table of Contents:
