CS302 - Digital Logic & Design

Lesson No. 17

THE 74XX138 3-TO-8 DECODER

The 3-to-8, 74XX138 Decoder is also commonly used in logical circuits. Similar, to the

2-to-4 Decoder, the 3-to-8 Decoder has active-low outputs and three extra NOT gates

connected at the three inputs to reduce the four unit load to a single unit load. The 3-to-8

Decoder has three enable inputs, one of the three enable inputs is active-high and the

remaining two are active-low. All three enable inputs have to be activated for the Decoder to

work. The function table of the 3-to-8 decoder is presented. Table 17.1

Inputs

Outputs

G2A

G2B

Table 17.1

Function Table of 74LS138, 3-to-8 Decoder

+5V

G2A

G2B

enable

G2A

G2B

Figure 17.1

4-to-16 Decoder using two 74LS139, 3-to-8 Decoder

160

CS302 - Digital Logic & Design

The three enable inputs serve to implement to larger Decoders such as 4-to-16 and 5-to-32 by

cascading two or four 3-to-8 Decoders respectively. The connection of two 3-to-8 Decoders is

shown. Figure 17.1

The A, B and C inputs are connected directly to the A, B and C inputs of the two 3-to-8

Decoders. The D input is connected to the active-low and active-high enable inputs G2A and

G1 of the two decoders respectively. The enable input selects/deselects bothe the decoders

simultaneously. G1 and G2B enable inputs of the two Decoders are connected to +5v and

Ground respectively. When the D input is 0, the upper decoder is selected and when D input is

1, the lower decoder is selected. The A, B and C inputs serve to select the appropriate output

of either the upper or lower decoder.

Implementing Standard SOP and POS Boolean expressions

The function table of 3-to-8 Decoder is a table of maxterms. For example, when the

input A, B, C is 0, 0 and 0 the Y0 output is activated indicating the sum term or maxterm

A + B + C . Similarly, the A, B and C inputs 1, 0 and 1 activate the Y5 output indicating the

presence of A + B + C sum term. The POS Boolean expression represented by the 3-variable

Karnaugh Map, figure 17.2, can be implemented by the 3-to-8 Decoder which uses an AND

gate to implement the product of sum terms. Figure 17.3

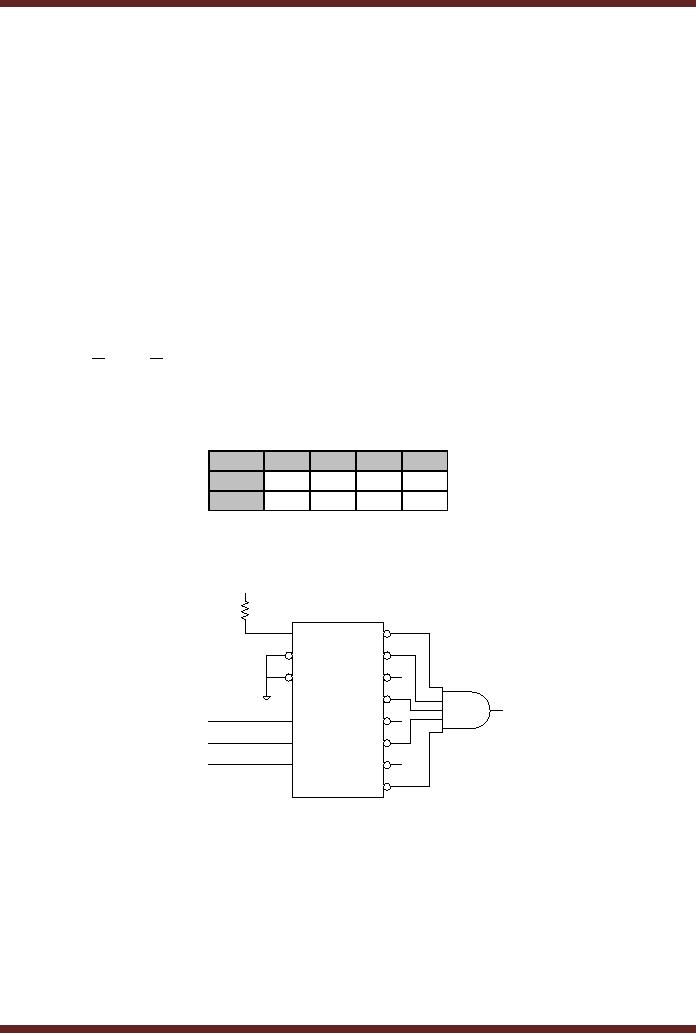

A\BC

Karnaugh Map of Boolean expression ∏ ABC (0,1,3,5,7)

Figure 17.2

+5V

G2A

G2B

Implementation of Boolean expression ∏ ABC (0,1,3,5,7)

Figure 17.3

The 3-to-8 Decoder can also be used to Implement SOP expression by connecting the

outputs of the Decoder to the input of a NAND gate. Figure 17.4. The alternate symbol for the

three input NAND gate is the three input OR gate with bubbles at the inputs. The three

bubbles cancel out the three bubbles connected at the outputs Y2, Y4 and Y6 representing the

three minterms or product terms.

161

CS302 - Digital Logic & Design

Implementation of Boolean expression ∑ ABC (2,4,6)

Figure 17.4

BCD to 7-Segment Decoder

BCD to 7-Segmnet Decoder is a specific type of decoder that is used to convert a 4-bit

BCD Code to a 7-Segment Code. The BCD to 7-Segment Decoder unlike the Binary Decoders

activates multiple but unique set of outputs for each 4-bit BCD input combination.

Earlier, the seven expressions for activating each of the seven segments were defined.

Each of the seven Boolean expressions can be implemented using a combination of NOT-

AND-OR gates. The implementations for segments a, b and g are shown. Figure 17.5a-c

a = A + C + BD + BD

Figure 17.5a Implementation of Segment a output

b = B + CD + CD

Figure 17.5b Implementation of Segment b output

162

CS302 - Digital Logic & Design

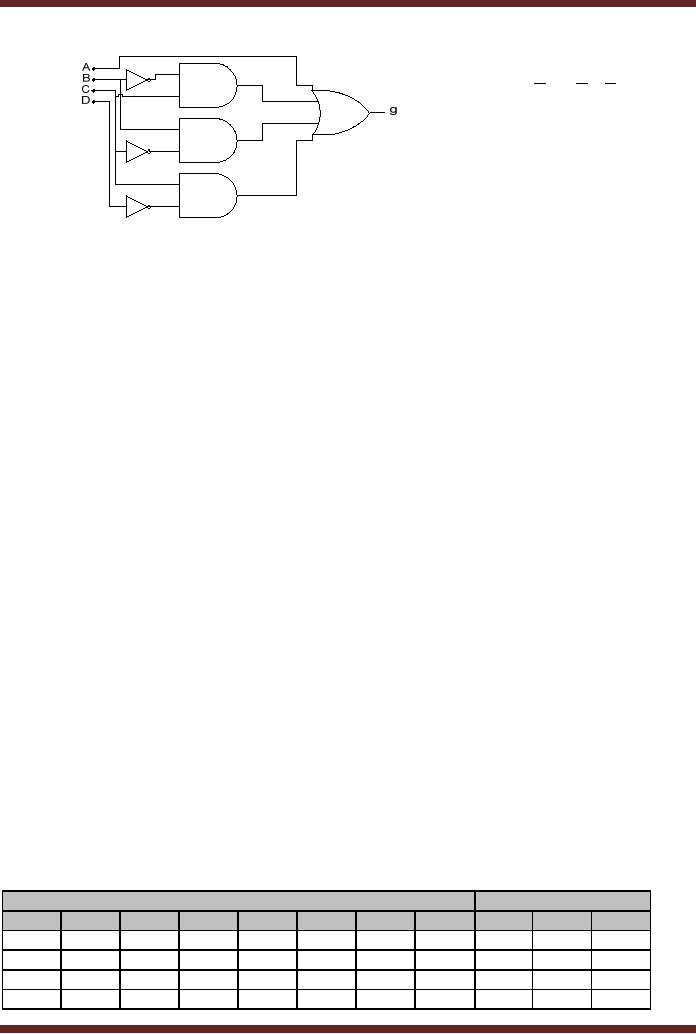

g = A + BC + CD + BC

Figure 17.5c Implementation of Segment g output

MSI Seven-Segment Decoder

The 7-Segment Decoder circuit is available in MSI form, 74LS47. The IC has 4-bit BCD

input ABCD and 7-bit active-low outputs for segments a, b, c, d, e, f and g. The Decoder also

has three extra active-low inputs.

· LT: Lamp test

· RBI: Ripple Blanking Input

· BI/RBO: Blanking Input/Ripple Blanking Output

When a low is applied to the LT input and the BI/RBO is high, all of the seven

segments in the display are turned on to test that no segments are burned out. The Ripple

Blanking Input and The Blanking Input/Ripple Blanking Outputs are used to prevent display of

leading and trailing zeros.

BCD-to-Decimal Decoder

The operation of the BCD-to-Decimal Decoder is the same as a Binary 4-to-16

decoder, the only difference being that the BCD-to-Decimal Decoder has ten output pins

instead of sixteen and the input is a valid BCD number. Thus invalid BCD codes 1010, 1011,

1100, 1101, 1110 and 1111 applied at the input of the Decoder do not activate any of the ten

outputs. The commercially available MSI, BCD-to-Decimal Decoder is the 74LS42, which has

active-high inputs and active-low outputs.

Encoder

An Encoder functional device performs an operation which is the opposite of the

Decoder function. The Encoder accepts an active level at one of its inputs and at its output

generates a BCD or Binary output representing the selected input. There are various types of

Encoders that are used in Combinational Logic Circuits.

Binary Encoder

The simplest of the Encoders are the 2n-to-n Encoders. The functional table and the

circuit diagram of an 8-to-3 Binary Encoder are shown in table 17.2 and figure 17.6

respectively.

Input

Output

163

CS302 - Digital Logic & Design

Table 17.2

Function Table of an 8-to-3 Encoder

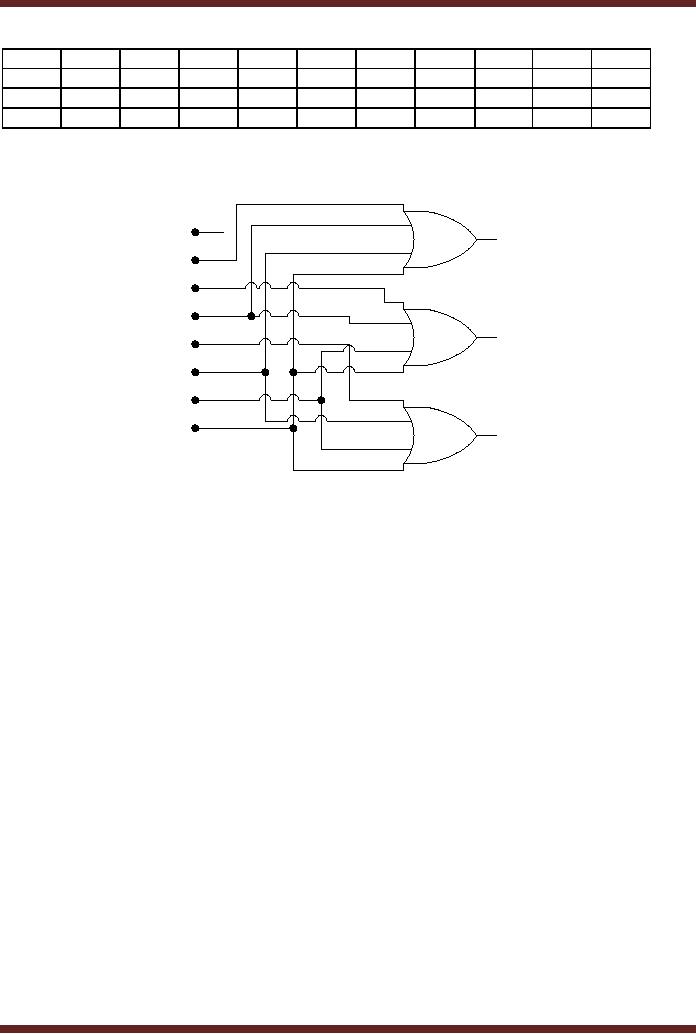

Figure 17.6

8-to-3 Encoder

The inputs and the outputs of the 8-to-3 Encoder are shown to be active-high. The I0 is

shown to be unconnected to any gate or output. Thus, if all inputs are inactive low, or the I0

input is high the output is 000. The appropriate 3-bit output combination is activated for every

input that is asserted by connecting it to logic high. The Binary encoder has a drawback when

more than one input is activated. Consider that the inputs I3 and I6 are activated

simultaneously by applying logic 1 at the two inputs. This results in the outputs 011 and 110

for the two inputs respectively. Thus all three output pins are at logic 1.

Priority Encoders

Priority Encoders remove the problem highlighted earlier with simple Binary Encoders.

Priority Encoders have necessary logic to activate the outputs corresponding to the highest

Priority input when multiple inputs are asserted simultaneously.

Boolean expressions for the three outputs O2, O1 and O0 of an 8-to-3 Priority Encoder

are can be written in terms of variables.

O2 = A 7 + A 6 + A 5 + A 4

O1 = A 7 + A 6 + A 3 + A 2

O0 = A 7 + A 5 + A 3 + A1

where

A 7 = I7

164

CS302 - Digital Logic & Design

A 6 = I7I6

A 5 = I7 I6I5

A 4 = I7 I6 I5I4

A 0 = I7 I6 I5 I4 I3 I2 I1I0

O 2 = I7 + I7I6 + I7 I6I5 + I7 I6 I5I4

= I7 + I7 (I6 + I6I5 + I6 I5I4 ) = I7 + I6 + I6I5 + I6 I5I4 = I7 + I6 + I6 (I5 + I5I4 ) = I7 + I6 + I5 + I5I4

= I7 + I6 + I5 + I4

O1 = I7 + I7I6 + I7 I6 I5 I4I3 + I7 I6 I5 I4 I3I2

= I7 + I7 (I6 + I6 I5 I4I3 + I6 I5 I4 I3I2 ) = I7 + I6 + I6 I5 I4I3 + I6 I5 I4 I3I2 = I7 + I6 + I6 (I5 I4I3 + I5 I4 I3I2 )

= I7 + I6 + I5 I4I3 + I5 I4 I3I2 = I7 + I6 + I5 I4 (I3 + I3I2 ) = I7 + I6 + I5 I4 (I3 + I2 ) = I7 + I6 + I5 I4I3 + I5 I4I2

O 0 = I7 + I7 I6I5 + I7 I6 I5 I4I3 + I7 I6 I5 I4 I3 I2I1

= I7 + I7 (I6I5 + I6 I5 I4I3 + I6 I5 I4 I3 I2I1 ) = I7 + I6I5 + I6 I5 I4I3 + I6 I5 I4 I3 I2I1

= I7 + I6 (I5 + I5 I4I3 + I5 I4 I3 I2I1 ) = I7 + I6 (I5 + I5 (I4I3 + I4 I3 I2I1 )) = I7 + I6 (I5 + I4I3 + I4 I3 I2I1 )

= I7 + I6 (I5 + I4 (I3 + I3 I2I1 )) = I7 + I6 (I5 + I4 (I3 + I2I1 )) = I7 + I6I5 + I6 I4I3 + I6 I4 I2I1

The MSI, 74XX148 8-input Priority has a circuit implemented based on the Boolean

expression for outputs O0, O1 and O2. The function table of the 8-inpuy Priority Encoder is

presented. Table 17.3

Inputs

Outputs

Table 17.3

Function Table of an 8-Input Priority Encoder

Cascading Priority Encoders

The 74XX148 Priority Encoder has active-low inputs and active-low outputs. The

Encoder also has an active-low enable input E1 which enables or disables the outputs. The

Group Select GS active-low output is asserted when any one of the inputs is asserted. The

165

CS302 - Digital Logic & Design

Enable output EO signal is used to cascade multiple Encoders to form larger Encoders. The

EO output is connected to the EI input of the Encoder which handles lower priority inputs. Two

8-input are shown connected together to form a 16-input Priority Encoder. Figure 17.7

Figure 17.7

8-input Priority Encoders connected to form a 16-input Priority Encoder

Decimal-to-BCD Encoder

The Decimal-to-BCD Encoder has ten inputs, for the decimal digits 0 to 9 and four

outputs corresponding to the 4-bit BCD output. The 74LS147 is a Decimal-to-BCD Priority

Encoder which has active-low input and outputs. The Decimal-to-BCD Priority Encoder is used

as a keypad encoder. A telephone keypad has digits 0 to 9. The keypad is connected to the

encoder through pull-up resistors that ensure that the inputs to the encoder are logic high

when none of the keypad keys is pressed. When ever a key is pressed the appropriate input of

the encoder is connected to logic low and at the output the corresponding BCD code is

generated. Figure 17.8

166

CS302 - Digital Logic & Design

Figure 17.8

Keypad Encoder

Multiplexer

Multiplexer is a digital switch that has several inputs and a single output. The

Multiplexer also has select inputs that allow any one of the multiple inputs can be selected to

be connected to the output. Multiplexers are also known as Data Selectors. The main use of

the Multiplexer is to select data from multiple sources and to route it to a single Destination. In

a computer, the ALU combinational circuit has two inputs to allow arithmetic operations to be

performed on two quantities. The two quantities are usually stored in different set of registers.

The inputs of the two multiplexers are connected to the output of each of the multiple registers.

The outputs of the two multiplexers are connected to the two inputs of the ALUs. The

Multiplexers are used to route the contents of any two registers to the ALU inputs.

Multiplexers are available in different configurations. The 4-to-1 Multiplexer circuit is

shown. Figure 17.9, the function table of the Multiplexer is presented. Table 17.4

Figure 17.9

4-to-1 Multiplexer

Select Inputs

Output

Table 17.4

Function table of 1-to-4 Multiplexer

When the Select input are set to 00, the first AND gate at the top is enabled allowing

the logic high or low applied at input I0 to be routed through the OR gate to the output Z.

Similarly, when the Select input is set to 10 the third gate is enabled allowing the logic value

applied at the input I2 to be routed through the OR gate to the output Z.

167

CS302 - Digital Logic & Design

1. Dual 4-Input Multiplexer

Commercial available 4-input Multiplexer is the 74XX153 IC which has two 4-input

multiplexers. The two select inputs of the two 4-input multiplexers are common, however each

multiplexer has a separate enable input which allows the two multiplexers to be separately

controlled. The circuit diagram of the dual 4-input multiplexers is shown. Figure 17.10

1C0

1C1

1C2

1C3

2C0

2C1

2C2

2C3

Figure 17.10 Dual, 4-input Multiplexer

Both the 4-input Multiplexers have active-high inputs and outputs. The first Multiplexer

has the inputs 1C0, 1C1, 1C2 and 1C3 and the output 1Y. The multiplexer has an active-low

enable signal defined by 1G. The select inputs are defined by A and B which are both active-

high. Two extra NOT gates are connected at the select inputs to reduce the unit load from 5

each to one. Similar to the 4-input Multiplexer discussed earlier, the select input lines enable

one of the four AND gates and allow the corresponding input logic value to be routed to the

output through the OR gate. The second 4-input Multiplexer is identical it has active-high

inputs defined by 2C0, 2C1, 2C2 and 2C3 and an active-high output defined by 2Y. The

multiplexer has an independent active-low enable signal that enables/disables the four AND

gates. The select inputs A and B controlling the first multiplexer also control the second

multiplexer.
