BCD ADDER

BCD binary numbers represent Decimal digits 0 to 9. A 4-bit BCD code is used to

represent the ten numbers 0 to 9. Since the 4-bit Code allows 16 possibilities, therefore the

first 10 4-bit combinations are considered to be valid BCD combinations. The latter six

combinations are invalid and do not occur.

BCD Code has applications in Decimal Number display Systems such as Counters and

Digital Clocks. BCD Numbers can be added together using BCD Addition. BCD Addition is

similar to normal Binary Addition except for the case when sum of two BCD digits exceeds 9 or

a Carry is generated. When the Sum of two BCD numbers exceeds 9 or a Carry is generated

a 6 is added to convert the invalid number into a valid number. The carry generated by adding

a 6 to the invalid BDC digit is passed on to the next BCD digit.

Addition of two BCD digits requires two 4-bit Parallel Adder Circuits. One 4-bit Parallel

Adder adds the two BCD digits. A BCD Adder uses a circuit which checks the result at the

output of the first adder circuit to determine if the result has exceeded 9 or a Carry has been

generated. If the circuit determines any of the two error conditions the circuit adds a 6 to the

original result using the second Adder circuit. The output of the second Adder gives the correct

BCD output. If the circuit finds the result of the first Adder circuit to be a valid BCD number

(between 0 and 9 and no Carry has been generated), the circuit adds a zero to the valid BCD

result using the second Adder. The output of the second Adder gives the same result. Figure

15.1

Figure 15.1

4-Bit BCD Adder

141

The circuit that checks if the output of the first Adder has exceeded 9 is a simple

combinational circuit with the function table specified. Table 15.1

Input

Output

Input

Output

Table 15.1

Function Table of Invalid BCD Number detector

S3S2\S1S0

Figure 15.2

Mapping of Invalid BCD Number detector function

The Boolean expression for the Invalid BCD Number Detector obtained from the

Karnaugh Map which maps the function table is S 3S 2 + S 3S1 = S 3 (S 2 + S1 )

The Invalid BCD Number is represented by two error conditions, either the BCD number is one

of the invalid numbers or a Carry out has been generated. Therefore the complete expression

for determining an incorrect BCD output is Cout1 + S 3 (S 2 + S1 ) . Figure 15.3

Figure 15.3

The Invalid BCD Detector Circuit

Connection of Invalid BCD Detector Circuit to second Adder

Adding of 6 when error conditions are detected and adding a zero when error

conditions are not detected is implemented by connecting the output of the Invalid BCD

Number Detector circuit to bits B1 and B2 of the Adder. Bits B0 and B3 are permanently

connected to 0. Figure 15.4. When an error condition is detected the output of the circuit is set

to logic 1, setting bits B1 and B2 to 1 and the 2nd Adder input B to 0110. When the error

condition is not detected the circuit output is 0 and the 2nd Adder input B is set to 0000.

142

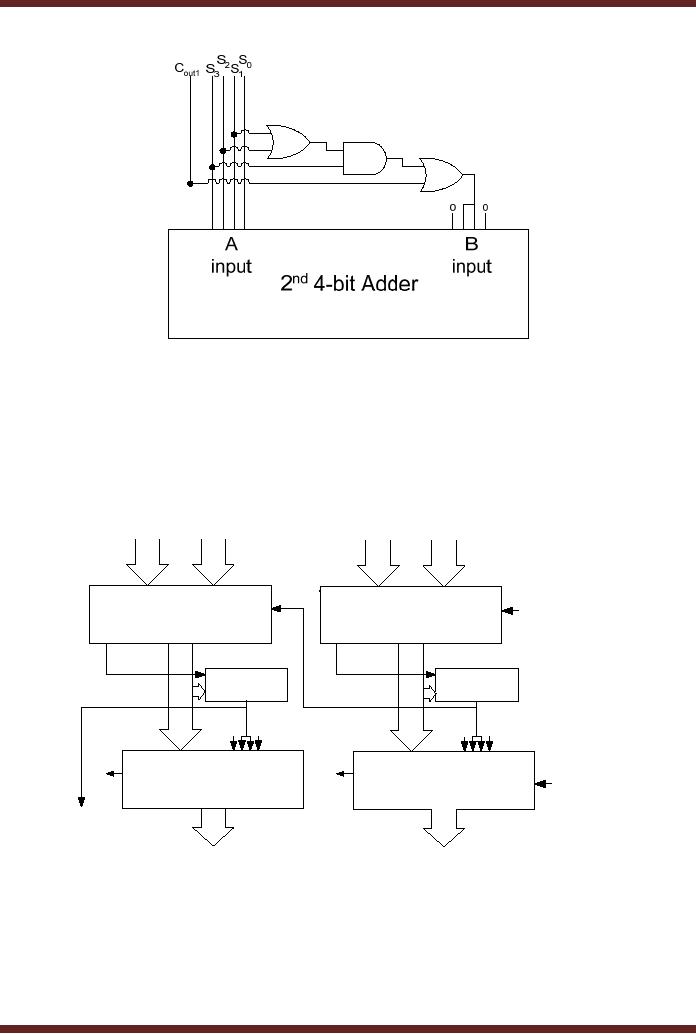

Figure 15.4

Using the Second Adder to Add 6 or 0

2-digit BCD Adder

Two singe digit BCD Adders can be cascaded together to form a 2-digit BCD Adder.

Four, 4-bit 74LS283 MSI chips are used. Two 74LS283s are required to directly add the two 2-

digit BCD numbers and the remaining two 74LS283s are required to add a six to the result if

any of the two digits add up to invalid BCD digits or generate a Carry. Two invalid BCD

detector circuits are used. Figure 15.5

A4-7

B4-7

A0-3

B0-3

Cin4

Cin= 0

1st

MSD 4-bit Adder

LSD 4-bit Adder

Cout8

Cout4

Invalid BCD

Detector Circuit

S4-7

S0-3

Cin4=0

Cin= 0

Cout4

Cout8

2nd MSD 4-bit Adder

2nd LSD 4-bit Adder

Cout

S4-7

S0-3

Figure 15.5

2-Digit BCD Adder

Consider two examples. In the first example, 2-digit BCD number 99 is added with

another 2-digit BCD number 99. The answer should be 198 a 3-digit BCD number. Table 15.2.

In the second example, 2-digit BCD number 99 is added with another 2-digit BCD number 66.

The answer should be 165. Table 15.3

143

1st MSD Adder

1st LSD Adder

Carry

A(0-3)

1001

A(0-3)

1001

B(0-3)

1001

B(0-3)

1001

Cin4

Cin

S(0-3)

0011

S(0-3)

0010

Cout8

Cout4

Ckt. o/p 1

2nd LSD Adder

A(0-3)

0011

A(0-3)

0010

B(0-3)

0110

B(0-3)

0110

Cin

S(0-3)

1001

S(0-3)

1000

Table 15.2

Adding BCD numbers 99 and 99

1st MSD Adder

1st LSD Adder

Carry

A(0-3)

1001

A(0-3)

1001

B(0-3)

0110

B(0-3)

0110

Cin4

Cin

S(0-3)

0000

S(0-3)

1111

Cout8

Cout4

Ckt. o/p 1

2nd LSD Adder

A(0-3)

0000

A(0-3)

1111

B(0-3)

0110

B(0-3)

0110

Cin

S(0-3)

0110

S(0-3)

0101

Table 15.3

Adding BCD numbers 99 and 66

Subtraction

Subtraction in Digital Systems is performed by taking the 2's complement of the

number to be subtracted (subtrahend) and adding it to the minuend. The example shows the

subtraction of 6 represented in 2's complement form from nine also represented in its 2's

complement form. Since 9 is a positive number therefore its 2's complement representation is

the same. Neglecting the carry bit, the 4-bit number represents decimal 4.

1001

- 5

1011

1 0100

The 2's complement of any number is obtained by taking the 1's complement of a

number and then adding a 1 to the 1's complement. The two step process to represent a

negative number in its 2's complement form is shown

The number 5

0101

144

Invert all bits to result in 1's complement

1's complement of 5 is

1010

2's complement of 5 is

1011

An Adder can be used to perform subtraction operations if the minuend is presented in

its 1's complemented form at the input of the adder circuit. The binary 1 that is added to the 1's

complement of a number to convert it into 2's complement is applied at the Carry In of the

Adder Circuit. Figure 15.6

1001

1010

A (0-3)

B (0-3)

Cout

Cin=1

4-bit Parallel

Adder

Sum (0-3)

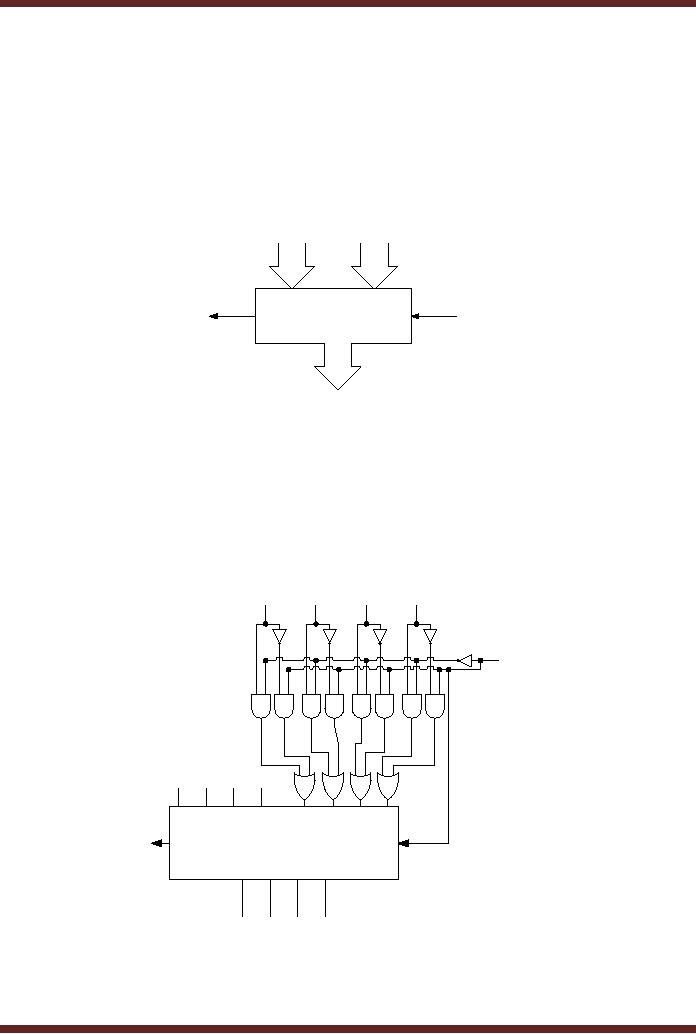

Figure 15.6

4-bit Subtraction Circuit

The Adder circuit adds the number 9 (1001), 1's complement of 5 (1010) and the Carry

In which is set to 1.

A 4-bit bcd Adder/Subtracter Unit

An Adder can be connected to perform Additions and Subtractions by applying the un-

complemented and complemented data at one of the two inputs of the Adder respectively. The

Carry In input has also to be connected to 0 or 1 respectively. Figure 15.7

Add = 0

Subtract = 1

A3 A2 A1 A0

CIn

COut

4-bit Parallel Adder

S3 S2 S1 S0

Figure 25.7

4-bit Adder/Subtracter Unit

145

The AND gate and OR gate implementation connected at the B input of the 4-bit Adder

is used to allow Complemented or Un-Complemented B input to be connected to the Adder

input. Adding of two 4-bit numbers A and B can be performed by selecting the Add/Subtract =

0. The AND gates marked U (un-complemented) are enabled allowing B0-3 to be passed on to

the OR gates and the B input of the Adder. Subtraction is performed by selecting the

Add/Subtract = 1. The AND gates marked C (complemented) are enabled allowing

complemented B0-3 to be passed on to the OR gates and the B input of the Adder. The Carry

In is also set to 1 when Add/Subtract is set to 1.

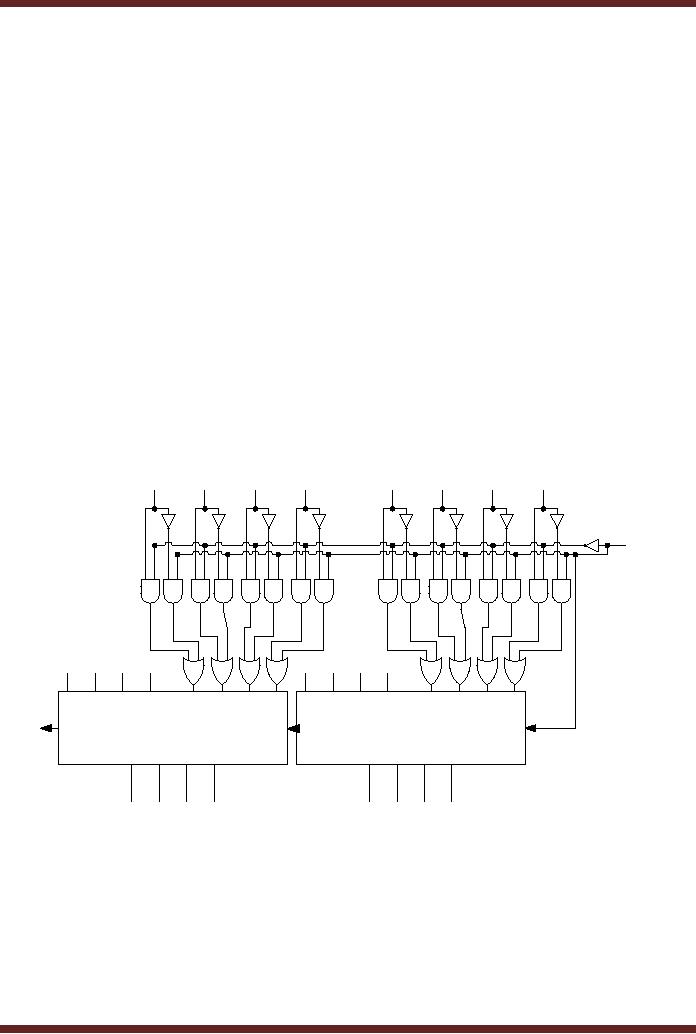

An 8-bit bcd Adder/Subtracter Unit

Two 4-bit 74LS283 chips can be cascaded together to form an 8-bit Parallel Adder

Unit. Each of the two 74LS283 ICs is connected to the 1's Complement circuitry that allows

either the un-complemented form for addition or the complemented form for subtraction to be

applied at the B inputs of the two 74LS283s. Figure 15.8

The 8-bit Adder/Subtracter Circuit is similar to the 4-bit Adder/Subtracter Circuit. Two

sets of AND-OR based circuit that allows complemented and un-complemented B input to be

applied at the B inputs of the two 4-bit Adders. The Add/Subtract function select input are tied

together. The Carry In of the 1st 4-bit Adder circuit is connected to the Add/Subtract function

select input. The Carry Out of the 1st 4-bit Adder circuit is connected to the Carry In of the 2nd

4-bit Adder circuit.

Add = 0

Subtract = 1

A7 A6 A5 A4

A3 A2 A1 A0

CIn

1st 4-bit Parallel Adder

4-bit Parallel Adder

COut

S7 S6 S5 S4

S3 S2 S1 S0

Figure 15.8

8-bit Adder/Subtracter Circuit

Consider two number A=103 and B=67 which are first added and then subtracted using the 8-

bit Adder/Subtracter Circuit. Table 15.4 and Table 15.5

146

Adding 103 and 67

2nd MS Adder

1st LS Adder

Carry

A(4-7)

0110

A(0-3)

0111

B(4-7)

0100

B(0-3)

0011

Cin

S(4-7)

1010

S(0-3)

1010

Table 15.4

Adding 103 and 67

Subtracting 103 and 67

2nd MS Adder

1st LS Adder

Carry

A(4-7)

0110

A(0-3)

0111

B(4-7)

1011

B(0-3)

1100

Cin

S(4-7)

0010

S(0-3)

0100

Table 15.5

Subtracting 103 and 67

Arithmetic and Logic Unit (ALU)

Microprocessors have Arithmetic and Logic Units, a combinational circuit that can

perform any of the arithmetic operations and logic operations on two input values. The

operation to be performed is selected by set of inputs known as function select inputs.

There are different MSI ALUs available that have two 4-bit inputs a 4-bit output and

three to five function select inputs that allows up to 32 different functions to be performed.

Three commercially available 4-bit ALUS are

· 74XX181: The 4-bit ALU has five function select inputs allowing it to perform 32 different

Arithmetic and Logic operations.

· 74XX381: The 4-bit ALU only has three function select inputs allowing only 8 different

arithmetic and logic functions. Table 15.6

· 74XX382: The 4-bit ALU is similar to the 74XX381, the only difference is that 74XX 381

provides group-carry look-ahead outputs and 74XX382 provides ripple carry and overflow

outputs

Input

Function

F=0000

F=B-A-1+Cin

F=A-B-1+Cin

F=A+B+Cin

F = A ⊕B

F=A+B

F=A.B

F=1111

147

Table 15.6

Function Table of 74XX381 4-bit ALU

Implementing 16-bit ALU

16-bit ALU can be implemented by cascading together four 4-bit ALUs. These 4-bit

ALUs have built in Look-Ahead Carry Generator circuits that eliminate the delay caused by

carry bit propagating through the Parallel Adder circuit within the 4-bit ALU circut. However,

when a number of such units are cascaded together to implement large 16-bit and 32-bit ALU,

the carry propagating between one unit to the next gets delayed due to the Carry rippling

through multiple 4-bit units. For large 32-bit ALUs, the Carry propagates through 8, 4-bit units

delaying the Carry out from the last most significant unit by a factor of 8.The 74XX181 and

74XX381 circumvent the problem by having Group-Carry Look-Ahead.

Group-Carry Look-Ahead

The Look-Ahead Carry Generator discussed earlier and used by the 74LS283 Adder

provides Carry's C1, C2, C3 and C4 simultaneously after a gate delay of two. Carry's C1, C2 and

C3 are used internally, where as C4 provides the Cout from the 74LS283. Referring to the Look-

Ahead Carry Generator Circuit the C1, C2, C3 and C4 terms are generated on the basis of P0,

P1, P2 and P3 the four Carry Propagate terms and G0, G1, G2 and G3 the four Carry Generate

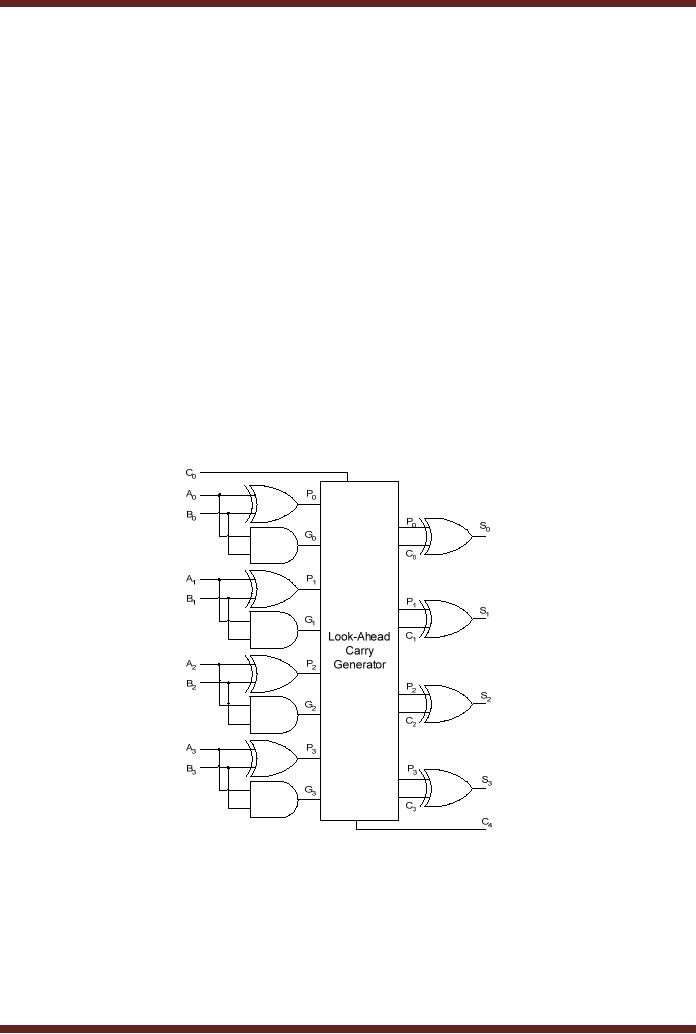

terms. Figure 15.9

Figure 15.9

Look-Ahead Carry Generator

These terms are used to generate Group-Carry Look-Ahead outputs that can be used

to cascade together multiple units eliminating the problem of rippling carry. The G and P

output pins of the 74XX381 provide the group-carry look-ahead outputs that allow multiple

ALUs to be cascaded together. The active-low outputs G and P are represented by the

Boolean expressions. Figure 15.10

148

74X381

Cin

G = G3 + P3G 2 + P2P3G1 + P1P2P3G0

P = PoP1P2P3

Figure 15.10 74X381 ALU with Group-Carry Look-Ahead outputs

149
