Database Management System (CS403)

Lecture No. 05

Reading Material

"Database Systems Principles, Design and Implementation"

2.3.2, 2.4

written by Catherine Ricardo, Maxwell Macmillan.

Overview of Lecture

o Database Application Development Process

o Preliminary Study of System

o Tools used for Database system Designing

o Data Flow Diagrams

o Different types of Data flow Diagram

Database design and Database Application design are two almost similar concepts, form

the course point of view it is worthwhile to mention that the course is mainly concerned

with designing databases and it concentrates on the activities which are performed during

the design of database and the inner working of the database. The process that will be

discussed in this lecture for development of database is although not a very common one,

but it specifies all the major steps of database development process very clearly. There

exist many ways of system and database development which are not included in the scope

of this course. But we will see only those portions of the other processes which are

directly related with the design and development of database.

Database Application development Process includes the Following Stages or steps:

o Database Design

o Application Programs

o Implementation

Database Management System (CS403)

These three steps cannot always be considered as three independent steps performed in a

sequence or one after another. Rather, they occur in parallel, which means that from a

certain point onward the application programs development may run in parallel with the

database design stages, specially the last stages of the database design. Similarly while

the design phases of the database are in progress, certain phases of the application

programs can also be initiated, for example, the initial study of the screens' format or the

reports layout. The database design process that we are going to discuss in this course

does not take these steps independently and separately, and since the major concern of

this course is the design stages of the database, it concentrate only on those.

o Database Design:

This part of the database application development process is most important process with

respect to the database application development, because the database is something that

will hold the organizations' data, in case the design of the database is not correct or is not

correctly reflecting the situations or scenarios of the organization then it will not produce

correct result, or even just produce errors in response to certain queries. So this portion of

the database design is given great attention when designing a database application.

Database Development Process

The database development process means the same thing that we have mentioned as

database application development process. Rather than discussing three stages of

database application development separately, the steps given in the database development

process include steps that cover all three phases mentioned for the database application

development process.

Preliminary Study:

Design of database is carried out in a number of steps; these steps play important role in

the design process and need to be given proper attention First Phase of the database

development process is the Preliminary Stage, which is based on the proper study of the

system. It means that all the parts of the systems, or the section of the subject

Database Management System (CS403)

organization for which we intend to develop the system must be studied. We should find

the relation or interaction of different section of the organization with each other and

should understand the way information flows between different sections of the

organization. Moreover it should also be made clear that what processing is performed at

each stage of the system.

o Requirement Analysis:

Once we have investigated the organization for its different sections and the way data

flows between those sections. Detailed study of the system is started to find out the

requirements of each section. This phase is the detailed study of the system and its

functionality decisions made at this stage decide the overall activity of the organization.

Requirements of one section of the organization are fulfilled in such a way that all the

sections in the organization are supporting each other, for example we can say that the

results produced by the processing taking place at one section are used as input for

another section. All the users of the systems are interviewed and observed to pinpoint and

precisely define the activities taking place in the different section of the organization.

Fig: 1. Database Development process

o Database Design:

Database Management System (CS403)

Third stage in the database development process is the database design; this is a rather

technical phase of the process and need handsome skill as a Database Administrator. This

is the phase where the logical design of the database is created and different schemas for

the database are created logically. Entities are identified and given attributes,

relationships are built and different types of entity mappings are performed.

o Physical Design

This is the phase where we transform our logical design into a Physical design by

implementing the designed database onto a specific DBMS; the choice of the DBMS is

made on the basis of requirements and the environment in which the system will operate.

Implementing a database on a specific DBMS is very important because it involves the

major financial investment of the organization, and can not be reverted in case a selected

DBMS in not capable of providing the desired efficiency.

o Implementation:

This phase is specific to writing the application programs needed to carry out different

activities according to use requirements. Different users may have different requirements

of the data in the database, so the number of application programs is not known or fixed

for all the organizations, it may vary for different organizations.

o Maintenance of the Database System:

Maintenance means to fine tune the system and check that the designed applications

systems are fulfilling the purpose for which they are meant. Also this phase may involve

designing any new application for the enhancement of the system. Or an already working

application may need to be updated or modified to remove any errors or to add some

functionality in the system. The phases involved in the development of the database

application are expressed graphically in Figure-1.

All these stages are necessary and must be given the necessary attention at each level to

get properly working and good system design and a better working environment.

Database Management System (CS403)

Database Development Process: Approach 2

There are other development processes also with some of the stages or steps modified as

compared to the model we have just studied. Such and alternative is given in the Figure-2

below. In this design process we see some of the design stages which existed in the

previous designing steps but some of the stages are modified or merged with others to get

more precise result or to distinguish different separate design phases. In this process of

designing; the following steps exist:

Analyze User Environment

Develop Conceptual Model

Map Conceptual Model to Logical

Choose DBMS

Develop Physical Design

Implement System

Test System

Operational Maintenance

o Analyze User Environment

This is same step as we discussed while discussing the previous designing process

o Develop Conceptual Model

Next stage in this process model is the development of conceptual model or schema Here

we actually transform the studied and analyzed information into the conceptual design of

the database, this stage may also be connected with the requirement analysis phase, as

expressed in the diagram by showing an arrow from this stage back to the first stage.

o Map Conceptual Model to Logical Model

Third stage is the mapping of the developed conceptual model to the logical model of the

database, means at this stage the schema rules are defined and identified for general

database structures.

o Choose DBMS

Once the mapping of the conceptual and logical model is done, the decision for the use of

DBMS is made; again we refer to the previous model for selecting of the DBMS and will

take care of all the necessary requirements of the environment before making a decision.

Database Management System (CS403)

o Develop Physical Design

Once we have selected a DBMS, the logical design is then transformed into physical

design. This also includes considering many other decisions, like, data type allocation,

indexes to be created, file organizations, etc. Physical database design is achieved by

using the DBMS specific rules for schema definition and all the facilities provided by the

DBMS,

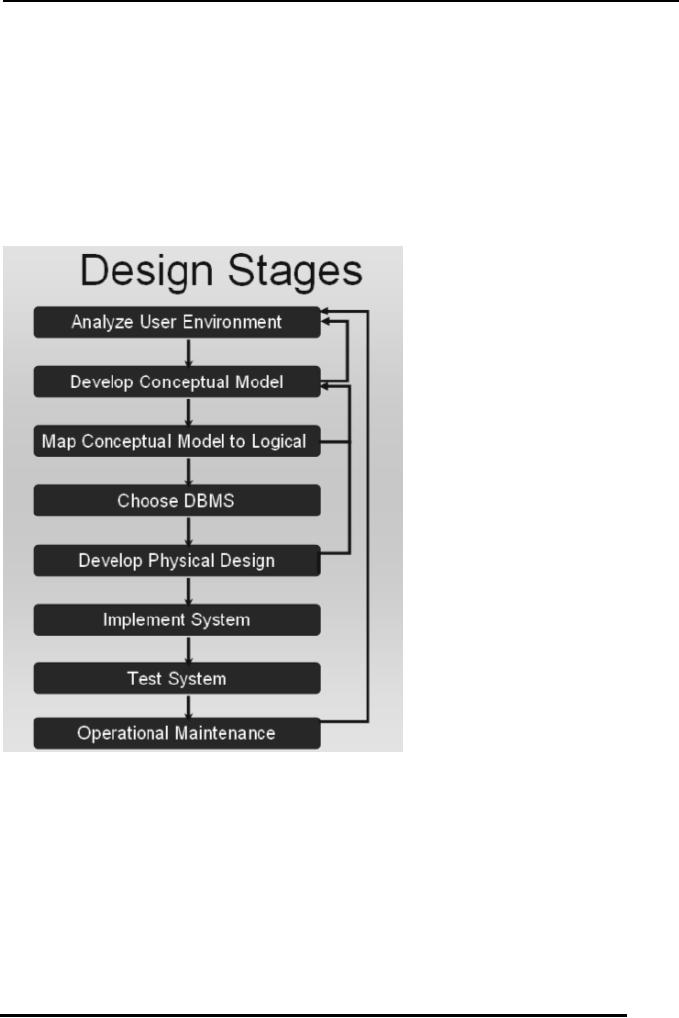

Fig: 3. Database Development Stages. (Second Approach)

o Implement System

This stage is also similar to the one described earlier, i.e., designing the application for

different users and user groups of the organization.

o Test System

Testing is important in the sense that an application may be producing incorrect results,

and this incorrectness may lead to the inconsistency of the system. So when a system

Database Management System (CS403)

design is complete, once it is implemented it must be tested for proper operation and all

the modules must be checked for their correctness. Whether the system modules are

important or not because the result of the system is mostly dependent on the proper the

functionality of all database applications and modules.

o Operational Maintenance:

Maintenance means to check that all parts of the system are working and once the testing

of the system is completed the periodic maintenance measure are performed on the

system to keep the system in working order.

Tools Used for Database System Development:

Why tools are used?

Tools are used for describing the design process in standard ways. If there is no

standardized tool available for designing a specific systems; Then everyone will have to

use its own design notation, and a notation used by one designer may not be

understandable to the another one. This misunderstanding can be more drastic if both the

designers are working for the development of the same system. Tools can also help the

designer and the user to mutually agree on a specific design.

Data Flow Diagrams:

The most common tool used for deigning database systems is Data Flow Diagram. It is

used to design systems graphically and expresses different system detail in different DFD

levels.

DFDs show the flow of data between different processes o a specific system.

DFDs are simple, and hide complexities.

DFDs are Descriptive and links between processes describe the information flow.

o Limitation of DFDs

They do not provide us a way of expressing decision points.

Database Management System (CS403)

DFDs are focused on flow of information only.

o Symbols used in DFD:

There are a limited number of symbols which are used for design process in DFDs.

o DATAFLOW:

The purpose of the dataflow in a DFD is to express the flow of information from one

entity to another entity in the system

Data flows are pipelines through which packets of information flow.

Arrows are labeled with name of the data that moves through them. Figure-4 below show

the Dataflow diagram

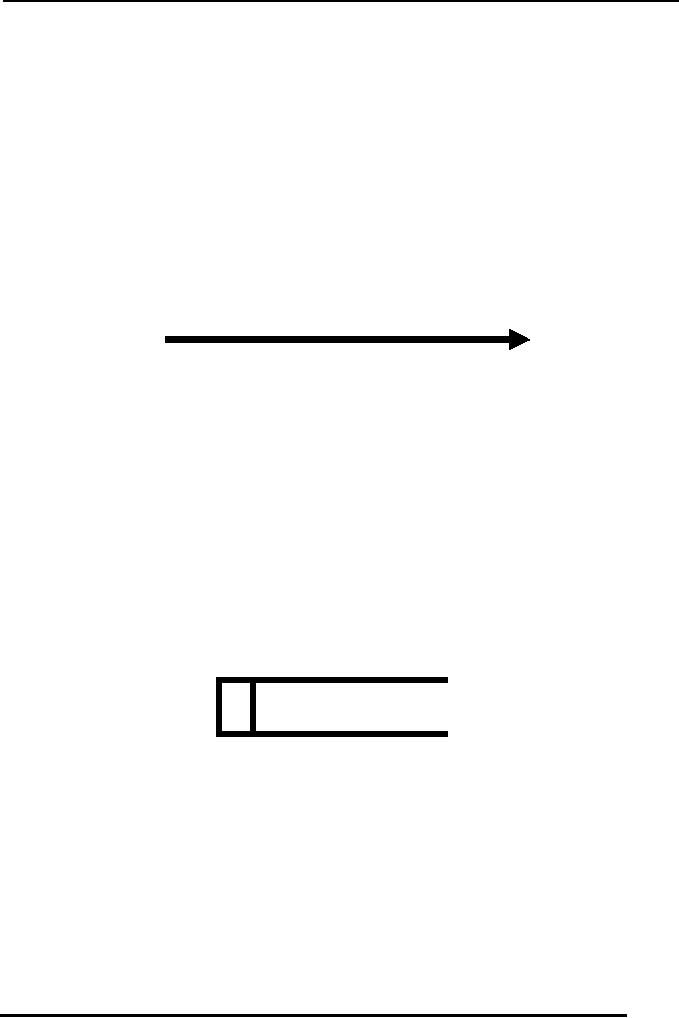

Fig: 4. Dataflow Symbol

o DATA STORE:

Data store is a repository for the storage of the data. When in a system the data is to be

permanently stored somewhere for future reference or use the DATASTORE is used for

this purpose. It is express with a rectangle open on right width and left width of the

rectangle drawn with double lines.

Data in the DATASTORE is held sometimes for processing purposes also i-e it may not

be a permanent data store.. Name of the DATASTORE is a noun which tells the storing

location in the system. Or identifies the entity for which data is stored. Figure-5 shows a

data store.

Fig: 5. Data store

o Processes:

Processes are expressed with ovals or rounded rectangles. Processes are used to express

the transformation of incoming dataflow into outgoing dataflow. Process symbols are

used for whatever is the action taking place and whatever is the magnitude or complexity

of the action. Simply stating when data is transformed from one form into another the

process symbol is used. Figure-6a and Figure-6b show two different shapes used for

presenting process in DFD.

Database Management System (CS403)

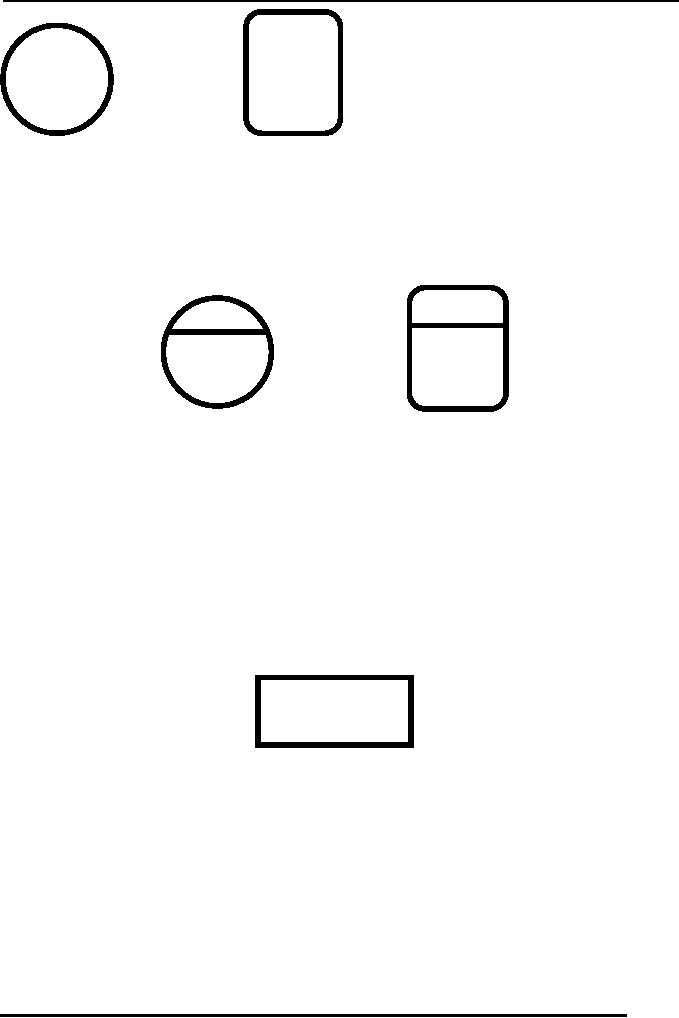

Fig: 6a

Process

Fig-6b

o DFD-Process:

In DFD processes are numbered for expressing their existence at a certain level in the

system.

1.0

Process

Fig: 7. Numbered DFD Processes

o External Entities:

These are the entities interacting with the system in any of two different ways. They may

be either receiving the data from the system, or may be producing the data for the system

to consume.

Shape used to express external entities is rectangle. The shape for external entity is

shown in Figure-8.

Fig: 8. External Entity

o Collector:

This DFD shape is used to express several dataflow connections terminating at a single

location. Collector is used to show the convergence of data to a single point. Fig 9a

shows the Collector symbol and Fig 9b show a collector symbol acting as a sink for

multiple data flows.

Database Management System (CS403)

Fig: 9a Collector

Fig 9b. Collector with Multiple Dataflow

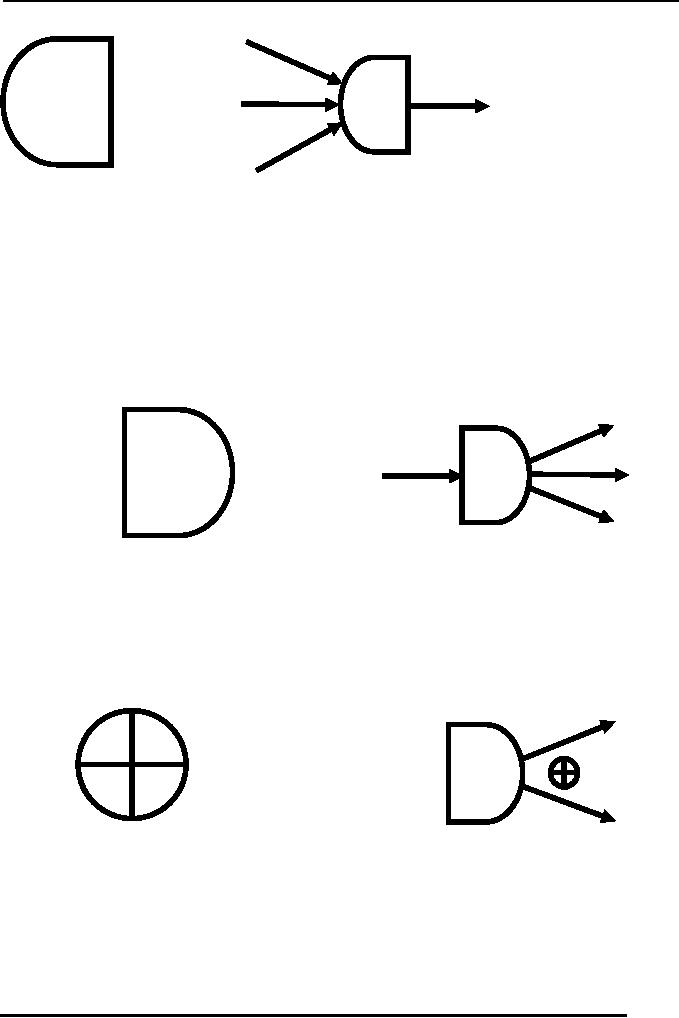

o Separator:

The dataflow symbol which is used for separating data from a single source to multiple

sinks is known as a separator.

Figure 10a show the presentation of separator and the figure 10b shows the separator as it

may appear in a DFD.

Fig: 10a Separator

Fig 10b. Separator with Multiple Dataflow

o Ring Sum Operator:

This operator is used when data from a source process can flow to one of the mentioned

sinks. For this purpose the symbol used is displayed in Figure: 11a and its presentation in

a DFD is expressed in Figure-11b.

Fig: 11a Ring sum operator Fig 11b. Separator with Ring sum operator

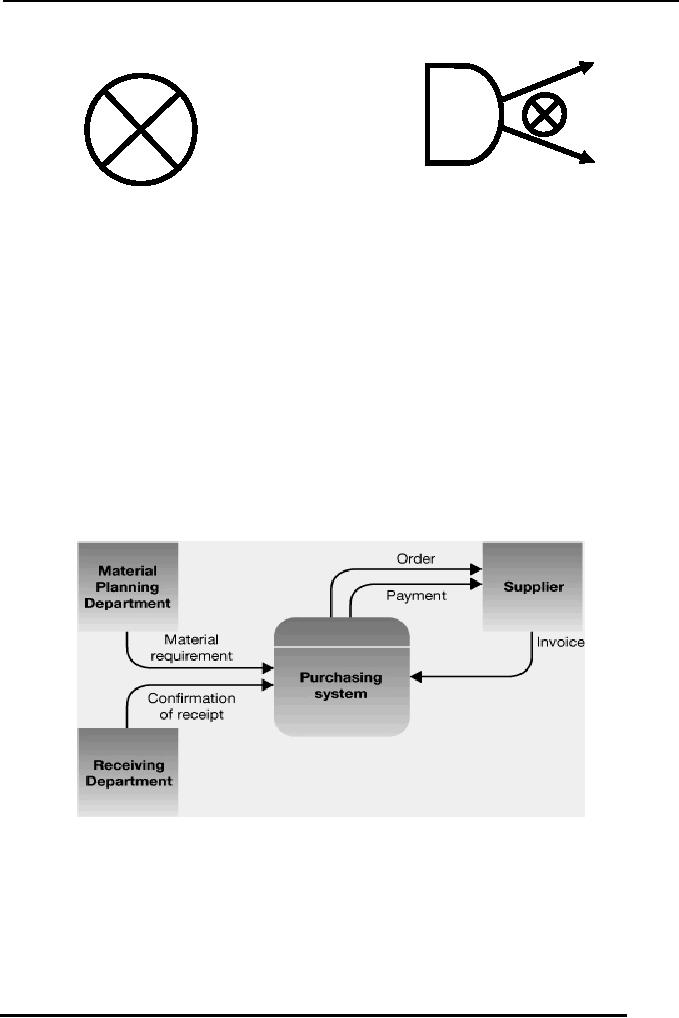

o AND Operator:

This operator is used when data from a source process must flow to all the connected

sinks. For this purpose the symbol used is displayed in Figure: 12a and its presentation in

a DFD is expressed in Figure-12b.

Database Management System (CS403)

Fig: 12a AND operator

Fig 12b. Separator with AND operator

Types of DFD

o Context diagram

o Level 0 diagram

o Detailed diagram

o Context Diagram:

This is the level of DFD which provides the least amount of details about the working of

the system. Context DFDs have the following properties:

They always consist of single process and describe the single system. The only process

displayed in the CDFDs is the process/system being analyzed. Name of the CDFDs is

generally a Noun Phrase.

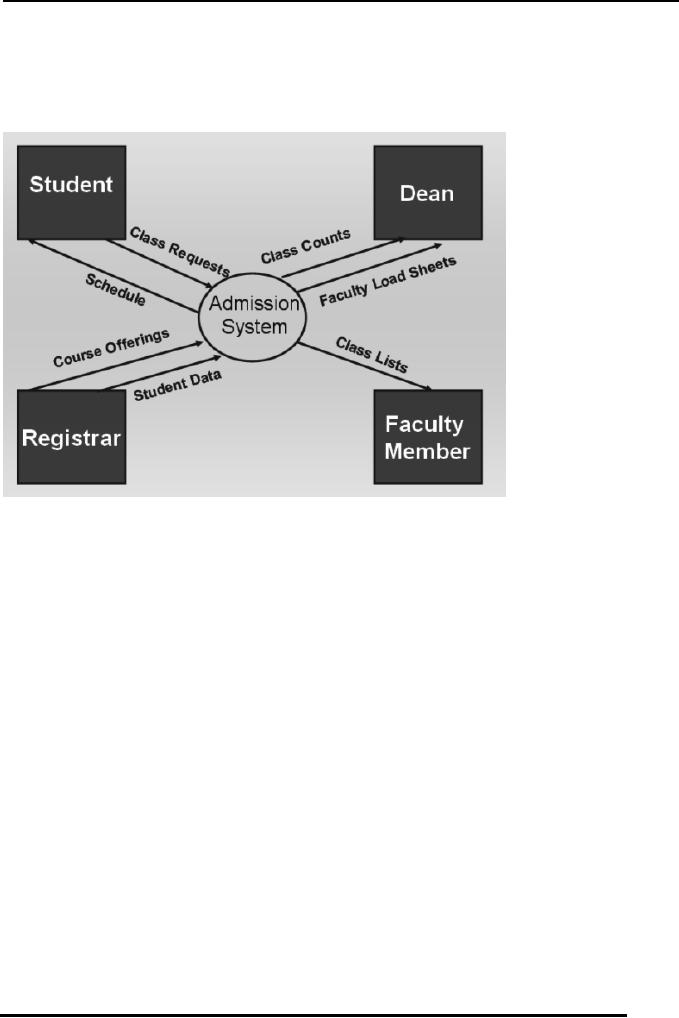

Fig: 13a. Example Context DFD Diagram

No System details are shown in the Contexts DFDs just context is shown. Input and

output from and to the process are shown and interactions are shown only with the

external entities. An example DFD at context level is shown in Figure: 13a and 13b.

Database Management System (CS403)

In the context level DFDs no data stores are created. Ant dataflow from external entities

are only directed toward the purported system and vice versa, no communication is show

between external entities themselves.

Fig: 13b. Example Context DFD Diagram

o Level 0 Data Flow Diagrams:

The level 0 Diagram in the DFD is used to describe the working of the whole system.

Once a context DFD has been created the level zero diagram or level `not' diagram is

created. The level zero diagram contains all the apparent details of the system. It shows

the interaction between a numbers of processes and may include a large number of

external entities. At this level it is the duty of the designer to keep a balance in describing

the system using the level 0 diagram. Balance means that he should give proper depth to

the level 0 diagram processes. Because placing too much details and showing all of the

miniature processes in the level 0 diagrams makes it too much complex. On the other

hand it is also not recommended to just ignore even larger processes of the system,

because in such a case although the level 0 DFD will become simple but now we will

have to create large number of detail DFDs. So a balance in describing the system should

be kept so that the depth of the Level 0 DFD is manageable.

o Steps in creating the level 0 DFD

1. Identify distinct modules of the system for which to create the DFD

Database Management System (CS403)

2. Create DFDs for all the modules one by one to show the internal functionality of

the system.

3. Once DFD for the distinct modules of the system have been created, establish link

between different DFDs where required by either connecting the entities of the

system, processes of the system or the data stores in different DFDs.

4. Now

comes

the

stage

placing

the

numbers

processes.

As we know that the level 0 diagram encompasses a large number of smaller

systems, ant is a combination of a number of context DFDs. In level 0 diagram a

process when it has a lot of details, it is not explained further in the level 0, and

rather

postponed

for

the

detailed

diagram.

In the detailed Data Flow and is given a number. Numbering processes is based

on a specific notation, in the level 0 diagrams only left half or the portion before

the decimal point is valid but in the detailed diagram when a complex process is

expressed further its sub processes are number like 1.0, 1.1, and 1.2 and so on.

Table of Contents:
