Database Management System (CS403)

Lecture No. 03

Reading Material

"Database Systems Principles, Design and Implementation" Section:

4.1.1,

written by Catherine Ricardo, Maxwell Macmillan.

4.1.2

Overview of Lecture

o Database Architecture

o External View of the database

o Conceptual view of the database

Database Architecture:

Standardization of database systems is a very beneficent in terms of future

growth, because once a system is defined to follow a specific standard, or is built

on a specific standard, it provides us the ease of use in a number of aspects.

First if any organization is going to create a new system of the same usage shall

create the system according to the standards and it will be easier to develop,

because the standards which are already define will be used for developing the

system.

Secondly if any organization wants to create and application software that will

provide additional support to the system, it will be an easier task for them to

develop such system and integrate them into existing database applications.

Users which will be using the system will be comfortable with the system

because a system built on predefined standards is easy to understand and use,

rather than understanding learning and using an altogether new system which is

designed and built without following any standards.

Database Management System (CS403)

Expansion to systems which are not built on standards is very hard and needs

lots of efforts.

Technical staff working on a system built on standard has no problem to learn the

use and architecture of the system and whenever there is a need in change of

staff new staff members can be hired and put to work without any prior training

for the use of system.

Database standard proposed by ANSI SPARK in 1975 is being used worldwide

and is the only most popular agreed upon standard for database systems.

The Three Level Schema architecture provides us a number of benefits. For

accessing data at different levels we have a number of users because not all

users have to access data in database at all the database levels. The 3 levels

architecture allows us to separate the physical representation of data from the

users' views of data.

In the database, same data is stored in a specific feasible format and is available

to different users in different formats as desired by different users. For example,

consider we have stored the DOB (Date of Birth) in the database in a particular

format, like in the form of dd-mm-yyyy (for example, 28-03-1987). However, the

users from different departments may require to view the date of birth in different

forms; the examination department may ask it to be displayed as month-day-yyyy

(like march-28-1987) the Registrar's office may ask to display date of birth as

mm/dd/yyyy, still the Library may need the in the form of dd/mm/yy. The Three

Level Schema allows us to access the data in different formats at the external

level, which is stored in a specific format at the internal level.

The Three levels architecture is useful for hiding the details of internal systems; it

in-fact hides the details of underlying system views from the users at other levels

and restricts the access of data and the system from any unauthorized

intervention. It is the mechanism which allows us to store the data in the system

in such a way that it can be provided to all users in their desired formats and with

unveiling other details and information stored in the database. Moreover if there

is a change to be done to the data stored in the database subject to the

Database Management System (CS403)

requirements of a specific user it needs not be changed for that user specifically,

we can create a change to the specific external view of that user and the internal

details remain unchanged. Also if we want to change the underlying storage

mechanism of the data stored on the disk we can do it without affecting the

internal and conceptual view at the lowest level in the three levels architecture is

the internal view or internal level which is shown below in the diagram and is

illustrated in the coming lines.

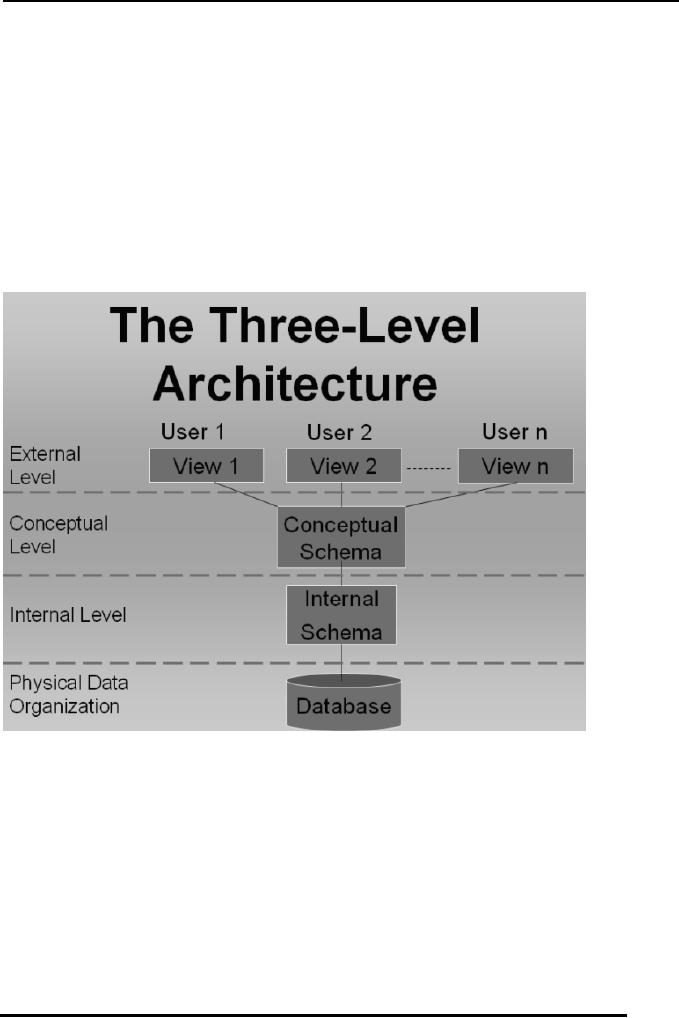

Fig. 1: Three level architecture of database

The Architecture:

The schemas as it has been defined already; is the repository used for storing

definitions of the structures used in database, it can be anything from any entity

to the whole organization. For this purpose the architecture defines different

schemas stored at different levels for isolating the details one level from the other.

Database Management System (CS403)

Different levels existing at different levels of the database architecture are

expressed below with emphasis on the details of all the levels individually.

Core of the database architecture is the internal level of schema which is

discussed a bit before getting into the details of each level individually. The

internal level implements all the inner details and defines the intentions of the

database. Internal schema or view defines the structures of the data and other

data related activities in the database. For example it defines that for a student

what data will be stored in terms of attributes of the student and it also defines

how different values for these attributes will be stored, also it tells that who is

allowed to make changes to the database and what changes he can make, etc.

These details give us the internal schema and are called the intention of the

database. Intention for a database is almost permanent, because while

designing the database it is ensured that no information is left behind which is

important enough to be stored in the database and what information is important

to be stored in the database from the future point of view.

Once the intention of the database has been defined then it is undesirable to

change the intention for any reason. Because any small change in the intention

of the database may need a lot of changes to be made to the data stored in the

database. Extension of the database is performed on the bases of a complete

intention, i-e once a database has been defined it is populated with the data of

the organization for which the database is created. This population of the

database is also called as the extension of the database. Extension is always

done according to the rules defined in the internal schema design or the intention

of the database.

Effects of changes made to different levels of the database architecture:

We can make changes to the different levels of the database but these changes

need very serious consideration before they are made, Changes at different

levels of database architecture need different levels of users attention for

example a change to the data made for the extension of data will effect only a

single record whereas when we make a change to the internal level of the

Database Management System (CS403)

database the change effects all the stored records, similarly an invalid change in

the extension of the database is not that fatal as a change in the intention of the

database because a change in the extension of the database is not very hard to

undo; incase of a mishap whereas a change of the same magnitude to the

intention of the database might

cause a large number of database errors

(inconsistencies and data loss).

External View (Level, Schema or Model):

This level is explicitly an end user level and presents data as desired by the

users of the database. As it is known that the database users are classified on

two grounds

o Section of the organization

o Nature of Job of the users

The external level of the database caters to the needs of all the database users

starting from a user who can view the data only which is of his concern up-to the

users who can see all the data in the database and make all type of actions on

that data.

External level of the database might contain a large number of user views, each

user view providing the desired features and fulfilling requirements for the user or

user group for which it is intended. The restriction or liberty a user or user groups

get in his rights is the external view of that user groups and is decided very

carefully.

External views are also helpful when we want to display the data which is not

place in the database or not stored at all. Example of the first case can be a

customer Phone number stored in the database. But when contacting the person

it might appear that the area code for that specific user is not stored in the

database, in that case we can simply pick up the area or city id of the customer

and find the area code for that city from the corresponding Area Codes table.

Another situation may arise when we want to get a student enrolled in an

institution and want to make sure that the student qualifies for the minimum

required age limit, we will look the database, for the students age but if we have

Database Management System (CS403)

stored only the date of birth of the student then the age of the student needs to

be calculated at that very instance; this can be done very easily in the specific

user view and age of the student can be calculated, even the user-view itself can

tell use whether the student qualifies for the admission or not.

As the user view is the only entity or the interface through which a user will

operate the database or use it so it must be designed in such a way that it is

easy to use and easy to manage and self descriptive, also it is easy to navigate

through. Also it should not allow the user to get or retrieve data which is not

allowed to the user, so the user view should both be a facilitator and also a

barrier for proper utilization of the database system.

As the system grows it is possible that a user view may change in structure,

design and the access it provides to the users. SO External views are designed

and create in way that they can be modified at a later stage without making any

changes in the logical or internal views.

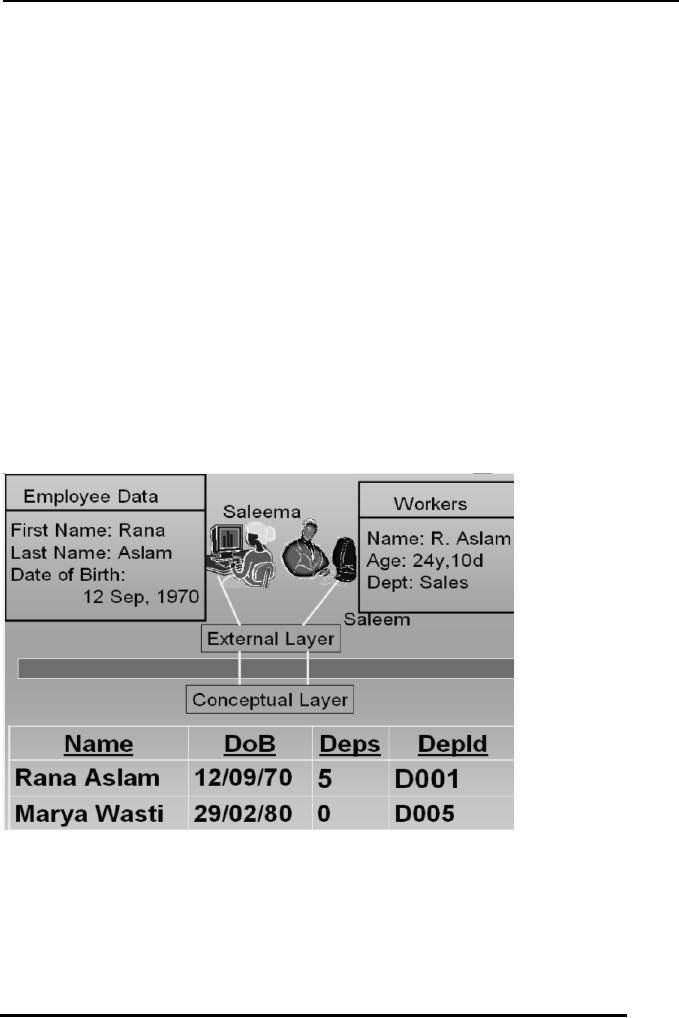

In the diagram below we can see two different users working as end users

having their own external view; we can see that the same data record is

displayed in two entirely different ways.

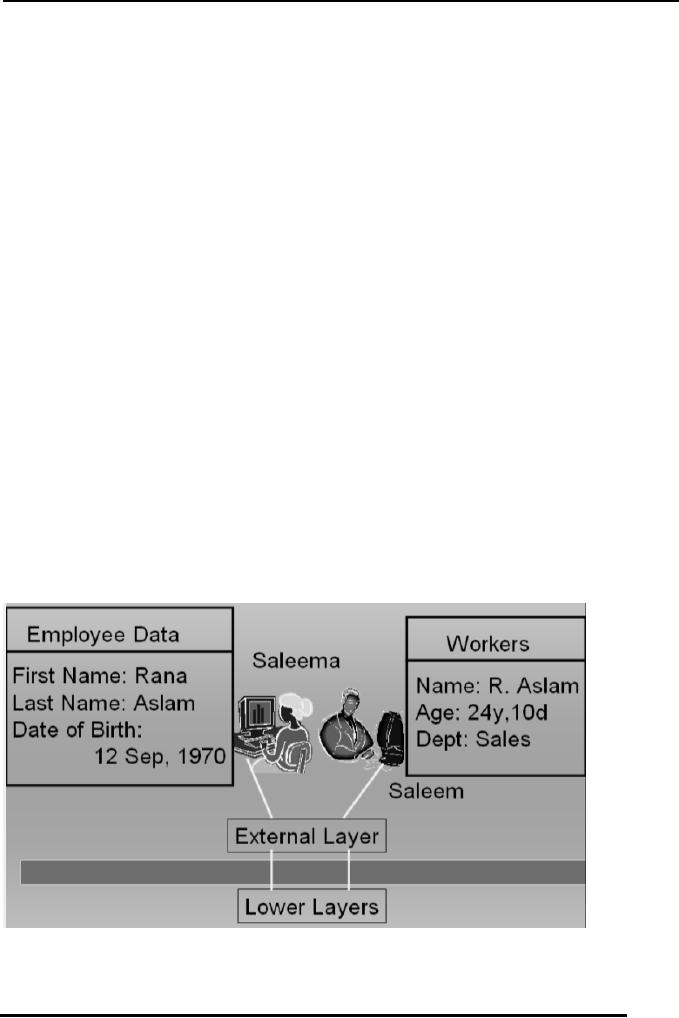

Fig. 2: Mapping between External layer and lower layers

Database Management System (CS403)

Conceptual or Logical View:

This is the level of database architecture which contains the definition of all the

data to be stored in the database and also contains rules and information about

that structure and type of that data.

The conceptual view is the complete description of the data stored in the

database. It stores the complete data of the organization that is why it is also

known as the community view of the database. The conceptual view shows all

the entities existing in the organization, attribute or characteristics associated

with those entities and the relationships which exist among the entities of the

organization.

We can take the example of the customers of a company. Now the conceptual

schema will have all the details of the products of the company, retailing stores of

the company, products present in the stock, products which are ready to be

delivered, salespersons of the company, manager of the company and literally

every other thing which is associated with the business of the company in any

way.

Now after having all the information we know that the customers buy products

from the outlets of the company, thus in such a case a specific customer has a

relationship with that specific outlet of the company, or the customer may be

represented as having association with the sales person which in-turn has

association with the outlet., there may be a number of customers at a certain

outlet and also to mange these salespersons there will be one or more managers.

We can see from the above given scenario that all the entities are logically

related to each other in way or the other. The conceptual schema actually

manages all such relationship and maps these relationships among the member

entities. Conceptual schema along-with having all the information which is to be

stored in the database stores the definition of the data to be stored. The definition

may contain types of data, and constraints on data values etc.

Database Management System (CS403)

Conceptual schema is also responsible for holding the authorization and

authentication information, means that only those people can make use of the

database whom we have allowed to make these changes, so therefore it is the

task of the DBMS to ensure be checking the conceptual schema that he is

authorized to check the data or make any changes to the data.

Conceptual schema as it describes the intention of the database; it is not

changed often, because to make a change to the conceptual schema of the

database requires lots of consideration and may involve changes to the other

views/levels of the database also.

As in the previous example we saw two database users accessing the database

and we saw that both of them are having totally different user views. Here when

we see in the logical view of the data we can see that the data stored in the

database is stored only once and two users get different data from the same

copy of data at the underlying conceptual level.

Fig. 3: External and conceptual layers

By summarizing it all we can say that the external view is the view of database

system in which user get the data as they need and these database users need

Database Management System (CS403)

not to worry about the underlying details of the data, all these users have to do is

to provide correct requirement information to the DBA or the database designer

whoever is designing the database for the system, so that the DBA or the

database designer can create the database in such a way that they can fulfill the

users requirements using the conceptual schema of the database.

Conceptual view/schema is that view of the database which holds all the

information of the database system and provides basis for creating any type of

the required user views and can accommodate any user fulfilling his/her

requirements.

Exercise:

The data examples that you defined in the exercises of lecture 1, think of the

different forms of data at the external and conceptual level. Also try to define

mapping between them.

Table of Contents:
