Database Management System (CS403)

Lecture No. 16

Reading Material

"Database Systems Principles, Design and Implementation"

Page 209

written by Catherine Ricardo, Maxwell Macmillan.

Overview of Lecture:

Mapping Relationships

Binary Relationships

Unary Relationships

Data Manipulation Languages

In the previous lecture we discussed the integrity constraints. How conceptual

database is converted into logical database design, composite and multi-valued

attributes. In this lecture we will discuss different mapping relationships.

Mapping Relationships

We have up till now converted an entity type and its attributes into RDM. Before

establishing any relationship in between different relations, it is must to study the

cardinality and degree of the relationship. There is a difference in between relation

and relationship. Relation is a structure, which is obtained by converting an entity

type in E-R model into a relation, whereas a relationship is in between two relations

of relational data model. Relationships in relational data model are mapped according

to their degree and cardinalities. It means before establishing a relationship there

cardinality and degree is important.

Binary Relationships

Binary relationships are those, which are established between two entity type.

Following are the three types of cardinalities for binary relationships:

140

Database Management System (CS403)

o One to One

o One to Many

o Many to Many

In the following treatment in each of these situations is discussed.

One to Many:

In this type of cardinality one instance of a relation or entity type is mapped with

many instances of second entity type, and inversely one instance of second entity type

is mapped with one instance of first entity type. The participating entity types will be

transformed into relations as has been already discussed. The relationship in this

particular case will be implemented by placing the PK of the entity type (or

corresponding relation) against one side of relationship will be included in the entity

type (or corresponding relation) on the many side of the relationship as foreign key

(FK). By declaring the PK-FK link between the two relations the referential integrity

constraint is implemented automatically, which means that value of foreign key is

either null or matches with its value in the home relation.

For Example, consider the binary relationship given in the figure 1 involving two

entity types PROJET and EMPLOYEE. Now there is a one to many relationships

between these two. On any one project many employees can work and one employee

can work on only one project.

141

Database Management System (CS403)

empNameme

prDuratio

prCost

empSal

prId

empId

PROJECT

EMPLOYEE

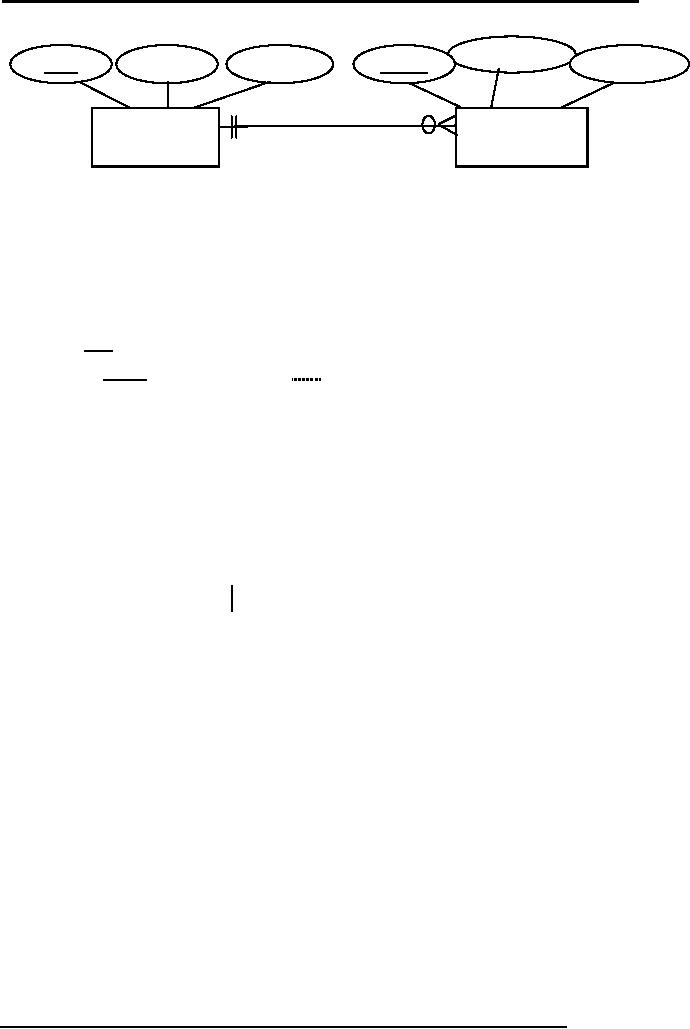

Fig. 1: A one to many relationship

The two participating entity types are transformed into relations and the relationship is

implemented by including the PK of PROJECT (prId) into the EMPLOYEE as FK.

So the transformation will be:

PROJECT (prId, prDura, prCost)

EMPLOYEE (empId, empName, empSal, prId)

The PK of the PROJECT has been included in EMPLOYEE as FK; both keys do not

need to have same name, but they must have the same domain.

Minimum Cardinality:

This is a very important point, as minimum cardinality on one side needs special

attention. Like in previous example an employee cannot exist if project is not assigned.

So in that case the minimum cardinality has to be one. On the other hand if an

instance of EMPLOYEE can exist with out being linked with an instance of the

PROJECT then the minimum cardinality has to be zero. If the minimum cardinality is

zero, then the FK is defined as normal and it can have the Null value, on the other

hand if it is one then we have to declare the FK attribute(s) as Not Null. The Not Null

constraint makes it a must to enter the value in the attribute(s) whereas the FK

constraint will enforce the value to be a legal one. So you have to see the minimum

cardinality while implementing a one to many relationship.

Many to Many Relationship:

In this type of relationship one instance of first entity can be mapped with many

instances of second entity. Similarly one instance of second entity can be mapped

with many instances of first entity type. In many to many relationship a third table is

created for the relationship, which is also called as associative entity type. Generally,

142

Database Management System (CS403)

the primary keys of the participating entity types are used as primary key of the third

table.

For Example, there are two entity types BOOK and STD (student). Now many

students can borrow a book and similarly many books can be issued to a student, so in

this manner there is a many to many relationship. Now there would be a third relation

as well which will have its primary key after combining primary keys of BOOK and

STD. We have named that as transaction TRANS. Following are the attributes of

these relations: -

o STD (stId, sName, sFname)

o BOOK (bkId, bkTitle, bkAuth)

o TRANS (stId,bkId, isDate,rtDate)

Now here the third relation TRANS has four attributes first two are the primary keys

of two entities whereas the last two are issue date and return date.

One to One Relationship:

This is a special form of one to many relationship, in which one instance of first entity

type is mapped with one instance of second entity type and also the other way round.

In this relationship primary key of one entity type has to be included on other as

foreign key. Normally primary key of compulsory side is included in the optional side.

For example, there are two entities STD and STAPPLE (student application for

scholarship). Now the relationship from STD to STAPPLE is optional whereas

STAPPLE to STD is compulsory. That means every instance of STAPPLE must be

related with one instance of STD, whereas it is not a must for an instance of STD to

be related to an instance of STAPPLE, however, if it is related then it will be related

to one instance of STAPPLE, that is, one student can give just one scholarship

application. This relationship is shown in the figure below:

143

Database Management System (CS403)

scAmount

scId

stName

stId

STD

SCAPPL

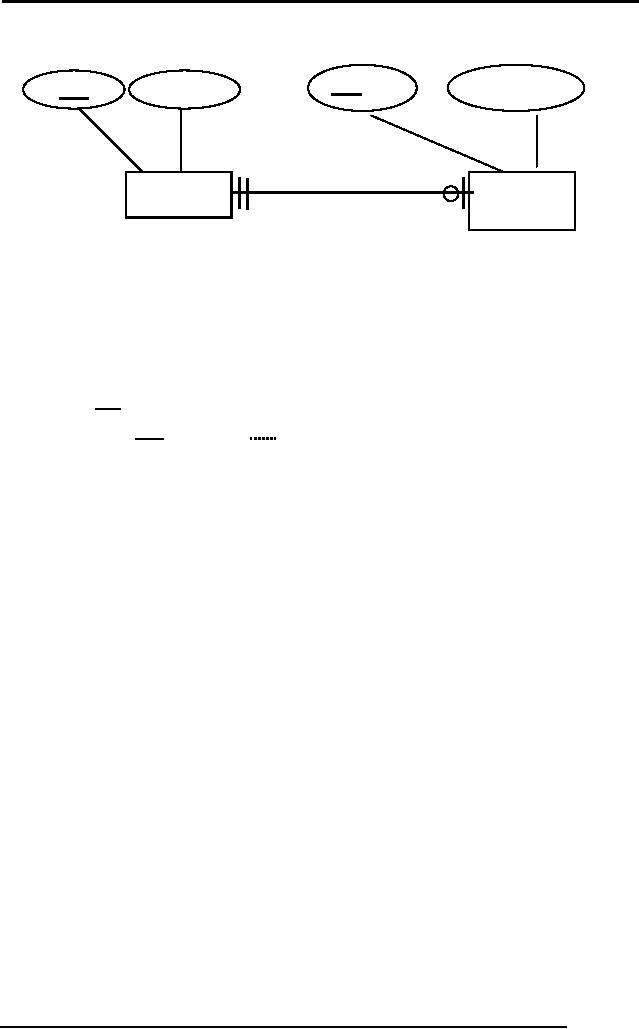

Fig. 2: A one to one relationship

While transforming, two relations will be created, one for STD and HOBBY each. For

relationship PK of either one can be included in the other, it will work. But preferably,

we should include the PK of STD in HOBBY as FK with Not Null constraint imposed

on it.

STD (stId, stName)

STAPPLE (scId, scAmount, stId)

The advantage of including the PK of STD in STAPPLE as FK is that any instance of

STAPPLE will definitely have a value in the FK attribute, that is, stId. Whereas if we

do other way round; we include the PK of STAPPLE in STD as FK, then since the

relationship is optional from STD side, the instances of STD may have Null value in

the FK attribute (scId), causing the wastage of storage. More the number records with

Null value more wastage.

Unary Relationship

These are the relationships, which involve a single entity. These are also called

recursive relationships. Unary relationships may have one to one, one to many and

many to many cardinalities. In unary one to one and one to may relationships, the PK

of same entity type is used as foreign key in the same relation and obviously with the

different name since same attribute name cannot be used in the same table. The

example of one to one relationship is shown in the figure below:

144

Database Management System (CS403)

empId

empName

EMPLOYEE (empId, empName, empAdr, mgr)

EMPLOYEE

MANAGES

empAdr

(a)

stId

stName

STUDENT (stId, stName, roommate)

STUDENT

ROOMMATE

(b)

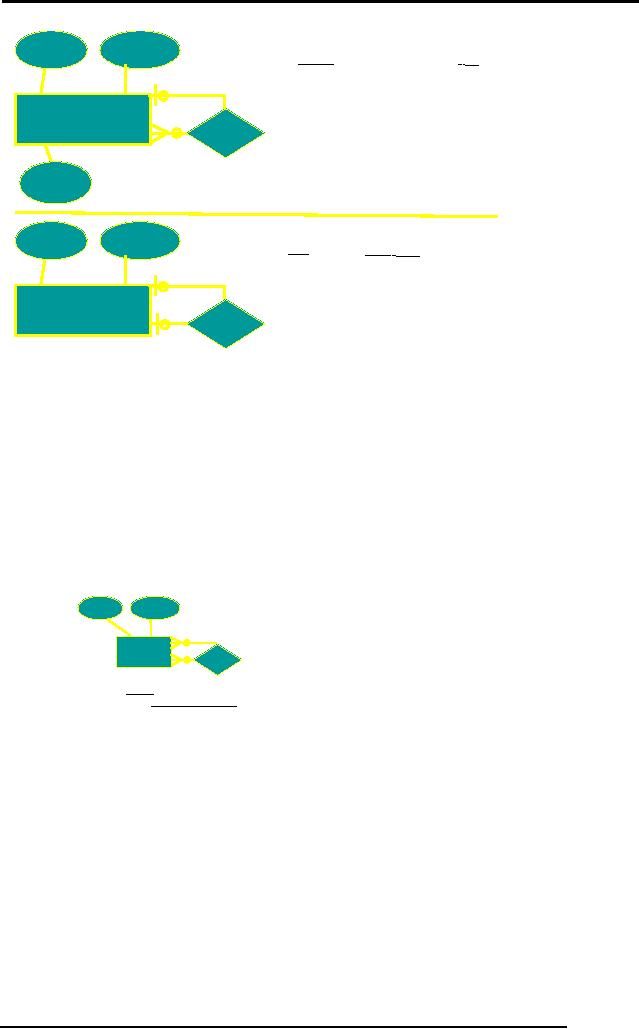

Fig. 3: One to one relationships (a) one to many (b) one to one

and their transformation

In many to many relationships another relation is created with composite key. For

example there is an entity type PART may have many to many recursive relationships,

meaning one part consists of many parts and one part may be used in many parts. So

in this case this is a many to many relationship. The treatment of such a relationship is

shown in the figure below:

partId

partName

PART

MANAGES

PART (partId, partName)

SUB-PART (partId, component)

Fig. 4: Recursive many to many relationship

and transformation

Super / Subtype Relationship:

Separate relations are created for each super type and subtypes. It means if there is

one super type and there are three subtypes, so then four relations are to be created.

After creating these relations then attributes are assigned. Common attributes are

assigned to super type and specialized attributes are assigned to concerned subtypes.

Primary key of super type is included in all relations that work for both link and

145

Database Management System (CS403)

identity. Now to link the super type with concerned subtype there is a requirement of

descriptive attribute, which is called as discriminator. It is used to identify which

subtype is to be linked. For Example there is an entity type EMP which is a super type,

now there are three subtypes, which are salaried, hourly and consultants. So now there

is a requirement of a determinant, which can identify that which subtypes to be

consulted, so with empId a special character can be added which can be used to

identify the concerned subtype.

Summary of Mapping E-R Diagram to Relational DM:

We have up till now studied that how conceptual database design is converted into

logical database. E-R data model is semantically rich and it has number of constructs

for representing the whole system. Conceptual database is free of any data model,

whereas logical database the required data model is chosen; in our case it is relational

data model. First we identified the entity types, weak and strong entity types. Then we

converted those entities into relations. After converting entities into relations then

attributes are identified, different types of attributes are identified. Then relationships

were made, in which cardinality and degree was identified. In ternary relationship,

where three entities are involved, in this as well another relation is created to establish

relationship among them. Then finally we had studied the super and sub types in

which primary key of super type was used for both identity and link.

Data Manipulation Languages

This is the third component of relational data model. We have studied structure,

which is the relation, integrity constraints both referential and entity integrity

constraint. Data manipulation languages are used to carry out different operations like

insertion, deletion or creation of database. Following are the two types of languages:

146

Database Management System (CS403)

Procedural Languages:

These are those languages in which what to do and how to do on the database is

required. It means whatever operation is to be done on the database that has to be told

that how to perform.

Non -Procedural Languages:

These are those languages in which only what to do is required, rest how to do is done

by the manipulation language itself.

Structured query language (SQL) is the most widely language used for manipulation

of data. But we will first study Relational Algebra and Relational Calculus, which are

procedural and non procedural respectively.

Relational Algebra

Following are few major properties of relational algebra:

o Relational algebra operations work on one or more relations to define

another relation leaving the original intact. It means that the input for

relational algebra can be one or more relations and the output would be

another relation, but the original participating relations will remain

unchanged and intact.Both operands and results are relations, so output from

one operation can become input to another operation. It means that the input

and output both are relations so they can be used iteratively in different

requirements.

o Allows expressions to be nested, just as in arithmetic. This property is called

closure.

o There are five basic operations in relational algebra: Selection, Projection,

Cartesian product, Union, and Set Difference.

o These perform most of the data retrieval operations needed.

o It also has Join, Intersection, and Division operations, which can be expressed

in terms of 5 basic operations.

Exercise:

Consider the example given in Ricardo book on page 216 and transform it into

relational data model. Make any necessary assumptions if required.
