Database and Math Relations

Degree and Cardinality of Relation

Integrity Constraints

Transforming conceptual database design into logical database design

Composite and multi-valued Attributes

Identifier Dependency

In the previous lecture we discussed relational data model, its components and

properties of a table. We also discussed mathematical and database relations. Now we

will discuss the difference in between database and mathematical relations.

Database and Math Relations

We studied six basic properties of tables or database relations. If we compare these

properties with those of mathematical relations then we find out that properties of

both are the same except the one related to order of the columns. The order of

columns in mathematical relations does matter, whereas in database relations it does

not matter. There will not be any change in either math or database relations if we

change the rows or tuples of any relation. It means that the only difference in between

these two is of order of columns or attributes. A math relation is a Cartesian product

of two sets. So if we change the order of theses two sets then the outcome of both will

not be same. Therefore, the math relation changes by changing the order of columns.

For Example , if there is a set A and a set B if we take Cartesian product of A and B

then we take Cartesian product of B and A they will not be equal , so

AxB=BxA

Rests of the properties between them are same.

132

Database Management System (CS403)

Degree of a Relation

We will now discuss the degree of a relation not to be confused with the degree of a

relationship. You would be definitely remembering that the relationship is a link or

association between one or more entity types and we discussed it in E-R data model.

However the degree of a relation is the number of columns in that relation. For

Example consider the table given below:

STUDENT

StID

stName

clName

Sex

S001

Suhail

MCS

S002

Shahid

BCS

S003

Naila

MCS

S004

Rubab

MBA

S005

Ehsan

BBA

Table 1: The STUDENT table

Now in this example the relation STUDENT has four columns, so this relation has

degree four.

Cardinality of a Relation

The number of rows present in a relation is called as cardinality of that relation. For

example, in STUDENT table above, the number of rows is five, so the cardinality of

the relation is five.

Relation Keys

The concept of key and all different types of keys is applicable to relations as well.

We will now discuss the concept of foreign key in detail, which will be used quite

frequently in the RDM.

Foreign Key

An attribute of a table B that is primary key in another table A is called as foreign key.

For Example, consider the following two tables EMP and DEPT:

EMP (empId, empName, qual, depId)

DEPT (depId, depName, numEmp)

In this example there are two relations; EMP is having record of employees, whereas

DEPT is having record of different departments of an organization. Now in EMP the

primary key is empId, whereas in DEPT the primary key is depId. The depId which is

primary key of DEPT is also present in EMP so this is a foreign key.

Requirements/Constraints of Foreign Key

Following are some requirements / constraints of foreign key:

There can be more than zero, one or multiple foreign keys in a table, depending on

how many tables a particular table is related with. For example in the above example

the EMP table is related with the DEPT table, so there is one foreign key depId,

133

Database Management System (CS403)

whereas DEPT table does not contain any foreign key. Similarly, the EMP table may

also be linked with DESIG table storing designations, in that case EMP will have

another foreign key and alike.

The foreign key attribute, which is present as a primary key in another relation is

called as home relation of foreign key attribute, so in EMP table the depId is foreign

key and its home relation is DEPT.

The foreign key attribute and the one present in another relation as primary key can

have different names, but both must have same domains. In DEPT, EMP example,

both the PK and FK have the same name; they could have been different, it would not

have made any difference however they must have the same domain.

The primary key is represented by underlining with a solid line, whereas foreign key

is underlined by dashed or dotted line.

Primary Key :

Foreign Key :

Integrity Constraints

Integrity constraints are very important and they play a vital role in relational data

model. They are one of the three components of relational data model. These

constraints are basic form of constraints, so basic that they are a part of the data model,

due to this fact every DBMS that is based on the RDM must support them.

Entity Integrity Constraint:

It states that in a relation no attribute of a primary key (PK) can have null value. If a

PK consists of single attribute, this constraint obviously applies on this attribute, so it

cannot have the Null value. However, if a PK consists of multiple attributes, then

none of the attributes of this PK can have the Null value in any of the instances.

Referential Integrity Constraint:

This constraint is applied to foreign keys. Foreign key is an attribute or attribute

combination of a relation that is the primary key of another relation. This constraint

states that if a foreign key exists in a relation, either the foreign key value must match

the primary key value of some tuple in its home relation or the foreign key value must

be completely null.

Significance of Constraints:

By definition a PK is a minimal identifier that is used to identify tuples uniquely. This

means that no subset of the primary key is sufficient to provide unique identification

of tuples. If we were to allow a null value for any part of the primary key, we would

be demonstrating that not all of the attributes are needed to distinguish between tuples,

which would contradict the definition.

Referential integrity constraint plays a vital role in maintaining the correctness,

validity or integrity of the database. This means that when we have to ensure the

proper enforcement of the referential integrity constraint to ensure the consistency and

correctness of database. How? In the DEPT, EMP example above deptId in EMP is

foreign key; this is being used as a link between the two tables. Now in every instance

of EMP table the attribute deptId will have a value, this value will be used to get the

name and other details of the department in which a particular employee works. If the

value of deptId in EMP is Null in a row or tuple, it means this particular row is not

related with any instance of the DEPT. From real-world scenario it means that this

particular employee (whose is being represented by this row/tuple) has not been

134

Database Management System (CS403)

assigned any department or his/her department has not been specified. These were

two possible conditions that are being reflected by a legal value or Null value of the

foreign key attribute. Now consider the situation when referential integrity constrains

is being violated, that is, EMP.deptId contains a value that does not match with any of

the value of DEPT.deptId. In this situation, if we want to know the department of an

employee, then ooops, there is no department with this Id, that means, an employee

has been assigned a department that does not exist in the organization or an illegal

department. A wrong situation, not wanted. This is the significance of the integrity

constraints.

Null Constraints:

A Null value of an attribute means that the value of attribute is not yet given, not

defined yet. It can be assigned or defined later however. Through Null constraint we

can monitor whether an attribute can have Null value or not. This is important and we

have to make careful use of this constraint. This constraint is included in the

definition of a table (or an attribute more precisely). By default a non-key attribute

can have Null value, however, if we declare an attribute as Not Null, then this

attribute must be assigned value while entering a record/tuple into the table containing

that attribute. The question is, how do we apply or when do we apply this constraint,

or why and when, on what basis we declare an attribute Null or Not Null. The answer

is, from the system for which we are developing the database; it is generally an

organizational constraint. For example, in a bank, a potential customer has to fill in a

form that may comprise of many entries, but some of them would be necessary to fill

in, like, the residential address, or the national Id card number. There may be some

entries that may be optional, like fax number. When defining a database system for

such a bank, if we create a CLIENT table then we will declare the must attributes as

Not Null, so that a record cannot be successfully entered into the table until at least

those attributes are not specified.

Default Value:

This constraint means that if we do not give any value to any particular attribute, it

will be given a certain (default) value. This constraint is generally used for the

efficiency purpose in the data entry process. Sometimes an attribute has a certain

value that is assigned to it in most of the cases. For example, while entering data for

the students, one attribute holds the current semester of the student. The value of this

attribute is changed as a students passes through different exams or semesters during

its degree. However, when a student is registered for the first time, it is generally

registered in the first semesters. So in the new records the value of current semester

attribute is generally 1. Rather than expecting the person entering the data to enter 1 in

every record, we can place a default value of 1 for this attribute. So the person can

simply skip the attribute and the attribute will automatically assume its default value.

Domain Constraint:

This is an essential constraint that is applied on every attribute, that is, every attribute

has got a domain. Domain means the possible set of values that an attribute can have.

For example, some attributes may have numeric values, like salary, age, marks etc.

Some attributes may possess text or character values, like, name and address. Yet

some others may have the date type value, like date of birth, joining date. Domain

specification limits an attribute the nature of values that it can have. Domain is

specified by associating a data type to an attribute while defining it. Exact data type

name or specification depends on the particular tool that is being used. Domain helps

135

Database Management System (CS403)

to maintain the integrity of the data by allowing only legal type of values to an

attribute. For example, if the age attribute has been assigned a numeric data type then

it will not be possible to assign a text or date value to it. As a database designer, this is

your job to assign an appropriate data type to an attribute. Another perspective that

needs to be considered is that the value assigned to attributes should be stored

efficiently. That is, domain should not allocate unnecessary large space for the

attribute. For example, age has to be numeric, but then there are different types of

numeric data types supported by different tools that permit different range of values

and hence require different storage space. Some of more frequently supported

numeric data types include Byte, Integer, and Long Integer. Each of these types

supports different range of numeric values and takes 1, 4 or 8 bytes to store. Now, if

we declare the age attribute as Long Integer, it will definitely serve the purpose, but

we will be allocating unnecessarily large space for each attribute. A Byte type would

have been sufficient for this purpose since you won't find students or employees of

age more than 255, the upper limit supported by Byte data type. Rather we can further

restrict the domain of an attribute by applying a check constraint on the attribute. For

example, the age attribute although assigned type Byte, still if a person by mistake

enters the age of a student as 200, if this is year then it is not a legal age from today's

age, yet it is legal from the domain constraint perspective. So we can limit the range

supported by a domain by applying the check constraint by limiting it up to say 30 or

40, whatever is the rule of the organization. At the same time, don't be too sensitive

about storage efficiency, since attribute domains should be large enough to cater the

future enhancement in the possible set of values. So domain should be a bit larger

than that is required today. In short, domain is also a very useful constraint and we

should use it carefully as per the situation and requirements in the organization.

RDM Components

We have up till now studied following two components of the RDM, which are the

Structure and Entity Integrity Constraints. The third part, that is, the Manipulation

Language will be discussed in length in the coming lectures.

Designing Logical Database

Logical data base design is obtained from conceptual database design. We have seen

that initially we studied the whole system through different means. Then we identified

different entities, their attributes and relationship in between them. Then with the help

of E-R data model we achieved an E-R diagram through different tools available in

this model. This model is semantically rich. This is our conceptual database design.

Then as we had to use relational data model so then we came to implementation phase

for designing logical database through relational data model.

The process of converting conceptual database into logical database involves

transformation of E-R data model into relational data model. We have studied both

the data models, now we will see how to perform this transformation.

Transforming Rules

Following are the transforming rules for converting conceptual database into logical

database design:

The rules are straightforward , which means that we just have to follow the rules

mentioned and the required logical database design would be achieved

136

Database Management System (CS403)

There are two ways of transforming first one is manually that is we analyze and

evaluate and then transform. Second is that we have CASE tools available with us

which can automatically convert conceptual database into required logical database

design

If we are using CASE tools for transforming then we must evaluate it as there are

multiple options available and we must make necessary changes if required.

Mapping Entity Types

Following are the rules for mapping entity types:

Each regular entity type (ET) is transformed straightaway into a relation. It means that

whatever entities we had identified they would simply be converted into a relation and

will have the same name of relation as kept earlier.

Primary key of the entity is declared as Primary key of relation and underlined.

Simple attributes of ET are included into the relation

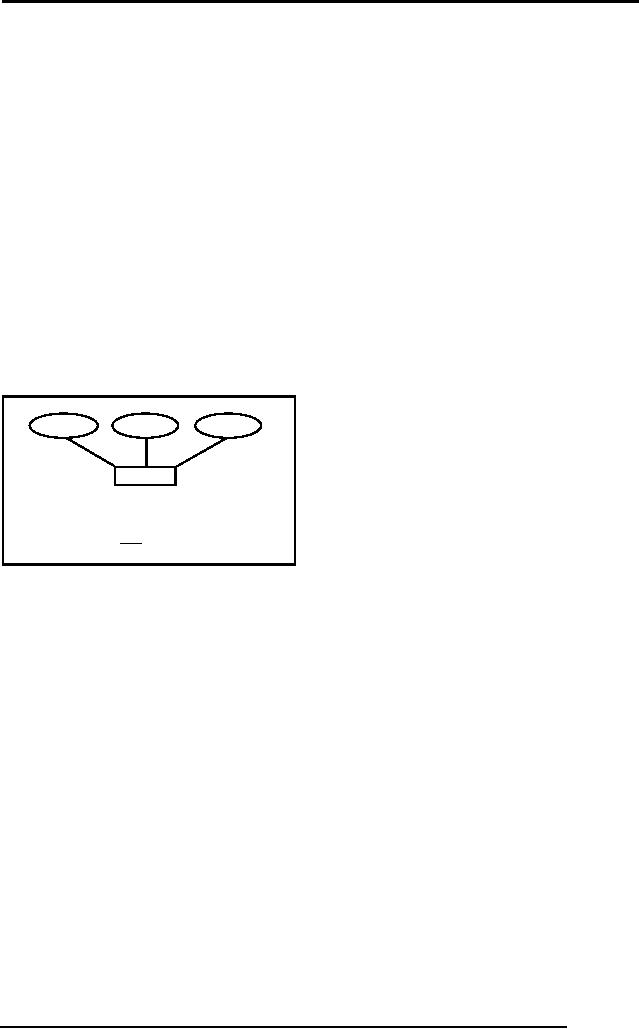

For Example, figure 1 below shows the conversion of a strong entity type into

equivalent relation:

stName

stDoB

stId

STUDENT

STUDENT (stId, stName, stDoB)

Fig. 1: An example strong entity type

Composite Attributes

These are those attributes which are a combination of two or more than two attributes.

For address can be a composite attribute as it can have house no, street no, city code

and country , similarly name can be a combination of first and last names. Now in

relational data model composite attributes are treated differently. Since tables can

contain only atomic values composite attributes need to be represented as a separate

relation

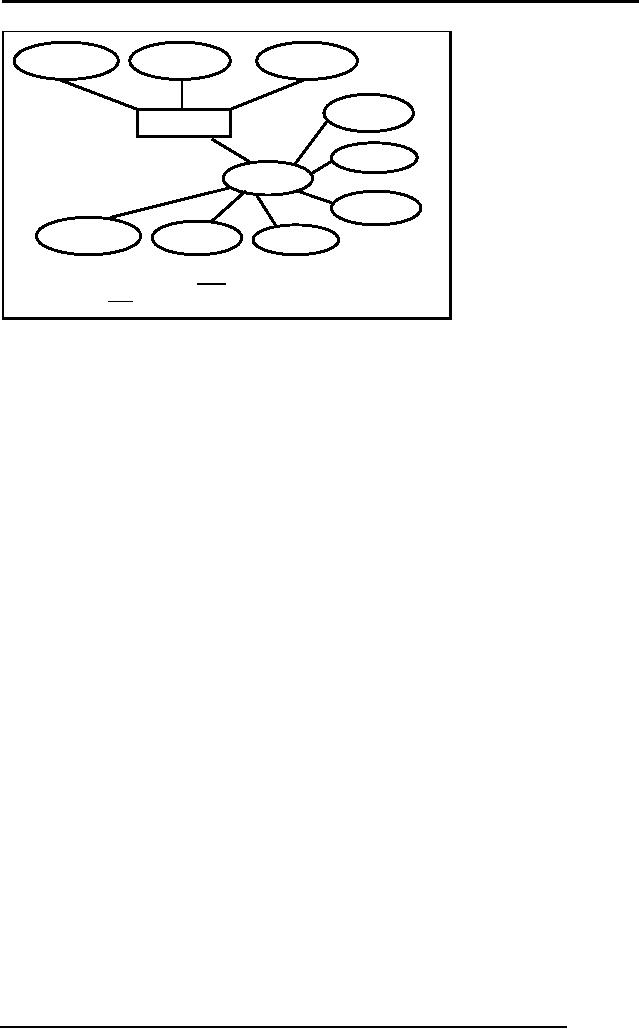

For Example in student entity type there is a composite attribute Address, now in E-R

model it can be represented with simple attributes but here in relational data model,

there is a requirement of another relation like following:

137

Database Management System (CS403)

stName

stDoB

stId

houseNo

STUDENT

streetNo

stAdres

country

areaCode

city

cityCode

STUDENT (stId, stName, stDoB)

STDADRES (stId, hNo, strNo, country, cityCode, city, areaCode)

Fig. 2: Transformation of composite attribute

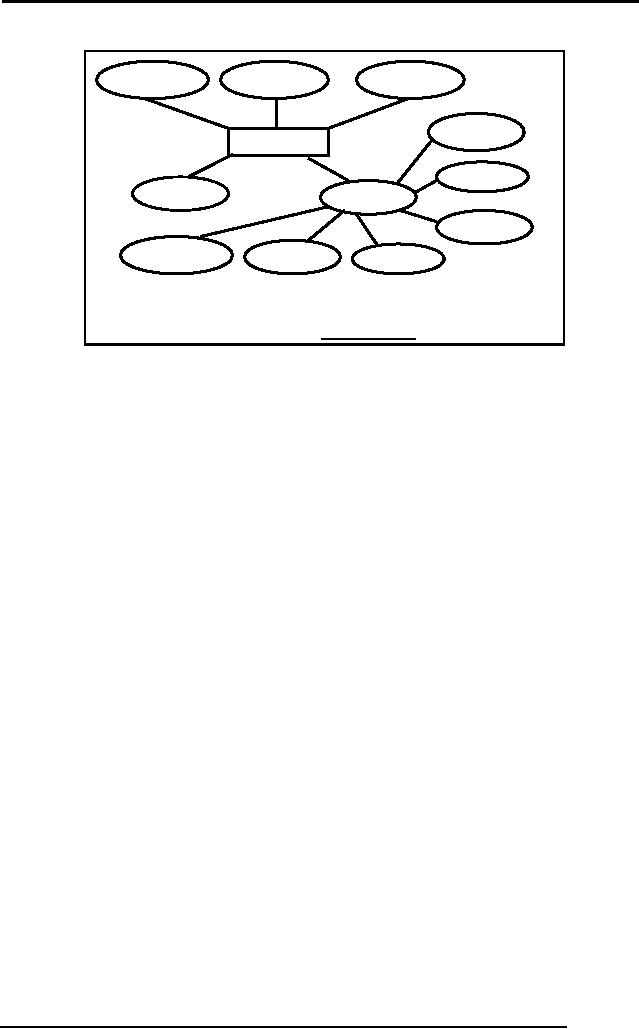

Figure 2 above presents an example of transforming a composite attribute into RDM,

where it is transformed into a table that is linked with the STUDENT table with the

primary key

Multi-valued Attributes

These are those attributes which can have more than one value against an attribute.

For Example a student can have more than one hobby like riding, reading listening to

music etc. So these attributes are treated differently in relational data model.

Following are the rules for multi-valued attributes:-

An Entity type with a multi-valued attribute is transformed into two relations

One contains the entity type and other simple attributes whereas the second one has

the multi-valued attribute. In this way only single atomic value is stored against every

attribute

The Primary key of the second relation is the primary key of first relation and the

attribute value itself. So in the second relation the primary key is the combination of

two attributes.

138

Database Management System (CS403)

All values are accessed through reference of the primary key that also serves as

stName

stDoB

stId

houseNo

STUDENT

streetNo

stHobby

stAdres

country

areaCode

city

cityCode

STUDENT (stId, stName, stDoB)

STDADRES (stId, hNo, strNo, country, cityCode, city, areaCode)

STHOBBY(stId, stHobby)

Fig. 3: Transformation of multi-valued attribute

foreign key.

Conclusion

In this lecture we have studied the difference between mathematical and database

relations. The concepts of foreign key and especially the integrity constraints are very

important and are basic for every database. Then how a conceptual database is

transformed into logical database and in our case it is relational data model as it is the

most widely used. We have also studied certain transforming rules for converting E-R

data model into relational data model. Some other rule for this transformation will be

studied in the coming lectures

You will receive exercise at the end of this topic.

139

Table of Contents:
