Database Management System (CS403)

Lecture No. 10

Reading Material

"Database Systems Principles, Design and Implementation"

Page: 155 160

written by Catherine Ricardo, Maxwell Macmillan.

Hoffer

Page: 103 111

Overview of Lecture

o Cardinality Types

o Roles in ER Data Model

o Expression of Relationship in ER Data Model

o Dependency

o Existence Dependency

o Referential Dependency

o Enhancements in the ER-Data Model

o Subtype and Supertype entities

Recalling from the previous lecture we can say that that cardinality is just an expression

which tells us about the number of instances of one entity which can be present in the

second relation. Maximum cardinality tells us that how many instance of an entity can be

placed in the second relation at most. Now we move onto discuss that what the minimum

cardinality is.

Minimum Cardinality:

As the name suggests that the minimum cardinality is the inverse of the maximum

cardinality so we can say that the minimum cardinality show us that how many instance

of one entity can be placed in another relation at least. In simple words it can be said that

the minimum cardinality tells that whether the link between two relations is optional or

compulsory. It is very important to determine the minimum cardinality when designing a

database because it defines the way a database system will be implemented.

Database Management System (CS403)

STD

BOOK

One to Many (optional)

EMP

PROJ

Many to One (Mandatory)

STD

COURSE

Many to Many (optional)

STD

HOBBY

Many to One (optional)

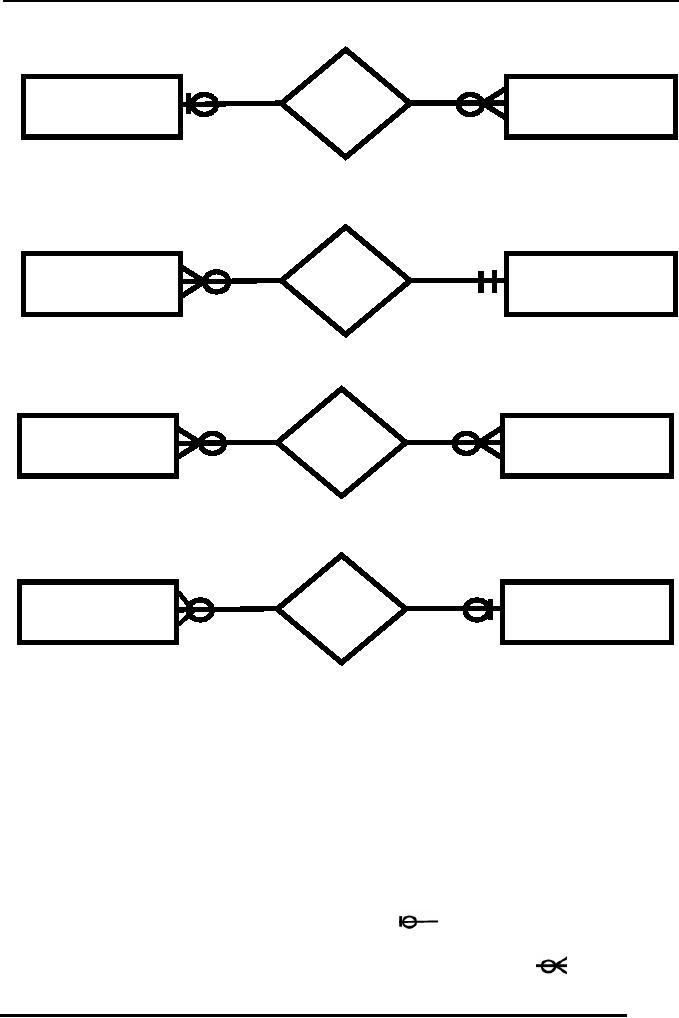

Fig 1: Different Cardinalities

In the figure-1 we have one to many cardinality between the entities. Maximum

cardinalities are shown with the modifier that appears on the link and is adjacent to the

entity rectangle. The other modifier which is next to the maximum cardinality modifier

tells the minimum cardinality. The minimum cardinality modifier lies at more distance

from the entity as compared to the maximum cardinality modifier.

Determination of the cardinalities is done by interviewing the users of the system and by

the analysis of the organization.

The cardinality shown in First Part of the Figure-1 is shown using a relationship between

a student and book; this can be a library scenario where students are borrowing books

adjacent to the student entity

from the library. We can see in the diagram the shape

it shows that the minimum cardinality for the student relationship is zero and maximum

cardinality is one. Where as on the other side of the diagram the shape

adjacent to

Database Management System (CS403)

the book entity show that at most there can be many instances of the book associated with

a single instance of student entity, and that there can be at-least no instance associated

with the student entity. In general library scenario we can say that one student can borrow

at least no and at most many books. Hence the minimum and maximum cardinality is

shown.

In the second part of the Figure-1 we see a relationship between the Employee and

project entities, the relationship describes one to many association between the project

and the employees, It shows that there can be one project having a number of employees,

but for the existence of one employee at one project is necessary. So the minimum and

maximum cardinality on the project side of the relationship is one, and employees

associated with each project can be many at most and none at-least.

Third part of the Figure-1 shows the association between the student and the course

entities. Here we can see that the relationship between the student and the course is zero

at least and many at most on both the sides of the relationship. The minimum cardinality

with zero minimum is also called the optional cardinality. It also shows that one student

can have registered more that one subjects and one subject can also be taken by many

students. Also it is not necessary for a student to get registered one subject.

In the fourth part of the Figure-1 we can see the one to many cardinality between the

student and hobby entities the cardinality descriptors show that a student may have no or

at most one hobby, but it is worthwhile to notice that the cardinality of the hobby with the

student in many but optional, now we can say that one hobby can be associated to nay

student but there is a chance that no hobby is associated to one student at a certain time.

Other Notations:

The notation mentioned above is known as crow's foot notation for the expression of ER-

Diagrams, there can be other notation as well which can be used for creating ER-

Diagrams; one of these notations is shown in the Figure-2. We can see that the one to

many cardinality shown in the first part of the diagram is expresses with single and

double arrows. The Single arrow in this case shows the one and double arrow show the

many cardinality.

Database Management System (CS403)

STD

BOOK

HOBBY

STD

PROJ

EMP

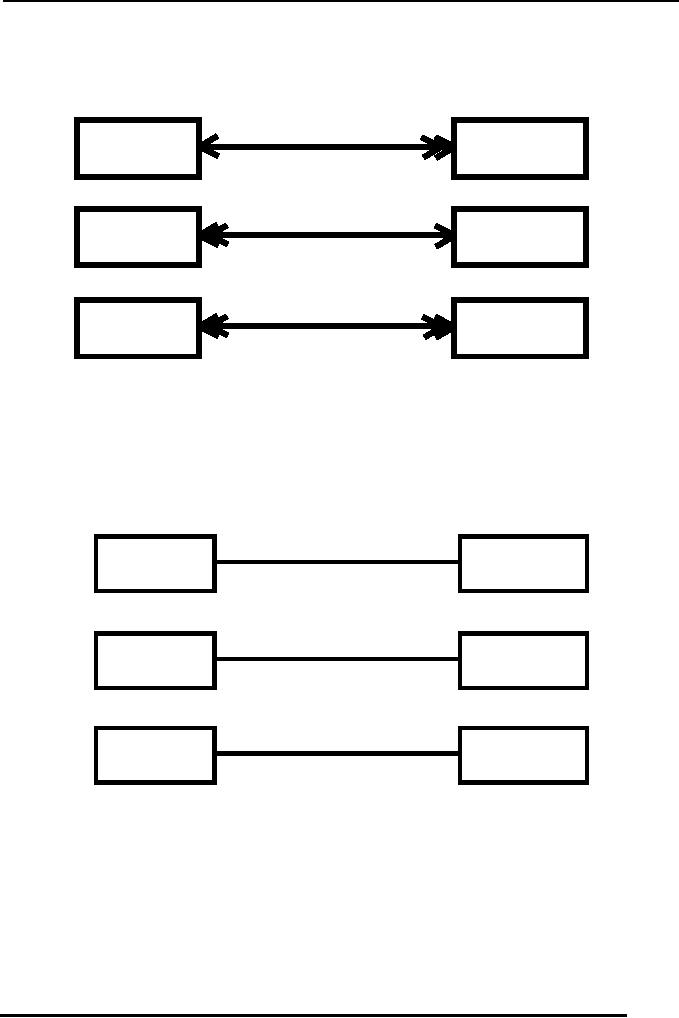

Fig. 2: Arrow-head notation

So the First part of the figure-2 show One to many cardinality, second part of the Figure

shows many to one and the third part of the cardinality shows many to many cardinality

between the entities involved.

STD

BOOK

HOBBY

STD

PROJ

EMP

Fig. 3: Alphabetical notation

The above Figure shows another notation for creating ER-Diagrams which show that to

show the one cardinality we have used 1 and for many cardinality M or N is used.

Database Management System (CS403)

CHAIR

DEPT

STD

BOOK

PROJ

EMP

Fig. 4: Dot-based notation

Notations shown in the Figure-4 above as also used for creating ER-Diagrams where 1 is

used for showing the single cardinality and the black filled Dot is used for showing many

cardinality.

Roles in Relationships

The way an entity is involved in a relationship is called the role of the entity in the

relationship. These details provide more semantics of the database. The role is generally

clear from the relationship, but in some cases it is necessary to mention the role explicitly.

Two situations to mention the role explicitly

Recursive Relationship:

This is the situation when any attribute of one entity is associated with another attribute

of the same entity. Such a link initiates from one entity and terminates on the same entity.

Database Management System (CS403)

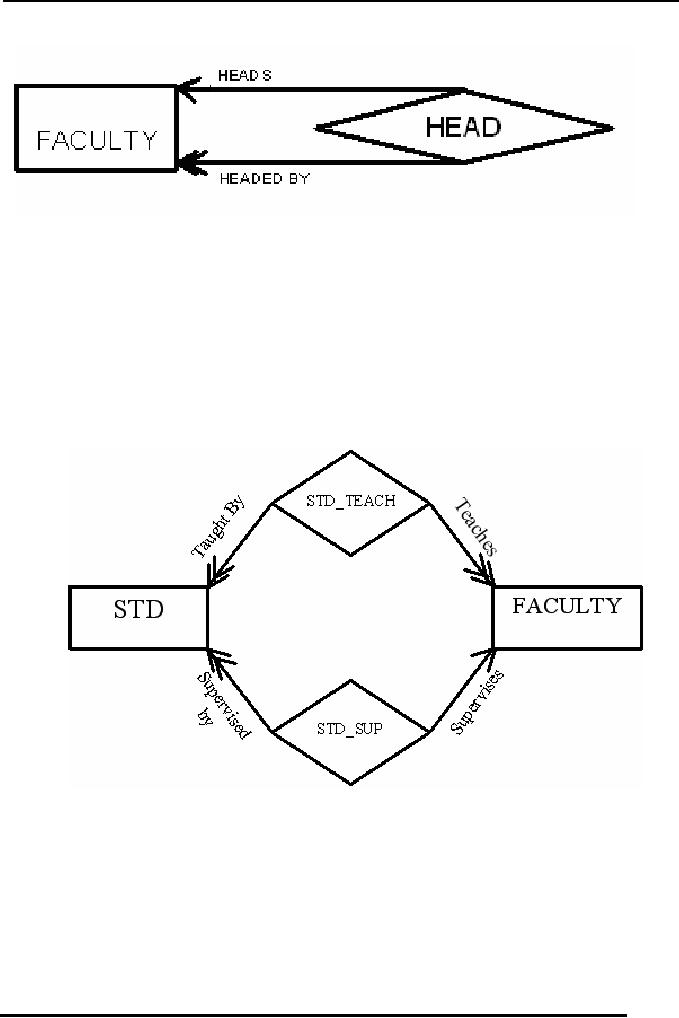

Fig-5: Roles in a unary relationship

Figure-5 above shows the recursive relationship which tells that in the faculty of a certain

institute we can have one faculty member from among the same faculty as the head of the

faculty. Now the role mentioned on the relationship tell that many Faculty instance are

headed by one of the entity instance from the same faculty relation.

Multiple Relationships:

This is the second situation which needs the role to be mentioned on the relationship link

when there is more than one relationship.

Fig. 6: Multiple relationships

As an example we can have a relationship of Faculty members and students as one

faculty member may teach a number of students and at the same time one student may

have been taught by a number of faculty members. This is one side of the picture. Now

on the other side we can say that a faculty member may be supervising a number of

students for their final projects. It shows two types of associations between the faculty

and the students. So in this type of situation it is necessary to mention the role of the

entities involved in the relationship.

Database Management System (CS403)

Dependencies

Dependency is a type of constraint, for example once we define the cardinality or

relationship among two entities it also is a constraint or check that tells that cardinality

should be followed while populating data in relations. Similarly the dependency is a

constraint. There are a number of dependency types which are expressed below:

The Existence dependency:

This is the type of dependency which exists when one entity instance needs instance of

another entity for its existence. As we have seen earlier in case of employee of and

organization and the projects associated with the employees there we see that employees

are dependent on projects, it means that if no project is assigned to an employee it can not

exist. In other words we can say that at a certain time an employee must be working on at

least one project.

Identifier Dependency:

It means that the dependent entity incase of existence dependency does not have its own

identifier and any external identifier is used to pick data for that entity. And to define a

key in this entity the key of the parent entity is to be used in the key for this entity may be

used as composite keys.

Referential Dependency:

This is the situation when the dependent entity has it own key for unique identification

but the key used to show the reference with the parent entity is shown with the help of an

attribute of the parent entity. Means to show the link of the parent entity with this entity

there will be an attribute and a record in this entity will not exist without having a record

in the parent entity. Despite of having its own identifier attribute.

This type of identifier or attribute in the weak entity is known as foreign key.

bkId

BOOK

COPY

bkTitle

CopyId

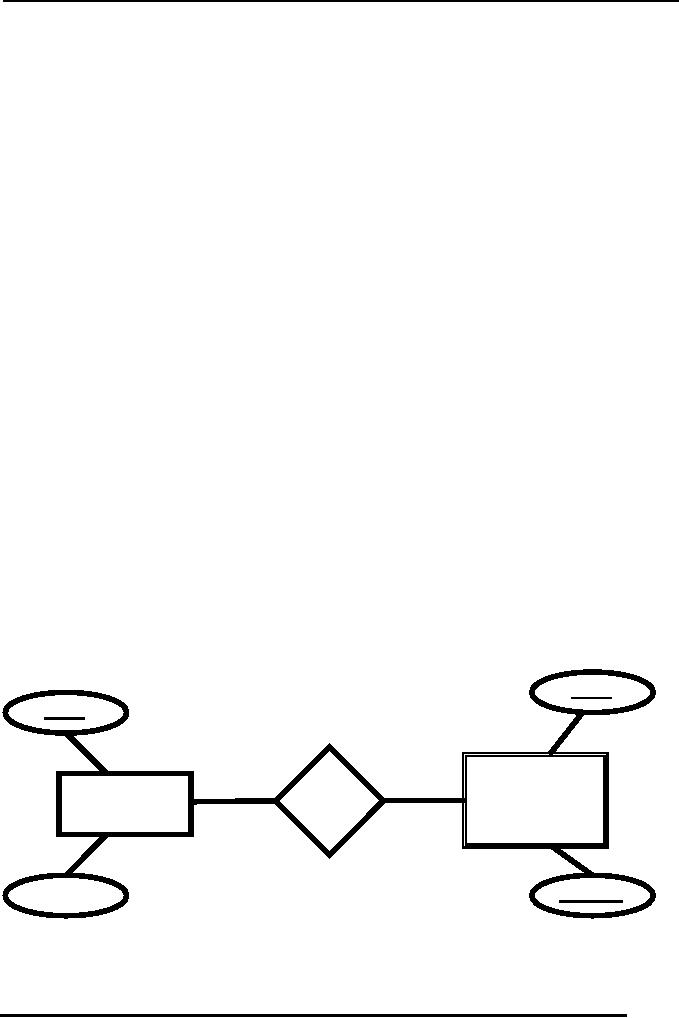

Fig-7

Database Management System (CS403)

In the Figure-7 above the relation shown is expression the existence dependency where it

is necessary for a book instance to exist if there exist the copies of the book with the same

bkId.

Enhancements in E-R Data Model:

The topics that we have discussed so for constitute the basics of ER-Model. The model is

further extended and strengthened with addition of some new concepts and modeling

constructs, which are discussed below

Super-type and Subtypes

These are also relationships existing between entities, also referred to as generalized and

specialized respectively let us examine the figure below to grasp the idea of super-type

and subtype.

General Entity Types

PERSON

ST1

ST2

ST3

STD

FAC

Specialized Entity Types

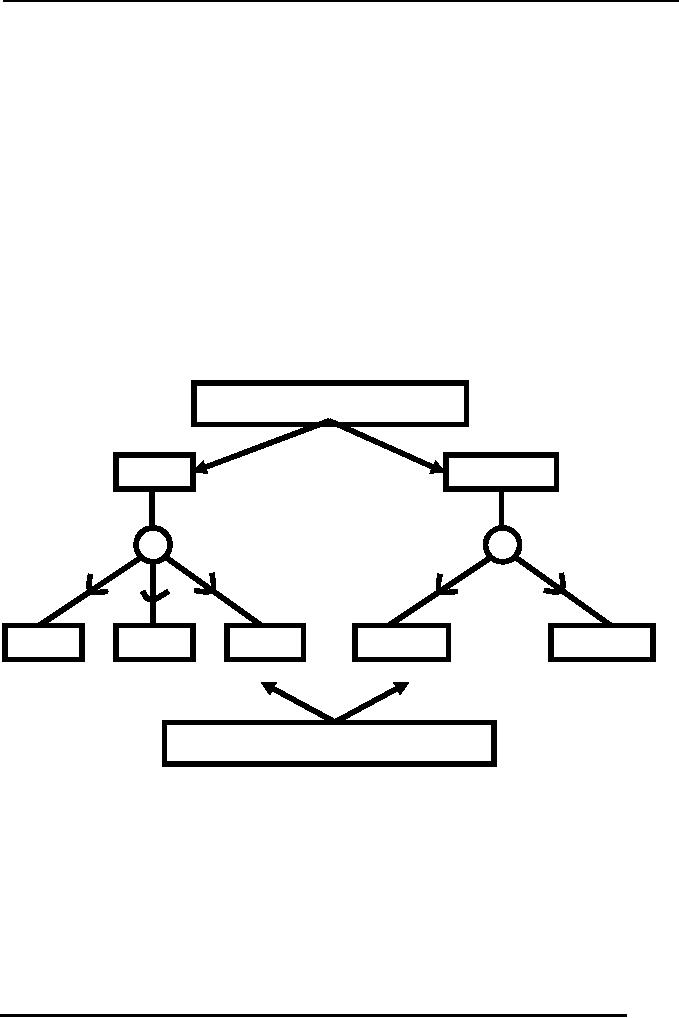

Fig-8 (Super-types and Subtypes)

In the Figure:8 show above there are different levels of existence of entities, at the top

level we have general entity type, which are described as having a number of Subtype

entities, these sub entities are in-turn acting as supertypes entities for a number of other

entities. As we see in case of person supertype we can have further classify the person

entity as Student (STD) and Teacher of Faculty member (FAC). Subtype entities are

expressed with a link to the supertypes having an arc on the link--the arms of which

Database Management System (CS403)

point to the supertype entity. As we move downward the distributed entities are known as

specialized entities.

In the next Lecture the process of Generalization and Specialization will be discussed in

detail.

Summary:

In this lecture we have discussed an important topic of cardinalities and their

representation in the E-R data model. For a correct design the correct identification of

cardinalities is important.
