Virtual University of Pakistan

Data Profiling

Lab lec: 4

Ahsan Abdullah

Assoc. Prof. & Head

Center for Agro -Informatics Research

www.nu.edu.pk/cairindex.asp

National University of Computers & Emerging Sciences, Islamabad

Email: ahsan101@yahoo.com

Slide 2

Single View

· In SQL Server we have four databases

corresponding to each campus

· Each campus has a Student & Registration

table

· These databases can give us campus wide

view of student information and their

enrollment

· What about if we want to have a university

wide view of student information and their

enrollment?

In SQL Server we have four databases corresponding to each campus. Each campus has a Student

& Registration table. Now both tables for each campus have been loaded to MS SQL sever. It

means by this stage we have four databases (one for each campus) and corresponding to each

database we have two tables.

These databases can give us campus wide view of student information and their enrollment. In

order to get university wide view of information we have to have consolidated information of all

campuses. To consolidate we need to standardize information across all campuses. In this lecture

we will step towards consolidation.

Slide 3

417

Single Source & Single View

To get in-depth university wide view we

need to put all data into a single source

Can we just combine all student tables to

have a single university student table?

Definitely NO, as

Order of columns are different

Data types of columns are different

Number of columns is different in each table

Date formats are different

Gender convention is different in each table

At this time we have four student tables in different SQL databases. To consolidate all tables to

get singl e source of truth we can not just glue all tables because of following facts:

Order of columns are different

Data types of columns are different

Number of columns is different in each table

Date formats are different

Gender convention is different in each table

Slide 4

Need: Data Standardization

· Before combining all tables we need to

standardize them

· Number and types of columns, date formats

and storing conventions all of them should

be consistent in each table

· The process of standardization requires

transformation of data elements

· To identify the degree of transformation

required we will perform data profiling

To remove the factors that are not letting us putting all data together we need to standardize all

tables. Standardization process involves the consistency of number and types of columns, date

formats, and storing conventions across all campuses and more. To standardize we need to

transform data elements. To identify the degree of transformation required we need to perform

data profiling.

Slide 5

418

New Columns: Distinct Row ID

· Add another column to each student table

· This new column is named as RowID

· It is used to identify each record separately

· It can be simple auto increment column

By this time, due to lack of primary key, records can not be identified uniquely. At this stage we

need an attribute that can identify each record uniquely. We need such an identifying attribute at

this stage because a lot of records in this stage will be put to error or exception table due to error

in any of the columns. In the error table they will be corrected and later on after correction the

changes will be updated in original student table. For this update we need a column like row id to

join error table with student table.

Slide 6

New Columns: Dirty bit

· Add a new column to each student table

· This new column is named as "Dirty bit"

· It can be boolean type column

· This column will help us in keeping record of

rows with errors, during data profiling

To keep record of the rows that have been inserted into error tables due to certain errors we need

an additional column in student table that will serve as dirty bit. Dirty bit of those records is set to

true that are inserted in the error table.

Slide 7

419

Exception table

· Create error tables exactly same in structure

as student table except

It does not contain any dirty bit column

It contains an additional column `Comment'

· `Comment' contains the name of column having error

· After correction in error table only those rows

will be updated in original student tables that

are changed

Error or exception table contains the copy of records that have corrupted values for any column in

original student table. Error table is the copy of original student table except instead of dirty bit

we will have comments column in the error table. In comments column we store the name of

columns in which we encountered errors for this particular row. For example consider a record

`R', it has missing gender and incorrect date of birth. For the record R we will have comment

[Gender], [Date of Birth]. These comments will be used while correction of error tables. After

correction of error table we will update corresponding rows in the original student table.

Slide 8

Towards Standardization: Profiling,

Exception &transformation

· Data profiling

Identify erroneous records

Copy erroneous records to Exception table and

set dirty bit of erroneous records in student

table of a campus

· Correct exception table

Reflect corrections in exception table in original

student table

· Transform student table

Corrected records in student table are then

transformed and copied to the table Student_Info

Data profiling is a process which involves gathering of information about column through

execution of certain queries with intention to identify erroneous records. In this process we

identify the following:

Total number of values in a column

Number of distinct values in a column

Domain of a column

Values out of domain of a column

Validation of business rules

420

We run different SQL queries to get the answers of above questions. During this process we can

identify the erroneous records. Whenever we will come across an erroneous record we will just

copy it in error or exception table and set the dirty bit of record in the actual student table.

Then we will correct the exception table. After this profiling process we will transform the

records and load them into a new table Student_Info.

Slide 9

Towards standardization: Repeat

profiling, Combine Campus Wise

Standardized Tables

· Data profiling

Prepare profile again and note the reduction in

errors

· Student_Info must be clean and

standardized campus table

· Same process will be repeated for all

campuses

· Finally Student_Info tables of all campuses

will be combined to get a standardized

single table of data from all campuses

After transforming all records, we will perform data profiling again and identify the reduction in

the number of errors.

Student_Info must be clean and standardized c ampus table. After performing same steps for all

campuses we will just put Student_Info tables from four campuses together to get consolidated

source.

Slide 10

Process of Data Profiling

· Data profiling, gathering information about

columns, fulfils the following two purposes

Identify the type and extent to which

transformation is required

Gives us a detailed view of data quality

· Data profiling is required to be performed

twice

Before applying transformations

After applying transformations

Data profiling is a process of gathering information about col umns, It must fulfil the following

purposes

· Identify the type and extent to which the transformation is required

· The number of columns which are required to be transformed and which transformation

is required, meaning date format or gender convention.

· It should provide us a detailed view about the quality of data. The number of erroneous

values and the number of values out of domain.

421

To judge effectiveness of transformation we perform data profiling twice. One before

transformation and the other after transformation.

Slide 11

Data Profiling: Lahore `SID'

· Column Name

SID

· Data Type

Varchar [255]

· Nullable

Yes

· Nature

Numeric values only

· Missing values

Zero

· Total values

5201 ... as many records

· Unique values

4401 .... Same IDs are repeating for MS Students also

The slide shows data profiling for Student ID. The results can help us in identifying that what

transformations should be applied. Like we can see from here that data type is highly

incompatible. To store SID we should not have varchar[255], we can use varchar[10] at

maximum.

To know whether column is unique or not, we can compare total values with distinct / unique

values. If both values are same then its mean that our column is unique. Similarly we can also

identify and count the total number of null values.

Slide 12

Data Profiling: Lahore `SID'

Problems

· Maximum value

4400

· Negative values

· When wizard is used to load data from text file, it

creates table through automatic query with all

columns having same data type `varchar [255]'

· As in this we have merged the records for BS and

MS therefore SID is no more unique whereas it

was used as primary key for BS and MS separately

Two major problems that are identified are:

· Varchar[255] is very large to store IDs, names and even addresses, we must need to

change it.

· There is no unique column that can be used as primary key

422

Slide 13

Transformations: Lahore `SID':

· Column Name

SID

· Column Type

Changed to `Numeric'

· Nullable

· The above two transformations are required

for SID

The slide shows the transformations that are suggested for the first column that is SID.

First of all its type should be changed to Numeric, as varchar[255] does not make any sense.

Secondly we need to change nullability option to no, as ID of each student must be present there.

NULLs in ID can cause great trouble while joining tables.

Slide 14

Data Profiling: Lahore `St_Name'

· Column Name

St_Name

· Data Type

Varchar [255]

· Nullable

Yes

· Nature

Text or char arrays

· Missing values

Zero

· Total values

5201 ... as many records

· Unique values

4793 .... Some names are repeating

The above slide shows the profiling outpu t of St_Name column. The slide shows that no names

are missing and some of the names are repeating.

423

Slide 15

Transformation: Lahore `St_Name'

· `One to Many' transformation will be applied

here

· Column names

First_Name

char[10]

Last_Name

char[10]

Student_Name

char[10]

· Nullable

To store information we need one to many transformations of names. We need to transform name

of each stu ent into 3 columns

· First Name

· Last Name

· Student Name (middle part of name)

This type of transformation requires scripts. We will write VB Scripts for such transformations.

Slide 16

Data Profiling: Lahore `Father_Name'

· Column Name

Father_Name

· Data Type

Varchar [255]

· Nullable

Yes

· Nature

Text or char arrays

· Missing values

Zero

· Total values

5201 ... as many records

· Unique values

4574.... Students may be siblings

The slide shows the profiling for Fathe r's name.

424

Slide 17

Data Profiling: Lahore `Gender'

· Column Name

Gender

· Data Type

Varchar [255]

· Nullable

Yes

· Nature

Binary values only (0/1)

· Missing values

187

· Total values

5014

The slide shows the profiling details for column Gender.

Slide 18

Data Profiling: Lahore `Gender '

Convention & Unique Values

· Convention

0 for Male

1 for Female

· Unique values

8 including (0,1,00,11,01,10,001,M)

There should be only two unique values in this column (0 and 1). But while profiling we have

found that there are 8 unique values. Its mean there are a lot of rows corrupted in original data.

Some may be typos or missing values etc. We need to clean data to make it usable for analysis

purposes.

425

Slide 19

Data Quality: Erroneous Records

Exception Table

· Any record having value other than 0 or 1

are erroneous

· Move all such records to exception table

INSERT INTO Exception

(SID, St_Name, Father_Name , Gender, Address, [Date of

Birth], [ Reg Date], [Reg Status], [Degree Status], [Last

Degree], RowID)

Select SID, St_Name, Father_Name, Gender, Address, [Date

of Birth], [ Reg Date], [Reg Status], [Degree Status], [Last

Degree], RowID

From Student

Where (Gender <>'0') AND ( Gender <>'1')

Legal values are just 0 and 1. All other values are noise and required to be cleaned. To clean

values put all corrupted rows to exception table. Following query can be used to move all

corrupted rows to exception table.

INSERT INTO Exception

(SID, St_Name, Father_Name, Gender, Address, [Date of Birth], [Reg Date], [Reg Status],

[Degree Status], [Last Degree], RowID)

Select

SID, St_Name, Father_Name, Gender, Address, [Date of Birth],

[Reg Date], [Reg Status], [Degree Status], [Last Degree], RowID

From Student

Where (Gender <>'0') AND ( Gender <>'1')

Slide 20

Data Quality: Erroneous Records

ous

cords

Commentts Collumn

Commen s Co umn

Above query woulld copy allll records wiitth

ry wou d copy a records w h

errors in Gender fiielld to excepttiion ttablle

der f e d to excep on ab e

· Insertt the name of erroneous ffiielld ii..e..

ser the ame f roneous e d e

Gender iin the Commentts collumnoff

der n the Commen s co umn o

Exceptiion ttablle

ept on abe

UPDATE Exception

DATE

SET

Commentts = ''Genderr'

Commen s = Gende '

WHERE (Comments IIS NULL))

ERE

ments S NULL

As the Comment column was added just to store the name of column having error, therefore,

above query is required to be executed to update Comme nt column to enter the name of corrupted

column against each row.

This query is required to be run right after each Insert query to exception table, otherwise we will

lose the information `What was wrong in a particular row?' in exception table.

426

Slide 21

Data Quality: Erroneous Records

Set Dirty Bit

· Furthermore, set dirty bit of all records

copied to exception table

UPDATE

Student

SET

Dirty = 1

WHERE

(Gender <> '0') AND (Gender <> '1')

At the same time we need to update each corrupted record in original student table for Lahore

campus by setting its dirty bit. So that we can maintain the record which rows are copied in error

table. Dirty bit says that this record has at least one field corrupted. It does not show how many

fields are corrupted.

Slide 22

Data Profiling consists of...

427

Slide 23

Data Profiling: `Date of Birth'

· Column Name

Date of Birth

· Data Type

Varchar [255]

· Nullable

Yes

· Format

d-MMM-yy e.g. 8-Jul-94

The slide shows the output of profiling of column `Date of Birth'. Again column type is incorrect,

column can contain null values, and format of date is

d-MMM-yy.

Profiling Date needs to change our flow of work. For columns before this we just did profiling

and no transformation has been done yet. We can not profile date without transforming it . So we

need to transform date first and then profile. The problem is, when we loaded all records to SQL

server from text files they are loaded as strings (character arrays). While profiling we may want

to get the range of dates (minimum and maximum dates). We can not identify date ranges until or

unless we transform it as date data type.

Slide 24

Handling Dates: Poblem

· While profiling we need to run queries

to identify

Inconsistencies in date formats

Invalidities like 29th Feb 1975

Missing values of dates

Violations in business rules like 10 years

student in graduating class

By this time you must have got the idea that data profiling is a powerful method to have an idea

about the quality of data. While profiling data we need to run queries to identify:

· Inconsistencies in date formats

· Invalidities like 29th Feb 1975

· Missing values of dates

· Violations in business rules like 10 years student in graduating class

428

Not only the values out of domain of columns hit the quality of data but certain values in the

domain of column may cause the quality to suffer. Like the values cause the violation of business

rules. While profiling data we must have a set of rules regarding to our busines s like we can not

allow any student less than 16 years to be admitted for BS. While profiling we need to identify

the records violating such rules means if we find a 10 years old student in graduated students then

its the violation of business rule and there must be some error either in date of birth of student or

date of graduation. Similarly any student has date of graduation less than date of birth then again

it is considered as noise while both dates are in valid domain. Such dates are required to be

identified at the time of profiling and needs to be dealt separately in error table.

Slide 25

Data Quality: Format Inconsistencies

Date Error: Identification Query

· Dates with errors in formats can be

identified as

SELECT *

FROM

Student WHERE

([Date of Birth] NOT LIKE '%_-Jan-__') AND

([Date of Birth] NOT LIKE '%_-Feb-__') AND

([Date of Birth] NOT LIKE '%_-Mar-__') AND

([Date of Birth] NOT LIKE '%_-Apr-__') AND

([Date of Birth] NOT LIKE '%_-May-__') AND

([Date of Birth] NOT LIKE '%_-Jun-__') AND

([Date of Birth] NOT LIKE '%_-Jul-__') AND

Errors in the format of dates can be identified through following query.

SELECT *

FROM

Student

WHERE ([Date of Birt h] NOT LIKE '%_-Jan-__')

AND

([Date of Birth] NOT LIKE '%_-Feb-__')

AND

([Date of Birth] NOT LIKE '%_-Mar-__')

AND

([Date of Birth] NOT LIKE '%_-Apr-__')

AND

([Date of Birth] NOT LIKE '%_-May-__')

AND

([Date of Birth] NOT LIKE '%_-Jun -__')

AND

([Date of Birth] NOT LIKE '%_-Jul-__')

AND

([Date of Birth] NOT LIKE '%_-Aug-__')

AND

([Date of Birth] NOT LIKE '%_-Sep-__')

AND

([Date of Birth] NOT LIKE '%_-Oct-__')

AND

([Date of Birth] NOT LIKE '%_-Nov-__')

AND

([Date of Birth] NOT LIKE '%_-Dec-__')

AND

([Date of Birth] <> '') AND

([Date of Birth] IS NOT NULL)

The above query can not identify all invalid dates like 30-Feb-2005. But any date with invalid

format, o r having illegal month can be identified through the above query.

429

Slide 26

Data Quality: Format Inconsistencies

Date Error: Query output-1

([Date of Birth] NOT LIKE '%_-Aug-__') AND

([Date of Birth] NOT LIKE '%_ -Sep-__') AND

([Date of Birth] NOT LIKE '%_ -Oct-__') AND

([Date of Birth] NOT LIKE '%_ -Nov -__') AND

([Date of Birth] NOT LIKE '%_ -Dec-__') AND

([Date of Birth] <> '') AND

(Invaed f Btries Iare OT NULL)

[Datli oeni th] S N

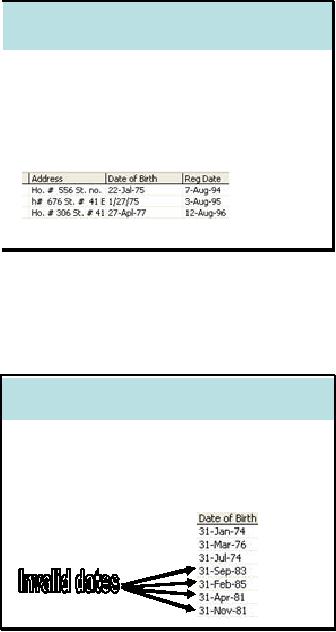

The output of the above query shows 3 invalid dates. 22-Jal-75,1/27/75,27-Apl -77. These are

invalid dates as their format are not correct.

Whi le transforming dates from string to date format, all dates must be legal. If any illegal date

comes the package will be terminated and all transactions will be rolled back. So through

sequence of different query we try to identify all invalid dates so tha t our package can complete

its execution successfully.

Slide 27

Data Quality: Format Inconsistencies

Date Error: Query output-2

· Invalid dates can be 29 th Feb 1975 or 31st

June etc

SELECT

* FROM

Student

WHERE

([Date of Birth] LIKE '29 -Feb-%') OR

([Date of Birth] LIKE '3_-%')

To identify invalid dates like 29th Feb 1975 or 31st June, we can run the following query

SELECT * FROM

Student

WHERE ([Date of Birth] LIKE '2 -Feb-%') OR

([Date of Birth] LIKE '3_ -% ' )

There is no finalized methodology to identify errors in dates. It is up to the designer what

sequence of queries he/she generates to identify the errors in dates because the purpose is to

identif y all erroneous dates before running the package. Otherwise, package's execution will be

terminated and all transactions caused due to that package will be rolled back.

430

Slide 28

Data Quality: Multiple Inconsistencies

· If any record is selected whose dirty bit is

already set we will not copy it again to

exception table rather we will modify the

comment of Exception table

· But in this query all selected records have

their dirty bits off

· So copy all record to Exception table and

set their dirty bits on in Student table

It has been discussed earlier, how we will work with error table. Now if we meet a record whose

dirty bit is already set then we will not copy the record again but we will modify the comment in

exception table. We will append the name of second erroneous column with the name of column

already present there.

Slide 29

Data Quality: Multiple Inconsistencies

Example

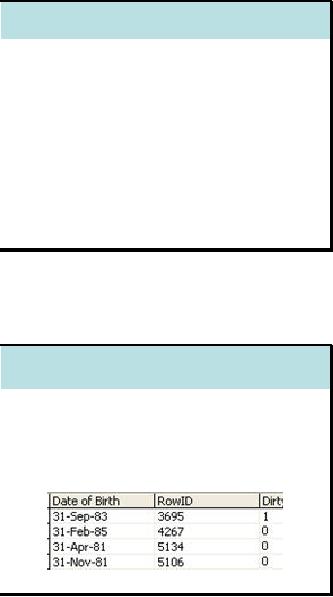

SELECT [Date of Birth], RowID, Dirty

FROM

Student

WHERE

([Date of Birth] LIKE '31-Sep-%') OR

([Date of Birth] LIKE '31-Feb-%') OR

([Date of Birth] LIKE '31-Apr-%') OR

([Date of Birth] LIKE '31-Nov-%')

We can use following query as well. The above query and the query in the previous slide both are

aimed at identify the invalidities in dates. There may be some other set of queries that can be

used wit h the same intention to identify invalid dates. Good queries are those that identify and

output only erroneous records and all erroneous records.

431

Slide 30

Data Quality: Multiple Inconsistencies

Handling

· RowID 3695 has already been copied due to

error in Gender, therefore it is not required

to be copied again just modify its comments

UPDATE

Exception

SET

Comments = Comments + '+ Date of Birth'

WHERE

([Date of Birth] LIKE '31-Sep-%') OR

([Date of Birth] LIKE '31 -Feb-%') OR

([Date of Birth] LIKE '31 -Apr-%') OR

([Date of Birth] LIKE '31 -Nov-%')

For the records whose dirty bit is already on, we do not ne ed to enter the record again but to

modify the comment only through following query

UPDATE

Exception

SET

Comments = Comments + '+ Date of Birth'

WHERE

([Date of Birth] LIKE '31 -Sep-%') OR

([Date of Birth] LIKE '31 -Feb-%') OR

([Date of Birth] LIKE '31-Apr-%') OR

([Date of Birth] LIKE '31-Nov-%')

Slide 31

Summary: `Date of Birth '

· Total dates found with inconsistent formats

are 3

· Total invalid dates are 4

· Total Missing dates are 9

· Business rules are yet to be validated

Slide shows the summary of data profiling of `Date of Birth'. Business rule can be as follows:

At the time of joining for BS, student must be at least 16 years old

At the time of joining for MS, student must be at least 20 years old

Business rules are yet to be validated because to validate business rule we have to have date of

registration as well.

432

Slide 32

Transformation: Lahore `Date of Birth'

· Column Name

DoB

· Column Type

DateTime

· Nullable

Yes

Following transformations are suggested for Date of Birth:

· Change the name of column as DoB

· Change column type as DateTime format

· Allow null values as there are some nulls and empty strings in the orig inal data

Slide 33

Data Profiling: Lahore `Reg Date'

· Column Name

Reg Date

· Data Type

Varchar [255]

· Nullable

Yes

· Format

d-MMM-yy e.g. 8-Jul-94

Now we need to profile date of registration column. The same procedure that we have done for

Date of Birth is required to be repeated.

433

Slide 34

Transformation: Lahore `Reg Date'

· Column Name

Reg Date

· Column Type

DateTime

· Nullable

Yes

The slide shows t he transformations that are required for Registration date.

Slide 35

Data Profiling: `Business rule validation'

Two business rules are required to be

validated here

· All new registrations are done in month of

August before 28

· Transfer cases can also be dealt in

January

· At the time of registration for BS age must

be greater than 16 years and for MS age

must be greater than 20 years

Now as we have profiled date of registration as well therefore we can validate the following

business rules

· All new registrations are done in month of August before 28th

· Transfer cases can also be dealt in January

· At the time of registration for BS age must be greater than 16 years and for MS age

must be greater than 20 years

There can be a lot of business rules that are supposed to be validated at this stage. It totally

depends upon the business.

Other than business rules we also validate some logical rules at this stage, like date of registration

can not be less than date of birth. No one could register for a degree before birth. Similarly date

of birth can not be 100 years back and so on. Such rules can be devised keeping in mind the

nature of business.

434

Slide 36

Data Profiling: `Business rule validation'

Correct Records

· Total correct records in Student table

is 4958

SELECT

COUNT(*) AS Expr1

FROM

Student

WHERE

(Dirty = 0)

· We will validate business rules only for

correct records

At this stage we have only correct records in Student table. All records with errors in dates have

been moved to exception table. Now we will validate the correct records for given set of business

rules and general logical rules. Records violating any of the rules are required to copy in

exception table.

Slide 37

Data Profiling: `Business rule validation'

Registration Date

· Validate registrations date

SELECT COUNT([Reg Date]) AS Date

FROM

Student

WHERE

(Dirty = 0) AND ([Reg Date] NOT LIKE '% -Aug-%') AND

([Reg Status] = 'A') OR

(Dirty = 0) AND ([Reg Date] NOT LIKE '% -Jan-%') AND

([Reg Status] = 'T')

(Dirty = 0) AND ([Reg Date] NOT LIKE '% -Aug-%') AND

([Reg Status] = `T')

· 0

· All dates are valid

The s lide shows the query that can violate the following two rules:

· All new registrations are done in month of August before 28th

· Transfer cases can also be dealt in January

We can see that the first check ,`dirty bit = 0', is giving us the records having no errors. The

following query can identify all records that have registration date in any month other than

August and January. Those records will be erroneous records. Records having registration date in

January and Registration status is transfer case is legal. Similarly in August both Transfer cases

and new admissions are legal.

SELECT COUNT([Reg Date]) AS Date

FROM

Student

WHERE

(Dirty = 0) AND ([Reg Date] NOT LIKE '% -Aug-%') AND ([Reg Status] = 'A') OR

435

(Dirty = 0) AND ([Reg Date] NOT LIKE '% -Jan-%') AND ([Reg Status] = 'T')

(Dirty = 0) AND ([Reg Date] NOT LIKE '% -Aug-%') AND ([Reg Status] = `T')

Slide38

Data Profiling: `Business rule validation'

Age

· Validate age while registration

SELECT

FROM

(SELECT *

FROM

Student

WHERE

dirty = 0) DERIVEDTBL

WHERE (CAST([Reg Date] AS DateTime) -

CAST([Date of Birth] AS DateTime ) < 16)

· 3 violating records can be seen on next

slide

The slide shows the query that can be used to validate the following business rule:

At the time of registration for BS age must be greater than 16 years and for MS age must be

greater than 20 years

The query again first identifies the correct records through dirty bit. Then checks which of the

students are less than 16 years at the time of registration. To apply `+' or ` -' operator on dates we

need to cast date strings into date data type by using CAST function. If there comes any invalid

date the query terminates with error.

Slide 39

Data Profiling: `Business rule

validation'

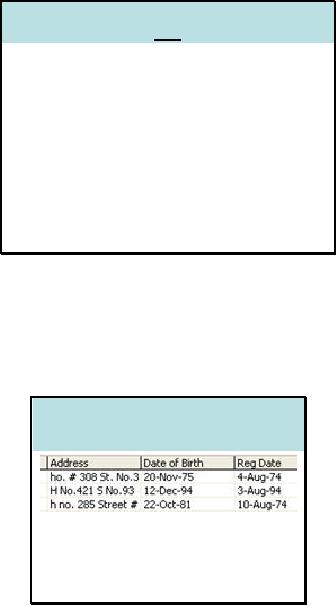

Age: Violating Records

· Copy these records to Exception table

and set dirty bit

· Update comments in Exception table

with value = `BR: Age'

On the slide we can see three records that are violating business rules. In the first record date of

birth is 20-Nov-75 and date of Registration is 4-Aug-74, which is obviously impossible. Here,

one thing is obvious that date of registration is incorrect as we have data starting from 1994 only.

Either date of birth is correct or not, nothing can be said without consulting golden copy (Original

copy).

We will copy these records to exception table and set the dirty bit for these records. For such

cases we will update comment by appending `BR:Age' (Business rule: Age).

436

Table of Contents:
