Slide 1

Virtual University of Pakistan

Data Transfer Service (DTS)

Introduction

Lab lec:1

Ahsan Abdullah

Assoc. Prof. & Head

Center for Agro -Informatics Research

www.nu.edu.pk/cairindex.asp

National University of Computers & Emerging Sciences, Islamabad

Email: ahsan101@yahoo.com

DWHAhsan Abdullah

Slide 2

Data Transformation Services

· DTS Overview

· SQL Server Enterprise Manager

· DTS Basics

DTS Packages

DTS Tasks

DTS Transformations

DTS Connections

Package Workflow

DWH Ahsan Abdullah

Microsoft® SQL ServerTM 2000 Data Transformation Services (DTS) is a set of graphical tools

and programmable objects that allow you extract, transform, and consolidate data from disparate

sources into single or multiple destinations. SQL Server Enterprise Manager provides an easy

access to the tools of DTS.

The purpose of this lecture is to get an understanding of DTS basics, which is necessary to learn

the use of DTS tools. These DTS basics describe the capabilities of DTS and summarize the

business problems it addresses.

350

Slide 3

DTS Overview

Extract Data

Single or

Disparate

Sources Transform Data Multiple

Destinations

of data

Consolidate Data

DTS, Graphical tools & Programmable objects

DWH -Ahsan Abdullah

Many organizations need to centralize data to improve corporate decision -making. However, their

data may be stored in a variety of formats and in different locations. Data Transformation

Services (DTS) address this vital business need by providing a set of tools that let you extract,

transform, and consolidate data from disparate sources into single or multiple destinations

supported by DTS connectivity.

DTS allows us to connect through any data source or destination that is supported by OLE DB.

This wide range of connectivity that is provided by DTS allows us to extract data from wide

range of legacy systems. Heterogeneous source systems store data with their local formats and

conventions. While consolidating data from variety of sources we need to transform names,

addresses, dates etc into a standard format. For example consider a student record management

system of a university having four campuses. A campus say `A' follows convention to store city

codes "LHR" for Lahore. An other campus say `B' stores names of cities "Lahore", campus `C'

stores city names in block letters `LAHORE', and the last campus `D' store city names as

`lahore'. When the data from all the four campuses is combined as it is and query is run "How

many students belong to `Lahore'?" We get the answer only from campus B because no other

convention for Lahore matches to the one in query.

To combine data from heterogeneous sources with the purpose of some useful analysis requires

transformation of data. Transformation brings data in some standard format.

Microsoft SQL Server provides graphical tools to build DTS packages. These tools provide good

support for transformations. Complex transformations are achieved through VB Script or Java

Script that is loaded in DTS package. Package can also be programmed by using DTS object

model instead of using graphical tools but DTS programming is rather complicated.

351

Slide 4

DTS Overview: Concept

DTS

Centralized

Data

DTS

DWH-Ahsan Abdullah

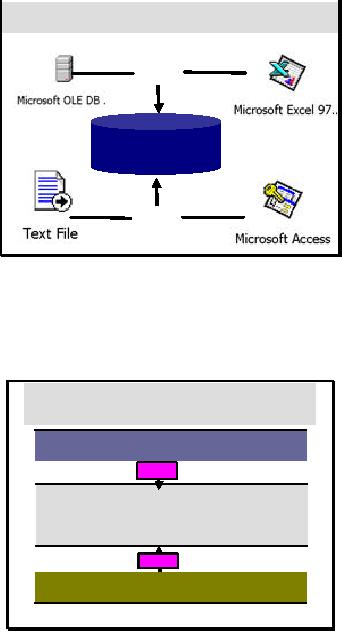

The slide shows the heterogeneous sources of data. Position of DTS while consolidating the data

into a single source is also clear from the slide. In legacy systems we may come across the text

files as a source of data. Microsoft Access is a database management system, maintains dat a in

tables, and columns validate the input to the system. We often find legal values are stored in these

sort of data management systems. But when we deal with text files no validation mechanism for

input is there. Therefore we may come across illegal and rubbish values in text files. This makes

the process of transformation further complicated.

Slide 5

DTS Overview: Example

MUHAMMED ANWAR

8-JUN-1978

CH MUHMD. ASLAM

23-Nov-1980

DTS

MOHAMMAD ANWAR

08/06/1978

CHOUDHARY MOHAMMAD ASLAM

23/11/1980

AHMAD JAHANZEB

05/08/1980

MOHAMMAD FARRUKH

08/11/1979

DTS

AHMED JAHANZEB

8-5-80

M. FARRUKH

11-8-79

DWH-Ahsan Abdullah

In the this slide we may see three data management systems. Data is extracted from two systems,

top and bottom, and is loaded into the standardized system shown in the middle. We may see two

transformations over here. First one is name transformation and the other one is date

transformation. In the database management system shown at the top we have two names

Muhammed Anwer and Choudhary Mohammed Aslam. Whereas in the system shown at the

bottom we have two different names Ahmed Jahanzeb and Muhammed Farrukh. Out of four

names three names contain Muhammed but with different spellings. Computer can not identify

that the word `Mu hammed' is intended at all the three locations. So while consolidating data

352

names are transformed to standard spellings of names. Similarly Date formats are different in

both source systems and it is standardized in destination system (middle one).

Slide 6

DTS Overview: Operations

· A set of tools for

Providing connectivity to different databases

Building query graphically

Extracting data from disparate databases

Transforming data

Copying database objects

Providing support of different scripting

languages( by default VB-Script and J-Script)

DWH-Ahsan Abdullah

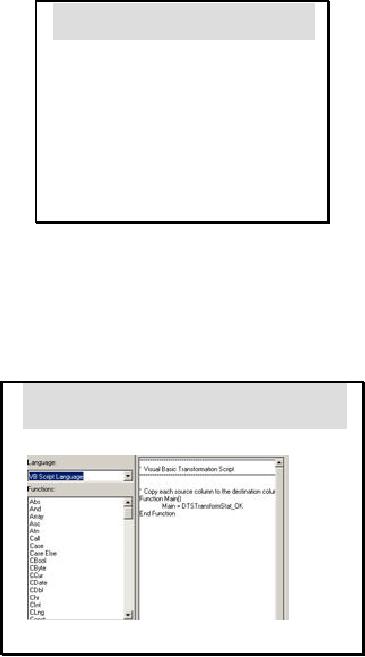

DTS contains a set of tools that provides a very easy approach to build a package and execute it.

Writing or building a package through programming is a complex task but DTS tools like DTS

Designer and Import/Export Wizard do this entire complex task for user just through a single

click of button. Not only package building but query building has also very sophisticated support

in DTS tools.

Slide 7

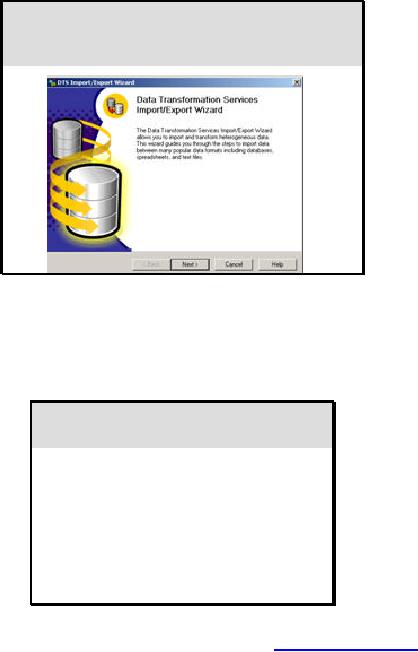

DTS Overview: Tools

· DTS includes

Data Import/Export Wizard

DTS Designer

DTS Query Designer

Package Execution Utilities

· DTS Tools can be accessed

through "SQL Server Enterprise

Manager"

DWH-Ahsan Abdullah

Package execution utilities are used to run or execute a package, no matter package is designed

through the tools provided by DTS or any external tool like Visual Basic. All these tools can be

accessed through the SQL Server Enterprise Manager.

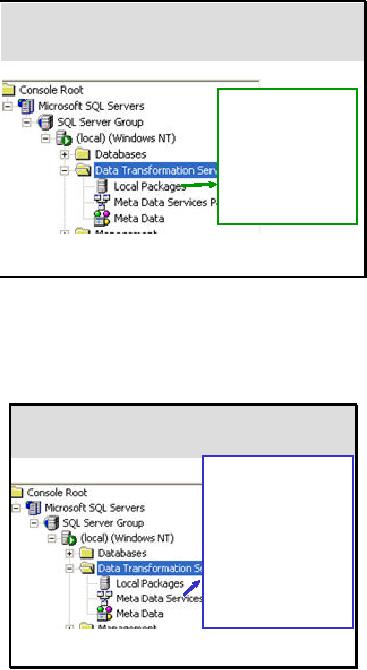

Open the node Data Transfer Services in SQL Server Enterprise Manager. Choose the option in

which any finished package is saved. Right click the package and get option to execute it.

353

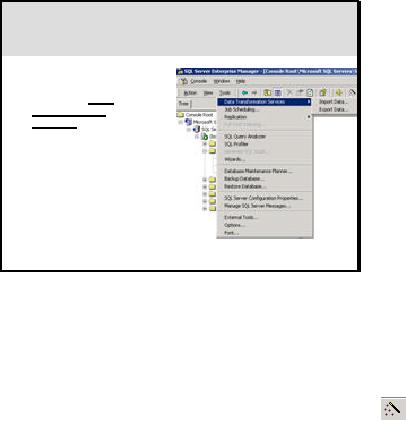

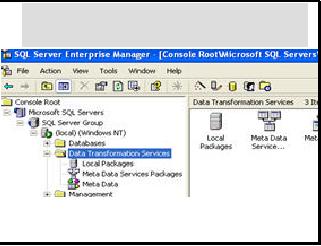

Slide 8

DTS Overview:

SQL Server Enterprise Manager

Path: Start >> Programs >> Microsoft

SQL Server >> Enterprise Manager

DWH-Ahsan Abdullah

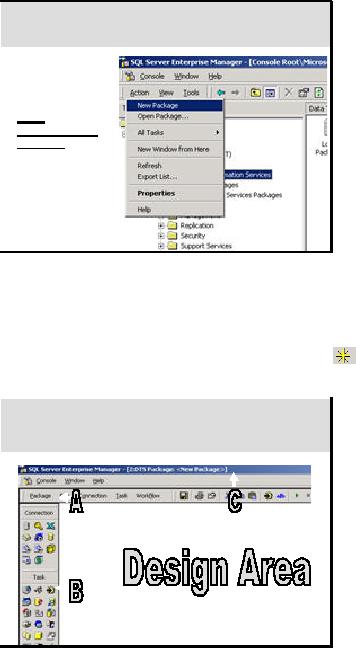

The Data Transformation Services (DTS) node of the SQL Server Enterprise M anager console

tree provides facilities for accessing DTS tools, manipulating DTS packages, and accessing

package information. You can use these facilities to:

Open a new package in the DTS Import/Export Wizard or DTS Designer. In DTS

Designer, you can select and edit an existing package saved to SQL Server, SQL Server

2000 Meta Data Services, or to a structured storage file.

Action >> New Package

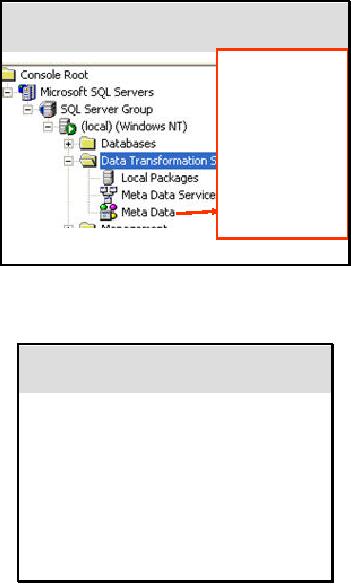

Connect to and import meta data from a data source, and display the meta data in the

Meta Data node of SQL Server Enterprise Manager.

Right click Meta Data Services Package and select option import Meta Data

Open a package template in DTS Designer.

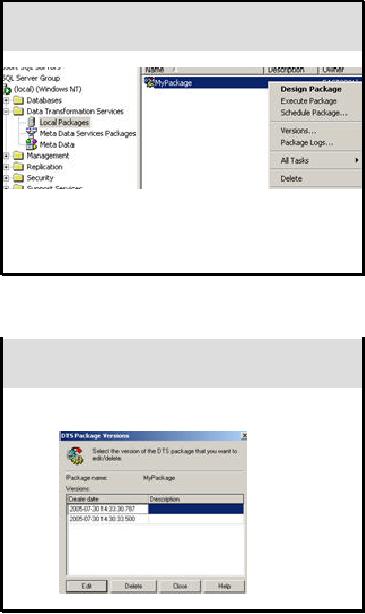

Right click the package that is required to be opened in DTS Designer and select the option

open in DTS Designer.

Display the version history of a package, edit a specific package version in DTS

Designer, and delete package versions.

Right click the package and select the option Versions.

Display and manipulate package log information.

Right click the node "Local packages"/"Meta data services packages" in the tree and

select the option view logs.

Set the properties of DTS Designer

354

Right-click the Data Transformation Services node and click Properties.

Execute a package.

Right click the package and click execute

Schedule a package.

Right click the package and click schedule

Slide 9

DTS Overview: Market

SQL Market

Diverse Usage

Courses and certifications

High costs

DWH-Ahsan Abdullah

SQL Server is becoming one of Microsoft's biggest businesses, as being used

by people from wide spectrum of domains. The scope of the SQL Server is so

diverse that whole course can be offered and actually such courses are being

offered in developed countries. Microsoft also offers training courses and

certifications are expensive enough. For example, "Designing and

Implementing OLAP Solutions with MS SQL Server 2000" is a course that

provides students with the knowledge and skills necessary to design,

implement, and deploy OLAP solutions by using Microsoft SQL Server 2000TM

Analysis Services. The importance of the course is well depicted by its cost

i.e. $2500+GST

355

Slide 10

DTS Basics

DTS Packages

DTS Tasks

DTS Transformations

DTS Package Workflows

DTS Tools

Meta Data

DWH-Ahsan Abdullah

Before learning to use DTS some basic concepts like DTS packages, DTS tasks, transformations

and workflows are important to understand.

When we want to use computers to perf orm some particular task through programming, what we

do? We write a program in some programming language. Program is a sequence of logical

statements that collectively achieve the purpose of the programmer. This analogy is useful in

understanding the concept of package and tasks in DTS. DTS package is exactly like a computer

program. Like a computer program DTS package is also prepared to achieve some goal.

Computer program contains set of instructions whereas DTS package contains set of tasks. Tasks

are logically related to each other. When a computer program is run, some instructions are

executed in sequence and some in parallel. Likewise when a DTS package is run some tasks are

performed in sequence and some in parallel. The intended goal of a computer program is

achieved when all instructions are successfully executed. Similarly the intended goal of a package

is achieved when all tasks are successfully accomplished.

DTS task is a unit of work in a package. Tasks can be establishment of connection to s ource and

destination databases, extraction of data from the source, transformation of data, loading of data

to the destination, generation of error messages and emails etc.

In real world systems when we talk about heterogeneous sources of data there arise a lot of

complicated issues. Heterogeneous systems contain data with different storage conventions,

different storage formats, different technologies, and different designs etc. Power of DTS lies in

extracting the data from these heterogeneous sources, transforming to some standard format and

convention, and finally load data to some different system with totally different parameters like

technology, design etc. Microsoft SQL Server provides user -friendly tools to develop DTS

Packages. Through graphical editor/ designer or wizards we can put together set of tasks in a

package. Order or sequence in which the tasks are required to be performed can be set through

conditions like "On success of task A task B should be performed otherwise task C should be

performed." This order or sequence of execution is called Workflow of a package.

356

In this lecture we will see these concepts in detail and in subsequent lectures we will develop

packages and practically get into the use of DTS functionalities.

Slide 11

DTS Packages

(Cont.)

DWH-Ahsan Abdullah

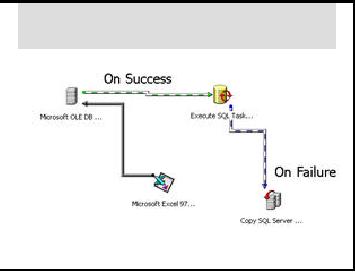

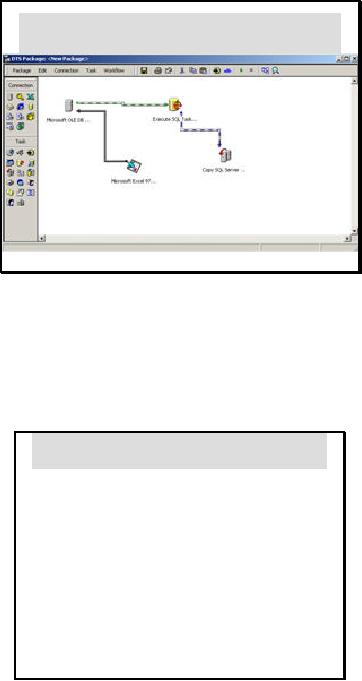

Slide shows how a package looks like. We can only view package as a form of

graphical objects as shown in the slide. Here two connections are established. "Microsoft

OLEDB Driver" and "Microsoft Excel 97" are connections. Blac k link between two

connections is transformation task. "Execute SQL" and "Copy SQL Server" both are

tasks. Green and blue links are workflows. Green link shows `On the Success of' i.e.

on the success of Connection establishment execute task execute SQL.Blue link shows

`On the Failure of' on the failure of the previous task execute another task Copy SQL

Server objects.

Slide 12

DTS Package: Contents

· DTS Package is an organized

collection of

Connections

DTS tasks

DTS transformations

Workflows

DWH-Ahsan Abdullah

A DTS package is an organized collection of connections, DTS tasks, DTS transformations, and

workflow constraints assembled either with a DTS tool or programmatically and saved to

357

Microsoft® SQL ServerTM, SQL Server 2000 Meta Data Services, a structured storage file, or a

Microsoft Visual Basic® file.

Each package contains one or more steps that are executed sequentially or in parallel when the

package is run. When executed, the package connects to the correct data sources, copies data and

database objects, transforms data, and notifies other users or processes of events.

Slide 13

DTS Package: Execution

· When a package is run

It connects to data sources

Copies data and database objects

Transforms data

Notifies other users and processes of

events

DWH-Ahsan Abdullah

When we run a Data Transformation Services (DTS) package, all of its connections, tasks,

transformations, and scripting code are executed in the sequence described by the package

workflow.

We can execute a package from:

Within a DTS tool.

SQL Server Enterprise Manager.

Package execution utilities.

Slide1 4

DTS Package: Creating

· Package can be created by one

of the following three methods:

Import/Export wizard

DTS Designer

Programming DTS applications

DWH-Ahsan Abdullah

358

Microsoft SQL Server provides a good support for the tools that are helpful in building a

package. Import/Export Wizard and DTS Designer both are the graphical methods of building a

package. Both tools provide support to run the package also. Building a package means putting

all the tasks that are supposed to be performed in a particular package together and setting their

order of execution or defining workflow. Whereas when we actually run a package all the tasks

are actually performed.

Programming DTS applications without the help of these user-friendly tools is a difficult task.

Packages can be programmed using some external tool like Visual Studio in VC++ or VB. Such a

programming requires deep understanding of DTS object model.

Slide 15

DTS Package: Creating

Import/Export

1. Expand tree node

mentioning `Data

Transformation

Services' and

select the option

for available

location to save

package

2. Tool>Data Transfer

Service>

Import/Export

DWH-Ahsan Abdullah

Data Import and Export wizard can be accessed through a number of ways.

1. Start > Programs> Microsoft SQL Server> Data Import/Export Wizard

2. Through SQL Server Enterprise Manager

a. In SQL Server Enterprise Manager we can see a Tree view of SQL Server

objects and services. Expand Tree, select the node "Data Transformation

Services". We can see two options (discussed earlier) to store Package. Select

any one of them (local OR SQL Server Meta Data Services). Then Click Tools >

Data Transformation Services > Import / Export Data.

b. After Expanding Data Transformation Services node we can click

on tool

bar to launch the wizard

359

Slide 16

DTS Package: Creating

Data Import/Export Wizard

DWH-Ahsan Abdullah

This is how wizard looks like. Just press Next and start working with a user friendly wizard.

An easy -to-use tool that guides you, a step at a time, through the process of creating a DTS

package. It is recommended for simple data transformation or data movement solutions (for

example, importing tabular data into a SQL Server 2000 database). It provides limited support for

transformations.

Slide 17

DTS Package: Creating

DTS Designer

· DTS Designer

Graphical objects

For complex workflows

It supports more complex

transformations as compared to

wizard

DWH-Ahsan Abdullah

DTS designer is an applicat ion that uses graphical objects to help you build packages containing

complex workflows. DTS Designer includes a set of model DTS Package Templates, each

designed for a specific solution that you can copy and customize for your own installation. It is

recommended for sophisticated data transformation solutions requiring multiple connections,

complex workflows, and event-driven logic. DTS package templates are geared toward new users

who are learning about DTS Designer or more experienced users who want assistance setting up

specific DTS functionalities (for example, data driven queries).

360

Slide 18

DTS Package: Creating

DTS Designer Console

1. Expand tree

node

mentioning

`Data

Transformation

Services ' and

select the

option for

available

location to save

package

2. Action>New

DWH-Ahsan Abdullah

Package

DTS Designer can also be accessed through multiple ways.

1. Whenever a saved package is opened by double click or through right click, it is opened

in DTS Designer

2. SQL Server Enterprise Manager can also be used to access DTS Designer

a. After Expanding Data Transformation Services node select Action > New

Package

b. After Expanding Data Transformation Services node select

on toolbar to

access DTS Designer

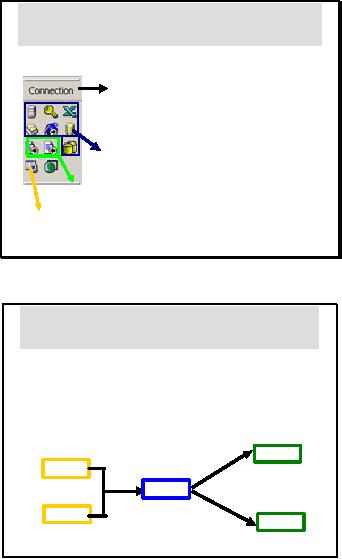

Slide 19

DTS Package: Creating

DTS Designer Environment

DWH-Ahsan Abdullah

The slide shows environment of DTS Designer. In designer we can see four windows

A. Connection toolbar

B. Task toolbar

C. General toolbar

D. Design Area

361

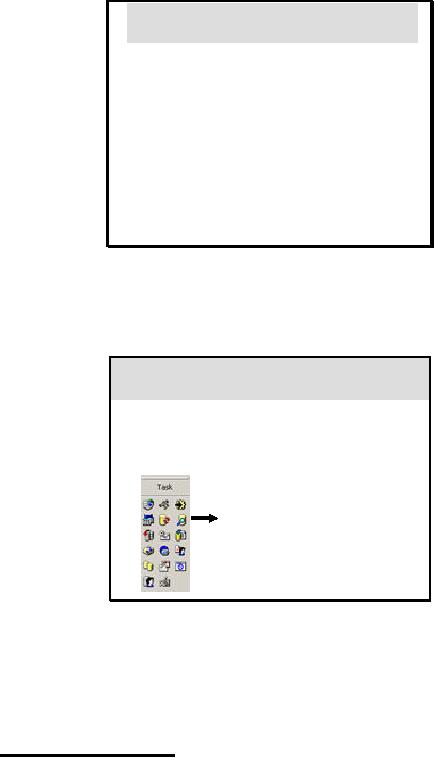

A. Connection toolbar

Connection toolbar shows all available connections in the form of icons or symbols. All OLE

DB supported connections are available. To establis h a new connection just click the correct

icon and drag to design area. Then set properties to your connection. In case of any difficulty

in identifying the connection icon, click on Connection on Menu bar just above the

connection toolbar.

B. Task Toolbar

Tasks toolbar shows icons for all tasks that are supported by DTS. For example

is used

to set transformation task. This also works as drag and drop. DTS Designer is very friendly to

use as it guides user about what to do after picking a certain option. For new users who do not

recognize the tasks through icons, in the top menu bar `Task' is available.

C. General Toolbar

This toolbar provides general functionality like saving a package, executing a package.

used to execute a package

D. Design Area

Design Area is used to design a package through the objects available in the tool bars.

Slide 20

DTS Package: Creating

Programming

· Programming DTS applications

Complicated & technical way

For experienced developers and

programmers only

Requires Visual C++ or Visual

Basic for programming

DWH-Ahsan Abdullah

Programming applications that you can use to write and compile a DTS package either in

Microsoft Visual Basic® or Microsoft Visual C++®. It is recommended for developers who want

to access the DTS object model directly and exert a fine degree of control over package

operations. Packages created programmatically can be opened and further customized in DTS

Designer. In addition, packages created in the DTS Import/Export Wizard or DTS Designer can

be saved as a Visual Basic program and then opened and further customized in a development

environment such as Microsoft Visual Studio®.

362

Slide 19

Saving a DTS Package

· DTS Package can be saved to

Microsoft SQL Server

SQL Server 2000 Meta Data services

Structured storage files

A Microsoft Visual Basic file

DWH-Ahsan Abdullah

When you save a Data Transformation Services (DTS) package, you save all DTS connections,

DTS tasks, DTS transformations, and workflow steps and preserve the graphical layout of these

objects on the DTS Designer design

While saving a package we get different options as destination location for the package. Package

can be saved to Microsoft SQL server. Another option to save a package is SQL Server Meta

Data Services. The advantage which we get when we store our package to SQL Server 2000 Meta

Data Services is that we may maintain meta data information of the databases involved in the

packages and we may keep version information of each package. Furthermore package can be

stored in a structured file and Microsoft visual basic file.

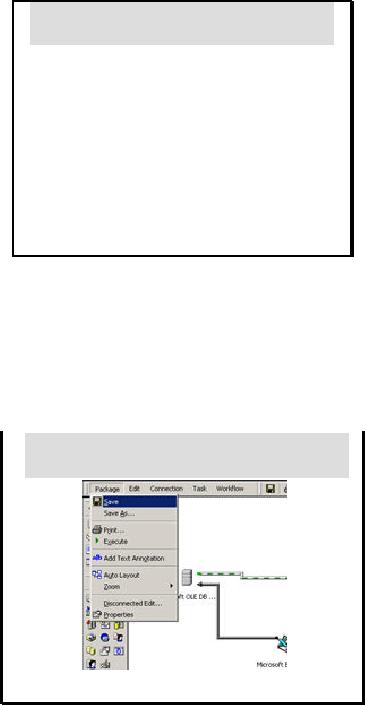

Slide 20

Saving a DTS Package:

Illustration

DWH-Ahsan Abdullah

This slide illustrate the package saving process.

363

Slide 21

Saving a DTS Package:

SQL Server

Contains

Packages that

are saved to

this particular

instance

SQL Server

DWH-Ahsan Abdullah

Data Transformation Services node of SQL Server Enterprise Manager contains three options to

locate the package saved earlier. The first option is local Packages. These are the packages that

are saved to this particular instance of SQL Server. Microsoft SQL Server may have multiple

instances on each machine or over a Network. Local packages are those that are saved to this

particular instance of SQL Server.

Slide 22

Saving a DTS Package:

Meta Data Services

Contains Packages

that are saved to

Meta Data Services

of this instance of

SQL Server. It

maintains version

information of each

package saved to

it.

DWH-Ahsan Abdullah

As it has been discussed earlier, to maintain Metadata information for a package or version

information of a package, it may be stored to Meta Data Services. This node contains all those

packages that are saved to SQL Server 2000 Meta Data Services.

364

Slide 23

Saving a DTS Package

Metadata

It is a repository

metadata

information

databases

scanned to Meta

Data

Services

Packages. It also

provides version

tracking facility

of Packages.

DWH-Ahsan Abdullah

If a package is saved to SQL Server 2000 Metadata Services and is scanned for metadata than its

meta data information is maintained in a repository " Meta Data ", that can be found as third

option under node Data Transformation Services.

Slide 24

DTS Packages:

4 Operations

· Packages can be:

Edited

Password protected

Scheduled for execution

Retrieved by version

DWH-Ahsan Abdullah

Packages that are required for very complicated tasks are not trivial to build. To develop such

packages, DTS Designer or programming tools are used. Once such packages are built they are

saved for further use. We may edit these packages later on. For editing purposes either DTS

designer or programming is used. After edit a package we may keep both packages that is

package before editing and package after editing as two different versions of same package. To

maintain version information packages are saved in "SQL Server 2000 Meta Data Services".

Tasks in the package require access to database objects, when package is executed. Packages can

be protected through passwords. When a package is built it is not necessary to execute it

immediately. We may schedule package to be executed any time later on. We may prepare a

package that is executed after definite intervals. For example we want to update our dataware

house every night at 12:00 o' clock, what will we do? We will write a package to update dataware

house and schedule it to run at 12:00 o' clock every night.

365

Slide 25

DTS Package Operations:

Editing

DWH-Ahsan Abdullah

Double click a package to open in designer. Drag and drop objects to edit a package. Designer is

the easiest way of editing a package. Even the packages that are created through wizards and are

saved, can be edited through designer.

Slide 26

DTS Package Operations:

Protection

· Save dialog box allows to set

passwords

· Owner password puts limits on

both editing and execution of the

package

DWH-Ahsan Abdullah

Enter an Owner password. Assigning an Owner password puts limits on who can both edit and

run the package.

Enter a User password. Assigning a User password puts limits only on who can edit the package.

If you create a User password, you must also create an Owner password.

366

Slide 27

DTS Package Operations:

Scheduling/Execution

· Right click any saved package to

schedule or execute it

DWH-Ahsan Abdullah

To schedule a package or to execute a package, first right click the package and then select the

required option.

Slide 28

DTS Package Operations:

Versioning

· Right click any saved package to view

its version information

DWH-Ahsan Abdullah

If we want to get version information of a package we can see it by right clicking the package and

selecting version information. First column contains creation date and the other column contains

the description about changes if it is saved with the package.

367

Slide 29

DTS Tasks

· DTS Package contains one or more

tasks

· Task defines single work item

Establishing connections

Importing and exporting data

Transforming data

Copying database objects

etc

DWH-Ahsan Abdullah

DTSPackages contain a sequence of tasks. When a package is executed these tasks are performed

in sequence or in parallel. These tasks are the single work item in a package. Tasks can be

establishing connections, extraction of data from sources, transformations applied on data,

loading data to destination, generation of automated email messages to administrator in case of

some problem during the package execution..

Slide 30

DTS Tasks: Menu

· Wizard collects the tasks that are

invisible to users

· Designer allows to view and arrange

tasks manually

Set of all possible tasks in

designer, drag the required

task in design area and set its

properties

DWH-Ahsan Abdullah

A DTS task is a discrete set of functionality, executed as a single step in a package. Each task

defines a work item to be performed as part of the data movement and data transformation

process, or as a job to be executed.

DTS supplies a number of tasks that are part of the DTS object model and can be accessed

graphically, through DTS Designer, or programmatically. These tasks, which can be configured

individually, cover a wide variety of data copying, data transformation, and notification

situations. For example:

Importing and exporting data. DTS can import data from a text file or an OLE DB data source

(for example, a Microsoft Access 2000 database) into SQL Server. Alternatively, data can be

368

exported from SQL Server to an OLE DB data destination (for example, a Microsoft Excel 2000

spreadsheet). DTS als o allows high-speed data loading from text files into SQL Server tables.

Transforming data. DTS Designer includes a Transform Data task that allows you to select data

from a data source connection, map the columns of data to a set of transformations, and send the

transformed data to a destination connection. DTS Designer also includes a Data Driven Query

task that allows you to map data to parameterized queries.

Copying database objects. With DTS, you can transfer indexes, views, logins, stored procedures ,

triggers, rules, defaults, constraints, and user-defined data types in addition to the data.

In addition, you can generate the scripts to copy the database objects. Sending and receiving

messages to and from other users and packages. DTS includes a Send Mail task that allows you to

send an e-mail if a package step succeeds or fails. DTS also includes an Execute Package task

that allows one package to run another as a package step, and a Message Queue task that allows

you to use Message Queuing to send and receive messages between packages.

Executing a set of Transact -SQL statements or Microsoft ActiveX® scripts against a data

source. The Execute SQL and ActiveX Script tasks allow you to write your own SQL statements

and scripting code and execute them as a step in a package workflow.

Slide 31

DTS Transformations

· After extraction from source data can

be transformed

Using available DTS transformations

Using customized transformations

DWHAhsan Abdullah

While transferring data from source to destination that may be a single source of truth, data may

require to be transformed. Power of DTS tools lies in the support of data transformations. Some

transformations are already available with DTS tools and customized transformations can be

performed through VB Script or Java Script.

369

Slide 32

Available Transformations: Available

· Available transformations are:

Copy column transformation

ActiveX Script transformations

Date time string transformations

Uppercase and lowercase string

transformations

Middle of string transformations

Read and write file transformations

DWH-Ahsan Abdullah

The slide shows the list of transformations that are alre ady available with DTS tools i.e. DTS

Designer and DTS import/export wizard. Wizard has a support of two transformations out of six

shown over here:

· Copy column transformation

· Active-X script transformation

The rest four are accessed through DTS designer and scripts.

Copy Column Transformation: Describes the transformation used to copy source data to the

destination.

ActiveX Script Transformation: Explains how to use Microsoft ActiveX® scripts to define

column -level transformations.

Date Time String Transformation: Describes the transformation used to convert a source date

into a new destination format.

Uppercase String Transformation: Describes the transformation used to convert a string into

uppercase characters.

Lowercase String Transformation: Describes the transformation used to convert a string into

lowercase characters.

Middle of String Transformation: Describes the transformation used to extract a substring from

a source and optionally change its case or trim white space before placing the result i the

destination.

Trim String Transformation: Describes the transformation used to remove leading, trailing, or

embedded white space from a source string and place the (optionally case-shifted) result in the

destination.

Read File Transformation: Describes the transformation used to copy the contents of a file

specified by a source column to a destination column.

Write File Transformation: Describes the transformation that creates a new data file for each

file named in a source column and initializes the contents of each file from data in a second

source column.

370

Slide 33

DTS Transformations: Customized

· Each available transformation has ActiveX

Script working at its back

· To customize an available transformation one

needs to modify the ActiveX Script according

to one's need

DWH-Ahsan Abdullah

In SQL Server, transformations are applied through running ActiveX Scripts. When we apply an

available transformation, tools in SQL Server generate ActiveX Script automatically. This auto

generated script can be modified or customized according to our needs. Customized

transformations are those in which we customize the auto generated ActiveX Scripts to fulfill our

particular need.

For Example:

An available transformation can transform Saad Munir Rao to SAAD MUNIR RAO but if we

want to transform it as S. M. Rao then we need to customize the transformation.

Slide 34

DTS Transformations: ActiveX

· ActiveX Script

DWH-Ahsan Abdullah

Designer provides such an interface to write/customize ActiveX Scripts. To access it we will see

it later on.

371

Slide 35

DTS Connections

· An important and prior most task is

the establishment of valid connection

· DTS allows following varieties of

connections:

Data source connection

File Connection

Data link connection

DWH-Ahsan Abdullah

To successfully execute Data Transformation Services (DTS) tasks that copy and transform data,

a DTS package must establish valid connections to its source and destination data and to any

additional data sources (for example, lookup tables). Because of its OLE DB architecture, DTS

allows connections to data stored in a wide variety of OLE DB-compliant formats. In addition,

DTS packages usually can connect to data in custom or nonstandard formats if OLE DB

providers are available for those data sources and if you use Microsoft® Data Link files to

configure those connections

Slide 36

DTS Connections

Data Source, File Connection, Data Link

· Data source connection

All OLE DB supported databases

· MS SQL Server

· Oracle

· MS Access 2000

· File Connection

Text files

· Data link connection

Intermediate files containing connection strings

DWH-Ahsan Abdullah

DTS allows the following varieties of connections:

A data source connection. These are connections to: standard databases such as Microsoft SQL

ServerTM 2000, Microsoft Access 2000, Oracle, dBase, Paradox; OLE DB connections to ODBC

data sources; Microsoft Excel 2000 spreadsheet data; HTML sources; and other OLE DB

providers.

A file connection. DTS provides additional support for text files. When specifying a text file

connection, you specify the format of the file. For example:

· Whether a text file is in delimited or fixed field format.

Whether the text file is in a Unicode or an ANSI format.

· The row delimiter and column delimiter if the text file is in fixed field format.

372

The text qualifier.

Whether the first row contains column names.

A data link connection. These are connections in which an intermediate file outside of SQL

Server stores the connection string.

Slide 37

DTS Connection:Menu

Set of all possible connections

in designer, drag the required

connection in design area and

set its properties

Data source connection

File connection

Data link connection

DWH-Ahsan Abdullah

Slide 38

Package Workflow

· Package usually includes more than

one tasks

· To maintain order of execution of

tasks, workflow is required to be

defined

Task D

cce

On pletio

Task A

Task C

Fai

Task B

lur

Task E

DWH-Ahsan Abdullah

Precedence constraints sequentially link tasks in a package. In DTS, you can use three types

of precedence constraints, which can be accessed either through DTS Designer or

programmatically:

Unconditional. If you want Task 2 to wait until Task 1 completes, regardless of the outcome,

link Task 1 to Task 2 with an unconditional precedence constraint.

On Success. If you want Task 2 to wait until Task 1 has successfully completed, link Task 1 to

Task 2 with an On Success precedence constraint.

373

On Failure. If you want Task 2 to begin execution only if Task 1 fails to execute successfully,

link Task 1 to Task 2 with an On Failure precedence constraint. If you want to run an alternative

branch of the workflow when an error is encountered, use this constraint.

Slide 39

Package Workflow: Designer

DWH-Ahsan Abdullah

This slide shows the process of making workflows using the designer. It provides a graphical

interface making the workflow management very easy

374

Table of Contents:
