Lecture-38

Case Study: Agri-Data Warehouse

Step 6: Data Acquisition & Cleansing

Trained scouts from DPWQCP periodically visit randomly selected points and manually note 35

attributes, with some given in Table 2. These hand-written sheets are subsequently filed. For the

last 10 years, the data collected was recorded by typing the hand -filled pest scouting sheets. Copy

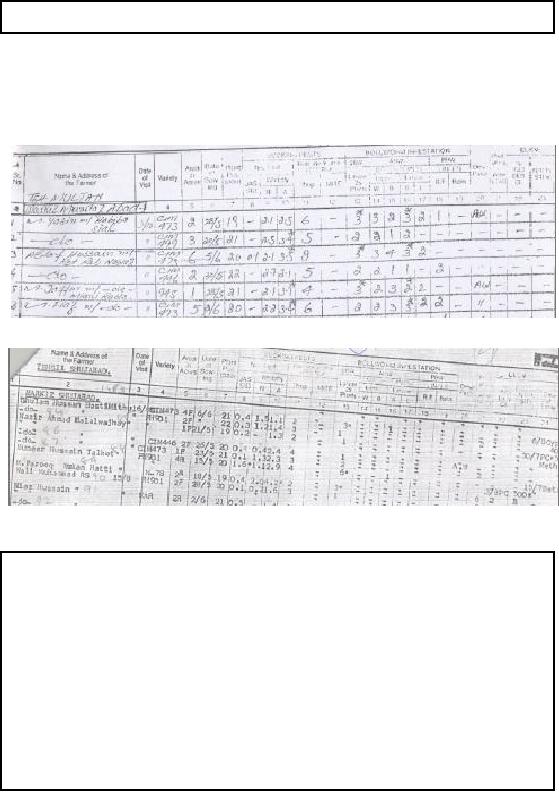

of a hand filled pest scouting sheet is shown in Figure -38.1(a).

Figure-38.1(a): Hand filled Pest Scouting sheet

Figure-38.1(b): Typed Pest Scouting sheet

The * in Figure -38.1 corresponds to pest hot spot or flare-up or ETL_A.

Step-6: Issues

The pest scouting sheets are larger than A4 size (8.5" x 11"), hence the right end was

cropped when scanned on a flat -bed A4 size scanner.

The right part of the scouting sheet is also the most troublesome, because of pesticide

names for a single record typed on multiple lines i.e. for multiple farmers.

As a first step, OCR (Optical Character Reader) based image to text transformation of the

pest scouting sheets was attempted. But it did not work even for relatively clean sheets

with very high scanning resolutions.

Subsequently DEO's (Data Entry Operators) were employed to digitize the scouting

sheets by typing.

318

The pest scouting sheets are larger than A4 size (8.5" x 11"), hence the right end was cropped

when scanned on a flat -bed A4 size scanner. The right part of the scouting sheet is also the most

troublesome, because of pesticide names for a single record typed on multiple lines i.e. for

multiple farmers.

As a first step, OCR (Optical Character Reader) based image to text transformation of the pest

scouting sheets was attempted. But it did not work even for relatively clean sheets with very high

scanning resolutions, such as 600 dpi. Subsequently DEO's (Data Entry Operators) were

employed to digitize the scouting sheets by typing. To reduce spelling errors in pesticide names

and addresses, drop down menu or combo boxes with standard and correct names were created

and used.

Step-6: Why the issues?

Major issues of data cleansing had arisen due to data processing and handling at four

levels by different groups of people

1. Hand recordings by the scouts at the field level.

2. Typing hand recordings into data sheets at the DPWQCP office.

3. Photocopying of the typed sheets by DPWQCP personnel.

4. Data entry or digitization by hired data entry operators.

Data cleansing and standardization is probably the largest part in an ETL exercise. For Agri -

DWH major issues of data cleansing had arisen due to data processing and handling at four levels

by different groups of people i.e. (i) Hand recordings by the scouts at the field level (ii) typin g

hand recordings into data sheets at the DPWQCP office (iii) photocopying of the scouting sheets

by DPWQCP personnel and finally (iv) data entry or digitization by hired data entry operators.

After achieving acceptable level of data quality, the data was loaded into Teradata data

warehouse; subsequently each column was probed using SQL for erroneous entries. Some of the

errors found were correct data in wrong columns, nonstandard or invalid variety names etc. There

were some intrinsic errors, such as variety type "999" or spray_date "12:00:00 AM" inserted by

the system against missing values. Variations found in pesticide names and cotton variety names

were removed by comparing them with standard names.

Step 7: Data Transform, Transport & Populate

Among the different types of transformations performed in the implementation, only the more

complex i.e. multiple M:1 transformations for field individualization will be discussed in this

section.

Motivation for Transformation

Trivial queries give wrong results.

Static and dynamic attributes

Static attributes recorded repeatedly.

Table 2 gives details of the main attributes recorded at each point. Static attributes are those

attributes that are recorded on each visit by the scouts, usually does not changes.

319

Static Attributes

Dynamic Attributes

Farmer Name

Date of Visit

Farmer Address

Pest Population

Field Acreage

CLCV

Variety(ies) Sown

Predator Population

Sowing date

Pesticide Spray Dates

Sowing method

Pesticide(s) Used

Table-38.1: Cotton pest scouting attributes recorded by DPWQCP surveyors

The data recorded consists of two parts i.e. static and dynamic (Table -38.1). On each visit, the

static, as well as the dynamic data is recorded by the scouts, thus resulting in stat ic values getting

recorded repeatedly. Since no mechanism is used to uniquely identify each and every farmer,

therefore, trivial queries, such as total area scouted, distribution of varieties sown etc. gives

wrong results. For example, while aggregating area, the area of the farmer with multiple visits

during the season is counted multiple times, giving incorrect results, same is true for varieties

sown. Therefore, to do any reasonable analysis after data cleansing, the most important step of

data transformation being individualization of the cultivated fields, not farmers. The reason being,

a farmer usually has multiple fields, but a field is associated or owned by a single farmer.

Step-7: Resolving the issue

Solution: Individualization of cultivated fields.

§ Technique similar to BSN used to fix names.

§ Unique ID assigned to farmers.

§ BSN used again, and unique ID assigned to fields.

Results:

Limitation: Field individualization not perfect. Some cases of farmers with same

geography, sowing date, same variety and same area. Such cases were dropped.

Method

Field individualization turned out to be a very laborious process. It was attempted by first

uniquely identifying the farmers. This was achieved by collectivity sorting farmer name, Mozua

and Markaz. The grouping of farmer names was scrutinized to fix the spelling errors in the farmer

names and unique farmer_ID was assigned to each farmer. Subsequently based on the farmer_ID,

sowing date, area and variety, cultivated fields were uniquely identified and field_ID assigned to

each field.

Results

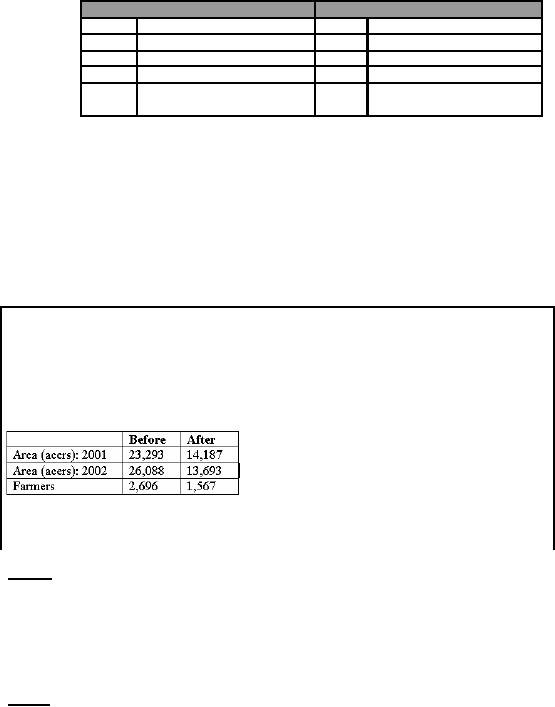

To demonstrate the amount of error removed because of field individualization, consider the case

of scouted area and unique farmers. Without field individualization, the cotton scouted area for

2001 and 2002 added to 23,293 and 26,088 acres, respectively. After field individualization, the

correct scouted area turned out to be 14,187 and 13,693 acres respectively i.e. a correction of

about 50%. Similarly unique farmers reduced from 2,696 to 1,567. The method of field

320

individualization is in no way perfect, there were some cases of farmers with same geography,

sowing date, same variety and same area. Such cases were dropped.

Transporting the data

Once the data entry was complete, double checked and reconciled the corresponding files were

compressed and moved from the premises of the DEO (Data Entry Operator) to the University,

where sample printout of data entered were taken and a final random quality check was

performed. Subsequently minor errors, if any were fixed and data was loaded into the Agri-DWH.

Step 8: Determine Middleware Connectivity

Since the source data is maintained in a non digital format, hence connectivity with the data

warehouse was irrelevant. Once digitized, it was rather trivial to load the data into the warehouse.

Furthermore, in the foreseeable future, it was not anticipated that the scouting sheets were going

to be maintained in a digitized form.

Steps 9-11: Prototyping, Querying & Reporting

Implemented the prototype with user involvement.

Applications developed

§ 10. A data mining tool was also developed based on an indigenous technique that

used crossing minimization paradigm for unsupervised clustering.

11. A low-cost OLAP tool was indigenously developed; actually it was a Multi

dimensional OLAP or MOLAP.

Use querying & reporting tools

The following SQL query was used for validation:

SELECT Date_of_Visit, AVG(Predators),

..............................................................AVG(Dose1+Dose2+Dose3+Dose4)

FROM Scouting_Data

WHERE Date_of_Visit < #12/31/2001# and predators > 0

GROUP BY Date_of_Visit;

Implement a prototype with user involvement

The Agri-DWH was implemented with the involvement of the end users. In this regard there was

close collaboration between the development team and personnel of (i) Directorate of Pest

Warning, Multan (ii) National Agriculture Research Center (NARC), Islamabad (iii) Pakistan

Agriculture Research Council (PARC) and (iv) Agriculture University, Faisalabad. The

implementation was centered around numerous meetings with the potential end users, discussion

of results, and also explicit set of questions provided by them.

Applications developed

A low-cost OLAP tool was indigenously developed; actually it was a Multi dimensional OLAP or

MOLAP. Using the MOLAP tool, agriculture extension data was analyzed. A data mining tool

was also developed based on an indigenous technique that used crossing minimization paradigm

for unsupervised clustering.

Use querying & reporting tools

321

Despite small number of rows i.e. 4,400, the Agri-DWH was implemented using Teradata for the

sake of completion of the entire cycle. The following SQL query was used to generate Figure -

38.2.

SELECT Date_of_Visit, AVG(Predators), AVG(Dose1+Dose2+Dose3+Dose4)

FROM Scouting_Data

WHERE Date_of_Visit < #12/31/2001# and predators > 0

GROUP BY Date_of_Visit;

Step 12: Deployment & System Management

Since Agri-DWH was a pilot project, therefore, the traditional deployment methodologies and

system management techniques were not followed to the word, and are not discussed here.

Decision Support using Agri-DWH

Agri-DSS usage: Data Validation

Quality and validity of the underlying data is the key to meaningful and authentic

analysis.

After ensuring a satisfactory level of data quality (based on cost-benefit trade-off)

extremely important to scientifically validate the data that the DWH will constitute.

Some very natural checks were employed for this purpose. Relationship between the

pesticide spraying and predator (beneficial insects) population is a fact well understood

by agriculturists.

Predator population decreases as pesticide spray increases and then continually decreases

till the end of season.

Quality and validity of the underlying data is the key to meaningful and authentic analysis. After

ensuring a satisfactory level of data quality (based on cost-benefit trade-off) it is extremely

important to somehow judge the validity of data that a data warehouse constitutes. Some very

natural checks were employed for this purpose. Relationship between the pesticide spraying and

predator (beneficial insects) population is a fact well understood by agriculturists. Predator

population decreases as pesticide spray increases and then continually decreases till the end of

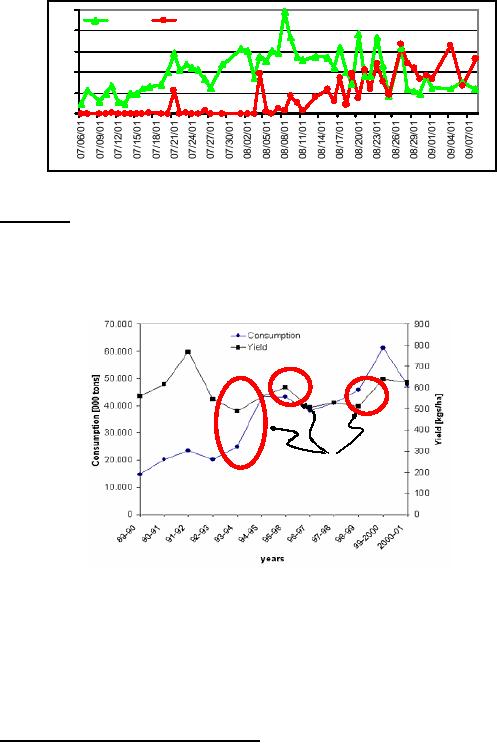

season, as shown in Fig-38.2. In Figure -38.2 the y -axis shows the relative frequency of pesticide

sprays in multiple of 100 ml, and average predators population greater than zero.

322

Predator

Spray

Figure 38.2: Year 2001 Frequency of spray Vs. Predators population

FAO Report

Pesticides are used as means for increasing production, as a positive correlation is believed to

exist between yield and pesticide usage. However, existence of an undesirable, sometime even

negative correlation between pesticide usage and yield has been observed in Pakistan (FAO: Food

and Agriculture Organization report 2001). Figure-38.3 shows a marked decrease in yield while

the pesticide usage is on the rise, and also its converse, creating a complex situation.

Negative correlation

Figure 38.3: Yield and Pestici de Usage in Pakistan: Source FAO (2001)

Excessive use of pesticides is harmful in multiple ways. On one hand, farmers have to pay more

for the pesticides, while on the other, increased pesticide usage develops immunity in pests, thus

making them more harmful to the crops. Excessive usage of many pesticides is also harmful for

the environment and hazardous to human.

Reasons for pesticide abuse can be discovered by automatically exploring pest scouting and

metrological data.

Working Behaviors at Field Level: Spray dates

As expected, the results of querying for spray dates and spray frequency for 2001 and 2002 do not

display any well defined patterns; as it is dependent on pest populations (Fig -37.2), availability of

pesticides etc. To study the relationsh ip between sprays and time, moving average of sprays for

five days, and a moving correlation of sprays for five days were calculated. For the sake of

323

uniformity, the moving average of spray was normalized using the maximum spray frequency.

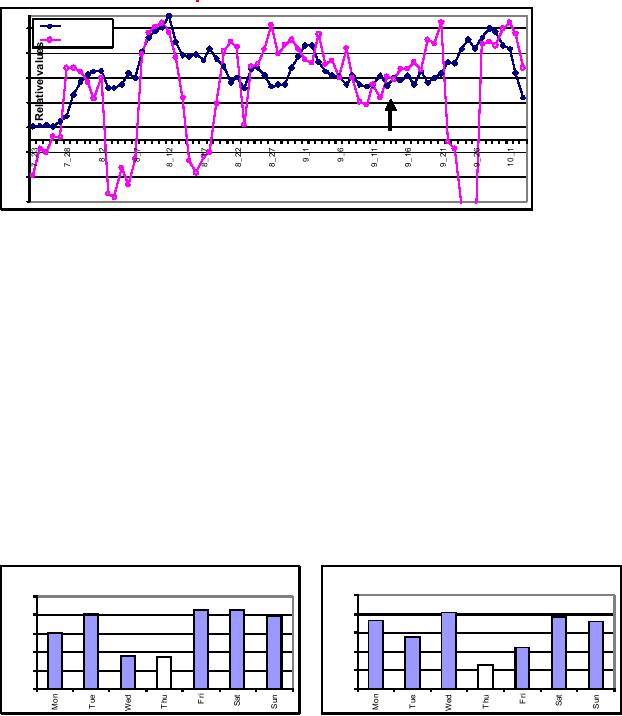

The results are shown in Figure -38.4.

Moving Avg

0.90

Correlation

0.70

0.50

0.30

0.10

-0.10

-0.30

Spray dates (mm_dd) for 2001 & 2002

-0.50

Figure-38.4(a): Spray frequency Vs. day of year for Year 2001

No relationship should have existed for the two years. But note the surprising finding that most

sprays occurring on and around 12th Aug. in BOTH years with high co rrelation, appearing as a

spike. Also note the dip in sprays around 11th Sep.! Sowing at predetermined time makes sense,

as it is under the control of the farmer, but that is not true for spraying. Pests don't follow

calendars; therefore, whenever, ETL_A is crossed pesticides are sprayed.

14th Aug. is the independence day of Pakistan and a national holiday. In Pakistan, people are in a

habit of sandwiching gazetted holidays with casual leaves; consequently businesses are closed for

a longer period, including that of pesticide suppliers. 14th Aug. occurred on Tue and Wed in 2001

and 2002, respectively, thus making it ideal to stretch the weekend. During Aug/Sep. humidity is

also high, with correspondingly high chances of pest infestations. Therefore, appare ntly the

farmers decided not to take any chances, and started spraying around 11th Aug.; evidently even

when it was not required. Unfortunately, the weather forecast for 13 Aug. 2001 and 2002 was

showers and cloudy, respectively. Therefore, most likely the pesticide sprayed was washed -off.

Unfortunately the decline in sprays around 9/11 could not be explained.

Working Behaviors at Field Level: Sowing dates

The results of querying the sowing date based on the day of the week are shown in Fig-38.5.

2002: Sowing week_day

2001: Sowing week_day

500

431

429

409

405

398

387

367

357

400

303

278

300

223

179

174

200

124

100

Figure 38.5: Number of sowings against week days

324

Observe least number of sowings done on Thursdays, in each year. This finding was later

confirmed by extension personnel. Multan is famous for its shrines. Thursdays are usually related

with religious festi vals and activities, a mix of devotion and recreation, and usually held at

shrines, hence a tendency of doing less work on Thursdays. Similar behavior was observed for

spraying too.

Conclusions & lessons learnt

· Extract Transform Load (ETL) of agricultural extension data is a big issue. There are no

digitized operational databases so one has to resort to data available in typed (or hand written)

pest scouting sheets. Data entry of these sheets is very expensive, slow and prone to errors.

· Particular to the pest scouting data, each farmer is repeatedly visited by agriculture extension

people. This results in repetition of information, about land, sowing date, variety etc (Table-2).

Hence, farmer and land individualization are critical, so that repetition may not impair

aggregate queries. Such an individualization task is hard to implement for multiple reasons.

· There is a skewness in the scouting data. Public extension personnel (scouts) are more likely to

visit educated or progressive farmers, as it makes their job of data collection easy. Furthermore,

large land owners and influential farmers are also more frequently visited by the scouts. Thus

the data does not give a true statistical picture of the farmer demographics.

· Unlike traditional data warehouse where the end users are decision makers, here the decision -

making goes all the way "down" to the extension level. This presents a challenge to the

analytical operations' designer, as the findings must be fairly simple to understand and

communicate.

325

Table of Contents:
