Lecture No. 32

DWH Lifecycle: Methodologies

Lay Out the Project

A data warehouse project is more like scientific research than anything in traditional IS!

The normal Information System (IS) approach emphasizes on knowing what the expected results

are before committing to action. In scientific research, the results are unknown up front, and

emphasis is placed on developing a rigorous, step-by-step process to uncover the truth. The

activities involve regular interactions between the scientist and the subject and also among the

project participants. It is advised to adopt an exploratory, hands -on process involving cross-

disciplinary participation.

Building a data warehouse is a very challenging job because unlike software engineering it is

quite a young discipline, and therefore, does not yet has well-established strategies and

techniques for the development process. Majority of projects fail due to the complexity of the

development process. To date there is no common strategy for the development of data

warehouses; they are more of an art than science. Current data warehouse development methods

can fall within three basic groups: data -driven, goal-driven and user-driven.

Implementation strategies

· Top down approach

· Bottom Up approach

Development methodologies

· Waterfall model

· Spiral model

· RAD Model

· Structured Methodology

· Data Driven

· Goal Driven

· User Driven

Implementation Strategies

Top Down & Bottom Up approach : A Top Down approach is generally useful for projects where

the technology is mature and well understood, as well as where the business problems that must

be solved are clear and well understood. A Bottom Up approach is useful, on the other hand, in

making technology assessments and is a good technique for organizations that are not leading

edge technology implementers. This approach is used when the business objectives that are to be

met by the data warehouse are unclear, or when the current or proposed business process will be

affected by the data warehouse.

Development Methodologies

A Development Methodology describes t e expected evolution and management of the

engineering system.

270

Waterfall Model: The model is a linear sequence of activities like requirements definition,

system design, detailed design, integration and testing, and finally operations and maintenance.

The model is used when the system requirements and objectives are known and clearly specified.

While one can use the traditional waterfall approach to developing a data warehouse, there are

several drawbacks. First and foremost, the project is likely to occur over an extended period of

time, during which the users may not have had an opportunity to review what will be delivered.

Second, in today's demanding competitive environment there is a need to produce results in a

much shorter timeframe.

Spiral Model: The model is a sequence of waterfall models which corresponds to a risk oriented

iterative enhancement, and recognizes that requirements are not always available and clear when

the system is first implemented. Since designing and building a data warehouse is an iterative

process, the spiral method is one of the development methodologies of choice.

RAD: Rapid Application Development (RAD) is an iterative model consisting of stages like

scope, analyze, design, construct, test, implement, and review. It is much better suited to the

development of a data warehouse because of its iterative nature and fast iterations. User

requirements are sometimes difficult to establish because business analysts are too close to the

existing infra-structure to easily envision the larger empowerment that data warehousing can

offer. Development and delivery of early prototypes will drive future requirements as business

users are given direct access to information and the ability to manipulate it. Management of

expectations requi res that the content of the data warehouse be clearly communicated for each

iteration.

There are 5 keys to a successful rapid prototyping methodology:

1. Assemble a small, very bright team of database programmers, hardware technicians,

designers, quality as surance technicians, documentation and decision support specialists,

and a single manager.

2. Define and involve a small "focus group" consisting of users (both novice and

experienced) and managers (both line and upper). These are the people who will provide

the feedback necessary to drive the prototyping cycle. Listen to them carefully.

3. Generate a user's manual and user interface first. These will prove to be amazing in terms

of user feedback and requirements specification.

4. Use tools specifically designed for rapid prototyping. Stay away from C, C++, COBOL,

SQL, etc. Instead use the visual development tools included with the database.

5. Remember a prototype is NOT the final application. It servers a means of making the

user more expressive about requirements and developing in them a clear understanding

and vision of the system. Prototypes are meant to be copied into production models. Once

the prototypes are successful, begin the development processing using development tools,

such as C, C++, Java, SQL, etc.

Structured Development: When a project has more than 10 people involved or when multiple

companies are performing the development, a more structured development management

approach is required. Note that rapid prototyping can be a subset of the struct ured development

approach. This approach applies a more disciplined approach to the data warehouse development.

Documentation requirements are larger, quality control is critical, and the number of reviews

271

increases. While some parts may seem like overkill at the time, they can save a project from

problems, especially late in the development cycle.

Data-Driven Methodologies: Bill Inmon, the founder of data warehousing argues that data

warehouse environments are data driven, in comparison to classical systems, which have a

requirement driven development lifecycle. According to Inmon, requirements are the last thing to

be considered in the decision support development lifecycle. Requirements are understood

AFTER the data warehouse has been populated with data and results of queries have been

analyzed by the end users. Thus the data warehouse development strategy is based on the analysis

of the corporate data model and relevant transactions. This is an extreme approach ignoring the

needs of data warehouse users a priori. Consequently company goals and user requirements are

not reflected at all in the first cycle, and are integrated in the second cycle.

Goal-Driven Methodologies: In order to derive the initial data warehouse structure, Böhnlein

and Ulbrich-vom Ende have presented a four-stage approach based on the SOM (Semantic Object

Model) process modeling technique. The first stage determines goals and services the company

provides to its customers. In the second step, the business process is analyzed by applying the

SOM interaction schema that highlights the customers and their transactions with the process

under study. In third step, sequences of transactions are transformed into sequences of existing

dependencies that refer to information systems. The last step identifies measures and dimensions,

by enforcing (information request) transactions, from existing dependencies. This approach is

suitable only well when business processes are designed throughout the company and are

combined with business goals.

Kimball also proposes a four-step approach where he starts to choose a business process, takes

the grain of the process, and chooses dimensions and facts. He defines a business process as a

major operational process in the organization that is supported by some kind of legacy system (or

systems). We will discuss this in great detail in lectures 33-34.

User-Driven Methodologies: Westerman describes an approach that was developed at Wal-Mart

and has its main focus on implementing business strategy. The methodology assumes that the

company goal is the same for everyone and the entire company will therefore be pursuing the

same direction. It is proposed to set up a first prototype based on the needs of the business.

Business people define goals and gather, priorities as well as define business questions supporting

these goals. Afterwards the business questions are prioritized and the most important business

questions are defined in terms of data elements, including the definition of hierarchies. Although

t h e Wal-Mart approach focuses on business needs, business goals that are defined by the

organization are not taken into consideration at all.

Poe proposes a catalogue for conducting user interviews in order to collect end user requirements.

She recommends int erviewing different user groups in order to get a complete understanding of

the business. The questions should cover a very broad field including topics like job

responsibilities.

WHERE DO YOU START?

The majority of successful data warehouses have started with a clear understanding of a business

problem and the user requirements for information analysis. It is strongly recommended that the

team assembled to create a data warehouse be comprised of IT professionals and business users.

Projects must have a clearly defined scope for managing economic and operational limitations.

272

The process will be highly iterative as IT and end users work toward a reasonable aggregation

level for data in the warehouse.

What specific Problems the DWH will solve?

Write down all the problems. The problems should be precise, clearly stated and testable i.e.

success criteria is known or can easily be specified. Make sure to get user and management

feedback by publicizing these written problems.

What criteria to use to measure success?

This is an often overlooked step in the problem definition. For every problem stated, you must

define a means for determining the success of the solution. If you can't think of a success

criterion, then the problem is not defined specifically en ough. Stay away from problem

statements such as "The data warehouse must hold all our accounting data." Restate the problem

in quantifiable terms, like "The data warehouse must handle the current 20GB of accounting data

including all metadata and replicated data with an expected 20% growth per year."

How to manage time and money?

The first data warehouse (first iteration's output) should cover a single subject area and be

delivered at a relatively low cost. To minimize risk, the target platform should be one where IT

has developed some infrastructure. Existing technical skills, operational skills and database

experience will help tremendously. The project must be time boxed, with guaranteed deliverables

every 90 days, and a project end date in six to nine m nths. The overall cost of the first data

warehouse should be in the $200K to $500K range, with prototypes completed for $10K to

$150K in 30 to 60 days (since local companies keep their costs secret, costs in dollar are given

here as an example). Increment al successes will drive expansion of existing data warehouses and

the funding and creation of additional ones.

What skills are required?

The level of complexity involved in successfully designing and implementing a data warehouse

must not be underestimate d. Time must be spent to acquire and develop additional skills for data

warehousing developers and users. Some options are:

· Invest in just-in-time training (provided by data warehousing tool vendors)

· Use pilot projects as seeds for new technology training

· Develop reward systems that encourage experimentation

· Use outside system integrators and individual consultants

As additional motivation for data warehousing team members, a new class of job titles is being

created. Companies are beginning to use dedicated titles such as: Data Warehouse Steward, Data

Warehouse Architect, Data Quality Engineer and Data Warehouse Auditor.

273

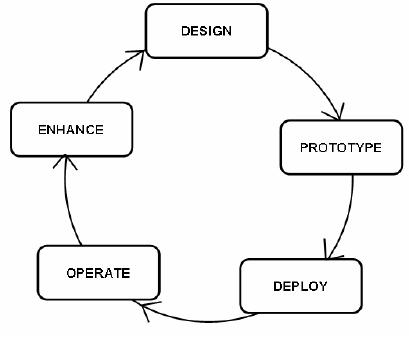

Figure-32.1: DWH Development Cycle

Although specific vocabularies vary from organization to organization, the data warehousing

industry is in agreement of the fundamental data warehouse lifecycle model as shown in Figure

32.1. The cyclic model consists of 5 major steps described as follows

1. Design: It involves the development of robust star-schema -based dimensional data models

from both available data and user requirements. It is thought that the best data warehousing

practitioners even work with available organizational data and incompletely expressed user

requirements. Key activities in the phase typically include end -user interview cycles, source

system cataloguing, definition of key performance indicators and other critical business

definitions, and logical and physical schema design tasks which feed the next phase of the model

directly.

2. Prototype: In this step a working model of a data warehouse or data mart design, suitable for

actual use, is deployed for a select group of end users. The prototyping purpose shifts, as the

design team moves design -prototype-design sub-cycle. Primary objective is to constrain and /or

reframe end-user requirements by showing them precisely what they had asked for in the previous

iteration. As difference between stated needs and actual needs narrows down over iterations the

prototyping shifts towards gaining commitment to the project at hand from opinion leaders in the

end-user communities to the design, and soliciting their assistance in gaining similar

commitment.

3. Deploy: The step includes traditional IT system deployment activities like formalization of

user authenticated prototype fo r actual production use, document development, and training etc.

Deployment involves two separate deployments (i) prototype deployment into a production test

environment (ii) Stress- and performance- tested production configuration deployment into an

actual production environment. The phase also contains the most important and often neglected

component of documentation. Lack of documentation may stall system operations as management

274

people can not manage what they don't know. Also, it may ultimately be used for educating the

end users, prior to roll out.

4. Operation: The phase includes data warehouse/mart daily maintenance and management

activities. The operations are performed to maintain data delivery services and access tools, and

manage ETL processes that keep the data warehouse/mart current with respect to the authoritative

source system.

5. Enhancement: The step involves modifications of physical technological components,

operations and management processes (ETL etc.) and logical schema diagrams in response to

changing business requirements. In situations of discontinuous changes, enhancement moves

back into the fundamental design phase.

275

Table of Contents:
