Lecture# 31

Supervised Vs. Unsupervised Learning

In the previous lecture we discussed briefly DM concepts. Now we look with some greater

details, two main DM methods supervised and unsupervised learning. Supervised learning is

when you are performing DM the supporting information that helps in the DM process is also

available. What could be that information? You may know your data that how many groups or

classes your data set contains. What are the properties of these classes or clusters? When we will

talk about unsupervised learning you will not have such known or a priori knowledge. In other

words you can not give such factors as input to the DM technique which can facilitate your DM

process. So wherever the user gives some input that is supervised else that is unsupervised

learning.

Data Structures in Data Mining

Data matrix

§ Table or database

§ n records and m

attributes,

§ n >> m

Similarity matrix

§ Symmetric square

matrix

§ n x n or m x m

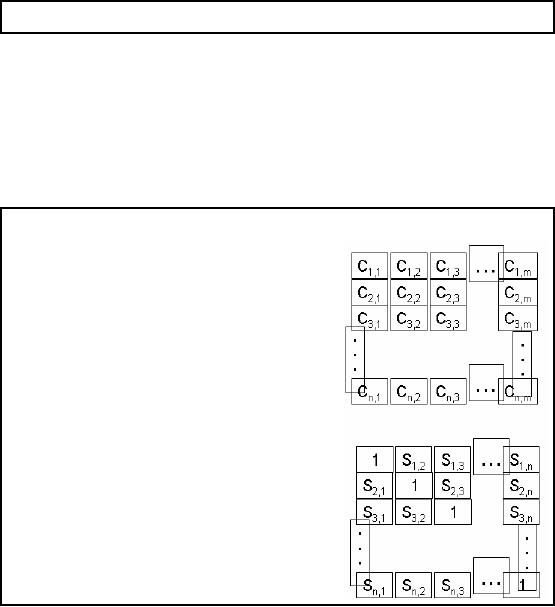

Figure 31.1: Data Structures in data mining

First of all we will talk about data structures in DM. What does DS mean here? You can consider

it as pure data structure but we specifically mean how you store your data. Figure 31.1 shows

two metrics data matrix and the similarity matrix. Data matrix means the table or database used

as the input to the DM algorithm. What will be the dimensions or size of that table normally? The

size of records (rows) is much greater th an the number of columns. The attributes may be 10, 15

or 25 but the number of rows far exceeds the number of columns e.g. a customer table may have

20-25 attributes but the total records may be in millions. As I said previously that the mobile

users in Pa kistan are about 10 million. If a company even has 1/3 of the customers then 3.3 lakh

customer records in the customer table. Thus greater number of rows than columns and there will

be indices i and j in the table and you can pick the particular contents o f a cell by considering the

intersection of the two indices.

256

The second matrix in the Figure 31.1 is called the similarity matrix. Lets talk about its brief

background. Similarity or dissimilarity matrix is the measure the similarity or dissimilarity

obtained by pair wise comparison of rows. First of all you measure the similarity of the row1 in

data matrix with itself that will be 1. So 1 is placed at index 1, 1 of the similarity matrix. Then

you compare row 1 with row 2 and the measure or similarity value goes at index 1, 2 of the

similarity matrix and son. In this way the similarity matrix is filled. It should be noted that the

similarity between row1 and row2 will be same as between row 2 and 1. Obviously, the

similarity matrix will then be a square matrix, symmetric and all values along the diagonal will be

same (here 1). So if your data matrix has n rows and m columns then your similarity matrix will

have n rows and n columns. What will be the time complexity of computing

similarity/dissimilarity matrix? It will be O (n 2) (m), where m accounts for the vector or header

size of the data. Now how to measure or quantify the similarity or dissimilarity? Different

techniques available like Pearson correlation and Euclidean distance etc. but in this lecture we

have used Pearson correlation which you might have studied in your statistics course.

Main types of DATA MINING

Supervised

Bayesian Modeling

Decision Trees

Neural Networks

Etc.

Unsupervised

· One-way Clustering

· Two-way Clustering

Now we will discuss the two main types Dm techniques as briefed in the beginning. First we will

discuss supervised learning which includes Bayesian classification, decision trees, neural

networks etc. Lets discuss Bayesian classification or modeling very briefly. Suppose you have a

data set and when you process that data set, say when you do profiling of your data you come to

know about the probability of occurrence of different items in that data set. On the basis of that

probability, you form a hypothesis. Next you find the probability of occurrence of an item in the

available data set on that hypothesis. Similarly, how this can be used in decision trees? To

understand suppose there is insurance company and is interested in knowing about the risk

factors. If a person is of age between 20 and 25, he is unmarried and his job is unstable then there

is a risk in offering insurance or credit card to such a person. This is because if married one may

drive carefully even thinking of his children than otherwise. Thus when the tree was formed the

257

classes, low risk and high risk were already known. The attributes and the properties of the

classes were also known. This is called supervised learning.

Now unsupervised learning where you don't know the number of clusters and obviously no idea

about their attributes too. In other words you are not guiding in any way the DM process for

performing the DM, no guidance and no input. Interestingly, some people say their techniques are

unsupervised but still give some input although indirectly. So a pure unsupervised algorithm is

the one which don't have any human involvement or interfere nce in any way. However, if some

information regarding the data is needed, the algorithm itself can automatically analyze and get

the data attributes. There are two main types of unsupervised clustering.

1. One-way Clustering -means that when you clustered a data matrix, you used all the

attributes. In this technique a similarity matrix is constructed, and then clustering is

performed on rows. A cluster also exists in the data matrix for each corresponding cluster in

the similarity matrix.

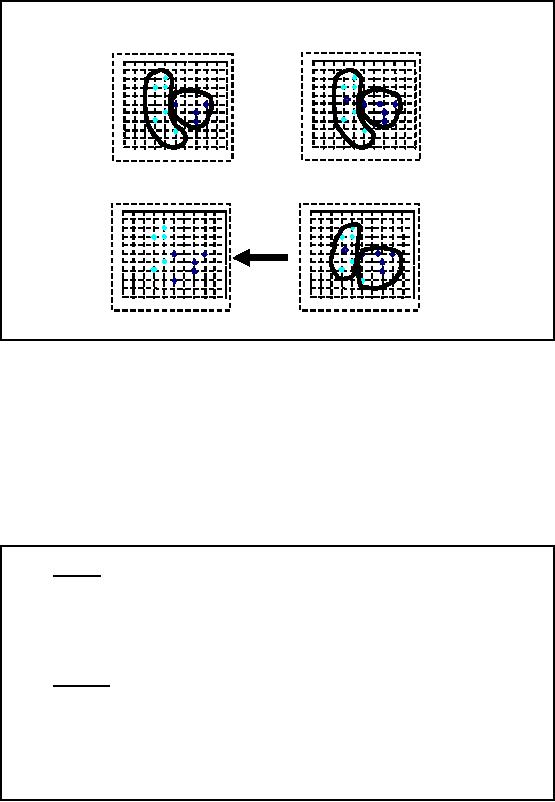

2. Two-way Clustering/Biclustering-here rows and columns are simultaneously clustered. No

any sort of similarity or dissimilarity matrix is constructed. Biclustering gives a local view of

your data set while one-way clustering gives a global view. It is possible that you first take

global view of your data by performing one-way clustering and if any cluster of interest is

found then you perform two-way clustering to get more details. Thus both the methods

complement each other.

Clustering: Min-Max Distance

Finding groups of objects such that the objects in a group are similar (or related) to one another

and dissimilar from (or unrelated to) the objects in other groups e.g. using K-Means.

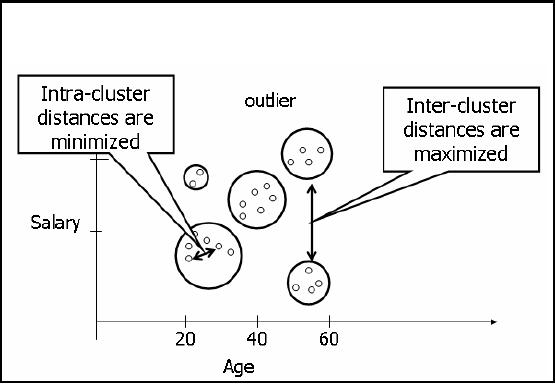

Figure-31.2: Min-Max Distance

Now we talk about "distance" which here means that there must be some measure of telling how

much similar or dissimilar a record is form another e.g. height, GPA salary are examples of a

258

single attribute. So there should be a mechanism of measuring the similarity or dissimilarity. We

have already discussed clustering ambiguities, so when clusters are formed in unsupervised

clustering, the points having smaller intracluster distances should fall in a single cluster and inter

clustering distance between any two clusters should be greater. For example, consider the age and

salary attributes of employees as shown in Figure 31.2. Every point here corresponds to a single

employee i.e. a single record. Look at the cluster around age 60, these might be retired people

getting pensions only. There is another cluster at the age of 68, these are the people aged enough

but still may stick to their organizations. The thing to understand here is that as the age increases

the salary increases but when people get retirements their salaries fall. The first clus ter in the

diagram shows young people with low salaries. There is another cluster too that shows old people

with low salaries. There is also a cluster showing young and high salary, called outliers. These are

the people who might be working in their "Abba Jee's "company. So u must have understood

outliers, inter-cluster and intra-cluster distances.

How Clustering works?

Works on some notion of natural association in records (data) i.e. some records are more

similar to each other than the others.

This concept of association must be translated into some sort of numeric measure of the

degree of similarity.

It works by creating a similarity matrix by calculating pair-wise distance measure for n x

m data matrix.

Similarity matrix if represented as a graph can be clustered by:

§ Partitioning the graph

§ Finding cliques in the graph

In clustering there has to be the notion of association between records i.e. which records are

associated with other records in the data set. You have to find that association. There has to be a

distance matrix and you have to map that on the association. You may be able to quantify the

association among closely related records. Remember that all the attributes may not be numeric,

attributes may be non numeric as well e.g. someone's appointment, job title, likes and dislikes are

all non numeric attributes. Thus taking these numeric and non numeric attributes you have to

make an association measure which will associate records. When such a measure is formed, it

will reflect the simila rity between records. On the basis of that similarity a similarity matrix will

be built (one way clustering) that will be square, symmetric having same diagonal value 1. Since

we are using Pearson's coefficient the values in the matrix will be between -1 and +1. For

opposing items when one is rising and the other is falling, the correlation will be -1. For those

items that fall and rise simultaneously, there will be a correlation of +1 and if no correlation then

0. For the sake of simplicity, it is represented as a binary matrix i.e. if correlation greater than 0.5

it will be represented with 1. If correlation less than 0.5, it will be represented with 0. Thus in this

way the similarity matrix which was real is transformed into the binary matrix. Question ar ises

where is the clustering? Now assume that your binary matrix represents a graph. As you might

have studied that a graph can be represented as a matrix. So we utilize some graph properties for

performing clustering. We can use two techniques. One is the graph partitioning in which the

graph is portioned in such a way that the connectivity among vertices in the partition is higher

than across the partitions. Thus we performed clustering through graph partitioning. Another

technique called clique detection can also be used but we will not go into the details.

259

One-way clustering

Clustering all the rows or all the columns simultaneously.

Gives a global view.

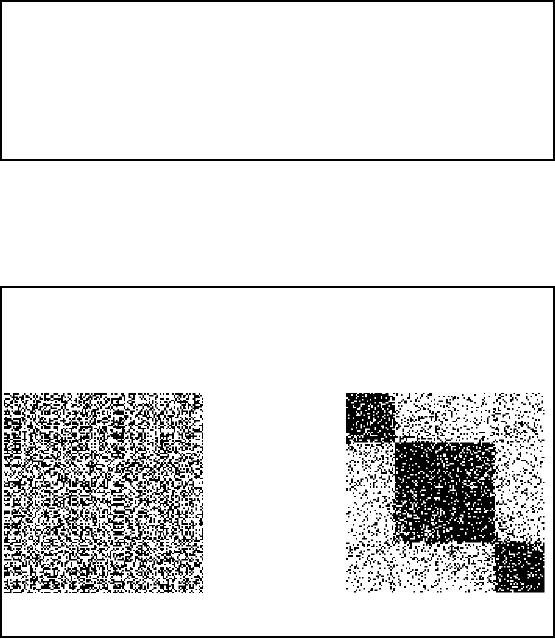

Figure 32.3: One-way clustering example

Now I will give you a real example of one way clustering. A data matrix is taken and

intentionally put 3 clusters in that. Then similarity matrix is formed from data matrix and the

clusters are also color coded for better understanding. The similarity matrix is then randomly

permuted and some also is also inserted. The final shape of the matrix is as shown in Figure 32.3

and will be used as input to the clustering technique. You can see some black and white points.

White points represent missing values which can either be in data or similarity matrix. Black

points represent noise i.e. those data values which should not be present in the data set. Now I

apply my own indigenous technique for performing clustering this input similarity matrix. The

result is shown as output in Figure 32.3. Here you can see very well defined clusters and all these

clusters are clearly visible and distinguishable because of color coding. Remember that in

previous lecture it was stated that good DM techniques should be robust. So our technique

applied here is highly robust because it worked fairly well even in the presence of noise. Genetic

algorithms that we discussed previously are not robust because they do not work well in the

presences of noise.

260

Data Mining Agriculture data

Created a similarity matrix using farm area, cotton variety and pesticide used.

Color coded the matrix, with green assigned to +1 and red to -1.

Large farmers using fewer varieties of cotton and fewer pesticides.

Small farmers using left -overs.

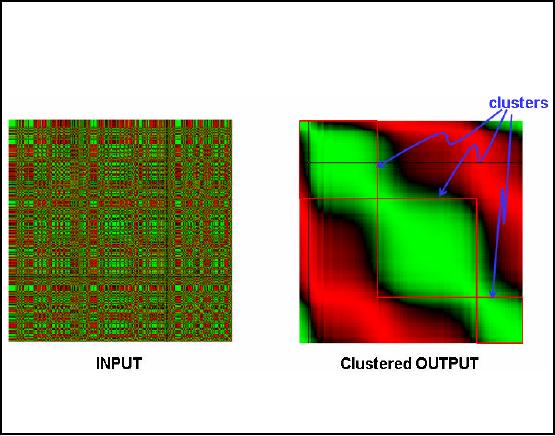

Figure-32.4: Data Mining Agriculture data

In the previous slide the example was based on simulated data where the clusters were

intentionally inserted into the data. Now we will consider a real world example where agricultural

data has been use. The data, pest scouting data, has been taken from department of pest warning

Punjab for the year 2000 and 2001. Some of the attributes like farm area, cotton variety cultivated

and pesticide used are selected. Using these and some other attributes a similarity matrix has been

formed based on Pearson's Correlation. The matrix thus has values between +1 and -1 for better

understanding color coding is used and most positive i.e. +1 is represented with green and -1 is

represented with red color. Furthermore, as these values proceed towards zero from either side,

the colors are darkened accordingly.

Input matrix in Figure 32.4 shows the color coded similarity matrix. We can say that data

visualization has been performed here since we can see the relationship among records which are

around 600 to 700 in number. Otherwise it is not possible to visualize such a big table in a single

sight. Now when the clustering technique is applied in this input matrix the result is shown in

Figure 32.4 as clustered output. Here we see that the green points have grouped together i.e. those

points having high correlation or records having more association have grouped together. This is

what we needed and points with low association i.e. red color points have separated. Here one

thing is important that the input and the output matrices are identical except that the order of rows

and columns has been changed. The cluster in the output matrix is also present in the input matrix

but is not visible only because of reordering. Interesting enough if you search the world's greatest

261

and number one search engine Google for key words "data mining" and "agriculture", it results

in 4 lakh hits and 4th hit being the work done by me.

So what is the significance of doing all what mentioned above? The results showed that which

type of farmers small or big use what sort of varieties, which pesticide and in what quantity etc.

The information is useful from marketing point of view and can be used by pesticide

manufacturing companies, seed breeders and so on for m king effective decisions about their

target market.

Classification

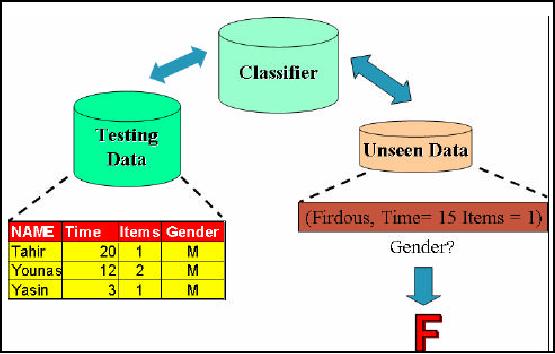

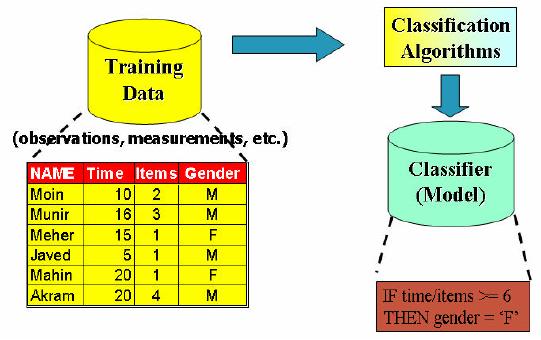

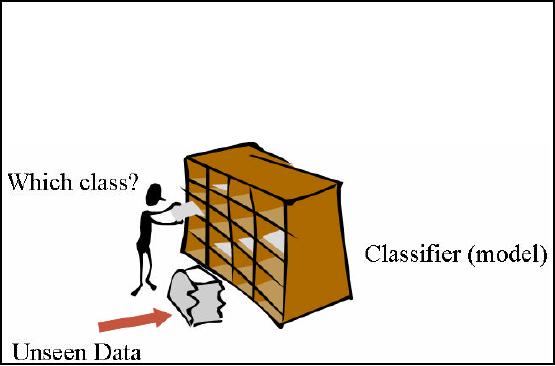

Examining the features of a newly presented object and assigning it to one of a predefined set of

classes.

Example:

Assigning keywords to articles. Classification of credit applicants. Spotting fraudulent insurance

claims.

Figure-32.5: Classification

In one of the previous slide took and overview of classification. Now we will discuss it in detail

but before this have a look at the analogy in Figure 32.5. Here you can see a person is standing by

a rack that is boxed. It may also be called as a pigeon hole box. Each box in the rack represents a

class while the whole rack is a classifier model. Alongside the rack, there also lies a documents

filled bag which is the unseen data. It means that it is unknown that to which box or class these

documents belong. So using the classification technique and the built in model each document is

assigned to its respective box or class in the rack. Thus for performing classification, you must

have a classification model in place and also the classes must be known a priori. You must know

the number of classes and there attributes as well i.e. by looking at the data properties of any

picked document, the classification process will know the box/class of the document that it

belongs to. Thus in this way classification is performed. The classification can be used for

customer segmentation, to detect fraudulent transactions and issues related to money laundering

and the list goes on.

262

How Classification work?

It works by creating a model based on known facts and historical data by dividing into

training and test set.

The model is built using the test set where the class is known and then applying it to

another situation where the class is unknown.

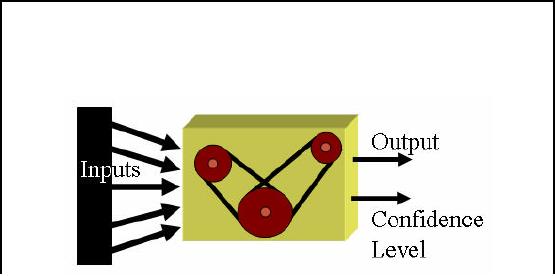

Figure-32.6: How Classification works?

With understanding of classification by analogy in previous slide, lets discuss formally how the

classification process actually works. First of the available data set is divided int o two parts, one

is called test set and the other is called the training set. We pick the training set and a model is

constructed based on known facts, historical data and class properties as we already know the

number of classes. After building the classification model, every record of the test set is posed to

the classification model which decides the class of the input record. Thus class label is given as

the output of the model as shown in Figure 32.6. It should be noted that you know the class for

each record in test set and this fact is used to measure the accuracy or confidence level of the

classification model. You can find accuracy by

Accuracy or confidence level = matches/ total number of matches

In simple words, accuracy is obtained by divid ing number of correct assignments by total number

of assignemnets by the classification model.

263

Classification : Use in Prediction

gure-32.7: Classification Process- Model Construction

Here we will discuss how classification can be used for prediction. Before going into the details

we must try to understand what if we predict? Does data mining really beneficial? In one of our

previous lectures, we talked about assigning priorities to data sets in the context of data qua lity.

We also talked about group priorities and group precedence. The concept was that if your data

comes from two different sources and in one of those sources customers have told their gender

and if data passes through right processes then you the customer gender (high data quality).

However, there might be some customers which might not have specified or mentioned their

gender. So the quality of such a data is questionable.

A possible solution to the problem of missing gender could be to assign gender on the basis of

names. However, there might be some confusing names on the basis of which gender can not be

assigned like Firdous, Riffat, and Shaheen etc. In such a situation we can use data mining for data

cleansing. So lets have a look at how we form a classification model using a customer data set

and then using that model for the identification of the unspecified gender which is mostly correct.

So, two aspects data cleansing and classification are being covered here simultaneously.

First of all w e will look in to the details of model construction process. Figure 32.8 shows a view

of the training data set. Here you can see 6 records and 4 attributes. Time means how much time a

customer spends during the shopping process. Items column refers to how many items a customer

buys while gender shows either the customer male or female. This training set is the input to

classification algorithms which automatically analyze the input data and construct a model or

classifier. The model could be a mathematical expression or a rule such as if then statement. The

model in our case is a rule that if the per item minutes for any customer is greater or equal than 6

than the customer is female else a male i.e.

264

Items/Time >= 6

Then

Gender= `F'

else

Gender = `M'

The above rule is based on the common notion that females spend more time during shoping than

male customers. Exceptions can be there and are treated as outliers.

Figure-32.8: Classification model construction

Now once the model is built we have to test the accuracy of our classification model. For this

purpose we take or test data set. Three randomly picked test data records have been shown in

Figure 32.7. It is not the case that our test data contains only three records, here we have taken

just three records for the sake of simplicity and let you understand the concept. We already know

the classes of the test data set records i.e. we know their gender. The fact will be utilized to

measure the accuracy of our model. So we will pick each of the three records one after another

and put into the classifier. Since for the first record the ration is greater than 6 meaning that our

model will assign it to the female class, but that may be an exception or noise. The second and the

third records are as per rule. Thus, the accuracy of our model is 2/3 i.e. .66%. In other words we

can say the confidence level of our classification model is 66%. The accuracy may change as we

add more data. Now unseen data is brought into the picture. Suppose the re is a record with name

Firdous, time spent 15 minutes and 1 item purchased. We predict the gender by using our

classification model and as per our model the customer is assigned `F' (15/1=15 which is greater

than 6). Thus we can easily predict the missing data with some reasonable accuracy using

classification.

265

Clustering vs. Cluster Detection

In one -way clustering, reordering of rows (or columns) assembles clusters.

If the clusters are NOT assembled, they are very difficult to detect.

Once clusters are assembled, they can be detected automatically, using classical techniques such

as K -means.

The difference between clustering and clustering is an important thing to understand. Basically

these are two different concepts, mostly misperceived by novice data miners. First you cluster

your data and then detect clusters in the clustered data. If you take unclustered input and try to

find clusters, you may get some clusters or some part of a cluster no use of that. Thus until and

unless clustering is performed, cluster detection is useless. The purpose here is to let you

understand and remember the two mostly confusing concepts which are poles apart.

Clustering vs. Cluster Detection: EXAMPLE

Can you SEE the cluster in Fig-A?

How about Fig-B?

Figure-32.9: Clustering vs. Cluster Detection EXAMPLE

For better understanding consider the example in Figure 32.9. Can you tell the number of clusters,

if there, by looking at Figure 32.9(A)? No you can't tell except that every point is a cluster but

that is useless information. Cluster detection in Figure 32.9(A) is thus a very difficult task as

clusters here are not visible. When clusters are detected, its not necessary that the clusters are

visible as computer has no eyes. The clusters may be huge enough that you can not even display

or even if displayed you can not visualize. So cluster visualization is not that much a problem.

Now look at figure 32.9(B). The three clusters here are easily visible. We know that the Figures A

and B are identical except that reordering has been performed on A in a scientific manner using

266

our own indigenous technique. Figure 32.9(B) is the clustered output and when cluster detection

will be performed on B, three clusters will successfully be detected. If A is taken as input to the

cluster detection algorithm instead of B, you may end with nothing. There is a misconception

among new data miners that cluster detection is a simple task. They think that using K-means is

everything. This is not always the case, k-means can not work always . Can it work for matrices

A and B? Wait till last slide for the answer.

The K-Means Clustering

Given k, the k-means algorithm is implemented in 4 steps:

Partition objects into k nonempty subsets

Compute seed poin ts as the centroids of the clusters of the current partition. The

centroid is the center (mean point) of the cluster.

Assign each object to the cluster with the nearest seed point.

Go back to Step 2, stop when no more new assignment.

Before mentioning the strengths and weaknesses of the k-means, lets first discuss it working. It is

implemented in four steps.

Step 1: In the first step you assign k clusters in your data set. Thus it's a supervised technique as

you must know the number of classes and

their properties a priori.

Step 2: The second step is to compute the seed points or centroids of your defined clusters i.e.

which value is a most representative value of all the points in a cluster. For the sake of your

convenience, we are talking about 2- D space, otherwise k-means can work for multidimensional

data sets as well. The centroid can be the mean of these points, hence called k-means.

Step 3: In this step you take the distance of each point from the cluster centroids or means. On

the basis of a predefined threshold value, it is decide that which point belongs to which cluster.

Step 4: You may repeat the above steps i.e. you find the means of newly formed clusters then

find the distances of all points from those means and clusters are reconfigured. The process is

normally repeated until some changes occur in clusters and mostly you get better results.

267

The K-Means Clustering: Example

Figure-32.10: The K-Means Clustering Example

Consider the example in the figure 32.10 for better understanding k-means working. Figure A

shows two sets of color points and the two colors represent two different classes. The polygons

drawn around points in different clusters signify the cluster boundaries. Now at Figure B a red

point has come in each of the two clusters. This is the centroid or mean of the value in that

cluster. The next step is to measure the distances of all the points from each of these centoirds. So

those distances which are above some threshold will go in a cluster for each mean point or

centroid. Now look at the figure C, here on the basis of distances measured in the previous step

new cluster boundaries have been made. In figure D the boundaries have been removed and we

see that a point has been removed from one of the clusters and added to the other. As we will

repeat the process, the result will get more and finer.

The K-Means Clustering: Comment

Strength

§ Relatively efficient: O (tkn), where n is # objects, k is # clusters, and t is #

iterations. Normally, k, t << n.

Often terminates at a local optimum. The global optimum may be found using

techniques such as: deterministic annealing and genetic algorithms

Weakness

§ Applicable only when mean is defined, then what about categorical data?

Need to specify k, the number of clusters, in advance

Unable to handle noisy data and outliers

Not suitable to discover clusters with non-convex shapes

268

At the end of the lecture there are some comments about k-means:

1. K-means is a fairly fast technique and normally when terminates , then clusters formed

are fairly good.

2. It can only work for data sets where there is the concept of mean (the answer to the

question posed in a few slides back). If data is non numeric such as likes dislikes, gender,

eyes color etc. then how to calculate means. So this is the first problem with the

technique.

3. Another problem or limitation of the technique is that you have to specify the number of

cluster in advance.

4. The third limitation is that it is not a robust technique as it not works well in presence of

noise.

5. The last problem is that the clusters found by k-means have to be convex i.e. if you draw

a polygon and join parameters of any two points in that polygon, that line goes out of the

cluster boundaries.

269

Table of Contents:
