Lecture-30

What Can Data Mining Do

Our previous lecture was a brief introduction about the data mining. What we covered in lecture

29 was just the tip of iceberg. The lecture may have definitely created in you an excitement to

explore more about DM like me. So this lecture is meant to give you more insight of DM, what it

can do for us, what are its specific applications. I will give some real life examples to show the

power of DM, what are the problems that can be solved by DM.

There are a number of data mining techniques and the selection of a particular technique is highly

application dependent, although other factors affect the selection process too. So let's look at

some of the DM application are as or techniques.

CLASSIFICATION

Classification consists of examining the properties of a newly presented observation and

assigning it to a predefined class.

Assigning customers to predefined customer segments (good vs. bad)

Assigning keywords to articles

Classifying credit applicants as low, medium, or high risk

Classifying instructor rating as excellent, very good, good, fair, or poor

Classification means that based on the properties of existing data, we have made or groups i.e. we

have made classification. The concept can be well understood by a very simple example of

student grouping. A student can be grouped either as good or bad depending on his previous

record. Similarly an employee can be grouped as excellent, good, fair etc based on his tra ck

record in the organization. So how students or employees were classified? Answer is using the

historical data. Yes history is the best predictor of the future. When an organization conducts test

and interviews from candidate employees, their performanc e is compared with those of the

existing employees. The knowledge can be used to predict how good you can perform if

employed. So we are doing classification, here absolute classification i.e. either good or bad or in

other words we are doing binary class ification. Either you are in this group or this. Each entity is

assigned one of the groups or classes. An example where classification can prove to be beneficial

is in customer segmentation. The businesses can classify their customers as either good or bad;

the knowledge thus can be utilized for executing targeted marketing plans. Another example is of

a news site, where there are number of visitors and also many content developers. Now where to

place a specific news item on the web site? What should be the hierarchical position of the news

item, what should be the news chapter, category? Either it should be in the sports or weather

section and so on. What is the problem in doing all this? The problem is that it's not a matter of

placing a single news item. The site as already mentioned contains a number of content

developers and also many categories. If sorting is performed humanly, then it is time consuming.

That is why classification techniques can scan and process the document to decide its category or

class. How and what sort of processing will be discussed in the next lecture. It is not possible and

there are flaws in assigning category to any news document just based on the keyword. Frequent

occurrence of the word keyword cricket in a document doesn't necessary means that the

document be placed in the sports category. The document may be actually political in nature.

247

ESTIMATION

As opposed to discrete outcome of classification i.e. YES or NO, deals with continuous valued

outcomes

Example:

Building a model and assigning a value from 0 to 1 to each member of the set.

Then classifying the members into categories based on a threshold value.

As the threshold changes the class changes.

Next category of problems that can be solved with DM is using es timation. In classification we

did binary assignment i.e. data items are assigned to either of the two categories or classes, this or

that. The assignment value was integer in nature, and to be absolute was not essential. However

in case of estimation a model/mechanism is formed then data analysis is performed in that model

which was actually formed from data itself. The difference is that the model is formed from the

relationships in the data and then data categorized in that model. Unlike classification,

categorization here is not absolute but there is a real number that is between 0 and 1. This number

tells the probability of a record/tuple/item etc. to belong to a particular group or category or class.

So this is a more flexible approach than classification. Now the question arises how a real number

between 0 and 1 reveals the probability of belonging to a class? Why not an item falls in two

groups or more at the same time? The answer is that categorization is performed by setting the

threshold values. It is predefined that if the value crosses this then in this class else in another

class and so on. Note that if thresholds are reset which is possible (as nothing is constant except

change so changes can be made in the threshold) then the category or clas s boundaries change

resulting in the movement of records and tuples in other groups accordingly.

PREDICTION

Same as classification or estimation except records are classified according to some predicted

future behavior or estimated value.

Using class ification or estimation on a training example with known predicted values and

historical data a model is built.

Then explain the known values, and use the model to predict future.

Example:

Predicting how much customers will spend during next 6 months.

Prediction here is not like a palmists approach that if this line then this. Prediction means that

what's the probability of an item/event/customer to go in a specific class. This means that

prediction tells that in which class this specific item would lie in future or to which class this

specific event can be assigned in any time in future, say after six years. How prediction actually

works? First of all a model is built using exiting data. The existing data set is divided into two

subsets, one is called the training set and the other is called test set. The training set is used to

form model and the associated rules. Once model built and rules defined, the test set is used for

grouping. It must be noted the test set groupings are already known but they are put in the model

to test its accuracy. Accuracy, we will discuss in detail in following slides but is dependent on

many factors like the model, training data and test data selection and sizes and many more things.

248

So, the accuracy gives the confidence level, that the rules are accurate to that much level.

Prediction can be well understood by considering a simple example. Suppose a business wants to

know about their customers their propensity to buy/spend/purchase. In other words, how much

the customer will spend in next 6 months? Similarly a mobile phone company can install a new

tower based on the knowledge spending habits of its customers in the surroundings. It is not the

case that companies install facilities or invest money because of their gut feelings. If you think

like this you are absolutely wrong. Why companies should bother about their customers? Because

if they know their customers, their interests, their like and dislikes, their buying patterns then it is

possible to run targeted marketing campaigns and thus increasing profit.

MARKET BASKET ANALYSIS

Determining which things go together, e.g. items in a shopping cart at a super market.

Used to identify cross-selling opportunities

Design attractive packages or groupings of products and services or increasing price of

some items etc.

Next problem can be solved or being solved by DM is the market basket analysis. Market basket

analysis is a concept, like in big stores you may have seen baskets for roaming around and putting

selected items in it. The concept here is to know basically that which things are sold together.

Why the knowledge is needed for decision making? This can be beneficial because if we know

that these are the things which are sold together, or if we know that some type of customers

mostly buy item X too when they buy item Y and so on, then we can run corresponding sale

promotional schemes. This can be useful for inventory management i.e. you may place things that

are bought together in close proximity, or you can place those things close in your store so that

it's easy to bring things together when needed. Another benefit is that u can bundle or package

item together so as to boost the sales of underselling items. Customer satisfaction is critical for

businesses, so another benefit of market basket analysis is the customer facilitation. Thus, by

placing together the associated items you facilitate the customer making easy access to the

desired items. Otherwise he may rum here and there for searching the item.

MARKET BASK T ANALYSIS

98% of people who purchased items A and B

also purchased item C

Figure-30.1: Market basket analysis

249

Lets consider an example for better understanding of the market basket analysis. Figure 30.1

shows a basket having items A , B and Y. The right side portion of the Figure shows different

items arranged in two columns and arrows show the associations i.e. if item in the left column is

bought then the respective item in the right column is also bought. How we came to know this?

This knowledge was hidden deep in the data, so querying was not possible because a store may

contain thousands of items and effort to find item associations trivially is impossible, an NP

complete problem.

Discovering Association Rules

Given a set of records, each containing set of items

§ Produce dependency rules that predict occurrences of an item based on others

Applications:

§ Marketing, sales promotion and shelf management

§ Inventory management

Rules:

{Milk} à {Cola}

{Diaper, Milk} à {Juice}

Table -30.1: Discovering association rules

Discovering Association Rules is another name given to market basket analysis. Here rules are

formed from the dependencies among data items which can be used to predict the occurrence of

an item based on others e.g. suppose hardware shop where whenever a customer buys color tins it

is more likely that he /she will buy painting brushes too. So based on the occurrence or event of

paint purchase, we can predict the occurrence of item paint brush. What is the benefit of knowing

all this? We have already discussed this. Now look at the Table 30.1, here two columns TIC

(transaction ID) and other is the list of items. This is not the view of a real database, as a single

column can not contain multiple entries like items column here. This is an example table just to

show rule formation process. Looking at the table we come to know that whenever milk is

purchased, cola is also purchased. Similarly, whenever diaper and milk are purchased juice is also

purchased. So, the two association rules are obtained from the sample data in Table 30.1. Now a

question arises which of the two rules strongly implies? This can not be answered depending on a

lot of factors. However, we can tell what has been discovered here? What is the unknown

unknown? The discovery is that the sale of juice with diapers and milk is non trivial. This can

never be guessed because no obvious association is found among the items.

250

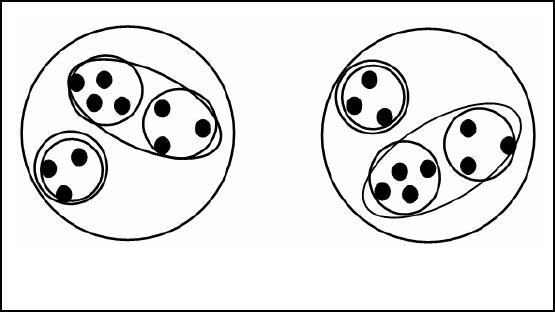

CLUSTERING

Task of segmenting a heterogeneous population into a number of more homogenous sub-

groups or clusters.

Unlike classification, it does NOT depend on predefined classes.

It is up to you to determine what meaning, if any, to attached to resulting clusters.

It could be the first step to the market segmentation effort.

What else data mining can do? We can do clustering with DM. Clustering is the technique of

reshuffling, relocating exiting segments in given data which is mostly heterogeneous so that the

new segments have more homogeneous data items. This can be very easily understood by a

simple example. Suppose some items have been segmented on the basis of color in the given data.

Suppose the items are fruits, then the green segment may contain all green fruits like apple,

grapes etc. thus a heterogeneous mixture of items. Clustering segregates such items and brings all

apples in one segment or cluster although it may contain apples of different colors red, green,

yellow etc. thus a more homogeneous cluster than the previous cluster.

Clustering is a difficult task, why? In case of classification we already know the number of

classes, either good or bad or yes or no or any number of classes. We also have the knowledge of

classes properties so its easy to segment data into known classes. However, in case of clustering

we don't know the number of clusters a priori. Once clusters are found in the data business

intelligence, domain knowledge is needed to analyze the found clusters. Clustering can be the

first step towards market segmentation i.e. we can use countermining to know the possible

clusters in the data. Once clusters found and analyzed classification can be applied thus gaining

more accuracy than any standalone technique. Thus clustering is at higher level than classification

not only because of its complexity but also because it leads to classification.

Examples of Clustering Applications

Marketing: Discovering distinct groups in customer databases, such as customers who

make lot of long-distance calls and don't have a job. Who are they? Students. Marketers

use this knowledge to develop targeted marketing programs.

Insurance: Identifying groups of crop insurance policy holders with a high average claim

rate. Farmers crash crops, when it is "profitable".

Land use: Identification of areas of similar land use in a GIS database.

Seismic studies: Identifying probable areas for oil/gas exploration based on seismic data.

We discussed that what clustering is and how it works. Now to know the real spirit of it, lets look

at some of the real world examples to show the blessings of clustering;

1. Knowing or discovering about your market segment: Suppose a telecom company whose

data when clustered revealed that there is a group or cluster of people or customers whose

251

long distance calls are greater in number. Is this a discovery that such a group exi sts? Nope

not really. The real discovery is analyzing the cluster, the real fun part. Why these people are

in a cluster? Is important to know. Analysis of the cluster reveals that all the people in the

group are unemployed! How come it is possible that unemployed people are making

expensive far distance calls? The excitement lead to further analysis which ultimately

revealed that the people in the cluster were mostly students, students like you living away

from home in universities , colleges and hostels. They are making calls back home. So this is

a real example of clustering. Now the same question what is the benefit of knowing al this?

The answer is customer is like an asset for any organization. To know the customer is crucial

for any organization/compa ny so as to satisfy the customer which is a key of any company's

success in terms of profit. The company can rum targeted sale promotion and marketing

effort to target customers i.e. students.

2. Insurance: Now lets have look at how clustering plays a role in insurance sector. Insurance

companies are interested in knowing the people having higher insurance claim. You may

astonish that clustering has successfully been used in a developed country to detect farmer

insurance abuses. Some of the malicious farmers used to crash their crops intentionally to

gain insurance money which presumably was higher than the amount of profit and effort from

their crops. The farmer was happy but the loss was to be bear by the insurance company. The

company successfully used clustering techniques to identify such farmers, and thus saving a

lot of money.

Clustering thus has a wider scope in real life applications. Other areas where clustering is being

used are for city planning, GIS (Land use management), seismic data for mining (real mining)

and the list goes on.

Ambiguity in Clustering

How many clusters?

o Two clusters

o Four clusters

o Six clusters

Figure-30.2: Ambiguity in Clustering

As we mentioned the spirit of clustering lies in its analysis. A common ambiguity in clustering is

regarding the number of clusters, since the cluster are not known in advance. To understand the

problem, consider the example in Figure 30.2. The black dots represent individual data records or

252

tuples and they are placed as a result of a clustering algorithm. Now can u tell how many clusters

are there?

Yes two clusters, but look at your screens again and tell how many clusters now?

Yes four clusters now, you are absolutely right. Now look again and tell how ma ny clusters? Yes

6 clusters as shown in the Figure 30.2. What all this shows? This shows that deciding upon the

number of clusters is a complex task depending on factors like level of detail, application domain

etc. By level of detail I mean that either the black point represents a single record or an aggregate.

The thing which is important is to know how many clusters solve our problem. Understanding

this solves the problem.

DESCRIPTION

Describe what is going on in a complicated database so as to increas e our understanding.

A good description of a behavior will suggest an explanation as well.

Another application of DM is description. To know what is happening in our databases is

beneficial. How? The OLAP cubes provide ample amount of information, which is otherwise

distributed in the haystack. We can move the cube in different angles to get to the information of

interest. However, we might miss the angle which might have given use some useful information.

Description is used to describe such things.

253

Comparing Methods (1)

Predictive accuracy: this refers to the ability of the model to correctly predict the class

label of new or previously unseen data

Speed: this refers to the computation costs involved in generating and using the method.

Robustness: this is the ability of the method to make correct predictions/groupings given

noisy data or data with missing values

We discussed different data mining techniques. Now the question, which technique is good and

which bad? Or say like which is the best technique for a given problem. Thus we need to specify

evaluation criteria like data metrics as we did in the data quality lecture. The metrics we use for

comparison of DM techniques are;

Accuracy: Accuracy is the measure of correctness of your model e.g. in classification we have

two data sets, training and test sets. A classification model is built based on the data properties

and relationships in training data. Once built the model is tested for accuracy in terms of %

correct results as the classification of the test data is already known. So we specify the correctness

or confidence level of the technique in terms % accuracy.

Speed: In previous lectures we discussed the term "Need for Speed". Yes speed is a crucial

aspect of Dm techniques. Speed refers to the time complexity. If a technique has O (n) and

another has O (n log n) time complexities then which is better? Yes O (n) is better. This is the

computational time but user or business decision maker is interested in the absolute clock time.

He has nothing to do with complexities. What he is interested in is, knowing how fast he gets the

answers. So just comparing on the basis of complexities is not sufficient. We must look at the

overall process and interdependencies among tasks which ultimately result in the answer or

information

generation.

Robustness: It is the ability of the technique to work accurately even in conditions of noisy or

dirty data. Missing data is a reality and presence of noise also true. So a technique is better if it

can run smoothly even in stress conditions i.e. with noisy and missing data.

Scalability: As we mentioned in our initial lectures that the main motivation for data

warehousing is to deal huge amounts of data. So scaling is very important, which is the ability of

the method to work efficiently even when the data size is huge.

Interpretability: It refers to the level of understanding and insight that is provided by the

method. As we discussed in clustering one of the complex and difficult tasks is the cluster

analysis. The techniques can be compared on the basis of their interpretational ability e.g. there

might be some methods which give additional functionalities to provide meaning to the

discovered information like color coding, plots and curve fittings etc.

254

Where does Data Mining fits in?

Data Mining is one step of

Knowledge Discovery in

Databases (KDD)

Figure-30.3: Where does Data Mining fits in?

Now lets look at the overall knowledge discovery KD process. Figure 30.3 shows different KDD

steps. Data is crucial and the most important component of KDD, knowledge discovery is

possible only if data is available. The data is not used in its crude form for knowledge discovery.

Before applying analysis techniques like data mining, data is preprocessed using activities as

discussed in ETL. You ca n see an additional process at the preprocessing step i.e. feature

extraction. This is to extract those data items which are needed or which or of interest form the

huge data set. Suppose we have an O (n2) method for data processing. Scalability can be issue for

large data sets because of quadratic nature. The problem can be solved if we perform aggregation,

reducing number of records and keeping the data properties. So now the method can work with

less data size. Next comes the data mining phase, we have thoroughly discussed the techniques

for discovering patterns (clustering) and generating models (classification). The next step is the

analysis of discovered patterns using domain knowledge. This is a complex task and requires an

ample amount of business or domain knowledge. The interpreted knowledge finally comes out as

the information that was unknown before hidden in the data sea which has now become

information having some value to the user.

255

Table of Contents:
