Lecture-22

DQM: Quantifying Data Quality

Background

How good is a company's data quality? Answering this question requires usable data quality

metrics. Studies have confirmed data qua lity is a multi-dimensional concept. Companies must

deal with both the subjective perceptions of the individuals involved with the data, and the

objective measurements based on the data set in question.

Subjective data quality assessments reflect the needs and experiences of stakeholders: the

collectors, custodians, and consumers of data products. This was the approach adopted for

assuring the quality of products too.

More on Characteristics of Data Quality

Data Quality Dimensions

Believability

Appro priate Amount of Data

Timeliness

Accessibility

Objectivity

Interpretability

Uniqueness

Data Quality Assessment Techniques

Ratios

Min-Max

When performing objective assessments, companies follow a set of principles to develop metrics

specific to their needs, there is hard to have "one size fits all" approach. Three pervasive

functional forms are (i) simple ratio, (ii) min or max operation, and (iii) weighted average.

Refinements of these functional forms, such as addition of sensitivity parameters, can be easily

incorporated. Often, the most difficult task is precisely defining a dimension, or the aspect of a

dimension that relates to the company's specific application. Formulating the metric is

straightforward once this task is complete.

173

Data Quality Assessment Techniques

Simple Ratios

Free-of-error

Completeness

Consistency

Simple Ratios

The simple ratio measures the ratio of desired outcomes to total outcomes. Since most people

measure exceptions, however, a preferred form is the number of undesirable outcomes divided by

total outcomes subtracted from 1. This simple ratio adheres to the convention that 1 represents the

most desirable and 0 the least desirable score. Although a ratio illustrating undesirable outcomes

gives the same information as one illustrating desirable outcomes, but experience suggests

managers prefer the ratio showing positive outcomes, since this form is useful for longitudinal

comparisons illustrating trends of continuous improvement. Many traditional data quality metrics,

such as free-of-error, completeness, and consistency take this form. Other dimensions that can be

evaluated using this form include concise representation, relevancy, and ease of manipulation.

The free-of-error dimension represents data correctness. If one is counting the data units in error,

the metric is defined as the number of data units in error divided by the total number of data units

subtracted from 1. In practice, determining what constitutes a data unit and what is an error

requires a set of clearly defined criteria. For example, the degree of precision must be specified. It

is possible for an incorrect character in a text string to be tolerable in one circumstance but not in

another.

The completeness dimension can be viewed from many pe rspectives, leading to different metrics.

At the most abstract level, one can define the concept of schema completeness, which is the

degree to which entities and attributes are not missing from the schema. At the data level, one can

define column complete ness as a function of the missing values in a column of a table. A third

type is called population completeness. If a column should contain at least one occurrence of all

34 districts of Punjab, for example, but it only contains 30 districts, then we have population

incompleteness. Each of the three types (schema completeness, column completeness, and

population completeness) can be measured by taking the ratio of the number of incomplete items

to the total number of items and subtracting from 1.

The consistency dimension can also be viewed from a number of perspectives, one being

consistency of the same (redundant) data values across tables. Codd's referential Integrity

constraint is an instantiation of this type of consistency. As with the previously discussed

dimensions, a metric measuring consistency is the ratio of violations of a specific consistency

type to the total number of consistency checks subtracted from one.

Data Quality Assessment Techniques

Min-Max

§ Believability

Appropriate Amount of Data

174

Min or Max Operation

To handle dimensions that require the aggregation of multiple data quality indicators (variables),

the minimum or maximum operation can be applied. One computes the minimum (or maximum)

value from among the normalized values of th individual data quality indicators. The min

operator is conservative in that it assigns to the dimension an aggregate value no higher than the

value of its weakest data quality indicator (evaluated and normalized to between 0 and 1). The

maximum operation is used if a liberal interpretation is warranted. The individual variables may

be measured using a simple ratio. Two interesting examples of dimensions that can make use of

the min operator are believability and appropriate amount of data. The max operator proves

useful in more complex metrics applicable to the dimensions of timeliness and accessibility.

Believability is the extent to which data is regarded as true and credible. Among other factors, it

may reflect an individual's assessment of the credibility of the data source, comparison to a

commonly accepted standard, and previous experience. Each of these variables is rated on a scale

from 0 to 1, and overall believability is then assigned as the minimum value of the three. Assume

the believability of the data source is rated as 0.6; believability against a common standard is 0.8;

and believability based on experience is 0.7. The overall believability rating is then 0.6 (the

lowest number). As indicated earlier, this is a conservative assessment. An alternative is to

compute the believability as a weighted average of the individual components.

A working definition of the appropriate amount of data should reflect the data quantity being

neither too little nor too much. A general metric that embeds this tradeoff is the minimum of two

simple ratios: the ratio of the number of data units provided to the number of data units needed,

and the ratio of the number of data units needed to the number of data units provided.

Data Quality Assessment Techniques

Min-Max

Timeliness

Accessibility

Timeliness reflects how up-to-date the data is with respect to the task it's used for. A general

metric to measure timeliness is to measure the maximum of one of two terms: 0 and one minus

the ratio of currency to volatility i.e. Max(0, 1-C/V) . Here, currency (C) is defined as the age (A)

plus the delivery time (Dt) minus the input time (It) C = A + Dt - It. Volatility refers to the length

of time data remains valid; delivery time refers to when data is delivered t o the user; input time

refers to when data is received by the system, and age refers to the age of the data when first

received by the system.

A similarly constructed metric can be used to measure accessibility, a dimension reflecting ease

of data attainability. The metric emphasizes the time aspect of accessibility and is defined as the

maximum value of two terms: 0 or one minus the time interval from request by user to delivery to

user divided by the time interval from request by user to the point at which data is no longer

useful. Again, a sensitivity factor in the form of an exponent can be included.

175

Data Quality Validation Techniques

Referential Integrity (RI).

Attribute domain.

Using Data Quality Rules.

Data Histograming.

Some of the data validation techniques have been listed. We will discuss each of the technique in

detail.

Referential Integrity Validation

Example:

How many outstanding payments in the DWH without a corresponding customer_ID in the

customer table?

While doing total quality measurement, you measure RI every week (or month) and hopefully the

number of orphan records will be going down, as you will be fine tuning the processes to get rid

of the RI problems. Remember, RI problem is peculiar to a DWH, this will not happen in a

trad itional OLTP system.

Business Case for RI

Not very interesting to know number of outstanding payments from a business point of view.

Interesting to know the actual amount outstanding, on per year basis, per region basis...

It is important to measure the actual (i.e. business) impact of the data quality problem. Knowing

how many claims are orphan might be interesting from an analysis point of view. But knowing

how many dollars are associated with orphan claims has a business value. If there are too many

orphan claims, but too many dollars are not associated with those claims, then it does not have a

business impact. We are always trying to relate with the business impact.

Performance Case for RI

Cost of enforcing RI is very high for large volume DWH imp lementations, therefore:

Should RI constraints be turned OFF in a data warehouse? or

Should those records be "discarded" that violate one or more RI constraints?

Cost of transactional RI enforcement is very high for large volume DWH implementations.

Assume a company with a multi million row customer table i.e. n rows. Checking for RI using a

naive approach would take O(n) time, using a smart technique with some kind of a tree data

structure would require O(log n) time, ignoring RI altogether will take O(1) time. Therefore, for a

chain store with several million transactions per day, every time spending O(log n) time will turn

out to be extremely expensive.

176

Another point worth noting is, are you willing to "throw away" rows that violate one or more

constraints? May be not, because this will result in losing more information without gaining

anything in return.

The bottom line is, most DWH implementations today do not use RI constraints enforced by the

database, but as TQM methods improve overall data quality and database optimizers become

more sophisticated in the use of constraints, this will become a more attractive option.

3 steps of Attribute Domain Validation

The occurrences of each domain value within each coded attribute of the database.

Actual content of attributes against set of valid values.

Exceptions to determine cause and impact of the data quality defects.

Step-1: This will be done for every single table. Run a script by table, by column and collect all

the values in that column and do a count on them, so that you know for each domain value how

many values do you have of that particular domain.

Example from a real life scenario: In a health care company, diagnostic codes were put in the

medical claims. The codes had to correspond to different healthcare plans. People were losing so

much productivity due to error check messages that they turned off the checks so as to get more

claims processed! That was a very bad decision, as they were now putting in junk data. This was

quite alright with the operations manager, as he was not measured on the quality of the data, but

on how many claims per hour were put in.

Step-2: For each table, column and column value look at how many values are not in my valid

domain table. The meta data should specify the data dictionary for every column i.e. the valid

values for that column. Any data that is not as per the valid value is a data quality problem either

in the meta data or in the data itself.

Step-3: Once the defects are found, go and track them down back to source cause(s).

Point to be noted is that, if at all possible, fix the problem in the source system. People have the

tendency of applying fixes in the DWH. This is a wrong i.e. if you are fixing the problems in the

DW; you are not fixing th e root cause. A crude analogy would clarify the point. If you keep

cleaning the lake, and keep on flushing the toilet in the lake, you are not solving the problem. The

problem is not being fixed at the source system, therefore, it will persist.

Attribute Domain Validation: What next?

What to do next?

§ Trace back to source cause(s).

Quantify business impact of the defects.

Assess cost (and time frame) to fix and proceed accordingly.

Easier said than done, this unfortunately is a big problem, as it invo lves office politics in most

organizations. The reason being, operational people do not care about the DWH, they are not

177

measured on data quality, nobody cares. The requirement is to apply pressure on the operational

source system personnel to fix the data quality problems, and turn ON the error checks etc.

So what is the solution? The best way of applying pressure is to publish. Publish what is the

quality of the data you get from the source system. You will be amazed at the results, how fast

people start fixing their data. You can beg all you can behind closed doors, but when it becomes

public knowledge activity starts. But have to be careful because of office politics. However,

before taking any actions quantify business impact of the defects, and subsequently assess cost

(and time frame) for fix and proceed accordingly.

Data Quality Rules

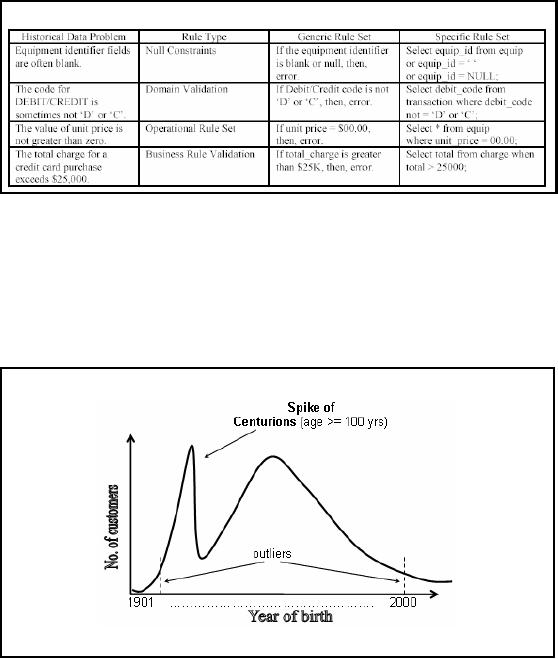

Table-22.1: Data Quality Rules

Specific data problems are linked to business rules, and then generic and specific rule sets are

established to measure how good the data is within an information system. Table 22.1 illustrates

several rule sets and an acceptable method of documenting known data quality problems.

Establish a set of rule sets and measurements to execute as SQL statements or as data quality

filters in an automated data quality assessment tool. The rule sets represent the data quality

metrics used to judge conformance of data to business rules. Data quality project managers use

established and relevant data standards as the basis for establishing rule sets. These data standards

provide valid values for many common data elements such as Country Code, Country Name, and

City Abbreviation.

Statistical Validation using Histogram

NOTE: For a certain environment, the above distribution may be perfectly normal.

178

Figure-22.1: Statistical Validation using Histogram

To check the accuracy of the date of birth, construct a histogram of date of births. This histogram

could be of year of birth or date of birth excluding the year. If the year of birth is missing in a

claim, or someone would not like to disclose it while registering online, usually the year of choice

is 1901 ("magic" value) or date of birth as "1st Jan". This will result in a huge spike for

centurions or New Year birthdays. While you expected an even distribution of birthdays across

the year, you will get a spike as shown in Figure22.1.

The approach should be to try all the different ways of constructing histograms and look for large

spikes. If there is somet hing wrong, then based on reasonable business knowledge, you are likely

to detect it. Note that this is NOT data mining. In data mining you are looking for patterns that

you don't expect to exist or checking a hypothesis. Over here you know what you are lo oking for.

179

Table of Contents:
