Online Analytical Processing (OLAP)

OLAP is Analytical Processing instead of Transaction Processing. It is also NOT a physical

database design or implementation technique, but a framework. Furthermore OLAP

implementations are either highly de-normalized or completely de-normalized, while OLTP

implementations are fully normalized. Therefore, a clear understanding of how OLAP (On-Line

Analytical Processing) fits into the overall architecture of your data warehouse i essential for

appropriate deployment. There are different methods of deployment of OLAP within a decision

support environment - often obscured by vendor hype and product salesmanship. It is important

that you as data warehouse architect drive your choice of OLAP tools - not driven by it!

DWH & OLAP

Relationship between DWH & OLAP

Data Warehouse & OLAP go together.

Analysis supported by OLAP

A data warehouse is a "subject-oriented, integrated, time varying, non -volatile collection of data

that is used primarily in organizational decision making. Typically, the data warehouse is

maintained separately from the organization's operational databases and on different (and more

powerful) servers. There are many reasons for doing this. The data warehouse supports on-line

analytical processing (OLAP), the functional and performance requirements of which are quite

different from those of the on -line transaction processing (OLTP) applications, traditionally

supported by the operational data bases.

A data warehouse implementation without an OLAP tool is nearly unthinkable. Data warehousing

and on-line analytical processing (OLAP) are essential elements of decision support, and go

hand-in-hand. Many commercial OLAP products and services are available, and all of the

principal database management system vendors have products in these areas. Decision support

systems are very different from MIS systems, consequently this places some rather different

requirements on the database technology compared to traditional o n-line transaction processing

applications.

Data Warehouse provides the best support for analysis while OLAP carries out the analysis task.

Although there is more to OLAP technology than data warehousing, the classic statement of

OLAP is "decision making is an iterative process; which must involve the users". This statement

implicitly points to the not so obvious fact that while OLTP systems keep the users' records and

assist the users in performing the routine operations tasks of their daily work. OLAP systems on

the other hand generate information users require to do the non-routine parts of their jobs. OLAP

systems deal with unpredicted circumstances (for which if not impossible, it is very difficult to

plan ahead). If the data warehouse doesn't provide users with helpful information quickly in an

intuitive format, the users would be turned down by it, and will revert back to their old and

faithful, yet inefficient but tried out procedures. Data warehouse developers sometimes refer to

the importance of intuitiveness to the users as the "field of dreams scenario" i.e. naively assuming

that just because you build it doesn't mean they will come and use it.

Supporting the human thought process

We will first learn the nature of analysis before going on to the actual structure and functionality

behind OLAP systems; this is discussed in Figure -10.1. Consider a hypothetical (but a realistic

scenario) when a decision maker (analyst, CEO) of a large enterprise i.e. a multinational company

is confronted with the yearly sales figure that there is an enterprise wide fall in profit. Note that

we are talking about a large multinational company, which is not only in sales, but also in

production. To get a hold of the problem, decision maker has to start from somewhere, but that

somewhere has to be meaningful too. This "somewhere" could be starting the exploration across

the enterprise geographically or exploring across the enterprise functionally or doing it product -

wise or doing it with reference to time.

One of the valid options of starting is with reference to time, and the query corresponding to the

thought process of the decision maker turns out to be "What was the quarterly sales during last

year?" The result of this query would be sales figures for the four quarters of last year. There can

be a number of possible outcomes, for example, the sale could be down in all the quarters, or it

could be down in three out of four quarters with four possible options. Another possibility could

be sales down in any two quarters with six possible scenarios. For the sake of simplicity, over

here we assume that the sales were down in only one quarter. If the results were displayed as

histograms, the decision maker would immediately pick the quarter in which sales were down,

which in this case comes out to be the last quarter.

Supporting the human thought process

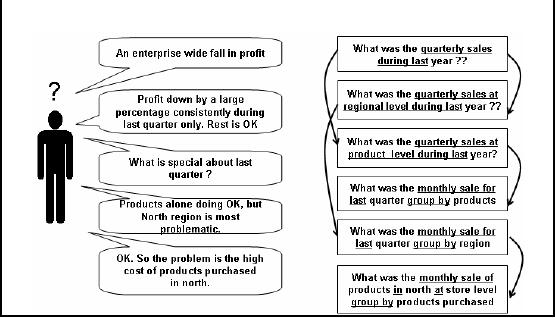

THOUGHT PROCESS

QUERY SEQUENCE

Figure-10.1: Supporting the human thought process

Now that the "lossy" quarter has been identified, the decision maker would naturally like to probe

further, to go to the root of the problem, and would like to know what happened during the last

quarter that resulted into a fall in profit? The objective here is to identify the root cause, once

identified, the problem can be fixed. So the obvious question that comes into the mind of the

decision maker is what is special about the last quarter? Before jumping directly into the last

quarter to come up with hasty outcomes, the careful decision maker wants to look at the sales data

of the last year, but with a different perspective, therefore, his/her question is translated into two

queries i.e. (i) What was the quarterly sales at regional level during last year? (ii) What was the

quarterly sal es at product level during last year? There could be another sequence of questions i.e.

probing deeper into the "lossy" quarter directly, which is followed in the next sequence of

queries.

It may seem that the decision maker was overly careful, but he was not. Recognize that the

benefit of looking at a whole year of data enables the decision maker to identify if there was a

trend of sales going down, that resulted in least sales during the last quarter or the sales only went

down during the last quarter? The finding was that the sales went down only during the last

quarter, so the decision maker probed further by looking at the sales at monthly basis during the

last quarter with reference to product, as well as with reference to region. Here is a finding, the

sales were doing all right with reference to the product, but they were found to be down with

reference to the region, specifically the Northern region.

Now the decision maker would like to know what happened in the Northern region in the last

quarter with reference to the products, as just looking at the Northern regional alone would not

give the complete picture. Although not explicitly shown in the figure -?, but the current

exploratory query of the decision maker is further processed by taking the sales figures of last

quarter on monthly basis and coupled together with the product purchased at store level. Now the

hard work pays off, as the problem has finally been identified i.e. high cost of products purchased

during the last quarter in the Northe rn region. Well actually it was not hard work in its true literal

meaning, as using an OLAP tool, this would have taken not more than a couple of minutes,

maybe even less.

Analysis of last example

Analysis is Ad-hoc

Analysis is interactive (user driven)

Analysis is iterative

§ Answer to one question leads to a dozen more

Analysis is directional

§ Drill Down

Roll Up

Drill Across

Now if we carefully analyze the last example, some points are very clear, the first one being

analysis is ad-hoc i.e. there is no known order to the sequence of questions. The order of the

questions actually depends on the outcome of the questions asked, the domain knowledge of the

decision maker, and the inference made by the decision maker about the results retrieved.

Furthermo re, it is not possible to perform such an analysis with a fixed set of queries, as it is not

possible to know in advance what questions will be asked, and more importantly what answers or

results will be presented corresponding to those questions. In a nut -shell, not only the querying is

ad-hoc, but the universal set of pre -programmed queries is also very large, hence it is a very

complex problem.

As you would have experienced while using an MIS system or done while developing and MIS

system, such systems are programmer driven. One would disagree with that, arguing that

development comes after system analysis, when user has given his/her requirements. The problem

with decision support systems is that, the user is unaware of their requirements, until they ha ve

used the system. Furthermore, the number and type of queries are fixed as set by the programmer,

thus if the decision maker has to use the OLTP system for decision making, he is forced to use

only those queries that have been pre-written thus the process of decision making is driven not by

the decision maker. As we have seen, the decision making is interactive i.e. there is noting in

between the decision support system and the decision maker.

In a traditional MIS system, there is an almost linear sequence of queries i.e. one query followed

by another, with a limited number of queries to go back to with almost fixed and rigid results. As

a consequence, running the same set of queries in the same order will not result in something

new. As we discussed in the example, the decision support processes is exploratory, and

depending on the results obtained, the queries are further fine -tuned or the data is probed deeply,

thus it is an iterative process. Going through the loop of queries as per the requirement of the

decision maker fine tunes the results, as a result the process actually results in coming up with the

answers to the questions.

Challenges

Not feasible to write predefined queries.

§ Fails to remain user_driven (becomes programmer driven).

Fails to remain ad_hoc and hence is not interactive.

Enable ad-hoc query support

§ Business user can not build his/her own queries (does not know SQL, should not

know it).

On_the_go SQL generation and execution too slow.

Now that we have identified how decision making proceeds, this could lure someone with an

OLTP or MIS mindset to approach decision support using the traditional tools and techniques.

Let's look at this (wrong) approach one point at a time. We identified one very important point

that decision support requires much more and many more queries as compared to an MIS system.

But even if more queries are written, the queries still remain predefined, and the process of

decision making still continues to be driven by the programmer (who is not a decision maker)

instead of the decision maker. When something is programmed, it kind of gets hard-wired i.e. it

can not be changed significantly, although minor changes are possible by changing the parameter

values. That's where the fault lies i.e. hard -wiring. Decision making has no particular order

associated with it.

One could naively say OK if the decision making process has to be user driven, let the end user or

business user do the query development himself/herself. This is a very unrealistic assumption, as

the business user is not a programmer, does not know SQL, and does not need to know SQL. An

apparently realistic solution would be to let the SQL generation be on-the-go. This approach does

make the system user driven without having the user to write SQL, but even if on-the-go SQL

generation can be achieved, the data sets used in a data warehouse are so large, that it is no way

possible for the system to remain interactive!

Challenges

Contradiction

§ Want to compute answers in advance, but don't know the questions

Solution

§ Compute answers to "all" possible "queries". But how?

NOTE: Queries are multidimensional aggregates at some level

So what are the challenges? We have a paradox or a contradiction here. OK we manage to

assemble a very large team of dedicated programmers, with an excellent project manager and all

sit and plan to write all queries in advance. Can we do that? The answer is a resounding NO. The

reason being, since even the user dose not knows the queries in advance, and consequently the

programmers also do not know the queries in advance, so how can the queries be written in

advance? It is just no possible.

So what is the solution then? We need a paradigm shift from the way we have been thinking. In a

decision support environment, we are looking at the big picture; we are interested in all sales

figures across a time interval or at a particular time interval, but not for a particular person. So the

solution lies in computing all possible aggregates, which would then correspond to all possible

queries. Over here a query is a multidimensional aggregate at a certain level of the hierarchy of

the business.

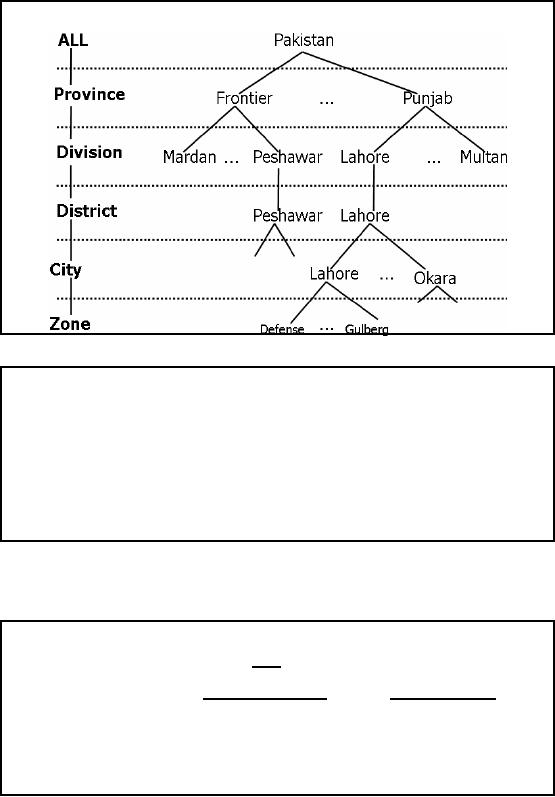

To understand this concept, let's look at Figure -10.2 that shows multiple levels or hierarchies of

geographies. Pakistan is logically divided into provinces, and each province is administratively

divided into divisions, each division is divided into districts and within districts are cities.

Consider a chain store, with outlets in major cities of Pakistan, with large cities such as Karachi

and Lahore having multiple outlets, which you may have observed also. Now the sales actually

take place at the business outlet which could be in a zone, such as Defense and Gulberg in our

example, of course there may be many more stores in a city, as already discussed.

"All" possible queries (level aggregates)

Figure-10.2: Hierarchies in data

OLAP: Facts & Dimensions

FACTS: Quantitative values (numbers) or "measures."

§ e.g., units sold, sales $, Co, Kg etc.

DIMENSIONS: Descriptive categories.

§ e.g., time, geography, product etc.

DIM often organized in hierarchies representing levels of detail in the data (e.g.,

week, month, quarter, year, decade etc.).

The foundation for design in this environment is through use of dimensional modeling techniques

which focus on the concepts of "facts" and "dimensions" for organizing data. Facts are the

quantities, numbers that can be aggregated (e.g., sales $, units sold etc.) that we measure and

dimensions are how we filter/report on the quantities (e.g., by geography, product, date, etc.). We

will discuss in detail, actually have number of lectures on dimensional modeling techniques.

Where Does OLAP Fit In?

It is a classification of applications, NOT a database design technique.

Analytical processing uses multi-level aggregates, instead of record level access.

Objective is to support very

(i) fast

(ii) iterative and

(iii) ad-hoc decision-making.

OLAP is a characterization of applications. It is NOT a database design technique. People often

confuse OLAP with specific physical design techniques or data structure. This is a mistake.

OLAP is a characterization of the application domain centered around slice-and-dice and drill

down analysis. As we will see, there are many possible implementations capable of delivering

OLAP characteristics. Depending on data size, performance requirements, cost constraints, etc.

the specific implementation technique will vary.

Where does OLAP fit in?

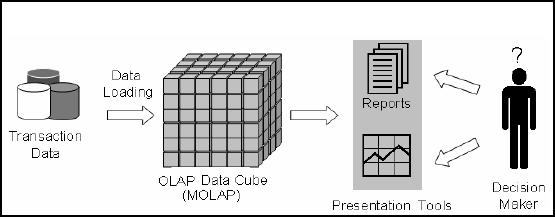

Figure-10.3: How does OLAP pi eces fir together

Figure -10.3 shows that using the transactional databases (after Extract Transform Load) OLAP

data cubes are generated. Over here multidimensional cube is shown i.e. a MOLAP cube. Data

retrieved as a consequence of exploring the MOLAP cub e is then used as a source to generate

reports or charts etc. Actually in typical MOLAP environments, the results are displayed as

tables, along with different types of charts, such as histogram, pie etc.

OLTP vs. OLAP

Feature

OLTP

OLAP

Level of data

Detailed

Aggregated

Amount of data retrieved per

Small

Large

transaction

Views

Pre-defined

User-defined

Typical write operation

Update, insert, delete

Bulk insert, almost no

deletion

"age" of data

Current (60-90 days)

Historical 5-10 years and

also current

Tables

Flat tables

Multi-Dimensional tables

Number of users

Large

Low-Med

Data availability

High (24 hrs, 7 days)

Low-Med

Database size

Med (GB- TB)

High (TB PB)

Query Optimizing

Requires experience

Already "optimized"

Table-10.1: Difference between OLTP and OLAP

The table summarizes the fundamental differences between traditional OLTP systems and typical

OLAP applications. In OLTP operations the user changes the database via transactions on

detailed data. A typical transaction in a banking environment may transfer money from one

account to another account. In OLAP applications the typical user is an analyst who is interested

in selecting data needed for decision support. He/She is primarily not interested in detailed dat a,

but usually in aggregated data over large sets of data as it gives the big picture. A typical OLAP

query is to find the average amount of money drawn from ATM by those customers who are

male, and of age between 15 and 25 years from (say) Jinnah Super Market Islamabad after 8 pm.

For this kind of query there are no DML operations and the DBMS contents do not change.

OLAP FASMI Test

Fast: Delivers information to the user at a fairly constant rate i.e. O(1) time. Most queries

answered in under 5 seconds.

Analysis: Performs basic numerical and statistical analysis of the data, pre -defined by an

application developer or defined ad-hocly by the user.

Shared: Implements the security requirements necessary for sharing potentially confidential data

across a large user population.

Multi-dimensional: The essential characteristic of OLAP.

Information: Accesses all the data and information necessary and relevant for the application,

wherever it may reside and not limited by volume.

FAST means that the system is targeted to deliver response to moat of the end user queries under

5 seconds, with the simplest analyses taking no more than a second and very few queries taking

more than 20 seconds (for various reasons to be discussed). Because if the queries take

significantly longer time, the thought process is broken, as users are likely to get distracted,

consequently the quality of analysis suffers. This speed is not easy to achieve with large amounts

of data, particularly if on -the -go and ad-hoc complex calculations are required.

ANALYSIS means that the system is capable of doing any business logic and statistical analysis,

which is applicable for the application and to the user, and also keeps it easy enough for the user

i.e. at the point -and-click level. It is absolutely necessary to allow the target user to define and

execute new ad hoc calculations/queries as part of the analysis and to view the results of the data

in any desired way/format, without having to do any programming.

SHARED means that the system is not supposed to be a stand-alone system, and should

implement all the security requirements for confidentiality (possibly down to cell level) for a

multi-user environment. The other point is kind of contradiction of the point discussed earlier i.e.

writing back. If multiple DML operations are needed to be performed, concurrent update locking

should be executed at an appropriate level. It is true that not all applications require users to write

data back, but it is true for a considerable majority.

MULTIDIMENSIONAL is the key requirement to the letter and at the heart of the cube concept

of OLAP. The system must provide a multidimensional logical view of the aggregated data,

including full support for hierarchies and multiple hierarchies, as this is certainly the most logical

way to analyze organizations and businesses. There is no "magical" minimum number of

dimensions that must be handled as it is too application specific.

INFORMATION is all of the data and derived information required, wherever it is and however

much is relevant for the application. The objective over here is to ascertain the capacity of various

products in terms of how much input data they can handle and process, instead of how many

Gigabytes of raw data they can store. There are many considerations here, including data

duplication, Main Memory required, performance, disk space utilization, integration with data

warehouses etc.

Table of Contents:
