Bit Manipulations

4.1. MULTIPLICATION ALGORITHM

With the important capability of decision making in our repertoire we move

on to the discussion of an algorithm, which will help us uncover an

important set of instructions in our processor used for bit manipulations.

Multiplication is a common process that we use, and we were trained to do

in early schooling. Remember multiplying by a digit and then putting a cross

and then multiplying with the next digit and putting two crosses and so on

and summing the intermediate results in the end. Very familiar process but

we never saw the process as an algorithm, and we need to see it as an

algorithm to convey it to the processor.

To highlight the important thing in the algorithm we revise it on two 4bit

binary numbers. The numbers are 1101 i.e. 13 and 0101 i.e. 5. The answer

should be 65 or in binary 01000001. Observe that the answer is twice as

long as the multiplier and the multiplicand. The multiplication is shown in

the following figure.

1101 = 13

0101 = 5

-----

1101

0000x

1101xx

0000xxx

--------

01000001 = 65

We take the first digit of the multiplier and multiply it with the

multiplicand. As the digit is one the answer is the multiplicand itself. So we

place the multiplicand below the bar. Before multiplying with the next digit a

cross is placed at the right most place on the next line and the result is

placed shifted one digit left. However since the digit is zero, the result is zero.

Next digit is one, multiplying with which, the answer is 1101. We put two

crosses on the next line at the right most positions and place the result there

shifted two places to the left. The fourth digit is zero, so the answer 0000 is

placed with three crosses to its right.

Observe the beauty of binary base, as no real multiplication is needed at

the digit level. If the digit is 0 the answer is 0 and if the digit is 1 the answer

is the multiplicand itself. Also observe that for every next digit in the

multiplier the answer is written shifted one more place to the left. No shifting

for the first digit, once for the second, twice for the third and thrice for the

fourth one. Adding all the intermediate answers the result is 01000001=65

as desired. Crosses are treated as zero in this addition.

Before formulating the algorithm for this problem, we need some more

instructions that can shift a number so that we use this instruction for our

multiplicand shifting and also some way to check the bits of the multiplier

one by one.

4.2. SHIFTING AND ROTATIONS

The set of shifting and rotation instructions is one of the most useful set in

any processor's instruction set. They simplify really complex tasks to a very

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

neat and concise algorithm. The following shifting and rotation operations

are available in our processor.

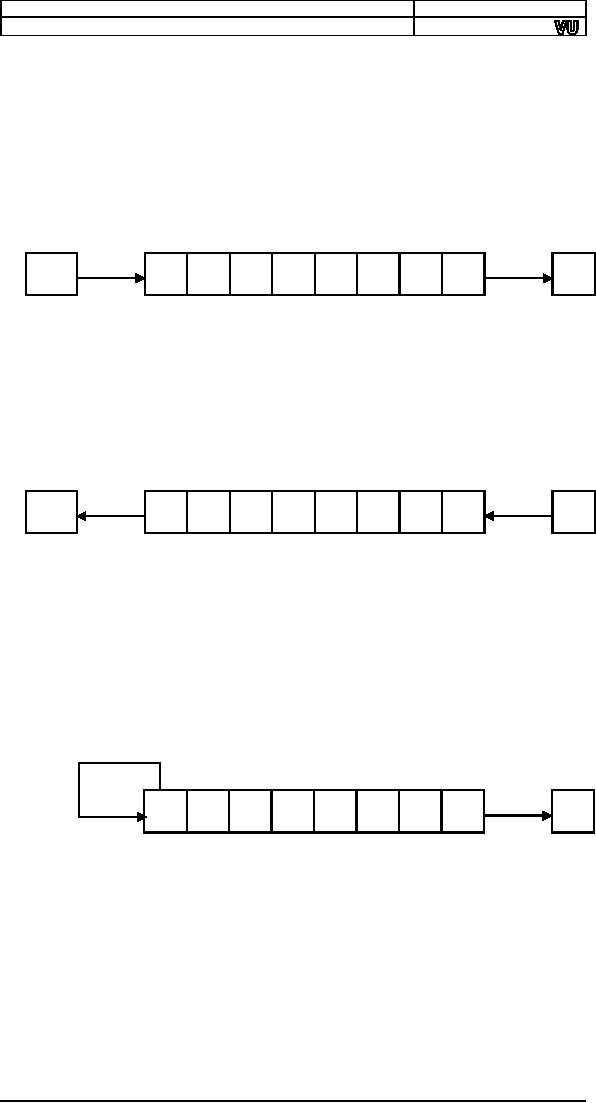

Shift Logical Right (SHR)

The shift logical right operation inserts a zero from the left and moves

every bit one position to the right and copies the rightmost bit in the carry

flag. Imagine that there is a pipe filled to capacity with eight balls. The pipe is

open from both ends and there is a basket at the right end to hold anything

dropping from there. The operation of shift logical right is to force a white

ball from the left end. The operation is depicted in the following illustration.

White balls represent zero bits while black balls represent one bits. Sixteen

bit shifting is done the same way with a pipe of double capacity.

Shift Logical Left (SHL) / Shift Arithmetic Left (SAL)

The shift logical left operation is the exact opposite of shift logical right. In

this operation the zero bit is inserted from the right and every bit moves one

position to its left with the most significant bit dropping into the carry flag.

Shift arithmetic left is just another name for shift logical left. The operation is

again exemplified with the following illustration of ball and pipes.

Shift Arithmetic Right (SAR)

A signed number holds the sign in its most significant bit. If this bit was

one a logical right shifting will change the sign of this number because of

insertion of a zero from the left. The sign of a signed number should not

change because of shifting.

The operation of shift arithmetic right is therefore to shift every bit one

place to the right with a copy of the most significant bit left at the most

significant place. The bit dropped from the right is caught in the carry

basket. The sign bit is retained in this operation. The operation is further

illustrated below.

The left shifting operation is basically multiplication by 2 while the right

shifting operation is division by two. However for signed numbers division by

two can be accomplished by using shift arithmetic right and not shift logical

right. The left shift operation is equivalent to multiplication except when an

important bit is dropped from the left. The overflow flag will signal this

condition if it occurs and can be checked with JO. For division by 2 of a

signed number logical right shifting will give a wrong answer for a negative

number as the zero inserted from the left will change its sign. To retain the

sign flag and still effectively divide by two the shift arithmetic right

instruction must be used on signed numbers.

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

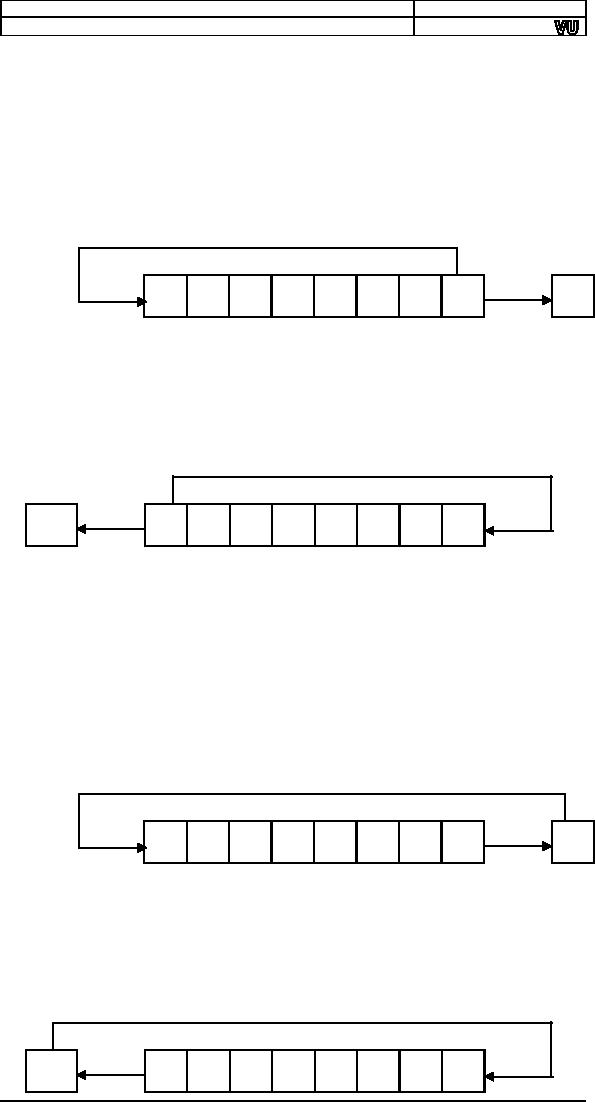

Rotate Right (ROR)

In the rotate right operation every bit moves one position to the right and

the bit dropped from the right is inserted at the left. This bit is also copied

into the carry flag. The operation can be understood by imagining that the

pipe used for shifting has been molded such that both ends coincide. Now

when the first ball is forced to move forward, every ball moves one step

forward with the last ball entering the pipe from its other end occupying the

first ball's old position. The carry basket takes a snapshot of this ball leaving

one end of the pipe and entering from the other.

Rotate Left (ROL)

In the operation of rotate left instruction, the most significant bit is copied

to the carry flag and is inserted from the right, causing every bit to move one

position to the left. It is the reverse of the rotate right instruction. Rotation

can be of eight or sixteen bits. The following illustration will make the

concept clear using the same pipe and balls example.

Rotate Through Carry Right (RCR)

In the rotate through carry right instruction, the carry flag is inserted from

the left, every bit moves one position to the right, and the right most bit is

dropped in the carry flag. Effectively this is a nine bit or a seventeen bit

rotation instead of the eight or sixteen bit rotation as in the case of simple

rotations.

Imagine the circular molded pipe as used in the simple rotations but this

time the carry position is part of the circle between the two ends of the pipe.

Pushing the carry ball from the left causes every ball to move one step to its

right and the right most bit occupying the carry place. The idea is further

illustrated below.

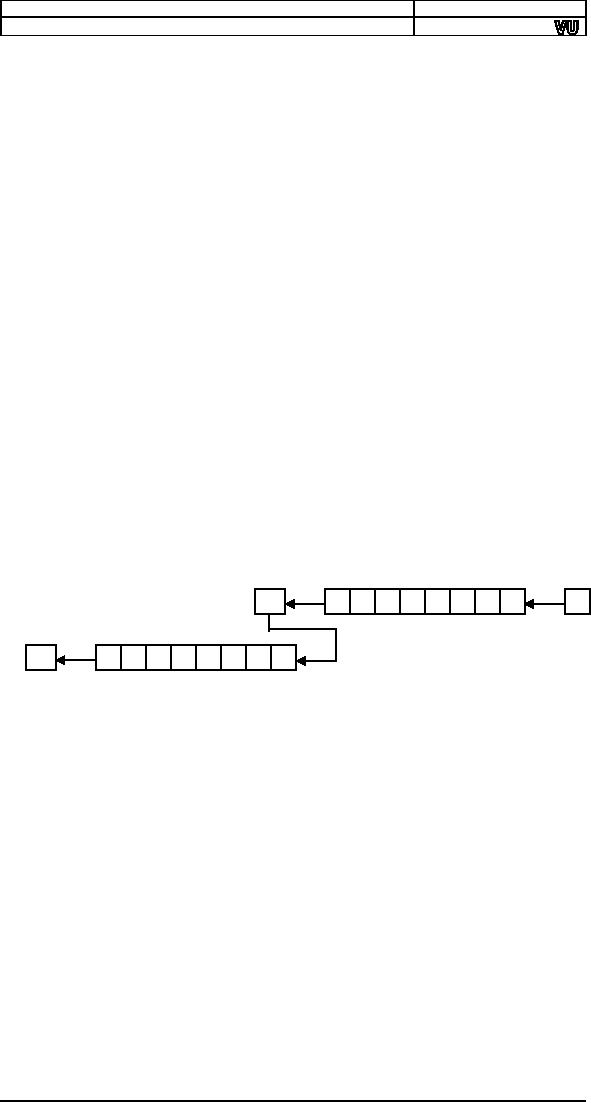

Rotate Through Carry Left (RCL)

The exact opposite of rotate through carry right instruction is the rotate

through carry left instruction. In its operation the carry flag is inserted from

the right causing every bit to move one location to its left and the most

significant bit occupying the carry flag. The concept is illustrated below in

the same manner as in the last example.

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

4.3. MULTIPLICATION IN ASSEMBLY LANGUAGE

In the multiplication algorithm discussed above we revised the way we

multiplied number in lower classes, and gave an example of that method on

binary numbers. We make a simple modification to the traditional algorithm

before we proceed to formulate it in assembly language.

In the traditional algorithm we calculate all intermediate answers and then

sum them to get the final answer. If we add every intermediate answer to

accumulate the result, the result will be same in the end, except that we do

not have to remember a lot of intermediate answers during the whole

multiplication. The multiplication with the new algorithm is shown below.

1101 =

Accumulated Result

0101 =

-----

0 (Initial Value)

1101 =

0 + 13

0000x =

13 + 0

1101xx =

13 + 52

0000xxx =

65 + 0

65 (Answer)

We try to identify steps of our algorithm. First we set the result to zero.

Then we check the right most bit of multiplier. If it is one add the

multiplicand to the result, and if it is zero perform no addition. Left shift the

multiplicand before the next bit of multiplier is tested. The left shifting of the

multiplicand is performed regardless of the value of the multiplier's right

most bit. Just like the crosses in traditional multiplication are always placed

to mark the ones, tens, thousands, etc. places. Then check the next bit and if

it is one add the shifted value of the multiplicand to the result. Repeat for as

many digits as there are in the multiplier, 4 in our example. Formulating the

steps of the algorithm we get:

· Shift the multiplier to the right.

· If CF=1 add the multiplicand to the result.

· Shift the multiplicand to the right.

· Repeat the algorithm 4 times.

For an 8bit multiplication the algorithm will be repeated 8 times and for a

sixteen bit multiplication it will be repeated 16 times, whatever the size of the

multiplier is.

The algorithm uses the fact that shifting right forces the right most bit to

drop in the carry flag. If we test the carry flag using JC we are effectively

testing the right most bit of the multiplier. Another shifting will cause the

next bit to drop in the next iteration and so on. So our task of checking bits

one by one is satisfied using the shift operation. There are many other

methods to do this bit testing as well, however we exemplify one of the

methods in this example.

In the first iteration there is no shifting just like there is no cross in

traditional multiplication in the first pass. Therefore we placed the left

shifting of the multiplicand after the addition step. However the right shifting

of multiplier must be before the addition as the addition step's execution

depends upon its result.

We introduce an assembly language program to perform this 4bit

multiplication. The algorithm is extensible to more bits but there are a few

complications, which are left to be discussed later. For now we do a 4bit

multiplication to keep the algorithm simple.

Example 4.1

; 4bit multiplication algorithm

[org 0x100]

jmp start

multiplicand: db

; 4bit multiplicand (8bit space)

multiplier:

; 4bit multiplier

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

result:

; 8bit result

start:

mov

cl, 4

; initialize bit count to four

mov

bl, [multiplicand] ; load multiplicand in bl

mov

dl, [multiplier]

; load multiplier in dl

checkbit:

shr

dl, 1

; move right most bit in carry

jnc

skip

; skip addition if bit is zero

add

[result], bl

; accumulate result

skip:

shl

bl, 1

; shift multiplicand left

dec

; decrement bit count

jnz

checkbit

; repeat if bits left

mov

ax, 0x4c00

; terminate program

int

0x21

The numbers to be multiplied are constants for now. The

04-06

multiplication is four bit so the answer is stored in an 8bit register.

If the operands were 8bit the answer would be 16bit and if the

operands were 16bit the answer would be 32bit. Since eight bits can

fit in a byte we have used 4bit multiplication as our first example.

Since addition by zero means nothing we skip the addition step if

14-16

the rightmost bit of the multiplier is zero. If the jump is not taken

the shifted value of the multiplicand is added to the result.

The multiplicand is left shifted in every iteration regardless of the

multiplier bit.

DEC is a new instruction but its operation should be immediately

understandable with the knowledge gained till now. It simply

subtracts one from its single operand.

The JNZ instruction causes the algorithm to repeat till any bits of

the multiplier are left

Inside the debugger observe the working of the SHR and SHL instructions.

The SHR instruction is effectively dividing its operand by two and the

remainder is stored in the carry flag from where we test it. The SHL

instruction is multiplying its operand by two so that it is added at one place

more towards the left in the result.

4.4. EXTENDED OPERATIONS

We performed a 4bit multiplication to explain the algorithm however the

real advantage of the computer is when we ask it to multiply large numbers,

Numbers whose multiplication takes real time. If we have an 8bit number we

can do the multiplication in word registers, but are we limited to word

operations? What if we want to multiply 32bit or even larger numbers? We

are certainly not limited. Assembly language only provides us the basic

building blocks. We build a plaza out of these blocks, or a building, or a

classic piece of architecture is only dependant upon our imagination. With

our logic we can extend these algorithms as much as we want.

Our next example will be multiplication of 16bit numbers to produce a

32bit answer. However for a 32bit answer we need a way to shift a 32bit

number and a way to add 32bit numbers. We cannot depend on 16bit

shifting as we have 16 significant bits in our multiplicand and shifting any

bit towards the left may drop a valuable bit causing a totally wrong result. A

valuable bit means any bit that is one. Dropping a zero bit doesn't cause any

difference. So we place the 16it number in 32bit space with the upper 16 bits

zeroed so that the sixteen shift operations don't cause any valuable bit to

drop. Even though the numbers were 16bit we need 32bit operations to

multiply correctly.

To clarify this necessity, we take example of a number 40000 or 9C40 in

hexadecimal. In binary it is represented as 1001110001000000. To multiply

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

by two we shift it one place to the left. The answer we get is

0011100010000000 and the left most one is dropped in the carry flag. The

answer should be the 17bit number 0x13880 but it is 0x3880, which are

14464 in decimal instead of the expected 80000. We should be careful of this

situation whenever shifting is used.

Extended Shifting

Using our basic shifting and rotation instructions we can effectively shift a

32bit number in memory word by word. We cannot shift the whole number

at once since our architecture is limited to word operations. The algorithm

we use consists of just two instructions and we name it extended shifting.

num1:

40000

shl

word [num1], 1

rcl

word [num1+2], 1

The DD directive reserves a 32bit space in memory, however the value we

placed there will fit in 16bits. So we can safely shift the number left 16 times.

The least significant word is accessible at num1 and the most significant

word is accessible at num1+2.

The two instructions are carefully crafted such that the first one shifts the

lower word towards the left and the most significant bit of that word is

dropped in carry. With the next instruction we push that dropped bit into the

least significant bit of the next word effectively joining the two 16bit words.

The final carry after the second instruction will be the most significant bit of

the higher word, which for this number will always be zero.

The following illustration will clarify the concept. The pipe on the right

contains the lower half and the pipe on the left contains the upper half. The

first instruction forced a zero from the right into the lower half and the left

most bit is saved in carry, and from there it is pushed into the upper half

and the upper half is shifted as well.

10110100

Step 1

Step 2

10110100

For shifting right the exact opposite is done however care must be taken to

shift right the upper half first and then rotate through carry right the lower

half for obvious reasons. The instructions to do this are.

num1:

40000

shr

word [num1+2], 1

rcr

word [num1], 1

The same logic has worked. The shift placed the least significant bit of the

upper half in the carry flag and it was pushed from right into the lower half.

For a singed shift we would have used the shift arithmetic right instruction

instead of the shift logical right instruction.

The extension we have done is not limited to 32bits. We can shift a number

of any size say 1024 bits. The second instruction will be repeated a number

of times and we can achieve the desired effect. Using two simple instructions

we have increased the capability of the operation to effectively an unlimited

number of bits. The actual limit is the available memory as even the segment

limit can be catered with a little thought.

Extended Addition and Subtraction

We also needed 32bit addition for multiplication of 16bit numbers. The

idea of extension is same here. However we need to introduce a new

instruction at this place. The instruction is ADC or "add with carry." Normal

addition has two operands and the second operand is added to the first

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

operand. However ADC has three operands. The third implied operand is the

carry flag. The ADC instruction is specifically placed for extending the

capability of ADD. Numbers of any size can be added using a proper

combination of ADD and ADC. All basic building blocks are provided for the

assembly language programmer, and the programmer can extend its

capabilities as much as needed by using these fine instructions in

appropriate combinations.

Further clarifying the operation of ADC, consider an instruction "ADC AX,

BX." Normal addition would have just added BX to AX, however ADC first

adds the carry flag to AX and then adds BX to AX. Therefore the last carry is

also included in the result.

The algorithm should be apparent by now. The lower halves of the two

numbers to be added are first added with a normal addition. For the upper

halves a normal addition would lose track of a possible carry from the lower

halves and the answer would be wrong. If a carry was generated it should go

to the upper half. Therefore the upper halves are added with an addition with

carry instruction.

Since one operand must be in register, ax is used to read the lower and

upper halves of the source one by one. The destination is directly updated.

The set of instructions goes here.

dest:

40000

src:

80000

mov

ax, [src]

add

word [dest], ax

mov

ax, [src+2]

adc

word [dest+2], ax

To further extend it more addition with carries will be used. However the

carry from last addition will be wasted as there will always be a size limit

where the results and the numbers are stored. This carry will remain in the

carry flag to be tested for a possible overflow.

For subtraction the same logic will be used and just like addition with

carry there is an instruction to subtract with borrows called SBB. Borrow in

the name means the carry flag and is used just for clarity. Or we can say

that the carry flag holds the carry for addition instructions and the borrow

for subtraction instructions. Also the carry is generated at the 17th bit and

the borrow is also taken from the 17th bit. Also there is no single instruction

that needs borrow and carry in their independent meanings at the same

time. Therefore it is logical to use the same flag for both tasks.

We extend subtraction with a very similar algorithm. The lower halves

must be subtracted normally while the upper halves must be subtracted with

a subtract with borrow instruction so that if the lower halves needed a

borrow, a one is subtracted from the upper halves. The algorithm is as

under.

dest:

40000

src:

80000

mov

ax, [src]

sub

word [dest], ax

mov

ax, [src+2]

sbb

word [dest+2], ax

Extended Multiplication

We use extended shifting and extended addition to formulate our algorithm

to do extended multiplication. The multiplier is still stored in 16bits since we

only need to check its bits one by one. The multiplicand however cannot be

stored in 16bits otherwise on left shifting its significant bits might get lost.

Therefore it has to be stored in 32bits and the shifting and addition used to

accumulate the result must be 32bits as well.

Example 4.2

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

; 16bit multiplication

[org 0x0100]

jmp start

multiplicand: dd

1300

; 16bit multiplicand 32bit space

multiplier:

500

; 16bit multiplier

result:

; 32bit result

start:

mov

cl, 16

; initialize bit count to 16

mov

dx, [multiplier]

; load multiplier in dx

checkbit:

shr

dx, 1

; move right most bit in carry

jnc

skip

; skip addition if bit is zero

mov

ax, [multiplicand]

add

[result], ax

; add less significant word

mov

ax, [multiplicand+2]

adc

[result+2], ax

; add more significant word

skip:

shl

word [multiplicand], 1

rcl

word [multiplicand+2], 1 ; shift multiplicand left

dec

; decrement bit count

jnz

checkbit

; repeat if bits left

mov

ax, 0x4c00

; terminate program

int

0x21

The multiplicand and the multiplier are stored in 32bit space while

05-07

the multiplier is stored as a word.

The multiplier is loaded in DX where it will be shifted bit by bit. It

can be directly shifted in memory as well.

15-18

The multiplicand is added to the result using extended 32bit

addition.

20-21

The multiplicand is shifted left as a 32bit number using extended

shifting operation.

The multiplicand will occupy the space from 0103-0106, the multiplier will

occupy space from 0107-0108 and the result will occupy the space from

0109-010C. Inside the debugger observe the changes in these memory

locations during the course of the algorithm. The extended shifting and

addition operations provide the same effect as would be provided if there

were 32bit addition and shifting operations available in the instruction set.

At the end of the algorithm the result memory locations contain the value

0009EB10 which is 65000 in decimal; the desired answer. Also observe that

the number 00000514 which is 1300 in decimal, our multiplicand, has

become 05140000 after being left shifted 16 times. Our extended shifting has

given the same result as if a 32bit number is left shifted 16 times as a unit.

There are many other important applications of the shifting and rotation

operations in addition to this example of the multiplication algorithm. More

examples will come in coming chapters.

4.5. BITWISE LOGICAL OPERATIONS

The 8088 processor provides us with a few logical operations that operate

at the bit level. The logical operations are the same as discussed in computer

logic design; however our perspective will be a little different. The four basic

operations are AND, OR, XOR, and NOT.

The important thing about these operations is that they are bitwise. This

means that if "and ax, bx" instruction is given, then the operation of AND is

applied on corresponding bits of AX and BX. There are 16 AND operations as

a result; one for every bit of AX. Bit 0 of AX will be set if both its original

value and Bit 0 of BX are set, bit 1 will be set if both its original value and

Bit 1 of BX are set, and so on for the remaining bits. These operations are

conducted in parallel on the sixteen bits. Similarly the operations of other

logical operations are bitwise as well.

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

AND operation

AND performs the logical bitwise and of the two

X and Y

operands (byte or word) and returns the result to the

destination operand. A bit in the result is set if both

corresponding bits of the original operands are set;

otherwise the bit is cleared as shown in the truth table.

Examples are "and ax, bx" and "and byte [mem], 5." All

possibilities that are legal for addition are also legal for the AND operation.

The different thing is the bitwise behavior of this operation.

OR operation

OR performs the logical bitwise "inclusive or" of the two

X or Y

operands (byte or word) and returns the result to the

destination operand. A bit in the result is set if either or

both corresponding bits in the original operands are set

otherwise the result bit is cleared as shown in the truth

table. Examples are "or ax, bx" and "or byte [mem], 5."

XOR operation

XOR (Exclusive Or) performs the logical bitwise

X xor Y

"exclusive or" of the two operands and returns the result

to the destination operand. A bit in the result is set if the

corresponding bits of the original operands contain

opposite values (one is set, the other is cleared) otherwise

the result bit is cleared as shown in the truth table. XOR

is a very important operation due to the property that it is a reversible

operation. It is used in many cryptography algorithms, image processing, and

in drawing operations. Examples are "xor ax, bx" and "xor byte [mem], 5."

NOT operation

NOT inverts the bits (forms the one's complement) of the byte or word

operand. Unlike the other logical operations, this is a single operand

instruction, and is not purely a logical operation in the sense the others are,

but it is still traditionally counted in the same set. Examples are "not ax" and

"not byte [mem], 5."

4.6. MASKING OPERATIONS

Selective Bit Clearing

Another use of AND is to make selective bits zero in its destination

operand. The source operand is loaded with a mask containing one at

positions which are retain their old value and zero at positions which are to

be zeroed. The effect of applying this operation on the destination with mask

in the source is to clear the desired bits. This operation is called masking.

For example if the lower nibble is to be cleared then the operation can be

applied with F0 in the source. The upper nibble will retain its old value and

the lower nibble will be cleared.

Selective Bit Setting

The operation can be used as a masking operation to set selective bits. The

bits in the mask are cleared at positions which are to retain their values, and

are set at positions which are to be set. For example to set the lower nibble of

the destination operand, the operation should be applied with a mask of 0F

in the source. The upper nibble will retain its value and the lower nibble will

be set as a result.

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

Selective Bit Inversion

XOR can also be used as a masking operation to invert selective bits. The

bits in the mask are cleared at positions, which are to retain their values,

and are set at positions, which are to be inverted. For example to invert the

lower nibble of the destination operand, the operand should be applied with

a mask of 0F in the source. The upper nibble will retain its value and the

lower nibble will be set as a result. Compare this with NOT which inverts

everything. XOR on the other hand allows inverting selective bits.

Selective Bit Testing

AND can be used to check whether particular bits of a number are set or

not. Previously we used shifting and JC to test bits one by one. Now we

introduce another way to test bits, which is more powerful in the sense that

any bit can be tested anytime and not necessarily in order. AND can be

applied on a destination with a 1-bit in the desired position and a source,

which is to be checked. If the destination is zero as a result, which can be

checked with a JZ instruction, the bit at the desired position in the source

was clear.

However the AND operation destroys the destination mask, which might be

needed later as well. Therefore Intel provided us with another instruction

analogous to CMP, which is non-destructive subtraction. This is the TEST

instruction and is a non-destructive AND operation. It doesn't change the

destination and only sets the flags according to the AND operation. By

checking the flags, we can see if the desired bit was set or cleared.

We change our multiplication algorithm to use selective bit testing instead

of checking bits one by one using the shifting operations.

Example 4.3

; 16bit multiplication using test for bit testing

[org 0x0100]

jmp start

multiplicand: dd

1300

; 16bit multiplicand 32bit space

multiplier:

500

; 16bit multiplier

result:

; 32bit result

start:

mov

cl, 16

; initialize bit count to 16

mov

bx, 1

; initialize bit mask

checkbit:

test bx, [multiplier]

; move right most bit in carry

skip

; skip addition if bit is zero

mov

ax, [multiplicand]

add

[result], ax

; add less significant word

mov

ax, [multiplicand+2]

adc

[result+2], ax

; add more significant word

skip:

shl

word [multiplicand], 1

rcl

word [multiplicand+2], 1 ; shift multiplicand left

shl

bx, 1

; shift mask towards next bit

dec

; decrement bit count

jnz

checkbit

; repeat if bits left

mov

ax, 0x4c00

; terminate program

int

0x21

The test instruction is used for bit testing. BX holds the mask and in

every next iteration it is shifting left, as our concerned bit is now the

next bit.

22-24

We can do without counting in this example. We can stop as soon as

our mask in BX becomes zero. These are the small tricks that

assembly allows us to do and optimize our code as a result.

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

Inside the debugger observe that both the memory location and the mask in

BX do not change as a result of TEST instruction. Also observe how our

mask is shifting towards the left so that the next TEST instruction tests the

next bit. In the end we get the same result of 0009EB10 as in the previous

example.

EXERCISES

1. Write a program to swap every pair of bits in the AX register.

2. Give the value of the AX register and the carry flag after each of the

following instructions.

stc

mov

ax, <your rollnumber>

adc

ah, <first character of your name>

cmc

xor

ah,

mov

cl,

shr

al,

rcr

ah,

3. Write a program to swap the nibbles in each byte of the AX register.

4. Calculate the number of one bits in BX and complement an equal

number of least significant bits in AX.

HINT: Use the XOR instruction

5. Write a program to multiply two 32bit numbers and store the answer

in a 64bit location.

6. Declare a 32byte buffer containing random data. Consider for this

problem that the bits in these 32 bytes are numbered from 0 to 255.

Declare another byte that contains the starting bit number. Write a

program to copy the byte starting at this starting bit number in the AX

of 8 and therefore the bits of the desired byte will be split into two

bytes.

7. AX contains a number between 0-15. Write code to complement the

corresponding bit in BX. For example if AX contains 6; complement the

6th bit of BX.

8. AX contains a non-zero number. Count the number of ones in it and

store the result back in AX. Repeat the process on the result (AX) until

AX contains one. Calculate in BX the number of iterations it took to

make AX one. For example BX should contain 2 in the following case:

AX = 1100 0101 1010 0011 (input 8 ones)

AX = 0000 0000 0000 1000 (after first iteration 1 one)

AX = 0000 0000 0000 0001 (after second iteration 1 one) STOP

Table of Contents:
