Introduction to Assembly

Language

1.1. BASIC COMPUTER ARCHITECTURE

Address, Data, and Control Buses

A computer system comprises of a processor, memory, and I/O devices.

I/O is used for interfacing with the external world, while memory is the

processor's internal world. Processor is the core in this picture and is

responsible for performing operations. The operation of a computer can be

fairly described with processor and memory only. I/O will be discussed in a

later part of the course. Now the whole working of the computer is

performing an operation by the processor on data, which resides in memory.

The scenario that the processor executes operations and the memory

contains data elements requires a mechanism for the processor to read that

data from the memory. "That data" in the previous sentence much be

rigorously explained to the memory which is a dumb device. Just like a

postman, who must be told the precise address on the letter, to inform him

where the destination is located. Another significant point is that if we only

want to read the data and not write it, then there must be a mechanism to

inform the memory that we are interested in reading data and not writing it.

Key points in the above discussion are:

· There must be a mechanism to inform memory that we want to do the

read operation

· There must be a mechanism to inform memory that we want to read

precisely which element

· There must be a mechanism to transfer that data element from

memory to processor

The group of bits that the processor uses to inform the memory about

which element to read or write is collectively known as the address bus.

Another important bus called the data bus is used to move the data from the

memory to the processor in a read operation and from the processor to the

memory in a write operation. The third group consists of miscellaneous

independent lines used for control purposes. For example, one line of the bus

is used to inform the memory about whether to do the read operation or the

write operation. These lines are collectively known as the control bus.

These three buses are the eyes, nose, and ears of the processor. It uses

them in a synchronized manner to perform a meaningful operation. Although

the programmer specifies the meaningful operation, but to fulfill it the

processor needs the collaboration of other units and peripherals. And that

collaboration is made available using the three buses. This is the very basic

description of a computer and it can be extended on the same lines to I/O

but we are leaving it out just for simplicity for the moment.

The address bus is unidirectional and address always travels from

processor to memory. This is because memory is a dumb device and cannot

predict which element the processor at a particular instant of time needs.

Data moves from both, processor to memory and memory to processor, so

the data bus is bidirectional. Control bus is special and relatively complex,

because different lines comprising it behave differently. Some take

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

information from the processor to a peripheral and some take information

from the peripheral to the processor. There can be certain events outside the

processor that are of its interest. To bring information about these events the

data bus cannot be used as it is owned by the processor and will only be

used when the processor grants permission to use it. Therefore certain

processors provide control lines to bring such information to processor's

notice in the control bus. Knowing these signals in detail is unnecessary but

the general idea of the control bus must be conceived in full.

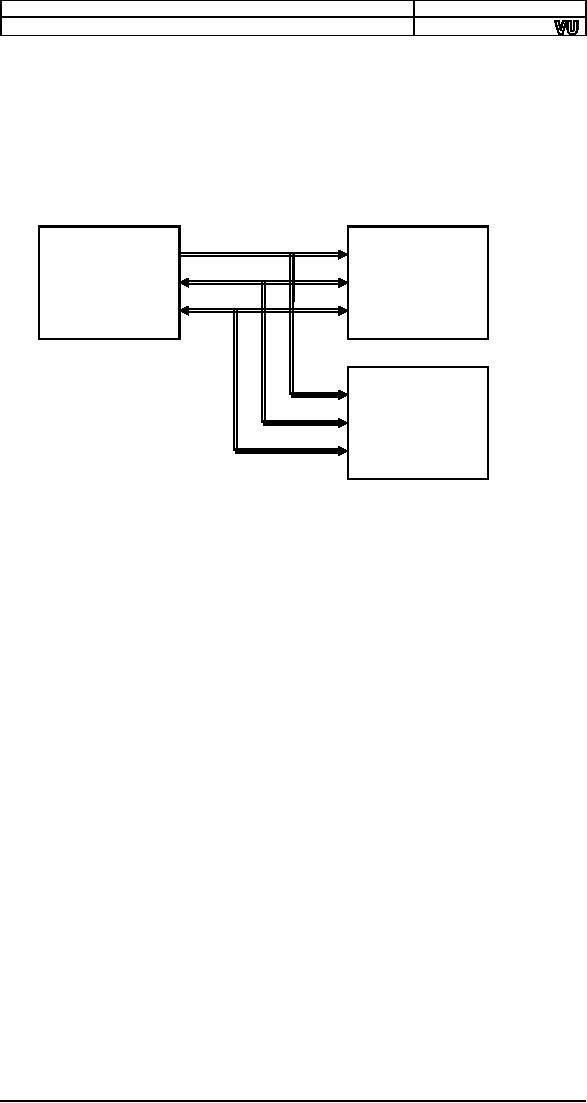

PROCESSOR

MEMORY

PERIPHERALS

We take an example to explain the collaboration of the processor and

memory using the address, control, and data buses. Consider that you want

your uneducated servant to bring a book from the shelf. You order him to

bring the fifth book from top of the shelf. All the data movement operations

are hidden in this one sentence. Such a simple everyday phenomenon seen

from this perspective explains the seemingly complex working of the three

buses. We told the servant to "bring a book" and the one which is "fifth from

top," precise location even for the servant who is much more intelligent then

our dumb memory. The dumb servant follows the steps one by one and the

book is in your hand as a result. If however you just asked him for a book or

you named the book, your uneducated servant will stand there gazing at you

and the book will never come in your hand.

Even in this simplest of all examples, mathematics is there, "fifth from

top." Without a number the servant would not be able to locate the book. He

is unable to understand your will. Then you tell him to put it with the

seventh book on the right shelf. Precision is involved and only numbers are

precise in this world. One will always be one and two will always be two. So

we tell in the form of a number on the address bus which cell is needed out

of say the 2000 cells in the whole memory.

A binary number is generated on the address bus, fifth, seventh, eighth,

tenth; the cell which is needed. So the cell number is placed on the address

bus. A memory cell is an n-bit location to store data, normally 8-bit also

called a byte. The number of bits in a cell is called the cell width. The two

dimensions, cell width and number of cells, define the memory completely

just like the width and depth of a well defines it completely. 200 feet deep by

15 feet wide and the well is completely described. Similarly for memory we

define two dimensions. The first dimension defines how many parallel bits

are there in a single memory cell. The memory is called 8-bit or 16-bit for

this reason and this is also the word size of the memory. This need not

match the size of a processor word which has other parameters to define it.

In general the memory cell cannot be wider than the width of the data bus.

Best and simplest operation requires the same size of data bus and memory

cell width.

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

As we previously discussed that the control bus carries the intent of the

processor that it wants to read or to write. Memory changes its behavior in

response to this signal from the processor. It defines the direction of data

flow. If processor wants to read but memory wants to write, there will be no

communication or useful flow of information. Both must be synchronized,

like a speaker speaks and the listener listens. If both speak simultaneously

or both listen there will be no communication. This precise synchronization

between the processor and the memory is the responsibility of the control

bus.

Control bus is only the mechanism. The responsibility of sending the

appropriate signals on the control bus to the memory is of the processor.

Since the memory never wants to listen or to speak of itself. Then why is the

control bus bidirectional. Again we take the same example of the servant and

the book further to elaborate this situation. Consider that the servant went

to fetch the book just to find that the drawing room door is locked. Now the

servant can wait there indefinitely keeping us in surprise or come back and

inform us about the situation so that we can act accordingly. The servant

even though he was obedient was unable to fulfill our orders so in all his

obedience, he came back to inform us about the problem. Synchronization is

still important, as a result of our orders either we got the desired cell or we

came to know that the memory is locked for the moment. Such information

cannot be transferred via the address or the data bus. For such situations

when peripherals want to talk to the processor when the processor wasn't

expecting them to speak, special lines in the control bus are used. The

information in such signals is usually to indicate the incapability of the

peripheral to do something for the moment. For these reasons the control

bus is a bidirectional bus and can carry information from processor to

memory as well as from memory to processor.

1.2. REGISTERS

The basic purpose of a computer is to perform operations, and operations

need operands. Operands are the data on which we want to perform a certain

operation. Consider the addition operation; it involves adding two numbers

to get their sum. We can have precisely one address on the address bus and

consequently precisely one element on the data bus. At the very same instant

the second operand cannot be brought inside the processor. As soon as the

second is selected, the first operand is no longer there. For this reason there

are temporary storage places inside the processor called registers. Now one

operand can be read in a register and added into the other which is read

directly from the memory. Both are made accessible at one instance of time,

one from inside the processor and one from outside on the data bus. The

result can be written to at a distinct location as the operation has completed

and we can access a different memory cell. Sometimes we hold both

operands in registers for the sake of efficiency as what we can do inside the

processor is undoubtedly faster than if we have to go outside and bring the

second operand.

Registers are like a scratch pad ram inside the processor and their

operation is very much like normal memory cells. They have precise locations

and remember what is placed inside them. They are used when we need

more than one data element inside the processor at one time. The concept of

registers will be further elaborated as we progress into writing our first

program.

Memory is a limited resource but the number of memory cells is large.

Registers are relatively very small in number, and are therefore a very scarce

and precious resource. Registers are more than one in number, so we have to

precisely identify or name them. Some manufacturers number their registers

like r0, r1, r2, others name them like A, B, C, D etc. Naming is useful since

the registers are few in number. This is called the nomenclature of the

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

particular architecture. Still other manufacturers name their registers

according to their function like X stands for an index register. This also

informs us that there are special functions of registers as well, some of which

are closely associated to the particular architecture. For example index

registers do not hold data instead they are used to hold the address of data.

There are other functions as well and the whole spectrum of register

functionalities is quite large. However most of the details will become clear as

the registers of the Intel architecture are discussed in detail.

Accumulator

There is a central register in every processor called the accumulator.

Traditionally all mathematical and logical operations are performed on the

accumulator. The word size of a processor is defined by the width of its

accumulator. A 32bit processor has an accumulator of 32 bits.

Pointer, Index, or Base Register

The name varies from manufacturer to manufacturer, but the basic

distinguishing property is that it does not hold data but holds the address of

data. The rationale can be understood by examining a "for" loop in a higher

level language, zeroing elements in an array of ten elements located in

consecutive memory cells. The location to be zeroed changes every iteration.

That is the address where the operation is performed is changing. Index

location. Now the value in the index register cannot be treated as data, but it

is the address of data. In general whenever we need access to a memory

location whose address is not known until runtime we need an index

iteration separately.

In newer architectures the distinction between accumulator and index

registers has become vague. They have general registers which are more

versatile and can do both functions. They do have some specialized behaviors

but basic operations can be done on all general registers.

Flags Register or Program Status Word

This is a special register in every architecture called the flags register or

the program status word. Like the accumulator it is an 8, 16, or 32 bits

individual bits carry different meanings. The bits of the accumulator work in

parallel as a unit and each bit mean the same thing. The bits of the flags

meaningless.

An example of a bit commonly present in the flags register is the carry flag.

The carry can be contained in a single bit as in binary arithmetic the carry

can only be zero or one. If a 16bit number is added to a 16bit accumulator,

and the result is of 17 bits the 17th bit is placed in the carry bit of the flags

will be discussed when dealing with the Intel specific register set.

Program Counter or Instruction Pointer

Everything must translate into a binary number for our dumb processor to

understand it, be it an operand or an operation itself. Therefore the

instructions themselves must be translated into numbers. For example to

add numbers we understand the word "add." We translate this word into a

number to make the processor understand it. This number is the actual

instruction for the computer. All the objects, inheritance and encapsulation

constructs in higher level languages translate down to just a number in

assembly language in the end. Addition, multiplication, shifting; all big

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

programs are made using these simple building blocks. A number is at the

bottom line since this is the only thing a computer can understand.

A program is defined to be "an ordered set of instructions." Order in this

definition is a key part. Instructions run one after another, first, second,

third and so on. Instructions have a positional relationship. The whole logic

depends on this positioning. If the computer executes the fifth instructions

after the first and not the second, all our logic is gone. The processor should

ensure this ordering of instructions. A special register exists in every

processor called the program counter or the instruction pointer that ensures

this ordering. "The program counter holds the address of the next instruction

to be executed." A number is placed in the memory cell pointed to by this

example 0xEA, 255, or 152. For the processor 152 might be the add

instruction. Just this one number tells it that it has to add, where its

operands are, and where to store the result. This number is called the

opcode. The instruction pointer moves from one opcode to the next. This is

how our program executes and progresses. One instruction is picked, its

operands are read and the instruction is executed, then the next instruction

is picked from the new address in instruction pointer and so on.

Remembering 152 for the add operation or 153 for the subtract operation

is difficult. To make a simple way to remember difficult things we associate a

symbol to every number. As when we write "add" everyone understands what

we mean by it. Then we need a small program to convert this "add" of ours to

152 for the processor. Just a simple search and replace operation to

translate all such symbols to their corresponding opcodes. We have mapped

the numeric world of the processor to our symbolic world. "Add" conveys a

meaning to us but the number 152 does not. We can say that add is closer to

the programmer's thinking. This is the basic motive of adding more and more

translation layers up to higher level languages like C++ and Java and Visual

Basic. These symbols are called instruction mnemonics. Therefore the

mnemonic "add a to b" conveys more information to the reader. The dumb

translator that will convert these mnemonics back to the original opcodes is

a key program to be used throughout this course and is called the assembler.

1.3. INSTRUCTION GROUPS

Usual opcodes in every processor exist for moving data, arithmetic and

logical manipulations etc. However their mnemonics vary depending on the

will of the manufacturer. Some manufacturers name the mnemonics for data

movement instructions as "move," some call it "load" and "store" and still

other names are present. But the basic set of instructions is similar in every

processor. A grouping of these instructions makes learning a new processor

quick and easy. Just the group an instruction belongs tells a lot about the

instruction.

Data Movement Instructions

These instructions are used to move data from one place to another. These

places can be registers, memory, or even inside peripheral devices. Some

examples are:

mov

ax, bx

lad

1234

Arithmetic and Logic Instructions

Arithmetic instructions like addition, subtraction, multiplication, division

and Logical instructions like logical and, logical or, logical xor, or

complement are part of this group. Some examples are:

and

ax, 1234

add

bx, 0534

add

bx, [1200]

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

The bracketed form is a complex variation meaning to add the data placed

at address 1200. Addressing data in memory is a detailed topic and is

discussed in the next chapter.

Program Control Instructions

The instruction pointer points to the next instruction and instructions run

one after the other with the help of this register. We can say that the

instructions are tied with one another. In some situations we don't want to

follow this implied path and want to order the processor to break its flow if

some condition becomes true instead of the spatially placed next instruction.

In certain other cases we want the processor to first execute a separate block

of code and then come back to resume processing where it left.

These are instructions that control the program execution and flow by

playing with the instruction pointer and altering its normal behavior to point

to the next instruction. Some examples are:

cmp

ax, 0

jne

1234

We are changing the program flow to the instruction at 1234 address if the

condition that we checked becomes true.

Special Instructions

Another group called special instructions works like the special service

commandos. They allow changing specific processor behaviors and are used

to play with it. They are used rarely but are certainly used in any meaningful

program. Some examples are:

cli

sti

Where cli clears the interrupt flag and sti sets it. Without delving deep into

it, consider that the cli instruction instructs the processor to close its ears

from the outside world and never listen to what is happening outside,

possibly to do some very important task at hand, while sti restores normal

behavior. Since these instructions change the processor behavior they are

placed in the special instructions group.

1.4. INTEL IAPX88 ARCHITECTURE

Now we select a specific architecture to discuss these abstract ideas in

concrete form. We will be using IBM PC based on Intel architecture because

of its wide availability, because of free assemblers and debuggers available

for it, and because of its wide use in a variety of domains. However the

concepts discussed will be applicable on any other architecture as well; just

the mnemonics of the particular language will be different.

Technically iAPX88 stands for "Intel Advanced Processor Extensions 88." It

was a very successful processor also called 8088 and was used in the very

first IBM PC machines. Our discussion will revolve around 8088 in the first

half of the course while in the second half we will use iAPX386 which is very

advanced and powerful processor. 8088 is a 16bit processor with its

accumulator and all registers of 16 bits. 386 on the other hand, is a 32bit

processor. However it is downward compatible with iAPX88 meaning that all

code written for 8088 is valid on the 386. The architecture of a processor

means the organization and functionalities of the registers it contains and

the instructions that are valid on the processor. We will discuss the register

architecture of 8088 in detail below while its instructions are discussed in

the rest of the book at appropriate places.

1.5. HISTORY

Intel did release some 4bit processors in the beginning but the first

meaningful processor was 8080, an 8bit processor. The processor became

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

popular due to its simplistic design and versatile architecture. Based on the

experience gained from 8080, an advanced version was released as 8085.

The processor became widely popular in the engineering community again

due to its simple and logical nature.

Intel introduced the first 16bit processor named 8088 at a time when the

concept of personal computer was evolving. With a maximum memory of 64K

on the 8085, the 8088 allowed a whole mega byte. IBM embedded this

processor in their personal computer. The first machines ran at 4.43 MHz; a

blazing speed at that time. This was the right thing at the right moment. No

one expected this to become the biggest success of computing history. IBM

PC XT became so popular and successful due to its open architecture and

easily available information.

The success was unexpected for the developers themselves. As when Intel

introduced the processor it contained a timer tick count which was valid for

five years only. They never anticipated the architecture to stay around for

more than five years but the history took a turn and the architecture is there

at every desk even after 25 years and the tick is to be specially handled every

now and then.

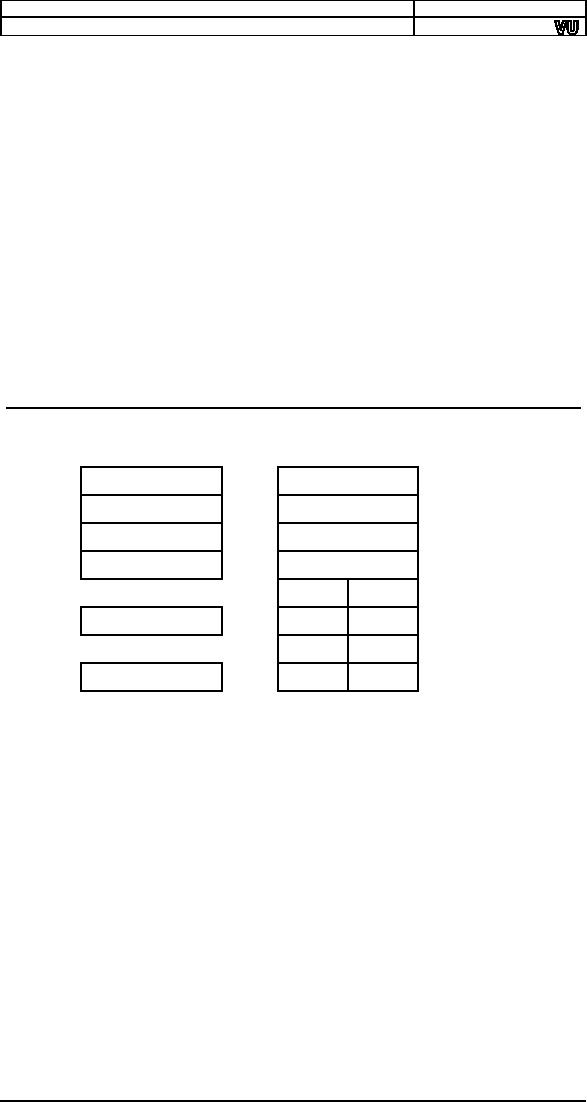

1.6. REGISTER ARCHITECTURE

The iAPX88 architecture consists of 14 registers.

(AX)

(BX)

(CX)

(DX)

FLAGS

General Registers (AX, BX, CX, and DX)

The registers AX, BX, CX, and DX behave as general purpose registers in

Intel architecture and do some specific functions in addition to it. X in their

names stand for extended meaning 16bit registers. For example AX means

we are referring to the extended 16bit "A" register. Its upper and lower byte

are separately accessible as AH (A high byte) and AL (A low byte). All general

purpose registers can be accessed as one 16bit register or as two 8bit

registers. The two registers AH and AL are part of the big whole AX. Any

change in AH or AL is reflected in AX as well. AX is a composite or extended

The A of AX stands for Accumulator. Even though all general purpose

registers can act as accumulator in most instructions there are some specific

variations which can only work on AX which is why it is named the

accumulator. The B of BX stands for Base because of its role in memory

addressing as discussed in the next chapter. The C of CX stands for Counter

as there are certain instructions that work with an automatic count in the

CX register. The D of DX stands for Destination as it acts as the destination

in I/O operations. The A, B, C, and D are in letter sequence as well as depict

some special functionality of the register.

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

Index Registers (SI and DI)

SI and DI stand for source index and destination index respectively. These

are the index registers of the Intel architecture which hold address of data

and used in memory access. Being an open and flexible architecture, Intel

allows many mathematical and logical operations on these registers as well

like the general registers. The source and destination are named because of

their implied functionality as the source or the destination in a special class

of instructions called the string instructions. However their use is not at all

restricted to string instructions. SI and DI are 16bit and cannot be used as

8bit register pairs like AX, BX, CX, and DX.

Instruction Pointer (IP)

This is the special register containing the address of the next instruction to

be executed. No mathematics or memory access can be done through this

it is dangerous and needs special care. Program control instructions change

the IP register.

Stack Pointer (SP)

It is a memory pointer and is used indirectly by a set of instructions. This

Base Pointer (BP)

It is also a memory pointer containing the address in a special area of

memory called the stack and will be explored alongside SP in the discussion

of the stack.

Flags Register

The flags register as previously discussed is not meaningful as a unit

rather it is bit wise significant and accordingly each bit is named separately.

The bits not named are unused. The Intel FLAGS register has its bits

organized as follows:

The individual flags are explained in the following table.

Carry

When two 16bit numbers are added the answer can be

17 bits long or when two 8bit numbers are added the

answer can be 9 bits long. This extra bit that won't fit

in the target register is placed in the carry flag where it

can be used and tested.

Parity

Parity is the number of "one" bits in a binary number.

Parity is either odd or even. This information is

normally used in communications to verify the integrity

of data sent from the sender to the receiver.

Auxiliary

A number in base 16 is called a hex number and can be

Carry

represented by 4 bits. The collection of 4 bits is called a

nibble. During addition or subtraction if a carry goes

from one nibble to the next this flag is set. Carry flag is

for the carry from the whole addition while auxiliary

carry is the carry from the first nibble to the second.

Zero Flag

The Zero flag is set if the last mathematical or logical

instruction has produced a zero in its destination.

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

Sign Flag

A signed number is represented in its two's complement

form in the computer. The most significant bit (MSB) of

a negative number in this representation is 1 and for a

positive number it is zero. The sign bit of the last

mathematical or logical operation's destination is

copied into the sign flag.

Trap Flag

The trap flag has a special role in debugging which will

be discussed later.

Interrupt Flag

It tells whether the processor can be interrupted from

outside or not. Sometimes the programmer doesn't

want a particular task to be interrupted so the

Interrupt flag can be zeroed for this time. The

programmer rather than the processor sets this flag

since the programmer knows when interruption is okay

and when it is not. Interruption can be disabled or

enabled by making this bit zero or one, respectively,

using special instructions.

Direction Flag

Specifically related to string instructions, this flag tells

whether the current operation has to be done from

bottom to top of the block (D=0) or from top to bottom

of the block (D=1).

Overflow Flag

The overflow flag is set during signed arithmetic, e.g.

addition or subtraction, when the sign of the

destination changes unexpectedly. The actual process

sets the overflow flag whenever the carry into the MSB

is different from the carry out of the MSB

Segment Registers (CS, DS, SS, and ES)

The code segment register, data segment register, stack segment register,

and the extra segment register are special registers related to the Intel

segmented memory model and will be discussed later.

1.7. OUR FIRST PROGRAM

The first program that we will write will only add three numbers. This very

simple program will clarify most of the basic concepts of assembly language.

We will start with writing our algorithm in English and then moving on to

convert it into assembly language.

English Language Version

"Program is an ordered set of instructions for the processor." Our first

program will be instructions manipulating AX and BX in plain English.

move 5 to ax

move 10 to bx

add bx to ax

move 15 to bx

add bx to ax

Even in this simple reflection of thoughts in English, there are some key

things to observe. One is the concept of destination as every instruction has

a "to destination" part and there is a source before it as well. For example the

second line has a constant 10 as its source and the register BX as its

destination. The key point in giving the first program in English is to convey

that the concepts of assembly language are simple but fine. Try to

understand them considering that all above is everyday English that you

know very well and every concept will eventually be applicable to assembly

language.

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

Assembly Language Version

Intel could have made their assembly language exactly identical to our

program in plain English but they have abbreviated a lot of symbols to avoid

unnecessarily lengthy program when the meaning could be conveyed with

less effort. For example Intel has named their move instruction "mov" instead

of "move." Similarly the Intel order of placing source and destination is

opposite to what we have used in our English program, just a change of

interpretation. So the Intel way of writing things is:

operation destination, source

operation destination

operation source

operation

The later three variations are for instructions that have one or both of their

operands implied or they work on a single or no operand. An implied operand

means that it is always in a particular register say the accumulator, and it

need not be mentioned in the instruction. Now we attempt to write our

program in actual assembly language of the iapx88.

Example 1.1

001

; a program to add

three numbers using registers

002

[org 0x0100]

003

mov

ax,

;

load first number in ax

004

mov

bx,

;

load second number in bx

005

add

ax,

;

accumulate sum in ax

006

mov

bx,

;

load third number in bx

007

add

ax,

;

accumulate sum in ax

008

009

mov

ax, 0x4c00

; terminate program

010

int

0x21

To start a comment a semicolon is used and the assembler ignores

001

everything else on the same line. Comments must be extensively

used in assembly language programs to make them readable.

Leave the org directive for now as it will be discussed later.

002

The constant 5 is loaded in one register AX.

003

The constant 10 is loaded in another register BX.

004

005

The constant 15 is loaded in the register BX.

006

007

in the AX register. So the program has computed 5+10+15=30.

Vertical spacing must also be used extensively in assembly language

008

programs to separate logical blocks of code.

The ending lines are related more to the operating system than to

009-010

assembly language programming. It is a way to inform DOS that our

program has terminated so it can display its command prompt

again. The computer may reboot or behave improperly if this

termination is not present.

Assembler, Linker, and Debugger

We need an assembler to assemble this program and convert this into

executable binary code. The assembler that we will use during this course is

"Netwide Assembler" or NASM. It is a free and open source assembler. And

the tool that will be most used will be the debugger. We will use a free

debugger called "A fullscreen debugger" or AFD. These are the whole set of

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

weapons an assembly language programmer needs for any task whatsoever

at hand.

To assemble we will give the following command to the processor assuming

that our input file is named EX01.ASM.

nasm ex01.asm o ex01.com l ex01.lst

This will produce two files EX01.COM that is our executable file and

EX01.LST that is a special listing file that we will explore now. The listing file

produced for our example above is shown below with comments removed for

neatness.

[org 0x0100]

00000000

B80500

mov

ax,

00000003

BB0A00

mov

bx,

00000006

01D8

add

ax,

00000008

BB0F00

mov

bx,

0000000B

01D8

add

ax,

0000000D B8004C

mov

ax, 0x4c00

00000010 CD21

int

0x21

The first column in the above listing is offset of the listed instruction in the

output file. Next column is the opcode into which our instruction was

translated. In this case this opcode is B8. Whenever we move a constant into

AX register the opcode B8 will be used. After it 0500 is appended which is

the immediate operand to this instruction. An immediate operand is an

operand which is placed directly inside the instruction. Now as the AX

hexadecimal digits make one word or two bytes. Which of the two bytes

should be placed first in the instruction, the least significant or the most

significant? Similarly for 32bit numbers either the order can be most

significant, less significant, lesser significant, and least significant called the

big-endian order used by Motorola and some other companies or it can be

least significant, more significant, more significant, and most significant

called the little-endian order and is used by Intel. The big-endian have the

argument that it is more natural to read and comprehend while the little-

endian have the argument that this scheme places the less significant value

at a lesser address and more significant value at a higher address.

Because of this the constant 5 in our instruction was converted into 0500

with the least significant byte of 05 first and the most significant byte of 00

afterwards. When read as a word it is 0005 but when written in memory it

will become 0500. As the first instruction is three bytes long, the listing file

shows that the offset of the next instruction in the file is 3. The opcode BB is

for moving a constant into the BX register, and the operand 0A00 is the

number 10 in little-endian byte order. Similarly the offsets and opcodes of

the remaining instructions are shown in order. The last instruction is placed

at offset 0x10 or 16 in decimal. The size of the last instruction is two bytes,

so the size of the complete COM file becomes 18 bytes. This can be verified

from the directory listing, using the DIR command, that the COM file

produced is exactly 18 bytes long.

Now the program is ready to be run inside the debugger. The debugger

shows the values of registers, flags, stack, our code, and one or two areas of

the system memory as data. Debugger allows us to step our program one

instruction at a time and observe its effect on the registers and program

data. The details of using the AFD debugger can be seen from the AFD

manual.

After loading the program in the debugger observe that the first instruction

is now at 0100 instead of absolute zero. This is the effect of the org directive

at the start of our program. The first instruction of a COM file must be at

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

offset 0100 (decimal 255) as a requirement. Also observe that the debugger is

showing your program even though it was provided only the COM file and

neither of the listing file or the program source. This is because the

translation from mnemonic to opcode is reversible and the debugger mapped

back from the opcode to the instruction mnemonic. This will become

apparent for instructions that have two mnemonics as the debugger might

not show the one that was written in the source file.

As a result of program execution either registers or memory will change.

Since our program yet doesn't touch memory the only changes will be in the

registers. Keenly observe the registers AX, BX, and IP change after every

instruction. IP will change after every instruction to point to the next

instruction while AX will accumulate the result of our addition.

1.8. SEGMENTED MEMORY MODEL

Rationale

In earlier processors like 8080 and 8085 the linear memory model was

used to access memory. In linear memory model the whole memory appears

like a single array of data. 8080 and 8085 could access a total memory of

64K using the 16 lines of their address bus. When designing iAPX88 the Intel

designers wanted to remain compatible with 8080 and 8085 however 64K

was too small to continue with, for their new processor. To get the best of

both worlds they introduced the segmented memory model in 8088.

There is also a logical argument in favor of a segmented memory model in

additional to the issue of compatibility discussed above. We have two logical

parts of our program, the code and the data, and actually there is a third

part called the program stack as well, but higher level languages make this

invisible to us. These three logical parts of a program should appear as three

distinct units in memory, but making this division is not possible in the

linear memory model. The segmented memory model does allow this

distinction.

Mechanism

The segmented memory model allows multiple functional windows into the

main memory, a code window, a data window etc. The processor sees code

from the code window and data from the data window. The size of one

window is restricted to 64K. 8085 software fits in just one such window. It

sees code, data, and stack from this one window, so downward compatibility

is attained.

However the maximum memory iAPX88 can access is 1MB which can be

accessed with 20 bits. Compare this with the 64K of 8085 that were accessed

using 16 bits. The idea is that the 64K window just discussed can be moved

anywhere in the whole 1MB. The four segment registers discussed in the

Intel register architecture are used for this purpose. Therefore four windows

can exist at one time. For example one window that is pointed to by the CS

To understand the concept, consider the windows of a building. We say

that a particular window is 3 feet above the floor and another one is 20 feet

above the floor. The reference point, the floor is the base of the segment

called the datum point in a graph and all measurement is done from that

datum point considering it to be zero. So CS holds the zero or the base of

code. DS holds the zero of data. Or we can say CS tells how high code from

the floor is, and DS tells how high data from the floor is, while SS tells how

high the stack is. One extra segment ES can be used if we need to access two

distant areas of memory at the same time that both cannot be seen through

the same window. ES also has special role in string instructions. ES is used

as an extra data segment and cannot be used as an extra code or stack

segment.

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

Revisiting the concept again, like the datum point of a graph, the segment

registers tell the start of our window which can be opened anywhere in the

megabyte of memory available. The window is of a fixed size of 64KB. Base

and offset are the two key variables in a segmented address. Segment tells

the base while offset is added into it. The registers IP, SP, BP, SI, DI, and BX

all can contain a 16bit offset in them and access memory relative to a

segment base.

The IP register cannot work alone. It needs the CS register to open a 64K

window in the 1MB memory and then IP works to select code from this

window as offsets. IP works only inside this window and cannot go outside of

this 64K in any case. If the window is moved i.e. the CS register is changed,

IP will change its behavior accordingly and start selecting from the new

window. The IP register always works relatively, relative to the segment base

stored in the CS register. IP is a 16bit register capable of accessing only 64K

memory so how the whole megabyte can contain code anywhere. Again the

same concept is there, it can access 64K at one instance of time. As the base

is changed using the CS register, IP can be made to point anywhere is the

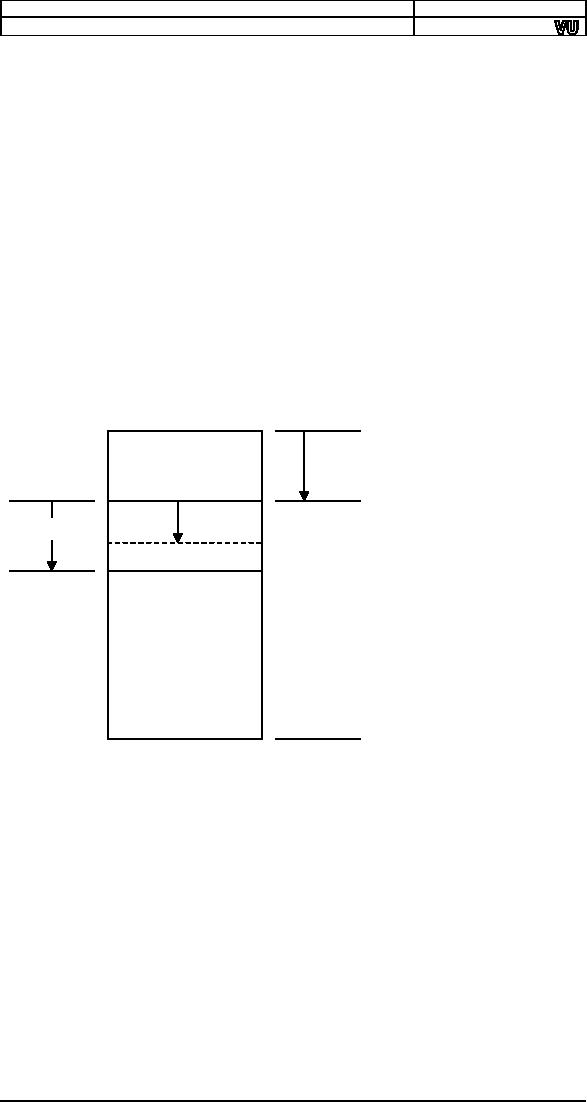

whole megabyte. The process is illustrated with the following diagram.

Physical Address

00000

Segment

Base

xxxx0

Offset

Paragraph

64K

Boundary

FFFFF

Physical Address Calculation

Now for the whole megabyte we need 20 bits while CS and IP are both

16bit registers. We need a mechanism to make a 20bit number out of the two

16bit numbers. Consider that the segment value is stored as a 20 bit number

with the lower four bits zero and the offset value is stored as another 20 bit

number with the upper four bits zeroed. The two are added to produce a

20bit absolute address. A carry if generated is dropped without being stored

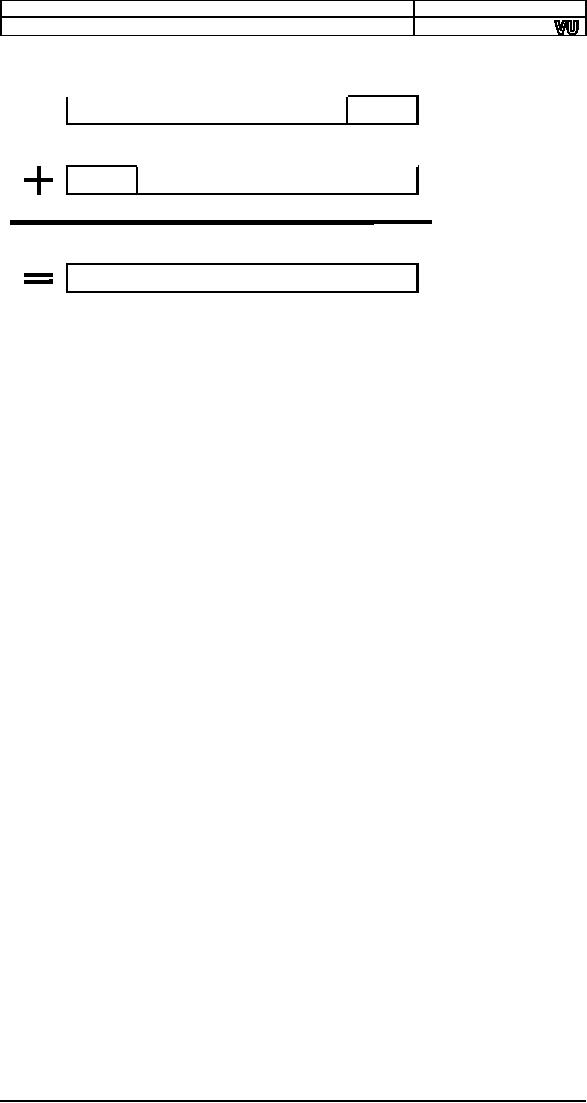

anywhere and the phenomenon is called address wraparound. The process is

explained with the help of the following diagram.

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

15----------------------------0

Segment Address

16bit Segment Register

0000

15----------------------------0

Offset Address

0000

16bit Logical Address

19-----------------------------------0

20bit Physical Address

Therefore memory is determined by a segment-offset pair and not alone by

any one register which will be an ambiguous reference. Every offset register

is assigned a default segment register to resolve such ambiguity. For example

the program we wrote when loaded into memory had a value of 0100 in IP

numbers, the segment base is 1DDD0 and the offset is 00100 and adding

them we get the physical memory address of 1DED0 where the opcode

B80500 is placed.

Paragraph Boundaries

As the segment value is a 16bit number and four zero bits are appended to

the right to make it a 20bit number, segments can only be defined a 16byte

boundaries called paragraph boundaries. The first possible segment value is

0000 meaning a physical base of 00000 and the next possible value of 0001

means a segment base of 00010 or 16 in decimal. Therefore segments can

only be defined at 16 byte boundaries.

Overlapping Segments

We can also observe that in the case of our program CS, DS, SS, and ES

all had the same value in them. This is called overlapping segments so that

we can see the same memory from any window. This is the structure of a

COM file.

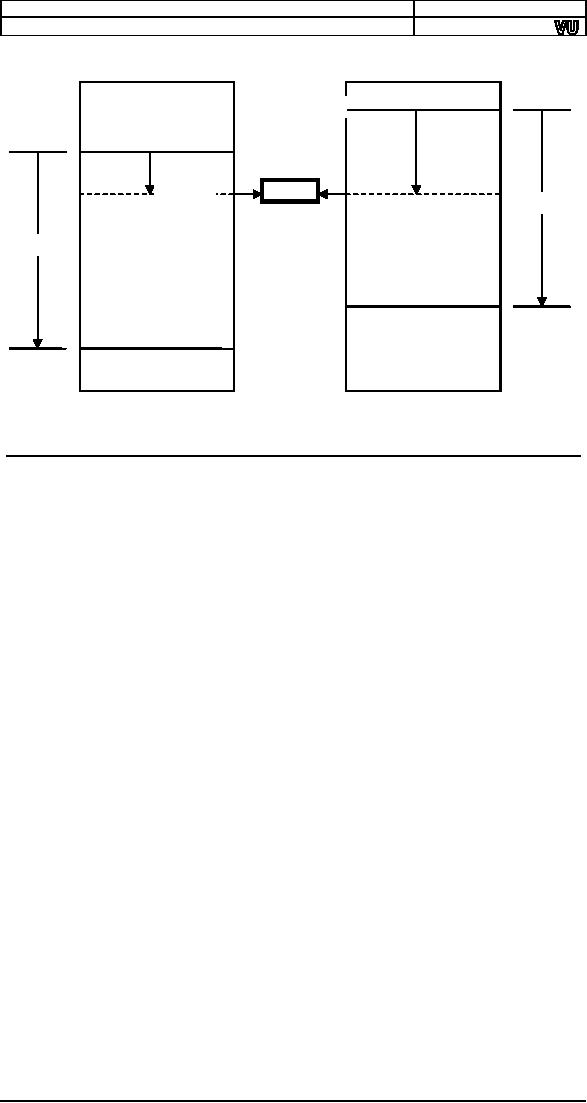

Using partially overlapping segments we can produce a number of

segment, offset pairs that all access the same memory. For example

1DDD:0100 and IDED:0000 both point to the same physical memory. To test

this we can open a data window at 1DED:0000 in the debugger and change

the first three bytes to "90" which is the opcode for NOP (no operation). The

change is immediately visible in the code window which is pointed to by CS

containing 1DDD. Similarly IDCD:0200 also points to the same memory

location. Consider this like a portion of wall that three different people on

three different floors are seeing through their own windows. One of them

painted the wall red; it will be changed for all of them though their

perspective is different. It is the same phenomenon occurring here.

The segment, offset pair is called a logical address, while the 20bit address

is a physical address which is the real thing. Logical addressing is a

mechanism to access the physical memory. As we have seen three different

logical addresses accessed the same physical address.

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

00000

1DCD0

Offset

1DDD0

0200

Offset

0100

1DED0

64K

FFFFF

EXERCISES

How the processor uses the address bus, the data bus, and the

control bus to communicate with the system memory?

Which of the following are unidirectional and which are bidirectional?

a. Address Bus

b. Data Bus

c. Control Bus

What are registers and what are the specific features of the

accumulator, index registers, program counter, and program status

word?

What is the size of the accumulator of a 64bit processor?

What is the difference between an instruction mnemonic and its

opcode?

How are instructions classified into groups?

A combination of 8bits is called a byte. What is the name for 4bits and

for 16bits?

What is the maximum memory 8088 can access?

List down the 14 registers of the 8088 architecture and briefly

describe their uses.

10.

What flags are defined in the 8088 FLAGS register? Describe the

function of the zero flag, the carry flag, the sign flag, and the overflow

flag.

11.

Give the value of the zero flag, the carry flag, the sign flag, and the

overflow flag after each of the following instructions if AX is initialized

with 0x1254 and BX is initialized with 0x0FFF.

a. add ax, 0xEDAB

b. add ax, bx

c. add bx, 0xF001

12.

What is the difference between little endian and big endian formats?

Which format is used by the Intel 8088 microprocessor?

13.

For each of the following words identify the byte that is stored at lower

memory address and the byte that is stored at higher memory address

in a little endian computer.

a. 1234

b. ABFC

c. B100

d. B800

Computer Architecture & Assembly Language Programming

Course Code: CS401

CS401@vu.edu.pk

14. What are the contents of memory locations 200, 201, 202, and 203 if

the word 1234 is stored at offset 200 and the word 5678 is stored at

offset 202?

15. What is the offset at which the first executable instruction of a COM

file must be placed?

16. Why was segmentation originally introduced in 8088 architecture?

17. Why a segment start cannot start from the physical address 55555.

18. Calculate the physical memory address generated by the following

segment offset pairs.

a. 1DDD:0436

b. 1234:7920

c. 74F0:2123

d. 0000:6727

e. FFFF:4336

f. 1080:0100

g. AB01:FFFF

19. What are the first and the last physical memory addresses accessible

using the following segment values?

a. 1000

b. 0FFF

c. 1002

d. 0001

e. E000

20. Write instructions that perform the following operations.

a. Copy BL into CL

b. Copy DX into AX

c. Store 0x12 into AL

d. Store 0x1234 into AX

e. Store 0xFFFF into AX

21. Write a program in assembly language that calculates the square of

six by adding six to the accumulator six times.

Table of Contents:
