Troubleshooting

How you establish the support infrastructure for your network is as important

as what type of equipment you use. Unlike wired connections, problems with

a wireless network are often invisible, and can require more skill and more

time to diagnose and remedy. Interference, wind, and new physical obstruc-

tions can cause a long-running network to fail. This chapter details a series

of strategies to help you build a team that can support your network effec-

tively.

Building your team

Every village, company or family has individuals who are intrigued by tech-

nology. They are the ones found splicing the television cable, re-wiring a bro-

ken television or welding a new piece to a bicycle. These people will take

interest in your network and want to learn as much about it as possible.

Though these people are invaluable resources, you must avoid imparting all

of the specialized knowledge of wireless networking to only one person. If

your only specialist loses interest or finds better paying work somewhere

else, they take the knowledge with them when they go.

There may also be many young and ambitious teenagers or young adults

who will be interested and have the time to listen, help, and learn about the

network. Again, they are very helpful and will learn quickly, but the project

team must focus their attention on those who are best placed to support the

network in the coming months and years. Young adults and teenagers will go

off to university or find employment, especially the ambitious youth who tend

to want to be involved. These youth also have little influence in the commu-

nity, where an older individual is likely to be more capable of making deci-

sions that positively affect the network as a whole. Even though these indi-

267

268

Chapter 9: Troubleshooting

viduals might have less time to learn and might appear to be less interested,

their involvement and proper education about the system can be critical.

Therefore, a key strategy in building a support team is to balance and to dis-

tribute the knowledge among those who are best placed to support the net-

work for the long term. You should involve the youth, but do not let them

capitalize use or knowledge of these systems. Find people who are commit-

ted to the community, who have roots in the community, who can be moti-

vated, and teach them. A complementary strategy is to compartmentalize

functions and duties, and to document all methodology and procedures. In

this way, people can be trained easily, and substituted with little effort.

For example, in one project site the training team selected a bright young

university graduate who had returned to his village. He was very motivated

and learned quickly. Because he learned so quickly, he was taught more than

had been foreseen, and he was able to deal with a variety of problems, from

fixing a PC to rewiring Ethernet cable. Unfortunately, two months after the

project launch he was offered a government job and left the community. Even

a better salary could not keep him, since the prospect of a stable government

job was too appealing. All of the knowledge about the network and how to

support it left with him. The training team had to return and begin the training

again. The next strategy was to divide functions, and to train people who

were permanently rooted in the community: people who had houses and

children, and were already employed. It took three times as long to teach

three people as it took to train the young university grad, but the community

will retain this knowledge for much longer.

Though this might seem to suggest that you should hand-pick who is to be

involved, that is not often the best approach. It is often best to find a local

partner organization or a local manager, and work with them to find the right

technical team. Values, history, local politics, and many other factors will be

important to them, while remaining completely unfathomable to people who

are not from that community. The best approach is to coach your local part-

ner, to provide them sound criteria, make sure that they understand that crite-

ria, and to set firm boundaries. Such boundaries should include rules about

nepotism and patronage, though these rules must consider the local situa-

tion. It may be impossible to say that you cannot hire kin, but it is best to pro-

vide a means of checks and balances. Where a candidate is kin, there

should be clear criteria and a second authority in deciding upon their candi-

dacy. It is also important that the local partner is given this authority and is

not undermined by the project organizers, thus compromising their ability to

manage. They will be best able to judge who will work best with them. If they

are well educated in this process, then your requirements should be satisfied.

Troubleshooting and support of technology is an abstract art. The first time you

look at an abstract painting, it may just look to you like a bunch of random paint

Chapter 9: Troubleshooting

269

splatters. After reflecting on the composition for a time, you may come to ap-

preciate the work as a whole, and the "invisible" coherence becomes very real.

The neophyte looking at a wireless network may see the antennas and wires

and computers, but it can take a while for them to appreciate the point of the

"invisible" network. In rural areas, it can often take a huge leap of understand-

ing before locals will appreciate an invisible network that is simply dropped into

their village. Therefore, a phased approach is needed to ease people into

supporting technology systems. The best method is involvement. Once the

participants are chosen and committed to the project, involve them as much as

possible. Let them "drive". Give them the cable crimper or keyboard and show

them how to do the work. Even if you do not have time to explain every detail

and even if it will take longer, they need to be involved physically and see not

only what has been done, but how much work was done.

The scientific method is taught in virtually all western schools. Many people

learn about it by the time they reach high-school science class. Simply put,

you take a set of variables, then slowly eliminate those variables through bi-

nary tests until you are left with one or only a few possibilities. With those pos-

sibilities in mind, you complete the experiment. You then test to see if the ex-

periment yields something similar to the expected result. If it did not, you re-

calculate your expected result and try again. The typical agrarian villager may

have been introduced to the concept, but likely will not have had the opportu-

nity to troubleshoot complex problems. Even if they are familiar with the scien-

tific method, they might not think to apply it to resolving real problems.

This method is very effective, although time consuming. It can be sped up by

making logical assumptions. For example, if a long-running access point

suddenly stops working after a storm, you might suspect a power supply re-

lated problem and thus skip most of the procedure. People charged with

supporting technology should be taught how to troubleshoot using this

method, as there will be times when the problem is neither known nor evi-

dent. Simple decision trees or flow charts can be made that test these vari-

ables, and try to eliminate the variables to isolate the problem. Of course,

these charts should not be followed blindly.

It is often easier to teach this method using a non technological problem first.

For example, have your student develop a problem resolution procedure on

something simple and familiar, like a battery powered television. Start by

sabotaging the television. Give them a battery that is not charged. Discon-

nect the aerial. Insert a broken fuse. Test the student, making it clear that

each problem will show specific symptoms, and point the way as to how to

proceed. Once they have fixed the television, have them apply this proce-

dure to a more complicated problem. In a network, you can change an IP

address, switch or damage cables, use the wrong SSID, or orient the an-

tenna in the wrong direction. It is important that they develop a methodology

and procedure to resolve these problems.

270

Chapter 9: Troubleshooting

Proper troubleshooting technique

No troubleshooting methodology can completely cover all problems you will

encounter when working with wireless networks. But often, problems come

down to one of a few common mistakes. Here are a few simple points to keep

in mind that can get your troubleshooting effort working in the right direction.

· Don t panic. If you are troubleshooting a system, that means that it was

working at one time, probably very recently. Before jumping in and mak-

ing changes, survey the scene and assess exactly what is broken. If you

have historical logs or statistics to work from, all the better. Be sure to

collect information first, so you can make an informed decision before

making changes.

· Is it plugged in? This step is often overlooked until many other avenues

are explored. Plugs can be accidentally (or intentionally) unplugged very

easily. Is the lead connected to a good power source? Is the other end

connected to your device? Is the power light on? It may sound silly, but

you will feel even sillier if you spend a lot of time checking out an antenna

feed line only to realize that the AP was unplugged the entire time. Trust

me, it happens more often than most of us would care to admit.

· What was the last thing changed? If you are the only person with ac-

cess to the system, what is the last change you made? If others have ac-

cess to it, what is the last change they made and when? When was the

last time the system worked? Often, system changes have unintended

consequences that may not be immediately noticed. Roll back that change

and see what effect it has on the problem.

· Make a backup. This applies before you notice problems, as well as after.

If you make a complicated software change to a system, having a backup

means that you can quickly restore it to the previous settings and start

again. When troubleshooting very complex problems, having a configura-

tion that "sort-of" works can be much better than having a mess that

doesn t work at all (and that you can t easily restore from memory).

· The known good. This idea applies to hardware, as well as software. A

known good is any component that you can replace in a complex system to

verify that its counterpart is in good, working condition. For example, you

may carry a tested Ethernet cable in a tool kit. If you suspect problems with

a cable in the field, you can easily swap out the suspect cable with the

known good and see if things improve. This is much faster and less error-

prone than re-crimping a cable, and immediately tells you if the change fixes

the problem. Likewise, you may also pack a backup battery, antenna cable,

or a CD-ROM with a known good configuration for the system. When fixing

complicated problems, saving your work at a given point lets you return to it

as a known good, even if the problem is not yet completely solved.

Chapter 9: Troubleshooting

271

· Change one variable at a time. When under pressure to get a failed sys-

tem back online, it is tempting to jump ahead and change many likely vari-

ables at once. If you do, and your changes seem to fix the problem, then you

will not understand exactly what led to the problem in the first place. Worse,

your changes may fix the original problem, but lead to more unintended con-

sequences that break other parts of the system. By changing your variables

one at a time, you can precisely understand what went wrong in the first

place, and be able to see the direct effects of the changes you make.

· Do no harm. If you don t fully understand how a system works, don t be

afraid to call in an expert. If you are not sure if a particular change will

damage another part of the system, then either find someone with more

experience or devise a way to test your change without doing damage.

Putting a penny in place of a fuse may solve the immediate problem, but it

may also burn down the building.

It is unlikely that the people who design your network will be on call twenty-

four hours per day to fix problems when they arise. Your troubleshooting

team will need to have good troubleshooting skills, but may not be competent

enough to configure a router from scratch or crimp a piece of LMR-400. It is

often much more efficient to have a number of backup components on-hand,

and train your team to be able to swap out the entire broken part. This could

mean having an access point or router pre-configured and sitting in a locked

cabinet, plainly labeled and stored with backup cables and power supplies.

Your team can swap out the failed component, and either send the broken

part to an expert for repair, or arrange to have another backup sent in. As-

suming that the backups are kept secure and are replaced when used, this

can save a lot of time for everyone.

Common network problems

Often, connectivity problems come from failed components, adverse weather,

or simple misconfiguration. Once your network is connected to the Internet

or opened up to the general public, considerable threats will come from the

network users themselves. These threats can range from the benign to the

outright malevolent, but all will have impact on your network if it is not prop-

erly configured. This section looks at some common problems found once

your network is used by actual human beings.

Locally hosted websites

If a university hosts its website locally, visitors to the website from outside the

campus and the rest of the world will compete with the university's staff for

Internet bandwidth. This includes automated access from search engines

that periodically spider your entire site. One solution to this problem is to use

split DNS and mirroring. The university mirrors a copy of its websites to a

272

Chapter 9: Troubleshooting

server at, say, a European hosting company, and uses split DNS to direct all

users from outside the university network to the mirror site, while users on

the university network access the same site locally. Details about how to set

this up are provided in chapter three.

Internet

VSAT

Public

Web Server

Example 1

Internet

VSAT

Mirrored Public

Internal

Web Server

Example 2

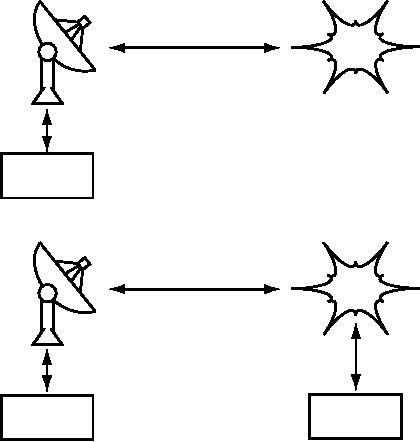

Figure 9.1: In Example 1, all website traffic coming from the Internet must traverse

the VSAT. In Example 2, the public web site is hosted on a fast European service,

while a copy is kept on an internal server for very fast local access. This improves the

VSAT connection and reduces load times for web site users.

Open proxies

A proxy server should be configured to accept only connections from the uni-

versity network, not from the rest of the Internet. This is because people

elsewhere will connect and use open proxies for a variety of reasons, such

as to avoid paying for international bandwidth. The way to configure this de-

pends on the proxy server you are using. For example, you can specify the

IP address range of the campus network in your squid.conf file as the only

network that can use Squid. Alternatively, if your proxy server lies behind a

border firewall, you can configure the firewall to only allow internal hosts to

connect to the proxy port.

Chapter 9: Troubleshooting

273

Open relay hosts

An incorrectly configured mail server will be found by unscrupulous people

on the Internet, and be used as a relay host to send bulk email and spam.

They do this to hide the true source of the spam, and avoid getting caught.

To test for an open relay host, the following test should be carried out on your

mail server (or on the SMTP server that acts as a relay host on the perimeter

of the campus network). Use telnet to open a connection to port 25 of the

server in question (with some Windows versions of telnet, it may be neces-

sary to type 'set local_echo' before the text is visible):

telnet mail.uzz.ac.zz 25

Then, if an interactive command-line conversation can take place (for exam-

ple, as follows), the server is an open relay host:

MAIL FROM: spammer@waste.com

250 OK - mail from <spammer@waste.com>

RCPT TO: innocent@university.ac.zz

250 OK - rcpt to spammer@waste.com

Instead, the reply after the first MAIL FROM should be something like:

550 Relaying is prohibited.

An online tester is available at sites such as http://www.ordb.org/. There is

also information about the problem at this site. Since bulk emailers have

automated methods to find such open relay hosts, an institution that does not

protect its mail systems is almost guaranteed to be found and abused. Con-

figuring the mail server not to be an open relay consists of specifying the

networks and hosts that are allowed to relay mail through them in the MTA

(eg., Sendmail, Postfix, Exim, or Exchange). This will likely be the IP ad-

dress range of the campus network.

Peer-to-peer networking

Bandwidth abuse through peer-to-peer (P2P) file-sharing programs such as

Kazaa, Morpheus, BitTorrent, WinMX and BearShare can be prevented in the

following ways:

· Make it impossible to install new programs on campus computers. By

not giving regular users administrative access to PC workstations, it is pos-

sible to prevent the installation of programs such as Kazaa. Many institu-

tions also standardize on a desktop build, where they install the required

operating system on one PC. They then install all the necessary applica-

tions on it, and configure these in an optimal way. The PC is also config-

ured in a way that prevents users from installing new applications. A disk

274

Chapter 9: Troubleshooting

image of this PC is then cloned to all other PCs using software such as

Partition Image (see http://www.partimage.org/) or Drive Image Pro (see

http://www.powerquest.com/).

From time to time, users may succeed in installing new software or other-

wise damaging the software on the computer (causing it to hang often, for

example). When this happens, an administrator can simply put the disk

image back, causing the operating system and all software on the com-

puter to be exactly as specified.

· Blocking these protocols is not a solution. This is because Kazaa and

other protocols are clever enough to bypass blocked ports. Kazaa defaults

to port 1214 for the initial connection, but if that is not available it will at-

tempt to use ports 1000 to 4000. If these are blocked, its uses port 80,

making it look like web traffic. For this reason, ISPs don't block it but "throt-

tle it", using bandwidth management tools.

· If rate-limiting is not an option, change the network layout. If the proxy

server and mail servers are configured with two network cards (as de-

scribed in chapter three) and these servers are not configured to forward

any packets, this would block all P2P traffic. It would also block all other

types of traffic, such as Microsoft NetMeeting, SSH, VPN software, and all

other services not specifically permitted by the proxy server. In low band-

width networks it may be decided that the simplicity of this design will out-

weigh the disadvantages.

Such a decision may be necessary, but

shouldn t be taken lightly. Network administrators simply cannot predict

how users will make innovative use of a network. By preemptively blocking

all access, you will prevent users from making use of any services (even

low-bandwidth services) that your proxy does not support. While this may

be desirable in extremely low bandwidth circumstances, it should never be

considered as a good access policy in the general case.

Programs that install themselves (from the Internet)

There are programs that automatically install themselves and then keep on

using bandwidth - for example, the so-called Bonzi-Buddy, the Microsoft

Network, and some kinds of worms. Some programs are spyware, which

keep sending information about a user's browsing habits to a company

somewhere on the Internet. These programs are preventable to some ex-

tent by user education and locking down PCs to prevent administrative ac-

cess for normal users. In other cases, there are software solutions to find

and remove these problem programs, such as Spychecker

(http://www.spychecker.com/) or Ad-Aware (http://www.lavasoft.de/).

Chapter 9: Troubleshooting

275

Windows updates

The latest Microsoft Windows operating systems assume that a computer

with a LAN connection has a good link to the Internet, and automatically

downloads security patches, bug fixes and feature enhancements from the

Microsoft Web site. This can consume massive amounts of bandwidth on an

expensive Internet link. The two possible approaches to this problem are:

· Disable Windows updates on all workstation PCs. The security updates

are very important for servers, but whether workstations in a protected pri-

vate network such as a campus network need them is debatable.

· Install a Software Update Server. This is a free program from Microsoft

that enables you to download all the updates from Microsoft overnight on to

a local server and distribute the updates to client workstations from there.

In this way, Windows updates need not use any bandwidth on the Internet

link during the day. Unfortunately, all client PCs need to be configured to

use the Software Update Server for this to have an effect. If you have a

flexible DNS server, you can also configure it to answer requests for

windowsupdate.microsoft.com and direct the updater to your update

server. This is only a good option for large networks, but can save untold

amounts of Internet bandwidth.

Blocking the Windows updates site on the proxy server is not a good solution

because the Windows update service (Automatic Updates) keeps retrying

more aggressively, and if all workstations do that, it places a heavy load on

the proxy server. The extract below is from the proxy log (Squid access log)

where this was done by blocking Microsoft's cabinet (.cab) files.

Much of the Squid log looks like this:

2003.4.2 13:24:17 192.168.1.21 http://windowsupdate.microsoft.com/ident.cab
