Networking Hardware

In the last couple of years, an unprecedented surge in interest in wireless

networking hardware has brought a huge variety of inexpensive equipment to

the market. So much variety, in fact, that it would be impossible to catalog

every available component. In this chapter, we ll look at the sort of features

and attributes that are desirable in a wireless component, and see several

examples of commercial and DIY gear that has worked well in the past.

Wired wireless

With a name like "wireless", you may be surprised at how many wires are

involved in making a simple point-to-point link. A wireless node consists of

many components, which must all be connected to each other with appropri-

ate cabling. You obviously need at least one computer connected to an Eth-

ernet network, and a wireless router or bridge attached to the same network.

Radio components need to be connected to antennas, but along the way

they may need to interface with an amplifier, lightning arrestor, or other de-

vice. Many components require power, either via an AC mains line or using a

DC transformer. All of these components use various sorts of connectors,

not to mention a wide variety of cable types and thicknesses.

Now multiply those cables and connectors by the number of nodes you will

bring online, and you may well be wondering why this stuff is referred to as

"wireless". The diagram on the next page will give you some idea of the ca-

bling required for a typical point-to-point link. Note that this diagram is not to

scale, nor is it necessarily the best choice of network design. But it will intro-

duce you to many common interconnects and components that you will likely

encounter in the real world.

135

136

Chapter 5: Networking Hardware

UPS

Figure 5.1: Component interconnects.

Chapter 5: Networking Hardware

137

While the actual components used will vary from node to node, every instal-

lation will incorporate these parts:

1. An existing computer or network connected to an Ethernet switch.

2. A device that connects that network to a wireless device (a wireless

router, bridge, or repeater).

3. An antenna that is connected via feed line, or is integrated into the wire-

less device itself.

4. Electrical components consisting of power supplies, conditioners, and

lightning arrestors.

The actual selection of hardware should be determined by establishing the

requirements for the project, determining the available budget, and verifying

that the project is feasible using the available resources (including providing

for spares and ongoing maintenance costs). As discussed in Chapter 1, es-

tablishing the scope of your project is critical before any purchasing decisions

are made.

Choosing wireless components

Unfortunately, in a world of competitive hardware manufacturers and limited

budgets, the price tag is the single factor that usually receives the most at-

tention. The old saying that "you get what you pay for" often holds true when

buying high tech equipment, but should not be considered an absolute truth.

While the price tag is an important part of any purchasing decision, it is vital

to understand precisely what you get for your money so you can make a

choice that fits your needs.

When comparing wireless equipment for use in your network, be sure to con-

sider these variables:

· Interoperability. Will the equipment you are considering work with equip-

ment from other manufacturers? If not, is this an important factor for this

segment of your network? If the gear in question supports an open proto-

col (such as 802.11b/g), then it will likely interoperate with equipment from

other sources.

· Range. As we saw in Chapter 4, range is not something inherent in a par-

ticular piece of equipment. A device s range depends on the antenna con-

nected to it, the surrounding terrain, the characteristics of the device at the

other end of the link, and other factors. Rather than relying on a semi-

fictional "range" rating supplied by the manufacturer, it is more useful to

know the transmission power of the radio as well as the antenna gain (if

138

Chapter 5: Networking Hardware

an antenna is included). With this information, you can calculate the theo-

retical range as described in Chapter 3.

· Radio sensitivity. How sensitive is the radio device at a given bit rate?

The manufacturer should supply this information, at least at the fastest and

slowest speeds. This can be used as a measure of the quality of the

hardware, as well as allow you to complete a link budget calculation. As

we saw in Chapter 3, a lower number is better for radio sensitivity.

· Throughput. Manufacturers consistently list the highest possible bit rate

as the "speed" of their equipment. Keep in mind that the radio symbol rate

(eg. 54 Mbps) is never the actual throughput rating of the device (eg. about

22 Mbps for 802.11g). If throughput rate information is not available for the

device you are evaluating, a good rule of thumb is to divide the device

"speed" by two, and subtract 20% or so. When in doubt, perform through-

put testing on an evaluation unit before committing to purchasing a large

amount of equipment that has no official throughput rating.

· Required accessories. To keep the initial price tag low, vendors often

leave out accessories that are required for normal use. Does the price tag

include all power adapters? (DC supplies are typically included; power over

Ethernet injectors typically are not. Double-check input voltages as well,

as equipment is often provided with a US-centric power supply). What

about pigtails, adapters, cables, antennas, and radio cards? If you intend

to use it outdoors, does the device include a weatherproof case?

· Availability. Will you be able to easily replace failed components? Can

you order the part in large quantity, should your project require it? What is

the projected life span of this particular product, both in terms of useful

running time in-the-field and likely availability from the vendor?

· Other factors. Be sure that other needed features are provided for to

meet your particular needs. For example, does the device include an ex-

ternal antenna connector? If so, what type is it? Are there user or

throughput limits imposed by software, and if so, what is the cost to in-

crease these limits? What is the physical form factor of the device? How

much power does it consume? Does it support POE as a power source?

Does the device provide encryption, NAT, bandwidth monitoring tools, or

other features critical to the intended network design?

By answering these questions first, you will be able to make intelligent buying

decisions when it comes time to choose networking hardware. It is unlikely

that you will be able to answer every possible question before buying gear,

but if you prioritize the questions and press the vendor to answer them be-

fore committing to a purchase, you will make the best use of your budget and

build a network of components that are well suited to your needs.

Chapter 5: Networking Hardware

139

Commercial vs. DIY solutions

Your network project will almost certainly consist of components purchased

from vendors as well as parts that are sourced or even fabricated locally.

This is a basic economic truth in most areas of the world. At this stage of

human technology, global distribution of information is quite trivial compared

to global distribution of goods. In many regions, importing every component

needed to build a network is prohibitively expensive for all but the largest

budgets. You can save considerable money in the short term by finding local

sources for parts and labor, and only importing components that must be

purchased.

Of course, there is a limit to how much work can be done by any individual or

group in a given amount of time. To put it another way, by importing technol-

ogy, you can exchange money for equipment that can solve a particular prob-

lem in a comparatively short amount of time. The art of building local tele-

communications infrastructure lies in finding the right balance of money to

effort needed to be expended to solve the problem at hand.

Some components, such as radio cards and antenna feed line, are likely far

too complex to consider having them fabricated locally. Other components,

such as antennas and towers, are relatively simple and can be made locally

for a fraction of the cost of importing. Between these extremes lie the com-

munication devices themselves.

By using off-the-shelf radio cards, motherboards, and other components, you

can build devices that provide features comparable (or even superior) to

most commercial implementations. Combining open hardware platforms with

open source software can yield significant "bang for the buck" by providing

custom, robust solutions for very low cost.

This is not to say that commercial equipment is inferior to a do-it-yourself

solution. By providing so-called "turn-key solutions", manufacturers not only

save development time, but they can also allow relatively unskilled people to

install and maintain equipment. The chief strengths of commercial solutions

are that they provide support and a (usually limited) equipment warranty.

They also provide a consistent platform that tends to lead to very stable,

often interchangeable network installations.

If a piece of equipment simply doesn t work or is difficult to configure or trou-

bleshoot, a good manufacturer will assist you. Should the equipment fail in

normal use (barring extreme damage, such as a lightning strike) then the

manufacturer will typically replace it. Most will provide these services for a

limited time as part of the purchase price, and many offer support and war-

ranty for an extended period for a monthly fee. By providing a consistent

140

Chapter 5: Networking Hardware

platform, it is simple to keep spares on hand and simply "swap out" equip-

ment that fails in the field, without the need for a technician to configure

equipment on-site. Of course, all of this comes at comparatively higher initial

cost for the equipment compared to off-the-shelf components.

From a network architect s point of view, the three greatest hidden risks when

choosing commercial solutions are vendor lock-in, discontinued product

lines, and ongoing licensing costs.

It can be costly to allow the lure of ill-defined new "features" drive the devel-

opment of your network. Manufacturers will frequently provide features that

are incompatible with their competition by design, and then issue marketing

materials to convince you that you simply cannot live without them (regard-

less of whether the feature contributes to the solution of your communica-

tions problem). As you begin to rely on these features, you will likely decide

to continue purchasing equipment from the same manufacturer in the future.

This is the essence of vendor lock-in. If a large institution uses a significant

amount of proprietary equipment, it is unlikely that they will simply abandon it

to use a different vendor. Sales teams know this (and indeed, some rely on

it) and use vendor lock-in as a strategy for price negotiations.

When combined with vendor lock-in, a manufacturer may eventually decide

to discontinue a product line, regardless of its popularity. This ensures that

customers, already reliant on the manufacturer s proprietary features, will

purchase the newest (and nearly always more expensive) model. The long

term effects of vendor lock-in and discontinued products are difficult to esti-

mate when planning a networking project, but should be kept in mind.

Finally, if a particular piece of equipment uses proprietary computer code,

you may need to license use of that code on an ongoing basis. The cost of

these licenses may vary depending on features provided, number of users,

connection speed, or other factors. If the license fee is unpaid, some equip-

ment is designed to simply stop working until a valid, paid-up license is pro-

vided! Be sure that you understand the terms of use for any equipment you

purchase, including ongoing licensing fees.

By using generic equipment that supports open standards and open source

software, you can avoid some of these pitfalls. For example, it is very diffi-

cult to become locked-in to a vendor that uses open protocols (such as

TCP/IP over 802.11a/b/g). If you encounter a problem with the equipment

or the vendor, you can always purchase equipment from a different vendor

that will interoperate with what you have already purchased. It is for these

reasons that we recommend using proprietary protocols and licensed spec-

trum only in cases where the open equivalent (such as 802.11a/b/g) is not

technically feasible.

Chapter 5: Networking Hardware

141

Likewise, while individual products can always be discontinued at any time,

you can limit the impact this will have on your network by using generic

components. For example, a particular motherboard may become unavail-

able on the market, but you may have a number of PC motherboards on

hand that will perform effectively the same task. We will see some exam-

ples of how to use these generic components to build a complete wireless

node later in this chapter.

Obviously, there should be no ongoing licensing costs involved with open

source software (with the exception of a vendor providing extended sup-

port or some other service, without charging for the use of the software

itself). There have occasionally been vendors who capitalize on the gift

that open source programmers have given to the world by offering the

code for sale on an ongoing licensed basis, thereby violating the terms of

distribution set forth by the original authors. It would be wise to avoid

such vendors, and to be suspicious of claims of "free software" that come

with an ongoing license fee.

The disadvantage of using open source software and generic hardware is

clearly the question of support. As problems with the network arise, you will

need to solve those problems for yourself. This is often accomplished by

consulting free online resources and search engines, and applying code

patches directly. If you do not have team members who are competent and

dedicated to designing a solution to your communications problem, then it

can take a considerable amount of time to get a network project off the

ground. Of course, there is never a guarantee that simply "throwing money

at the problem" will solve it either. While we provide many examples of how

to do much of the work yourself, you may find this work very challenging.

You will need to find the balance of commercial solutions and the do-it-

yourself approach that works for project.

In short, always define the scope of your network first, identify the re-

sources you can bring to bear on the problem, and allow the selection of

equipment to naturally emerge from the results. Consider commercial so-

lutions as well as open components, while keeping in mind the long-term

costs of both.

When considering which equipment to use, always remember to compare the

expected useful distance, reliability, and throughput, in addition to the price.

Be sure to include any ongoing license fees when calculating the overall cost

of the equipment. And finally, make sure that the radios you purchase oper-

ate in an unlicensed band where you are installing them, or if you must use

licensed spectrum, that you have budget and permission to pay for the ap-

propriate licenses.

142

Chapter 5: Networking Hardware

Professional lightning protection

Lightning is a natural predator of wireless equipment. There are two differ-

ent ways lightning can strike or damage equipment: direct hits or induction

hits. Direct hits happen when lightning actually hits the tower or antenna.

Induction hits are caused when lightning strikes near the tower. Imagine a

negatively charged lightning bolt. Since like charges repel each other, that

bolt will cause the electrons in the cables to move away from the strike,

creating current on the lines. This can be much more current than the sen-

sitive radio equipment can handle. Either type of strike will usually destroy

unprotected equipment.

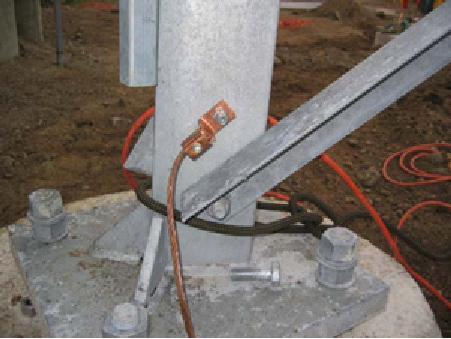

Figure 5.2: A tower with a heavy copper grounding wire.

Protecting wireless networks from lightning is not an exact science, and there

is no guarantee that a lightning strike will not happen, even if every single

precaution is taken. Many of the methods used will help prevent both direct

and induction strikes. While it is not necessary to use every single lightning

protection method, using more methods will help further protect the equip-

ment. The amount of lightning historically observed within a service area will

be the biggest guide to how much needs to be done.

Start at the very bottom of the tower. Remember, the bottom of the tower is

below the ground. After the tower foundation is laid, but before the hole is

backfilled, a ring of heavy braided ground wire should have been installed

with the lead extending above ground surfacing near a tower leg. The wire

should be American Wire Gauge (AWG) #4 or thicker. In addition, a backup

Chapter 5: Networking Hardware

143

ground or earthing rod should be driven into the ground, and a ground wire

run from the rod to the lead from the buried ring.

It is important to note that not all steel conducts electricity the same way.

Some types of steel act as better electrical conductors then others, and differ-

ent surface coatings can also affect how tower steel handles electrical current.

Stainless steel is one of the worst conductors, and rust proof coatings like gal-

vanizing or paint lessen the conductivity of the steel. For this reason, a braided

ground wire is run from the bottom of the tower all the way to the top. The bot-

tom needs to be properly attached to the leads from both the ring and the

backup ground rod. The top of the tower should have a lightning rod attached,

and the top of that needs to be pointed. The finer and sharper the point, the

more effective the rod will be. The braided ground wire from the bottom needs

to be terminated at this grounding rod. It is very important to be sure that the

ground wire is connected to the actual metal. Any sort of coating, such as

paint, must be removed before the wire is attached. Once the connection is

made, the exposed area can be repainted, covering the wire and connectors if

necessary to save the tower from rust and other corrosion.

The above solution details the installation of the basic grounding system. It

provides protection for the tower itself from direct hits, and installs the base

system to which everything else will connect.

The ideal protection for indirect induction lightning strikes are gas tube ar-

restors at both ends of the cable. These arrestors need to be grounded di-

rectly to the ground wire installed on the tower if it is at the high end. The

bottom end needs to be grounded to something electrically safe, like a

ground plate or a copper pipe that is consistently full of water. It is important

to make sure that the outdoor lightning arrestor is weatherproofed. Many

arresters for coax cables are weatherproofed, while many arresters for CAT5

cable are not.

In the event that gas arrestors are not being used, and the cabling is coax

based, then attaching one end of a wire to the shield of the cable and the

other to the ground wire installed on the towers will provide some protection.

This can provide a path for induction currents, and if the charge is weak

enough, it will not affect the conductor wire of the cable. While this method is

by no means as good of protection as using the gas arrestors, it is better

then doing nothing at all.

Building an access point from a PC

Unlike consumer operating systems (such as Microsoft Windows), the GNU/

Linux operating system gives a network administrator the potential for full

access to the networking stack. One can access and manipulate network

144

Chapter 5: Networking Hardware

packets at any level from the data-link layer through the application layer.

Routing decisions can be made based on any information contained in a

network packet, from the routing addresses and ports to the contents of the

data segment. A Linux-based access point can act as a router, bridge, fire-

wall, VPN concentrator, application server, network monitor, or virtually any

other networking role you can think of. It is freely available software, and re-

quires no licensing fees. GNU/Linux is a very powerful tool that can fill a

broad variety of roles in a network infrastructure.

Adding a wireless card and Ethernet device to a PC running Linux will give

you a very flexible tool that can help you deliver bandwidth and manage your

network for very little cost. The hardware could be anything from a recycled

laptop or desktop machine to an embedded computer, such as a Linksys

WRT54G or Metrix networking kit.

In this section we will see how to configure Linux in the following configura-

tions:

· As a wireless access point with Masquerading/NAT and a wired connection

to the Internet (also referred to as a wireless gateway).

· As a wireless access point that acts as a transparent bridge. The bridge

can be used either as a simple access point, or as a repeater with 2 radios.

Consider these recipes as a starting point. By building on these simple ex-

amples, you can create a server that fits precisely into your network infra-

structure.

Prerequisites

Before proceeding, you should already be familiar with Linux from a users

perspective, and be capable of installing the Gnu/Linux distribution of your

choice. A basic understanding of the command line interface (terminal) in

Linux is also required.

You will need a computer with one or more wireless cards already installed,

as well as a standard Ethernet interface. These examples use a specific

card and driver, but there are a number of different cards that should work

equally well. Wireless cards based on the Atheros and Prism chipsets work

particularly well. These examples are based on Ubuntu Linux version 5.10

(Breezy Badger), with a wireless card that is supported by the HostAP or

MADWiFi drivers. For more information about these drivers, see

http://hostap.epitest.fi/ and http://madwifi.org/ .

The following software is required to complete these installations. It should

be provided in your Linux distribution:

Chapter 5: Networking Hardware

145

· Wireless Tools (iwconfig, iwlist commands)

· iptables firewall

· dnsmasq (caching DNS server and DHCP server)

The CPU power required depends on how much work needs to be done be-

yond simple routing and NAT. For many applications, a 133MHz 486 is per-

fectly capable of routing packets at wireless speeds. If you intend to use a

lot of encryption (such as WEP or a VPN server), then you will need some-

thing faster. If you also want to run a caching server (such as Squid) then

you will need a computer with plenty of fast disk space and RAM. A typical

router that is only performing NAT will operate will with as little as 64MB of

RAM and storage.

When building a machine that is intended to be part of your network infra-

structure, keep in mind that hard drives have a limited lifespan compared to

most other components. You can often use solid state storage, such as a

flash disk, in place of a hard drive. This could be a USB flash drive (assum-

ing your PC will boot from USB), or a Compact Flash card using a CF to IDE

adapter. These adapters are quite inexpensive, and will make a CF card ap-

pear act like standard IDE hard drive. They can be used in any PC that sup-

ports IDE hard drives. Since they have no moving parts, they will operate for

many years through a much wider range of temperatures than a hard disk

will tolerate.

Scenario 1: Masquerading access point

This is the simplest of the scenarios, and is especially useful in situations

where you want a single access point for an office setting. This is easiest in

a situation where:

1. There is an existing dedicated firewall and gateway running Linux, and you

just want to add a wireless interface.

2. You have an old refurbished computer or laptop available, and prefer to

use that as an access point.

3. You require more power in terms of monitoring, logging and/or security

than most commercial access points provide, but don't want to splurge on an

enterprise access point.

4. You would like a single machine to act as 2 access points (and firewall) so

that you can offer both a secure network access to the intranet, as well as

open access to guests.

146

Chapter 5: Networking Hardware

Initial setup

Start of with an already configured computer running GNU/Linux. This could

be an Ubuntu Server installation, or Fedora Core. The computer must have

at least 2 interfaces for this to work, and at least one of these interfaces

should be wireless. The rest of this description assumes that your cabled

Ethernet port (eth0) is connected to the Internet, and that there is a wireless

interface (wlan0) that will provide the access point functionality.

To find out if your chipset supports master mode, try the following command

as root:

# iwconfig wlan0 mode Master

...replacing wlan0 with the name of your interface.

If you get an error message, then your wireless card doesn t support access

point mode. You can still try the same setup in Ad-hoc mode, which is sup-

ported by all chipsets. This requires that you to set all the laptops that are

connecting to this "access point" into Ad-hoc mode as well, and may not work

quite the way you are expecting. It is usually better to find a wireless card

that will support AP mode. See the HostAP and MADWiFi websites men-

tioned earlier for a list of supported cards.

Before continuing, make sure dnsmasq is installed on your machine. You

can use the graphical package manager of your distribution to install it. In

Ubuntu you can simply run the following as root:

# apt-get install dnsmasq

Setting up the interfaces

Set up your server so that eth0 is connected to the Internet. Use the graphi-

cal configuration tool that came with your distribution.

If your Ethernet network uses DHCP, you could try the following command as root:

# dhclient eth0

You should receive an IP address and default gateway. Next, set your wire-

less interface to Master mode and give it a name of your choice:

# iwconfig wlan0 essid "my network" mode Master enc off

The enc off switch turns off WEP encryption. To enable WEP, add a hex-

key string of the correct length:

Chapter 5: Networking Hardware

147

# iwconfig wlan0 essid "my network" mode Master enc 1A2B3C4D5E

Alternately, you can use a readable string by starting with "s:"

# iwconfig wlan0 essid "my network" mode Master enc "s:apple"

Now give your wireless interface an IP address in a private subnet, but make

sure it is not the same subnet as that of your Ethernet adapter:

# ifconfig wlan0 10.0.0.1 netmask 255.255.255.0 broadcast 10.0.0.255 up

Setting up masquerading in the kernel

In order for us to be able to translate addresses between the two interfaces

on the computer, we need to enable masquerading (NAT) in the linux kernel.

First we load the relevant kernel module:

# modprobe ipt_MASQUERADE

Now we will flush all existing firewall rules to ensure that the firewall is not

blocking us from forwarding packets between the two interfaces. If you have

an existing firewall running, make sure you know how to restore the existing

rules later before proceeding.

# iptables -F

Enable the NAT functionality between the two interfaces

# iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE

Finally we need to enable the kernel to forward packets between interfaces:

# echo 1 > /proc/sys/net/ipv4/ip_forward

On Debian-based Linux distributions such as Ubuntu, this change can also

be made by editing the file /etc/network/options, and be sure that ip_for-

ward is set to yes:

ip_forward=yes

and then restarting the network interfaces with:

# /etc/init.d/network restart

# /etc/init.d/networking restart

148

Chapter 5: Networking Hardware

Setting up the DHCP server

At this point we actually should have a working access point. It can be tested

by connecting to the wireless network "my network" with a separate machine

and giving that machine an address in the same address range as our wireless

interface on the server (10.0.0.0/24 if you followed the examples). If you have

enabled WEP, be sure to use the same key that you specified on the AP.

In order to make it easier for people to connect to the server without knowing

the IP address range, we will set up a DHCP server to automatically hand out

addresses to wireless clients.

We use the program dnsmasq for this purpose. As the name indicates, it pro-

vides a caching DNS server as well as a DHCP server. This program was

developed especially for use with firewalls performing NAT. Having a caching

DNS server is especially helpful if your Internet connection is a high-latency

and/or low-bandwidth connection, such as a VSAT or dial-up. It means that

many DNS queries can be resolved locally, saving a lot of traffic on the Inter-

net connection, and also making the connection feel noticeably faster for

those connecting.

Install dnsmasq with your distributions package manager. If dnsmasq is not

available as a package, download the source code and install it manually. It

is available from http://www.thekelleys.org.uk/dnsmasq/doc.html.

All that is required for us to run dnsmasq is to edit a few lines of the dnsmasq

configuration file, /etc/dnsmasq.conf.

The configuration file is well commented, and has many options for various

types of configuration. To get the basic DHCP server up and running we just

need to uncomment and/or edit two lines.

Find the lines that starts:

interface=

...and make sure it reads:

interface=wlan0

...changing wlan0 to match name of your wireless interface. Then find the

line that starts with:

#dhcp-range=

Uncomment the line and edit it to suit the match addresses being used, i.e.

Chapter 5: Networking Hardware

149

dhcp-range=10.0.0.10,10.0.0.110,255.255.255.0,6h

Then save the file and start dnsmasq:

# /etc/init.d/dnsmasq start

That's it, you should now be able to connect to the server as an access point,

and get an IP address using DHCP. This should let you connect to the Inter-

net through the server.

Adding extra security: Setting up a Firewall

Once this is set up and tested, you can add extra firewall rules using what-

ever firewall tool is included in your distribution. Some typical front-ends for

setting up firewall rules include:

· firestarter - a graphical client for Gnome, which requires that your server

is running Gnome

· knetfilter a graphical client for KDE, which requires that your server is

running KDE

· Shorewall a set of scripts and configuration files that will make it easier

to setup an iptables firewall. There are also frontends for shorewall, such

as webmin-shorewall

· fwbuilder - a powerful, but slightly complex graphical tool that will let you

create iptables scripts on a machine separate from your server, and then

transfer them to the server later. This does not require you to be running a

graphical desktop on the server, and is a strong option for the security con-

scious.

Once everything is configured properly, make sure that all settings are re-

flected in the system startup scripts. This way, your changes will continue to

work should the machine need to be rebooted.

Scenario 2: Transparent Bridging access point

This scenario can either be used for a two-radio repeater, or for an access

point connected to an Ethernet. We use a bridge instead of routing when we

want both interfaces on the access point to share the same subnet. This can

be particularly useful in networks with multiple access points where we prefer

to have a single, central firewall and perhaps authentication server. Because

all clients share the same subnet they, can easily be managed with a single

DHCP server and firewall without the need for DHCP relay.

For example, you could setup a server as the first scenario, but use two

wired Ethernet interfaces instead of one wired and one wireless. One inter-

150

Chapter 5: Networking Hardware

face would be your Internet connection, and the other would connect to a

switch. Then connect as many access points as you require to the same

switch, set them up as transparent bridges, and everyone will pass through

the same firewall and use the same DHCP server.

The simplicity of bridging comes at a cost of efficiency. Since all clients share

the same subnet, broadcast traffic will be repeated throughout the network.

This is usually fine for small networks, but as the number of clients increases,

more wireless bandwidth will be wasted on broadcast network traffic.

Initial setup

The initial setup for a bridging access point is similar to that of a masquerad-

ing access point, without the requirement of dnsmasq. Follow the initial

setup instructions from the previous example.

In addition, the bridge-utils package is required for bridging. This package

exists for Ubuntu and other Debian-based distributions, as well as for Fedora

Core. Make sure it is installed and that the command brctl is available be-

fore proceeding.

Setting up the Interfaces

On Ubuntu or Debian the network interfaces are configured by editing the file

etc/network/interfaces.

Add a section like the following, but change the names of interfaces and the IP

addresses accordingly. The IP address and netmask must match that of your

existing network. This example assumes you are building a wireless repeater

with two wireless interfaces, wlan0 and wlan1. The wlan0 interface will be a

client to the "office" network, and wlan1 will create a network called "repeater".

Add the following to /etc/network/interfaces:

auto br0

iface br0 inet static

address 192.168.1.2

network 192.168.1.0

netmask 255.255.255.0

broadcast 192.168.1.255

gateway 192.168.1.1

pre-up ifconfig wlan 0 0.0.0.0 up

pre-up ifconfig wlan1 0.0.0.0 up

pre-up iwconfig wlan0 essid "office" mode Managed

pre-up iwconfig wlan1 essid "repeater" mode Master

bridge_ports wlan0 wlan1

post-down ifconfig wlan1 down

post-down ifconfig wlan0 down

Chapter 5: Networking Hardware

151

Comment out any other sections in the file that refer to wlan0 or wlan1 to

make sure that they don't interfere with our setup.

This syntax for setting up bridges via the interfaces file is specific to

Debian-based distributions, and the details of actually setting up the bridge are

handled by a couple of scripts: /etc/network/if-pre-up.d/bridge and

etc/network/if-post-down.d/bridge. The documentation for these

scripts is found in /usr/share/doc/bridge-utils/.

If those scripts don't exist on your distribution (such as Fedora Core), here is

an alternative setup for /etc/network/interfaces which will achieve the

same thing with only marginally more hassle:

iface br0 inet static

pre-up ifconfig wlan 0 0.0.0.0 up

pre-up ifconfig wlan1 0.0.0.0 up

pre-up iwconfig wlan0 essid "office" mode Managed

pre-up iwconfig wlan1 essid "repeater" mode Master

pre-up brctl addbr br0

pre-up brctl addif br0 wlan0

pre-up brctl addif br0 wlan1

post-down ifconfig wlan1 down

post-down ifconfig wlan0 down

post-down brctl delif br0 wlan0

post-down brctl delif br0 wlan1

post-down brctl delbr br0

Starting the bridge

Once the bridge is defined as an interface, starting the bridge is as simple as typing:

# ifup -v br0

The "-v" means verbose output and will give you information to what is going on.

On Fedora Core (i.e. non-debian distributions) you still need to give your bridge

interface an ip address and add a default route to the rest of the network:

#ifconfig br0 192.168.1.2 netmask 255.255.255.0 broadcast 192.168.1.255

#route add default gw 192.168.1.1

You should now be able to connect a wireless laptop to this new access point, and

connect to the Internet (or at least to the rest of your network) through this box.

Use the brctl command to see what your bridge is doing:

# brctl show br0

152

Chapter 5: Networking Hardware

Scenario 1 & 2 the easy way

Instead of setting up your computer as an access point from scratch, you

may wish to use a dedicated Linux distribution that is specially tailored for

this purpose. These distributions can make the job as simple as booting

from a particular CD on a computer with a wireless interface. See the follow-

ing section, "Wireless-friendly operating systems" for more information.

As you can see, it is straightforward to provide access point services from a

standard Linux router. Using Linux gives you significantly more control over

how packets are routed through your network, and allows for features that

simply aren t possible on consumer grade access point hardware.

For example, you could start with either of the above two examples and im-

plement a private wireless network where users are authenticated using a

standard web browser. Using a captive portal such as Chillispot, wireless

users can be checked against credentials in an existing database (say, a

Windows domain server accessible via RADIUS). This arrangement could

allow for preferential access to users in the database, while providing a very

limited level of access for the general public.

Another popular application is the prepaid commercial model. In this model,

users must purchase a ticket before accessing the network. This ticket pro-

vides a password that is valid for a limited amount of time (typically one day).

When the ticket expires, the user must purchase another. This ticketing fea-

ture is only available on relatively expensive commercial networking equip-

ment, but can be implemented using free software such as Chillispot and

phpMyPrePaid. We will see more about captive portal technology and ticket-

ing systems in the Authentication section in Chapter 6.

Wireless-friendly operating systems

There are a number of open source operating system that provide useful

tools for working with wireless networks. These are intended to be used on

repurposed PCs or other networking hardware (rather than on a laptop or

server) and are fine-tuned for building wireless networks. Some of these

projects include:

· Freifunk. Based on the OpenWRT project (http://openwrt.org/), the Frei-

funk firmware brings easy OLSR support to MIPS-based consumer access

points, such as the Linksys WRT54G / WRT54GS / WAP54G, Siemens

SE505, and others. By simply flashing one of these APs with the Freifunk

firmware, you can rapidly build a self-forming OLSR mesh. Freifunk is not

currently available for x86 architecture machines. It is maintained by Sven

Ola of the Freifunk wireless group in Berlin. You can download the firm-

ware from http://www.freifunk.net/wiki/FreifunkFirmware .

Chapter 5: Networking Hardware

153

· Pyramid Linux. Pyramid is a Linux distribution for use on embedded plat-

forms that evolved out of the venerable Pebble Linux platform. It supports

several different wireless cards, and has a simple web interface for config-

uring networking interfaces, port forwarding, WifiDog, and OLSR. Pyramid

is distributed and maintained by Metrix Communication LLC, and is avail-

able at http://pyramid.metrix.net/.

· m0n0wall. Based on FreeBSD, m0n0wall is a very tiny but complete fire-

wall package that provides AP services. It is configured from a web inter-

face and the entire system configuration is stored in a single XML file. Its

tiny size (less than 6MB) makes it attractive for use in very small embed-

ded systems. Its goal is to provide a secure firewall, and as such does not

include userspace tools (it is not even possible to log into the machine over

the network). Despite this limitation, it is a popular choice for wireless net-

workers, particularly those with a background in FreeBSD. You can down-

load m0n0wall from http://www.m0n0.ch/ .

All of these distributions are designed to fit in machines with limited storage.

If you are using a very large flash disk or hard drive, you can certainly install

a more complete OS (such as Ubuntu or Debian) and use the machine as a

router or access point. It will likely take a fair amount of development time to

be sure all needed tools are included, without installing unnecessary pack-

ages. By using one of these projects as a starting point for building a wire-

less node, you will save yourself considerable time and effort.

The Linksys WRT54G

One of the most popular consumer access points currently on the market is

the Linksys WRT54G. This access point features two external RP-TNC an-

tenna connectors, a four port Ethernet switch, and an 802.11b/g radio. It is

configured through a simple web interface. While it is not designed as an

outdoor solution, it can be installed in a large sprinkler box or plastic tub for

relatively little cost. As of this writing, the WRT54G sells for about $60.

Back in 2003, network hackers realized that the firmware that shipped with

the WRT54G was actually a version of Linux. This led to a tremendous in-

terest in building custom firmware that extended the capabilities of the router

significantly. Some of these new features include client radio mode support,

captive portals, and mesh networking. Some popular alternative firmware

packages for the WRT54G are DD-Wrt (http://www.dd-wrt.com/), OpenWRT

(http://openwrt.org/), Tomato (http://www.polarcloud.com/tomato) and Frei-

funk (http://www.freifunk.net/).

Unfortunately, in the fall of 2005, Linksys released version 5 of the WRT54G.

This hardware revision eliminated some RAM and flash storage on the moth-

erboard, making it very difficult to run Linux (it ships with VxWorks, a much

154

Chapter 5: Networking Hardware

smaller operating system that does not allow easy customization). Linksys

also released the WRT54GL, which is essentially the WRT54G v4 (which

runs Linux) with a slightly bigger price tag.

A number of other Linksys access points also run Linux, including the

WRT54GS and WAP54G. While these also have relatively low price tags,

the hardware specifications may change at any time. It is difficult to know

which hardware revision is used without opening the packaging, making it

risky to purchase them at a retail store and practically impossible to order

online. While the WRT54GL is guaranteed to run Linux, Linksys has made

it known that it does not expect to sell this model in large volume, and it is

unclear how long it will be offered for sale.

Fortunately, wireless hackers have now been able to install custom firmware

on the notoriously difficult WRT54G version 5 and 6, and the latest revisions

as well(v7 and v8). For details on getting alternate firmware installed on a v5 or

v6 access point see: http://www.scorpiontek.org/portal/content/view/27/36/

For more information about the current state of Linksys wireless router hack-

ing, see http://linksysinfo.org/

DD-WRT

One popular alternate firmware for the Linksys family of access point hard-

ware is DD-WRT (http://www.dd-wrt.com/). It includes several useful fea-

tures, including radio client mode, adjustable transmission power, various

captive portals, QoS support, and much more. It uses an intuitive web-

based configuration tool (unencrypted or via HTTPS), and also provides

SSH and telnet access.

Several versions of the firmware are available from the DD-WRT website.

The general procedure for upgrading is to download the version of the firm-

ware appropriate for your hardware, and upload it via the router's "firmware

update" feature. Specific installation details vary according to the hardware

version of your router. In addition to Linksys hardware, DD-WRT will run on

Buffalo, ASUS, the La Fonera, and other access points.

For specific instructions for your hardware, see the installation guide on the

DD-WRT wiki at http://www.dd-wrt.com/wiki/index.php/Installation. The de-

fault login for a fresh DD-WRT installation is root with the password admin.

Chapter 5: Networking Hardware

155

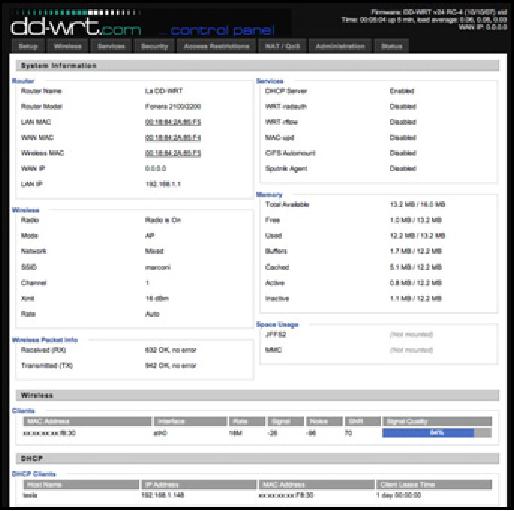

Figure 5.3: The DD-WRT (v23) control panel

Table of Contents:
