Antennas & Transmission

Lines

The transmitter that generates the RF1 power to drive the antenna is usually

located at some distance from the antenna terminals. The connecting link

between the two is the RF transmission line. Its purpose is to carry RF

power from one place to another, and to do this as efficiently as possible.

From the receiver side, the antenna is responsible for picking up any radio

signals in the air and passing them to the receiver with the minimum amount

of distortion, so that the radio has its best chance to decode the signal. For

these reasons, the RF cable has a very important role in radio systems: it

must maintain the integrity of the signals in both directions.

There are two main categories of transmission lines: cables and waveguides.

Both types work well for efficiently carrying RF power at 2.4 GHz.

Cables

RF cables are, for frequencies higher than HF, almost exclusively coaxial

cables (or coax for short, derived from the words "of common axis"). Coax

cables have a core conductor wire surrounded by a non-conductive material

called dielectric, or simply insulation. The dielectric is then surrounded by

an encompassing shielding which is often made of braided wires. The di-

electric prevents an electrical connection between the core and the shielding.

Finally, the coax is protected by an outer casing which is generally made

1. Radio Frequency. See chapter two for discussion of electromagnetic waves.

Chapter 4: Antennas & Transmission Lines

from a PVC material. The inner conductor carries the RF signal, and the

outer shield prevents the RF signal from radiating to the atmosphere, and

also prevents outside signals from interfering with the signal carried by the

core. Another interesting fact is that high frequency electrical signal always

travels along the outer layer of a conductor: the larger the central conductor,

the better signal will flow. This is called the "skin effect".

Outer Jacket

Shield

Dielectric

Conductor

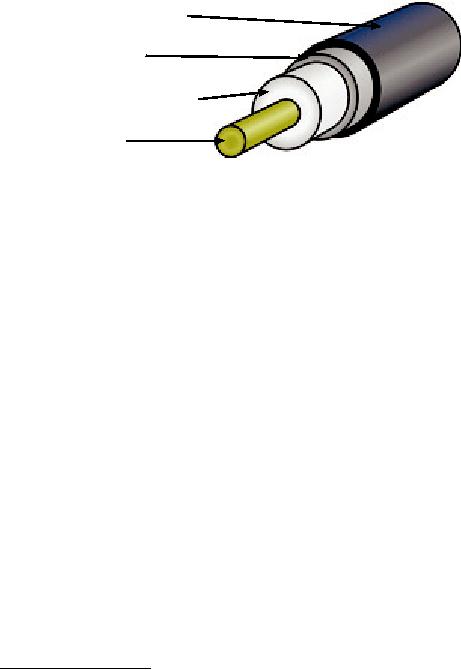

Figure 4.1: Coaxial cable with jacket, shield, dielectric, and core conductor.

Even though the coaxial construction is good at containing the signal on the

core wire, there is some resistance to the electrical flow: as the signal travels

down the core, it will fade away. This fading is known as attenuation, and for

transmission lines it is measured in decibels per meter (dB/m). The rate of

attenuation is a function of the signal frequency and the physical construction

of the cable itself. As the signal frequency increases, so does its attenuation.

Obviously, we need to minimize the cable attenuation as much as possible

by keeping the cable very short and using high quality cables.

Here are some points to consider when choosing a cable for use with micro-

wave devices:

1. "The shorter the better!" The first rule when you install a piece of cable is

to try to keep it as short as possible. The power loss is not linear, so

doubling the cable length means that you are going to lose much more

than twice the power. In the same way, reducing the cable length by half

gives you more than twice the power at the antenna. The best solution is

to place the transmitter as close as possible to the antenna, even when

this means placing it on a tower.

2. "The cheaper the worse!" The second golden rule is that any money you

invest in buying a good quality cable is a bargain. Cheap cables are

intended to be used at low frequencies, such as VHF. Microwaves re-

quire the highest quality cables available. All other options are nothing

but a dummy load2.

2. A dummy load is a device that dissipates RF energy without radiating it. Think of it as a heat

sink that works at radio frequencies.

Chapter 4: Antennas & Transmission Lines

3. Always avoid RG-58. It is intended for thin Ethernet networking, CB or

VHF radio, not for microwave.

4. Always avoid RG-213. It is intended for CB and HF radio. In this case the

cable diameter does not imply a high quality, or low attenuation.

5. Whenever possible, use Heliax (also called "Foam") cables for connect-

ing the transmitter to the antenna. When Heliax is unavailable, use the

best rated LMR cable you can find. Heliax cables have a solid or tubular

center conductor with a corrugated solid outer conductor to enable them

to flex. Heliax can be built in two ways, using either air or foam as a di-

electric. Air dielectric Heliax is the most expensive and guarantees the

minimum loss, but it is very difficult to handle. Foam dielectric Heliax is

slightly more lossy, but is less expensive and easier to install. A special

procedure is required when soldering connectors in order to keep the

foam dielectric dry and uncorrupted. LMR is a brand of coax cable avail-

able in various diameters that works well at microwave frequencies.

LMR-400 and LMR-600 are a commonly used alternative to Heliax.

6. Whenever possible, use cables that are pre-crimped and tested in a

proper lab. Installing connectors to cable is a tricky business, and is dif-

ficult to do properly even with the proper tools. Unless you have access

to equipment that can verify a cable you make yourself (such as a spec-

trum analyzer and signal generator, or time domain reflectometer), trou-

bleshooting a network that uses homemade cable can be difficult.

7. Don t abuse your transmission line. Never step over a cable, bend it too

much, or try to unplug a connector by pulling directly the cable. All of

those behaviors may change the mechanical characteristic of the cable

and therefore its impedance, short the inner conductor to the shield, or

even break the line. Those problems are difficult to track and recognize

and can lead to unpredictable behavior on the radio link.

Waveguides

Above 2 GHz, the wavelength is short enough to allow practical, efficient en-

ergy transfer by different means. A waveguide is a conducting tube through

which energy is transmitted in the form of electromagnetic waves. The tube

acts as a boundary that confines the waves in the enclosed space. The

Faraday cage effect prevents electromagnetic effects from being evident out-

side the guide. The electromagnetic fields are propagated through the

waveguide by means of reflections against its inner walls, which are consid-

ered perfect conductors. The intensity of the fields is greatest at the center

along the X dimension, and must diminish to zero at the end walls because

the existence of any field parallel to the walls at the surface would cause an

infinite current to flow in a perfect conductor. Waveguides, of course, cannot

carry RF in this fashion.

Chapter 4: Antennas & Transmission Lines

The X, Y and Z dimensions of a rectangular waveguide can be seen in the

following figure:

Figure 4.2: The X, Y, and Z dimensions of a rectangular waveguide.

There are an infinite number of ways in which the electric and magnetic fields

can arrange themselves in a waveguide for frequencies above the low cutoff

frequency. Each of these field configurations is called a mode. The modes

may be separated into two general groups. One group, designated TM

(Transverse Magnetic), has the magnetic field entirely transverse to the di-

rection of propagation, but has a component of the electric field in the direc-

tion of propagation. The other type, designated TE (Transverse Electric) has

the electric field entirely transverse, but has a component of magnetic field in

the direction of propagation.

The mode of propagation is identified by the group letters followed by two

subscript numerals. For example, TE 10, TM 11, etc. The number of possi-

ble modes increases with the frequency for a given size of guide, and there

is only one possible mode, called the dominant mode, for the lowest fre-

quency that can be transmitted. In a rectangular guide, the critical dimen-

sion is X. This dimension must be more than 0.5 at the lowest frequency

to be transmitted. In practice, the Y dimension usually is made about equal

to 0.5 X to avoid the possibility of operation in other than the dominant

mode. Cross-sectional shapes other than the rectangle can be used, the

most important being the circular pipe. Much the same considerations apply

as in the rectangular case. Wavelength dimensions for rectangular and cir-

cular guides are given in the following table, where X is the width of a rec-

tangular guide and r is the radius of a circular guide. All figures apply to the

dominant mode.

Chapter 4: Antennas & Transmission Lines

Type of guide

Rectangular

Circular

Cutoff wavelength

3.41r

Longest wavelength

transmitted with little

1.6X

3.2r

attenuation

Shortest wavelength

before next mode

1.1X

2.8r

becomes possible

Energy may be introduced into or extracted from a waveguide by means of

either an electric or magnetic field. The energy transfer typically happens

through a coaxial line. Two possible methods for coupling to a coaxial line

are using the inner conductor of the coaxial line, or through a loop. A probe

which is simply a short extension of the inner conductor of the coaxial line

can be oriented so that it is parallel to the electric lines of force. A loop can

be arranged so that it encloses some of the magnetic lines of force. The point

at which maximum coupling is obtained depends upon the mode of propaga-

tion in the guide or cavity. Coupling is maximum when the coupling device is

in the most intense field.

If a waveguide is left open at one end, it will radiate energy (that is, it can be

used as an antenna rather than as a transmission line). This radiation can be

enhanced by flaring the waveguide to form a pyramidal horn antenna. We will

see an example of a practical waveguide antenna for WiFi later in this chap-

ter.

Cable Type

Core

Dielectric

Shield

Jacket

RG-58

0.9 mm

2.95 mm

3.8 mm

4.95 mm

RG-213

2.26 mm

7.24 mm

8.64 mm

10.29 mm

LMR-400

2.74 mm

7.24 mm

8.13 mm

10.29 mm

3/8" LDF

3.1 mm

8.12 mm

9.7 mm

11 mm

Here is a table contrasting the sizes of various common transmission lines.

Choose the best cable you can afford with the lowest possible attenuation at

the frequency you intend to use for your wireless link.

100

Chapter 4: Antennas & Transmission Lines

Connectors and adapters

Connectors allow a cable to be connected to another cable or to a compo-

nent of the RF chain. There are a wide variety of fittings and connectors de-

signed to go with various sizes and types of coaxial lines. We will describe

some of the most popular ones.

BNC connectors were developed in the late 40s. BNC stands for Bayonet

Neill Concelman, named after the men who invented it: Paul Neill and Carl

Concelman. The BNC product line is a miniature quick connect / disconnect

connector. It features two bayonet lugs on the female connector, and mating

is achieved with only a quarter turn of the coupling nut. BNC's are ideally

suited for cable termination for miniature to subminiature coaxial cable (RG-

58 to RG-179, RG-316, etc.) They have acceptable performance up to few

GHz. They are most commonly found on test equipment and 10base2 coax-

ial Ethernet cables.

TNC connectors were also invented by Neill and Concelman, and are a

threaded variation of the BNC. Due to the better interconnect provided by

the threaded connector, TNC connectors work well through about 12 GHz.

TNC stands for Threaded Neill Concelman.

Type N (again for Neill, although sometimes attributed to "Navy") connectors

were originally developed during the Second World War. They are usable up

to 18 Ghz, and very commonly used for microwave applications. They are

available for almost all types of cable. Both the plug / cable and plug / socket

joints are waterproof, providing an effective cable clamp.

SMA is an acronym for SubMiniature version A, and was developed in the

60s. SMA connectors are precision, subminiature units that provide excellent

electrical performance up to 18 GHz. These high-performance connectors

are compact in size and mechanically have outstanding durability.

The SMB name derives from SubMiniature B, and it is the second subminia-

ture design. The SMB is a smaller version of the SMA with snap-on coupling.

It provides broadband capability through 4 GHz with a snap-on connector

design.

MCX connectors were introduced in the 80s. While the MCX uses identical

inner contact and insulator dimensions as the SMB, the outer diameter of the

plug is 30% smaller than the SMB. This series provides designers with op-

tions where weight and physical space are limited. MCX provides broadband

capability though 6 GHz with a snap-on connector design.

Chapter 4: Antennas & Transmission Lines

101

In addition to these standard connectors, most WiFi devices use a variety of

proprietary connectors. Often, these are simply standard microwave con-

nectors with the center conductor parts reversed, or the thread cut in the op-

posite direction. These parts are often integrated into a microwave system

using a short jumper called a pigtail that converts the non-standard connec-

tor into something more robust and commonly available. Some of these

connectors include:

RP-TNC. This is a TNC connector with the genders reversed. These are

most commonly found on Linksys equipment, such as the WRT54G.

U.FL (also known as MHF). The U.FL is a patented connector made by Hi-

rose, while the MHF is a mechanically equivalent connector. This is possibly

the smallest microwave connector currently in wide use. The U.FL / MHF is

typically used to connect a mini-PCI radio card to an antenna or larger con-

nector (such as an N or TNC).

The MMCX series, which is also called a MicroMate, is one of the smallest

RF connector line and was developed in the 90s. MMCX is a micro-miniature

connector series with a lock-snap mechanism allowing for 360 degrees rota-

tion enabling flexibility. MMCX connectors are commonly found on PCMCIA

radio cards, such as those manufactured by Senao and Cisco.

MC-Card connectors are even smaller and more fragile than MMCX. They

have a split outer connector that breaks easily after just a few interconnects.

These are commonly found on Lucent / Orinoco / Avaya equipment.

Adapters, which are also called coaxial adapters, are short, two-sided connec-

tors which are used to join two cables or components which cannot be con-

nected directly. Adapters can be used to interconnect devices or cables with

different types. For example, an adapter can be used to connect an SMA con-

nector to a BNC. Adapters may also be used to fit together connectors of the

same type, but which cannot be directly joined because of their gender.

Figure 4.3: An N female barrel adapter.

For example a very useful adapter is the one which enables to join two Type

N connectors, having socket (female) connectors on both sides.

102

Chapter 4: Antennas & Transmission Lines

Choosing the proper connector

1. "The gender question." Virtually all connectors have a well defined gen-

der consisting of either a pin (the "male" end) or a socket (the "female"

end). Usually cables have male connectors on both ends, while RF de-

vices (i.e. transmitters and antennas) have female connectors. Devices

such as directional couplers and line-through measuring devices may

have both male and female connectors. Be sure that every male con-

nector in your system mates with a female connector.

2. "Less is best!" Try to minimize the number of connectors and adapters in

the RF chain. Each connector introduces some additional loss (up to a

few dB for each connection, depending on the connector!)

3. "Buy, don t build!" As mentioned earlier, buy cables that are already ter-

minated with the connectors you need whenever possible. Soldering

connectors is not an easy task, and to do this job properly is almost im-

possible for small connectors as U.FL and MMCX. Even terminating

"Foam" cables is not an easy task.

4. Don t use BNC for 2.4 GHz or higher. Use N type connectors (or SMA,

SMB, TNC, etc.)

5. Microwave connectors are precision-made parts, and can be easily

damaged by mistreatment. As a general rule, you should rotate the outer

sleeve to tighten the connector, leaving the rest of the connector (and

cable) stationary. If other parts of the connector are twisted while tighten-

ing or loosening, damage can easily occur.

6. Never step over connectors, or drop connectors on the floor when dis-

connecting cables (this happens more often than what you may imagine,

especially when working on a mast over a roof).

7. Never use tools like pliers to tighten connectors. Always use your hands.

When working outside, remember that metals expand at high tempera-

tures and reduce their size at low temperatures: a very tightened connec-

tor in the summer can bind or even break in winter.

Antennas & radiation patterns

Antennas are a very important component of communication systems. By

definition, an antenna is a device used to transform an RF signal traveling on

a conductor into an electromagnetic wave in free space. Antennas demon-

strate a property known as reciprocity, which means that an antenna will

maintain the same characteristics regardless if whether it is transmitting or

receiving. Most antennas are resonant devices, which operate efficiently

over a relatively narrow frequency band. An antenna must be tuned to the

same frequency band of the radio system to which it is connected, otherwise

Chapter 4: Antennas & Transmission Lines

103

the reception and the transmission will be impaired. When a signal is fed into

an antenna, the antenna will emit radiation distributed in space in a certain

way. A graphical representation of the relative distribution of the radiated

power in space is called a radiation pattern.

Antenna term glossary

Before we talk about specific antennas, there are a few common terms that

must be defined and explained:

Input Impedance

For an efficient transfer of energy, the impedance of the radio, antenna, and

transmission cable connecting them must be the same. Transceivers and

their transmission lines are typically designed for 50 impedance. If the an-

tenna has an impedance different than 50 , then there is a mismatch and an

impedance matching circuit is required. When any of these components are

mismatched, transmission efficiency suffers.

Return loss

Return loss is another way of expressing mismatch. It is a logarithmic ratio

measured in dB that compares the power reflected by the antenna to the

power that is fed into the antenna from the transmission line. The relation-

ship between SWR and return loss is the following:

SWR

Return Loss (in dB) = 20log10

SWR-1

While some energy will always be reflected back into the system, a high re-

turn loss will yield unacceptable antenna performance.

Bandwidth

The bandwidth of an antenna refers to the range of frequencies over which

the antenna can operate correctly. The antenna's bandwidth is the number of

Hz for which the antenna will exhibit an SWR less than 2:1.

The bandwidth can also be described in terms of percentage of the center

frequency of the band.

FH - FL

Bandwidth = 100

104

Chapter 4: Antennas & Transmission Lines

...where FH is the highest frequency in the band, FL is the lowest frequency in

the band, and FC is the center frequency in the band.

In this way, bandwidth is constant relative to frequency. If bandwidth was ex-

pressed in absolute units of frequency, it would be different depending upon the

center frequency. Different types of antennas have different bandwidth limitations.

Directivity and Gain

Directivity is the ability of an antenna to focus energy in a particular direction

when transmitting, or to receive energy from a particular direction when re-

ceiving. If a wireless link uses fixed locations for both ends, it is possible to

use antenna directivity to concentrate the radiation beam in the wanted direc-

tion. In a mobile application where the transceiver is not fixed, it may be im-

possible to predict where the transceiver will be, and so the antenna should

ideally radiate as well as possible in all directions. An omnidirectional an-

tenna is used in these applications.

Gain is not a quantity which can be defined in terms of a physical quantity

such as the Watt or the Ohm, but it is a dimensionless ratio. Gain is given in

reference to a standard antenna. The two most common reference antennas

are the isotropic antenna and the resonant half-wave dipole antenna.

The isotropic antenna radiates equally well in all directions. Real isotropic

antennas do not exist, but they provide useful and simple theoretical antenna

patterns with which to compare real antennas. Any real antenna will radiate

more energy in some directions than in others. Since antennas cannot create

energy, the total power radiated is the same as an isotropic antenna. Any

additional energy radiated in the directions it favors is offset by equally less

energy radiated in all other directions.

The gain of an antenna in a given direction is the amount of energy radiated

in that direction compared to the energy an isotropic antenna would radiate in

the same direction when driven with the same input power. Usually we are

only interested in the maximum gain, which is the gain in the direction in

which the antenna is radiating most of the power. An antenna gain of 3 dB

compared to an isotropic antenna would be written as 3 dBi. The resonant

half-wave dipole can be a useful standard for comparing to other antennas at

one frequency or over a very narrow band of frequencies. To compare the

dipole to an antenna over a range of frequencies requires a number of di-

poles of different lengths. An antenna gain of 3 dB compared to a dipole an-

tenna would be written as 3 dBd.

The method of measuring gain by comparing the antenna under test against a

known standard antenna, which has a calibrated gain, is technically known as

a gain transfer technique. Another method for measuring gain is the 3 anten-

Chapter 4: Antennas & Transmission Lines

105

nas method, where the transmitted and received power at the antenna termi-

nals is measured between three arbitrary antennas at a known fixed distance.

Radiation Pattern

The radiation pattern or antenna pattern describes the relative strength of

the radiated field in various directions from the antenna, at a constant dis-

tance. The radiation pattern is a reception pattern as well, since it also de-

scribes the receiving properties of the antenna. The radiation pattern is three-

dimensional, but usually the measured radiation patterns are a two-

dimensional slice of the three-dimensional pattern, in the horizontal or verti-

cal planes. These pattern measurements are presented in either a rectangu-

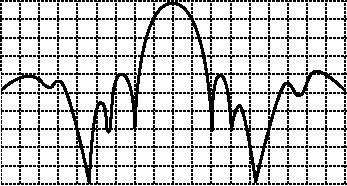

lar or a polar format. The following figure shows a rectangular plot presenta-

tion of a typical ten-element Yagi. The detail is good but it is difficult to visual-

ize the antenna behavior in different directions.

-5

-10

-15

-20

-25

-30

-35

-40

-45

-50

-180°

-140°

-100°

-60°

-20°

20°

60°

100°

140°

180°

Figure 4.4: A rectangular plot of a yagi radiation pattern.

Polar coordinate systems are used almost universally. In the polar-coordinate

graph, points are located by projection along a rotating axis (radius) to an

intersection with one of several concentric circles. The following is a polar

plot of the same 10 element Yagi antenna.

Polar coordinate systems may be divided generally in two classes: linear

and logarithmic. In the linear coordinate system, the concentric circles are

equally spaced, and are graduated. Such a grid may be used to prepare a

linear plot of the power contained in the signal. For ease of comparison, the

equally spaced concentric circles may be replaced with appropriately placed

circles representing the decibel response, referenced to 0 dB at the outer

edge of the plot. In this kind of plot the minor lobes are suppressed. Lobes

with peaks more than 15 dB or so below the main lobe disappear because of

their small size. This grid enhances plots in which the antenna has a high

directivity and small minor lobes. The voltage of the signal, rather than the

power, can also be plotted on a linear coordinate system. In this case, too,

106

Chapter 4: Antennas & Transmission Lines

the directivity is enhanced and the minor lobes suppressed, but not in the

same degree as in the linear power grid.

0°

270°

90°

180°

Figure 4.5: A linear polar plot of the same yagi.

In the logarithmic polar coordinate system the concentric grid lines are

spaced periodically according to the logarithm of the voltage in the signal.

Different values may be used for the logarithmic constant of periodicity, and

this choice will have an effect on the appearance of the plotted patterns.

Generally the 0 dB reference for the outer edge of the chart is used. With this

type of grid, lobes that are 30 or 40 dB below the main lobe are still distin-

guishable. The spacing between points at 0 dB and at -3 dB is greater than

the spacing between -20 dB and -23 dB, which is greater than the spacing

between -50 dB and -53 dB. The spacing thus correspond to the relative sig-

nificance of such changes in antenna performance.

A modified logarithmic scale emphasizes the shape of the major beam while

compressing very low-level (>30 dB) sidelobes towards the center of the pattern.

This is shown in Figure 4.6.

There are two kinds of radiation pattern: absolute and relative. Absolute

radiation patterns are presented in absolute units of field strength or power.

Relative radiation patterns are referenced in relative units of field strength or

power. Most radiation pattern measurements are relative to the isotropic an-

tenna, and the gain transfer method is then used to establish the absolute

gain of the antenna.

Chapter 4: Antennas & Transmission Lines

107

0°

270°

90°

180°

Figure 4.6: The logarithmic polar plot

The radiation pattern in the region close to the antenna is not the same as

the pattern at large distances. The term near-field refers to the field pattern

that exists close to the antenna, while the term far-field refers to the field pat-

tern at large distances. The far-field is also called the radiation field, and is

what is most commonly of interest. Ordinarily, it is the radiated power that is

of interest, and so antenna patterns are usually measured in the far-field re-

gion. For pattern measurement it is important to choose a distance suffi-

ciently large to be in the far-field, well out of the near-field. The minimum

permissible distance depends on the dimensions of the antenna in relation to

the wavelength. The accepted formula for this distance is:

2d2

rmin =

here rmin is the minimum distance from the antenna, d is the largest dimen-

sion of the antenna, and is the wavelength.

Beamwidth

An antenna's beamwidth is usually understood to mean the half-power

beamwidth. The peak radiation intensity is found, and then the points on ei-

ther side of the peak which represent half the power of the peak intensity are

located. The angular distance between the half power points is defined as

the beamwidth. Half the power expressed in decibels is -3dB, so the half

power beamwidth is sometimes referred to as the 3dB beamwidth. Both hori-

zontal and vertical beamwidth are usually considered.

108

Chapter 4: Antennas & Transmission Lines

Assuming that most of the radiated power is not divided into sidelobes, then

the directive gain is inversely proportional to the beamwidth: as the beam-

width decreases, the directive gain increases.

Sidelobes

No antenna is able to radiate all the energy in one preferred direction. Some

is inevitably radiated in other directions. These smaller peaks are referred to

as sidelobes, commonly specified in dB down from the main lobe.

Nulls

In an antenna radiation pattern, a null is a zone in which the effective radi-

ated power is at a minimum. A null often has a narrow directivity angle com-

pared to that of the main beam. Thus, the null is useful for several purposes,

such as suppression of interfering signals in a given direction.

Polarization

Polarization is defined as the orientation of the electric field of an electro-

magnetic wave. Polarization is in general described by an ellipse. Two spe-

cial cases of elliptical polarization are linear polarization and circular po-

larization. The initial polarization of a radio wave is determined by the an-

tenna.

direction of propagation

electric field

magnetic field

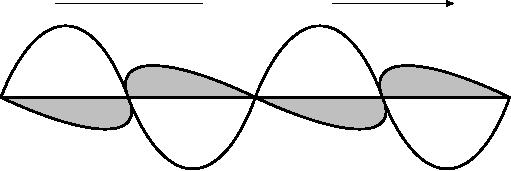

Figure 4.7: The electrical wave is perpendicular to magnetic wave, both of which are

perpendicular to the direction of propagation.

With linear polarization, the electric field vector stays in the same plane all

the time. The electric field may leave the antenna in a vertical orientation, a

horizontal orientation, or at some angle between the two. Vertically polar-

ized radiation is somewhat less affected by reflections over the transmis-

sion path. Omnidirectional antennas always have vertical polarization. With

horizontal polarization, such reflections cause variations in received sig-

nal strength. Horizontal antennas are less likely to pick up man-made inter-

ference, which ordinarily is vertically polarized.

Chapter 4: Antennas & Transmission Lines

109

In circular polarization the electric field vector appears to be rotating with

circular motion about the direction of propagation, making one full turn for

each RF cycle. This rotation may be right-hand or left-hand. Choice of polari-

zation is one of the design choices available to the RF system designer.

Polarization Mismatch

In order to transfer maximum power between a transmit and a receive an-

tenna, both antennas must have the same spatial orientation, the same po-

larization sense, and the same axial ratio.

When the antennas are not aligned or do not have the same polarization,

there will be a reduction in power transfer between the two antennas. This

reduction in power transfer will reduce the overall system efficiency and per-

formance.

When the transmit and receive antennas are both linearly polarized, physical

antenna misalignment will result in a polarization mismatch loss, which can

be determined using the following formula:

Loss (dB) = 20 log (cos

)

...where is the difference in alignment angle between the two antennas. For

15° the loss is approximately 0.3dB, for 30° we lose 1.25dB, for 45° we lose

3dB and for 90° we have an infinite loss.

In short, the greater the mismatch in polarization between a transmitting and

receiving antenna, the greater the apparent loss. In the real world, a 90°

mismatch in polarization is quite large but not infinite. Some antennas, such

as yagis or can antennas, can be simply rotated 90° to match the polarization

of the other end of the link. You can use the polarization effect to your ad-

vantage on a point-to-point link. Use a monitoring tool to observe interfer-

ence from adjacent networks, and rotate one antenna until you see the low-

est received signal. Then bring your link online and orient the other end to

match polarization. This technique can sometimes be used to build stable

links, even in noisy radio environments.

Front-to-back ratio

It is often useful to compare the front-to-back ratio of directional antennas.

This is the ratio of the maximum directivity of an antenna to its directivity in

the opposite direction. For example, when the radiation pattern is plotted on

a relative dB scale, the front-to-back ratio is the difference in dB between the

level of the maximum radiation in the forward direction and the level of radia-

tion at 180 degrees.

110

Chapter 4: Antennas & Transmission Lines

This number is meaningless for an omnidirectional antenna, but it gives you

an idea of the amount of power directed forward on a very directional an-

tenna.

Types of Antennas

A classification of antennas can be based on:

· Frequency and size. Antennas used for HF are different from antennas

used for VHF, which in turn are different from antennas for microwave. The

wavelength is different at different frequencies, so the antennas must be

different in size to radiate signals at the correct wavelength. We are par-

ticularly interested in antennas working in the microwave range, especially

in the 2.4 GHz and 5 GHz frequencies. At 2.4 GHz the wavelength is 12.5

cm, while at 5 GHz it is 6 cm.

· Directivity. Antennas can be omnidirectional, sectorial or directive. Omni-

directional antennas radiate roughly the same pattern all around the an-

tenna in a complete 360° pattern. The most popular types of omnidirec-

tional antennas are the dipole and the ground plane. Sectorial antennas

radiate primarily in a specific area. The beam can be as wide as 180 de-

grees, or as narrow as 60 degrees. Directional or directive antennas are

antennas in which the beamwidth is much narrower than in sectorial an-

tennas. They have the highest gain and are therefore used for long dis-

tance links. Types of directive antennas are the Yagi, the biquad, the horn,

the helicoidal, the patch antenna, the parabolic dish, and many others.

· Physical construction. Antennas can be constructed in many different

ways, ranging from simple wires, to parabolic dishes, to coffee cans.

When considering antennas suitable for 2.4 GHz WLAN use, another classi-

fication can be used:

· Application. Access points tend to make point-to-multipoint networks,

while remote links are point-to-point. Each of these suggest different types

of antennas for their purpose. Nodes that are used for multipoint access

will likely use omni antennas which radiate equally in all directions, or sec-

torial antennas which focus into a small area. In the point-to-point case,

antennas are used to connect two single locations together. Directive an-

tennas are the primary choice for this application.

A brief list of common type of antennas for the 2.4 GHz frequency is pre-

sented now, with a short description and basic information about their char-

acteristics.

Chapter 4: Antennas & Transmission Lines

111

1/4 wavelength ground plane

The 1/4 wavelength ground plane antenna is very simple in its construction

and is useful for communications when size, cost and ease of construction

are important. This antenna is designed to transmit a vertically polarized sig-

nal. It consists of a 1/4 wave element as half-dipole and three or four 1/4

wavelength ground elements bent 30 to 45 degrees down. This set of ele-

ments, called radials, is known as a ground plane.

Figure 4.8: Quarter wavelength ground plane antenna.

This is a simple and effective antenna that can capture a signal equally from

all directions. To increase the gain, the signal can be flattened out to take

away focus from directly above and below, and providing more focus on the

horizon. The vertical beamwidth represents the degree of flatness in the fo-

cus. This is useful in a Point-to-Multipoint situation, if all the other antennas

are also at the same height. The gain of this antenna is in the order of 2 - 4

dBi.

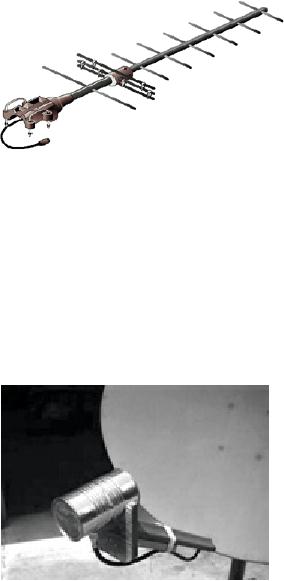

Yagi antenna

A basic Yagi consists of a certain number of straight elements, each measur-

ing approximately half wavelength. The driven or active element of a Yagi is

the equivalent of a center-fed, half-wave dipole antenna. Parallel to the

driven element, and approximately 0.2 to 0.5 wavelength on either side of it,

are straight rods or wires called reflectors and directors, or simply passive

elements. A reflector is placed behind the driven element and is slightly

longer than half wavelength; a director is placed in front of the driven element

and is slightly shorter than half wavelength. A typical Yagi has one reflector

and one or more directors. The antenna propagates electromagnetic field

energy in the direction running from the driven element toward the directors,

and is most sensitive to incoming electromagnetic field energy in this same

direction. The more directors a Yagi has, the greater the gain. As more direc-

112

Chapter 4: Antennas & Transmission Lines

tors are added to a Yagi, it therefore becomes longer. Following is the photo

of a Yagi antenna with 6 directors and one reflector.

Figure 4.9: A Yagi antenna.

Yagi antennas are used primarily for Point-to-Point links, have a gain from 10

to 20 dBi and a horizontal beamwidth of 10 to 20 degrees.

Horn

The horn antenna derives its name from the characteristic flared appear-

ance. The flared portion can be square, rectangular, cylindrical or conical.

The direction of maximum radiation corresponds with the axis of the horn. It

is easily fed with a waveguide, but can be fed with a coaxial cable and a

proper transition.

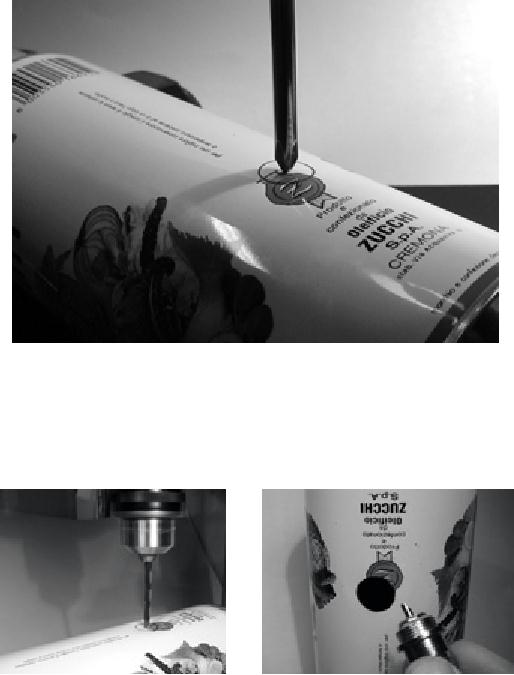

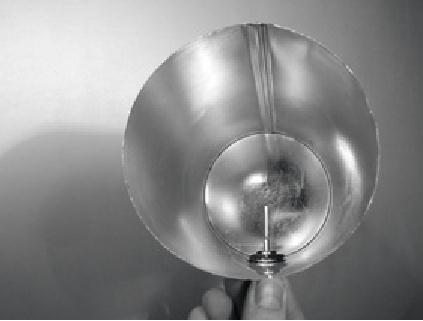

Figure 4.10: Feed horn made from a food can.

Horn antennas are commonly used as the active element in a dish antenna.

The horn is pointed toward the center of the dish reflector. The use of a horn,

rather than a dipole antenna or any other type of antenna, at the focal point

of the dish minimizes loss of energy around the edges of the dish reflector. At

2.4 GHz, a simple horn antenna made with a tin can has a gain in the order

of 10 - 15 dBi.

Chapter 4: Antennas & Transmission Lines

113

Parabolic Dish

Antennas based on parabolic reflectors are the most common type of directive

antennas when a high gain is required. The main advantage is that they can be

made to have gain and directivity as large as required. The main disadvantage

is that big dishes are difficult to mount and are likely to have a large windage.

Figure 4.11: A solid dish antenna.

Dishes up to one meter are usually made from solid material. Aluminum is

frequently used for its weight advantage, its durability and good electrical

characteristics. Windage increases rapidly with dish size and soon becomes

a severe problem. Dishes which have a reflecting surface that uses an open

mesh are frequently used. These have a poorer front-to-back ratio, but are

safer to use and easier to build. Copper, aluminum, brass, galvanized steel

and iron are suitable mesh materials.

BiQuad

The BiQuad antenna is simple to build and offers good directivity and gain for

Point-to-Point communications. It consists of a two squares of the same size of

1/4 wavelength as a radiating element and of a metallic plate or grid as reflec-

tor. This antenna has a beamwidth of about 70 degrees and a gain in the order

of 10-12 dBi. It can be used as stand-alone antenna or as feeder for a Para-

bolic Dish. The polarization is such that looking at the antenna from the front, if

the squares are placed side by side the polarization is vertical.

114

Chapter 4: Antennas & Transmission Lines

Figure 4.12: The BiQuad.

Other Antennas

Many other types of antennas exist and new ones are created following the

advances in technology.

· Sector or Sectorial antennas: they are widely used in cellular telephony

infrastructure and are usually built adding a reflective plate to one or more

phased dipoles. Their horizontal beamwidth can be as wide as 180 de-

grees, or as narrow as 60 degrees, while the vertical is usually much nar-

rower. Composite antennas can be built with many Sectors to cover a

wider horizontal range (multisectorial antenna).

· Panel or Patch antennas: they are solid flat panels used for indoor cover-

age, with a gain up to 20 dB.

Reflector theor y

The basic property of a perfect parabolic reflector is that it converts a spheri-

cal wave irradiating from a point source placed at the focus into a plane

wave. Conversely, all the energy received by the dish from a distant source is

reflected to a single point at the focus of the dish. The position of the focus,

or focal length, is given by:

...where D is the dish diameter and c is the depth of the parabola at its center.

Chapter 4: Antennas & Transmission Lines

115

The size of the dish is the most important factor since it determines the

maximum gain that can be achieved at the given frequency and the resulting

beamwidth. The gain and beamwidth obtained are given by:

D)2

(

Gain =

eamwidth =

...where D is the dish diameter and n is the efficiency. The efficiency is de-

termined mainly by the effectiveness of illumination of the dish by the feed,

but also by other factors. Each time the diameter of a dish is doubled, the

gain is four times, or 6 dB, greater. If both stations double the size of their

dishes, signal strength can be increased of 12 dB, a very substantial gain. An

efficiency of 50% can be assumed when hand-building the antenna.

The ratio f / D (focal length/diameter of the dish) is the fundamental factor

governing the design of the feed for a dish. The ratio is directly related to the

beamwidth of the feed necessary to illuminate the dish effectively. Two

dishes of the same diameter but different focal lengths require different de-

sign of feed if both are to be illuminated efficiently. The value of 0.25 corre-

sponds to the common focal-plane dish in which the focus is in the same

plane as the rim of the dish.

Amplifiers

As mentioned earlier, antennas do not actually create power. They simply

direct all available power into a particular pattern. By using a power ampli-

fier, you can use DC power to augment your available signal. An amplifier

connects between the radio transmitter and the antenna, and has an addi-

tional lead that connects to a power source. Amplifiers are available that

work at 2.4 GHz, and can add several Watts of power to your transmission.

These devices sense when an attached radio is transmitting, and quickly

power up and amplify the signal. They then switch off again when transmis-

sion ends. When receiving, they also add amplification to the signal before

sending it to the radio.

Unfortunately, simply adding amplifiers will not magically solve all of your

networking problems. We do not discuss power amplifiers at length in this

book because there are a number of significant drawbacks to using them:

· They are expensive. Amplifiers must work at relatively wide bandwidths at

2.4 GHz, and must switch quickly enough to work for Wi-Fi applications.

116

Chapter 4: Antennas & Transmission Lines

These amplifiers do exist, but they tend to cost several hundred dollars per

unit.

· You will need at least two. Whereas antennas provide reciprocal gain

that benefits both sides of a connection, amplifiers work best at amplifying

a transmitted signal. If you only add an amplifier to one end of a link with

insufficient antenna gain, it will likely be able to be heard but will not be

able to hear the other end.

· They provide no additional directionality. Adding antenna gain provides

both gain and directionality benefits to both ends of the link. They not only

improve the available amount of signal, but tend to reject noise from other

directions. Amplifiers blindly amplify both desired and interfering signals,

and can make interference problems worse.

· Amplifiers generate noise for other users of the band. By increasing

your output power, you are creating a louder source of noise for other us-

ers of the unlicensed band. This may not be much of an issue today in

rural areas, but it can cause big problems in populated areas. Conversely,

adding antenna gain will improve your link and can actually decrease the

noise level for your neighbors.

· Using amplifiers probably isn t legal. Every country imposes power lim-

its on use of unlicensed spectrum. Adding an antenna to a highly amplified

signal will likely cause the link to exceed legal limits.

Using amplifiers is often compared to the inconsiderate neighbor who wants

to listen to the radio outside their home, and so turns it up to full volume.

They might even "improve" reception by pointing their speakers out the win-

dow. While they may now be able to hear the radio, so must everyone else

on the block. This approach may scale to exactly one user, but what hap-

pens when the neighbors decide to do the same thing with their radios? Us-

ing amplifiers for a wireless link causes roughly the same effect at 2.4 GHz.

Your link may "work better" for the moment, but you will have problems when

other users of the band decide to use amplifiers of their own.

By using higher gain antennas rather than amplifiers, you avoid all of these

problems. Antennas cost far less than amps, and can improve a link simply

by changing the antenna on one end. Using more sensitive radios and good

quality cable also helps significantly on long distance shots. These tech-

niques are unlikely to cause problems for other users of the band, and so we

recommend pursuing them before adding amplifiers.

Practical antenna designs

The cost of 2.4 GHz antennas has fallen dramatically since the introduction of

802.11b. Innovative designs use simpler parts and fewer materials to achieve

Chapter 4: Antennas & Transmission Lines

117

impressive gain with relatively little machining. Unfortunately, availability of

good antennas is still limited in many areas of the world, and importing them

can be prohibitively expensive. While actually designing an antenna can be a

complex and error-prone process, constructing antennas from locally available

components is very straightforward, and can be a lot of fun. We present four

practical antenna designs that can be built for very little money.

USB dongle as dish feed

Possibly the simplest antenna design is the use of a parabola to direct the

output of a USB wireless device (known in networking circles as a USB

dongle). By placing the internal dipole antenna present in USB wireless

dongles at the focus of a parabolic dish, you can provide significant gain

without the need to solder or even open the wireless device itself. Many

kinds of parabolic dishes will work, including satellite dishes, television an-

tennas, and even metal cookware (such as a wok, round lid, or strainer). As

a bonus, inexpensive and lossless USB cable is then used to feed the an-

tenna, eliminating the need for expensive coaxial cable or Heliax.

To build a USB dongle parabolic, you will need to find the orientation and loca-

tion of the dipole inside the dongle. Most devices orient the dipole to be paral-

lel with the short edge of the dongle, but some will mount the dipole perpen-

dicular to the short edge. You can either open the dongle and look for yourself,

or simply try the dongle in both positions to see which provides more gain.

To test the antenna, point it at an access point several meters away, and con-

nect the USB dongle to a laptop. Using the laptop s client driver or a tool such

as Netstumbler (see Chapter 6), observe the received signal strength of the

access point. Now, slowly move the dongle in relation to the parabolic while

watching the signal strength meter. You should see a significant improvement

in gain (20 dB or more) when you find the proper position. The proper position

will vary depending on the shape of the parabola and the construction of the

USB dongle. Try various positions while watching your signal strength meter

until you find the optimum location.

Once the best location is found, securely fix the dongle in place. You will

need to waterproof the dongle and cable if the antenna is used outdoors.

Use a silicone compound or a piece of PVC tubing to seal the electronics

against the weather. Many USB-fed parabolic designs and ideas are docu-

mented online at http://www.usbwifi.orcon.net.nz/ .

Collinear omni

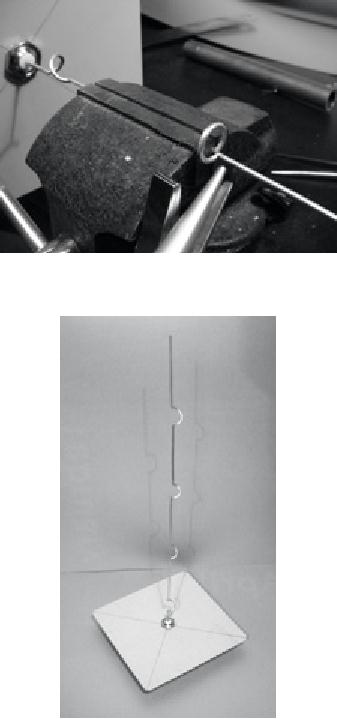

This antenna is very simple to build, requiring just a piece of wire, an N

socket and a square metallic plate. It can be used for indoor or outdoor point-

to-multipoint short distance coverage. The plate has a hole drilled in the mid-

118

Chapter 4: Antennas & Transmission Lines

dle to accommodate an N type chassis socket that is screwed into place. The

wire is soldered to the center pin of the N socket and has coils to separate

the active phased elements. Two versions of the antenna are possible: one

with two phased elements and two coils and another with four phased ele-

ments and four coils. For the short antenna the gain will be around 5 dBi,

while the long one with four elements will have 7 to 9 dBi of gain. We are go-

ing to describe how to build the long antenna only.

Parts list and tools required

· One screw-on N-type female connector

· 50 cm of copper or brass wire of 2 mm of diameter

· 10x10 cm or greater square metallic plate

Figure 4.13: 10 cm x 10 cm aluminum plate.

· Ruler

· Pliers

· File

· Soldering iron and solder

· Drill with a set of bits for metal (including a 1.5 cm diameter bit)

· A piece of pipe or a drill bit with a diameter of 1 cm

· Vice or clamp

· Hammer

· Spanner or monkey wrench

Construction

1. Straighten the wire using the vice.

Chapter 4: Antennas & Transmission Lines

119

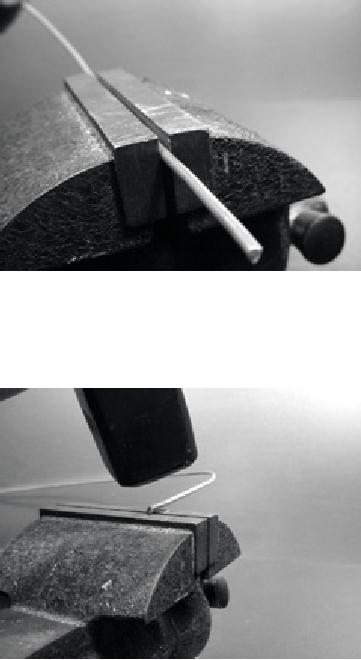

Figure 4.14: Make the wire as straight as you can.

2. With a marker, draw a line at 2.5 cm starting from one end of the wire.

On this line, bend the wire at 90 degrees with the help of the vice and of

the hammer.

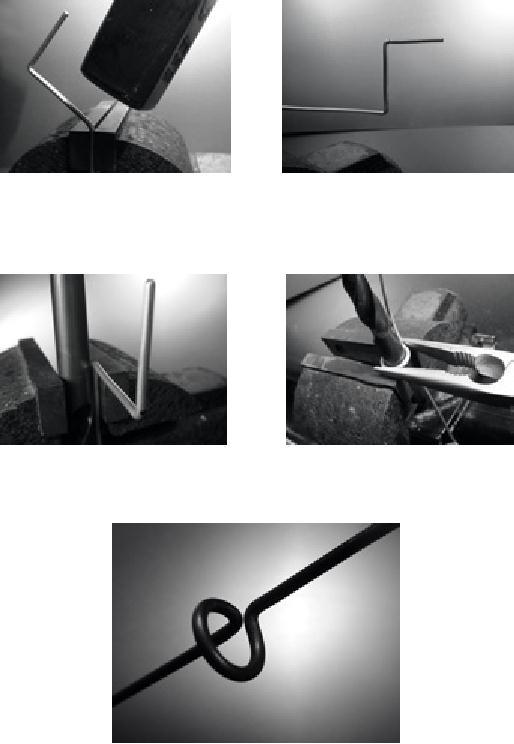

Figure 4.15: Gently tap the wire to make a sharp bend.

3. Draw another line at a distance of 3.6 cm from the bend. Using the vice

and the hammer, bend once again the wire over this second line at 90

degrees, in the opposite direction to the first bend but in the same plane.

The wire should look like a Z .

120

Chapter 4: Antennas & Transmission Lines

Figure 4.16: Bend the wire into a "Z" shape.

4. We will now twist the Z portion of the wire to make a coil with a diameter

of 1 cm. To do this, we will use the pipe or the drill bit and curve the wire

around it, with the help of the vice and of the pliers.

Figure 4.17: Bend the wire around the drill bit to make a coil.

The coil will look like this:

Figure 4.18: The completed coil.

5. You should make a second coil at a distance of 7.8 cm from the first one.

Both coils should have the same turning direction and should be placed

on the same side of the wire. Make a third and a fourth coil following the

Chapter 4: Antennas & Transmission Lines

121

same procedure, at the same distance of 7.8 cm one from each other.

Trim the last phased element at a distance of 8.0 cm from the fourth coil.

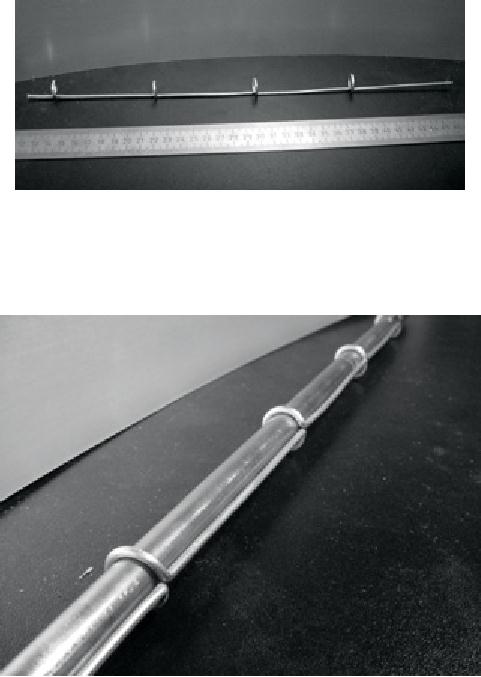

Figure 4.19: Try to keep it as straight possible.

If the coils have been made correctly, it should now be possible to insert a

pipe through all the coils as shown.

Figure 4.20: Inserting a pipe can help to straighten the wire.

6. With a marker and a ruler, draw the diagonals on the metallic plate, find-

ing its center. With a small diameter drill bit, make a pilot hole at the cen-

ter of the plate. Increase the diameter of the hole using bits with an in-

creasing diameter.

122

Chapter 4: Antennas & Transmission Lines

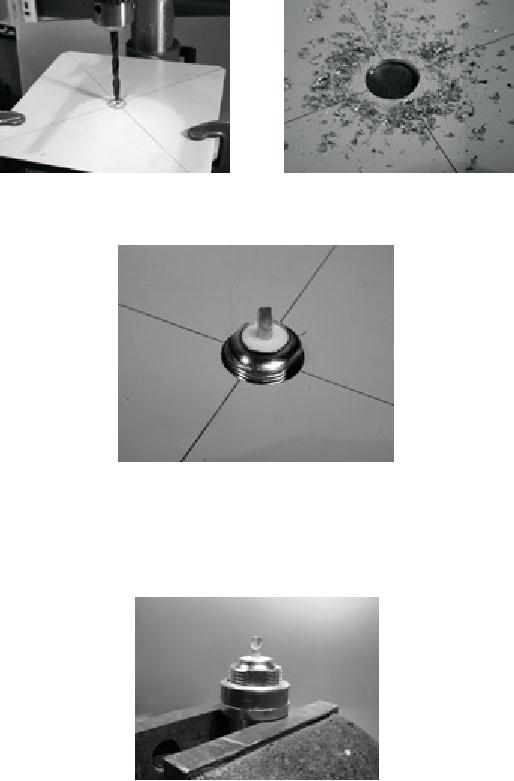

Figure 4.21: Drilling the hole in the metal plate.

The hole should fit the N connector exactly. Use a file if needed.

Figure 4.22: The N connector should fit snugly in the hole.

7. To have an antenna impedance of 50 Ohms, it is important that the visi-

ble surface of the internal insulator of the connector (the white area

around the central pin) is at the same level as the surface of the plate.

For this reason, cut 0.5 cm of copper pipe with an external diameter of 2

cm, and place it between the connector and the plate.

Figure 4.23: Adding a copper pipe spacer helps to match the impedance of the an-

tenna to 50 Ohms.

Chapter 4: Antennas & Transmission Lines

123

8. Screw the nut to the connector to fix it firmly on the plate using the spanner.

Figure 4.24: Secure the N connector tightly to the plate.

9. Smooth with the file the side of the wire which is 2.5 cm long, from the

first coil. Tin the wire for around 0.5 cm at the smoothed end helping

yourself with the vice.

Figure 4.25: Add a little solder to the end of the wire to "tin" it prior to soldering.

10. With the soldering iron, tin the central pin of the connector. Keeping the

wire vertical with the pliers, solder its tinned side in the hole of the central

pin. The first coil should be at 3.0 cm from the plate.

124

Chapter 4: Antennas & Transmission Lines

Figure 4.26: The first coil should start 3.0 cm from the surface of the plate.

11. We are now going to stretch the coils extending the total vertical length of

the wire. Using the use the vice and the pliers, you should pull the cable

so that the final length of the coil is of 2.0 cm.

Figure 4.27: Stretching the coils. Be very gentle and try not to scrape the surface of

the wire with the pliers.

12. Repeat the same procedure for the other three coils, stretching their

length to 2.0 cm.

Chapter 4: Antennas & Transmission Lines

125

Figure 4.28: Repeat the stretching procedure for all of the remaining coils.

13. At the end the antenna should measure 42.5 cm from the plate to the top.

Figure 4.29: The finished antenna should be 42.5 cm from the plate to the end of the

wire.

14. If you have a spectrum analyzer with a tracking generator and a direc-

tional coupler, you can check the curve of the reflected power of the an-

tenna. The picture below shows the display of the spectrum analyzer.

126

Chapter 4: Antennas & Transmission Lines

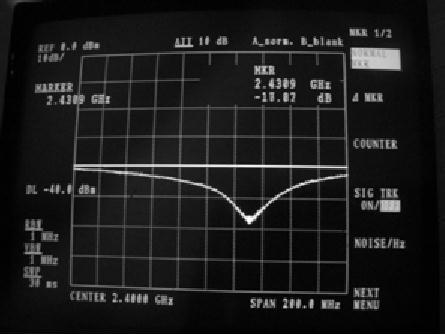

Figure 4.30: A spectrum plot of the reflected power of the collinear omni.

If you intend to use this antenna outside, you will need to weatherproof it.

The simplest method is to enclose the whole thing in a large piece of PVC

pipe closed with caps. Cut a hole at the bottom for the transmission line, and

seal the antenna shut with silicone or PVC glue.

Cantenna

The waveguide antenna, sometimes called a Cantenna, uses a tin can as a

waveguide and a short wire soldered on an N connector as a probe for

coaxial-cable-to-waveguide transition. It can be easily built at just the price of

the connector, recycling a food, juice, or other tin can. It is a directional an-

tenna, useful for short to medium distance point-to-point links. It may be also

used as a feeder for a parabolic dish or grid.

Not all cans are good for building an antenna because there are dimensional

constraints.

1. The acceptable values for the diameter D of the feed are between 0.60

and 0.75 wavelength in air at the design frequency. At 2.44 GHz the

wavelength is 12.2 cm, so the can diameter should be in the range of

7.3 - 9.2 cm.

2. The length L of the can preferably should be at least 0.75 G , where G

is the guide wavelength and is given by:

Chapter 4: Antennas & Transmission Lines

127

/ 1.706D)2)

sqrt(1 - (

For D = 7.3 cm, we need a can of at least 56.4 cm, while for D = 9.2 cm we

need a can of at least 14.8 cm. Generally the smaller the diameter, the longer

the can should be. For our example, we will use oil cans that have a diameter

of 8.3 cm and a height of about 21 cm.

3. The probe for coaxial cable to waveguide transition should be positioned

at a distance S from the bottom of the can, given by:

S = 0.25

Its length should be 0.25 , which at 2.44 GHz corresponds to 3.05 cm.

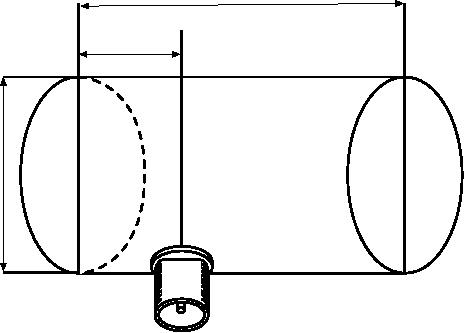

Figure 4.31: Dimensional constraints on the cantenna

The gain for this antenna will be in the order of 10 to 14 dBi, with a beam-

width of around 60 degrees.

128

Chapter 4: Antennas & Transmission Lines

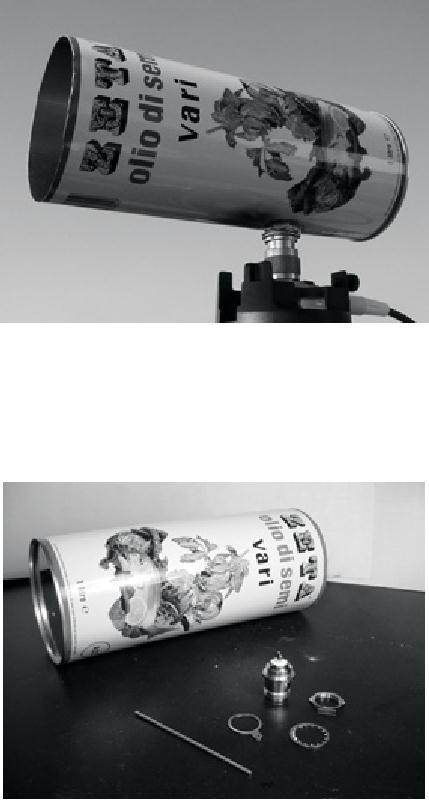

Figure 4.32: The finished cantenna.

Parts list

· one screw-on N-type female connector

· 4 cm of copper or brass wire of 2 mm of diameter

· an oil can of 8.3 cm of diameter and 21 cm of height

Figure 4.33: Parts needed for the can antenna.

Chapter 4: Antennas & Transmission Lines

129

Tools required

· Can opener

· Ruler

· Pliers

· File

· Soldering iron

· Solder

· Drill with a set of bits for metal (with a 1.5 cm diameter bit)

· Vice or clamp

· Spanner or monkey wrench

· Hammer

· Punch

Construction

1. With the can opener, carefully remove the upper part of the can.

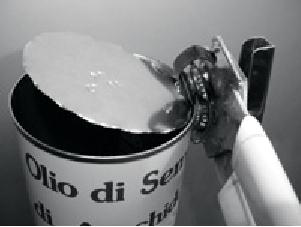

Figure 4.34: Be careful of sharp edges when opening the can.

The circular disk has a very sharp edge. Be careful when handling it! Empty

the can and wash it with soap. If the can contained pineapple, cookies, or

some other tasty treat, have a friend serve the food.

2. With the ruler, measure 6.2 cm from the bottom of the can and draw a

point. Be careful to measure from the inner side of the bottom. Use a

punch (or a small drill bit or a Phillips screwdriver) and a hammer to mark

the point. This makes it easier to precisely drill the hole. Be careful not to

130

Chapter 4: Antennas & Transmission Lines

change the shape of the can doing this by inserting a small block of

wood or other object in the can before tapping it.

Figure 4.35: Mark the hole before drilling.

3. With a small diameter drill bit, make a hole at the center of the plate. In-

crease the diameter of the hole using bits with an increasing diameter.

The hole should fit exactly the N connector. Use the file to smooth the

border of the hole and to remove the painting around it in order to ensure

a better electrical contact with the connector.

Figure 4.36: Carefully drill a pilot hole, then use a larger bit to finish the job.

4. Smooth with the file one end of the wire. Tin the wire for around 0.5 cm

at the same end helping yourself with the vice.

Chapter 4: Antennas & Transmission Lines

131

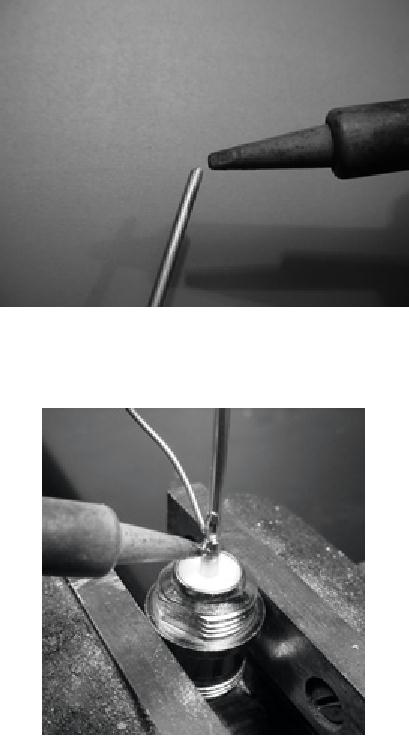

Figure 4.37: Tin the end of the wire before soldering.

5. With the soldering iron, tin the central pin of the connector. Keeping the

wire vertical with the pliers, solder its tinned side in the hole of the cen-

tral pin.

Figure 4.38: Solder the wire to the gold cup on the N connector.

6. Insert a washer and gently screw the nut onto the connector. Trim the

wire at 3.05 cm measured from the bottom part of the nut.

132

Chapter 4: Antennas & Transmission Lines

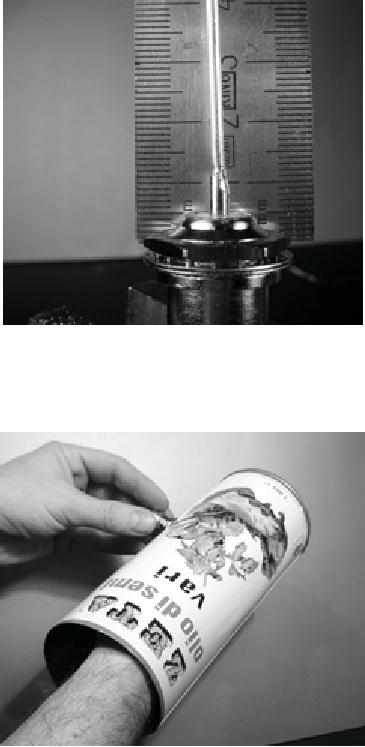

Figure 4.39: The length of the wire is critical.

7. Unscrew the nut from the connector, leaving the washer in place. Insert

the connector into the hole of the can. Screw the nut on the connector

from inside the can.

Figure 4.40: Assemble the antenna.

8. Use the pliers or the monkey wrench to screw firmly the nut on the con-

nector. You are done!

Chapter 4: Antennas & Transmission Lines

133

Figure 4.41: Your finished cantenna.

As with the other antenna designs, you should make a weatherproof enclo-

sure for the antenna if you wish to use it outdoors. PVC works well for the

can antenna. Insert the entire can in a large PVC tube, and seal the ends

with caps and glue. You will need to drill a hole in the side of the tube to ac-

commodate the N connector on the side of the can.

Cantenna as dish feed

As with the USB dongle parabolic, you can use the cantenna design as a

feeder for significantly higher gain. Mount the can on the parabolic with the

opening of the can pointed at the center of the dish. Use the technique de-

scribed in the USB dongle antenna example (watching signal strength

changes over time) to find the optimum location of the can for the dish you

are using.

By using a well-built cantenna with a properly tuned parabolic, you can

achieve an overall antenna gain of 30dBi or more. As the size of the para-

bolic increases, so does the potential gain and directivity of the antenna.

With very large parabolas, you can achieve significantly higher gain.

For example, in 2005, a team of college students successfully established a

link from Nevada to Utah in the USA. The link crossed a distance of over

200 kilometers! The wireless enthusiasts used a 3.5 meter satellite dish to

establish an 802.11b link that ran at 11 Mbps, without using an amplifier. De-

tails about this achievement can be found at http://www.wifi-shootout.com/

134

Chapter 4: Antennas & Transmission Lines

NEC2

NEC2 stands for Numerical Electromagnetics Code (version 2) and is a

free antenna modeling package. NEC2 lets you build an antenna model in

3D, and then analyzes the antenna s electromagnetic response. It was de-

veloped more than ten years ago and has been compiled to run on many

different computer systems. NEC2 is particularly effective for analyzing wire-

grid models, but also has some surface patch modeling capability.

The antenna design is described in a text file, and then the model is built us-

ing this text description. An antenna described in NEC2 is given in two parts:

its structure and a sequence of controls. The structure is simply a numeri-

cal description of where the different parts of the antenna are located, and

how the wires are connected up. The controls tell NEC where the RF source

is connected. Once these are defined, the transmitting antenna is then mod-

eled. Because of the reciprocity theorem the transmitting gain pattern is the

same as the receiving one, so modeling the transmission characteristics is

sufficient to understand the antenna's behavior completely.

A frequency or range of frequencies of the RF signal must be specified. The

next important element is the character of the ground. The conductivity of the

earth varies from place to place, but in many cases it plays a vital role in de-

termining the antenna gain pattern.

To run NEC2 on Linux, install the NEC2 package from the URL below. To

launch it, type nec2 and enter the input and output filenames. It is also worth

installing the xnecview package for structure verification and radiation pat-

tern plotting. If all went well you should have a file containing the output. This

can be broken up into various sections, but for a quick idea of what it repre-

sents a gain pattern can be plotted using xnecview. You should see the ex-

pected pattern, horizontally omnidirectional, with a peak at the optimum an-

gle of takeoff. Windows and Mac versions are also available.

The advantage of NEC2 is that we can get an idea of how the antenna works

before building it, and how we can modify the design in order to get the

maximum gain. It is a complex tool and requires some research to learn how

to use it effectively, but it is an invaluable tool for antenna designers.

NEC2 is available from http://www.nec2.org/

Online documentation can be obtained from the "Unofficial NEC Home Page"

at http://www.nittany-scientific.com/nec/ .

Table of Contents:
