Web Design & Development CS506

Lesson 40

MVC Model 2 Architecture

We have studied page-centric approach and page-with-bean approach until now. You must be wondering

when we had covered these. Probably these buzz words are new one for you but we already covered these

topics. Let's review these once again.

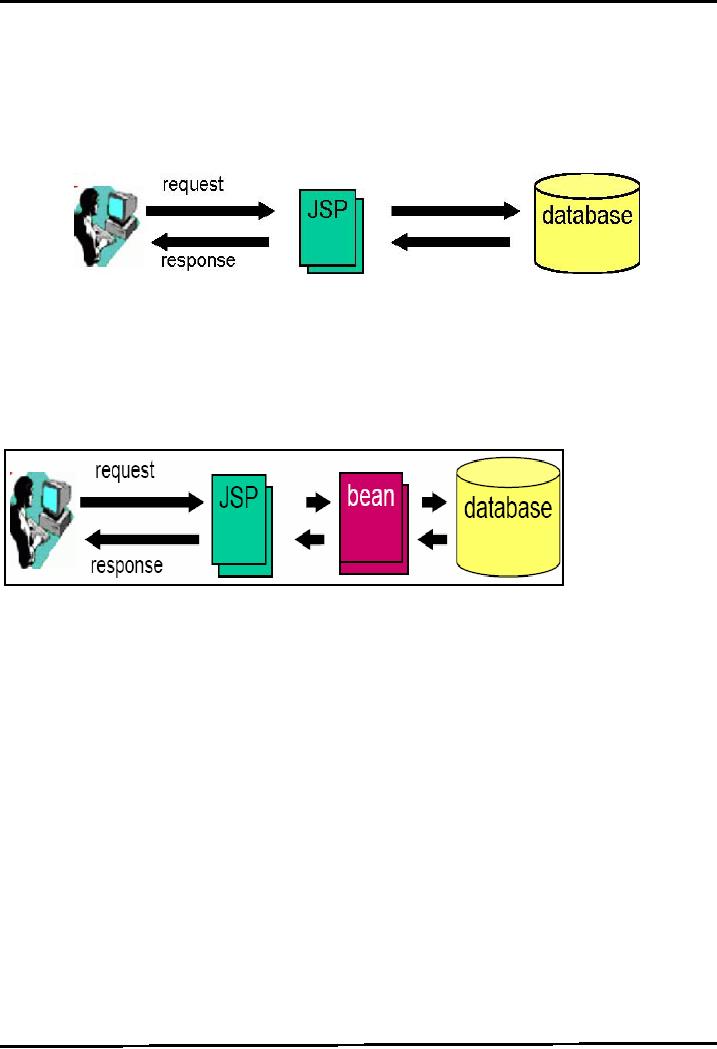

Page-Centric Approach

A web application that is collection of JSPs. Generally this approach is followed to get started with

developing web applications. This approach is represented in the following diagram:

The page-centric approach has lot of draw backs such as the code becomes a mixture of presentation,

business and data access logic. The maintenance and up-gradation of the application becomes a nightmare.

Scaling of such kind of application is also difficult and lots of code is also get duplicated.

Page-with-Bean Approach (MVC Model1)

This approach is different from page-centric approach in a way that all the business logic goes into

JavaBeans. Therefore, the web application is a collection of JSPs and JavaBeans. But still this approach is

insufficient to separate different kind of logics. We have made an address book example in the last handout

using this approach.

MVC Model 2 Architecture

his architecture introduces a controller. This controller can be implemented using JSP or servlet.

Introducing a controller gives the following advantages:

It centralizes the logic for dispatching requests to the next view based on:

-The Request URL

-Input Parameters

-Application state

It gives the single point of control to perform security checks and to record

logging information

It also encapsulates the incoming data into a form that is usable by the back-end MVC model.

We'll discuss it with the help of an example.

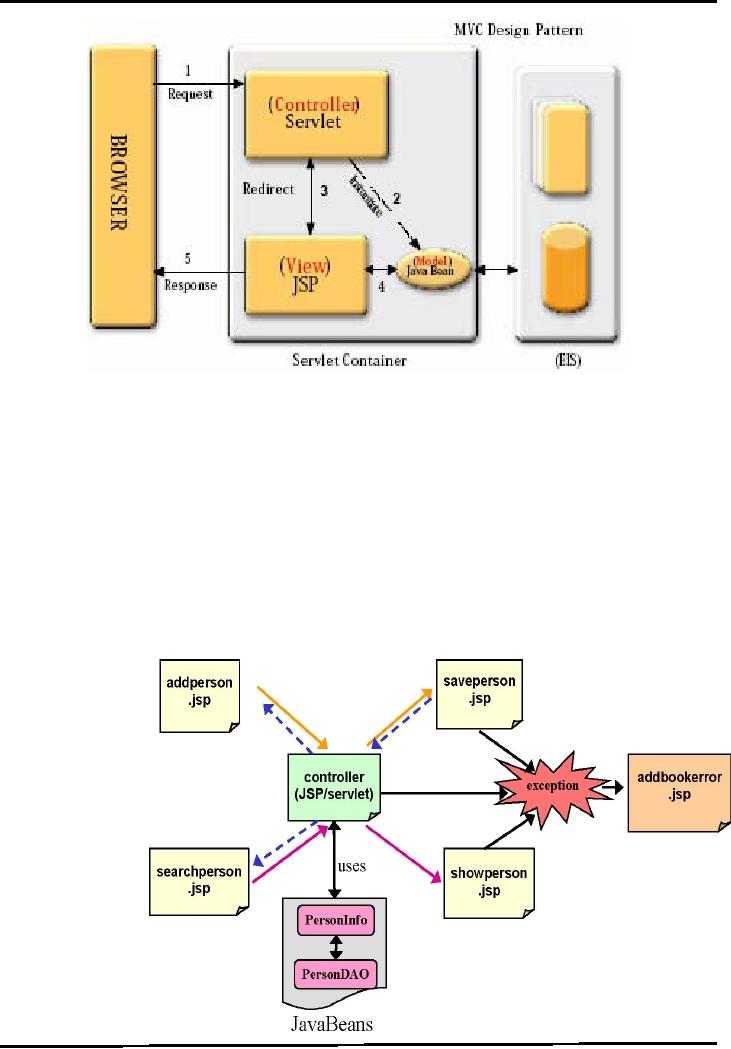

The following figure will help you to understand the architecture and functioning of the application that is

built using MVC Model 2 architecture.

305

Web Design & Development CS506

306

Web Design & Development CS506

(saveperson.jsp or showperson.jsp) page.

The program flow of this example is shown in the following diagram:

As you can see in the diagram that all the requests are submitted to controller which uses the

JavaBeans and forwards/redirects the user to another view (JSP)? If any exception arises on

controller or JSPs, the control would automatically be transferred to addbookerror.jsp to display an

appropriate message.

How controller differentiates between requests?

Most likely, you must be thinking about it. The simplest solution lies in using the consistent name (e.g.

action) of the submit button across all the pages but with different and unique values. The same rule applies

to hyperlinks that send the action parameter along with value by using query string technique.

This eases the controller's job to identify which page is actually generated the request and what to do next.

The controller simply retrieves the value of action parameter using request.getParameter() method. Now,

if-else structure can be used to compare the possible values of action to act upon the requested task.

Now, let's first see the code of JavaBean that is used in this example.

PersonInfo

This JavaBean is used to represent one person record. The code is given below:

package vu;

import java.io.*;

public class PersonInfo implements Serializable{

private String name;

private String address;

private int phoneNum;

// no argument constructor

public PersonInfo() {

name = "";

address = "";

phoneNum = 0;

}

// setters

public void setName(String n){

name = n;

}

public void setAddress(String a){

address = a;

}

public void setPhoneNum(int pNo){

phoneNum = pNo;

}

// getters

public String getName( ){

return name;

}

public String getAddress( ){

return address;

}

public int getPhoneNum( ){

307

Web Design & Development CS506

return phoneNum;

}

} // end class PersonInfo

PersonDAO

This class will help in retrieving and storing person's records in database. The code is given below:

package vu;

import java.util.*; import java.sql.*;

public class PersonDAO{

private Connection con;

// default constructor

public PersonDAO() throws

ClassNotFoundException , SQLException {

establishConnection(); }

// method used to establish connection with db

private void establishConnection()

throws ClassNotFoundException , SQLException {

// establishing conection

Class.forName("sun.jdbc.odbc.JdbcOdbcDriver");

String conUrl = "jdbc:odbc:PersonDSN";

con = DriverManager.getConnection(conUrl);

}

// used to search the person records against name and returns

the ArrayList that contains only

those PersonInfo

objects which

matches the search criteria i.e. name

public ArrayList retrievePersonList(String pName) throws SQLException {

ArrayList

personList = new ArrayList();

// preparing query

String sql = " SELECT * FROM Person WHERE name = ?";

PreparedStatement pStmt = con.prepareStatement(sql);

pStmt.setString( 1, pName);

// executing query

ResultSet rs = pStmt.executeQuery();

String name;

String add;

int pNo;

while ( rs.next() ) {

name = rs.getString("name");

add = rs.getString("address");

pNo = rs.getInt("phoneNumber");

// creating a CourseOutlineBean object

PersonInfo personBean = new PersonInfo();

personBean.setName(name);

personBean.setAddress(add);

personBean.setPhoneNum(pNo);

308

Web Design & Development CS506

// adding a bean to arraylist

personList.add(personBean);

} // end while

return personList;

} // end retrievePersonList

// this method accepts an object of PersonInfo, and stores it into

// the database

public void addPerson(PersonInfo person) throws SQLException{

String sql = " INSERT INTO Person VALUES (?, ?, ?)";

PreparedStatement pStmt = con.prepareStatement(sql);

String name = person.getName();

String add = person.getAddress();

int pNo = person.getPhoneNum();

pStmt.setString( 1 , name );

pStmt.setString( 2 , add );

pStmt.setInt( 3 , pNo );

pStmt.executeUpdate();

} // end addPerson // overriding finalize method to release acquired resources

public void finalize( ) {

try{

con.close();

}

}catch(SQLException sqlex){

System.out.println(sqlex);

}

} // end finalize

} // end PersonDAO class

addperson.jsp

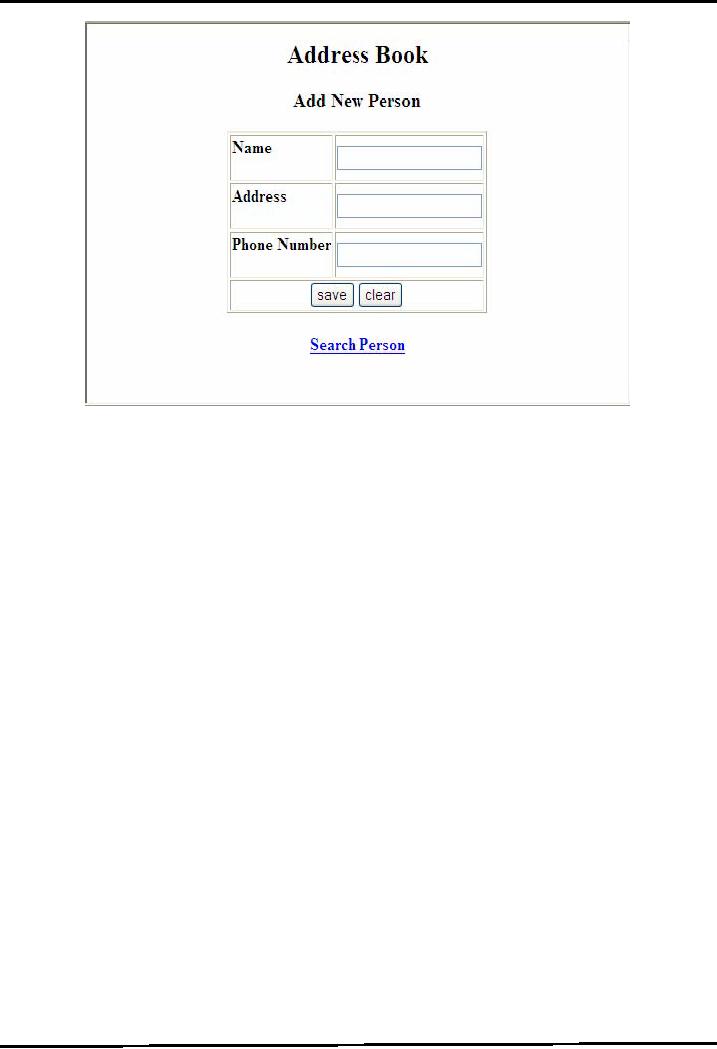

This page is used for entering a new person record into the database. Note that a hyperlink is also given at

the ottom of the page that takes the user to searchperson.jsp.

Note: Since we are following MVC model 2 architecture, so all the hyperlinks will also sends the request

to controller first which redirects the user to requested page.

309

Web Design & Development CS506

The code of above page is given below:

<%-- Although there are no chances of exception to arise on this page, for consistency, error

page is defined on top of all JSPs

--%>

<%@page errorPage="addbookerror.jsp" %>

<html>

<body>

<h2> Address Book </h2>

<h3> Add New Person</h3>

<%-- As mentioned in MVC2, all the requests are submitted to controller, that's why

action's contains the value of "controller.jsp"

--%>

</TD>

</TR>

<TR> <TD> <h4> Address </h4> </TD> <TD> <input type="text" name="address"

/> </TD>

</TR>

<TR> <TD> <h4>Phone Number</h4>

</TD> <TD> <input type="text"

name="phoneNum" /> </TD>

</TR>

<%-- As described above the technique to differentiate between the requests, the

name of the button is "action" with value "save".

--%>

</TD>

310

Web Design & Development CS506

</TR>

</TABLE>

</form>

<h4>

<%- The hyperlink will also sends the request to controller

Note the action parameter with its value are also part of hyperlink

using

the query string technique.

--%>

Search Person </a>

</h4>

</center>

</body>

</html>

searchperson.jsp

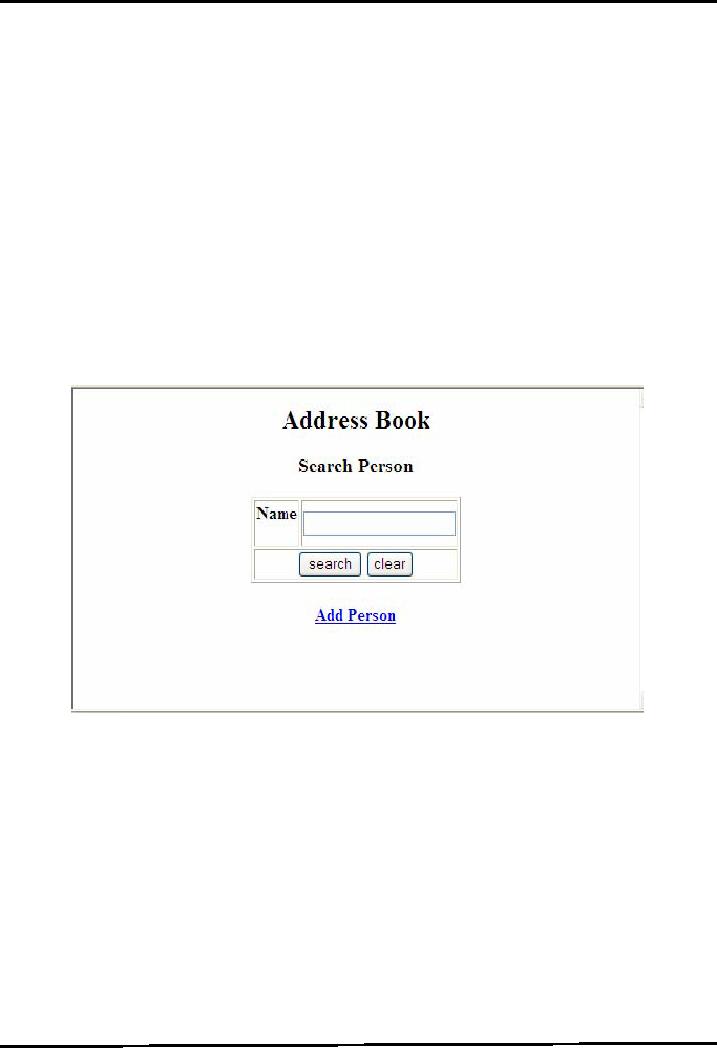

This JSP is used to search the person record against name given in the text field. A hyperlink is also given

at the bottom of addperson.jsp.

The code that is used to generate that above page is given below:

<%-- defining error page --%>

<%@page errorPage="addbookerror.jsp" %>

< html>

<body>

<h2> Address Book </h2>

<h3> Search Person</h3>

</TD>

</TR>

<TR>

311

Web Design & Development CS506

<%- The name of the button is still "action" but with different value

"search".

--%>

</TD>

</TR>

</TABLE>

</form>

<h4>

<%- The action parameter with different value "addperson" are part of hyperlink

here as well.

--%>

href="controller.jsp?action=addperson"

> Add Person </a>

</h4>

</center>

</body>

</html>

controller.jsp

As mentioned earlier that controller.jsp identifies the page which initiates the request and use JavaBeans to

save/search persons to/from database. Also its job list includes redirecting the user to appropriate page.

Since this JSP is doing only processing therefore no view available. Let's check it out its code:

<%-- defining error page --%>

<%@page errorPage="addbookerror.jsp" %>

<%-- importing required packages. package vu contains JavaBeans --%>

<%@page import ="java.util.*" %> <%@page

import = "vu.*" %>

<html>

<body>

<%-- declaring PersonDAO object--%>

<jsp:useBean id="pDAO" class="vu.PersonDAO" scope="page" />

<%- scriptlet to identify JSP for redirection purpose if request comes from hyperlinks

--%>

// retrieving action parameter value

// Remember that "action" is the name of buttons as well

// it is used in hyperlinks in making of query string

String action = request.getParameter("action");

// if "Add Person" hyperlink is clicked

if (action.equals("addperson") ){

response.sendRedirect("addperson.jsp");

// if "Search Person" hyperlink is clicked

} else if (action.equals("searchperson")){

response.sendRedirect("searchperson.jsp");

// if "save" button is clicked of addperson.jsp

}else if (action.equals("save")) {

// declaring PersonInfo obeject

312

Web Design & Development CS506

<jsp:useBean id="personBean" class="vu.PersonInfo" scope="page"/>

<%--

setting all properties of personBean object with input

parameters using *

--%>

<jsp:setProperty name="personBean" property="*" />

<%-- to insert record into database--%>

pDAO.addPerson(personBean);

// redirecting user to saveperson.jsp

response.sendRedirect("saveperson.jsp");

<%-- if "search" button is clicked on searchperson.jsp --%>

}else if (action.equals("search") ) {

String pName = request.getParameter("name"); ArrayList personList =

pDAO.retrievePersonList(pName);

// storing personList(contains PersonInfo objects) into // request hashmap

request.setAttribute("list", personList);

<%-- forwarding request to showperson.jsp to retrievestored arraylist ("list")

--%>

<jsp:forward page="showperson.jsp" />

} // end if page == search

</body>

</html>

saveperson.jsp

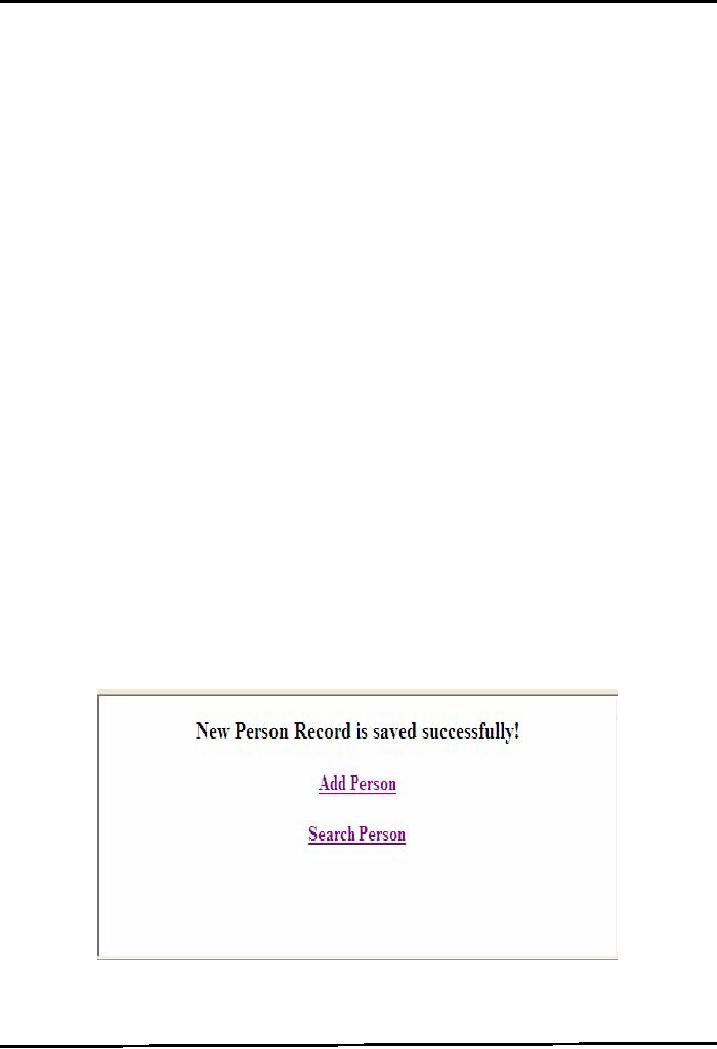

This page displays a successful message indicating that person record is saved. Its also give the options to

the user to move on to addperson.jsp or searchperson.jsp through hyperlinks. Note that these hyperlinks

also first take the user to controller.jsp then on to requested page.

The code of saveperson.jspis given below:

<%-- defining error page --%>

<%@page errorPage="addbookerror.jsp" %>

<html>

313

Web Design & Development CS506

<body>

<h3> New Person Record is saved successfully!</h3>

<h4>

<a href="controller.jsp?action=addperson" > Add

Person </a>

</h4>

<a href="controller.jsp?action=searchperson" > Search

Person </a>

</h4>

</center>

</body>

</html>

showperson.jsp

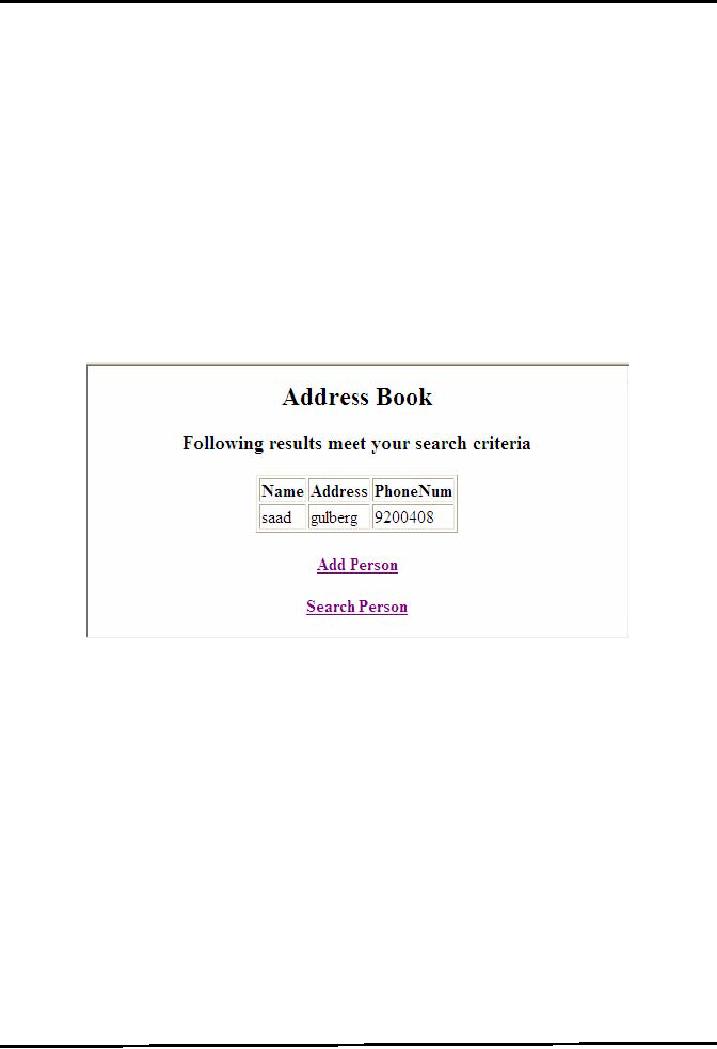

This following figure gives you the view when name "saad" is searched.

Below, the code of showperson.jsp is given:

<%-- defining error page --%>

<%@page errorPage="addbookerror.jsp" %>

<%-- importing required packages --%>

<%@page import="java.util.*" %> <%@page

import="vu.*" %>

<h2> Address Book </h2>

<h3> Following results meet your search criteria</h3>

<TR>

<TH> Address </TH>

<TH> PhoneNum </TH>

</TR>

// retrieving arraylist stored on controller.jsp to display PersonInfo objects

ArrayList personList = (ArrayList)request.getAttribute("list"); PersonInfo person =

314

Web Design & Development CS506

null;

for(int i=0; i<personList.size(); i++) {

person = (PersonInfo)personList.get(i);

<%-- displaying PersonInfo details--%>

<TR> <TD> <%= person.getName()%> </TD> <TD> <%= person.getAddress()%>

</TD> <TD> <%= person.getPhoneNum()%> </TD>

</TR>

} // end for

</TABLE >

<h4>

<a href="controller.jsp?action=addperson"> Add Person </a> <a

href="controller.jsp?action=searchperson">Search Person</a>

</h4>

</c enter>

</body>

</html>

addbookerror.jsp

User will view this page only when any sort of exception is generated. The code of this page is given

below:

<%-- indicating that this is an error page --%>

<%@page isErrorPage="true" %>

<%-- importing class --%>

<%@page import = "java.sql.SQLException" %>

<html>

<head> <title>Error</title> </head>

<body>

<h2>

Error Page

</h2>

<h3>

<%-- scriptlet to determine exception type --%>

if (exception instanceof SQLException) {

An SQL Exception

} else if (exception instanceof ClassNotFoundException){

A Class Not Found Exception

} else {

A Exception

} // end if-else

315

Web Design & Development CS506

<%-- end scriptlet to determine exception type --%>

occured while interacting with the database

</h3>

<h3>

The Error Message was

<%= exception.getMessage() %>

</h3>

<h3 > Please Try Again Later! </h3>

<%-- hyperlinks to return back to adperson.jsp orsearchperson.sjp

--%>

<h3>

href="controller.jsp?action=addperson"

> Add Person </a>

<a href="controller.jsp?action=searchperson"

> Search Person </a>

</h3>

</body>

</html>

JSP is the Right Choice as a Controller?

Since JSP that is performing the job of controller is doing only processing and there is no view available of

it. It includes the logic of selecting JSP and to retrieve/store records from/to dataset using JavaBeans.

But remember the reason for introducing JSPs? JavaServer Pages are built for presentation (view) only so

JSP is really not a good place for such kind of logic. Concluding, what's the option we have? The answer

is, use Servlets as controller.

Introducing a Servlet as Controller

Remove the controller.jsp from the previous example code and add ControllerServlet.java (a servlet) into

this example. This ControllerServlet.java performs the same job that was previously performed by

controller.jsp.

Besides adding ControllerServlet.java, you have to modify all the addresses which are previously pointing

to controller.jsp. For example the value of action attribute of form tag & the address of hyperlink in all

concerned pages.

If controller is defined in web.xml as an alias of ControllerServlet.java, consider the following fragment of

code which shows the value of action attribute of form tag before and after introducing change.

When controller.jsp is acting as a controller

When ControllerServlet.java is acting as a controller then value of action attribute becomes:

Similarly, the following comparison shows the code of hyperlinks used in the previous example before and

after making changes

When controller.jsp is acting as a controller

Search Person

</a>

When ControllerServlet.java is acting as a controller

Search Person

</a>

316

Web Design & Development CS506

Passing Exceptions to an Error JSP from a Servlet

Servlet can use existing error pages (like addbookerror.jsp) to pass on the exceptions. Set the request

attribute to javax.servlet.jsp.JspExcpetion with the exception object you want to pass. After that forwards

the request to error page.

For example, the following code snippet is taken from ControllerServlet.java to demonstrate how to pass

SQLExceptionto addbookerror.jsp

..................

}catch (SQLException sqlex){

// setting SQLException instance

request.setAttribute("javax.servlet.jsp.JspException" ,

sqlex); RequestDispatcher rd =

request.getRequestDispatcher("addbookerror.jsp");

rd.forward(request, response);

} // end catch

CotrollerServlet.java

The following code is of servlet that is acting as a controller

package controller;

import vu.*;

import java.io.*;import java.net.*;

import java.sql.*; import java.util.*;

import javax.servlet.*; import javax.servlet.http.*;

public class ControllerServlet extends HttpServlet {

// This method only calls processRequest()

protected void doGet(HttpServletRequest request, HttpServletResponse response)

throws

ServletException, IOException {

processRequest(request, response);

}

// This method only calls processRequest()

protected void doPost(HttpServletRequest request, HttpServletResponse response)

throws

ServletException, IOException {

processRequest(request, response);

}

protected void processRequest(HttpServletRequest request,

HttpServletResponse response) throws ServletException, IOException {

// retrieving value of action parameter

String userAction = request.getParameter("action");

// if request comes to move to addperson.jsp from hyperlink

if (userAction.equals("addperson") ) {

response.sendRedirect("addperson.jsp");

// if request comes to move to searchperson.jsp from hyperlink

} else if (userAction.equals("searchperson")) {

response.sendRedirect("searchperson.jsp");

// if "save" button clicked on addperson.jsp to add new record

} if (userAction.equals("save")) {

// this method defined below

addPerson(request,response);

317

Web Design & Development CS506

// if "search" button clicked on searchperson.jsp for search

} else if (userAction.equals("search"))

{

// this method defined below

searchPerson(request,response);

}

} // end processRequest()

// if request comes to add/save person

private void addPerson(HttpServletRequest request, HttpServletResponse response)

throws ServletException, IOException

{ try

{

// creating PersonDAO object

PersonDAO pDAO = new PersonDAO();

// creating PersonInfo object

PersonInfo person = new PersonInfo();

// setting properties of Person object

// setting name property

String pName = request.getParameter("name");

person.setName(pName);

// setting address propertyt

String add = request.getParameter("address");

person.setAddress(add);

// setting phoneNumb property

String pNo = request.getParameter("phoneNum");

int phoneNum = Integer.parseInt(pNo);

person.setPhoneNum(phoneNum);

// calling PersonDAO method to save data into database

pDAO.addPerson(person);

// redirecting page to saveperson.jsp

response.sendRedirect("saveperson.jsp");

}catch (SQLException sqlex){

// setting SQLException instance

request.setAttribute("javax.servlet.jsp.JspException" , sqlex);

RequestDispatcher rd = request.getRequestDispatcher("addbookerror.jsp");

rd.forward(request, response); }

catch (ClassNotFoundException cnfe){

// setting ClassNotFoundException instance

request.setAttribute("javax.servlet.jsp.JspException" , cnfe);

RequestDispatcher rd =

request.getRequestDispatcher("addbo

okerror.jsp"); rd.forward(request,

response);

}

}// end addperson()

// if request comes to search person record from database

318

Web Design & Development CS506

private void searchPerson(HttpServletRequest request,

HttpServletResponse response) throws ServletException, IOException {

try {

// creating PersonDAO object

PersonDAO pDAO = new PersonDAO();

String pName = request.getParameter("name");

// calling DAO method to retrieve personlist from database // against name

ArrayList personList = pDAO.retrievePersonList(pName);

request.setAttribute("list", personList);

// forwarding request to showpeson, so it can render personlist

RequestDispatcher rd = request.getRequestDispatcher("showperson.jsp");

rd.forward(request, response);

}catch (SQLException sqlex){

// setting SQLException instance

request.setAttribute("javax.servlet.jsp.JspException" , sqlex);

RequestDispatcher rd =

request.getRequestDispatcher("addboo

kerror.jsp"); rd.forward(request,

response);

}catch (ClassNotFoundException cnfe){

// setting ClassNotFoundException instance

request.setAttribute("javax.servlet.jsp.JspException" , cnfe);

RequestDispatcher rd = request.getRequestDispatcher("addbookerror.jsp");

rd.forward(request, response);

}

}// end searchPerson()

} // end ControllerServlet

web.xml

As you already familiar, for accessing a servlet, you need to define a URL pattern in web.xml. This is

shown below:

<?xml version="1.0" encoding="UTF-8"?> <web-app>

<servlet-name> ControllerServlet </servlet-name>

<servlet-class> controller.ControllerServlet </servlet-class>

</servlet>

<servlet-mapping>

<servlet-name> ControllerServlet </servlet-name>

<url-pattern> /controller </url-pattern>

</servlet-mapping>

</web-app>

eferences:

. Java A Lab Course by Umair Javed.

. Java E-commerce course at Stanford

319

Table of Contents:
