Web Design & Development CS506

Lesson 4

Object Oriented Programming

Java is fundamentally object oriented. Every line of code you write in java must be inside a class (not

counting import directives). OOP fundamental stones Encapsulation, Inheritance and Polymorphism

etc. are all fully supported by java.

OOP Vocabulary Review

Classes

Definition or a blueprint of a user-defined datatype

Prototypes for objects

Think of it as a map of the building on a paper

Objects

Nouns, things in the world

Anything we can put a thumb on

Objects are instantiated or created from class

Constructor

A special method that is implicitly invoked. Used to create an Object (that is, an Instance of

the Class) and to initialize it.

Attributes

Properties an object has

Methods

Actions that an object can do

Defining a Class

class

Point {

Comparison with C++

Some important points to consider when defining a class in java as you probably noticed from the

above given skeleton are

There are no global variables or functions. Everything resides inside a class. Remember

we wrote our main method inside a class. (For example, in HelloWorldApp program)

Web Design & Development CS506

Specify access modifiers (public, private or protected) for each member method or data

members at every line.

public: accessible anywhere by anyone

private: Only accessible within this class

protect: accessible only to the class itself and to it's subclasses or other classes in

the same package.

default: default access if no access modifier is provided. Accessible to all classes in

the same package.

There is no semicolon (;) at the end of class.

All methods (functions) are written inline. There are no separate header and

implementation files.

Automatic initialization of class level data members if you do not initialize them

Primitives

o Numeric (int, float etc) with zero

o Char with null

o Boolean with false

Object References

With null

Note: Remember, the same rule is not applied to local variables (defined inside method

body). Using a local variable without initialization is a compile time error

Public void someMethod( ) {

int x; //local variable

System.out.println(x); // compile time error

}

Constructor

Same name as class name

Does not have a return type

No initialization list

JVM provides a zero argument (default) constructor only if a class doesn't define it's

own constructor

Destructors

Are not required in java class because memory management is the responsibility

of JVM.

Task Defining a Student class

The following example will illustrate how to write a class. We want to write a

"Student" class that

should be able to store the following characteristics of student

Roll No

Name

Provide default, parameterized and copy constructors

Web Design & Development CS506

Provide standard getters/setters (discuss shortly) for instance variables

Make sure, roll no has never assigned a negative value i.e. ensuring the correct state

of the object

Provide print method capable of printing student object on console

Getters / Setters

The attributes of a class are generally taken as private or protected. So to access them outside of a

class, a convention is followed knows as getters & setters. These are generally public methods.

The words set and get are used prior to the name of an attribute. Another important purpose for

writing getter & setters to control the values assigned to an attribute.

Student Class Code

// File Student.java

public class Student {

private String name;

private int rollNo;

// Standard Setters

public void setName (String name) {

this.name = name;

}

// Note the masking of class level variable rollNo

public void setRollNo (int rollNo) {

if (rollNo > 0) {

this.rollNo = rollNo;

}else {

this.rollNo = 100;

}

// Standard Getters

public String getName ( ) {

return name;

}

public int getRollNo ( ) {

return rollNo;

}

// Default Constructor public Student() {

name = "not set";

rollNo = 100;

}

// parameterized Constructor for a new student

public Student(String name, int rollNo) {

setName(name); //call to setter of name

setRollNo(rollNo); //call to setter of rollNo

}

// Copy Constructor for a new student

public Student(Student s) {

Web Design & Development CS506

name = s.name;

rollNo = s.rollNo;

}

// method used to display method on console

public void print () {

System.out.print("Student name: " +name);

System.out.println(", roll no: " +rollNo);

}

} // end of class

Using a Class

Objects of a class are always created on heap using the "new" operator followed by constructor

Student s = new Student ( ); // no pointer operator "*" between Student and s

Only String constant is an exception

String greet = "Hello" ; // No new operator

However you can also use

String greet2 = new String("Hello");

Members of a class ( member variables and methods also known as instance

variables/methods ) are accessed using "." operator. There is no "Æ" operator in java

s.setName("Ali");

sÆsetName("Ali") is incorrect and will not compile in java

Note: Objects are always passed by reference and primitives are always passed by value in java.

Task - Using Student Class

Create objects of student class by calling default, parameterize and copy constructor

Call student class various methods on these objects

Student client code

// File Test.java

/* This class create Student class objects and demonstrates

how to call various methods on objects

public class Test{

public static void main (String args[]){

// Make two student obejcts

Student s1 = new Student("ali", 15);

Student s2 = new Student(); //call to default costructor

s1.print(); // display ali and 15

s2.print(); // display not set and 100

Web Design & Development CS506

s2.setName("usman");

s2.setRollNo(20);

System.out.print("Student name:" + s2.getName());

System.out.println(" rollNo:" + s2.getRollNo());

System.out.println("calling copy constructor");

Student s3 = new Student(s2); //call to copy constructor

s2.print();

s3.print();

s3.setRollNo(-10); //Roll No of s3 would be set to 100

s3.print();

/*NOTE: public vs. private

A statement like "b.rollNo = 10;" will not compile in a

client of the Student class when rollNo is declared

protected or private

} //end of main

} //end of class

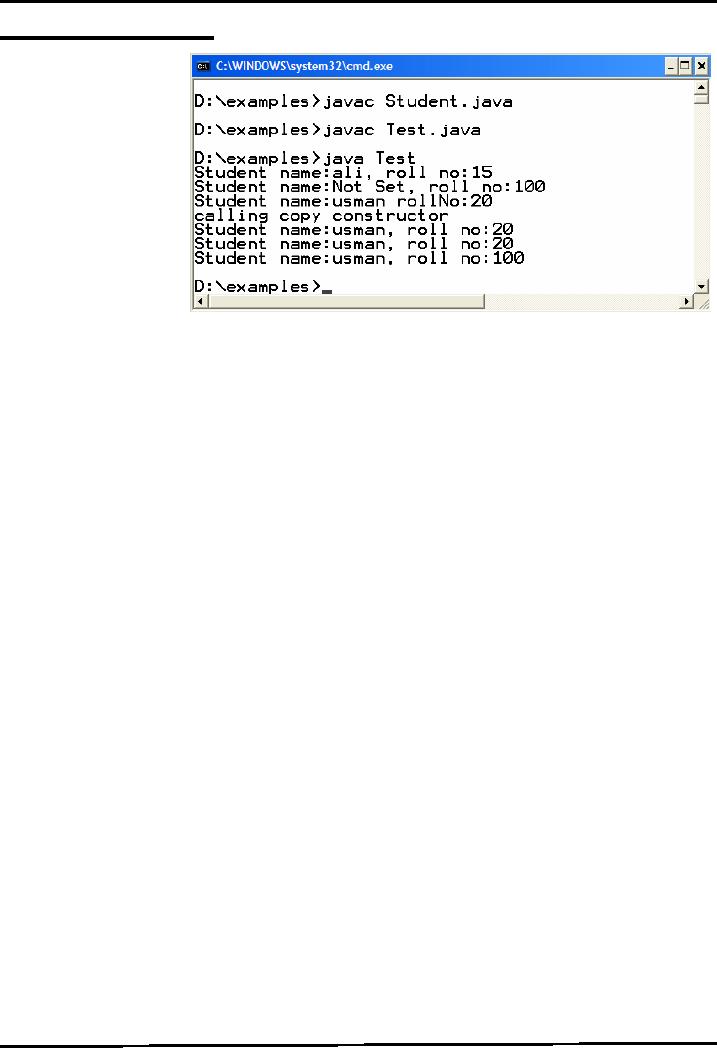

Compile & Execute

Compile both classes using javac commad. Run Test class using java command.

More on Classes

Static

A class can have static variables and methods. Static variables and methods are associated

with the class itself and are not tied to any particular object. Therefore statics can be accessed

without instantiating an object. Static methods and variables are generally accessed by class name.

The most important aspect of statics is that they occur as a single copy in the class regardless of

the number of objects. Statics are shared by all objects of a class. Non static methods and instance

variables are not accessible inside a static method because no this reference is available inside a static

method.

We have already used some static variables and methods. Examples are

System.out.println("some text"); -- out is a static variable

JOptionPane.showMessageDialog(null, "some text"); -- showMessageDialog is a static method

Web Design & Development CS506

Garbage Collection & Finalize

Java performs garbage

collection and eliminates

the need to free objects

explicitly. When an

object

has

references

anywhere except in

other objects that are

also unreferenced, its

space can be reclaimed.

Before an object is

destroyed, it might be

necessary

for

the

object to perform some action. For example: to close an opened file. In such a case, define a

finalize() method with the actions to be performed before the object is destroyed.

finalize

When a finalize method is defined in a class, Java run time calls finalize() whenever it is about to

recycle an object of that class. It is noteworthy that a garbage collector reclaims objects in any order or

never reclaims them. We cannot predict and assure when garbage collector will get back the memory of

unreferenced objects.

The garbage collector can be requested to run by calling System.gc() method. It is not necessary that it

accepts the request and run.

Example Code: using static & finalize ()

We want to count exact number of objects in memory of a Student class the one defined earlier. For

this purpose, we'll modify Student class.

Add a static variable countStudents that helps in maintaining the count of student objects.

Write a getter for this static variable. (Remember, the getter also must be static one. Hoping

so, you know the grounds).

In all constructors, write a code that will increment the countStudents by one.

Override finalize() method and decrement the countStudents variable by one.

Override toString() method.

Class Object is a superclass (base or parent) class of all the classes in java by default. This class has

already finalize() and toString() method (used to convert an object state into string). Therefore we are

actually overriding these methods over here. (We'll talk more about these in the handout on

inheritance).

By making all above modifications, student class will look like

// File Student.java

public class Student {

Web Design & Development CS506

private String name;

private int rollNo;

private static int countStudents = 0;

// Standard Setters

public void setName (String name) {

this.name = name;

}

// Note the masking of class level variable rollNo

public void setRollNo (int rollNo) {

if (rollNo > 0) {

this.rollNo = rollNo;

}else {

this.rollNo = 100;

}

// Standard Getters

public String getName ( ) {

return name;

}

public int getRollNo ( ) {

return rollNo;

}

// gettter of static countStudents variable

public static int getCountStudents(){

return countStudents;

}

// Default Constructor public Student() {

name = "not set";

rollNo = 100;

countStudents += 1;

}

// parameterized Constructor for a new student

public Student(String name, int rollNo) {

setName(name); //call to setter of name

setRollNo(rollNo); //call to setter of rollNo

countStudents += 1;

}

// Copy Constructor for a new student

public Student(Student s) {

name = s.name;

rollNo = s.rollNo;

countStudents += 1;

}

// method used to display method on console

public void print () {

System.out.print("Student name: " +name);

System.out.println(", roll no: " +rollNo);

Web Design & Development CS506

}

// overriding toString method of java.lang.Object class

public String toString(){

return "name: " + name + " RollNo: " + rollNo;

}

// overriding finalize method of Object class

public void finalize(){

countStudents -= 1;

}

} // end of class

Next, we'll write driver class. After creating two objects of student class, we deliberately loose object's

reference and requests the JVM to run garbage collector to reclaim the memory. By printing

countStudents value, we can confirm that. Coming up code is of the Test class.

// File Test.java

public class Test{

public static void main (String args[]){

int numObjs;

// printing current number of objects i.e 0

numObjs = Student.getCountStudents();

System.out.println("Students Objects" + numObjects);

// Creating first student object & printing its values

Student s1 = new Student("ali", 15);

System.out.println("Student: " + s1.toString());

// printing current number of objects i.e. 1

numObjs = Student.getCountStudents();

System.out.println("Students Objects" + numObjects);

// Creating second student object & printing its values

Student s2 = new Student("usman", 49);

// implicit call to toString() method

System.out.println("Student: " + s2);

// printing current number of objects i.e. 2

numObjs = Student.getCountStudents();

System.out.println("Students Objects" + numObjects);

// loosing object reference

s1 = null

// requesting JVM to run Garbage collector but there is

// no guarantee that it will run

System.gc();

Web Design & Development CS506

// printing current number of objects i.e. unpredictable

numObjs = Student.getCountStudents();

System.out.println("Students Objects" + numObjects);

} //end of main

} //end of class

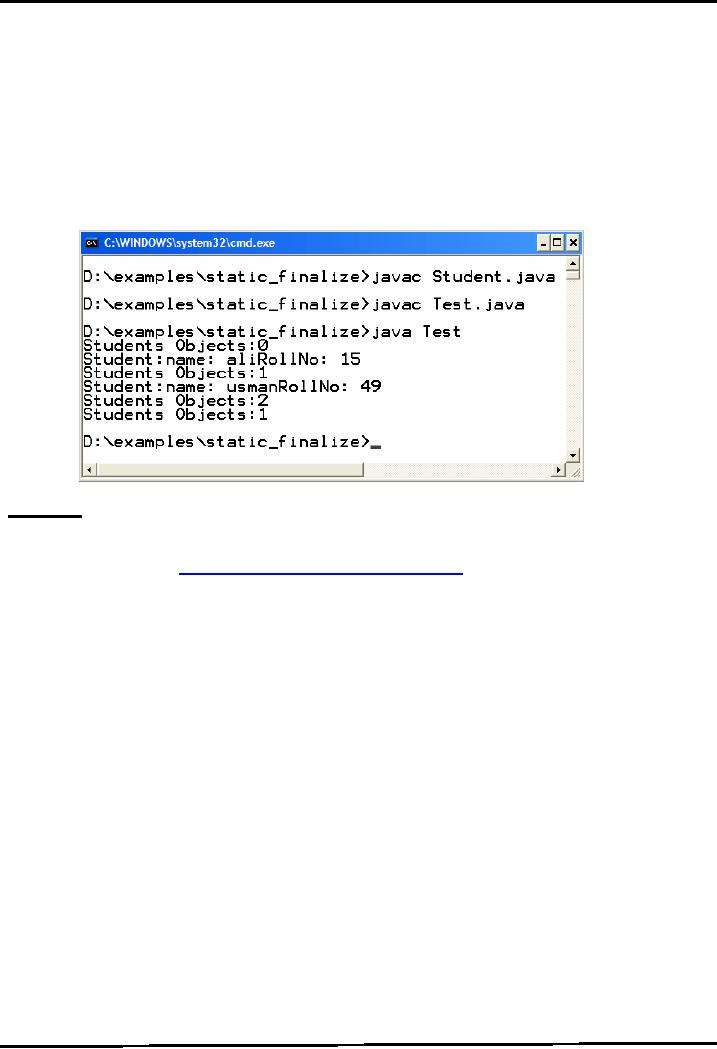

The compilation and execution of the above program is given below. Note that output may be

different one given here because it all depends whether garbage collector reclaims the memory or

not. Luckily, in my case it does.

Reference:

Sun java tutorial: http://java.sun.com/docs/books/tutorial/java

Thinking in java by Bruce Eckle

Beginning Java2 by Ivor Hortan

Example code, their explanations and corresponding execution figures for this handout are

taken from the book JAVA A Lab Course by Umair Javed. This material is available just for

the use of VU students of the course Web Design and Development and not for any other

commercial purpose without the consent of author.

Table of Contents:
