Web Design & Development CS506

Lesson 24

More on Multithreading

In this handout, we'll cover different aspects of multithreading. Some examples are given to make you

understand the topic of multithreading. First we will start with an example that reads data from two text

files simultaneously.

Example Code: Reading Two Files Simultaneously

The task is to read data from file "first.txt" & "second.txt" simultaneously. Suppose that files contains the

following data as shown below

first.txt

second.txt

Following is the code for ReadFile.java that implements Runable interface. The file reading code will be

written inside the run( ) method.

// File ReadFile.java

import java.io.*;

public class ReadFile implements Runnable{

//attribute used for name of file

String fileName;

// param constructor

public ReadFile(String fn){

fileName = fn;

}

// overriding run method// this method contains the code for file reading

public void run ( ){

try

{ // connecting FileReader with attribute fileNameFileReader fr = new

FileReader(fileName);BufferedReader br = new BufferedReader(fr);

String line = "";

// reading line by line data from file// and displaying it on console

line = br.readLine();

while(line != null) {

System.out.println(line);

line = br.readLine();

}

fr.close();

br.close();

}catch (Exception e){

System.out.println(e);

}

} // end run() method

} // File Test.java

public class Test {

public static void main (String args[]){

// creating ReadFile objects by passing file names to them

ReadFile first = new ReadFile("first.txt");

ReadFile second = new ReadFile("second.txt");

175

Web Design & Development CS506

// Instantiating thread objects and passing

// runnable (ReadFile) objects to them

Thread t1 = new Thread(first);

Thread t2 = new Thread(second);

// starting threads that cause threads to read data from

// two different files simultaneously

t1.start();

t2.start();

}

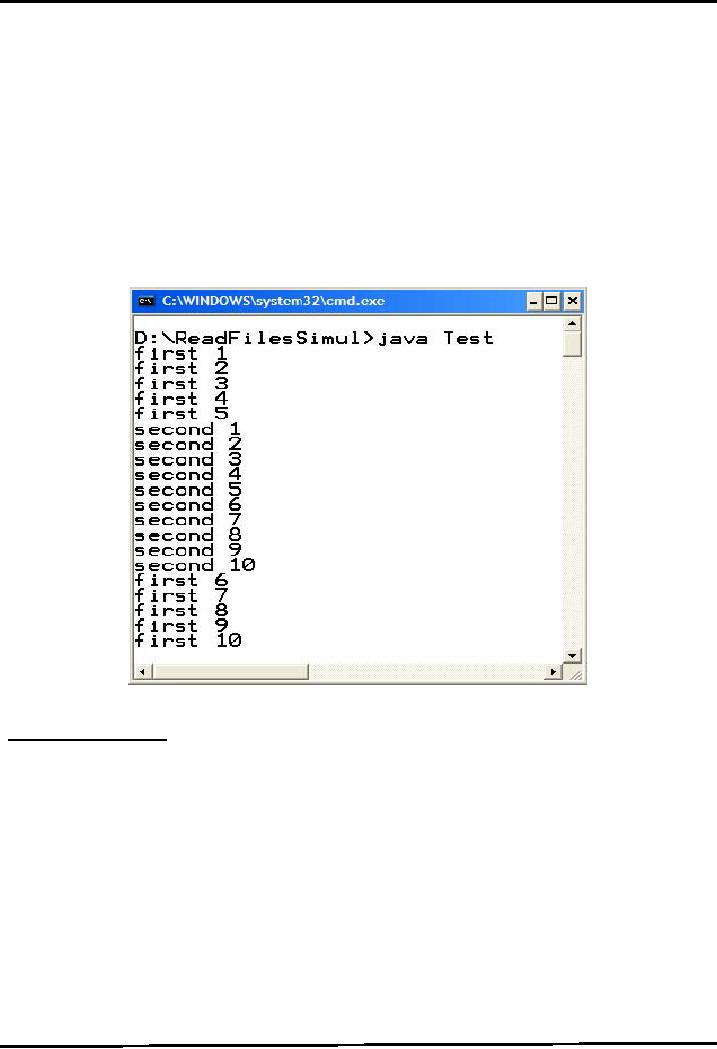

Output

On executing Test class, following kind output would be generated:

Now let's discuss some useful thread class methods.

. sleep(int time) method

-Causes the currently executing thread to wait for the time (milliseconds) specified

-Waiting is efficient equivalent to non-busy. The waiting thread will not occupy the processor

-Threads come out of the sleep when the specified time interval expires or when interrupted by some

other thread

-Thread coming out of sleep may go to the running or ready state depending upon the availability of the

processor. The different states of threads will be discussed later

-High priority threads should execute sleep method after some time to give low priority threads a

chance to run otherwise starvation may occur

-sleep() method can be used for delay purpose i.e. anyone cal call Thread.sleep()method

-Note that sleep() method can throw InterruptedException. So, you need try-catch block

Example Code: Demonstrating sleep ( ) usage

Below the modified code of Worker.java is given that we used in the previous handout.

// File Worker.javapublic class Worker implements Runnable {

private String job ;

//Constructor of Worker class

public Worker (String j ){

176

Web Design & Development CS506

job = j;

}

//Implement run() method of Runnable interface

public void run ( ) {

for(int i=1; i<= 10; i++) {

try { Thread.sleep(100); // go to sleep for 100 ms}catch

(Exception ex){System.out.println(ex);}

System.out.println(job + " = " + i);} // end for} // end

run } // end class

// File SleepEx.java

public class SleepEx {

public static void main (String args[ ]){

// Creating Worker objects

Worker first = new Worker ("first job");

Worker second = new Worker ("second job");

// Instantiating thread class objects

Thread t1 = new Thread (first );

Thread t2 = new Thread (second);

// starting thread

t1.start();

t2.start();

}

} // end class

Output

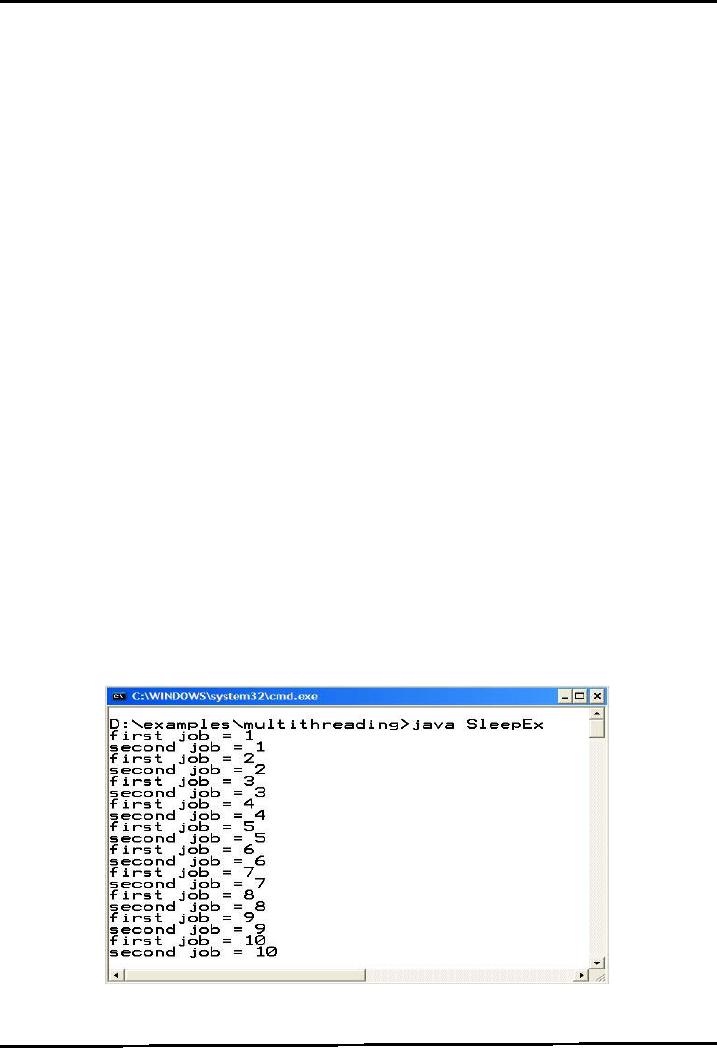

On executing SleepEx.java, the output will be produced with exact alternations between first thread &

second thread. On starting threads, first thread will go to sleep for 100 ms. It gives a chance to second

thread to execute. Later this thread will also go to sleep for 100 ms. In the mean time the first thread will

come out of sleep and got a chance on processor. It will print job on console and again enters into sleep

state and this cycle goes on until both threads finished the run() method

Before jumping on to example code, lets reveal another aspect about main() method. When you run a Java

program, the VM creates a new thread and then sends the main(String[] args) message to the class to be

run! Therefore, there is always at least one running thread in existence. However, we can create more

177

Web Design & Development CS506

threads which can run concurrently with the existing default thread.

sleep() method can be used for delay purpose. This is demonstrated in the DelayEx.java given below

// File DelayEx.java public class DelayEx { public static void

main (String args[ ]){ System.out.println("main thread going

to sleep");

try {

// the main thread will go to sleep causing delay

Thread.sleep(100);

}catch (Exception ex){

System.out.println(ex);

}

System.out.println("main thread coming out of sleep"); } // end main() }

// end class

Output

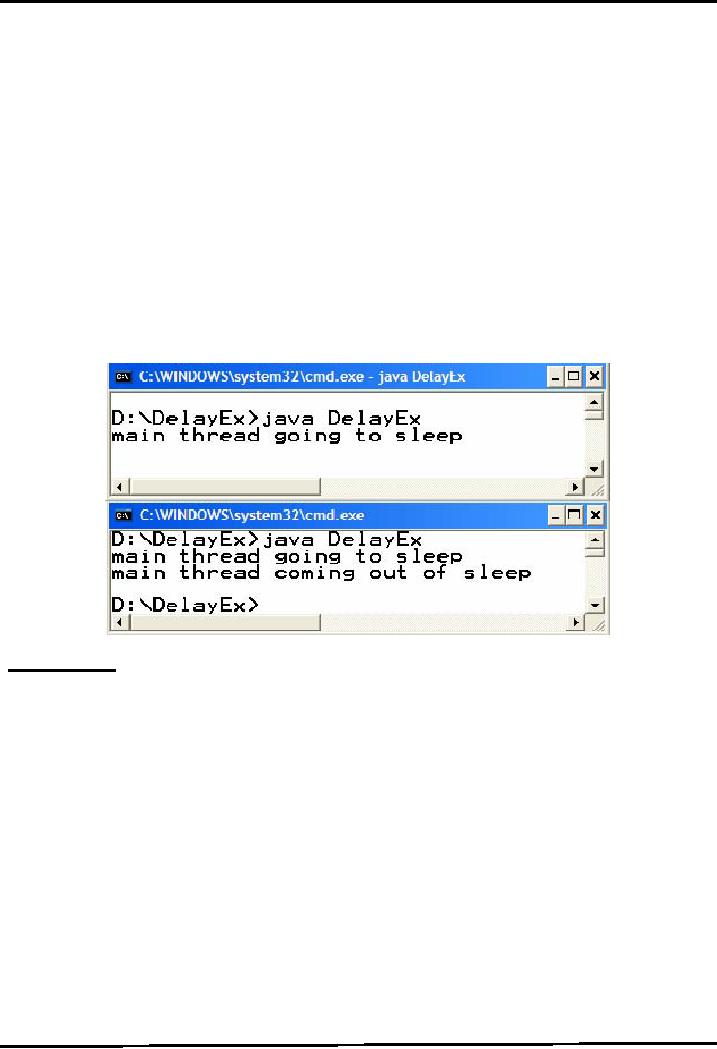

On executing DelayEx class, you will experience a delay after the first statement displayed. The second

statement will print when the time interval expired. This has been show below in the following two

diagrams:

. yield( ) method

-Allows any other threads of the same priority to execute (moves itself to the end of the priority queue)

-If all waiting threads have a lower priority, then the yielding thread resumes execution on the

CPU

-Generally used in cooperative scheduling schemes

Example Code: Demonstrating yield ( ) usage

Below the modified code of Worker.javais given

// File Worker.javapublic class Worker implements

Runnable { private String job ;

//Constructor of Worker class

public Worker (String j ){

job = j;

}

//Implement run() method of Runnable interface

public void run ( ) {

for(int i=1; i<= 10; i++) {

// giving chance to a thread to execute of same priority

178

Web Design & Development CS506

Thread.yield( );

System.out.println(job + " = " + i);

} // end for

} // end run

} // end class // File YieldEx.java

public class YieldEx {

public static void main (String args[ ]){

// Creating Worker objects

Worker first = new Worker ("first job");

Worker second = new Worker ("second job");

// Instantiating thread class objects

Thread t1 = new Thread (first );

Thread t2 = new Thread (second);

// starting thread

t1.start();

t2.start();

}

} // end class

Output

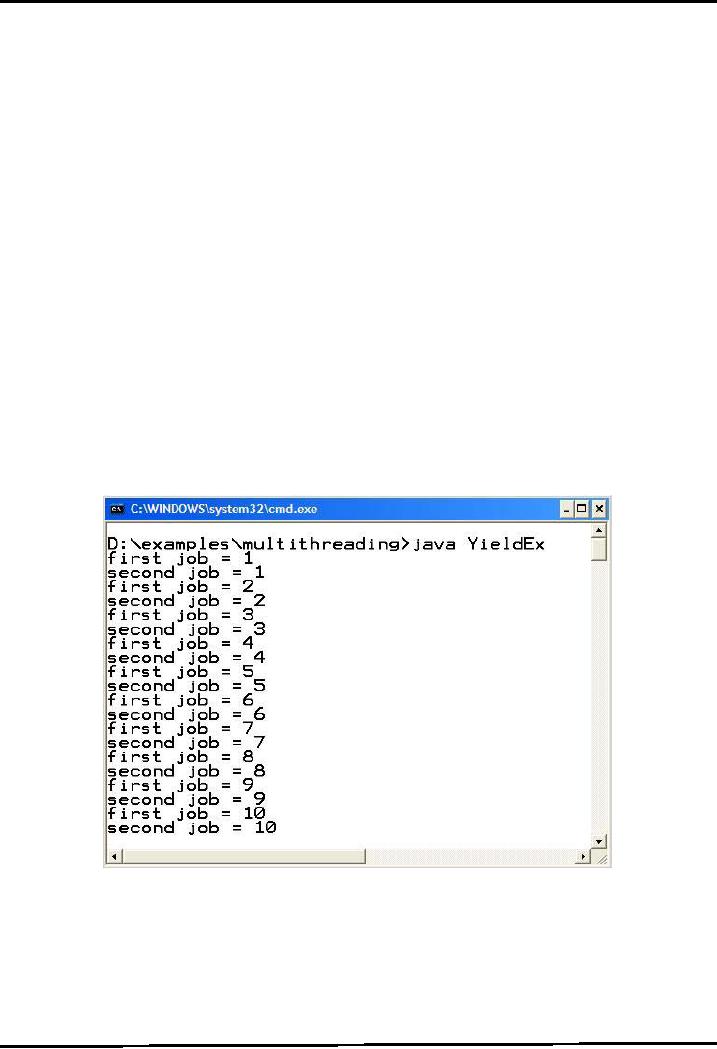

Since both threads have the same priority (until we change the priority of some thread explicitly). Therefore

both threads will execute on alternate basis. This can be confirmed from the output given below:

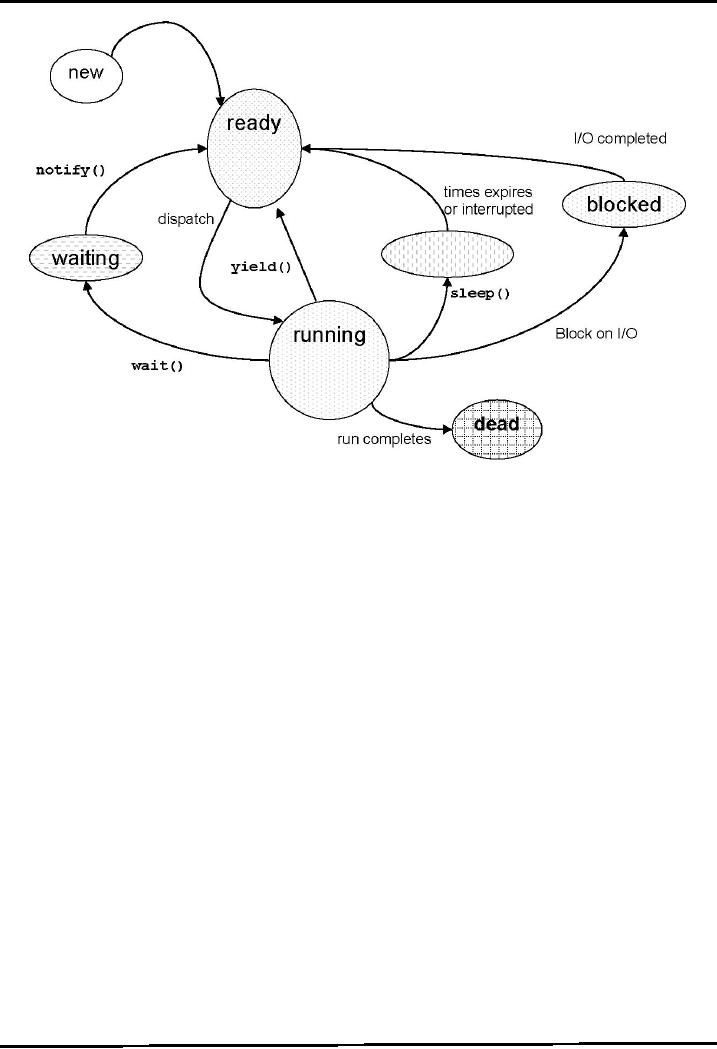

A thread can be in different states during its lifecycle as shown in the figure.

179

Web Design & Development CS506

180

Web Design & Development CS506

Thread t2 = new Thread (second);

System.out.println("Starting...");

// starting threads

t1.start();

t2.start();

// The current running thread (main) blocks until both //workers have finished

try {

t1.join();

t2.join();

}catch (Exception ex) {System.out.println(ex);}

System.out.println("All done ");

} // end main}

Output

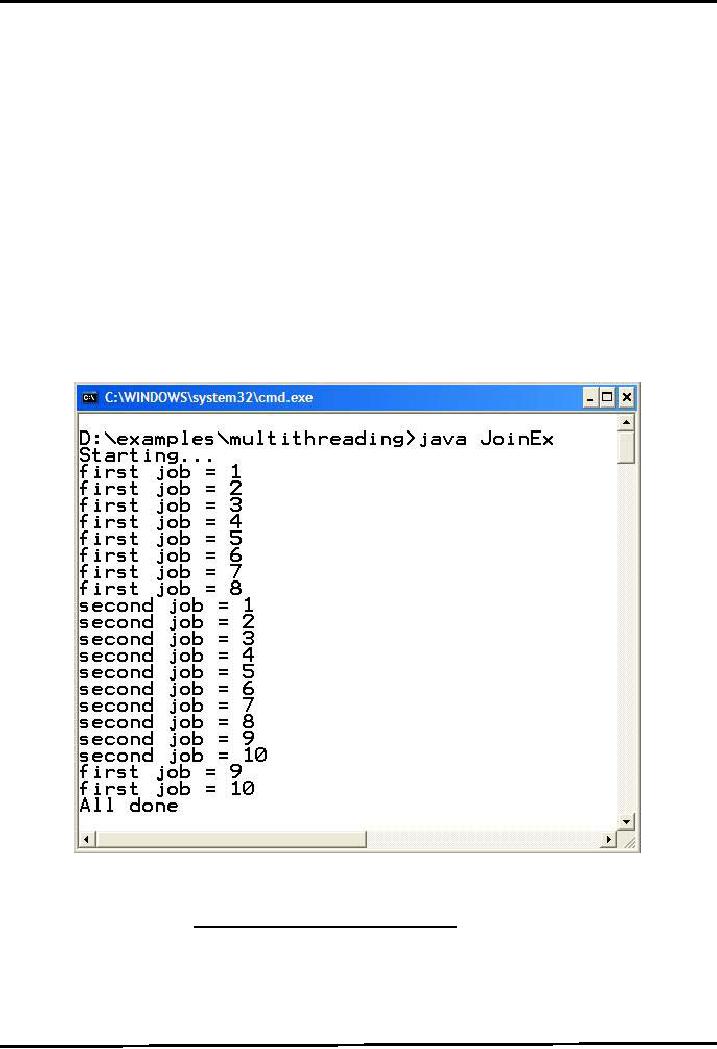

On executing JoinEx, notice that "Starting" is printed first followed by printing workers jobs. Since main

thread do not finish until both threads have finished their run( ). Therefore "All done" will be print on last.

References:

Java, A Practical Guide by Umair Javed

Java tutorial by Sun: http://java.sun.com/docs/books/tutorial/

CS193j handouts on Stanford
