Web Design & Development CS506

Lesson 11

Event Handling

One of the most important aspects of most non-trivial applications (especially UI type- apps) is the

ability to respond to events that are generated by the various components of the application, both in

response to user interactions and other system components such as client-server processing. In this

handout we will look at how Java supports event generation and handling and how to create (and

process) custom events.

GUIs generate events when the user interacts with GUI. For example,

-- Clicking a button

-- Moving the mouse

-- Closing Window etc

Both AWT and swing components (not all) generate events

-- java.awt.event.*;

-- javax.swing.event.*;

In java, events are represented by Objects

These objects tells us about event and its source. Examples are:

-- ActionEvent (Clicking a button)

-- WindowEvent (Doing something with window e.g. closing , minimizing)

Some event classes of java.awt.event are shown in diagram below

Event Handling Model

In Java both AWT and Swing components use Event Delegation Model.

In this model processing of an event is delegated to a particular object (handlers )

in the program

It's a Publish-Subscribe model. That is, event generating component publish an event and

event handling components subscribe for that event. The publisher sends these events to

subscribers. Similar to the way that you subscribe for newspaper and you get the newspaper at

Web Design & Development CS506

your home from the publisher.

This model separates UI code from program logic, it means that we can create separate

classes for UI components and event handlers and hence business/program logic is

separated from GUI components.

Event Handling Steps

For a programmer the event Handling is a three step process in terms of code

Step 1: Create components which can generate events (Event Generators)

Step 2: Build component (objects) that can handle events (Event Handlers)

Step 3: Register handlers with generators

Event Handling Process

Step 1: Event Generators

The first step is that you create an event generator. You have already seen a lot of event generators

like:

Buttons

Mouse

Key

Window etc

Most of GUI components can be created by calling their constructors. For example

JButton b1 = new JButton("Hello");

Now b1 can generate events

Note: We do not create Mouse/Keys etc as they are system components

Step 2: Event Handlers/ Event Listener

The second step is that you build components that can handle events

First Technique - By Implementing Listener Interfaces

Java defines interfaces for every event type

If a class needs to handle an event. It needs to implement the corresponding listener

interface

To handle "ActionEvent" a class needs to implement "ActionListener"

To handle "KeyEvent" a class needs to implement "KeyListener"

To handle "MouseEvent" a class needs to implement "MouseListener" and so on

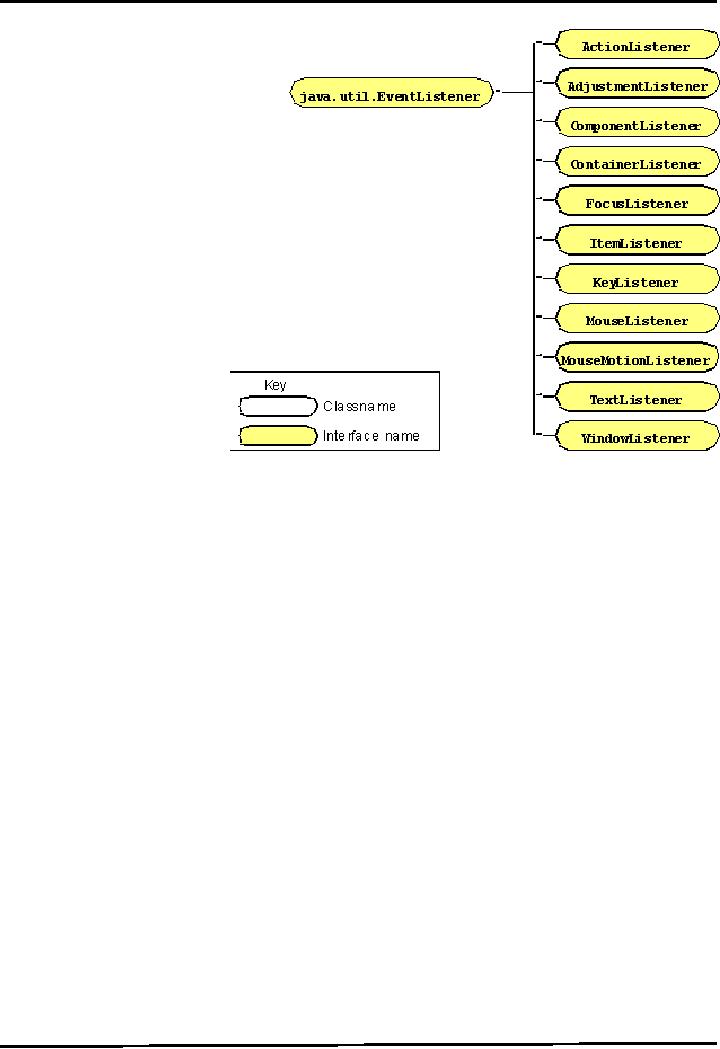

Package java.awt.event contains different event Listener Interfaces which are shown in the

following figure

Web Design & Development CS506

Some Example Listeners, the way they are defined in JDK by Sun

public interface ActionListener {

public void actionPerformed(ActionEvent e);

}

public interface ItemListener {

public void itemStateChanged(ItemEvent e);

}

public interface ComponentListener {

public void componentHidden(ComponentEvent e);

public void componentMoved(ComponentEvent e);

public void componentResized(ComponentEvent e);

public void componentShown(ComponentEvent e);

}

By implementing an interface the class agrees to implement all the methods that are present in

that interface. Implementing an interface is like signing a contract.

Inside the method the class can do what ever it wants to do with that event

Event Generator and Event Handler can be the same or different classes

To handle events generated by Button. A class needs to implement

ActionListener interface and thus needs to provide the definition of actionPerformed()

method which is present in this interface.

public class Test implements ActionListener{

Web Design & Development CS506

public void actionPerformed(ActionEvent ae) {

// do something

}

Step 3: Registering Handler with Generator

The event generator is told about the object which can handle its events

Event Generators have a method

-- addXXXListener(_reference to the object of Handler class_)

For example, if b1 is JButton then

-- b1.addActionListener(this); // if listener and generator are same class

Event Handling Example

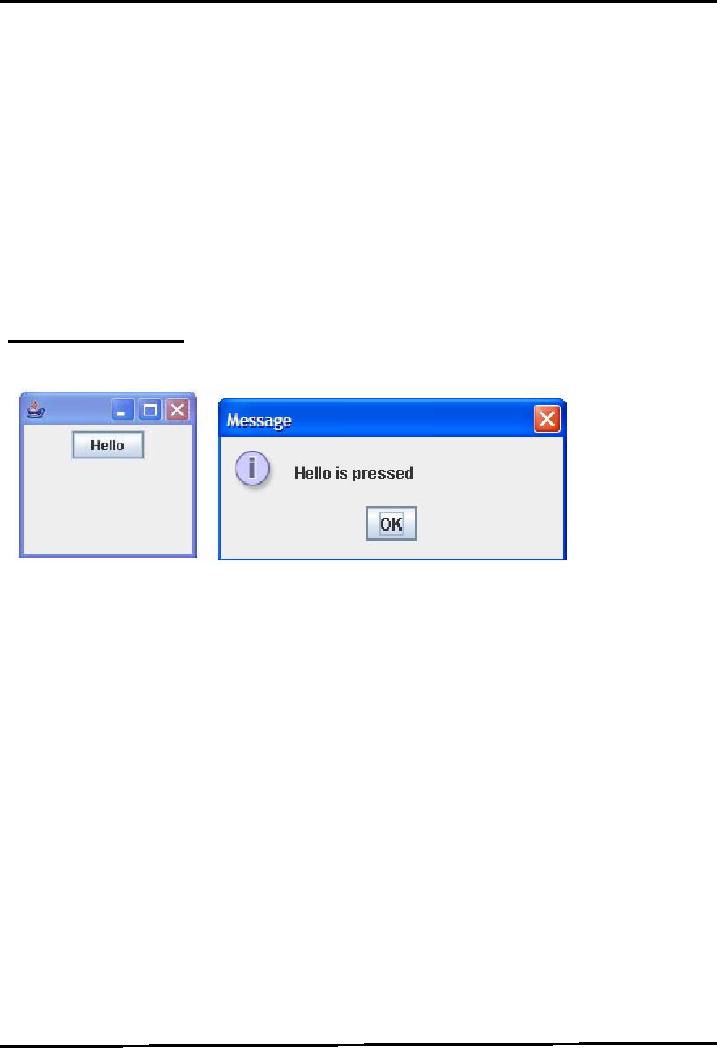

Clicking the "Hello" button will open up a message dialog shown below.

We will take the simplest approach of creating handler and generator in a single class. Button is our

event generator and to handle that event our class needs to implement ActionListener Interface and

to override its actionPerformed method and in last to do the registration

1. import java.awt.*;

2. import javax.swing.*;

3. import java.awt.event.*;

/* Implementing the interface according to the type of the event, i.e. creating event

handler (first part of step 2 of our process) */

4. public class ActionEventTest implements ActionListner{

JFrame frame;

JButton hello;

// setting layout components

public void initGUI ( ) {

frame = new JFrame();

Container cont = frame.getContentPane();

10.

cont.setLayout(new FlowLayout());

//Creating event generator step-1 of our process

11.

hello = new JButton("Hello");

Web Design & Development CS506

/* Registering event handler with event generator.

Since event handler is in same object that contains

button, we have used this to pass the reference.(step

3 of the process) */

12.

hello.addActionListener(this);

13.

cont.add(hello);

14. frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

15. frame.setSize(150, 150);

16. frame.setVisible(true);

17. }

//constructor

18. public ActionEventTest ( ) {

19.

initGUI();

20. }

/* Override actionPerformed method of ActionListener's

interfacemethod of which will be called when event

takes place (second part of step 2 of our process) */

21. public void actionPerformed(ActionEvent event) {

22. JOptionPane.showMessageDialog(null,"Hello is pressed");

23. }

24. public static void main(String args[]) {

25. ActionEventTest aeTest = new ActionEventTest();

26. }

27.} // end class

How Event Handling Participants interact Behind the Scenes?

We have already seen that what a programmer needs to do handle events. Let's see what takes place

behind the scenes, i.e How JVM handles event. Before doing that lets revisit different participants of

Event Handling Process and briefly what they do.

1. Event Generator / Source

Swing and awt components

For example, JButton, JTextField, JFrame etc

Generates an event object

Registers listeners with itself

2. Event Object

Encapsulate information about event that occurred and the source of that event

For example, if you click a button, ActionEvent object is created

3. Event Listener/handler

Receives event objects when notified, then responds

Each event source can have multiple listeners registered on it

Web Design & Development CS506

Conversely, a single listener can register with multiple event sources

4. JVM

Receives an event whenever one is generated

Looks for the listener/handler of that event

If exist, delegate it for processing

If not, discard it (event).

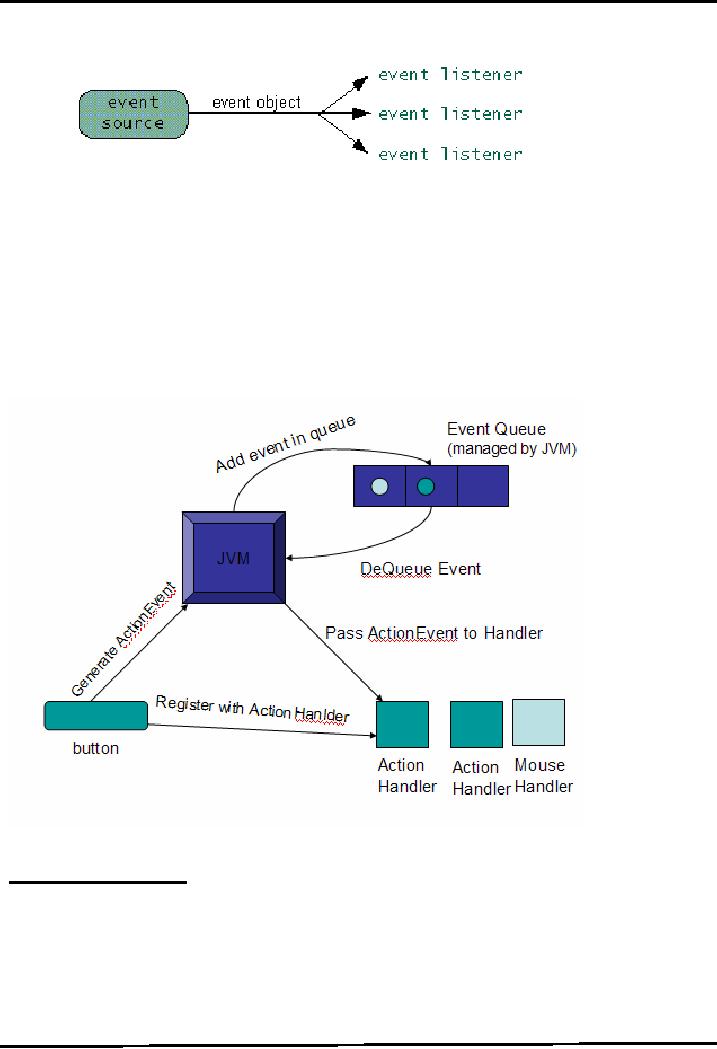

When button generates an ActionEvent it is sent to JVM which puts it in an event queue. After that

when JVM find it appropriate it de-queue the event object and send it to all the listeners that are

registered with that button. This is all what we shown in the pictorial form below:

(figure from JAVA A Lab Course)

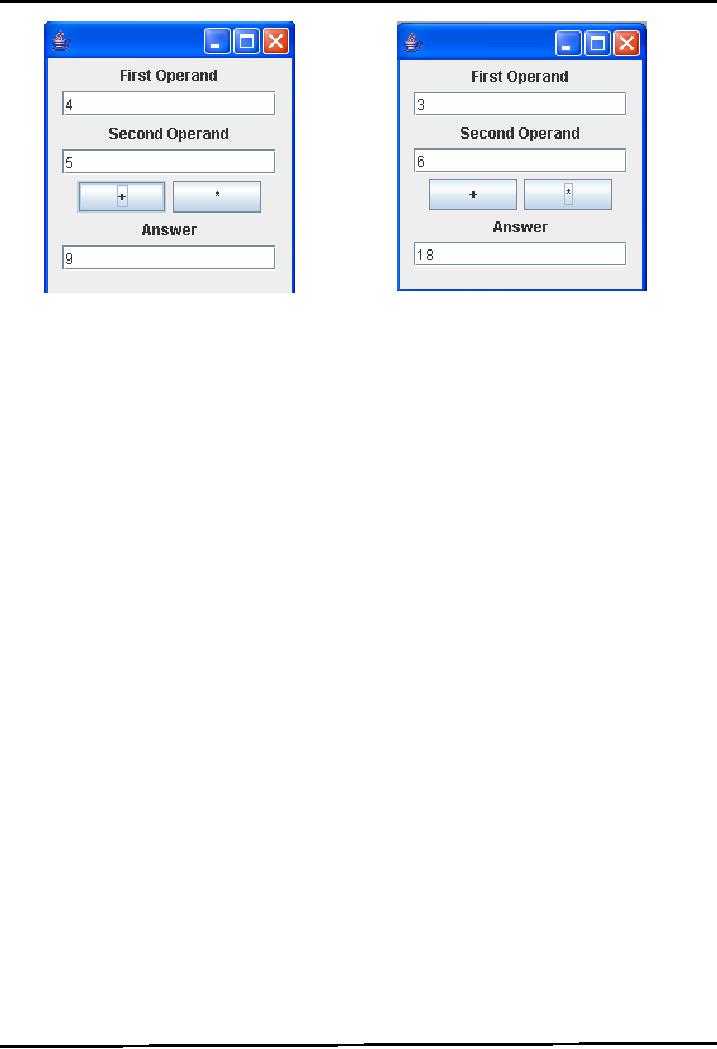

Making Small Calculator

User enters numbers in the provided fields

On pressing "+" button, sum would be displayed in the answer field

On pressing "*" button, product would be displayed in the answer field

Web Design & Development CS506

Example Code: Making Small Calculator

1. import java.awt.*;

2. import javax.swing.*;

3. import java.awt.event.*;

4. public class SmallCalcApp implements ActionListener{

JFrame frame;

JLabel firstOperand, secondOperand, answer;

JTextField op1, op2, ans;

JButton plus, mul;

9. // setting layout

10. public void initGUI ( ) {

11.

frame = new JFrame();

12.

firstOperand = new JLabel("First Operand");

13.

secondOperand = new JLabel("Second Operand");

14.

answer

= new JLabel("Answer");

15.

op1 = new JTextField (15);

16.

op2 = new JTextField (15);

17.

ans = new JTextField (15);

18.

plus = new JButton("+");

19.

plus.setPreferredSize(new Dimension(70,25));

20.

mul = new JButton("*");

21.

mul.setPreferredSize(new Dimension(70,25));

22.

Container cont = frame.getContentPane();

23.

cont.setLayout(new FlowLayout());

24.

cont.add(firstOperand);

25.

cont.add(op1);

Web Design & Development CS506

26.

cont.add(secondOperand);

27.

cont.add(op2);

28.

cont.add(plus);

29.

cont.add(mul);

30. cont.add(answer);

31. cont.add(ans);

32.

plus.addActionListener(this);

33.

mul.addActionListener(this);

34.

frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

35.

frame.setSize(200, 220);

36.

frame.setVisible(true);

37. }

38.

//constructor

39.

public SmallCalcApp ( ) {

40. initGUI();

41. }

42. public void actionPerformed(ActionEvent event) {

43.

String oper, result;

44.

int num1, num2, res;

/* All the information regarding an event is contained

inside the event object. Here we are calling the

getSource() method on the event object to figure out

the button that has generated that event. */

45.

if (event.getSource() == plus) {

46.

oper = op1.getText();

47.

num1 = Integer.parseInt(oper);

48.

oper = op2.getText();

49.

num2 = Integer.parseInt (oper);

50.

res = num1+num2;

51.

result = res+"";

52.

ans.setText(result);

53.

}

54.

else if (event.getSource() == mul) {

55.

oper = op1.getText();

56.

num1 = Integer.parseInt(oper);

57.

oper = op2.getText();

58.

num2 = Integer.parseInt (oper);

Web Design & Development CS506

59.

res = num1*num2;

60.

result = res+"";

61.

ans.setText(result);

62.

}

63.

public static void main(String args[]) {

64.

SmallCalcApp scApp = new SmallCalcApp();

65. }

66. }// end class
