Work Breakdown Structure (WBS)

<< Characteristics of a High-Quality WBS

WBS- Major Steps, WBS Implementation, high level WBS tasks >>

Software Project Management (CS615)

LECTURE # 35

7. Work Breakdown Structure

7.5

WBS- A Mandatory Management Tool

iv.

Sample WBS

Sample 1: These two graphics illustrate approaching the WBS as a parts list or as a

process list

254

Software Project Management (CS615)

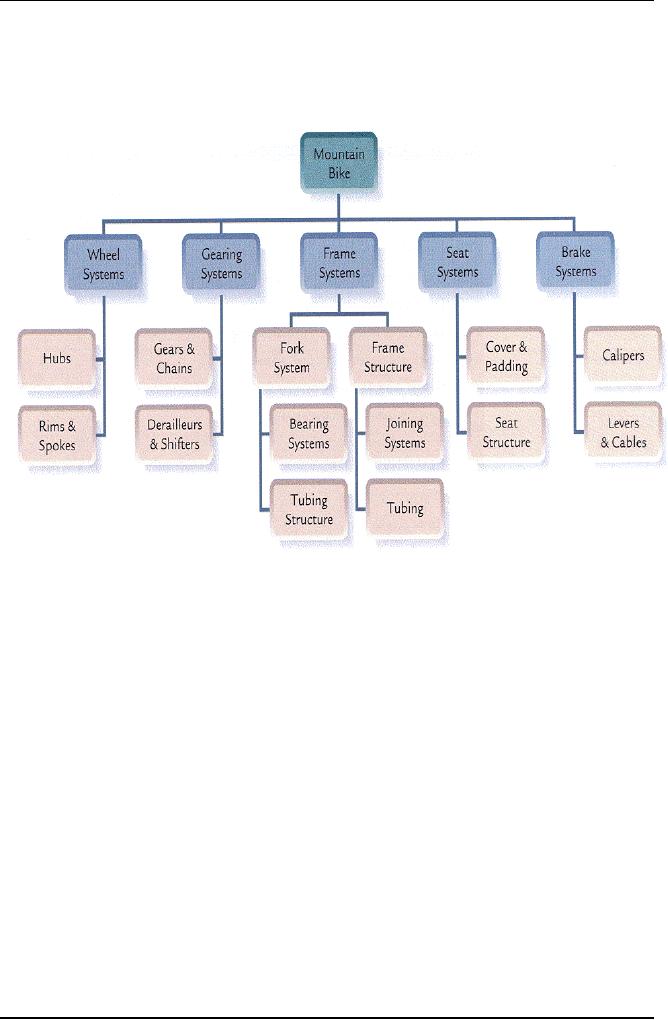

Sample 2: WBS of Manufacturing of a Mountain Bike

255

Software Project Management (CS615)

Sample 3: This illustrates an example of Ordnance System WBS

256

Software Project Management (CS615)

The list of activities is often called a Work Breakdown Structure (WBS). The goal is to

integrate the WBS, the schedule, and the budget into a written plan.

The WBS reflects activities associated with overall project management, requirements,

design, implementation, transition management, testing, training, installation, and

maintenance. The project manager is responsible for defining all top level tasks

associated with a project and then further decomposing them as planning continues.

An activities list is typically shown in one of two ways. It can be shown as an outline or

it can be graphically presented. Two samples of an activities list (WBS) are shown

below.

1.0

MANAGEMENT

1.1

Plan Project

1.1.1

Develop Project Plan

1.1.2

Update Project Plan

1.2

Track Project

1.2.1

Prepare status reports

1.2.2

Collect/analyze project metrics

1.3

Perform Quality Activities

1.3.1

Prepare QA Plan

1.3.2

Conduct Reviews

1.3.3

Conduct Audits

1.4

Perform Configuration Management

1.4.1

Prepare CM Plan

1.4.2

Develop Project Library

1.4.3

Manage Change Board

1.4.4

Maintain Configuration Items

2.0

DESIGN

2.1

Prepare Preliminary Design

2.1.1

Develop Enterprise Architecture

2.1.2

Prepare Data Flow Diagrams

2.1.3

Prepare Logical Data Model

2.2

Prepare Detailed Design

2.2.1

Prepare Physical Data Model

2.2.2

Prepare Data Dictionary

2.3

Document Design

2.3.1

Develop Design Specification

2.4

Review Design

257

Software Project Management (CS615)

3.0

DEVELOPMENT/INTEGRATION

3.1

Develop Software

3.1.1

Develop Server Application

3.1.2

Develop User Interface

3.1.3

Develop XYZ Interface

3.2

Procure Hardware

3.2.1

Procure Server

3.2.2

Procure Workstations

3.3

Procure Software Packages

3.3.1

Procure Database

3.3.2

Procure User Interface Building Tool

3.3.3

Procure Operating System

3.4

Perform Integration Testing

3.5

Convert Data

3.5.1

Develop Conversion Plan

3.6

Develop User Manual

3.7

Transition Management

4.0 ACCEPTANCE TESTING

4.1

Plan Acceptance Test

4.2

Conduct Acceptance Test

4.3

Develop Test Report

5.0 INSTALLATION

5.1

Develop Installation Plan

5.2

Site Preparation

5.3

Install at Locations

5.3.1

Headquarters

5.3.2

Site 1

6.0 MAINTENANCE

6.1

Hardware Maintenance

6.2

Software Maintenance

258

Software Project Management (CS615)

Sample 4: Sometimes, instead of depicting the WBS as an outline, it is shown

graphically, as below:

WBS

Work Breakdown

Schedule (WBS)

Development/

Acceptance

Management

Design

Installation

Maintenance

Integration

Testing

Prepare

Develop

Plan Acceptance

Develop

Hardware

Preliminary

Plan Project

Software

Test

Installation Plan

Maintenance

Design

Develop Enterprise

Develop Server

Develop Project Plan

Conduct

Software

Architecture

Application

Site Preparation

Update Project Plan

Acceptance Test

Maintenance

Prepare Data

Develop User

Flow Diagrams

Interface

Track Project

Develop Test

Install at

Develop XYZ

Prepare Logical

Report

Locations

Interface

Data Model

Prepare status report

Procure

Headquarters

Prepare Detailed

Collect/analyze

Hardware

project metrics

Design

Site One

Procure Server

Prepare Physical

Perform Quality

Procure Workstations

Data Model

Activities

Prepare Data

Procure Software

Dictionary

Prepare QA Plan

Packages

Conduct Reviews

Document

Procure Databases

Conduct Audits

Design

Procure User Interface

Building Tool

Develop Design

Perform CM

Procure Operating

Specification

System

Prepare CM Plan

Perform

Review Design

Develop Project Library

Integration

Testing

Manage Change Board

Maintain Configuration

Items

Convert Data

Develop Conversation

Plan

Develop User

Manual

Transition

Management

259

Software Project Management (CS615)

Sample 4: Chart WBS

Retail Web

Site

5.0

1.0

Project

Requiremen

Design and

Site Software

Managemen

Analysis

Development

HTML

Graphics and

Content

Backend

Design

Interface

Creation

Software

4.4

4.3

Database

Security

Catalog

Transaction

Implementat

Subsystems

Engine

Processing

4.2.4

4.2.1

4.2.2

4.2.3

Sample WBS - Outline Example-1

0.0 Retail Web Site

1.0 Project Management

2.0 Requirements Gathering

3.0 Analysis & Design

4.0 Site Software Development

4.1 HTML Design and Creation

4.2 Backend Software

4.2.1 Database Implementation

4.2.2 Middleware Development

4.2.3 Security Subsystems

4.2.4 Catalog Engine

4.2.5 Transaction Processing

4.3 Graphics and Interface

4.4 Content Creation

5.0 Testing and Production

260

Software Project Management (CS615)

Sample WBS - Outline Example-2

1.10 MANAGEMENT

1.1

Plan Project

1.1.1 Develop Project Plan

1.1.2 Update Project Plan

1.2

Track Project

1.2.1 Prepare status reports

1.2.2 Collect/analyze project metrics

1.3

Perform Quality Activities

1.3.1 Prepare QA Plan

1.3.2 Conduct Reviews

1.3.3 Conduct Audits

1.4

Perform Configuration Management

1.4.1 Prepare CM Plan

1.4.2 Develop Project Library

1.4.3 Manage Change Board

1.4.4 Maintain Configuration Items

2.0 DESIGN

2.1

Prepare Preliminary Design

2.1.1 Develop Enterprise Architecture

2.1.2 Prepare Data Flow Diagrams

2.1.3 Prepare Logical Data Model

2.2

Prepare Detailed Design

2.2.1 Prepare Physical Data Model

2.2.2 Prepare Data Dictionary

2.3

Document Design

2.3.1 Develop Design Specification

2.4

Review Design

3.0

DEVELOPMENT/INTEGRATION

3.1

Develop Software

3.1.1 Develop Server Application

3.1.2 Develop User Interface

3.1.3 Develop XYZ Interface

3.2

Procure Hardware

3.2.1 Procure Server

3.2.2 Procure Workstations

3.3

Procure Software Packages

3.3.1 Procure Database

3.3.2 Procure User Interface Building Tool

3.3.3 Procure Operating System

3.4

Perform Integration Testing

3.5

Convert Data

261

Software Project Management (CS615)

3.5.1 Develop Conversion Plan

3.6

Develop User Manual

3.7

Transition Management

4.0

ACCEPTANCE TESTING

4.1

Plan Acceptance Test

4.2

Conduct Acceptance Test

4.3

Develop Test Report

5.0

INSTALLATION

5.1

Develop Installation Plan

5.2

Site Preparation

5.3

Install at Locations

5.3.1 Headquarters

5.3.2 Site 1

6.0

MAINTENANCE

6.1

Hardware Maintenance

6.2

Software Maintenance

Sample WBS - Outline Example-3

Step

Description

Estimate

Preparation

TBD

1.1.

Developer orientation

1.2.

Requirements gathering

TBD

1.2.A.

Use Cases

TBD

1.2.B.

Changes to data model

TBD

1.2.C.

Non-functional requirements

TBD

1.2.D.

Requirements validation

1.3.

Design

TBD

1.3.A.

Software architecture

TBD

1.3.B.

User interface design

TBD

1.4.

Development tools

Construction

2.1.A.

System implementation

TBD

2.1.A.1

Unit tests

TBD

2.1.A.2

Production code

262

Software Project Management (CS615)

TBD

2.1. A.3.

Integrate Components

(mostly done during component implementation)

TBD

2.1.B.

Maintenance documentation

TBD

2.1.C.

User documentation

Quality assurance

TBD

3.1.

Fixing defects reported by users

3.2.

Testing

TBD

3.2. D.1.

Test planning

TBD

3.2. D.2.

Test implementation

TBD

3.2. D.3.

Test execution

TBD

3.3.

Reviews of design and code

TBD

3.4.

Fixing defects found by testing and review

Transition

TBD

4.A.

Release packaging

TBD

4.B.

Documentation for other groups

Reflection

TBD

5.1.

Postmortem report

Total fixed costs

TBD

Tasks shown as blue are fixed costs of the project. These should be

estimated soon.

Tasks shown as black are proportional to the size of the requirements. A

more detailed work breakdown structure will be produced for these tasks

when the requirements are better known.

Tasks shown as red depend on the defect rate in the delivered code. These

will be estimated after 12 months experience.

TIP: Label each step uniquely to show its position in the WBS, e.g.,

Step 1.1.4.A. Use numbers for steps that you intend to do in

sequence, and use letters for steps that you intend to do in parallel.

E.g., Step 1.1 comes before Steps 1.2.A and 1.2.B, but those two

steps may be done in parallel, and Step 1.3 will be done after all 1.2.*

steps have been finished. Don't worry about renumbering if you delete

a step.

263

Software Project Management (CS615)

7.7

WBS- Major Steps

a) Project Decomposition

Many complex objects can be viewed as a collection of numerous simpler objects.

An appropriate example would be a complex chemical compound that is formed

by various molecules, each of which is formed by combining various atoms. The

atom, though itself divisible, can be regarded as the smallest particle of a

chemical substance.

In a similar way, a complex project can be divided into simpler components.

While the full project may be difficult to manage, each component will be easier

to handle. Software projects can be decomposed into smaller components in order

to provide better estimates of the amount of work involved, or in order to monitor

the activities of the various development teams.

The decomposition of a software project is one of the software project manager's

first tasks. However, the method of decomposition may differ, depending on the

project manager's actual objective. A functional decomposition of a project may

not be the same as design decomposition. A functional decomposition divides the

project into its basic components from a user's perspective, while design

decomposition divides a project into its basic programming components or

modules.

Intuitively, it would not appear reasonable to attempt to identify all project

components in a single step. Clearly, an iterative procedure that would gradually

provide more detail would be easier to use. Iterative methods of this kind are

called stepwise refinement, as the decomposition is further refined in each

succeeding step.

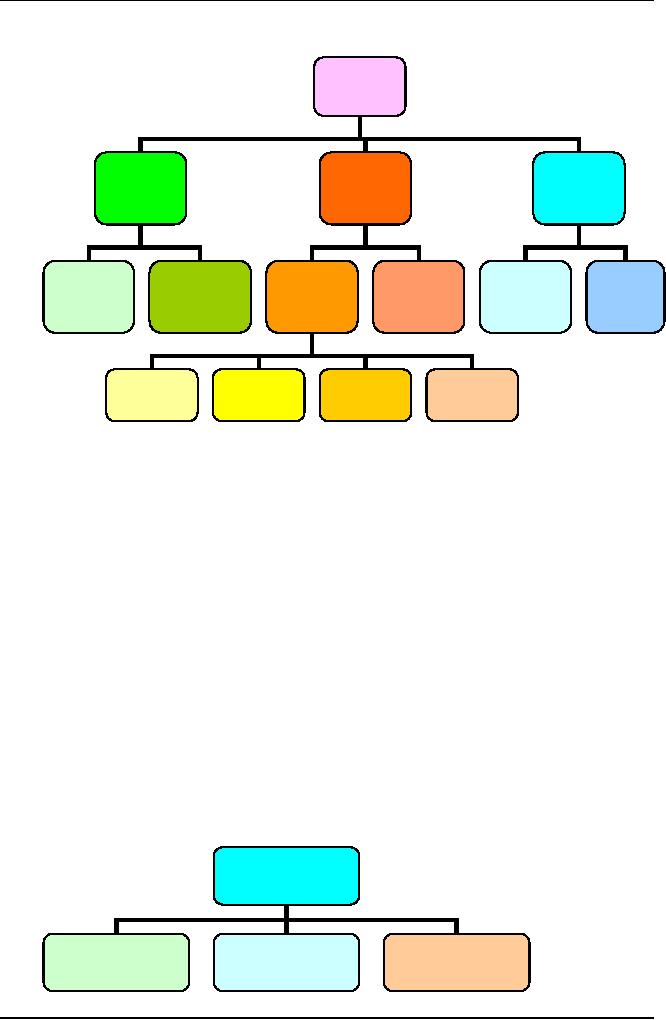

Figure 1 presents a general illustration of stepwise refinement. The system is

initially divided into three top level components. In turn each top level component

is further divided into lower level components, and so forth, until the lowest

decomposition level is reached.

In a stepwise decomposition of a project, each component decomposes into the

components directly below it, so that each step of the decomposition describes the

full system, but at a different level of detail. In Fig.1, components 1, 2 and 3

comprise the complete system. For more detail we take the next decomposition

step, and find that components 1.1, 1.2, 2.1, 2.2, 2.3, 3.1 and 3.2 now represent

the whole system.

264

Software Project Management (CS615)

System

Component

1.1

1.2

2.1

2.2

2.3

3.1

3.2

2.1.1

2.2.1

2.2.2

2.3.1

2.3.2

2.1.2

2.2.3

Figure 1: Software decomposition by stepwise refinement

A stepwise refinement diagram looks similar to a hierarchical system chart.

However, it is important to understand that stepwise refinement is basically

different because the diagram's building blocks are different A hierarchical

system diagram describes the hierarchical relationship between components, so

that each component in the diagram actually corresponds to a real component in

the system. However, in a stepwise refinement diagram, a higher level component

is only a name conveniently given to a group of real components that appear

below it.

In Fig. 2(a) the Controlled access system software has five low level software

components:

Visitor identification, Door lock-control, Access file-manager, Illegal access

identification and Alarm activation. Each of these five modules may correspond

to an actual software module1. The two high level components, Access control

and Alarm system, do not exist as actual software modules, and only appear as

names given to the two groups of lower level components.

Figure 2(b) describes the same Controlled access system software, but this time it

is represented as a hierarchical chart. Here, each component in the diagram

represents a real software component.

265

Software Project Management (CS615)

The System executive main Loop component calls three other components:

Visitor identification, Door lock control and Alarm activation: The Visitor

identification component calls two components: Illegal access identification and

Access file manager.

Figure 2: (a) Decomposition of high level components into low level components; (b) a

hierarchical structure chart

Controlled

(a)

Access

system

Software

Access

Alarm

Control

System

Illegal

Visitor

Door lock

Access

Alarm

File

Identification

Control

Identification

Activation

Manager

(b)

System

Executive

Main loop

Visitor

Door lock

Alarm

Identification

Control

Activation

Illegal

Access

File

Identification

Manager

266

Software Project Management (CS615)

Just like any other large complex task, the development of a software project is

more easily managed with the divide and conquer approach.

Stepwise refinement, when applied to a software project, produces all the low

level work tasks and includes

development tasks

managerial tasks

support tasks and

administrative tasks

The WBS list of project tasks is derived from the project's statement of work (the

SOW) that defines the scope of the project. The SOW is usually prepared before

the official launching of the project, and is often part of the project contract

between the customer and the developer.

For internal projects, when an organization is funding its own development work,

the SOW becomes synonymous with the Project definition specification or a

similar document that defines the scope of work for the software project manager.

b) Functional Decomposition

The functional decomposition of a software project is a division of the system into

its operational components as they are seen by the user. Functional decomposition

is part of the requirements phase of a project. The objective of this phase is to

define air the characteristics of the system from the user's perspective.

Let us consider an automatic bank teller system. The ability to communicate on-

line between the remote automatic tellers and the bank's central computer in order

to provide updated account information is a functional characteristic or the

system.

This will usually be defined during the requirements phase of the development

cycle. However, the method of transmission between the automatic teller and the

central computer is not a functional characteristic of the system, as this is internal

to the design and implementation of the system and is not apparent to the user.

The method of transmission, including the communications protocol, will usually

be defined during the design phase of the development of the system.

Figure 3 presents an example of the functional decomposition of an automatic

bank teller system into lower levels of functional components. In Fig. 3 we have

determined that there will be a customer data base, which could be viewed as a

design decision.

267

Software Project Management (CS615)

This is unavoidable. The functional decomposition is rarely completely devoid of

all design considerations. As we will see, the functional decomposition is often a

starting point for the initial design of the system.

Automatic

Bank teller

System

Automatic

Central

Teller

Computer

Services

Central

Teller

User

Computer

Machine

Report

Customer

Operator

Query and

Interface

Data base

Services

Generator

Services

Update

Functions

Manager

Figure 3: Automatic teller system - functional decomposition diagram

Just as the requirements phase precedes the design phase, so the functional

decomposition of a software system will usually precede the design

decomposition.

The functional decomposition will often provide much of the information

necessary for the subsequent division of the system into the implementation

components.

In fact, the functional decomposition is often a good place to start when designing

a software system, as the major functional components of a system will often

correspond to the initial division of the system into subsystems or high level

components.

268

Software Project Management (CS615)

c) Design Decomposition

The design decomposition of a software system is a division of the system into

lower level components that coincide with the actual software components of the

system. In a full design decomposition of a software system, the lowest

components correspond to programming modules (usually procedures,

subroutines or program functions).

The work breakdown structure (WBS) is the decomposition of a software project

into low level work tasks.

An important point to remember is that in design decomposition, only the lower

level components are actually implemented. Higher level components represent a

group of lower level components.

Design decomposition basically produces two types of system component:

high level components and

low level modules

Different software development standards use different terminology to identify

the various levels of decomposition.

Figure 4 presents an example of the design decomposition of an automatic bank

teller system into lower levels of design components. On the third level, the

Automatic teller component decomposes into the Hardware interfaces, and the

Teller logic. The next level may then decompose the Hardware interfaces into the

Keyboard driver, the Display driver, the Printer, driver and the Beeper. At this

level, these drivers may represent actual software modules.

269

Software Project Management (CS615)

Automatic

Bank teller

System

Wide area

Automatic

Central

Network

Teller

Computer

Interface

Teller

Central

Customer

Teller

Communications

Computer

Hardware

Teller

Data base

Interface

Communications

Interface

Interfaces

Logic

Manager

Logic

Interface

Keyboard

Display

Printer

Beeper

Driver

Figure 4: Automatic teller system -design decomposition diagram

A fully decomposed system, with all its low level components, is not always easy

to grasp. This is especially true during the presentation of the system at a project

review, when the system needs to be quickly understood by people who have not

been involved in its design.

On such occasions, the stepwise refinement technique is a convenient method for

gradually presenting progressive detail by initially showing the first

decomposition level, and then slowly revealing subsequent levels. This is

demonstrated in figure 5.

At a convenient intermediate decomposition step we can divide the design in two:

the upper levels and the lower levels. This is used particularly when the design

phase is implemented in two distinct stages: top level design and detailed design

(see Fig.5).

System

Component

270

Software Project Management (CS615)

Initial top level decomposition

System

Component

1.1

1.2

2.1

2.2

2.3

3.1

3.2

Intermediate level decomposition top level design

System

Component

1.1

1.2

2.1

2.2

2.3

3.1

3.2

Low level decomposition detailed design

Figure 5: Software decomposition by stepwise refinement

271

Software Project Management (CS615)

d) Develop Project Tasks

WBS tasks are developed by asking, "What tasks need to be done to accomplish

the project objective?" The choice of WBS structure is subjective and reflects the

preferences and judgment of the project manager.

As levels of the WBS become lower, the scope, complexity, and cost of each

subtask become smaller. The lowest level tasks, or work packages, are

independent, manageable units that are planned, budgeted, scheduled, and

controlled on their own.

As efforts of similar scope and type are planned, the basic WBS tasks remain

fairly similar, but each project requires a specific set of tasks that address the

uniqueness of the project's requirements. Certain top level elements, such as

project management, are included in the WBS of every project, regardless of its

type, size, or complexity. Other items, like installation, may not apply to every

project.

The initially developed WBS evolves over the course of the planning. It is highly

probable that it will look quite different as the scheduling, estimation, and

resource allocation portions of the plan are completed.

One of the difficult parts of talking about IT projects generically is the wide range

of such projects. Typically, in a small project, there is a single project

development phase.

In large or complex systems, however, there are often multiple development

phases, where different functional requirements are met.

Sometimes these phases are driven by the need to achieve certain levels of

functionality prior to the availability of the complete system.

Other times, the phases are defined to partition the development effort and to

reduce the risks associated with larger project efforts.

272

Table of Contents:
