Information System (CS507)

LESSON 19

System Design

System design can be explained and presented in narrative form. But the benefits of diagrammatic view

cannot be understated. This helps to give a snapshot of what the entire system looks like. Various

diagrammatic tools can be used while designing the system.

As an example consider the following DFD which indicates a simple process of recording transactions and

posting into general ledger

Information System (CS507)

User/Accountant uses chart of accounts to access the relevant accounts in order to prepare different

vouchers according to requirements. The purpose behind this entire activity is to record various

transactions. The next step is posting of all these transactions in the system. This process updates the

general ledger.

19.1 Entity Relationship Diagram (ERD)

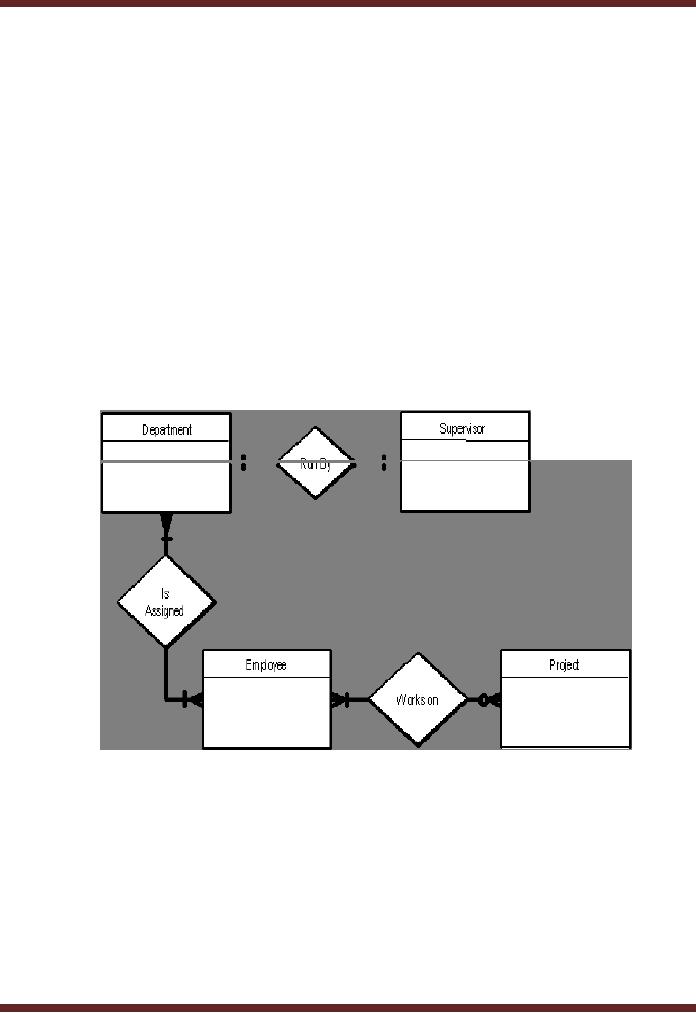

Another diagrammatical tool used in system design is ERD. ERD as shown below indicates simple

relationships. These relationships can be read as follows.

· One department has one supervisor

· A department may have more than one employees

· An employee may be in more than one departments

· An employee may not be working on any project but a project must have at least one employee working

on it

This is another form of ERD used to show the relations between various fields in files used to record

specific data.

Information System (CS507)

Reservation

Reservation ID

Room ID

User ID

Manager

Date

Building

Start time

Room

End time

Description

Note

Status

User

Session

User ID

Session ID

First

User ID

Last

Session String

Time Stamp

Password

Type

Initials

Status

Log

Log ID

User ID

Time Stamp

In/out

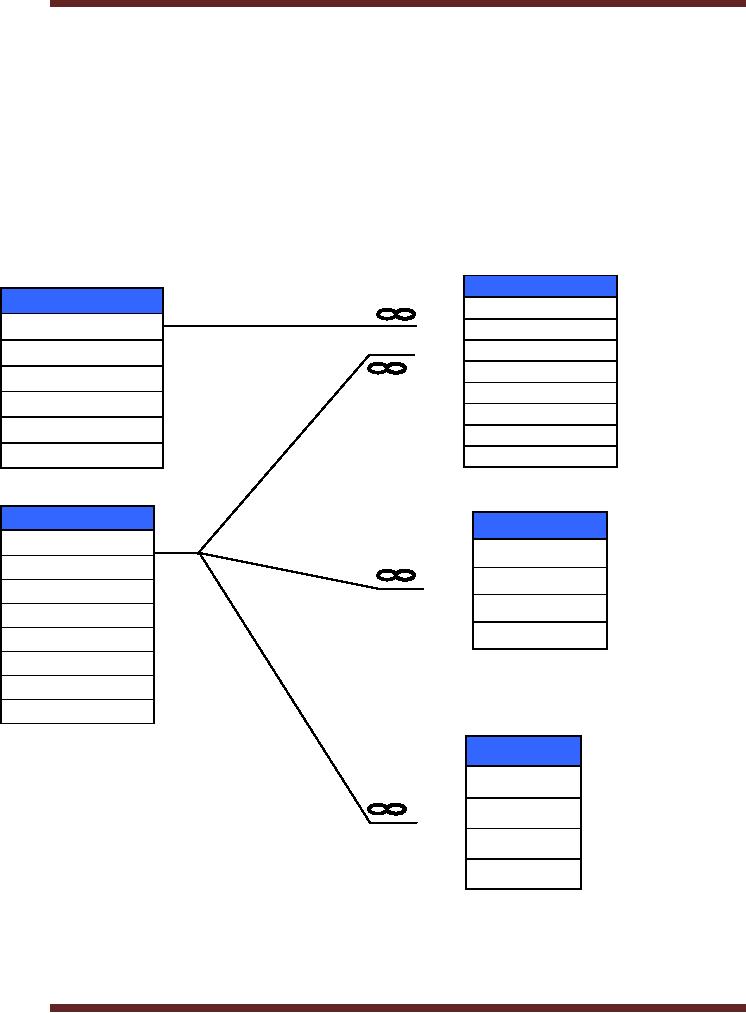

The above figure shows a hotel booking system. Various records have been kept for each entity.

However each entity shares a relationship with for logical purpose. For instance, the field for room ID

has been kept in reservation for access to further data. User information has been kept separate,

however link has been made to reservation, session and logs by making user ID common to all three

tables. Such kind of relationship helps in keeping

Information System (CS507)

19.2 Design of the information flow

It is a major step in the conceptual design. Following aspects should be covered

Flow of data & information and transformation points

The frequency and timing of flows

The extent of formality in these flows input forms, report formats.

19.3 Design of data base

It involves determining scope and structure:

Scope Whether the database is local or global. If interdependence of organizational units is

high, the data base has to be global in order to prevent sub-optimization of sub units. As it

becomes global, the cost of maintenance enhances.

Structure refers to the ways data is stored in partitions and sequences. Various design

methodologies can be used for devising a suitable structure in accordance with the needs of the

organization and the new system.

19.4 Design of the User Interface

This phase involves determining the ways the information system will interact with the users. Some

elements are

Source Documents to capture raw data

Hard-copy output reports

Screen layouts

Inquiry screens

Interrogation languages for the data base

Graphics and colour displays

Voice output to guide users or answer queries

Screen layouts for manipulation by a light pen or mouse

Icons for pictorial representations

The design process begins with stratifying system users and then identifying their needs. e.g.

New users dealing with system infrequently,

Experts dealing regularly

19.5 Physical Design

The logical design is converted to physical design in this phase. The physical design involves breaking

up the logical design into units, which in turn can be decomposed further into implementation units

such as programs and modules.

Design of the Hardware/ Software Platform

New system requires new software and hardware not currently available in the organization.

For example

Information System (CS507)

User workstations might have to be purchased to support an office automation system.

A minicomputer might have to be purchased to provide extra processing resources to the new

system.

19.6 Program Development

The development phase involves converting design specifications into executable programs. Once the

analysis and design is complete, the software is either developed according to the needs or most suitable is

purchased. Similarly the specifications of the hardware are seen and acquisition is made according to the

situation. Primary procedural programming activities include

The creation and testing of source code

The refinement and finalization of test plans

Writing and reviewing program modules or components

Integration of Completed components with other components to ensure the components properly

interact. The process continues as component groups are progressively integrated and as interfaces

between

component

groups

and

other

systems

are

tested.

19.7 Procedures Development

In this phase, following documents are prepared.

Technical manual This is meant for the Data Base Management and highlights the system

infrastructure, inputs-outputs of the system and flows of system processes. Documents include

DFD's (Data Flow Diagrams)

ERD's (Entity Relationship Diagram)

Use cases, test cases

User manual

It defines the operations of the system in layman's terms i.e.

Getting started with the software

Operating the software

These manuals are generally function related.

19.8 Testing

The purpose of this phase is to identify as far as possible any errors and deficiencies in the system prior to

its final release into production use. For instance errors in

User interface

Procedure manuals

Job design

Organizational structure design

In reality all system features cannot be checked at the outset. For instance, users might realize that the

system has inadequate procedures manual only after the system has been properly implemented.

Change Over

This phase comprises of those activities undertaken to replace the new system in operation from the

Information System (CS507)

existing system. Following ways of change over can be undertaken

Abrupt change over stop the existing system abruptly to shift over to new one

Phased change over Both are run but output of both the systems is used since functions

performed are different.

Parallel change over Both systems are run simultaneously for a period of time and output of

either of the systems is used. Functions performed by both are same.

19.9 Operations & Maintenance

The new system is run as a production system and is periodically modified to adjust for better functioning.

Following can be various forms of errors.

Removal of coding/logic errors Logic errors discovered in the system are corrected.

Modifications / system rewrite Changes in the system environment may necessitate system

modifications.

Perfective maintenance Changes might be made to improve processing efficiency.

19.10 Evaluating Waterfall

Arguments for water fall

Waterfall model places emphasis on documentation (such as requirements documents and design

documents) as well as source code.

Other methodologies which save time in software development can de-emphasize documentation. In

such methodologies project knowledge is stored mentally by team members. Should team members

leave, this knowledge is lost, and substantial loss of project knowledge may be difficult for a project to

recover from. Extreme Programming is an example which will be discussed later.

Waterfall model is preferred for its simple and arguably more disciplined approach. The model itself

progresses linearly through discrete, easily understandable and explainable "phases" and is thus easy to

understand

It also provides easily mark able "milestones" in the development process. It is perhaps for this reason

that the waterfall model is used as a beginning example of a development model in many software

engineering texts and courses.

Arguments against water fall

It is argued that it is impossible to get one phase of a software product's lifecycle "perfected" before

moving on to the next phases and learning from them.

For example clients may not be aware of exactly what requirements they want before they see a working

prototype and can comment upon it - they may change their requirements constantly, and program

designers. This is an example of iterative model (to be discussed later)

Waterfall model advocates more reliance on fixed, static requirements. Designers may not be fully

aware of future implementation difficulties when writing a design for an unimplemented software

product. That is, it may become clear in the implementation phase that a particular area of program

functionality is extraordinarily difficult to implement.

Another problem is that the waterfall model assumes that the only role for users is in specifying

requirements, and that all requirements can be specified in advance. Unfortunately, requirements grow

Information System (CS507)

and change throughout the process and beyond, calling for considerable feedback and iterative

consultation. Thus many other SDLC models have been developed. The choice of phases differs in

various standards and organizations.

LESSON 20

Incremental Model

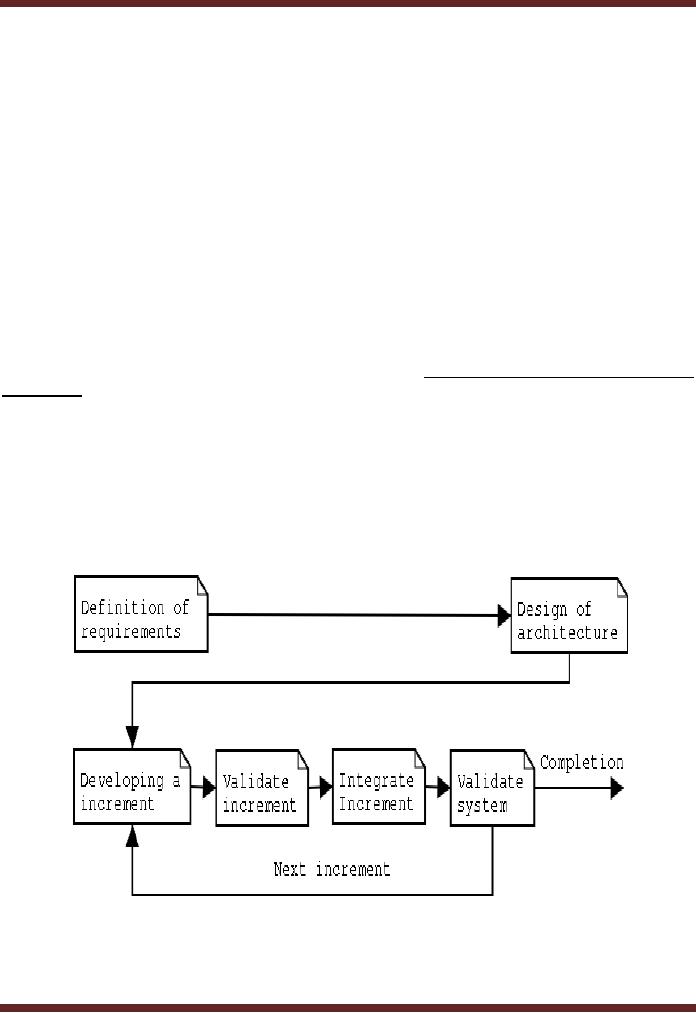

The incremental model is a method of software/ Information System development where the model is

designed, implemented and tested incrementally until the product is finished. It involves both development

and maintenance. This model combines the elements of the waterfall model with the philosophy of

prototyping.

Example -An example of this incremental approach is observed in the development of word processing

applications where the following services are provided on subsequent modules:

Basic file management, editing and document production functions

Advanced editing and document production functions

Spell and grammar checking

Advance page layout
