Human Computer Interaction (CS408)

Lecture

Lecture 24. Framework and Refinements

Learning Goals

The aim of this lecture is to introduce you the study of Human Computer Interaction,

so that after studying this you will be able to:

· Discuss how to build an interaction framework?

Discuss how to refine the form and behaviour?

Defining the interaction framework

24.1

The Requirements Definition phase sets the stage for the core of the design effort:

defining the interaction framework of the product. The interaction framework defines

not only the skeleton of the interaction -- its structure -- but also the flow and

behavior of the product. The following six steps describe the process of defining the

interaction framework:

1. Defining form factor and input methods

2. Defining views

3. Defining functional and data elements

4. Determining functional groups and hierarchy

5. Sketching the interaction framework

6. Constructing key path scenarios

Like previous processes, this is not a linear effort, but requires iteration. The steps are

described in more detail in the following sections.

STEP 1: DEFINING FORM FACTOR AND INPUT METHODS

The first step in creating a framework is defining the form factor of the product you'll

be designing. Is it a Web application that will be viewed on a high-resolution

computer screen? Is it a phone that must be small, light, low-resolution, and visible in

the dark and as well as in bright sunlight? Is it a kiosk that must be rugged to

withstand a public environment with thousands of distracted, novice users? What are

the constraints that each of these imply for any design? Answering these questions

sets the stage for all subsequent design efforts.

After you have defined this basic posture of the product, you should then determine

the valid input methods for the system: Keyboard, mouse, keypad, thumb-board,

touch screen, voice, game controller, remote control, and many other possibilities

exist Which combination is appropriate for your primary and secondary personas?

What is the primary input method for the product?

STEP 2: DEFINING VIEWS

The next step, after basic form factor and input methods are defined, is to consider

which primary screens or states the product can be in. Initial context scenarios give

you a feel for what these might be: They may change or rearrange somewhat as the

219

Human Computer Interaction (CS408)

design evolves (particularly in step 4), but it is often helpful to put an initial stake in

the ground to serve as a means for organizing your thoughts. If you know that a user

has several end goals and needs that don't closely relate to each other in terms of data

overlap, it might be reasonable to define separate views to address them. On the other

hand, if you see a cluster of related needs (for example, to make an appointment, you

need to see a calendar and possibly contacts), you might consider defining a view that

incorporates all these together, assuming the form factor allows it.

STEP 3: DEFINING FUNCTIONAL AND DATA ELEMENTS

Functional and data elements are the visible representations of functions and data in

the interface. They are the concrete manifestations of the functional and data needs

identified during the Requirements Definition phase. Where those needs were

purposely described in terms of real-world objects and actions, functional and data

elements are described in the language of user interface representations:

· Panes, frames, and other containers on screen

· Groupings of on-screen and physical controls

· Individual on-screen controls

· Individual buttons, knobs, and other physical affordances on a device

· Data objects (icons, listed items, images, graphs) and associated attributes

In early framework iterations, containers are the most important to specify; later as

you focus on the design of individual containers, you will get to more detailed

interface elements.

Many persona needs will spawn multiple interface elements to meet those needs. For

example, Salman needs to be able to telephone his contacts. Functional elements to

meet that need include:

· Voice activation (voice data associated with contact)

· Assignable quick-dial buttons

· Selecting from a list of contacts

· Selecting the name from e-mail header, appointment, or memo

· Auto-assignment of a call button in proper context (appointment coming up)

Multiple vectors are often a good idea, but sometimes not all possible vectors will be

useful to the persona. Use persona goals, design principles, and patterns, as well as

business and technical constraints to winnow your list of elements for meeting

particular needs. You will also need to determine data elements. Some of Salman's

data elements might include appointments, memos, to-do items, and messages.

STEP 4: DETERMINING FUNCTIONAL GROUPS AND HIERARCHY

After you have a good list of top-level functional and data elements, you can begin to

group them into functional units and determine their hierarchy (Shneiderman, 1998).

Because these elements facilitate specific tasks, the idea is to group elements to best

facilitate the personal both within a task and between related tasks. Some issues to

consider include:

· Which elements need a large amount of real estate and which do not?

· Which elements are containers for other elements?

220

Human Computer Interaction (CS408)

How should containers be arranged to optimize flow?

Which elements are used together and which aren't?

In what sequence will a set of related elements be used?

What interaction patterns and principles apply?

How do the personas' mental models affect organization? (Goodwin. 2002)

The most important initial step is determining the top-level container elements for the

interface, and how they are best arranged given the form factor and input methods that

the product requires. Containers for objects that must be compared or used together

should be adjacent to each other. Objects representing steps in a process should, in

general, be adjacent and ordered sequentially. Use of interaction design principles and

patterns is extremely helpful at this juncture.

STEP 5: SKETCHING THE INTERACTION FRAMEWORK

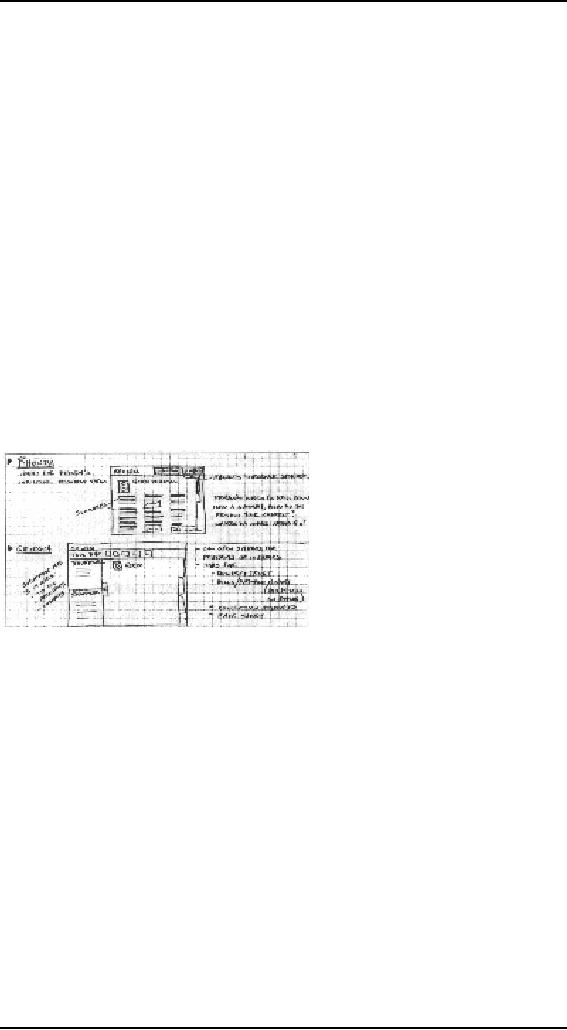

You may want to sketch different ways of fitting top-level containers together in the

interface. Sketching the framework is an iterative process that is best performed with

a small, collaborative group of one or two interaction designers and a visual or

industrial designer. This visualization of the interface should be extremely simple at

first: boxes representing each functional group and/or container with names and

descriptions of the relationships between the different areas (see Figure).

Be sure to look at the entire, top-level framework first; don't let yourself get distracted

by the details of a particular area of the interface. There will be plenty of time to

explore the design at the widget level and, by going there too soon, you risk a lack of

coherence in the design later.

STEP 6: CONSTRUCTING KEY PATH SCENARIOS

Key path scenarios result from exploring details hinted at, but not addressed, in the

context scenarios. Key path scenarios describe at the task level the primary actions

and pathways through the interface that the persona takes with the greatest frequency,

often on a daily basis. In an e-mail application, for example, viewing and composing

mail are key path activities; configuring a new mail server is not.

Key path scenarios generally require the greatest interaction support. New users must

master key path interactions and functions quickly, so they need to be supported by

built-in pedagogy. However, because these functions are used frequently, users do not

remain dependent on that pedagogy for long: They will rapidly demand shortcuts. In

addition, as users become very experienced, they will want to customize daily use

interactions so that they conform to their individual work styles and preferences.

221

Human Computer Interaction (CS408)

SCENARIOS AND STORYBOARDING

Unlike the goal-oriented context scenarios, key path scenarios are more task-oriented;

focusing on task details broadly described and hinted at in the context scenarios

(Kuutti, 1995). This doesn't mean that goals are ignored -- goals and persona needs

are the constant measuring stick throughout the design process, used to trim

unnecessary tasks and streamline necessary ones. However, key path scenarios must

describe in exacting detail the precise behavior of each major interaction and provide

a walkthrough (Newman & Lamming, 1995) of each major pathway.

Typically, key path scenarios begin at a whiteboard and reach a reasonable level of

detail. At some point, depending on the complexity and density of the interface, it

becomes useful to graduate to computer-based tools. Many experts are fond of

Microsoft PowerPoint as a tool for aiding in the storyboarding of key path scenarios.

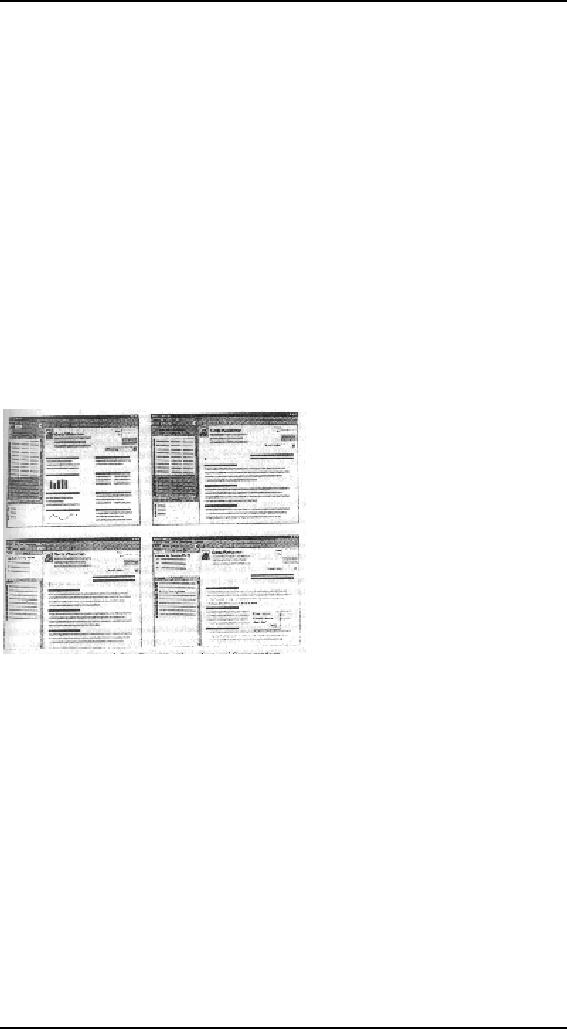

Storyboarding is a technique borrowed from filmmaking and cartooning. Each step in

an interaction, whether between the user and the system, multiple users, or some

combination thereof (Holtzblatt & Beyer, 1998) can be portrayed on a slide, and

clicking through them provides a reality check for the coherence of the interaction

(see Figure). PowerPoint is sufficiently fast and low-resolution to allow rapid drawing

and iterating without succumbing to creating excessive detail.

PRETENDING THE SYSTEM IS HUMAN

Just as pretending it's magic is a powerful tool for constructing concept-level, context scenarios,

pretending the system is human is a powerful tool at the interaction-level appropriate to key path

scenarios. The principle is simple: Interactions with a digital system should be similar in tone and

helpfulness to interactions with a polite, considerate human (Cooper. 1999). As you construct your

interactions, you should ask yourself: Is the primary persona being treated humanely by

the product? What would a thoughtful, considerate interaction look like? In what

ways can the software offer helpful information without getting in the way? How can

it minimize the persona's effort in reaching his goals? What would a helpful human

do?

PRINCIPLES AND PATTERNS

Critical to the translation of key path scenarios to storyboards (as well as the grouping

of elements in step 3) is the application of general interaction principles and specific

interaction patterns. These tools leverage years of interaction design knowledge --

not to take advantage of such knowledge would be tantamount to re-inventing the

wheel. Key path scenarios provide an inherently top-down approach to interaction

222

Human Computer Interaction (CS408)

dsign, iterating through successively more-detailed design structures from main

screens down to tiny subpanes or dialogs. Principles and patterns add a bottom-up

approach to balance the process. Principles and patterns can be used to organize

elements at all levels of the design.

Prototyping

24.2

It is often said that users can't tell you what they want, but when they see some thing

and get to use it, they soon know what they don't want. Having collected information

about work practices and views about what a system should and shouldn't do, we then

need to try out our ideas by building prototypes and iterating through several versions.

And the more iterations, the better the final product will be.

What is a prototype?

When you hear the term prototype, you may imagine something like a scale model of

a building or a bridge, or maybe a piece of software that crashes every few minutes.

But a prototype can also be a paper-based outline of a screen or set screens, an

electronic "picture," a video simulation of a task, a three-dimension paper and

cardboard mockup of a whole workstation, or a simple stack of hyper-linked screen

shots, among other things.

In fact, a prototype can be anything from a paper-based storyboard through to a

complex piece of software, and from a cardboard mockup to a molded or pressed

piece of metal. A prototype allows stakeholders to interact with an envisioned

product, to gain some experience of using it in a realistic setting, and to explore

imagined uses.

For example, when the idea for the PalmPilot was being developed, Jeff Hawkin

(founder of the company) carved up a piece of wood about the size and shape of the

device he had imagined. He used to carry this piece of wood around with him and

pretend to enter information into it, just to see what it would be like to own such a

device (Bergman and Haitani, 2000). This is an example of a very simple (some might

even say bizarre) prototype, but it served its purpose of simulating scenarios of use.

Ehn and Kyng (1991) report on the use of a cardboard box with the label "Desktop

Laser Printer" as a mockup. It did not matter that, in their setup, the printer was not

real. The important point was that the intended users, journalists and typographers,

could experience and envision what it would be like to have one of these machines on

their desks. This may seem a little extreme, but in 1982 when this was done, desktop

laser printers were expensive items of equipment and were not a common sight

around the office.

So a prototype is a limited representation of a design that allows users to interact with

it and to explore its suitability.

Why prototype?

Prototypes are a useful aid when discussing ideas with stakeholders; they are a

communication device among team members, and are an effective way to test out

ideas for yourself. The activity of building prototypes encourages reflection in design,

as described by Schon (1983) and as recognized by designers from many disciplines

as an important aspect of the design process. Liddle (1996), talking about software

design, recommends that prototyping should always precede any writing of code.

223

Human Computer Interaction (CS408)

Prototypes answer questions and support designers in choosing between alternatives.

Hence, they serve a variety of purposes: for example, to test out the technical

feasibility of an idea, to clarify some vague requirements, to do some user testing and

evaluation, or to check that a certain design direction is compatible with the rest of the

system development. Which of these is your purpose will influence the kind of

prototype you build. So, for example, if you are trying to clarify how users might

perform a set of tasks and whether your proposed device would support them in this,

you might produce a paper-based mockup.

Low-fidelity prototyping

A low-fidelity prototype is one that does not look very much like the final product.

For example, it uses materials that are very different from the intended final version,

such as paper and cardboard rather than electronic screens and metal. Low-fidelity

prototypes are useful because they tend to be simple, cheap, and quick to produce.

This also means that they are simple, cheap, and quick to modify so they support the

exploration of alternative designs and ideas. This is particularly important in early

stages of development, during conceptual design for example, because prototypes that

are used for exploring ideas should be flexible and encourage rather than discourage

exploration and modification. Low-fidelity prototypes are never intended to be kept

and integrated into the final product. They are for exploration only.

Storyboarding

Storyboarding is one example of low-fidelity prototyping that is often used in

conjunction with scenarios. A storyboard consists of a series of sketches showing how

a user might progress through a task using the device being developed, it can be a

series of sketched screens for a GUI-based software system, or a series of scene

sketches showing how a user can perform a task using the device. When used in

conjunction with a scenario, the storyboard brings more detail to the written scenario

and offers stakeholders a chance to role-play with the prototype, interacting with it by

stepping through the scenario.

Sketching

Low-fidelity prototyping often relies on sketching, and many people find it difficult to

engage in this activity because they are inhibited about the quality of their drawing.

Verplank (1989) suggests that you can teach yourself to get over this inhibition. He

suggests that you should devise your own symbols and icons for elements you might

want to sketch, and practice using them. They don't have to be anything more than

simple boxes, stick figures, and stars. Elements you might require in a storyboard

sketch, for example, include "things" such as people, parts of a computer, desks,

books, etc., and actions such as give, find, transfer, and write. If you are sketching an

interface design, then you might need to draw various icons, dialog boxes, and so on.

High-fidelity prototyping

High-fidelity prototyping uses materials that you would expect to be in the final

product and produces a prototype that looks much more like the final thing. For

example, a prototype of a software system developed in Visual Basic is higher fidelity

than a paper-based mockup; a molded piece of plastic with a dummy keyboard is a

higher-fidelity prototype of the PalmPilot than the lump of wood.

224

Human Computer Interaction (CS408)

If you are to build a prototype in software, then clearly you need a software tool to

support this. Common prototyping tools include Macromedia Director, Visual Basic,

and Smalltalk. These are also full-fledged development environments, so they are

powerful tools, but building prototypes using them can also be very straightforward.

Marc Rettig (1994) argues that more projects should use low-fidelity prototyj ing

because of the inherent problems with high-fidelity prototyping. He identifies these

problems as:

· They take too long to build.

· Reviewers and testers tend to comment on superficial aspects rather to content.

· Developers are reluctant to change something they have crafted for hours.

· A software prototype can set expectations too high.

Just one bug in a high-fidelity prototype can bring the testing to a halt.

Type

Advantages

Disadvantages

Low-fidelity prototype

Lower development cost.

Limited error checking.

Evaluate

multiple

design

Poor detailed specification

concepts.

to code to.

Useful communication device.

Facilitator-driven.

Address screen layout issues.

Limited

utility

after

Useful for identifying market

requirements established.

requirements.

Limited

usefulness

for

Proof-of-concept.

usability tests.

Navigational

and

flow

limitations.

High-fidelity prototype

Complete functionality.

M o re expensive to

develop.

Fully interactive.

Time-consuming to create.

User-driven.

Inefficient for proof-of-

Clearly

defines

navigational

concept designs.

scheme.

Use for exploration and test.

Not

effective

for

requirements gathering.

Look and feel of final product.

Serves as a living specification.

Marketing and sales tool.

225

Table of Contents:
