Advanced Computer Architecture-CS501

Computer Architecture

Lecture No. 8

Reading Material

Handouts

Slides

Summary

1) Introduction to the ISA of the FALCON-A

2) Examples for the FALCON-A

Introduction to the ISA of the FALCON-A

We take a look at the notation that we are going to employ when studying the FALCON-

A. We will refer to the contents of a register by enclosing in square brackets the name of

the register, for instance, R [3] refers to the contents of the register 3. Memory contents

are to be referred to in a similar fashion; for instance, M [8] refers to the contents of

memory at location 8 (or the 8th

memory cell).

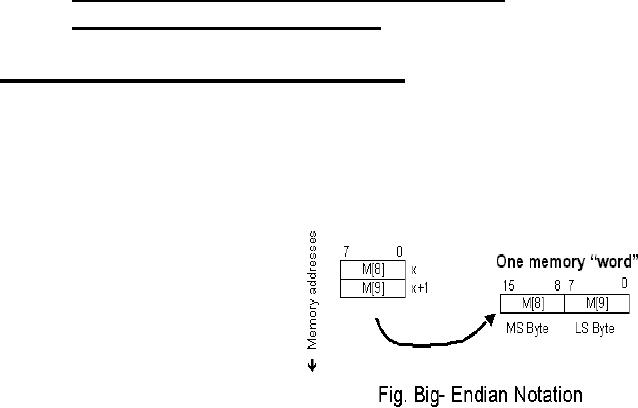

Since memory is organized into cells

of 1 byte, whereas the memory word

size is 2 bytes, two adjacent memory

cells together make up a memory

word. So, memory word at the

memory address 8 would be defined

as 1 byte at address 8 and 1 byte at

address 9. To refer to 16-bit memory

words, we make use of a special

notation, the concatenation of two memory locations. Therefore, to refer to the 16-bit

memory word at location 8, we would write M[8]©M[9]. As we employ the big-endian

format,

M [8]<15...0>:=M[8]©M[9]

So in our notation is used to represent concatenation.

Little endian puts the smallest numbered byte at the least-significant position in a word,

whereas in big endian, we place the largest numbered byte at the most significant

position. Note that in our case, we use the big-endian convention of ordering bytes.

However, within each byte itself, the ordering of the bits is little endian.

FALCON-A Features

The FALCON-A processor has fixed-length instructions, each 16 bits (2 bytes) long.

Addressing modes supported are limited, and memory is accessed through the load/store

instructions only.

Page 91

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

FALCON-A Instruction Formats

Three categories of instructions are going to be supported by the FALCON-A processor;

arithmetic, control, and data transfer instructions. Arithmetic instructions enable

mathematical computations. Control instructions help change the flow of the program as

and when required. Data transfer operations move data between the processor and

memory. The arithmetic category also includes the logical instructions. Four different

types of instruction formats are used to specify these instructions. A brief overview of the

various fields in these instructions formats follows.

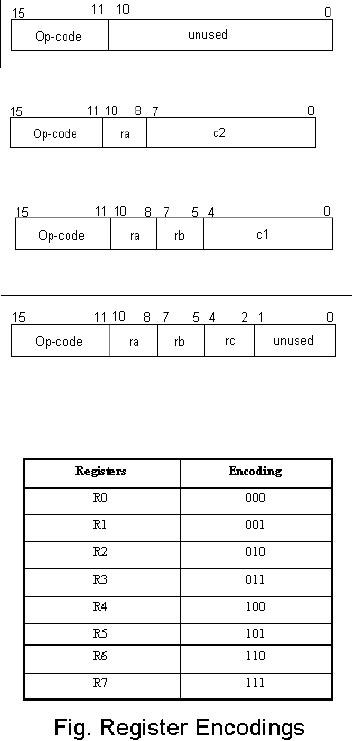

Type I instruction format is shown in

the given figure. In it, 5 bits are

reserved for the op-code (bits 11

through 15). The rest of the bits are

unused in this instruction type,

which means they are not

considered.

Type II instruction shown in the

given figure, has a 5-bit op-code

field, a 3-bit register field, and an 8-bit

constant (or immediate operand) field.

Type III instructions contain the 5-bit

op-code field, two 3-bit register fields

for source and destination registers,

and an immediate operand field of

length 5 bits.

Type IV instructions contain the op-

code field, two 3-bit register fields, a

constant filed on length 3 bits as well

as two unused bits. This format is shown in

the given figure.

Encoding of registers

We have a register file comprising of

eight general-purpose registers in the

CPU. To encode these registers in the

binary, so they can be referred to in

various instructions, we require log2(8)

= 3 bits. Therefore, we have already

allocated three bits per register in the

instructions, as seen in the various

instruction formats. The encoding of

registers in the binary format is shown

in the given table.

It is important to note here that the

cases. For instance, in load/ store

operations, if register R0 is used as a

second operand, its value is considered to be zero. R0 has special usage in the multiply

and divide (mul & div) instructions as well.

Page 92

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Instructions and instruction formats

We return to our discussion of instruction formats in this section. We will now classify

which instructions belong to what instruction format types.

Type I

Five of the instructions included in the instruction set of FALCON-A belong to type I

instruction format. These are

1. nop (op-code = 21)

This instruction is to instruct the processor to `do nothing', or, in other words, do

`no operation'. This instruction is generally useful in pipelining. We will study

pipelining later in the course.

2. reset (op-code = 30)

3. halt (op-code=31)

4. int

(opcode= 26)

5. iret

(op-code= 27)

All of these instructions take no operands, therefore, besides the 5 bits used for the op-

code, the rest of the bits are unused.

Type II

There are nine FALCON-A instructions that belong to this type. These are listed below.

1. movi (op-code = 7 )

The movi instruction loads a register with the constant (or the immediate value)

specified as the second operand. An example is

movi R3, 56

R[3] ← 56

This means that the register R3 will have the value 56 stored in it as this instruction

is executed.

2. in (op-code = 24)

This instruction is to load the specified register from input device. An example

and its interpretation in register transfer language are

in R3, 57

R [3] ← IO [57]

3. out (op-code = 25)

The `out' instruction will move data from the register to the output device

specified in the instruction, as the example demonstrates:

out R7, 34

IO [34] ← R [7]

4. ret (op-code=23)

This instruction is to return control from a subroutine. This is done using a

control, the program counter is assigned the contents of the register.

ret R3

PC ← R [3]

5. jz (op-code= 19)

When this instruction is executed, the value of the register specified in the field ra

is checked, and if it is equal to zero, the Program Counter is advanced by the

jump(value) specified in the instruction.

jz r3, [4]

(R[3]=0): PC← PC+ 4;

In this example, register r3's value is checked, and if found to be zero, PC is

advanced by 4.

6. jnz (op-code= 18) This instruction is the reverse of the jz instruction, i.e., the

jump (or the branch) is taken, if the contents of the register specified are not equal

to zero.

Page 93

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

jnz r4, [variable]

(R[4]≠0): PC← PC+ variable;

7. jpl (op-code= 16) In this instruction, the value contained in the register specified

in the field ra is checked, and if it is positive, the jump is taken.

jpl r3, [label]

(R[3]≥0): PC ← PC+ (label-PC);

8. jmi (op-code= 17) In this case, PC is advanced (jump/branch is taken) if the

jmi r7, [address]

(R[7]<0): PC← PC+ address;

Note that, in all the instructions for jump, the jump can be specified by a constant, a

variable, a label or an address (that holds the value by which the PC is to be advanced).

A variable can be defined through the use of the `.equ' directive. An address (of data) can

be specified using the directive `.db' or `.dw'. A label can be specified with any

instruction. In its usage, we follow the label by a colon `:' before the instruction itself.

For example, the following is an instruction that has a label `alfa' attached to it

alfa: movi r3 r4

Labels implement relative jumps, 128 locations backwards or 127 locations forward

(relative to the current position of program control, i.e. the value in the program counter).

The compiler handles the interpretation of the field c2 as a constant/ variable/ label/

address. The machine code just contains an 8-bit constant that is added to the program

counter at run-time.

9. jump (op-code= 20)

This instruction instructs the processor to advance the program counter by the

displacement specified, unconditionally (an unconditional jump). The assembler

allows the displacement (or the jump) to be specified in any of the following ways

jump [ra + constant]

jump [ra + variable]

jump [ra + address]

jump [ra + label]

The types of unconditional jumps that are possible are

· Direct

· Indirect

· PC relative (a `near' jump)

· Register relative (a `far' jump)

The c2 field may be a constant, variable, an address or a label.

A direct jump is specified by a PC-label.

An indirect jump is implemented by using the C2 field as a variable.

In all of the above instructions, if the value of the register ra is zero, then the Program

Counter is incremented (or decremented) by the sign-extended value of the constant

specified in the instruction. This is called the PC-relative jump, or the `near' jump. It is

denoted in RTL as:

(ra=0):PC← PC+(8αC2<7>)©C2<7..0>;

If the register ra field is non-zero, then the Program Counter is assigned the sum of the

sign-extended constant and the value of register specified in the field ra. This is known as

the register-relative, or the `far' jump. In RTL, this is denoted as:

(ra≠0):PC← R[ra]+(8αC2<7>)©C2<7..0>;

Page 94

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Note that C2 is computed by sign extending the constant, variable, address, or (label

PC). Since we have 8 bits available for the C2 field (which can be a constant, variable,

address or a PC-label), the range for the field is -128 to + 127. Also note that the compiler

does not allow an instruction with a negative sign before the register name, such as `jump

[-r2]'. If the C2 field is being used as an address, it should always be an even value for

the jump instruction. This is because our instruction word size is 16 bits, whereas in

instruction memory, the instruction memory cells are of 8 bits each. Two consecutive

cells together make an instruction.

Type III

There are nine instructions of the FALCON-A that belong to Type III. These are:

1. andi (op-code = 9)

The andi instruction bit-wise `ands' the constant specified in the instruction with

the value stored in the register specified in the second operand register and stores

the result in the destination register. An example is:

andi r4, r3, 5

This instruction will bit-wise and the constant 5 and R[3], and assign the value

thus obtained to the register R[4], as given .

R [4] ← R [3] & 5

2. addi (op-code = 1)

This instruction is to add a constant value to a register; the result is stored in a

destination register. An example:

addi r4, r3,4 R [4] ← R [3] + 4

3. subi (op-code = 3)

The subi instruction will subtract the specified constant from the value stored in a

source register, and store to the destination register. An example follows.

subi r5, r7, 9 R [5] ← R [7] 9

4. ori

(op-code= 11)

Similar to the andi instruction, the ori instruction bit-wise `ors' a constant with a

value stored in the source register, and assigns it to the destination register. The

following instruction is an example.

ori r4, r7, 3 R[4] ← R[7] ~ 3

5. shiftl (op-code = 12)

This instruction shifts the value stored in the source register (which is the second

operand), and shifts the bits left as many times as is specified by the third

operand, the constant value. For instance, in the instruction

shiftl r4, r3, 7

The contents of the register are shifted left 7 times, and the resulting number is

assigned to the register r4.

6. shiftr (op-code = 13)

This instruction shifts to the right the value stored in a register. An example is:

shiftr r4, r3,9

7. asr

(op-code

15)

An arithmetic shift right is an operation that shifts a signed binary number

stored in the source register (which is specified by the second operand), to the

right, while leaving the sign-bit unchanged. A single shift has the effect of

dividing the number by 2. As the number is shifted as many times as is specified

in the instruction through the constant value, the binary number of the source

Page 95

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

asr r1, r2, 5

This instruction, when executed, will divide the value stored in r2 by 10, and

assign the result to the register r1.

8. load (op-code= 29)

This instruction is to load a register from the memory. For instance, the

instruction

load r1, [r4 +15]

will add the constant 15 to the value stored in the register r4, access the memory

location that corresponds to the number thus resulting, and assign the memory

contents of this location to the register r1; this is denoted in RTL by:

R[1] ← M[R[4]+15]

9. store (op-code= 28)

This instruction is to store a value in the register to a particular memory location.

In the example:

store r6, [r7+13]

The contents of the register r6 are being stored to the memory location that

corresponds to the sum of the constant 13 and the value stored in the register r7.

M[R[7]+13] ← R[6]

Type III Modified

There are 3 instructions in the modified form of the Type III instructions. In the modified

Type III instructions, the field c1 is unused.

1. mov (op-code = 6 )

This instruction will move (copy) data of a source register to a destination

copied to the register r4.

mov r4, r3

In RTL, this can be represented as

R[4] ← R[3]

2. not

(op-code = 14 )

This instruction inverts the contents of the source register, and assigns the value

thus obtained to the destination register. In the following example, the contents of

not r4, r2

In RTL:

R[4] ← !R[2]

3. call

(op-code = 22 )

Procedure calls are often encountered in programming languages. To add support

for procedure (or subroutine) calls, the instruction call is used. This instruction

first stores the return address in a register and then assigns the Program Counter a

new value (that specifies the address of the subroutine). Following is an example

of the call instruction

call r4, r3

This instruction saves the current contents (the return address) of the Program

Counter into the register r4 and assigns the new value to the PC from register r3.

R[4] ← PC, PC ← R[3]

Type IV

Six instructions belong to the instruction format Type IV. These are

Page 96

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

1. add

(op-code = 0 )

This instruction adds contents of a register to those of another register, and

assigns to the destination register. An example:

and r4, r3, r5

R[4] ← R[3] +R[5]

2. sub

(op-code = 2 )

This instruction subtracts value of a register from another the value stored in

another register, and assigns to the destination register. For example,

sub r4, r3, r5

In RTL, this is denoted by

R[4] ← R[3] R[5]

3. mul (op-code = 4 )

The multiply instruction will store the product of two register values, and stores in

the destination register. An example is

mul r5, r7, r1

The RTL notation for this instruction will be

R[0] R[5] ← R[7]*R[1]

4. div

(op-code= 5)

This instruction will divide the value of the register that is the second operand, by the

number in the register specified by the third operand, and assign the result to the

destination register.

5. and

(op-code= 8)

This `and' instruction will obtain a bit-wise `and' of the values of two registers and

assigns it to a destination register. For instance, in the following example, contents of

and r1, r4, r5

In RTL we may write this as

R[1] ← R[4] & R[5]

6. or

(op-code= 10)

To bit-wise `or' the contents of two registers, this instruction is used. For instance,

or r6, r7,r2

In RTL this is denoted as

R[6] ← R[7] ~ R[2]

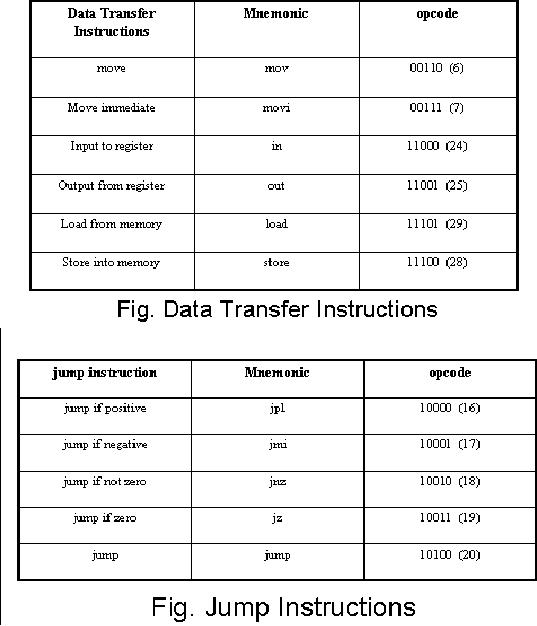

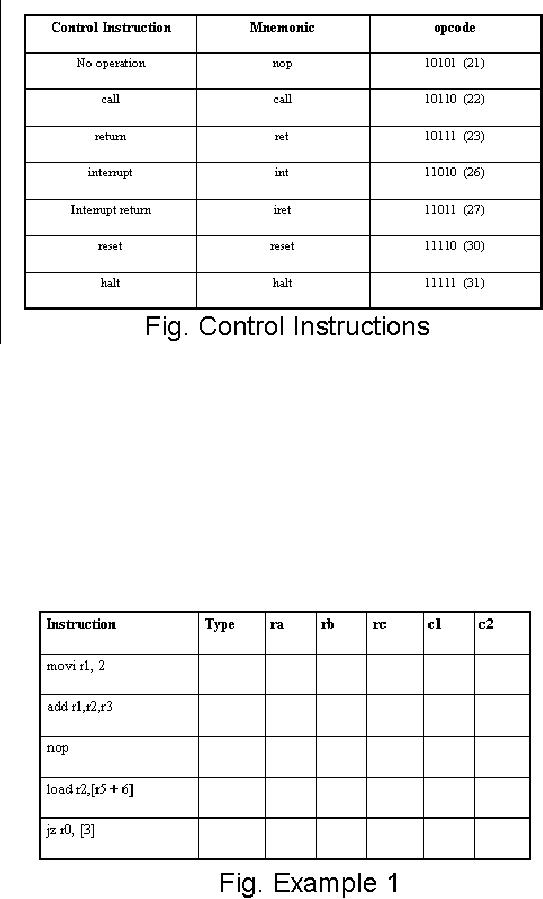

FALCON-A: Instruction Set Summary

We have looked at the various types of instruction formats for the FALCON-A, as well as

the instructions that belong to each of these instruction format types. In this section, we

have simply listed the instructions on the basis of their functional groups; this means that

the instructions that perform similar class of operations have been listed together.

Page 97

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Page 98

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Examples for FALCON-A

In this section we take up a few sample problems related to the FALCON-A processor.

This will enhance our understanding of the FALCON-A processor, as well as of the

general concepts related to general processors and their instruction set architectures. The

problems we will look at include

1. Identification of the instruction types and operands

2. Addressing modes and RTL description

3. Branch condition and status of the PC

4. Binary encoding for instructions

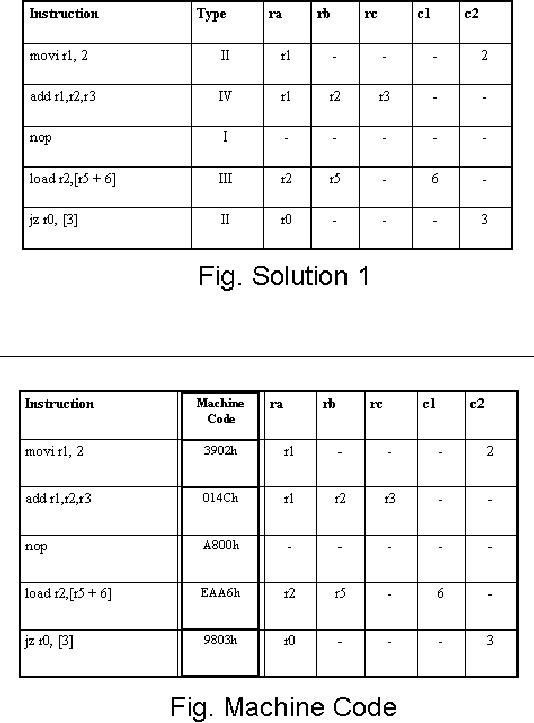

Example 1:

Identify the types of given FALCON-A instructions and specify the values in the fields

Solution

The solution to this problem is quite straightforward. The types of these instructions, as

well as the fields, have already been discussed in the preceding sections.

Page 99

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

We can also find the machine code for these instructions. The machine code (in the

hexadecimal representation) is given for these instructions in the given table.

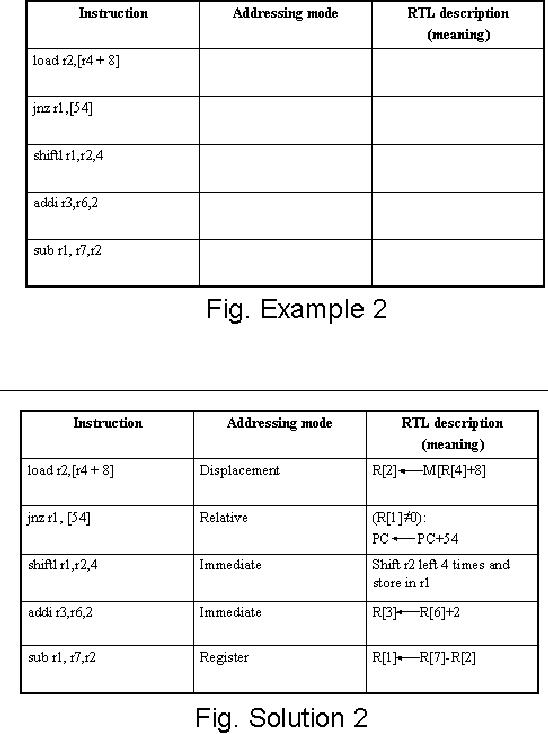

Example 2:

Identify the addressing modes and Register Transfer Language (RTL) description

(meaning) for the given FALCON-A instructions

Page 100

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Solution

Addressing modes relate to the way architectures specify the address of the objects they

access. These objects may be constants and registers, in addition to memory locations.

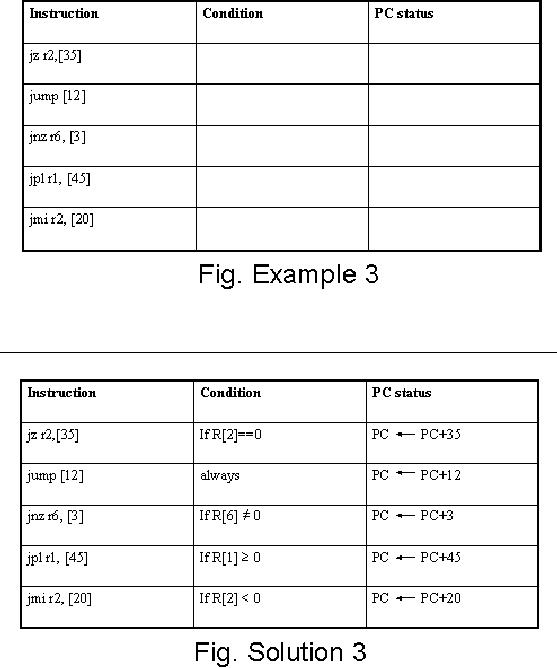

Example 3: Specify the condition for the branch instruction and the status of the PC after

the branch instruction executes with a true branch condition

Page 101

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Solution

We have looked at the various jump instructions in our study of the FALCON-A. Using

that knowledge, this problem can be solved easily.

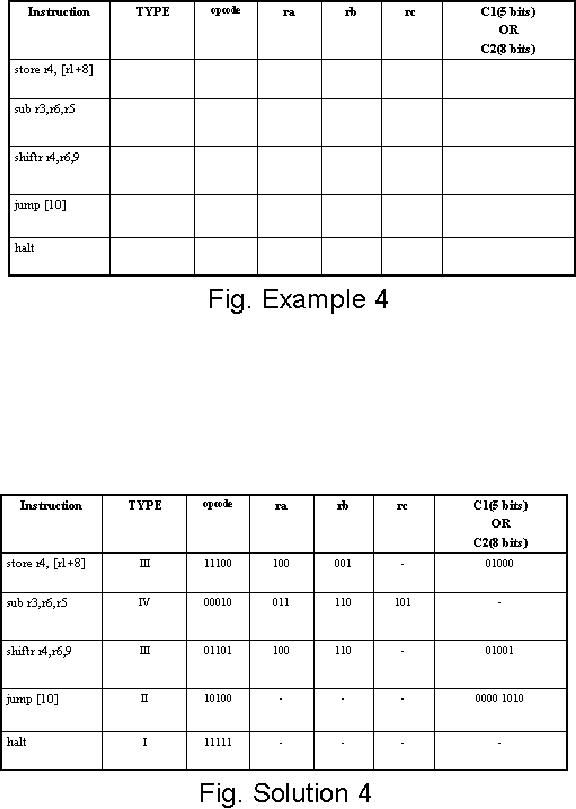

Example 4: Specify the binary encoding of the different fields in the given FALCON-A

instructions.

Page 102

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Solution

We can solve this problem by referring back to our discussion of the instruction format

types. The op-codes for each of the instructions can also be looked up from the tables. ra,

rb and rc (where applicable) registers' values are obtained from the register encoding

table we looked at. The constants C1 and C2 are there in instruction type III and II

respectively. The immediate constant specified in the instruction can also be simply

converted to binary, as shown.

Page 103

Last Modified: 01-Nov-06

Table of Contents:
