Instruction Set Architecture (ISA) Design: Outline of the thinking

process

In this module we will learn to appreciate, understand and apply the approach adopted in

designing an instruction set architecture. We do this by designing an ISA for a new

processor. We have named our processor FALCON-A, which is an acronym for First

Architecture for Learning Computer Organization and Networks (version A). The term

Organization is intended to include Architecture and Design in this acronym.

Elements of the ISA

Before we go onto designing the instruction set architecture for our processor FALCON-

A, we need to take a closer look at the defining components of an ISA. The following

three key components define any instruction set architecture.

1. The operations the processor can execute

2. Data access mode for use as operands in the operations defined

3. Representation of the operations in memory

We take a look at all three of the components in more detail, and wherever appropriate,

apply these steps to the design of our sample processor, the FALCON-A. This will help

us better understand the approach to be adopted for the ISA design of a processor. A

more detailed introduction to the FALCON-A will be presented later.

The operations the processor can execute

All processors need to support at least three categories (or functional groups) of

instructions

Arithmetic, Logic, Shift

Data Transfer

Control

Page 86

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

ISA Design Steps Step 1

We need to think of all the instructions of each type that ought to be supported by our

processor, the FALCON-A. The following are the instructions that we will include in the

ISA for our processor.

Arithmetic:

add, addi (and with an immediate operand), subtract, subtract-immediate,

multiply, divide

Logic:

and, and-immediate, or, or-immediate, not

Shift:

shift left, shift right, arithmetic shift right

Data Transfer:

Data transfer between registers, moving constants to registers, load operands from

memory to registers, store from registers to memory and the movement of data between

registers and input/output devices

Control:

Jump instructions with various conditions, call and return from subroutines,

instructions for handling interrupts

Miscellaneous instructions:

Instructions to clear all registers, the capability to stop the processor, ability to

"do nothing", etc.

ISA Design Steps Step 2

Once we have decided on the instructions that we want to add support for in our

processor, the second step of the ISA design process is to select suitable mnemonics for

these instructions. The following mnemonics have been selected to represent these

operations.

Arithmetic:

add, addi, sub ,subi ,mul ,div

Logic:

and, andi, or, ori, not

Shift:

shiftl, shiftr, asr

Data Transfer:

load, store, in, out, mov, movi

Control:

jpl, jmi, jnz, jz, jump, call, ret, int.iret

Miscellaneous instructions:

nop, reset, halt

ISA Design Steps Step 3

The next step of the ISA design is to decide upon the number of bits to be reserved for

the op-code part of the instructions. Since we have 32 instructions in the instruction set, 5

bits will suffice (as 25 =32) to encode these op-codes.

ISA Design Steps Step 4

The fourth step is to assign op-codes to these instructions. The assigned op-codes are

shown below.

Page 87

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Arithmetic:

add (0), addi (1), sub (2), subi (3), mul (4),div (5)

Logic:

and (8), andi (9), or (10), ori (11), not (14)

Shift:

shiftl (12), shiftr (13), asr (15)

Data Transfer:

load (29), store (28), in (24), out (25), mov (6), movi (7)

Control:

jpl (16), jmi (17), jnz (18), jz (19), jump (20), call (22), ret (23), int (26), iret (27)

Miscellaneous instructions:

nop (21), reset (30), halt (31)

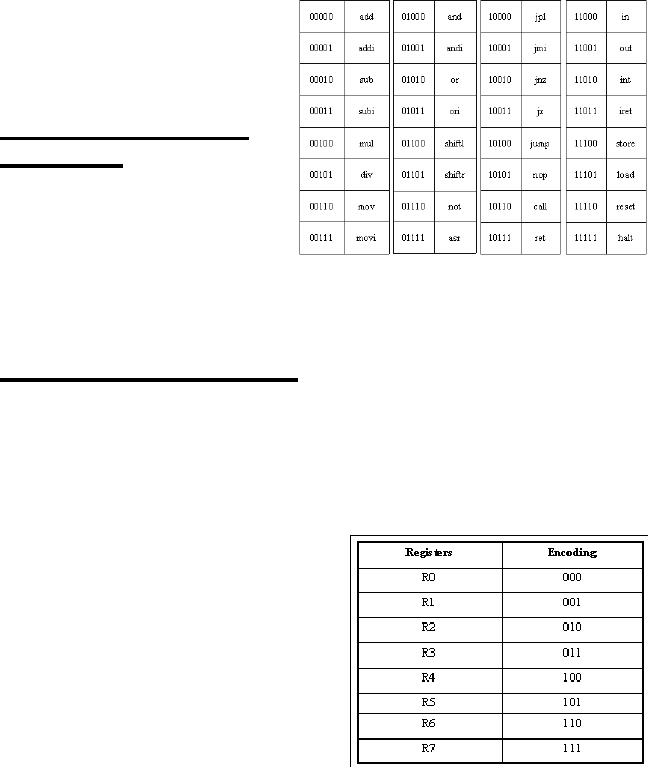

Now we list these instructions with

their op-codes in the binary form, as

they would appear in the machine

instructions of the FALCON-A.

Data access mode for

operations

As mentioned earlier, the instruction

set architecture of a processor defines

a number of things besides the

instructions implemented; the

resources each instruction can access,

the number of registers available to the processor, the number of registers each

instruction can access, the instructions that are allowed to access memory, any special

registers, constants and any alternatives to the general-purpose registers. With this in

mind, we go on to the next steps of our ISA design.

ISA Design Steps Step 5

We now need to select the number and types of operands for various instructions that we

have selected for the FALCON-A ISA.

ALU instructions may have 2 to 3 registers as operands. In case of 2 operands, a constant

(an immediate operand) may be included in the instruction.

For the load/store type instructions, we require a register to hold the data that is to be

loaded from the memory, or stored back to the memory. Another register is required to

hold the base address for the memory access. In addition to these two registers, a field is

required in the instruction to specify the

constant that is the displacement to the base

address.

In jump instructions; we require a field for

specifying the register that holds the value that

is to be compared as the condition for the

branch, as well as a destination address, which

is specified as a constant.

Once we have decided on the number and

types of operands that will be required in each

of the instruction types, we need to address the

Page 88

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

issue of assigning specific bit-fields in the instruction for each of these operands. The

number of bits required to represent each of these operands will eventually determine the

instruction word size. In our example processor, the FALCON-A, we reserve eight

general-purpose registers. To encode a register in the instructions, 3 bits are required (as

23 =8). The registers are encoded in the binary as shown in the given table.

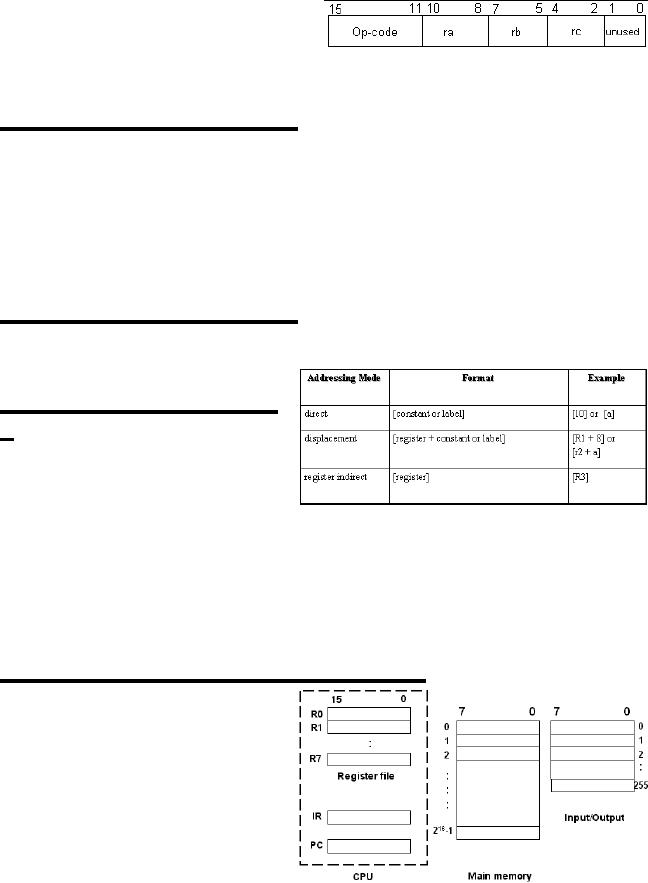

Therefore, the instructions that we will add support for FALCON-A processor will have

the given general format. The instructions

in the FALCON-A processor are going to

be variations of this format, with four

different formats in all. The exact format is dependent on the actual number of operands

in a particular instruction.

ISA Design Steps Step 6

The next step towards completely defining the instruction set architecture of our

processor is the design of memory and its organization. The number of the memory cells

that we may have in the organization depends on the size of the Program Counter register

(PC), and the size of the address bus. This is because the size of the program counter and

the size of the address bus put a limitation on the number of memory cells that can be

referred to for loading an instruction for execution. Additionally, the size of the data bus

puts a limitation on the size of the memory word that can be referred to in a single clock

cycle.

ISA Design Steps Step 7

Now we need to specify which instructions will be allowed to access the memory. Since

the FALCON-A is intended to be a RISC-like machine, only the load/ store instructions

will be allowed to access the memory.

ISA Design Steps Step

Next we need to select the memory-

addressing modes. The given table lists

the types of addressing modes that will

be supported for the load/store

instructions.

FALCON-A: Introduction

FALCON stands for First Architecture for Learning Computer Organization and

Networks. It is a `RISC-like' general-purpose processor that will be used as a teaching

aid for this course. Although the FALCON-A is a simple machine, it is powerful enough

to explain a variety of fundamental concepts in the field of Computer Architecture .

Programmer's view of the FALCON-A

FALCON-A, an example of a GPR

(General Purpose Register) computer,

is the first version of the FALCON

processor. The programmer's view of

the FALCON-A is given in the figure

shown. As it is clear from the figure,

the CPU contains a register file of 8

registers, named R0 through R7. Each

of these registers is 16 bits in length.

Page 89

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Aside from these registers, there are two special-purpose registers, the Program Counter

(PC), and the Instruction Register (IR). The main memory is organized as 216 x 8 bits, i.e.

216 cells of 1 byte each. The memory word size is 2 bytes (or 16 bits). The input/output

space is 256 bytes (8 bit I/O ports). The storage in these registers and memory is in the

big-endian format.
