Advanced Computer Architecture-CS501

Lecture Handout

Computer Architecture

Lecture No. 5

Reading Material

Handouts

Slides

Summary

1) Reverse Assembly

2) Description of SRC in the form of RTL

3) Behavioral and Structural description in terms of RTL

Reverse Assembly

Typical Problem:

Given a machine language instruction for the SRC, it may be required to find the

equivalent SRC assembly language instruction

Example:

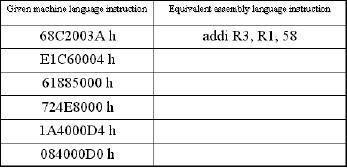

Reverse assemble the following SRC machine language instructions:

68C2003A h

E1C60004 h

61885000 h

724E8000 h

1A4000D4 h

084000D0 h

Solution:

1. Write the given hexadecimal instruction in binary form

68C2003A h → 0110 1000 1100 0010 0000 0000 0011 1010 b

2. Examine the first five bits of the instruction, and pick the corresponding mnemonic

from the SRC instruction set listing arranged according to ascending order of op-codes

01101 b → 13 d → addi → add immediate

3. Now we know that this instruction uses the type C format, the two 5-bit fields after the

op-code field represent the destination and the source registers respectively, and that the

remaining 17-bits in the instruction represent a constant

Page 62

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

0110 1000 1100 0010 0000 0000 0011 1010 b

op-code ra field rb field

17-bit c1 field

↓

addi

3A h=58 d

4. Therefore, the assembly language instruction is

addi R3, R1, 58

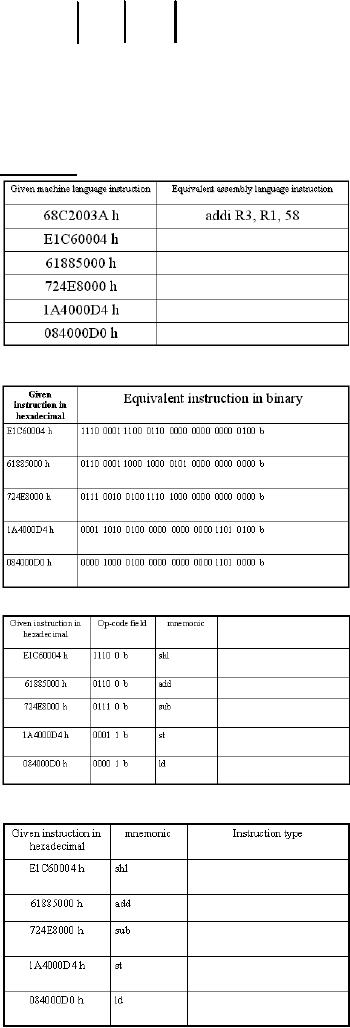

Summary

We can do it a bit faster now! Step1: Here is step1 for all instructions

Step 2: Pick up the op code for each instruction

Step 3: Determine the instruction type for each instruction

Page 63

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

The meaning of the remaining fields will depend on the instruction type (i.e., the

instruction format)

Summary

Note:Rest of the fields of above given tables are left as an exercise for

students.

Using RTL to describe the SRC

RTL stands for Register Transfer Language. The Register Transfer Language provides a

formal way for the description of the behavior and structure of a computer. The RTL

facilitates the design process of the computer as it provides a precise, mathematical

representation of its functionality. In this section, a Register Transfer Language is

presented and introduced, for the SRC (Simple `RISC' Computer), described in the

previous discussion.

Behavioral RTL

Behavioral RTL is used to describe the `functionality' of the machine only, i.e. what the

machine does.

Structural RTL

Structural RTL describes the `hardware implementation' of the machine, i.e. how the

functionality made available by the machine is implemented.

Behavioral versus Structural RTL:

In computer design, a top-down approach is adopted. The computer design process

typically starts with defining the behavior of the overall system. This is then broken down

into the behavior of the different modules. The process continues, till we are able to

define, design and implement the structure of the individual modules. Behavioral RTL is

used for describing the behavior of machine whereas structural RTL is used to define the

structure of machine, which brings us to the some more hardware features.

Using RTL to describe the static properties of the SRC

In this section we introduce the RTL by using it to describe the various static properties

of the SRC.

Specifying Registers

The format used to specify registers is

For example, IR<31..0> means bits numbered 31 to 0 of a 32-bit register named "IR"

(Instruction Register).

"Naming" using the := naming operator:

Page 64

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

The := operator is used to `name' registers, or part of registers, in the Register Transfer

Language. It does not create a new register; it just generates another name, or "alias" for

an already existing register or part of a register. For example,

Op<4..0>: = IR<31..27> means that the five most significant bits of the register IR will

be called op, with bits 4..0.

Fields in the SRC instruction

In this section, we examine the various fields of an SRC instruction, using the RTL.

op<4..0>: = IR<31..27>; operation code field

The five most significant bits of an SRC instruction, (stored in the instruction register in

this example), are named op, and this field is used for specifying the operation.

ra<4..0>: = IR<26..22>;

target register field

The next five bits of the SRC instruction, bits 26 through 22, are used to hold the address

of the target register field, i.e., the result of the operation performed by the instruction is

stored in the register specified by this field.

rb<4..0>: = IR<21..17>;

operand, address index, or branch target register

The bits 21 through 17 of the instruction are used for the rb field. rb field is used to hold

an operand, an address index, or a branch target register.

rc<4..0>: = IR<16..12>;

second operand, conditional test, or shift count register

The bits 16 through 12, are the rc field. This field may hold the second operand,

conditional test, or a shift count.

c1<21..0>: = IR<21..0>; long displacement field

In some instructions, the bits 21 through 0 may be used as long displacement field.

Notice that there is an overlap of fields. The fields are distinguished in a particular

instruction depending on the operation.

c2<16..0>: = IR<16..0>; short displacement or immediate field

The bits 16 through 0 may be used as short displacement or to specify an immediate

operand.

c3<11..0>: = IR<11..0>; count or modifier field

The bits 11 through 0 of the SRC instruction may be used for count or modifier field.

Describing the processor state using RTL

The Register Transfer Language can be used to describe the processor state. The

following registers and bits together form the processor state set.

PC<31..0>;

program counter (it holds the memory address of next

instruction to be executed)

IR<31..0>;

instruction register, used to hold the current instruction

Run;

one bit run/halt indicator

Strt;

start signal

R [0..31]<31..0>; 32, 32 bit general purpose registers

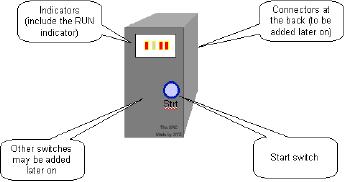

SRC in a Black Box

Page 65

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

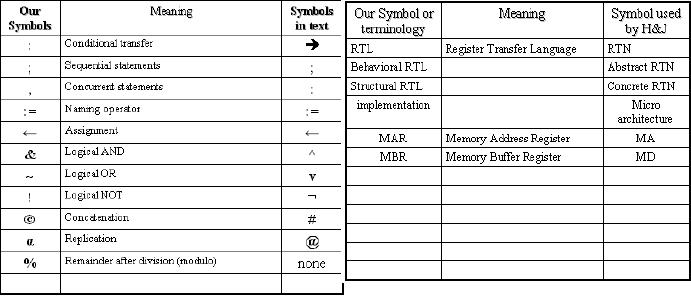

Difference between our notation and notation used by the text (H&J)

Difference between "," and ";" in RTL

Statements separated by a "," take place during the same clock pulse. In other words, the

order of execution of statements separated by "," does not matter.

On the other hand, statements separated by a ";" take place on successive clock pulses. In

other words, if statements are separated by ";" the one on the left must complete before

the one on the right starts. However, some things written with one RTL statement can

take several clocks to complete.

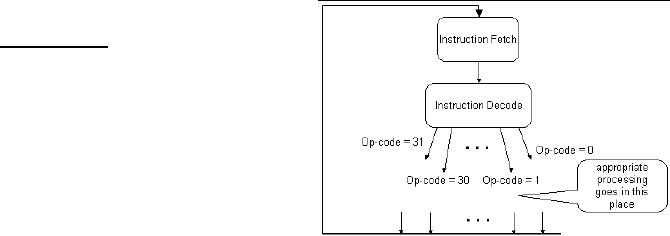

So in the instruction interpretation, fetch-execute cycle, we can see that the first

statement. ! Run & Strt : Run ← 1, executes first. After this statement has executed and

set run to 1, the statements IR ← M [PC] and PC ← PC + 4 are executed concurrently.

Note that in statements separated by ",", all right hand sides of Register Transfers are

evaluated before any left hand side is modified (generally though assignment).

Using RTL to describe the dynamic properties of the SRC

The RTL can be used to describe the dynamic properties.

Conditional expressions can be specified through the use of RTL. The following example

will illustrate this

(op=14) : R [ra] ← R [rb] - R[rc];

The ← operator is the RTL assignment operator. `;' is the termination operator. This

conditional expression implies that "IF the op field is equal to 14, THEN calculate the

difference of the value in the register specified by the rb field and the value in the register

specified by the rc field, and store the result in the register specified by the ra field."

Effective address calculations in RTL (performed at runtime)

Page 66

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

In some instructions, the address of an operand or the destination register may not be

specified directly. Instead, the effective address may have to be calculated at runtime.

These effective address calculations can be represented in RTL, as illustrated through the

examples below.

Displacement address

disp<31..0> := ((rb=0) : c2<16..0> {sign extend},

(rb≠0) : R [rb] + c2<16..0> {sign extend}),

The displacement (or the direct) address is being calculated in this example. The ","

operator separates statements in a single instruction, and indicates that these statements

are to be executed simultaneously. However, since in this example these are two disjoint

conditions, therefore, only one action will be performed at one time.

Note that register R0 cannot be added to displacement. rb = 0 just implies we do not need

to use the R [rb] field.

Relative address

rel<31..0> := PC<31..0> + c1<21..0> {sign extend},

In the above example, a relative address is being calculated by adding the displacement

after sign extension to the contents of the program counter register (that holds the next

instruction to be executed in a program execution sequence).

Range of memory addresses

The range of memory addresses that can be accessed using the displacement (or the

direct) addressing and the relative addressing is given.

· Direct addressing (displacement with rb=0)

o If c2<16>=0 (positive displacement) absolute addresses range from

00000000h to 0000FFFFh

o If c2<16>=1 (negative displacement) absolute addresses range from

FFFF0000h to FFFFFFFFh

· Relative addressing

o The largest positive value of C1<21..0> is 221-1 and its most negative

value is -221, so addresses up to 221-1 forward and 221 backward from the

current PC value can be specified

Instruction Interpretation

(Describing the Fetch operation using RTL)

The action performed for all the instructions before they are decoded is called `instruction

interpretation'. Here, an example is that of starting the machine. If the machine is not

already running (¬Run, or `not' running), AND (&) it the condition start (Strt) becomes

true, then Run bit (of the processor state) is set to 1 (i.e. true).

instruction_Fetch := (

! Run & Strt: Run ← 1

; instruction_Fetch

Run : (IR ← M [PC], PC ← PC + 4;

instruction_Execution ) );

The := is the naming operator. The ; operator is used to add comments in RTL. The ,

operator, specifies that the statements are to be executed simultaneously, (i.e. in a single

clock pulse). The ; operator is used to separate sequential statements. ← is an assignment

operator. & is a logical AND, ~ is a logical OR, and ! is the logical NOT. In the

instruction interpretation phase of the fetch-execute cycle, if the machine is running (Run

Page 67

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

is true), the instruction register is loaded with the instruction at the location M [PC] (the

program counter specifies the address of the memory at which the instruction to be

executed is located). Simultaneously, the program counter is incremented by 4, so as to

point to the next instruction, as shown in the example above. This completes the

instruction interpretation.

Instruction Execution

(Describing the Execute operation using RTL)

Once the instruction is fetched and the PC is incremented, execution of the instruction

starts. In the following, we denote instruction Fetch by "iF" and instruction execution by

"iE".

iE:= (

(op<4..0>= 1) : R [ra] ← M [disp],

(op<4..0>= 2) : R [ra] ← M [rel],

...

(op<4..0>=31) : Run ← 0,); iF);

As shown above, Instruction Execution can be described by using a long list of

conditional operations, which are inherently "disjoint".

One of these statements is executed, depending on the condition met, and then the

instruction fetch statement (iF) is invoked again at the end of the list of concurrent

statements. Thus, instruction fetch (iF) and instruction execution statements invoke each

other in a loop. This is the fetch-execute cycle of the SRC.

Concurrent Statements

The long list of concurrent, disjoint instructions of the instruction execution (iE) is

basically the complete instruction set of the processor. A brief overview of these

instructions is given below.

Load-Store Instructions

(op<4..0>= 1) : R [ra] ← M [disp], load register (ld)

This instruction is to load a register using a displacement address specified by the

instruction, i.e. the contents of the memory at the address `disp' are placed in the register

R [ra].

(op<4..0>= 2) : R [ra] ← M [rel], load register relative (ldr)

If the operation field `op' of the instruction decoded is 2, the instruction that is executed

is loading a register (target address of this register is specified by the field ra) with

memory contents at a relative address, `rel'. The relative address calculation has been

explained in this section earlier.

(op<4..0>= 3) : M [disp] ← R [ra], store register (st)

If the op-code is 3, the contents of the register specified by address ra, are stored back to

the memory, at a displacement location `disp'.

(op<4..0>= 4) : M[rel] ← R[ra], store register relative (str)

If the op-code is 4, the contents of the register specified by the target register address ra,

are stored back to the memory, at a relative address location `rel'.

(op<4..0>= 5) : R [ra] ← disp,

load displacement address (la)

For op-code 5, the displacement address disp is loaded to the register R (specified by the

target register address ra).

(op<4..0>= 6) : R [ra] ← rel,

load relative address (lar)

For op-code 6, the relative address rel is loaded to the register R (specified by the target

Page 68

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Branch Instructions

(op<4..0>= 8) : (cond : PC ← R [rb]), conditional branch (br)

If the op-code is 8, a conditional branch is taken, that is, the program counter is set to the

target instruction address specified by rb, if the condition `cond' is true.

(op<4..0>= 9) : (R [ra] ← PC,

cond : (PC ← R [rb]) ), branch and link (brl)

If the op field is 9, branch and link instruction is executed, i.e. the contents of the

program counter are stored in a register specified by ra field, (so control can be returned

to it later), and then the conditional branch is taken to a branch target address specified by

rb. The branch and link instruction is useful for returning control to the calling program

after a procedure call returns.

The conditions that these `conditional' branches depend on are specified by the field c3

that has 3 bits. This simply means that when c3<2..0> is equal to one of these six values.

We substitute the expression on the right hand side of the : in place of cond

These conditions are explained here briefly.

cond := (

c3<2..0>=0 : 0,

never

If the c3 field is 0, the branch is never taken.

c3<2..0>=1 : 1,

always

If the field is 1, branch is taken

c3<2..0>=2 : R [rc]=0,

if register is zero

If c3 = 2, a branch is taken if the register rc = 0.

c3<2..0>=3 : R [rc] ≠ 0,

if register is nonzero

If c3 = 3, a branch is taken if the register rc is not equal to 0.

c3<2..0>=4 : R [rc]<31>=0 if positive or zero

If c3 is 4, a branch is taken if the register value in the register specified

by rc is greater than or equal to 0.

c3<2..0>=5 : R [rc]<31>=1), if negative

If c3 = 5, a branch is taken if the value stored in the register specified by

rc is negative.

Arithmetic and Logical instructions

(op<4..0>=12) : R [ra] ← R [rb] + R [rc],

If the op-code is 12, the contents of the registers rb and rc are added and the result is

stored in the register ra.

(op<4..0>=13) : R [ra] ← R [rb] + c2<16..0> {sign extend},

If the op-code is 13, the content of the register rb is added with the immediate data in the

field c2, and the result is stored in the register ra.

(op<4..0>=14) : R [ra] ← R [rb] R [rc],

If the op-code is 14, the content of the register rc is subtracted from that of rb, and the

result is stored in ra.

(op<4..0>=15) : R [ra] ← -R [rc],

If the op-code is 15, the content of the register rc is negated, and the result is stored in ra.

(op<4..0>=20) : R [ra] ← R [rb] & R [rc],

If the op field equals 20, logical AND of the contents of the registers rb and rc is obtained

and the result is stored in register ra.

(op<4..0>=21) : R [ra] ← R [rb] & c2<16..0> {sign extend},

If the op field equals 21, logical AND of the content of the registers rb and the immediate

data in the field c2 is obtained and the result is stored in register ra.

Page 69

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

(op<4..0>=22) : R [ra] ← R [rb] ~ R [rc],

If the op field equals 22, logical OR of the contents of the registers rb and rc is obtained

and the result is stored in register ra.

(op<4..0>=23) : R [ra] ← R [rb] ~ c2<16..0> {sign extend},

If the op field equals 23, logical OR of the content of the registers rb and the immediate

data in the field c2 is obtained and the result is stored in register ra.

(op<4..0>=24) : R [ra] ← ¬R [rc],

If the op-code equals 24, the content of the logical NOT of the register rc is obtained, and

the result is stored in ra.

Shift instructions

(op<4..0>=26): R [ra]<31..0 > ← (n α 0) R [rb] <31..n>,

If the op-code is 26, the contents of the register rb are shifted right n bits times. The bits

that are shifted out of the register are discarded. 0s are added in their place, i.e. n number

of 0s is added (or concatenated) with the register contents. The result is copied to the

(op<4..0>=27) : R [ra]<31..0 > ← (n α R [rb] <31>) R [rb] <31..n>,

For op-code 27, shift arithmetic operation is carried out. In this operation, the contents of

the register rb are shifted right n times, with the most significant bit, bit 31, of the register

rb added in their place. The result is copied to the register ra.

(op<4..0>=28) : R [ra]<31..0 > ← R [rb] <31-n..0> (n α 0),

For op-code 28, the contents of the register rb are shifted left n bits times, similar to the

shift right instruction. The result is copied to the register ra.

(op<4..0>=29) : R [ra]<31..0 > ← R [rb] <31-n..0> R [rb]<31..32-n >,

The instruction corresponding to op-code 29 is the shift circular instruction. The contents

of the register rb are shifted left n times, however, the bits that move out of the register in

the shift process are not discarded; instead, these are shifted in from the other end (a

circular shifting). The result is stored in register ra.

where

n := (

(c3<4..0>=0) : R [rc],

(c3<4..0>!=0) : c3 <4..0> ),

Notation:

α means replication

Means concatenation

Miscellaneous instructions

(op<4..0>= 0) ,

No operation (nop)

If the op-code is 0, no operation is carried out for that clock period. This instruction is

used as a stall in pipelining.

(op<4..0>= 31) : Run ← 0, Halt the processor (Stop)

); iF );

If the op-code is 31, run is set to 0, that is, the processor is halted.

After one of these disjoint instructions is executed, iF, i.e. instruction Fetch is carried out

once again, and so the fetch-execute cycle

continues.

Flow diagram

Flow

diagram

the

symbolic

representation of Fetch-Execute cycle. Its

top block indicates instruction fetch and

then next block shows the instruction

decode by looking at the first 5-bits of the

Page 70

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

fetched instruction which would represent op-code which may be from 0 to

31.Depending upon the contents of this op-code the appropriate processing would take

place. After the appropriate processing, we would move back to top block, next

instruction is fetched and the same process is repeated until the instruction with op-code

31 would reach and halt the system.

Note:For SRC Assembler and Simulator consult Appendix.

Page 71

Last Modified: 01-Nov-06

Table of Contents:
