Direct Memory Access (DMA):
Direct Memory Access (DMA):
Introduction
Direct Memory Access is a technique which allows a peripheral to read from and/or write
to memory without intervention by the CPU. It is a simple form of bus mastering where
the I/O device is set up by the CPU to transfer one or more contiguous blocks of memory.
After the transfer is complete, the I/O device gives control back to the CPU.
The following DMA transfer combinations are possible:
·  Memory to memory
·  Memory to peripheral
·  Peripheral to memory
·  Peripheral to peripheral
The DMA approach is to "turn off" (i.e., tri-state and electrically disconnect from the
system buses) the CPU and let a peripheral device (or memory - another module or
another block of the same module) communicate directly with the memory (or another
peripheral).
ADVANTAGE: Higher transfer rates (approaching that of the memory) can be achieved.
DISADVANTAGE: A DMA Controller, or a DMAC, is needed, making the system
complex and expensive.
Generally, DMA requests have priority over all other bus activities, including interrupts.
No interrupts may be recognized during a DMA cycle.
Reason for DMA:
The instruction load [2], [9] is illegal. The symbols [2] and [9] represent memory
locations. This transfer has to be done in two steps:
· load r1,[9]
· store r1,bx
Thus, it is not possible to transfer from one memory location to another without involving
the CPU. The same applies to transfer between memory and peripherals connected to I/O
ports. e.g., we cannot have out [6], datap. It has to be done in two steps:
Page 315
Last Modified: 01-Nov-06
Advanced Computer Architecture-CS501
________________________________________________________
· load r1,[6]
· out r1, datap
Similar comments apply to the in instruction.
Thus, the real cause of the limited transfer rate is the CPU itself. It acts as an
unnecessary "middleman". The above discussion also implies that, in general, every
data word travels over the system bus twice.
Some Definitions:
MASTER COMPONENT: A component connected to the system bus and
·
having control of it during a particular bus cycle.
SLAVE COMPONENT: A component connected to the system bus and with
·
which the master component can communicate during a particular bus cycle.
Normally the CPU with its bus control logic is the master component.
QUALIFICATIONS TO BECOME A MASTER: A Master must have the
·
capability to place addresses on the address bus and direct the bus activity during
a bus cycle.
QUALIFIED COMPONENTS:
·
o  Processors with their associated bus control logic.
o  DMA controllers.
CYCLE STEALING: Taking control of the system bus for a few bus cycles.
·
Data Transfer using DMA:
Data transfer using DMA takes place in three steps.
1st Step:
in this step when the processor has to transfer data it issues a command to the DMA
controller with the following information:
Operation to be performed i.e., read or write operation.
Address of I/O device.
Address of memory block.
Size of data to be transferred.
After this, the processor becomes free and it may be able to perform other tasks.
2nd Step:
In this step the entire block of data is transferred directly to or from memory by the DMA
controller.
3rd Step:
In this, at the end of the transfer, the DMA controller informs the processor by sending an
interrupt signal.
See figure 8.18 on the page number 400 of text book.
The DMA Transfer Protocol:
Most processors have a separate line over which an external device can send a request
for DMA. There are various names in use for such a line. HOLD, RQ, or Bus Request
(BR), etc. are examples of these names.
Page 316
Last Modified: 01-Nov-06
Advanced Computer Architecture-CS501
________________________________________________________
The DMA cycle usually begins with the alternate bus master requesting the system bus
by activating the associated Bus Request line and, of course, satisfying the setup and hold
times. The CPU completes the current bus cycle, in the same way as it does in case of
interrupts, and responds by floating the address, data and control lines. A Bus Grant
pulse is then output by the CPU to the same device from where the request occurred.
After receiving the Bus Grant pulse, and waiting for the "float delay" of the CPU, the
requesting device may drive the system bus. This precaution prevents bus contention. To
return control of the bus to the CPU, the alternate bus master relinquishes bus control and
issues a release pulse on the same Bus Request line. The CPU may drive the system bus
after detecting the release pulse. The alternate bus master should be tri-stated off the local
bus and have other CPU interface circuits re-enabled within this time.
DMA has priority over Interrupt driven I/O:
In interrupt driven I/O the I/O transfer depends upon the speed at which the processor
tests and service a device. Also, many instructions are required for each I/O transfer.
These factors become bottleneck when large blocks of data are to be transferred. While in
the DMA technique the I/O transfers take place without the intervention by the CPU,
rather CPU pauses for one bus cycle. So DMA technique is the more efficient technique
for I/O transfers.
DMA Configurations:
·  Single Bus Detached DMA
·  Single Bus Integrated DMA
·  I/O Bus
Single Bus Detached DMA
In the example provided by the above diagram, there is a single bidirectional bus
connecting the processor, the memory,
the DMA module and all the I/O
modules.  When  a  particular  I/O
module needs to read or write large
amounts contiguous data it requests the processor for direct memory access. If permission
is granted by the processor, the I/O module sends the read or write address and the size of
data needed to be read or written to the DMA module. Once the DMA module
acknowledges the request, the I/O module is free to read or write its contiguous block of
data from or onto main memory. Even though in this situation the processor will not be
able to execute while the transfer is going on (as there is a just a single bus to facilitate
transfer of data), DMA transfer is much faster then having each word of memory being
read by the processor and then being written to its location.
Page 317
Last Modified: 01-Nov-06
Advanced Computer Architecture-CS501
________________________________________________________

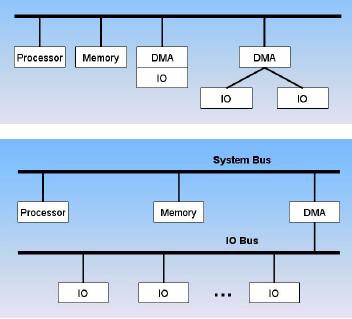

Single Bus Integrated DMA
In this configuration the DMA and one
or more I/O modules are integrated
without the inclusion of system bus
functioning as the part of I/O module
or may be as a separate module
controlling the I/O module.
IO Bus
In this configuration we integrate the
DMA and I/O modules through an I/O
bus. So it will cut the number of I/O
interfaces required between DMA and
I/O module.
Example
An I/O device transfers data at a rate of 10MB/s over a 100MB/s bus. The data is
transferred in 4KB blocks. If the processor operates at 500MHz, and it takes a total of
5000 cycles to handle each DMA request, find the fraction of CPU time handling the data
transfer with and without DMA.
Solution.
Without DMA
The processor here copies the data into memory as it is sent over the bus. Since
the I/O device sends data at a rate of 10MB/s over the 100MB/s bus, 10 % of each second
is spent transferring data. Thus 10% of the CPU time is spent copying data to memory.
With DMA
Time required in handling each DMA request is 5000 cycles. Since 2500 DMA
requests are issued (10MB/4KB) the total time taken is 12,500,000 cycles. As the CPU
clock is 500MHZ, the fraction of CPU time spent is 12,500,000/(500x106) or 2.5%.
Example
A hard drive with a maximum transfer rate of 1Mbyte/sec is connected to a 32-bit,
10MIPS CPU operating at a clock frequency of 100 MHz. Assume that the I/O interface
is DMA based and it takes 500 clock cycles for the CPU to set-up the DMA controller.
Also assume that the interrupt handling process at the end of the DMA transfer takes an
additional 300 CPU clock cycles. If the data transfer is done using 2 KB blocks, calculate
the percentage of the CPU time consumed in handling the hard drive.
Solution
Since the hard drive transfers at 1MB/sec, and each block size is 2KB, there are
1000/2= 500 blocks transferred/sec
Every DMA transfer uses 500+300=800 CPU cycles. This gives us
Page 318
Last Modified: 01-Nov-06
Advanced Computer Architecture-CS501
________________________________________________________
800x500 = 400,000 = 400x103 cycles/sec
For the 100 MHz CPU, this corresponds to
(400x103) / (100x106)= 4x10-3 = 0.4%
This would be the case when the hard drive is transferring data all the time. In actual
situation, the drive will not be active all the time, and this number will be much smaller
than 0.4%.
Another assumption that is implied in the previous example is that the DMA controller is
the only device accessing the memory. If the CPU also tries to access memory, then
either the DMAC or the CPU will have to wait while the other one is actively accessing
the memory. If cache memory is also used, this can free up main memory for use by the
DMAC.
Cycle Stealing
The DMA module takes control of the bus to transfer data to and from memory by
forcing the CPU to temporarily suspend its operation. This approach is called Cycle
Stealing because in this approach DMA steals a bus cycle.
DMA  and  Interrupt  breakpoints
during an instruction cycle
The figure shows that the CPU suspends
or pauses for one bus cycle when it
needs a bus cycle, transfers the data and
then returns the control back to the CPU.
I/O processors
When I/O module has its own local
memory to control a large number of I/O
devices without the involvement of CPU is called I/O processor.
I/O Channels
When an I/O module has a capability of executing a specific set of instructions for
specific I/O devices in the memory without the involvement of CPU is called I/O
channel.
I/O channel architecture:
Types of I/O channels:
Selector Channel
It is the DMA controller that can do
block transfers for several devices but
only one at a time.
Page 319
Last Modified: 01-Nov-06
Advanced Computer Architecture-CS501
________________________________________________________
Multiplexer Channel
It is the DMA controller that can do
block transfers for several devices at
once.
Types of Multiplexer Channel
·  Byte Multiplexer
·  Block Multiplexer
Byte Multiplexer
·  Byte multiplexer accepts or  transmits characters.
·  Interleaves bytes from several devices.
·  Used for low speed devices.
Block Multiplexer
·  Block multiplexer accepts or transmits block of characters.
·  Interleaves blocks of bytes from several devices.
·  Used for high speed devices.
Virtual Address:
Virtual address is generated be the logical by the memory management unit for
translation.
Physical Address:
Physical address is the address in the memory.
DMA and memory system
DMA disturbs the relationship between the memory system and CPU.
Direct memory access and the memory system
Without DMA, all memory accesses are handled by the CPU, using address translation
and cache mechanism. When DMA is implemented into an I/O system memory accesses
can be made without intervening the CPU for address translation and cache access. The
problems created by the DMA in virtual memory and cache systems can be solved using
hardware and software techniques.
Hardware Software Interface
One solution to the problem is that all the I/O transfers are made through the cache to
ensure that modified data are read and updated in the cache on the I/O write. This method
can decrease the processor performance because of infrequent usage of the I/O data.
Another approach is that the cache is invalidated for an I/O read and for an I/O write,
write-back (flushing) is forced by the operating system. This method is more efficient
because flushing of large parts of cache data is only done on DMA block accesses.
Third technique is to flush the cache entries using a hardware mechanism, used in
multiprogramming system to keep cache coherent.
Page 320
Last Modified: 01-Nov-06
Advanced Computer Architecture-CS501
________________________________________________________
SOME clarifications:
·  The terms "serial" and "parallel" are with respect to the computer I/O ports --- not
with respect to the CPU. The CPU always transfers data in parallel.
·  The terms "programmed I/O", "interrupt driven I/O" and "DMA" are with respect
to the CPU. Each of these terms refers to a way in which the CPU handles I/O, or
the way data flow through the ports is controlled.
·  The terms "simplex" and "duplex" are with respect to the transmission medium or
the communication link.
·  The terms "memory mapped I/O" and "independent I/O" are with respect to the
mapping of the interface, i.e., they refer to the CPU control lines used in the
interface.
Page 321
Last Modified: 01-Nov-06
Table of Contents:
  1. Computer Architecture, Organization and Design
  2. Foundations of Computer Architecture, RISC and CISC
  3. Measures of Performance SRC Features and Instruction Formats
  4. ISA, Instruction Formats, Coding and Hand Assembly
  5. Reverse Assembly, SRC in the form of RTL
  6. RTL to Describe the SRC, Register Transfer using Digital Logic Circuits
  7. Thinking Process for ISA Design
  8. Introduction to the ISA of the FALCON-A and Examples
  9. Behavioral Register Transfer Language for FALCON-A, The EAGLE
  10. The FALCON-E, Instruction Set Architecture Comparison
  11. CISC microprocessor:The Motorola MC68000, RISC Architecture:The SPARC
  12. Design Process, Uni-Bus implementation for the SRC, Structural RTL for the SRC instructions
  13. Structural RTL Description of the SRC and FALCON-A
  14. External FALCON-A CPU Interface
  15. Logic Design for the Uni-bus SRC, Control Signals Generation in SRC
  16. Control Unit, 2-Bus Implementation of the SRC Data Path
  17. 3-bus implementation for the SRC, Machine Exceptions, Reset
  18. SRC Exception Processing Mechanism, Pipelining, Pipeline Design
  19. Adapting SRC instructions for Pipelined, Control Signals
  20. SRC, RTL, Data Dependence Distance, Forwarding, Compiler Solution to Hazards
  21. Data Forwarding Hardware, Superscalar, VLIW Architecture
  22. Microprogramming, General Microcoded Controller, Horizontal and Vertical Schemes
  23. I/O Subsystems, Components, Memory Mapped vs Isolated, Serial and Parallel Transfers
  24. Designing Parallel Input Output Ports, SAD, NUXI, Address Decoder , Delay Interval
  25. Designing a Parallel Input Port, Memory Mapped Input Output Ports, wrap around, Data Bus Multiplexing
  26. Programmed Input Output for FALCON-A and SRC
  27. Programmed Input Output Driver for SRC, Input Output
  28. Comparison of Interrupt driven Input Output and Polling
  29. Preparing source files for FALSIM, FALCON-A assembly language techniques
  30. Nested Interrupts, Interrupt Mask, DMA
  31. Direct Memory Access - DMA
  32. Semiconductor Memory vs Hard Disk, Mechanical Delays and Flash Memory
  33. Hard Drive Technologies
  34. Arithmetic Logic Shift Unit - ALSU, Radix Conversion, Fixed Point Numbers
  35. Overflow, Implementations of the adder, Unsigned and Signed Multiplication
  36. NxN Crossbar Design for Barrel Rotator, IEEE Floating-Point, Addition, Subtraction, Multiplication, Division
  37. CPU to Memory Interface, Static RAM, One two Dimensional Memory Cells, Matrix and Tree Decoders
  38. Memory Modules, Read Only Memory, ROM, Cache
  39. Cache Organization and Functions, Cache Controller Logic, Cache Strategies
  40. Virtual Memory Organization
  41. DRAM, Pipelining, Pre-charging and Parallelism, Hit Rate and Miss Rate, Access Time, Cache
  42. Performance of I/O Subsystems, Server Utilization, Asynchronous I/O and operating system
  43. Difference between distributed computing and computer networks
  44. Physical Media, Shared Medium, Switched Medium, Network Topologies, Seven-layer OSI Model
