Advanced Computer Architecture-CS501

Lecture Handout

Computer Architecture

Lecture No. 3

Reading Material

Vincent P. Heuring&Harry F. Jordan

Chapter2, Chapter 3

Computer Systems Design and Architecture

2.3, 2.4, 3.1

Summary

Measures of performance

Introduction to an example processor SRC

SRC:Notation

SRC features and instruction formats

Measures of performance:

Performance testing

To test or compare the performance of machines, programs can be run and their

execution times can be measured. However, the execution speed may depend on the

particular program being run, and matching it exactly to the actual needs of the customer

can be quite complex. To overcome this problem, standard programs called "benchmark

programs" have been devised. These programs are intended to approximate the real

workload that the user will want to run on the machine. Actual execution time can be

measured by running the program on the machines.

Commonly used measures of performance

The basic measure of performance of a machine is time. Some commonly used measures

of this time, used for comparison of the performance of various machines, are

· Execution time

· MIPS

· MFLOPS

· Whetstones

· Dhrystones

· SPEC

Execution time

Execution time is simply the time it takes a processor to execute a given program. The

time it takes for a particular program depends on a number of factors other than the

performance of the CPU, most of which are ignored in this measure. These factors

include waits for I/O, instruction fetch times, pipeline delays, etc.

The execution time of a program with respect to the processor, is defined as

Execution Time = IC x CPI x T

Page 42

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Where,

IC = instruction count

CPI = average number of system clock periods to execute an instruction

T = clock period

Strictly speaking, (IC×CPI) should be the sum of the clock periods needed to execute

each instruction. The manufacturers for each instruction in the instruction set usually

provide such information. Using the average is a simplification.

MIPS (Millions of Instructions per Second)

Another measure of performance is the millions of instructions that are executed by the

processor per second. It is defined as

MIPS = IC/ (ET x 106)

This measure is not a very accurate basis for comparison of different processors. This is

because of the architectural differences of the machines; some machines will require

more instructions to perform the same job as compared to other machines. For example,

RISC machines have simpler instructions, so the same job will require more instructions.

This measure of performance was popular in the late 70s and early 80s when the VAX

11/780 was treated as a reference.

MFLOPS (Millions of Floating Point Instructions per Second)

For computation intensive applications, the floating-point instruction execution is a better

measure than the simple instructions. The measure MFLOPS was devised with this in

mind. This measure has two advantages over MIPS:

· Floating point operations are complex, and therefore, provide a better picture of

the hardware capabilities on which they are run

· Overheads (operand fetch from memory, result storage to the memory, etc.) are

effectively lumped with the floating point operations they support

Whetstones

Whetstone is the first benchmark program developed specifically as a benchmark

program for performance measurement. Named after the Whetstone Algol compiler, this

benchmark program was developed by using the statistics collected during the compiler

development. It was originally an Algol program, but it has been ported to FORTRAN,

Pascal and C. This benchmark has been specifically designed to test floating point

instructions. The performance is stated in MWIPS (millions of Whetstone instructions per

second).

Dhrystones

Developed in 1984, this is a small benchmark program to measure the integer instruction

performance of processors, as opposed to the Whetstone's emphasis on floating point

instructions. It is a very small program, about a hundred high-level-language statements,

and compiles to about 1~ 1½ kilobytes of code.

Disadvantages of using Whetstones and Dhrystones

Both Whetstones and Dhrystones are now considered obsolete because of the following

reasons.

· Small, fit in cache

· Obsolete instruction mix

· Prone to compiler tricks

· Difficult to reproduce results

· Uncontrolled source code

We should note that both the Whetstone and Dhrystone benchmarks are small programs,

which encourage `over-optimization', and can be used with optimizing compilers to

distort results.

Page 43

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

SPEC

SPEC, System Performance Evaluation Cooperative, is an association of a number of

computer companies to define standard benchmarks for fair evaluation and comparison of

different processors. The standard SPEC benchmark suite includes:

· A compiler

· A Boolean minimization program

· A spreadsheet program

· A number of other programs that stress arithmetic processing speed

The latest version of these benchmarks is SPEC CPU2000.

Advantages

· It provides for ease of publication.

· Each benchmark carries the same weight.

· SPEC ratio is dimensionless.

· It is not unduly influenced by long running programs.

· It is relatively immune to performance variation on individual benchmarks.

· It provides a consistent and fair metric.

An example computer: the SRC: "simple RISC computer"

An example machine is introduced here to facilitate our understanding of various design

steps and concepts in computer architecture. This example machine is quite simple, and

leaves out a lot of details of a real machine, yet it is complex enough to illustrate the

fundamentals.

SRC Introduction

Attributes of the SRC

· The SRC contains 32 General Purpose Registers: R0, R1, ..., R31; each register is

of size 32-bits.

· Two special purpose registers are included: Program Counter (PC) and Instruction

· Memory word size is 32 bits

· Memory space size is 232 bytes

· Memory organization is 232 x 8 bits, this means that the memory is byte aligned

· Memory is accessed in 32 bit words ( i.e., 4 byte chunks)

· Big-endian byte storage is used

Programmer's View of the SRC

The figure shows the attributes of the

SRC; the 32 ,32-bit registers that are a

part of the CPU, the two additional

CPU registers (PC & IR), and the main

memory which is 232 1-byte cells.

SRC Notation

We examine the notation used for the

SRC with the help of some examples.

· R[3] means contents of register

3 (R for register)

· M[8] means contents of memory location 8 (M for memory)

· A memory word at address 8 is

defined as the 32 bits at address

Page 44

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

8,9,10 and 11 in the memory. This is shown in the figure.

· A special notation for 32-bit memory words is

M[8]<31...0>:=M[8]M[9]M[10]M[11]

 is used for concatenation.

Some more SRC Attributes

· All instructions are 32 bits long (i.e., instruction size is 1 word)

· All ALU instructions have three operands

· The only way to access memory is through load and store operations

· Only a few addressing modes are supported

SRC: Instruction Formats

Four types of instructions are

supported by the SRC. Their

representation is given in the figure

shown.

Before discussing these instruction

types in detail, we take a look at the

encoding of general purpose registers

(the ra, rb and rc fields).

Encoding of the General Purpose

Registers

The encoding for the general purpose

registers is shown in the table; it will

be used in place of ra, rb and rc in the

instruction formats shown above. Note

that this is a simple 5 bit encoding. ra,

rb and rc are names of fields used as

"place-holders", and can represent any

one of

these 32 registers. An

exception is rb = 0; it does not mean the register R0, rather it means no operand. This will

be explained in the following discussion.

Type A

Type A is used for only two

instructions:

· No operation or nop, for which the op-code = 0. This is useful in pipelining

· Stop operation stop, the op-code is 31 for this instruction.

Both of these instructions do not need an operand (are 0-operand instructions).

Type B

Type B format includes three

instructions; all three use relative

addressing mode. These are

· The ldr instruction, used to load register from memory using a relative address.

(op-code = 2).

o Example:

ldr R3, 56

This instruction will load the register R3 with the contents of the memory

location M [PC+56]

· The lar instruction, for loading a register with relative address (op-code = 6)

Page 45

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

o Example:

lar R3, 56

This instruction will load the register R3 with the relative address itself

(PC+56).

· The str is used to store register to memory using relative address (op-code = 4)

o Example:

str R8, 34

This instruction will store the register R8 contents to the memory location

M [PC+34]

The effective address is computed at run-time by adding a constant to the PC. This makes

the instructions `re-locatable'.

Type C

Type C format has three load/store

instructions,

plus

three

ALU

instructions. These load/ store instructions are

· ld, the load register from memory instruction (op-code = 1)

o Example 1:

ld R3, 56

This instruction will load the register R3 with the contents of the memory

location M [56]; the rb field is 0 in this instruction, i.e., it is not used. This

is an example of direct addressing mode.

o Example 2:

ld R3, 56(R5)

The contents of the memory location M [56+R [5]] are loaded to the

mode.

· la is the instruction to load a register with an immediate data value (which can be

an address) (op-code = 5 )

o Example1:

la R3, 56

The register R3 is loaded with the immediate value 56. This is an instance

of immediate addressing mode.

o Example 2:

la R3, 56(R5)

The register R3 is loaded with the indexed address 56+R [5]. This is an

example of indexed addressing mode.

· The st instruction is used to store register contents to memory (op-code = 3)

o Example 1:

st R8, 34

This is the direct addressing mode; the contents of register R8 (R [8]) are

stored to the memory location M [34]

o Example 2:

st R8, 34(R6)

An instance of indexed addressing mode, M [34+R [6]] stores the contents

of R8(R [8])

The ALU instructions are

· addi, immediate 2's complement addition (op-code = 13)

o Example:

Page 46

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

addi R3, R4, 56

R[3]

R[4]+56 (rb field = R4)

· andi, the instruction to obtain immediate logical AND, (op-code = 42 )

o Example:

andi R3, R4, 56

R3 is loaded with the immediate logical AND of the contents of register

R4 and 56(constant value)

· ori, the instruction to obtain immediate logical OR (op-code = 23 )

o Example:

ori R3, R4, 56

R3 is loaded with the immediate logical OR of the contents of register R4

and 56(constant value)

Note:

1. Since the constant c2 field is 17 bits,

For direct addressing mode, only the first 216 bytes of memory can

be accessed (or the last 216 bytes if c2 is negative)

In case of the la instruction, only constants with magnitudes less

than ±216 can be loaded

During address calculation using c2, sign extension to 32 bits must

be performed before the addition

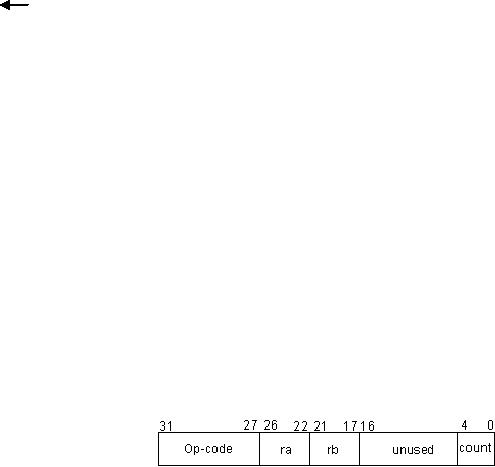

2. Type C instructions, with some modifications, may also be used for

shift instructions. Note

the modification in the

following figure.

The four shift instructions are

· shr is the instruction used to shift the bits right by using value in (5-bit) c3

field(shift count)

· (op-code = 26)

o Example:

shr R3, R4, 7

shift R4 right 7 times in to R3. Immediate addressing mode is used.

· shra, arithmetic shift right by using value in c3 field (op-code = 27)

o Example:

shra R3, R4, 7

This instruction has the effect of shift R4 right 7 times in to R3. Immediate

addressing mode is used.

· The shl instruction is for shift left by using value in (5-bit) c3 field (op-code = 28)

o Example:

shl R8, R5, 6

shift R5 left 6 times in to R8. Immediate addressing mode is used.

· shc, shift left circular by using value in c3 field (op-code = 29)

o Example:

shc R3, R4, 3

shift R4 circular 3 times in to R3. Immediate addressing mode is used.

Page 47

Last Modified: 01-Nov-06

Table of Contents:
