Advanced Computer Architecture-CS501

________________________________________________________

Advanced Computer Architecture

Lecture No. 28

Reading Material

Vincent P. Heuring & Harry F. Jordan

Chapter 8

Computer Systems Design and Architecture

8.3

Summary

Comparison of Interrupt driven I/O and Polling

Design Issues

Interrupt Handler Software

Interrupt Hardware

Interrupt Software

Comparison of Interrupt driven I/O and Polling

Interrupt driven I/O is better than polling. In the case of polling a lot of time is wasted in

questioning the peripheral device whether it is ready for delivering the data or not. In the

case of interrupt driven I/O the CPU time in polling is saved.

Now the design issues involved in implementation of the interrupts are twofold. There

would be a number of interrupts that could be initiated. Once the interrupt is there, how

the CPU does know which particular device initiated this interrupt. So the first question is

evaluation of the peripheral device or looking at which peripheral device has generated

the interrupt. Now the second important question is that usually there would be a number

of interrupts simultaneously available. So if there are a number of interrupts then there

should be a mechanism by which we could just resolve that which particular interrupt

should be serviced first. So there should be some priority mechanism.

Design Issues

There are two design issues:

1. Device Identification

2. Priority mechanism

Device Identification

In this issue different mechanisms could be used.

· Multiple interrupt lines

· Software Poll

Page 282

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

Daisy Chain

1. Multiple Interrupt Line

This is the most straight forward approach, and in this method, a number of interrupt

lines are provided between the CPU and the I/O module. However, it is impractical to

dedicate more than a few bus lines or CPU pins to interrupt lines. Consequently, even if

multiple lines are used, it is likely that each line will have multiple I/O modules attached

to it. Thus on each line, one of the other technique would still be required.

2. Software Poll

CPU polls to identify the interrupting module and branches to an interrupt service routine

on detecting an interrupt. This identification is done using special commands or reading

the device status register. Special command may be a test I/O. In this case, CPU raises

test I/O and places the address of a particular I/O module on the address line. If I/O

module sets the interrupt then it responds positively. In the case of an addressable status

module. Once the correct module is identified, the CPU branches to a device service

routine which is specific to that particular device.

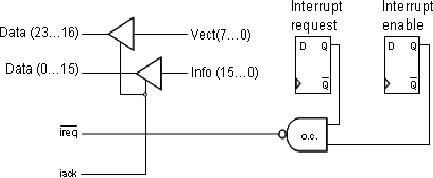

Simplified Interrupt Circuit for an I/O Interface

For above two techniques

the implementation might

require some hardware.

The hardware would be

specific to the processor

which is being used. For

example, for the case of

SRC, simple hardware

machanism is indicated.

Now the basic technique

is handshaking and in this

case of handshaking, the peripheral device would initiate an interrupt. This interrupt

needs to be enabled. We will have a mechanism of ANDing the two signals. One is

interrupt enable and other is interrupt request. Now these two requests would be passed

on the CPU. The CPU passes on the acknowledge signal to the device. The acknowledge

signal is shared and it goes on to different devices.

The information about interrupt vector is given in 8-bits, from bit 0 to 7, which is

translated to bit 16 to 23 on the data bus. Now the other 16-bits, from 0 to 15 are mapped

to the data lines from 0 to 15. Now both of these are available through the tri-state

buffers, which would be enabled through interrupt acknowledge.

Page 283

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

3. Daisy Chain

The wired or interrupt signal allows several devices to request interrupt simultaneously.

However, for proper operation one and only one requesting device must receive an

acknowledge signal, otherwise if we have more than one devices, we would have a data

bus contention and the interrupt information would not be resolved. The usual solution is

called a daisy chain. Assuming that if we have jth devices requesting for interrupt then

first device 0 would receive the acknowledge signal, so therefore, iack0=iack. The next

device would only receive an acknowledge i.e., the jth device would receive an

acknowledge if the previous device that means j-1 does not have an enabled interrupt

request,

that

means interrupt

was not initiated

by the previous

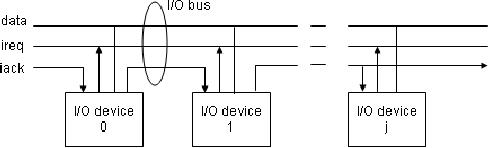

device. Now the

figure shows this

concept in the

form

connection from

device 0 to 1. From 0, we see the acknowledge is generated for device 1, device 1

generates acknowledge for device2 and so on. So this signal propagates from one device

to other device. Logically we could write it in the form of equation:

iackj= iack j-1^(reqj-1^enb j-1)

As we said that the previous device should not have generated an interrupt, that

means its interrupt was not enabled and therefore, it passes on the acknowledge

signal from its output to he next device.

Disadvantages of Software Poll and Daisy Chain

The software poll has a disadvantage is that it consumes a lot of time, while the daisy

chain is more efficient. The daisy chain has the disadvantage that the device nearest to the

CPU would have highest priority. So, usually those devices which require higher priority

would be connected nearer to the CPU. Now in order to get a fair chance for other

devices, other mechanisms could be initiated or we could say that we could start instead

of device 0 from that device where the CPU finishes the last interrupt and could have a

cyclic provision to different devices.

Interrupt Handler Software

Example using SRC

(Read from Book, Jordan page395)

Page 284

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

Example using FALCON-A

As an example of interrupt-driven I/O, consider an output device, such as a parallel

printer connected to the FALCON-A CPU. Now suppose that we want to print a

document while using an application program like a word processor or a spread sheet. In

this section, we will explain the important aspects of hardware and software for

implementing an interrupt driven parallel printer interface for the FALCON-A. During

this discussion, we will also explain the differences and similarities between this interface

and the one discussed earlier. To make things simple, we have made the assumption that

only one interrupt pin is available on the FALCON-A, and only one interrupt is possible

at a given time with this CPU. Implications of allowing only one interrupt at a time are

that

No NMI is possible

No nesting of interrupts is possible

No priority structure needed for multiple devices

No arbitration needed for simultaneous interrupts

No need for vectored interrupts, therefore, no need of interrupt vectors and

interrupt vector tables

Effect of software initiated interrupts and internal interrupts (exceptions) has to

be ignored in this discussion

Along with the previous assumption, the following assumptions have also been used:

Hardware sets and clears the interrupt flag, in addition to handling other

things like saving PC, etc.

· The address of the ISR is stored at absolute address 2 in memory.

· The ISR will set up a stack in the memory for saving the CPU's environment

· One ASCII character stored per 16-bit word in the FALCON-A's memory and

one character transferred during a 16-bit transfer.

· The calling program will call the ISR for printing the first character through

the printer driver.

· Printer will activate ACKNLG# only when not BUSY.

Interrupt Hardware:

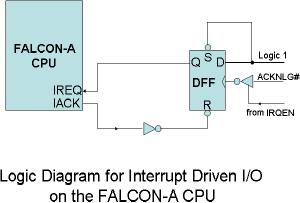

The logic diagram for the interrupt

hardware is shown in the Figure. The

interrupt request is synchronized by

handshaking signals, called IREQ

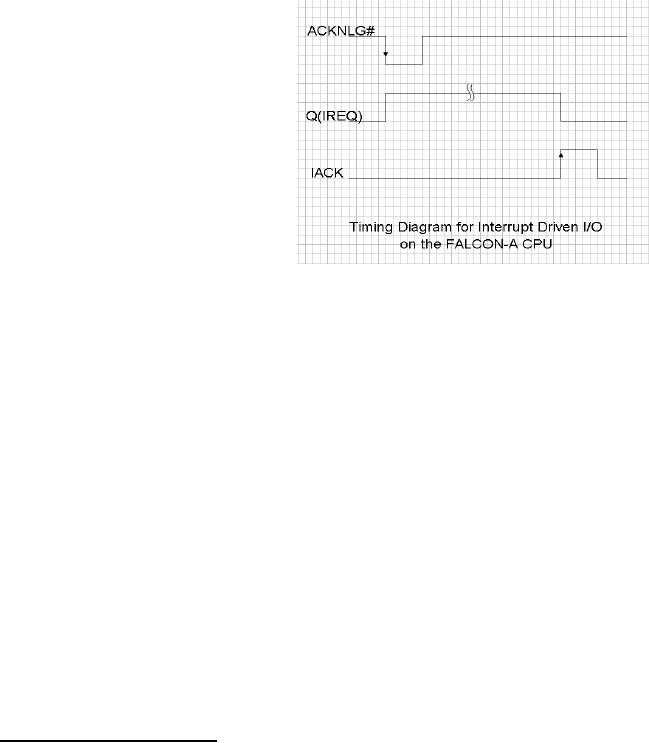

and IACK. The timing diagram for

the handshaking signals used in the

interrupt driven I/O is shown in the

next Figure. The printer will assert

IREQ as soon as the ACKNLG#

Page 285

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

signal goes low (i.e. as soon as the printer is ready to accept new data) provided that

IREQN=1. The processor will complete the current instruction and respond by

executing the interrupt service routine. The inverting tri-state buffer at the clock input

of the D flip flop is enabled by IRQEN. This will make sure that after the current print

job is complete, additional requests on IREQ are disabled. This can happen as a result

of the printer being available even through the user may not have requested a print

operation. The IACK line from the CPU is connected to the asynchronous reset, R, of

the D flip flop so that the same interrupt request from the printer is not presented again

to the CPU. The asynchronous set input of the D flip flop, labeled S in the diagram, is

permanently connected to logic 1.

This will make sure that the flip flop

will never be set asynchronously.

The D input is also permanently

connected to logic 1, as a result of

which the flip flop will always be set

synchronously in response to

ACKNLG# provided IRQEN=1.

Recall that IRQEN is bit 4 on the

centronics control port at logical

address 2, and this is mapped onto

address 60 of the FALCON-A's I/O

space. The rest of the hardware is

case of the same as in the case of the programmed I/O example.

Interrupt Software:

Our software for the interrupt driven printer example consists of three parts:

1). Dummy calling program

2). Printer Driver

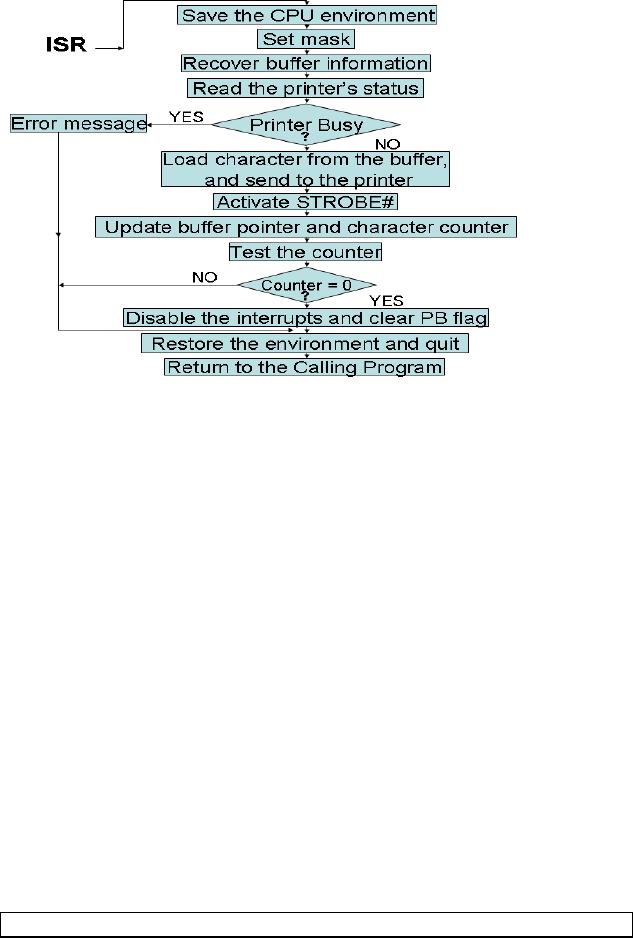

3). ISR

We are assuming that normal processing is taking place19 e.g., a word processor is

executing. The user wants to print a document. This

Since only one interrupt is possible, a question may arise about the way the print command is presented

to the word processor. It can be assumed that polling is used for the input device in this case.

Page 286

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

document is placed in a buffer by the word processor. This buffer is usually present

somewhere else in the memory. The responsibility of the calling program is to pass the

number of bytes to be printed and the starting address of the buffer where these bytes are

stored to the printer driver. The calling program can also be called the main program.

Suppose that the total number of bytes to be printed are 40. (They are placed in a buffer

having the starting address 1024.) When the user invokes the print command, the calling

program calls the printer driver and passes these two parameters in r7 and r5 respectively.

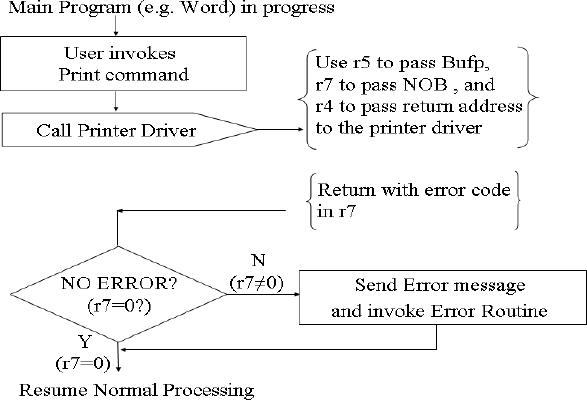

The return address of the calling program is stored in r4. A dummy calling program code

is given below.

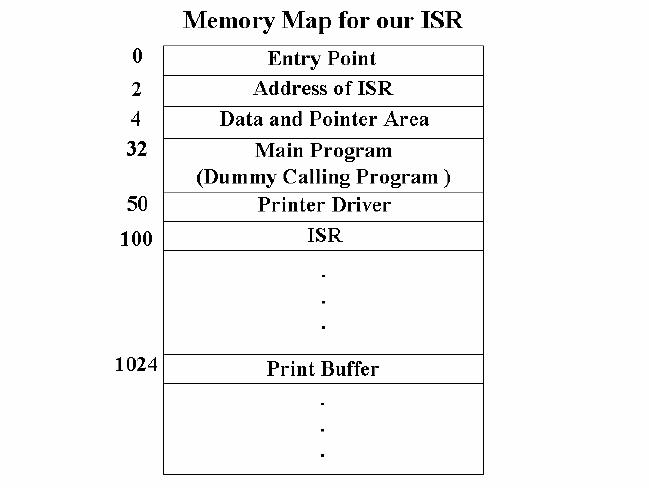

Bufp, NOB, PB, and temp are the spaces reserved in memory for later use in the program.

The first instruction is jump [main]. It is stored at absolute memory address 0 by using

the .org 0 directive. It will transfer control to the main program. The first instruction of

the main program is placed at address "main", which is the entry point in this example.

Note that the entry point is different in this case from the reset address, which is address 0

for the FALCON-A. Also note that the address of the first instruction in the printer driver

is stored at address "a4PD" using the .sw directive. This value is then brought into r6.

The main program calls the printer driver by using the instruction call r4, r6. In an actual

program, after returning from the printer driver, the normal processing resumes and if

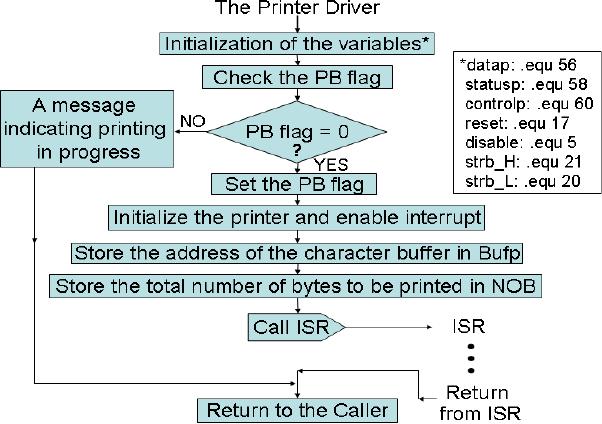

there are any error conditions, they will be handled at this point. Next, consider the code

for the printer driver, shown in the attached text box.

Page 287

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

; filename: Example_Falcon-A .asmfa

;This program sends a single character

;to a FALCON-A parallel printer

;using an interrupt driven I/O interface

;

; Notes:

; 1. 8-bit printer data bus connected to

; D<7..0> of the FALCON-A (remember big-endian)

; Thus, the printer actually uses addresses 57, 59 & 61

;

; 2. one character per 16-bits of data xfered ;

;

.org 0

jump [main]

a4ISR:

.sw beginISR

a4PD:

.sw Pdriver

dv1:

.sw 1024

dv2:

.sw 40

Bufp:

.dw 1

NOB:

.dw 1

PB:

.dw 1

temp:

.dw 6

;

; Dummy Calling Program, e.g., a word processor

;

.org 32

main:

load r6, [a4PD]

;r6 holds address of printer driver

;

; user invokes print command here

;

load r5, [dv1]

;Prepare registers for passing

load r7, [dv2]

; information about print buffer.

;

; call printer driver

;

call r4, r6

; Handle error conditions, if any , upon return.

; Normal processing resumes

;

halt

The printer driver is loaded at address 50. Initialization of the variables includes setting

of port addresses, variables for the STROBE# pulse, initializing the printer and enabling

its IRQEN. The variables can be defined anywhere in the program because they reserve

Page 288

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

no memory space. When the printer driver starts, the PB flag is tested to make sure that a

previous print job is not in progress. If so, the ISR is not invoked and a message is

returned to the main program indicating that printing is in progress. This may display a

"printer busy" icon on the user's screen, or cause some other appropriate action. If the

printer is available, it is initialized by the driver. The following activities are also

performed by the driver (see the attached flow chart also).

Set port addresses

Set up variables for the STROBE# puls

Initialize printer and enable its IRQEN.

Set up printer ISR by pointing to the buffer and initializing counter

Make sure that the previous print job is not in progress

Set PB flag to block further print jobs till current one is complete

Invoke ISR for the first time

Pass error message to main program if ISR reports an error

Return to main program

The code and flow chart for the interrupt service routine (ISR) are discussed in the next

few paragraphs.

Page 289

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

; Printer driver

;

.org 50

; starting address of Printer driver

;

datap:

.equ 56

statusp:

.equ 58

controlp:

.equ 60

;

reset:

.equ 17

; or 11h

; used to set unidirectional, enable interrupts,

; auto line feed, and strobe high

disable:

.equ 5

;

strb_H:

.equ 21

; or 15h

strb_L:

.equ 20

; or 14h

;

; check PB flag first, if set,

; return with message.

;

Pdriver: load r1, [PB]

jnz r1, [message]

movi r1, 1

store r1, [PB]

; a 1 in PB indicates Print In Progress

movi r1, reset

; use r1 for data xfer

out r1, controlp

store r5, [Bufp]

store r7, [NOB]

;

int

;

jump [finish]

message: nop

; in actual situation, put a message routine here

;to indicate print in progress

finish: ret r4

;

We have assumed that the address of the ISR is stored at absolute memory address 2 by

the operating system. One way to do that is by using the .sw directive (as done in the

dummy calling program). The symbol sw stands for "storage of word". It enables the user

to identify storage for a constant, or the value of a variable, an address or a label at a

fixed memory location during the assembly process.

Page 290

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

These values become part of the binary file and are then loaded into the memory when

the binary file is loaded and executed. In response to a hardware interrupt or the software

interrupt int, the control unit of the FALCON-A CPU will pick up the address of the first

instruction in the ISR from memory location 2, and transfer control to it. This effectively

means that the behavioral RTL of the int instruction will be as shown below:

int

IPC← PC, PC ← M[2], IF ← 0

The IPC register in the CPU is a holding place for the current value of the PC. It is

invisible to the programmer. Since the iret instruction should always be the last

instruction in every ISR, its behavior RTL will be as shown below:

iret

PC ← IPC, IF ← 1

The saving and restoring of the other elements of the CPU environment like the general

purpose registers should be done within the ISR. The five store instructions at the

beginning are used to save these registers into the memory block starting at address

temp, and the five load instructions at the end are used to restore these registers to their

original values.

; ISR starts here

Page 291

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

.org 100

beginISR: movi r6, temp

store r1, [r6]

store r3, [r6+2]

store r4, [r6+4]

store r5, [r6+6]

store r7, [r6+8]

movi r3, 1

shiftl r3,r3,7

; to set mask to 0080h

load r5, [Bufp]

; not necessary to use r5 & r7 here

load r7, [NOB]

; using r7 as character counter

in r1, statusp

and r1,r1,r3

; test if BUSY = 1 ?

jnz r1, [error]

; error if BUSY = 1

load r1, [r5]

; get char from printer buffer

out r1, datap

movi r1, strb_L

out r1, controlp

movi r1, strb_H

out r1, controlp

addi r5, r5, 2

store r5, [Bufp]

; update buffer pointer

subi r7, r7, 1

; update character counter

store r7, [NOB]

jz r7, [suspend]

jump [last]

suspend: store r7, [PB] ; clear PB flag

movi r1, disable

; disable future interrupts till

out r1, controlp

; printer driver called again

jump [last]

error: movi r7, -1

; error code in r7

; other error codes go here

;

last: load r1, [r6]

load r3, [r6+2]

load r4, [r6+4]

load r5, [r6+6]

load r7, [r6+8]

iret

.end

After setting the mask to 80h in r3, the current value of the buffer pointer and the number

of bytes to be printed are brought from the memory into r5 and r7 respectively. After a

byte is printed, these values are updated in the memory for use by the ISR when it is

invoked again. The rest of the code in the ISR is the same as it was in case of the

programmed I/O example. Note that we are testing the printer's BUSY flag within the

Page 292

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

ISR also. However, the difference here is that this testing is being done for a different

reason, and it is done only once for each call to the ISR.

The memory map for this program is as shown in the Figure. The point to be noted here

is that the ISR can be loaded anywhere in the memory but its address will be present at

memory location 2 i.e. M[2].

Page 293

Last Modified: 01-Nov-06

Table of Contents:
