Advanced Computer Architecture-CS501

________________________________________________________

Advanced Computer Architecture

Lecture No. 27

Reading Material

Vincent P. Heuring & Harry F. Jordan

Chapter 8

Computer Systems Design and Architecture

8.2.2

Summary

· Programmed I/O Driver for SRC

· Interrupt Driven I/O

Programmed I/O Driver for SRC

Please refer to Figure 8.10 of the text and its associated explanation.

Interrupt Driven I/O:

Introduction:

An interrupt is a request to the CPU to suspend normal processing and temporarily divert

the flow of control through a new program. This new program to which control is

transferred is called an Interrupt Service Routine or ISR. Another name for an ISR is an

Interrupt Handler.

Interrupts are used to demand attention from the CPU.

Interrupts are asynchronous breaks in program flow that occur as a result of events

outside the running program.

Interrupts are usually hardware related, stemming from events such as a key or button

press, timer expiration, or completion of a data transfer.

Page 273

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

The basic purpose of interrupts

is to divert CPU processing only

when it is required. As an

example let us consider the

example of a user typing a

document on word-processing

software running on a multi

tasking operating system. It is

up to the software to display a

character when the user presses

a key on the keyboard. To fulfill

this responsibility the processor

can repeatedly poll the keyboard to check if the user has pressed a key. However, the

average user can type at most 50 to 60 words in a minute. The rate of input is much

slower than the speed of the processor. Hence, most of the polling messages that the

processor sends to the keyboard will be wasted. A significant fraction of the processor's

cycles will be wasted checking for user input on the keyboard. It should also be kept in

mind that there are usually multiple peripheral devices such as mouse, camera, LAN card,

modem, etc. If the processor would poll each and every one of these devices for input, it

would be wasting a large amount of its time. To solve this problem, interrupts are

integrated into the system. Whenever a peripheral device has data to be exchanged with

the processor, it interrupts the processor; the processor saves its state and then executes

an interrupt handler routine (which basically exchanges data with the device). After this

exchange is completed, the processor resumes its task. Coming back to the keyboard

example, if it takes the average user approximately 500 ms to press consecutive keys a

modern processor like the Pentium can execute up to 300,000,000 instructions in these

500 Ms. Hence, interrupts are an efficient way to handle I/O compared to polling.

Advantages of interrupts:

· Useful for interfacing I/O devices with low data transfer rates.

· CPU is not tied up in a tight loop for polling the I/O device.

Program Flow for an interrupt driven interface:

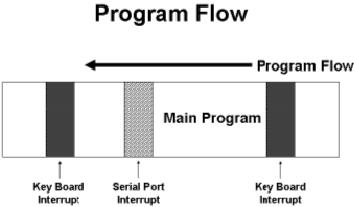

The attached figure shows the program flow executing on a processor with interrupts

enabled. As we can see, the program is interrupted in several locations to service various

types of interrupts.

Types of Interrupts:

The general categories of interrupts are as follows:

· Internal Interrupts

· External Interrupts

· Hardware Interrupts

· Software Interrupts

Internal Interrupts:

· Internal interrupts are generated by the processor.

Page 274

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

These are used by processor to handle the exceptions generated during instruction

execution.

Internal interrupts are generated to handle conditions such as stack overflow or a divide-

by-zero exception. Internal interrupts are also referred to as traps. They are mostly used

for exception handling. These types of interrupts are also called exceptions and were

discussed previously.

External Interrupts:

External interrupts are generated by the devices other than the processor. They are of two

types.

· Hardware interrupts are generated by the external hardware.

· Software interrupts are generated by the software using some interrupt instruction.

As the name implies, external interrupts are generated by devices external to the CPU,

such as the click of a mouse or pressing a key on a keyboard. In most cases, input from

external sources requires immediate attention. These events require a quick service by the

software, e.g., a word processing software must quickly display on the monitor, the

character typed by the user on the keyboard. A mouse click should produce immediate

results. Data received from the LAN card or the modem must be copied from the buffer

immediately so that pending data is not lost because of buffer overflow, etc.

Hardware interrupts:

Hardware interrupts are generated by external events specific to peripheral devices. Most

processors have at least one line dedicated to interrupt requests. When a device signals on

this specific line, the processor halts its activity and executes an interrupt service routine.

Such interrupts are always asynchronous with respect to instruction execution, and are

not associated with any particular instruction. They do not prevent instruction completion

as exceptions like an arithmetic overflows does. Thus, the control unit only needs to

check for such interrupts at the start of every new instruction. Additionally, the CPU

needs to know the identification and priority of the device sending the interrupt request.

There are two types of hardware interrupt:

Maskable Interrupts

Non-maskable Interrupts

Maskable Interrupts:

· These interrupts are applied to the INTR pin of the processor.

· These can be blocked by resetting the flag bit for the interrupts.

Non-maskable Interrupts:

· These interrupts are detected using the NMI pin of the processor.

· These can not be blocked or masked.

· Reserved for catastrophic event in the system.

Software interrupts:

Page 275

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

Software interrupts are usually associated with the software. A simple output operation in

a multitasking system requires software interrupts to be generated so that the processor

may temporarily halt its activity and place the data on its data bus for the peripheral

device. Output is usually handled by interrupts so that it appears interactive and

asynchronous. Notification of other events, such as expiry of a software timer is also

handled by software interrupts. Software interrupts are also used with system calls. When

the operating system switches from user mode to supervisor mode it does so through

software interrupts. Let us consider an example where a user program must delete a file.

The user program will be executing in the user mode. When it makes the specific system

call to delete the file, a software interrupt will be generated, this will cause the processor

to halt its current activity (which would be the user program) and switch to supervisor

mode. Once in supervisor mode, the operating system will delete the file and then control

will return to the user program. While in supervisor mode the operating system would

need to decide if it could delete the specified file with out harmful consequences to the

systems integrity, hence it is important that the system switch to supervisor mode at each

system call.

I/O Software System Layers:

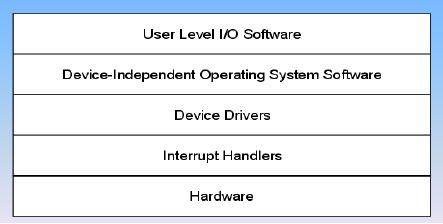

The above diagram shows the various software layers related to I/O. At the bottom lies

the actual hardware itself, i.e. the peripheral device. The peripheral device uses the

hardware interrupts to communicate with the processor. The processor responds by

executing the interrupt handler for that particular device. The device drivers form the

bridge between the hardware and the software. The operating system uses the device

drivers to communicate with the device in a hardware independent fashion, e.g., the

operating system need not cater for a specific brand of CRT monitors, or keyboards, the

specific device driver written for that monitor or keyboard will act as an intermediary

between the operating system and the device. It would be clear from the previous

statement that the operating system expects certain common functions from all brands of

devices in a category. Actually implementing these functions for each particular brand or

vendor is the responsibility of the device driver. The user programs run at top of the

operating system.

Interrupt Service Routine (ISR):

Page 276

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

It is a routine which is executed when an interrupt occurs.

Also known as an Interrupt Handler.

Deals with low-level events in the hardware of a computer system, like a tick of a

real-time clock.

As it was mentioned earlier, an interrupt once generated must be serviced through an

interrupt service routine. These routines are stored in the system memory ready for

execution. Once the interrupt is generated, the processor must branch to the location of

the appropriate service routine to execute it. The branch address of the ISR is discussed

next.

Branch Address of the ISR:

There are two ways used to choose the branch address of an Interrupt Service Routine.

Non-vectored Interrupts

Vectored Interrupts

Non-vectored Interrupts:

In non-vectored interrupts, the branch address of the interrupt service routine is fixed.

The code for the ISR is loaded at fixed memory location. Non-vectored interrupts are

very easy to implement and not flexible at all. In this case, the number of peripheral

devices is fixed and may not be increased. Once the interrupt is generated the processor

queries each peripheral device to find out which device generated the interrupt. This

approach is the least flexible for software interrupt handling.

Vectored Interrupts:

Interrupt vectors are used to specify the address of the interrupt service routine. The code

for ISR can be loaded anywhere in the memory. This approach is much more flexible as

the programmer may easily locate the interrupt vector and change its addresses to use

custom interrupt servicing routines. Using vectored interrupts, multiple devices may

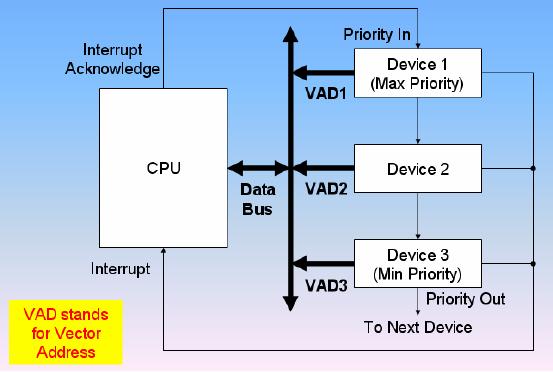

share the same interrupt input line to the processor. A process called daisy chaining is

then used to locate the interrupting device.

Interrupt Vector:

Interrupt vector is a fixed size structure that stores the address of the first instruction of

the ISR.

Interrupt Vector Table:

· All of the interrupt vectors are stored in the memory in a special table called

Interrupt Vector Table.

· Interrupt Vector Table is loaded at the memory location 0 for the 8086/8088.

Interrupts in Intel 8086/8088:

· Interrupts in 8086/8088 are vector interrupts.

· Interrupt vector is of 4 bytes to store IP and CS.

· Interrupt vector table is loaded at address 0 of main memory.

· There is provision of 256 interrupts.

Branch Address Calculation:

Page 277

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

The number of interrupt is the number of interrupt vector in the interrupt vector

table.

Since size of each vector is 4 bytes and interrupt vector starts from address 0,

therefore, the address of interrupt vector can be calculated by simply multiplying

the number by 4.

Interrupt Vector Example:

In 8086/8088 machines the size of interrupt vector is 4 bytes that holds IP and CS of ISR.

Code Segment Register Value

a+3

(Most Significant Byte)

Code Segment Register Value

(Least Significant Byte)

a+2

Instruction Pointer Value

a+1

(Most Significant Byte)

Instruction Pointer Value

(Least Significant Byte)

Returning from the ISR:

Every ISA should have an instruction, like the IRET instruction, which should be

executed when the ISR terminates. This means that the IRET instruction should be the

last instruction of every ISR. This is, in effect, a FAR RETURN in that it restores a

number of registers, and flags to their value before the ISR was called. Thus the previous

environment is restored after the servicing of the interrupt is completed.

Interrupt Handling:

The CPU responds to the interrupt request by completing the current instruction, and then

storing the return address from PC into a memory stack. Then the CPU branches to the

ISR that processes the requested operation of data transfer. In general, the following

sequence takes place.

Hardware Interrupt Handling:

Hardware issues interrupt signal to the CPU.

CPU completes the execution of current instruction.

CPU acknowledges interrupt.

Hardware places the interrupt number on the data bus.

CPU determines the address of ISR from the interrupt number available on the data

bus.

Page 278

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

CPU pushes the program status word (flags) on the stack along with the current value

of program counter.

The CPU starts executing the ISR.

After completion of the ISR, the environment is restored; control is transferred back

to the main program.

Interrupt Latency:

Interrupt Latency is the time needed by the CPU to recognize (not service) an interrupt

request. It consists of the time to perform the following:

· Finish executing the current instruction.

· Perform interrupt-acknowledge bus cycles.

· Temporarily save the current environment.

· Calculate the IVT address and transfer control to the ISR.

If wait states are inserted by either some memory module or the device supplying the

interrupt type number, the interrupt latency will increase accordingly.

Interrupt Latency for external interrupts depends on how many clock periods remain in

the execution of the current instruction.

On the average, the longest latency occurs when a multiplication, division or a variable-

bit shift or rotate instruction is executing when the interrupt request arrives.

Response Deadline:

It is the maximum time that an interrupt handler can take between the time when interrupt

was requested and when the device must be serviced.

Expanding Interrupt Structure:

When there is more than one device that can interrupt the CPU, an Interrupt Controller is

used to handle the priority of requests generated by the devices simultaneously.

Interrupt Precedence:

Interrupts occurring at the same time i.e. within the same instruction are serviced

according to a pre-defined priority.

In general, all internal interrupts have priority over all external interrupts; the

single-step interrupt is an exception.

NMI has priority over INTR if both occur simultaneously.

The above mentioned priority structure is applicable as far as the recognition of

(simultaneous) interrupts is concerned. As far as servicing (execution of the

related ISR) is concerned, the single-step interrupt always gets the highest

priority, then the NMI, and finally those (hardware or software) interrupts that

occur last. If IF is not 1, then INTR is ignored in any case. Moreover, since any

ISR will clear IF, INTR has lower "service priority" compared to software

interrupts, unless the ISR itself sets IF=1.

Page 279

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

Simultaneous Hardware Interrupt Requests:

The priority of the devices requesting service at the same time is resolved by using two

ways:

Daisy-Chained Interrupt

Parallel Priority Interrupt

Daisy-Chaining Priority:

· The daisy-chaining method to resolve the priority consists of a series connection of

the devices in order of their priority.

· Device with maximum priority is placed first and device with least priority is placed

at the end.

Daisy-Chain Priority Interrupt

· The devices interrupt the CPU.

· The CPU sends acknowledgement to the maximum priority device.

· If the interrupt was generated by the device, the interrupt for the device is

serviced.

· Otherwise the acknowledgement is passed to the next device.

If the higher priority devices are going to interrupt continuously then the device with the

lower priority is not serviced. So some additional circuitry is also needed to introduce

fairness.

Parallel Priority:

Page 280

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

________________________________________________________

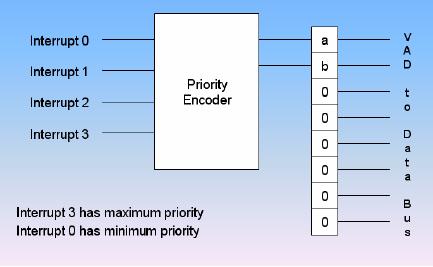

Parallel priority method for resolving the priority uses individual bits of a priority

encoder.

The priority of the device is determined by position of the input of the encoder

used for the interrupt.

Parallel Priority Interrupt:

Page 281

Last Modified: 01-Nov-06

Table of Contents:
