Structural RTL for Pipeline Stages

Instruction Propagation Through the Pipeline

Pipeline Hazards

Data Dependence Distance

Data Forwarding

Compiler Solution to Hazards

SRC Hazard Detection and Correction

RTL for Hazard Detection and Pipeline Stall

Structural RTL for Pipeline Stages

The Register Transfer Language for each phase is given as follows:

Instruction Fetch

IR2 ← M [PC];

PC2 ← PC+4;

Instruction Decode & Operand fetch

X3←l-s2:(rel2:PC2,disp2:(rb=0):?,(rb!=0):R[rb]),brl2:PC2,alu2:R[rb],

Y3 ← l-s2:(rel2:c1,disp2:c2),alu2:(imm2:c2,!imm2:R[rc]),

MD3 ←store2:R[ra],IR3 ← IR2,stop2:Run ← 0,

PC ← !branch2:PC+4,branch2:(cond(IR2,R[rc]):R[rb],!cond(IR2,R[rc]):PC+4;

ALU operation

Z4 ← (I-s3: X3+Y3, brl3: X3, Alu3: X3 op Y3,

MD4 ← MD3,

IR4 ← IR3;

Memory access

Z5 ← (load4: M [Z4], ladr4~branch4~alu4:Z4),

store4: (M [Z4] ← MD4),

Page 214

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

IR5 ←IR4;

Write back

regwrite5: (R[ra] ← Z5);

Instruction Propagation through the Pipeline

Consider the following SRC code segment flowing through the pipeline. The instructions

along with their addresses are

200: add r1, r2, r3

204: ld r5, [4(r7)

208: br r6

212: str r4, 56

...

400

We shall review how this chunk of code is executed.

First Clock Cycle

Add instruction enters the pipeline in the first cycle. The value in PC is

incremented from 200 to 204.

Second Clock Cycle

Add moves to decode stage. Its operands are fetched from the register file and

moved to X3 and Y3 at the end of clock cycle, meanwhile the Instruction ld r5,

[4+r7] is fetched in the first stage and the PC value is incremented from 204 to

208.

Third Clock Cycle

Add instruction moves to the execute stage, the results are written to Z4 on the

trailing edge of the clock. Ld instruction moves to decode stage. The operands

are fetched to calculate the displacement address. Br instruction enters the

pipeline. The value in PC is incremented from 208 to 212.

Fourth Clock Cycle

Add does not access memory. The result is written to Z5 at the trailing edge of

clock. The address is being calculated here for ld. The results are written to Z4.

Br is in the decode stage. Since this branch is always true, the contents of PC are

modified to new address. Str instruction enters the pipeline. The value in PC is

incremented from 212 to 216.

Fifth Clock Cycle

Page 215

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

The result of addition is written into register r1. Add instruction completes. Ld

accesses data memory at the address specified in Z4 and result stored in Z5 at

falling edge of clock. Br instruction just propagates through this stage without

any calculation. Str is in the decode stage. The operands are being fetched for

address calculation to X3 and Y3. The instruction at address 400 enters the

pipeline. The value in PC is incremented from 400 to 404.

Pipeline Hazards

The instructions in the pipeline at any given time are being executed in parallel. This

parallel execution leads to the problem of instruction dependence. A hazard occurs when

an instruction depends on the result of previous instruction that is not yet complete.

Classification of Hazards

There are three categories of hazards

1. Branch Hazard

2. Structural Hazard

3. Data Hazard

Branch hazards

The instruction following a branch is always executed whether or not the branch is taken.

This is called the branch delay slot. The compiler might issue a nop instruction in the

branch delay slot. Branch delays cannot be avoided by forwarding schemes.

Structural hazards

Page 216

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

A structural hazard occurs when attempting to access the same resource in different ways

at the same time. It occurs when the hardware is not enough to implement pipelining

properly e.g. when the machine does not support separate data and instruction memories.

Data hazards

Data hazard occur when an instruction attempts to access some data value that has not yet

been updated by the previous instruction. An example of this RAW (read after write) data

hazard is;

200: add r2, r3, r4

204: sub r7, r2, r6

The register r2 is written in clock cycle 5 hence the sub instruction cannot proceed

beyond stage 2 until the add instruction leaves the pipeline.

Data Hazard Detection & Correction

Data hazards can be detected easily as they occur when the destination register of an

instruction is the same as the source register of another instruction in close proximity. To

remedy this situation, dependent instructions may be delayed or stalled until the ones

ahead complete. Data can also be forwarded to the next instruction before the current

instruction completes, however this requires forwarding hardware and logic. Data can be

forwarded to the next instruction from the stage where it is available without waiting for

the completion of the instruction. Data is normally required at stage 2 (operand fetch)

however data is earliest available at stage 3 output (ALU result) or stage 4 output

(memory access result). Hence the forwarding logic should be able to transfer data from

stage 3 to stage 2 or from stage 4 to stage 2.

Data Dependence Distance

Designing a data forwarding unit requires the study of dependence distances. Without

forwarding, the minimum spacing required between two data dependent instructions to

avoid hazard is four. The load instruction has a minimum distance of two from all other

instructions except branch. Branch delays cannot be removed even with forwarding.

Table 5.1 of the text shows numbers related to dependence distances with respect to some

important instruction categories.

Compiler Solution to Hazards

Hazards can be detected by the compiler, by analyzing the instruction sequences and

dependencies. The compiler can inserts bubbles (nop instruction) between two

instructions that form a hazard, or it could reorder instructions so as to put sufficient

distance between dependent instructions. The compiler solution to hazards is complex,

expensive and not very efficient as compared to the hardware solution

Page 217

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

SRC Hazard Detection and Correction

The SRC uses a hazard detection unit. The hazard can be resolved using either pipeline

stalls or by data forwarding.

Pipeline stalls

Consider the following sequence of instructions going

through the SRC pipeline

200: shl r6, r3, 2

204: str r3, 32

208: sub r2, r4,r5

212: add r1,r2,r3

216: ld r7, 48

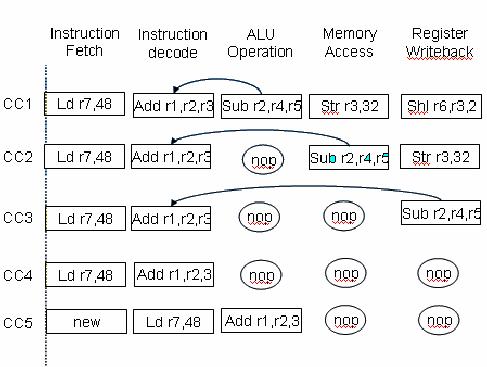

There is a data hazard between instruction three and four

that can be resolved by using pipeline stalls or bubbles

When using pipeline stalls, nop instructions are placed in between dependent instructions.

The logic behind this scheme is that if opcode in stage 2 and 3 are both alu, and if ra in

stage 3 is the same as rb or rc in stage 2, then a pause signal is issued to insert a bubble

between stage 3 and 2. Similar logic is used for detecting hazards between stage 2 and 4

and stage 4 and 5.

Data Forwarding

By adding data forwarding mechanism to the SRC data path, the stalls can be completely

eliminated at least for the ALU instructions. The hazard detection is required between

stages 3 and 4, and between stages 3 and 5. The testing and forwarding circuits employ

wider IRs to store the data required in later stages. The logic behind this method is that if

the ALU is activated for both 3 and 5 and ra in 5 is the same as rb in 3 then Z5 which

hold the currently loaded or calculated result is directly forwarded to X3. Similarly, if

both are ALU operations and instruction in stage 3 does not employ immediate operands

then value of Z5 is transferred to Y3. Similar logic is used to forward data between stage

3 and 4.

RTL for Hazard Detection and Pipeline Stall

The following RTL expression detects data hazard between stage 2 and 3, then stalls

stage 1 and 2 by inserting a bubble in stage 3

alu3&alu2&((ra3=rb2)~((ra3=rc2)&!imm2)):

(pause2, pause1, op3←0)

Meaning:

If opcode in stage 2 and 3 are both ALU, and if ra in stage 3 is same as rb or rc in stage 2,

issue a pause signal to insert a bubble between stage 3 and 2

Page 218

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Following is the complete RTL for detecting hazards among ALU instructions in

different stages of the pipeline

Data Hazard

RTL for detection and stalling

between

Stage 2 and 3

alu3&alu2&((ra3=rb2)~((ra3=rc2)&!imm2)):

(pause2, pause1, op3←0)

Stage 2 and 4

alu4&alu2&((ra4=rb2)~((ra4=rc2)&!imm2)):

(pause2, pause1, op3←0)

Stage 2 and 5

alu5&alu2&((ra5=rb2)~((ra5=rc2)&!imm2)):

(pause2, pause1, op3←0)

Page 219

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Advanced Computer Architecture

Lecture 21

Reading Material

Vincent P. Heuring&Harry F. Jordan

Chapter 5

Computer Systems Design and Architecture

5.2

Summary

Data Forwarding Hardware

Instruction Level Parallelism

Difference between Pipelining and Instruction-Level Parallelism

Superscalar Architecture

Superscalar Design

VLIW Architecture

Maximum Distance between two instructions

Example

Read page no. 219 of Computer System Design and Architecture (Vincent

P.Heuring, Harry F. Jordan)

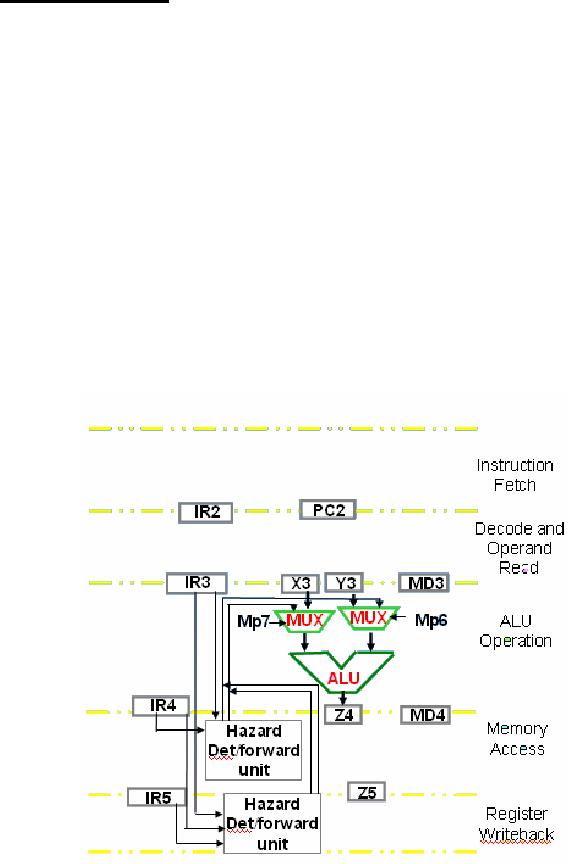

Data forwarding Hardware

The concept of data forwarding was introduced in the previous lecture.

RTL for

data
