Advanced Computer Architecture-CS501

Advanced Computer Architecture

Lecture No. 14

Reading Material

Handouts

Slides

Summary

Structural RTL Description of the FALCON-A (continued...)

External FALCON-A CPU Interface

This lecture is a continuation of the previous lecture.

Un-conditional jump instruction

jump (op-code= 20)

In the un-conditional jump with op-code 20, the op-code is followed by a 3-bit identifier

for register ra and then followed by an 8-bit constant c2.

Forms allowed by the assembler to define the jump are as follows:

jump [ra + constant]

jump [ra + variable]

jump [ra + address]

jump [ra + label]

For all the above instructions:

(ra=0):PC← PC+(8αC2<7>)©C2<7..0>,

(ra≠0):PC← R[ra]+(8αC2<7>)©C2<7..0>;4

In the case of a constant, variable, an address or (label-PC) the jump ranges from 128 to 127 because of the restriction on 8-bit

constant c2. Now, for example if we have jump [r0+a], it means jump to a. On the other hand if we have jump [ r2] that is not

allowed by the assembler. The target address should be even because we have each instruction with 2 bytes. So the types available for

the un-conditional jumps are either direct, indirect, PC-relative or register relative. In the case of direct jump the constant c2 would

define the target address and in the case of indirect jump constant c2 would define the indirect location of memory from where we

could find out the address to jump. While in the case of PC-relative if the contents of register ra are zero then we have near jump and

the type of jump for this would be PC-relative. If ra is not be zero then we have a far jump and the contents of register ra will be added

with the constant c2 after sign-extension to determine the jump address.

c2 is computed by sign extending the constant,variable,address or (label-PC)

Page 165

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

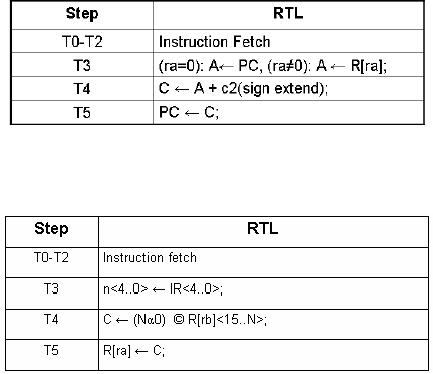

Structural RTL description for un-conditional jump instruction

jump [ra+c2]

In first three steps, T0-T2, we would fetch the jump instruction, while in T3 we would either take the contents of PC and place them in

a temporary register A if the condition given in jump instruction is true, that is if the ra field is zero, otherwise we would place the

contents of register ra in the temporary register A. Comma `,' indicates that these two instructions are concurrent and only one of them

would execute at a time. If the ra field is zero then it would be PC-relative jump otherwise it would be register-relative jump. In step

T4 we would add the constant c2 after sign-extension to the contents of temporary register A. As a result we would have the effective

address in the buffer register C, to which

we need to jump. In step T5 we will take

the contents of C and load it in the PC,

which would be the required address for

the jump.

Structural

RTL

for

the

shift

instruction

shiftr ra, rb, c1

First three steps would fetch the shift

instruction. c1 is the count field. It is a 5-

bit constant and is obtained from the lower 5-bits of the instruction register IR. In step T3 we would load the 5-bit register `n' from the

count field or the lower 5-bits of the IR and then in T4 depending upon the value of `N' which indicates the decimal value of `n', we

would take the contents of register rb and shift right by N-bits which would indicate how many shifts are to be performed. `n'

indicates the register while `N' indicates the decimal value of the bits present in the register `n'. So as a result we need to copy the

zeros to the left most bits, this shows that zeros are replicated `N' times and are concatenated with the shifted bits that are actually

15...N. In T5, we take the contents from

C through the bus and feed it to the

have similar tables are `shiftl' and `asr'.

In case of asr, when the data is shifted

right, instead of copying zeros on the left

side, we would copy the sign bit from the

original data to the left-most position.

Other instructions

Other instructions are mov, call and ret.

Note that these instructions were not available with the SRC processor.

Page 166

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

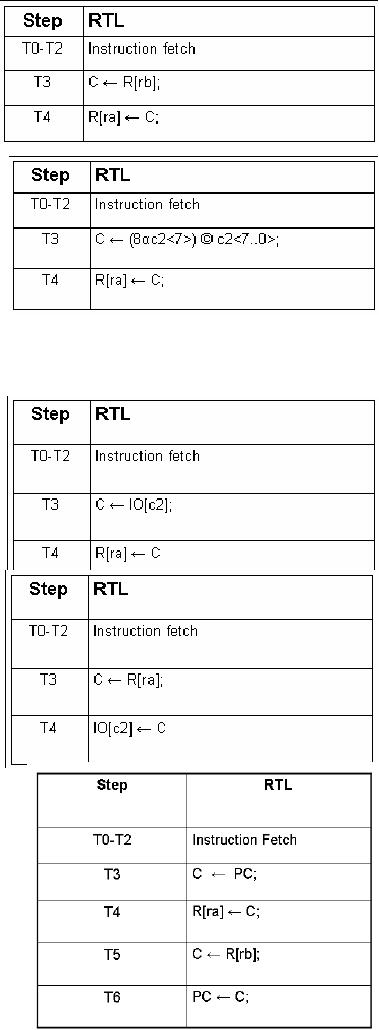

Structural RTL for the mov instruction

mov ra, rb

In mov instruction the data in register rb, which is

the source register, is to be moved in the register ra,

which is the destination register. In first three steps,

mov instruction is fetched. In step T3 the contents of

ALSU unit while in step T4 the buffer register C

transfers the data to register ra through internal uni-

bus.

Structural RTL

for

the

mov

immediate

instruction

movi ra, c2

In this instruction ra is the destination register and

constant c2 is to be moved in the ra. First three steps

would fetch the move immediate instruction. In step

T3 we would take the constant c2 and place it into the

buffer register C. Buffer register C is 16-bit register

and c2 is 8-bit constant so we need to concatenate the

remaining leftmost bits with the sign bit which is bit

`7' shown within angle brackets. This sign bit which is

the most significant bit would be `1' if the number is

negative and `0' if the number is positive. So

depending upon this sign bit the remaining 8-bits are replicated with this sign bit to make a 16-bit constant to be placed in the buffer

In case of FALCON-A, `in' and `out' instructions are present which are not present in the SRC processor. So, for this we assume that

there would be interconnection with the input and output addresses up to 0..255.

Structural RTL for the in instruction

in ra, c2

First three steps would fetch the instruction In step T3

we take the IO [c2] which indicates that go to IO

address indicated by c2 which is a positive constant in

this case and then data would be taken to the buffer

C to the destination register ra.

Structural RTL for the out instruction

out ra, c2

This instruction is opposite to the `in' instruction.

First three instructions would fetch the instruction. In

step T3 the contents of register ra are placed in to the

buffer register C and then in Step T4 from C the data

is placed at the output port indicated by the c2

constant. So this instruction is just opposite to the `in'

instruction.

Structural RTL for the call instruction

call ra, rb

In this instruction we need to give the control to the

procedure, sub-routine or to another address specified

in the program. First three steps would fetch the call

instruction. In step T3 we store the present contents of

PC in to the buffer register C and then from C we transfer

the data to the register ra in step T4. As a result register ra

would contain the original contents of PC and this would

be a pointer to come back after executing the sub-routine

and it would be later used by a return instruction. In step

T5 we take the contents of register rb, which would

actually indicate to the point where we want to go. So in

step T6 the contents of C are placed in PC and as a result

PC would indicate the position in the memory from where

new execution has to begin.

Page 167

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

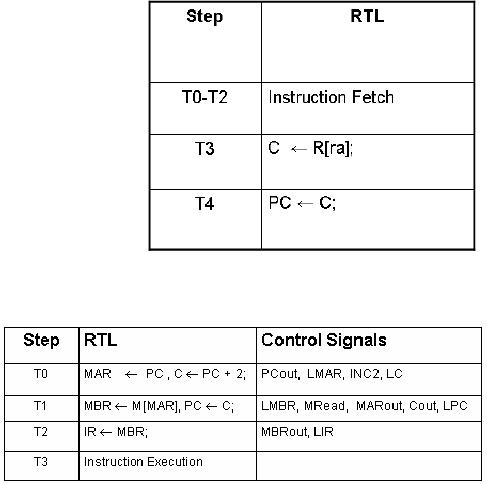

Structural

RTL

for

return

instruction

ret ra

After instruction fetch in first 3 steps

T0-T2, the register data in ra is placed

in the buffer register C through ALSU

unit. PC is loaded with contents of this

buffer register in step T4. Assuming

that bus activity is synchronized,

appropriate control signals are

available to us now.

Control signals required at different

timing

steps

FALCON-A

instructions

The following table shows the details of the control signals needed. The first column is

the time step, as before. In the second column the structural RTLs for the particular step

is given, and the

corresponding

control signals are

shown in the third

column. Internal bus

is active in step T0,

causing the contents

of the PC to be

placed in the Memory Address register MAR and simultaneously the PC is incremented

by 2 and placed it in the buffer register C. Recalling previous lectures, to write data in to

a particular register we need to enable the load signal. In case of fetch instruction in step

T0, control signal LMAR is enabled to cause the data from internal bus to be written in to

the address register. To provide data to the bus through tri-state buffers we need to

activate the `out' control signal named as `PCout', making contents of the PC available to

the ALSU and so control unit provides the increment signal `INC2' to increment the PC.

As the ALSU is the combinational circuit, the PCout signal causes the contents over the

2nd input of ALSU incremented by 2 and so the data is available in buffer register C.

Control signal "LC" is required to write data into the buffer register C form the ALSU

output. Now note that `INC2' is one of the ALSU functions and also it is a control signal.

So knowing the control signals, which need to be activated at a particular step, is very

important.

So, at step T0 the control signal `PCout' is activated to provide data to the internal bus.

Now control signal `LMAR' causes the data from the bus to be read into the register

MAR. The ALSU function `INC2' increments the PC to 2 and the output are stored in the

buffer register C by the control signal `LC'. The data from memory location addressed by

MAR is read into Memory Buffer Register MBR in the next timing step T1. In the mean

time there is no activity on the internal bus, the output from the buffer register C (the

incremented value of the PC) is placed in the PC through bus. For this the control signal

`LPC' is activated.

To enable tri-state buffer of Memory Address Register MAR, we need control signal

`MARout'. Another control signal is required in step T1 to enable memory read i.e.

`MRead'. In order to enable buffer register C to provide its data to the bus we need

Page 168

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

`Cout' control signal and in order to enable the PC to read from C we need to enable its

load signal, which is `LPC'. To read data coming from memory into the Memory Buffer

shown.

In T2, the instruction register IR is loaded with data from the MBR, so we need two-

control signals,'MBRout' to enable its tri-state buffers and the other signal required is the

load signal for IR register `LIR'. Fetch operation is completed in steps T0-T2 and

appropriate control signals are generated. Those control signals, which are not shown,

would remain de-activated. All control signals are activated simultaneously so the order

of these controls signals is immaterial. Recall that in SRC the fetch operation is

implemented in the same way, but `INC4' is used instead of `INC2' because the

instruction length is 4 bytes.

Now we take a look at other examples for control signals required during execution

phase.

For various instructions, we will define other control signals needed in the execution

phase of each instruction but fetch cycle will be the same for all instructions.

Another important fact is the interface of the CPU with an external memory and the I/O

depending upon whether the I/O is memory mapped or non-memory mapped. The

processor will generate some control signals, used by the memory or I/O to read/write

data to/from the I/O devices or from the memory. Another assumption is that the memory

read is fast enough. Therefore data from memory must be available to the processor in a

fixed time interval, which in this particular example is T2.

For a slow data transfer, the concept of handshaking is used. Some idle states are

introduced and buffer is prepared until the data is available. But for simplicity, we will

assume that memory is fast enough and data is available in buffer register MBR to the

CPU.

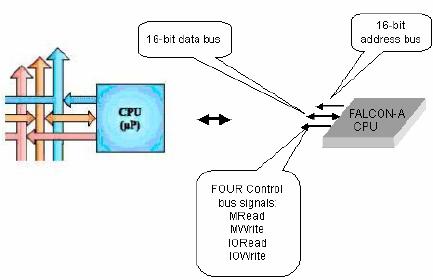

External FALCON-A CPU Interface

This figure is a symbolic

representation of the

FALCON-A in the form of

a chip. The external

interface consists of a 16-

bit address bus, a 16-bit

data bus and a control bus

on which different control signals like MRead, MWrite, IORead, IOWrite are present.

Page 169

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

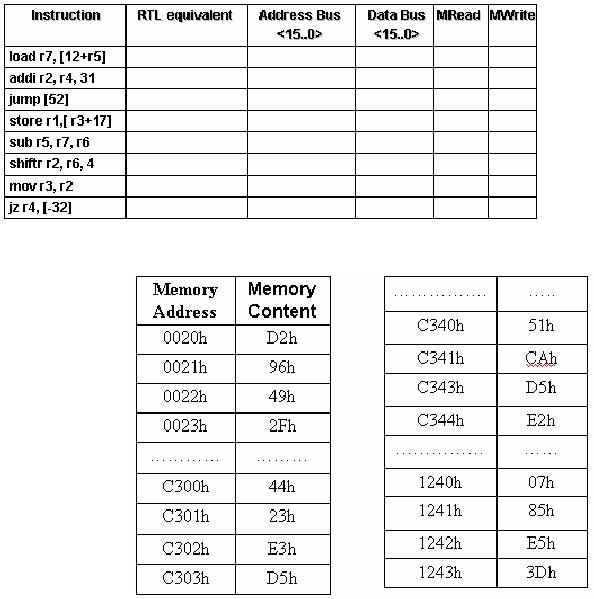

Example Problem

(a) What will be the logic levels on the external FALCON-A buses when each of the

given FALCON-A

instruction is executing

on the processor?

Complete the table

given. All numbers are

in the decimal number

system, unless noted

otherwise.

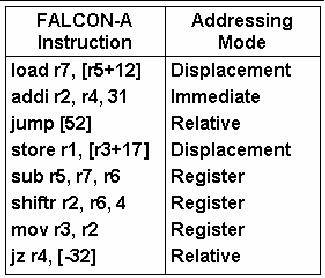

(b) Specify memory-

addressing modes for

each of the FALCON-

A instructions given.

Assumptions

For this particular

example

will

assume that all memory

contents are properly

aligned, i.e. memory addresses start at address divisible by 2.

PC= C348h

This table contains a partial memory map showing the addresses and the corresponding

data values.

The next table shows the register map showing the contents of all the CPU registers.

Another important thing to note is that memory storage is big-endian.

Page 170

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

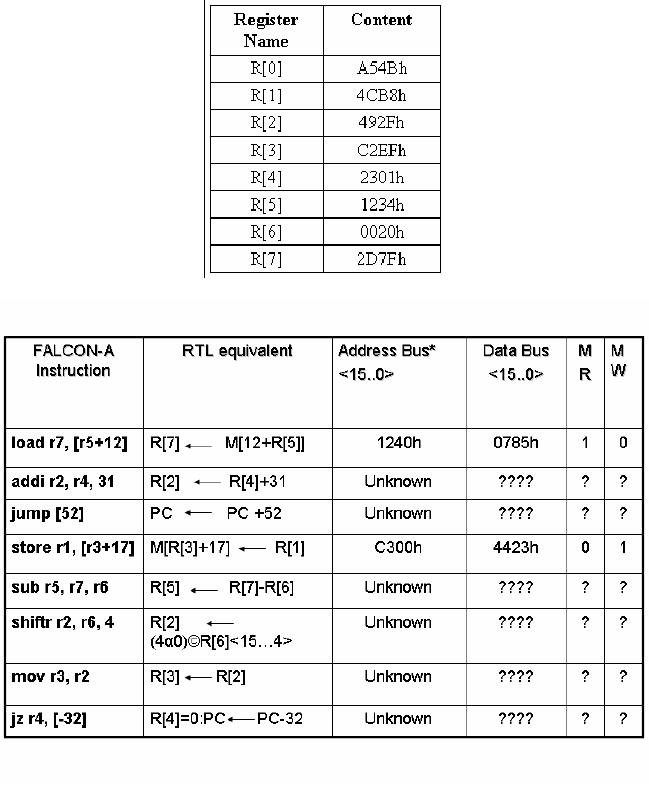

Solution:

In this table the second column contains the RTL descriptions of the instructions. We

have to specify the address bus and data bus contents for each instruction execution. For

load instruction the contents of register r5+12 are placed on the address bus. From

Now contents of r5 are added with displacement value 12 in decimal .In other words the

address bus will carry the hexadecimal value 1234h+ Ch = 1240h.Now for load

instruction, the contents of memory location at address 1240h will be placed on the data

bus. From the memory map shown in the previous table we can see that memory location

1240h contains 785h. Now to read this data from this location, MRead control signal will

be activated shown by 1 in the next column and MWrite would be 0.Similarly RTL

Page 171

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

description is given for the 2nd instruction. In this instruction, only registers are involved

so there is no need to activate external bus. So data bus, address bus and control bus

columns will contain `?' or `unknown'. The next instruction is jump. Here PC is

incremented by the jump offset, which is 52 in this case. As before, the external bus will

remain inactive and control signals will be zero. The next instruction is store. Its RTL

description is given. For store instruction, the register contents have to be placed at

memory location addressed by R [3] +17. As this is a memory write operation, the

MWrite will be 1 and MRead will be zero. Now the effective address will be determined

by adding the contents of R [3] with the displacement value 17 after its conversion to the

hexadecimal. The resulting effective address would be C300h. In this way we can

complete the table for other instructions.

Addressing Modes

This table lists the addressing mode for each instruction given in the previous example.

Page 172

Last Modified: 01-Nov-06

Table of Contents:
