Summary

7) The design process

8) A Uni-Bus implementation for the SRC

9) Structural RTL for the SRC instructions

Central Processing Unit Design

This module will explore the design of the central processing

unit from the logic designer's view. A unibus implementation

of the SRC is discussed in detail along with the Data Path

Design and the Control Unit Design.

The topics covered in this module are outlined below:

1. The Design Process

2. Unibus Implementation of the SRC

3. Structural RTL for the SRC

4. Logic Design for one bus SRC

5. The Control Unit

6. 2-bus and 3-bus designs

7. The machine reset

8. The machine exceptions

As we progress through this list of topics, we will learn how to convert the earlier

specified behavioral RTL into a concrete structural RTL. We will also learn how to

interconnect various programmer visible registers to get a complete data path and how to

incorporate various control signals into it. Finally, we will add the machine reset and

exception capability to our processor.

The design process

The design process of a processor starts with the specification of the behavioral RTL for

its instruction set. This abstract description is then converted into structural RTL which

shows the actual implementation details. Since the processor can be divided into two

main sub-systems, the data path and the control unit, we can split the design procedure

into two phases.

Page 150

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

1. The data path design

2. The control unit design

It is important that the design activity of these

important components of the processor be carried

out with the pros and cons of adopting different

approaches in mind.

As we know, the execution time is dependent on

the following three factors.

ET = IC x CPI x T

During the design procedure we specify the

implementation details at an advanced level.

These details can affect the clock cycle per

instruction and the clock cycle time. Hence

following things should be kept in mind during the design phase.

· Effect on overall performance

· Amount of control hardware

· Development time

Processor Design

Let us take a look at the steps involved in the processor design procedure.

1. ISA Design

The first step in designing a processor is the specification of the instruction set of

the processor. ISA design includes decisions involving number and size of

instructions, formats, addressing modes, memory organization and the

programmer's view of the CPU i.e. the number and size of general and special

purpose registers.

2. Behavioral RTL Description

In this step, the behavior of processor in response to the specific instructions is

described in register transfer language. This abstract description is not bound to

any specific implementation of the processor. It presents only those static

(registers) and dynamic aspects (operations) of the machine that are necessary to

understand its functionality. The unit of activity here is the instruction execution

unlike the clock cycle in actual case. The functionality of all the instructions is

described here in special register transfer notation.

3. Implementation of the Data Path

The data path design involves decisions like the placement and interconnection of

various registers, the type of flip-flops to be used and the number and kind of the

interconnection buses. All these decisions affect the number and speed of register

transfers during an operation. The structure of the ALU and the design of the

memory-to-CPU interface also need to be decided at this stage. Then there are the

control signals that form the interface between the data path and the control unit.

These control signals move data onto buses, enable and disable flip-flops, specify

the ALU functions and control the buses and memory operations. Hence an

integral part of the data path design is the seamless embedding of the control

signals into it.

4. Structural RTL Description

Page 151

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

In accordance with the chosen data path implementation, the structural RTL for every

instruction is described in this step. The structural RTL is formed according to the

proposed micro-architecture which includes many hidden temporary registers

necessary for instruction execution. Since the structural RTL shows the actual

implementation steps, it should satisfy the time and space requirements of the CPU as

specified by the clocking interval and the number of registers and buses in the data

path.

5. Control Unit Design

The control unit design is a rather tricky process as it involves timing and

synchronization issues besides the usual combinational logic used in the data path

design. Additionally, there are two different approaches to the control unit design; it

can be either hard-wired or micro-programmed. However, the task can be made

simpler by dividing the design procedure into smaller steps as follows.

a. Analyze the structural RTL and prepare a list of control signals to be

activated during the execution of each RTL statement.

b. Develop logic circuits necessary to generate the control signals

c. Tie everything together to complete the design of the control unit.

Processor Design

A Uni-bus Data Path Implementation for the SRC

In this section, we will discuss the uni-bus implementation of the data path for the SRC.

But before we go onto the design phase, we will discuss what a data path is. After the

discussion of the data path design, we will discuss the timing step generation, which

makes possible the synchronization of the data path functions.

The Data Path

The data path is the arithmetic portion of the Von Neumann architecture. It consists of

registers, internal buses, arithmetic units and shifters. We have already discussed the

decisions involved in designing the data path. Now we shall have an overview of the 1-

Bus SRC data path design. As the name suggests, this implementation employs a single

bus for data flow. After that we develop each of its blocks in greater detail and present

the gate level implementation.

Overview of the Unibus SRC Data

Path

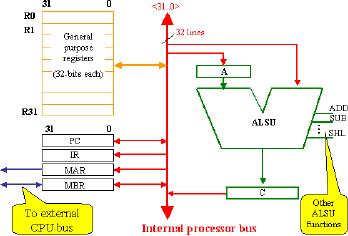

The 1-bus implementation of the SRC

data path is shown in the figure given.

The control signals are omitted here

for the sake of simplicity. Following

units are present in the SRC data path.

1. The Register File

The general-purpose register

file includes 32 registers R0 to

R31 each 32 bit wide. These

registers communicate with

other components via the internal processor bus.

2. MAR

Page 152

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

The Memory Address Register takes input from the ALSU as the address of the

memory location to be accessed and transfers the memory contents on that

location onto the memory sub-system.

3. MBR

The Memory Buffer Register has a bi-directional connection with both the

memory sub-system and the registers and ALSU. It holds the data during its

transmission to and from memory.

4. PC

The Program Counter holds the address of the next instruction to be executed. Its

value is incremented after loading of each instruction. The value in PC can also be

changed based on a branch decision in ALSU. Therefore, it has a bi-directional

connection with the internal processor bus.

5. IR

The Instruction Register holds the instruction that is being executed. The

instruction fields are extracted from the IR and transferred to the appropriate

registers according to the external circuitry (not shown in this diagram).

6. Registers A and C

The registers A and C are required to hold an operand or result value while the

bus is busy transmitting some other value. Both these registers are programmer

invisible.

7. ALSU

There is a 32-bit Arithmetic Logic Shift Unit, as shown in the diagram. It takes

input from memory or registers via the bus, computes the result according to the

control signals applied to it, and places it in the register C, from where it is finally

transferred to its destination.

Timing Step Generator

To ensure the correct and

controlled execution of instructions

in a program, and all the related

operations, a timing device is

required. This is to ensure that the

operations of essentially different

instructions do not mix up in time.

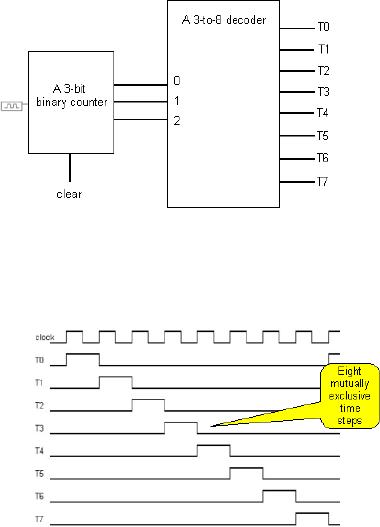

There exists a `timing step

generator' that provides mutually

exclusive and sequential timing

intervals. This is analogous to the

clock cycles in the actual processor. A possible implementation of the timing step

generator is shown in the figure.

Each mutually exclusive step is carried out in one timing interval. The timing intervals

can be named T0, T1...T7. The given figure is helpful in understanding the `mutual

exclusiveness in time' of these timing intervals.

Processor design

Structural RTL descriptions of selected

SRC instructions

Structural RTL for the SRC

Page 153

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

The structural RTL describes how a particular operation is performed using a specific

hardware implementation. In order to present the structural RTL we assume that there

exists a "timing step generator", which provides mutually exclusive and sequential timing

intervals, analogous to the clock cycles in actual processor.

Structural RTL for Instruction Fetch

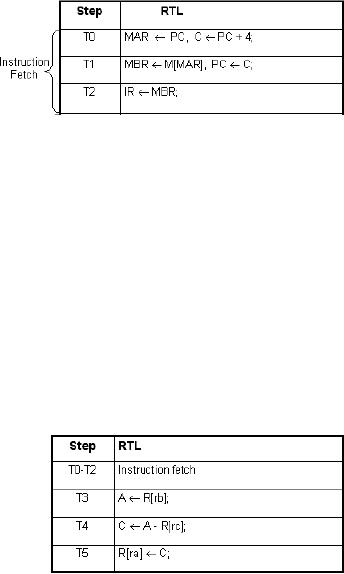

The instruction fetch procedure takes three time steps as shown in the table. During the

first time step, T0, address of the

instruction is moved to the Memory

Address Register (MAR) and value of

PC is incremented. In T1 the

instruction is brought from the

memory into the Memory Buffer

PC is updated. In the third and final time-step of the instruction fetch phase, the

instruction from the memory buffer register is written into the IR for execution.What

follows the instruction fetch phase, is the instruction execution phase. The number of

timing steps taken by the execution phase generally depends on the type and function of

instruction. The more complex the instruction and its implementation, the more timing

steps it will require to complete execution. In the following discussion, we will take a

look at various types of instructions, related timing steps requirements and data path

implementations of these in terms of the structural RTL.

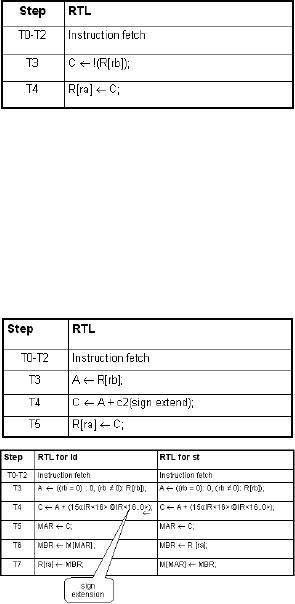

Structural RTL for Arithmetic/Logic Instructions

The arithmetic/logic instructions come in two formats, one with the immediate operand

and the other with register operand. Examples of both are shown in the following tables.

Register-to-Register sub

as shown in the table. Here we have assumed

that the instruction given is:

sub ra, rb, rc

Here we assume that the instruction fetch

process has taken up the first three timing

steps. In step T3 the internal register A

receives the contents of the register rb. In the next timing step, the value of register rc is

subtracted (since the op-code is sub) from A. In the final step, this result is transferred

into the destination register ra. This concludes the instruction fetch-execute cycle and at

the end of it, the timing step generator is initialized to T0.

Page 154

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

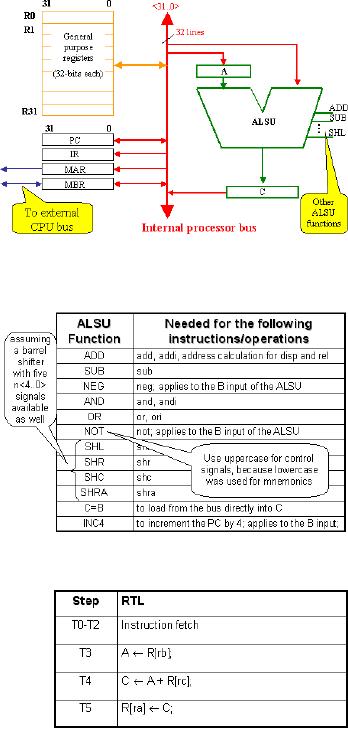

The given figure refreshes our

knowledge of the data path. Notice that

we can visualize how the steps that we

have just outlined can be carried out, if

appropriate control signals are applied

at the appropriate timing.

As will be obvious, control signals need to be applied to the ALSU, based on the

decoding of the op-code field of an instruction. The given table lists these control signals:

Note that we have used uppercase

alphabets for naming the ALSU

functions. This is to differentiate these

control signals from the actual

operation-code mnemonics we have

been using for the instructions.

The SHL, SHR, SHC and the SHRA

functions are listed assuming that a

barrel shifter is available to the

processor with signals to differentiate

between the various types of shifts that

are to be performed.

Structural RTL for Register-to-Register add

To enhance our understanding of the instruction execution phase implementation, we will

now take a look at some more instructions of

the SRC. The structural RTL for a simple add

instruction add ra, rb, rc is given in table.

The first three instruction fetch steps are

common to all instructions. Execution of

instruction starts from step T3 where the first

operand is moved to register A. The second

step involves computation of the sum and

result is transferred to the destination in step T5. Hence the complete execution of the add

instruction takes 6 time steps. Other arithmetic/logic instructions having the similar

structural RTL are "sub", "and" and "or". The only difference is in the T4 step where

the sign changes to (-), (^), or (~) according to the opcode.

Structural RTL for the not instruction

The first three steps T0 to T2 are used up in fetching the instruction as usual. In step T3,

the value of the operand specified by the register is brought into the ALSU, which will

use the control function NOT, negate the value (i.e. invert it), and the result moves to the

the internal bus. Note that we need control signals to coordinate all of this; a control

signal to allow reading of the instruction-specified source register in T3, control signal

for the selection of appropriate function to be carried out at the ALSU, and control signal

Page 155

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

to allow only the instruction-specified

destination register to read the result value

from the data bus.

The table shown outlines these steps for the

instruction: not ra, rb

Structural RTL for the addi instruction

Again, the first three time steps are for the

instruction fetch. Next, the first operand is brought into ALSU in step T3 through register

A. The step T4 is of interest here as the second operand c2 is extracted from the

instruction in IR register, sign extended to 32 bits, added to the first operand and written

into the result register C. The execution of instruction completes in step T5 when the

result is written into the destination register. The sign extension is assumed to be carried

out in the ALSU as no separate extension unit is provided.

The given table outlines the time steps for the instruction addi:

Other instructions that have the same

structural RTL are subi, andi and ori.

RTL for the load (ld) and store (st)

instructions

The syntax of load instructions is:

ld ra, c2(rb)

And the syntax of store instructions is:

st ra, c2(rb)

The given table outlines the time steps in

fetching and executing a load and a store

instruction. Note that the first 6 time steps (T0

to T5) for both the instructions are the same.

The first three steps are those of instruction

fetch. Next, the register A gets the value of

to the value of register A using the ALSU. The result is assigned to register C. Note that

in the RTL outlined above, we are sign extending a field of the Instruction Register(32-

bit). It is so because this field is the constant field in the instruction, and the Instruction

Memory Address Register (MAR). This completes the effective address calculation of the

memory location to be accessed for the load/ store operation.If it is a load instruction in

time step T6, the corresponding memory location is accessed and result is stored in

Memory Buffer Register (MBR). In step T7, the result is transferred to the destination

step T6 is used to store the value of the register to the MBR. In the next and final step, the

value stored in MBR is stored in the memory location indexed by the MAR.We can look

at the data-path figure and visualize how all these steps can take place by applying

appropriate control signals. Note that, if more time steps are required, then a counter with

more bits and a larger decoder can be used, e.g., a 4-bit counter along with a 4-to-16

decoder can produce up to 16 time steps.

Page 156

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Page 157

Last Modified: 01-Nov-06

Table of Contents:
