THE FALcON-E

INTRODUCTION

FALCON stands for First Architecture for Learning Computer Organization and

Networks. We are already familiar with our example processor, the FALCON-A, which

was the first version of the FALCON processor. In this section we will develop a new

version of the processor. Like its predecessor, the FALCON-E is a General-Purpose

design and architecture.

The FALCON-E is characterized by the following

· Eight General Purpose Registers (GPRs), named R0, R1...R7. Each registers is 4

bytes long (32-bit registers).

· Two special purposes registers, named BP and SP. These registers are also 32-bit

in length.

· Two special registers, the Program Counter (PC) and the Instruction Register

(IR). PC points to the next instruction to be executed, and the IR holds the current

instruction.

· Memory word size is 32 bits (4

bytes).

· Memory space is 232 bytes

· Memory is organized as 1-byte

cells, and hence it is 232 x 8

bits.

· Memory is accessed in 32-bit

words (4-byte chunks, or 4

consecutive cells)

· Byte storage format is little

endian.

Programmer's view of the FALCON-E

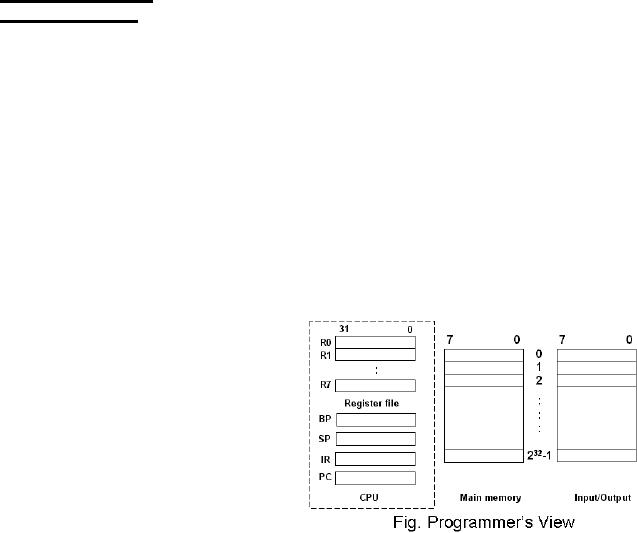

The programmer's view of the FALCON-E is shown in the given figure.

FALCON-E Notation

We take a brief look at the notation that we will employ for the FACLON-E.

Register contents are referred to in a similar fashion as the FALCON-A, i.e. the register

name in square brackets. So R[3] means contents of register R3.

Page 125

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Memory contents (or the memory

location) can be referred to in a similar

way. Therefore, M[8] means contents

of memory location 8.

A memory word is stored in the

memory in the little endian format.

This means that the least significant

byte is stored first (or the little end comes first!). For instance, a memory word at address

8 is defined as the 32 bits at addresses 11, 10, 9, and 8 (little-endian). So we can employ a

special notation to refer to the memory words. Again, we will employ as the

concatenation operator. In our notation for the FALCON-E, the memory word stored at

address 8 is represented as:

M[8]<31...0>:=M[11]©M[10]©M[9]©M[8]

The shown figure will make this easier to understand.

FALCON-E Features

The following features characterize the FALCON-E

· Fixed instruction size, which is 32 bits. So the instruction size is 1 word.

· All ALU instructions have three operands

· Memory access is possible only through the load and store instructions. Also, only

a limited addressing modes are supported by the FALCON-E

FALCON-E Instruction Formats

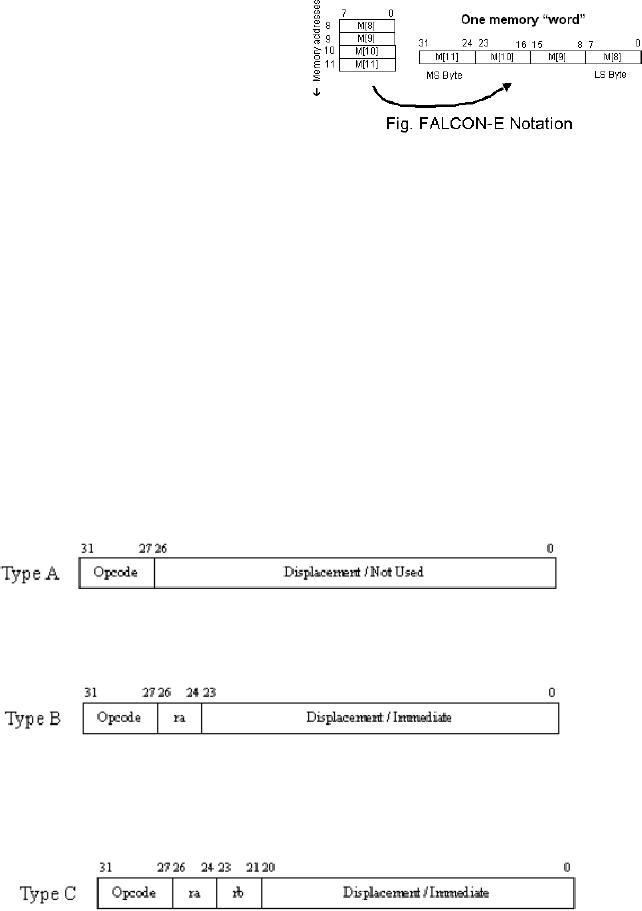

Four different instruction formats are supported by the FALCON-E. These are

Type A instructions

The type A instructions have 5 bits reserved for the operation code (abbreviated op-code),

and the rest of the bits are either not used or specify a displacement.

Type B instructions

The type B instructions also have 5 bits (27 through 31) reserved for the op-code. There

is a register operand field, ra, and an immediate or displacement field in addition to the

op-code field.

Type C instructions

Type C instructions have the 5-bit op-code field, two 3-bit operand registers (rb is the

source register, ra is the destination register), a 17-bit immediate or displacement field, as

well as a 3-bit function field. The function field is used to differentiate between

instructions that may have the same op-code, but different operations.

Type D instructions

Type D instructions have the 5-bit op-code field, three 3-bit operand registers, 14 bits are

unused, and a 3-bit function field.

Page 126

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

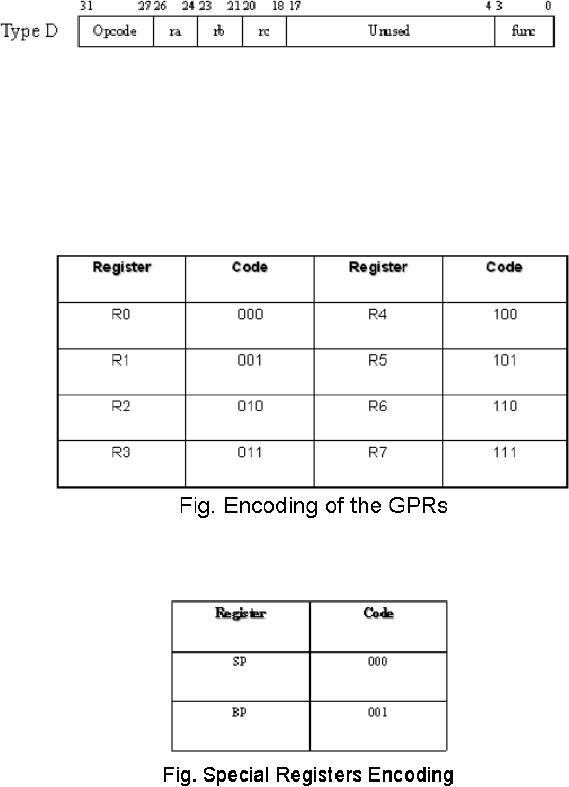

Encoding for the General Purpose Registers (GPRs)

In the instruction formats discussed above, we used register operands ra, rb and rc. It is

important to know that these are merely placeholders, and not the real register names. In

an actual instruction, any one of the 8 registers of our general-purpose register file may

be used. We need to encode our registers so we can refer to them in an instruction. Note

that we have reserved 3 bits for each of the register field. This is because we have 8

registers to represent, and they can be completely represented by 3 bits, since 23 = 8. The

following table shows the binary encoding of the general-purpose registers.

There are two more special registers that we need to represent; the SP and the BP. We

will use these registers in place of the operand register rb in the load and store

instructions only, and therefore, we may encode these as

Instructions, Instruction Formats

The following is a brief introduction to the various instructions of the FALCON-E,

categorized with respect to the instruction formats.

Type A instructions

Four instructions of the FALCON-E belong to type A. These are

Page 127

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

nop (op-code = 0)

This instruction instructs the processor to do nothing. It is generally useful in

pipelining. We will study more on pipelining later in the course.

· ret (op-code = 15)

The return instruction is used to return control to the normal flow of a program

after an interrupt or a procedure call concludes

· iret (op-code = 17)

The iret instruction instructs the processor to return control to the address

specified by the immediate field of the instruction. Setting the program counter to

the specified address returns control.

· near jmp (op-code = 18)

A near jump is a PC-relative jump. The PC value is incremented (or decremented)

by the immediate field value to take the jump.

Type B instructions

Five instructions belong to the type B format of instructions. These are:

· push (op-code = 8)

This instruction is used to push the contents of a register onto the stack. For

instance, the instruction,

push R4

will push the contents of register R4 on top of the stack

· pop (op-code = 9)

The pop instruction is used to pop a value from the top of the stack, and the value

is read into a register. For example, the instruction

pop R7

will pop the upper-most element of the stack and store the value in register R7

· ld (op-code = 10)

This instruction with op-code (10) loads a memory word from the address

specified by the immediate filed value. This word is brought into the operand

ld R7, 1254h

will load the contents of the memory at the address 1254h into the register R7.

st (op-code = 12)

The store instruction of (opcode 12) stores a value contained in the register

operand into the memory location specified by the immediate operand field. For

example, in

st R7, 1254h

the contents of register R7 are saved to the memory location 1254h.

Type C instructions

There are four data transfer instructions, as well as nine ALU instructions that belong to

type C instruction format of the FALCON-E.

The data transfer instructions are

· lds (op-code = 4)

The load instruction with op-code (4)loads a register from the memory, after

calculating the address of the memory location that is to be accessed. The

effective address of the memory location to be read is calculated by adding the

immediate value to the value stored by the register rb. For instance, in the

Page 128

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

example below, the immediate value 56 is added to the value stored by the

read

lds R3, R4(56)

In RTL, this can be shown as

R [3] ← M[R [4]+56]

· sts (op-code = 5)

This instruction is used to store the register contents to the memory location, by

first calculating the effective memory address. The address calculation is similar

to the lds instruction. An example:

sts R3, R4 (56)

In RTL, this is shown as

M[R [4]+56] ← R [3]

· in (op-code = 6)

This instruction is to load a register from an input/output device. The effective

address of the I/O device has to be calculated before it is accessed to read the

word into the destination register ra, as shown in the example:

in R5, R4(100)

In RTL:

← IO[R[4]+100]

R[5]

out (op-code = 7)

This instruction is used to write / store the register contents into an input/output

device. Again, the effective address calculation has to be carried out to evaluate

the destination I/O address before the write can take place. For example,

out R8, R6 (36)

RTL representation of this is

IO[R [6]+36] ← R [8]

Three of the ALU instructions that belong to type C format are

· addi (op-code = 2)

The addi instruction is to add a constant to the value of operand register rb, and

assign the result to the destination register ra. For example, in the following

instruction, 56 is added to the value of register R4, and result is assigned to the

addi R3, R4, 56

In RTL this can be shown as

← R[4]+56

R[3]

Note that if the immediate constant specified was a negative number, then this

would become a subtract operation.

· andi (op-code = 2)

This instruction is to calculate the logical AND of the immediate value and the rb

andi R3, R4, 56

← R[4]&56

R[3]

Note that the logical AND is represented by the symbol `&'

· ori (op-code = 2)

This instruction calculates the logical OR of the immediate field and the value in

Page 129

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

operand register rb. The result is assigned to the destination register ra. Following

is an example:

ori R3, R4, 56

The RTL representation of this instruction:

R [3] ← R [4]~56

Note that the symbol `~' is used to represent logical OR.

Type D Instructions

Four of the instructions that belong to this instruction format type are the ALU

instructions shown below. There are other instructions of this type as well, listed in the

tables at the end of this section.

· add (op-code = 1)

This instruction is used to add two numbers. The numbers are stored in the registers

specified by rb and rc. Result is stored into register ra. For instance, the instruction,

add R3, R5, R6

adds the numbers in register R5, R6, storing the result in R3. In RTL, this is given by

R [3] ← R [5] + R [6]

· sub (op-code = 1)

This instruction is used to carry out 2's complement subtraction. Again, register

addressing mode is used, as shown in the example instruction

sub R3, R5, R6

RTL representation of this is

R[3] ← R[5] - R[6]

· and (op-code = 1)

For carrying out logical AND operation on the values stored in registers, this

instruction is employed. For instance

and R8, R3, R4

In RTL, we can write this as

R [8] ← R [3] & R [4]

· or (op-code = 1)

For evaluating logical OR of values stored in two registers, we use this

instruction. An example is

or R8, R3, R4

In RTL, this is

R [8] ← R [3] ~ R [4]

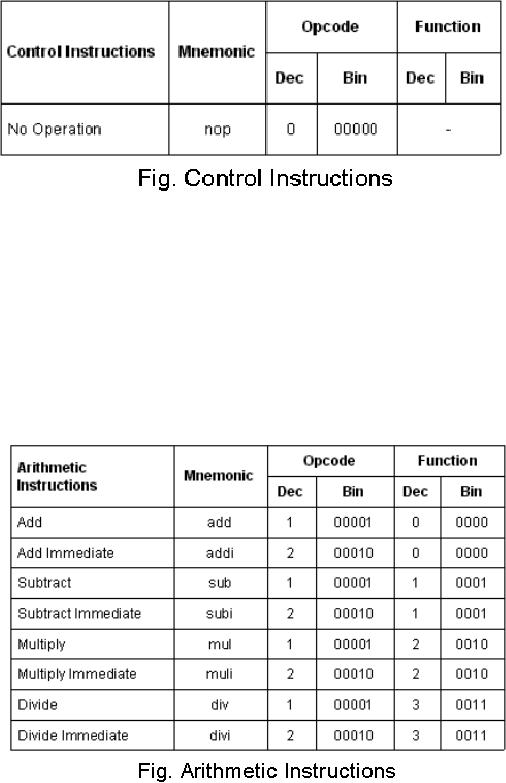

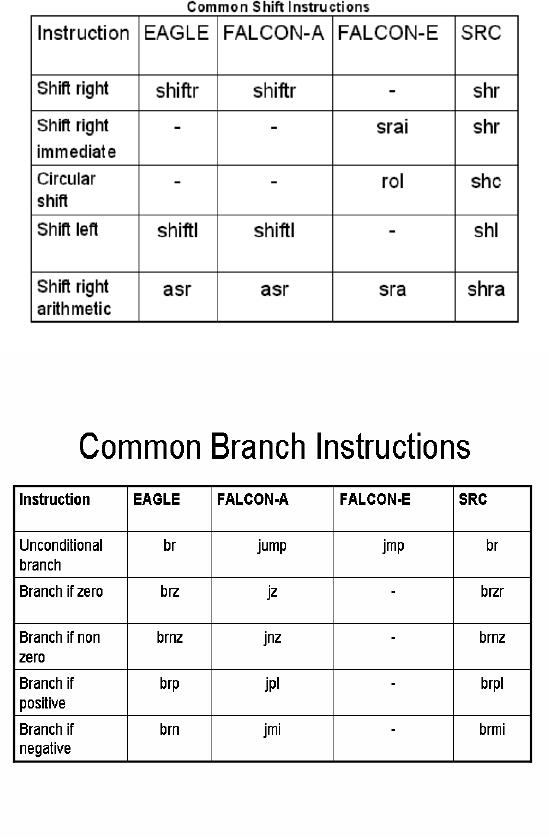

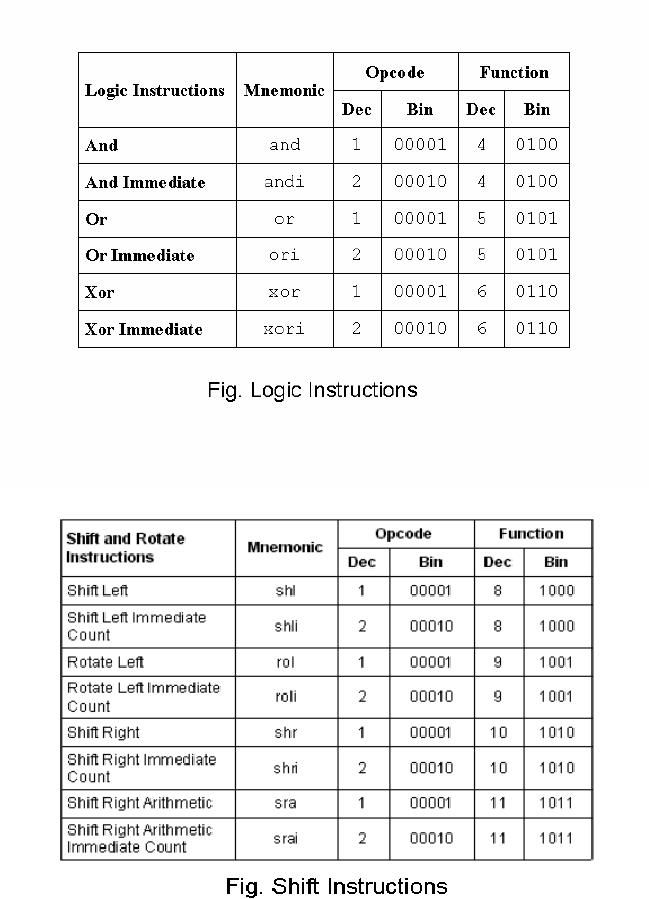

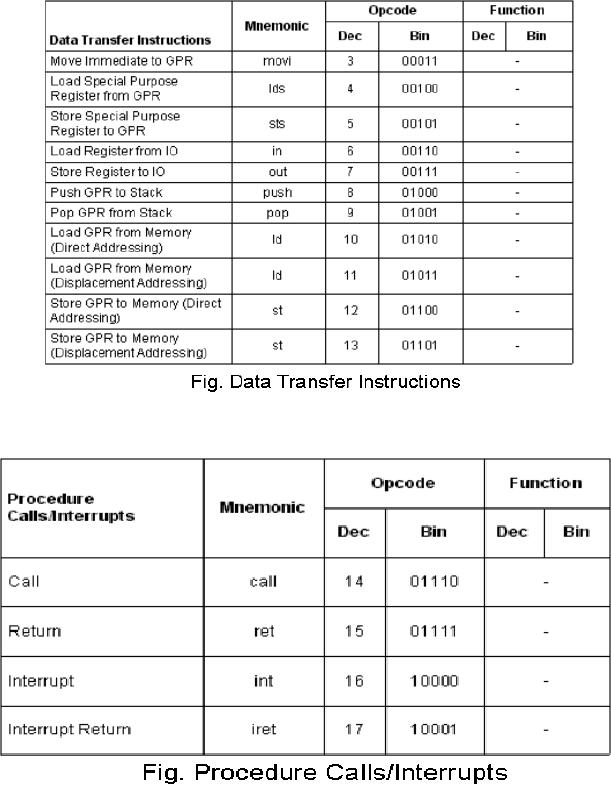

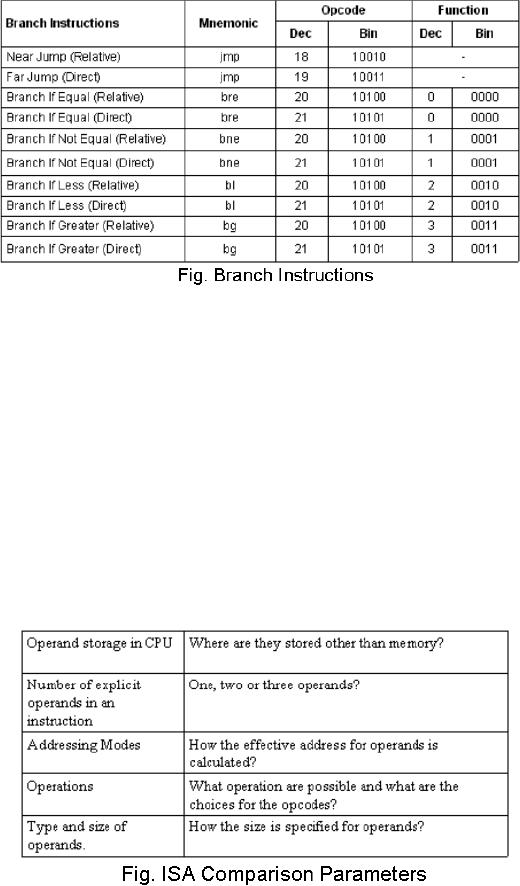

Falcon-E

Instruction Summary

The following are the tables that list the instructions that form the instruction set of the

FALCON-E. These instructions have been grouped with respect to the functionality they

provide.

Page 130

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Page 131

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Page 132

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Page 133

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

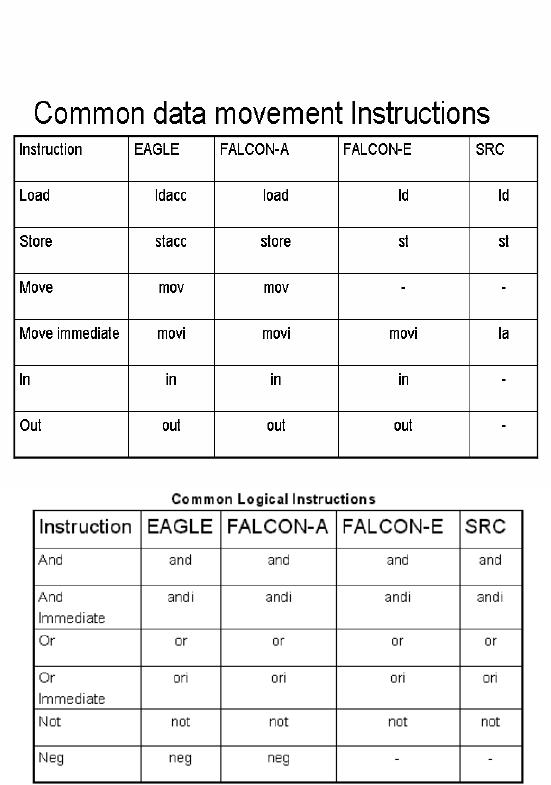

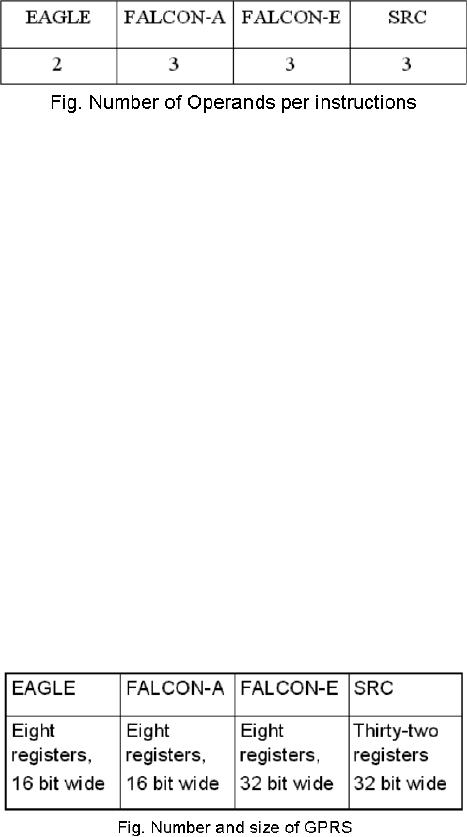

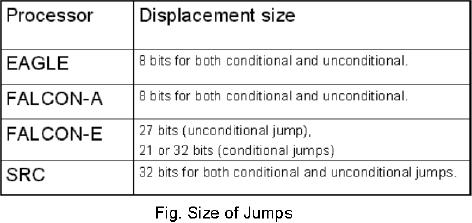

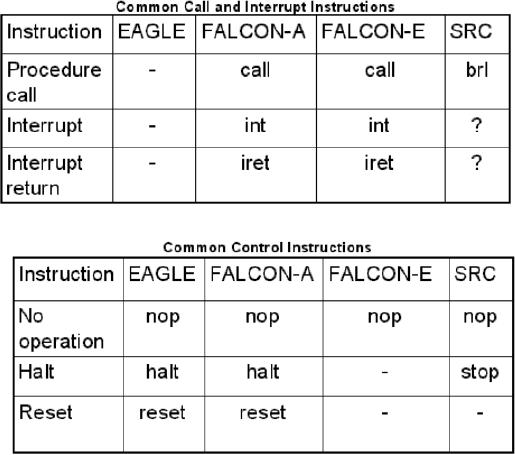

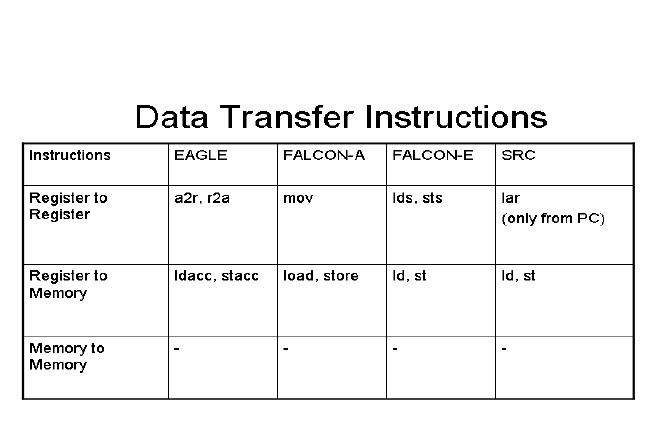

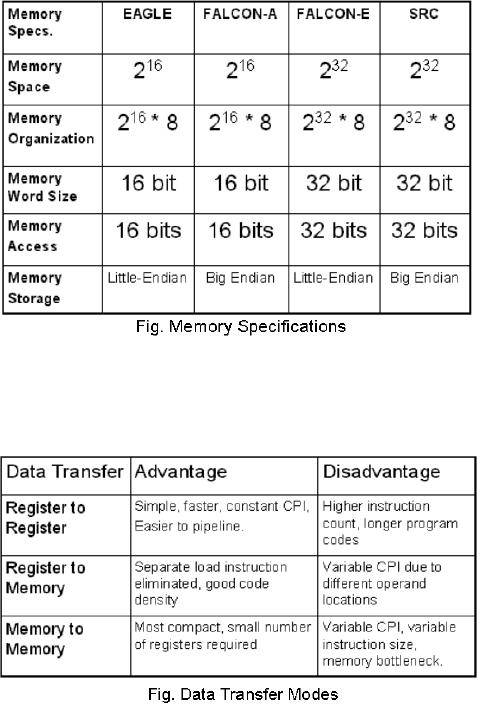

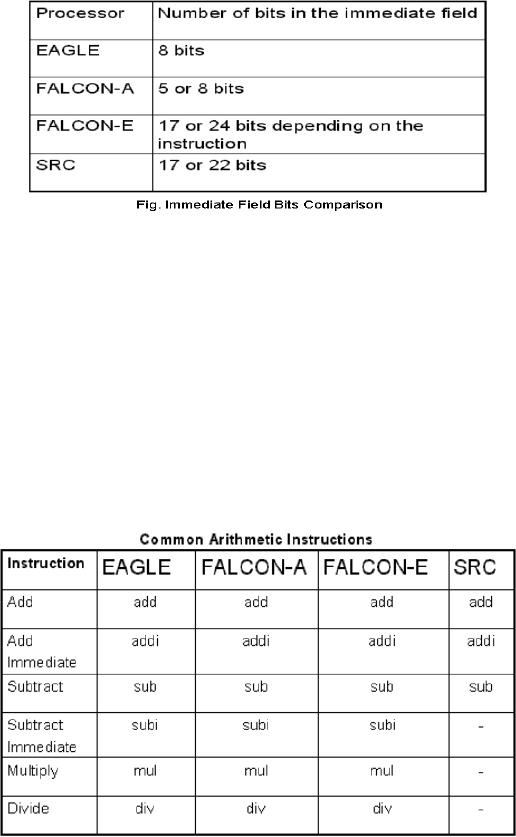

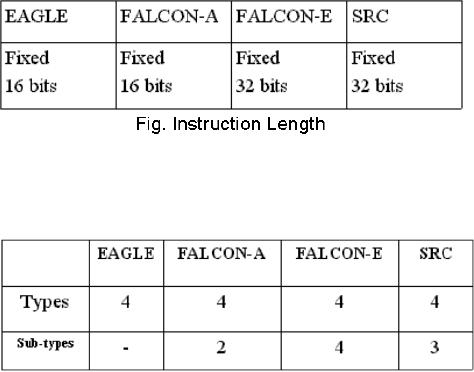

Instruction Set Architecture Comparison

In this lecture, we compare the instruction set architectures of the various processors we

have described/ designed up till now. These processors are:

· EAGLE

· FALCON-A

· FALCON-E

· SRC

Classifying Instruction Set Architectures

In the design of the ISA, the choice of some of the parameters can critically affect the

code density (which is the number of instructions required to complete a given task),

cycles per instruction (as some instructions may take more than one clock cycle, and the

number of cycles per instruction varies from instruction to instruction, architecture to

architecture), and cycle time (the total cycle time to execute a given piece of code).

Classification of different architectures is based on the following parameters.

Instruction Length

Page 134

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

With reference to the instruction lengths in a particular ISA, there are two decisions to be

made; whether the instruction will be fixed in length or variable, and what will be the

instruction length or the range (in case of variable instruction lengths).

Fixed versus variable

Fixed instruction lengths are desirable when simplicity of design is a goal. It provides

ease of implementation for assembling and pipelining. However, fixed instruction length

can be wasteful in terms of code density. All the RISC machines use fixed instruction

length format

Instruction Length

The required instruction length mainly depends on the number of instruction required to

be in the instruction set of a processor (the greater the number of instructions supported,

the more bits are required to encode the operation code), the size of the register file

(greater the number of registers in the register file, more is the number of bits required to

encode these in an instruction), the number of operands supported in instructions (as

obviously, it will require more bits to encode a greater number of operands in an

instruction), the size of immediate operand field (the greater the size, the more the range

of values that can be specified by the immediate operand) and finally, the code density

(which implies how many instructions can be encoded in a given number of bits).

A summary of the instruction lengths of our processors is given in the table below.

Instruction types and sub-types

The given table summarizes the number of instruction types and sub-types of the

processors we have studied. We have already studied these instruction types, and their

sub-types in detail in the related sections.

Number of operands in the instructions

The number of operands that may be required in an instruction depends on the type of

operation to be performed by that instruction; some instruction may have no operands,

other may have up to 3. But a limit on the maximum number of operands for the

instruction set of a processor needs to be defined explicitly, as it affects the instruction

Page 135

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

length and code density. The maximum number of operands supported by the instruction

set of each processor under study is given in the given table. So FALCON-A, FALCON-

E and the SRC processors may have 3, 2, 1 or no operands, depending on the instruction.

EAGLE has a maximum number of 2 operands; it may have one operand or no operands

in an instruction.

Explicit operand specification in an instruction gives flexibility in storage. Implicit

operands like an accumulator or a stack reduces the instruction size, as they need not be

coded into the instruction. Instructions of the processor EAGLE have implicit operands,

and we saw that the result is automatically stored in the accumulator, without the

accumulator being specified as a destination operand in the instruction.

Number and Size of General Purpose Registers

While designing a processor, another decision that has to be made is about the number of

registers present in the register file, and the size of the registers.

Increasing the number of registers in the register file of the CPU will decrease the

memory traffic, which is a desirable attribute, as memory accesses take relatively much

longer time than register access. Memory traffic decreases as the number of registers is

increased, as variables are copied into the registers and these do not have to be accessed

from memory over and over again. If there is a small number of registers, the values

stored previously will have to be saved back to memory to bring in the new values; more

registers will solve the problem of swapping in, swapping out. However, a very large

registers. The size of the registers affects the range of values that can be stored in the

registers.

The number of registers in the register file, along with the size of the registers, for each of

the processors under study, is in the given table.

Memory specifications

Memory design is an integral part of the processor design. We need to decide on the

memory space that will be available to the processor, how the memory will be organized,

memory word size, memory access bus width, and the storage format used to store words

in memory. The memory specifications for the processor under comparison are:

Page 136

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Data transfer instructions

Data needs to be transferred between storage devices for processing. Data transfers may

include loading, storing back or copying of the data. The different ways in which data

transfers may take place have their related advantages and disadvantages. These are listed

in the given table.

Following are the data transfer instructions included in the instruction sets of our

processors.

Register to register transfers

As we can see from the given table on the next page, in the processor EAGLE, register to

FALCON-A has a mov instruction, which can be used to move data of any register to any

other register. FALCON-E has the instructions `lds' and `sts' which are used to load/store

a register from/to memory after effective address calculation.

SRC does not provide any instruction for data movement between general-purpose

registers. However, this can be accomplished indirectly, by adopting either of the

following two approaches:

Page 137

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

A register's contents can be loaded into another register via memory. First storing

the content of a register to a particular memory location, and then reading the

contents of the memory from that location into the register we want to copy the

value to can achieve this. However, this method is very inefficient, as it requires

memory accesses, which are inherently slow operations.

A better method is to use the addi instruction with the constant set to 0.

Register to memory

EAGLE has instructions to load values from memory to the special purpose register,

names the accumulator, as well as saving values from the accumulator to memory. Other

FALOCN-E and the SRC have simple load, store instructions and all register-memory

transfers are supported.

Memory to memory

In any of the processors under study, memory-to-memory transfers are not supported.

However, in other processors, these may be a possibility.

Control Flow Instructions

All processors have instructions to control the flow of programs in execution. The general

control flow instructions available in most processors are:

· Branches (conditional)

· Jumps (unconditional)

· Calls (procedure calls)

· Returns (procedure returns)

Conditional Branches

Whereas jumps, calls and call returns changes the control flow in a specific order,

branches depend on some conditions; if the conditions are met, the branch may be taken,

Page 138

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

otherwise the program flow may continue linearly. The branch conditions may be

specified by any of the following methods:

· Condition codes

· Condition register

· Comparison and branching

Condition codes

The ALU may contain some special bits (also called flags), which may have been set (or

raised) under some special circumstances. For instance, a flag may be raised if there is an

overflow in the addition results of two register values, or if a number is negative. An

instruction can then be ordered in the program that may change the flow depending on

any of these flag's values. The EAGLE processor uses these condition codes for branch

condition evaluation.

Condition register

A special register is required to act as a branch register, and any other arbitrary register

(that is specified in the branch instruction), is compared against that register, and the

branching decision is based on the comparison result of these two registers. None of the

processors under our study use this mode of conditional branching.

Compare and branch

In this mode of conditional branching, comparison is made part of the branching

instruction. Therefore, it is somewhat more complex than the other two modes. All the

processors we are studying use this mode of conditional branching.

Size of jumps

Jumps are deviations from the linear program flow by a specified constant. All our

processors, except the SRC, support PC-relative jumps. The displacement (or the jump)

relative to the PC is specified by the constant field in the instruction. If the constant field

is wider (i.e. there are more bits reserved for the constant field in the instruction), the

jump can be of a larger magnitude. Shown table specifies the displacement size for

various processors.

Addressing Modes

All processors support a variety of addressing modes. An addressing mode is the method

by which architectures specify the address of an object they will access. The object may

be a constant, a register or a location in memory.

Common addressing modes are

Page 139

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Immediate

An immediate field may be provided in instructions, and a constant value may be

given in this immediate field, e.g. 123 is an immediate value.

Register

A register may contain the value we refer to in an instruction, for instance,

Direct

By direct addressing mode, we mean the constant field may specify the location

of the memory we want to refer to. For instance, [123] will directly refer to the

memory location 123's contents.

Register Indirect

A register may contain the address of memory location to which we want to refer

to, for example, M [R3].

Displacement

In this addressing mode, the constant value specified by the immediate field is

added to the register value, and the resultant is the index of memory location that

is referred to, e.g. M [R3+123]

Relative

Relative addressing mode implies PC-relative addressing, for example, [PC+123]

will refer to the memory location that is 123 words farther than the memory index

currently stored in the program counter.

Indexed or scaled

The values contained in two registers are added and the resultant value is the

index to the memory location we refer to, in the indexed addressing mode. For

example, M [[R1]+[R2]]. In the scaled addressing mode, a register value may be

scaled as it is added to the value of the other register to obtain the index of

memory location to be referred to.

Auto increment/ decrement

In the auto increment mode, the value held in a register is used as the index to

memory location that holds the value of operand. After the operand's value is

retrieved, the register value is automatically increased by 1 (or by any specified

constant). e.g. M [R4]+, or M [R4]+d. In the auto decrement mode, the register

value is first decremented and then used as a reference to the memory location

that referred to in the instruction, e.g. -M [R4].

As may be obvious to the reader, some of these addressing modes are quite simple, others

are relatively complex. The complex addressing modes (such as the indexed) reduce the

instruction count (thus improving code density), at the cost of more complex

implementation.

The given table lists the addressing modes supported by the processors we are studying.

Note that the register-addressing mode is a special case of the relative addressing mode,

with the constant equal to 0, and only the PC can be used as a source. Also note that, in

the shown table, relative implies PC-relative.

Page 140

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Displacement addressing mode

We have already talked about the displacement-addressing mode. We look at this

addressing mode at length now.

The displacement-addressing mode is the most common of the addressing mode used in

general purpose processors. Some other modes such as the indexed based plus index,

scaled and register indirect are all slightly modified forms of the displacement-addressing

mode. The size of displacement plays a key role in efficient address calculation. The

following table specifies the size of the displacement field in different processors under

study.

The given table lists the size of the immediate field in our processors.

Page 141

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Instructions common to all Instruction Set Architectures

In this section we have listed the instructions that are common to the Instruction Set

Architectures of all the processors under our study.

· Arithmetic Instructions

add, addi & sub.

· Logic Instructions

and, andi, or, ori, not.

· Shift Instructions.

Right shift, left shift & arithmetic right shift.

· Data movement Instructions.

Load and store instructions.

· Control Instructions

Conditional and unconditional branches, nop & reset.

The following tables list the assembly language instruction codes of these common

instructions for all the processors under comparison.

Page 142

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Page 143

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Page 144

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Instructions unique to each processor

Now we take a look at the instructions that are unique to each of the processors we are

studying.

EAGLE

The EAGLE processor has a minimal instruction set. Following are the instructions that

are unique only to the EAGLE processor. Note that these instructions are unique only

with reference to the processor set under our study; some other processors may have

these instructions.

· movia

This instruction is for moving the immediate value to the accumulator (the special

purpose register)

· a2r

This instruction is for moving the contents of the accumulator to a register

· r2a

For moving register contents to the accumulator

· cla

For clearing (setting to zero) the value in the accumulator

FALCON-A

There is only one instruction unique to the FALCON-A processor;

· ret

This instruction is used to return control to a calling procedure. The calling

procedure may save the PC value in a register ra, and when this instruction is

called, the PC value is restored. In RTL, we write this as

PC R [ra];

Page 145

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

FALCON-E

The instructions unique to the FALCON-E processor are listed:

· push

To push the contents of a specified general purpose register to the stack

· pop

To pop the value that is at the top of the stack

· ldr

To load a register with memory contents using displacement addressing mode

· str

To store a register value into memory, using displacement addressing mode

· bl

To branch if source operand is less than target address

· bg

To branch if source operand is greater than target address

· muli

To multiply an immediate value with a value stored in a register

· divi

To divide a register value by the immediate value

xor, xori

To evaluate logical `exclusive or'

· ror, rori

SRC

Following are the instructions that are unique to the SRC processor, among of the

processors under study

· ldr

To load register from memory using PC-relative address

· lar

To load a register with a word from memory using relative address

· str

To store register value to memory using relative address

· brlnv

This instruction is to tell the processor to `never branch' at that point in program.

The instruction saves the program counter's contents to the register specified

· brlpl

This instruction instructs the processor to branch to the location specified by a

Return address is saved before branching.

· brlmi

This instruction instructs the processor to branch to the location specified by a

Return address is saved before branching.

· brlzr

This instruction instructs the processor to branch to the location specified by a

Return address is saved before branching.

Page 146

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

brlnz

This instruction instructs the processor to branch to the location specified by a

zero. Return address is saved before branching.

Problem Comparison

Given is the code for a simple C statement:

a=(b-2)+4c

The given table gives its implementation in all the four processors under comparison.

Note that this table highlights the code density for each of the processors; EAGLE, which

has relatively fewer specialized instructions, and so it takes more instructions to carry out

this operation as compared with the rest of the processors.

Page 147

Last Modified: 01-Nov-06

Advanced Computer Architecture-CS501

Page 148

Last Modified: 01-Nov-06

Table of Contents:
