CS302 - Digital Logic & Design

Lesson No. 41

READ AND WRITE CYCLES

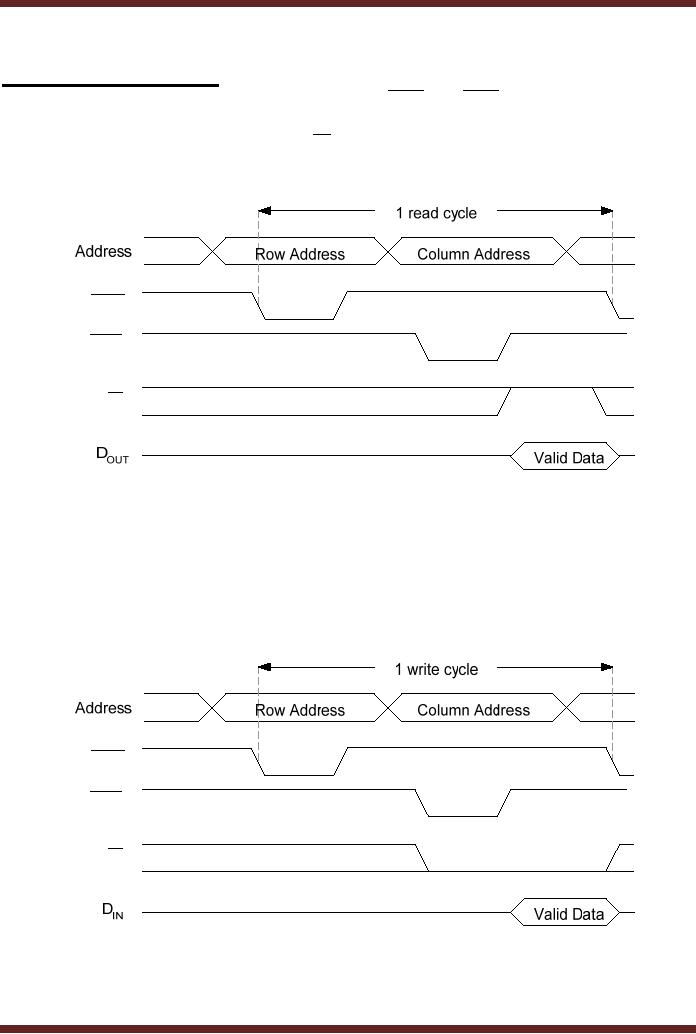

The read cycle is shown. Figure 41.1a. The RAS and CAS signals are activated one

after the other to latch the multiplexed row and column addresses respectively applied at the

multiplexed address input lines. The R / W signal is activated to read data which is made

available on the DOUT data line.

RAS

CAS

R/W

Figure 41.1a DRAM Read Cycle

The write cycle is similar to the read cycle. Figure 41.1b. The row and column

addresses are applied at the multiplexed address inputs along with the strobe signals that

latch the row and column addresses in the row and column address latches respectively. The

write signal is activated allowing data placed at the DIN data line to be stored in the selected

memory cell.

RAS

CAS

R/W

Figure 41.1b DRAM Write Cycle

FAST Page Mode

412

CS302 - Digital Logic & Design

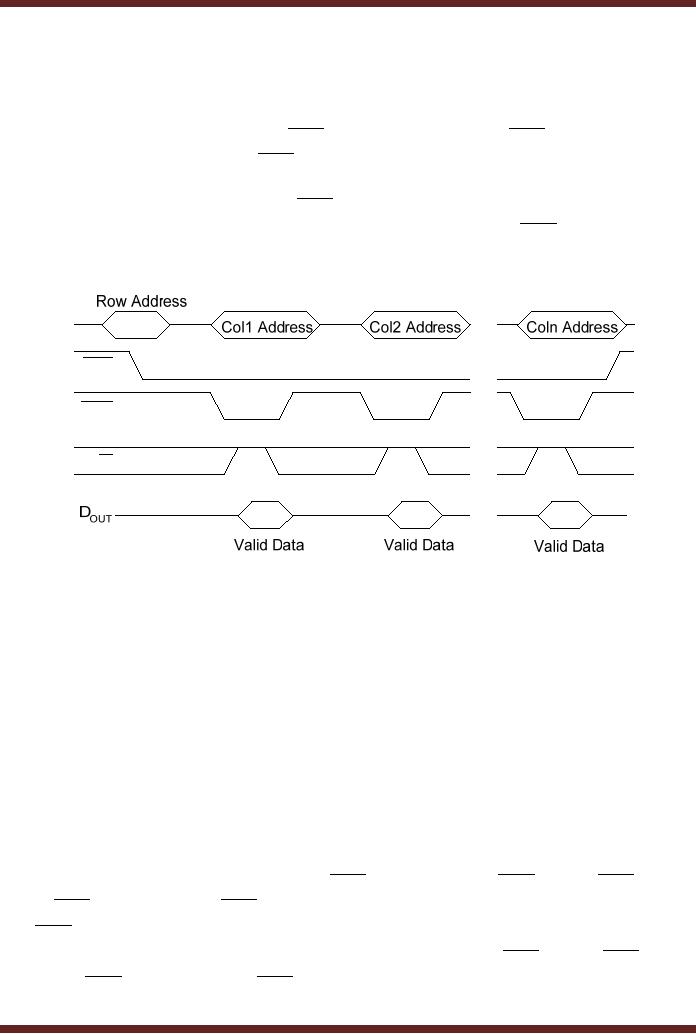

In a FAST Mode Page Access all the columns in the same row are either read or

written. A single row is considered to be a `Page' of memory storing data values in successive

memory locations. The FAST Mode Page Access allows faster memory read and access times

when reading successive data values stored in consecutive locations on the same row. The

row address is first latched by the RAS signal going low. The RAS signal remains low

throughout the Page Access. The CAS signal is toggled between high and low which selects

successive columns in the selected row. Data is read or written to successive column

locations. During the read cycle when CAS goes high the DOUT line is disabled. Therefore,

data on the DOUT line has to be latched by the external system before CAS goes high. Figure

41.2.

RAS

CAS

R/W

Figure 41.2

FAST Page Mode Read Cycle

Burst Refresh and Distributed Refresh

DRAM chips are refreshed using either the Burst Refresh Mode or the Distributed

Refresh Mode. In the Burst Refresh Mode, all rows in the DRAM chip are refreshed

consecutively in each refresh cycle. For a DRAM having a refresh cycle of 8 msec, a burst

refresh of all rows occurs once every 8 msec. During the refresh cycle the memory can not be

accessed for normal read and write operations, therefore the read/write operations are

suspended until the refresh cycle is completed.

In Distributed Mode, the refresh cycle is interspersed between normal read and write

cycles. For the 1024 x 1024 DRAM memory and a refresh cycle of 8 msec, each of the 1024

rows has to be refreshed in 7.8 microsec when Distributed refresh is used.

RAS only Refresh and CAS before RAS Refresh

The refresh cycles are of two types, RAS only refresh and CAS before RAS refresh.

In the RAS only refresh the RAS signal goes low latching the row address to be refreshed,

the CAS signal remains inactive high throughout the refresh cycle. An external counter is

used to provide the row addresses for the refresh operation. In the CAS before RAS refresh

mode, the CAS goes low before RAS goes low. This sequence activates an internal refresh

413

CS302 - Digital Logic & Design

counter that generates the row address to be refreshed. This address is switched by the data

selector into the row decoder.

Types of DRAMs

There are several different types of DRAMS available.

· Fast Page Mode DRAM: Compared to random access read/write, FAST Page Mode is

faster where successive columns on the same row are read/written in successively by

asserting the CAS strobe signal. The CAS signal when de-asserted, disables the DOUT

data line, therefore the next column address can not occur unless the data at the current

address is latched by the external system reading data from the DRAM. The access speed

of the DRAM during read operation is therefore limited by the external system latching the

data available on the DOUT line.

· Extended Data Output (EDO) DRAM: The memory in its operation is similar to the FPM

DRAM, however the CAS signal doesn't disable the DOUT when it goes to its non-asserted

state. Thus the valid data on the DOUT line can be remain until the CAS signal is asserted

again to access the next column. Thus the next column address can be accessed before

the external system accepts the current data.

Synchronous DRAM: The DRAM operations are tied to a clock signal that also times the

microprocessor operations. This allows the DRAM to closely synchronize with the

microprocessor.

ROM Read-Only Memory

A ROM contains permanent data that can not be changed. Thus ROM memory does

not allow write operation. A ROM stores data that are used repeatedly in system applications,

such as tables, conversions, programmed instructions for system initialization and operation.

ROMs retain data when the power is turned off. ROMs are of different types.

· Mask ROM: Data is permanently stored during the manufacturing process.

· PROM: Programmable ROM allows storage of data by the user using a PROM

programmer. The PROM once programmed stores the data permanently.

· EPROM: Erasable PROM allows erasing of stored data and reprogramming.

· UV EPROM: Is a programmable ROM. Data is erased by exposing the PROM to Ultraviolet

light.

· EEPROM: Electrically Erasable PROM is erased electrically. EEPROM allows in-circuit

programming and doesn't need to be removed from the circuit for erasure or programming.

Mask ROM

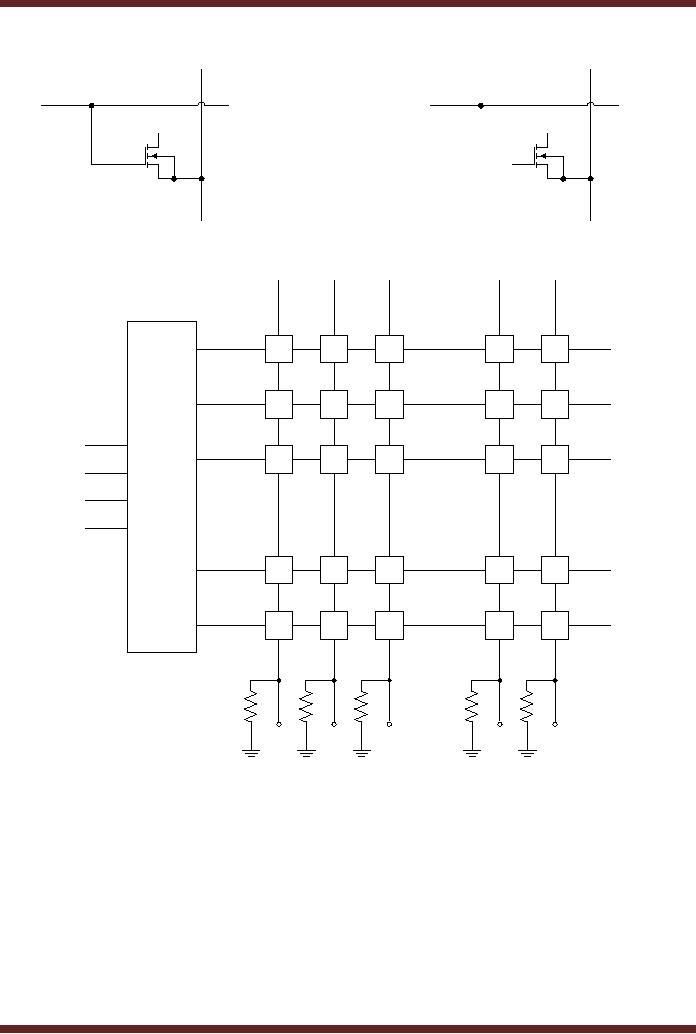

The structure of a storage cell in a Mask ROM is shown. Figure 41.3. The storage cell

in a Mask ROM is implemented using a MOS transistor. The Gate of the transistor is

connected to the row line and the output of the transistor is connected to the column line.

When a row is selected all the MOS transistors with their Gates connected to the row are

turned on and connect their high output to their respective column line. Transistors with their

GATE connections to the row removed are not turned on and the corresponding column lines

have a logic low output. During the manufacturing process the cells that store logic one have

the transistors configured with their Gates intact and cells having logic 0 have the transistors

configured with their Gate connections removed.

414

CS302 - Digital Logic & Design

Column

Row

+VDD

Figure 41.3

ROM cell storing a logic 1 and logic 0

Address

Decoder

Row 0

Row 1

Address

Input

Lines

Row 2

Row 14

Row 15

Terminating

Resistors

Data

Output

Lines

Figure 41.4

General Architecture of a ROM

A 16 x 8 ROM is shown. Figure 41.4. A 4-bit address is decoded by a 4 x 16 decoder

which selects the appropriate row line. The MOSFETs connected to the selected row output

logic 1 on the respective column lines. The MOSFETs that are not connected output logic 0.

The terminating resistor connected to the end of each column line ensures that the output line

stays low when a MOSFET outputs logic 0.

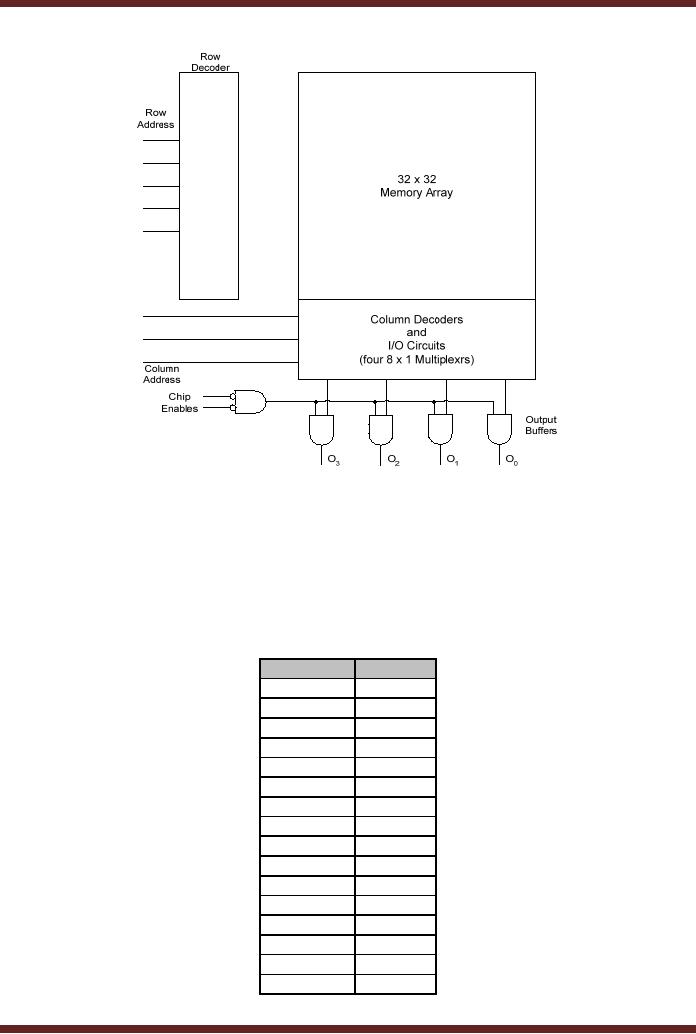

The Internal Structure of Mask ROM chip is different from the simplified structure

shown in figure 41.4. A 256 x 4 ROM device is organized in the form of a 32 x 32 row-column

structure. The 8-bit address is split into a 5-bit row address which selects one out of the 32

rows and the remaining 3 bits are used to select 1 out of 8 column lines by four 8 x 1

Multiplexers. Figure 41.5.

415

CS302 - Digital Logic & Design

Figure 41.5

Internal structure of a 264 x 4 ROM

ROM Applications

The 264 x 4 ROM can be used as conversion table to convert 4-bit binary values to 4-

bit equivalent Gray Code values. The 4-bit code which is to be converted is applied as an

address at the 4-bit address input of the ROM. At each of the 256 locations corresponding to

the 256 addresses 256 Gray Code values are stored. The 4-bit Gray Code contents stored at

the first 16 locations of the ROM are shown. Table 41.1. ROM can also be used as a simple

table. Each location in the ROM stores a value which can be accessed by specifying the

location address. Look-Up tables used in computers can be implemented using ROMs.

Address

Data

0000

0001

0010

0011

0010

0100

0110

0101

0111

0110

0101

0111

0100

1000

1100

1001

1101

1010

1111

1011

1110

1100

1010

1101

1011

1110

1001

1111

1000

Table 41.1

ROM programmed to convert 4-bit Binary to 4-bit Gray Code

416

CS302 - Digital Logic & Design

ROM Read Cycle & Access Time

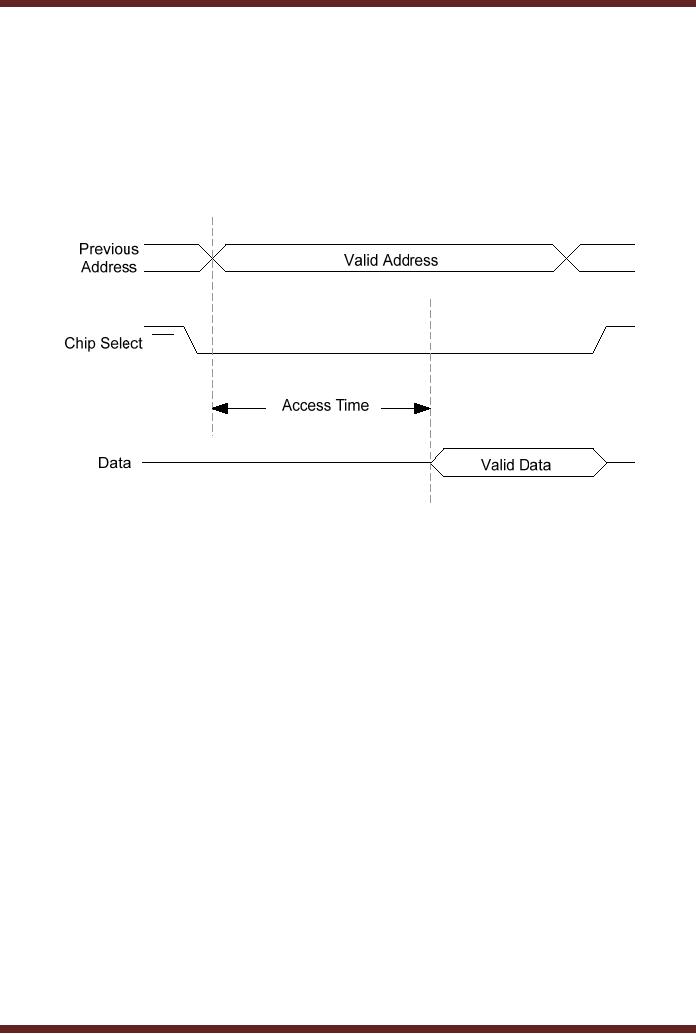

The Access Time of a ROM is the time it takes for the data to appear at the Data

Output of the ROM chip after an address is applied at the address input lines. The access time

can also be measured with respect to the activation of the chip enable signal and the

appearance of the data at the output lines when address is already on the address lines.

Figure 41.6.

Figure 41.6

Read Access Time of a ROM chip

PROM (Programmable ROMs)

The Mask ROM are programmed at the manufacturing time and can not e programmed

by the user. Mask ROM allows read-only operation. A PROM can be programmed once by the

user using a PROM Programmer. Once the PROM is programmed its contents can not be

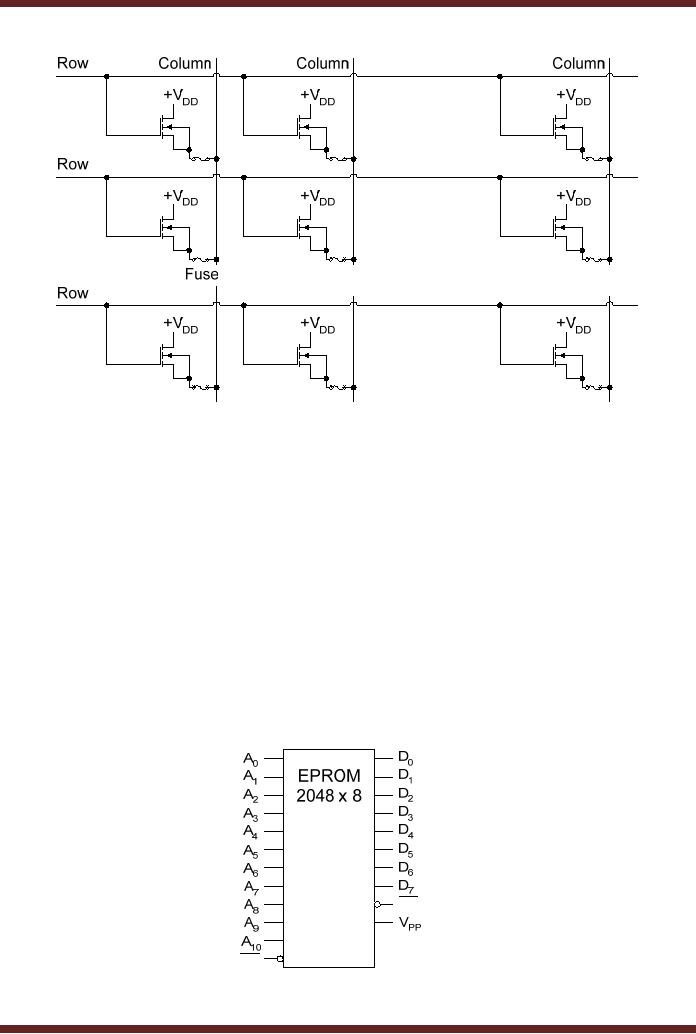

erased and programmed again. PROM uses a fusible link to connect the output of the MOS

transistors to the column line. The row lines are permanently connected the gates of the

transistors. When the fuse is intact, logic high is seen on the column line when the

corresponding cell is selected. When the fuse is blown the column line outputs a logic low.

Figure 41.7.

417

CS302 - Digital Logic & Design

Figure 41.7

PROM array with fusible links

EPROM Erasable PROM

An EPROM is an Erasable PROM. The contents of the memory can be erased and the

memory can be reprogrammed. The EPROM uses NMOSFET array with an isolated-gate

structure. The isolated gate structure can store a charge for indefinite periods of time. The

data bits are represented by the presence or absence of gate charges. Erasure of data bit is

the removal of gate charge.

Two basic types of EPROMs are the Ultra Violet EPROM (UV EPROM) and the

Electrically Erasable EPROM (EEPROM). In the UV EPROM, the programming process

causes the electrons to be removed from the isolated gate. The UV EPROM has a quartz

window on the package through which the memory array is exposed to high-intensity UV

which causes the positive charge stored on the gate to neutralize after an exposure time of

few minutes. A typical UV EPROM memory chip is shown. Figure 41.8

CE / PGM

418

CS302 - Digital Logic & Design

Figure 41.8

A 2 KB EPROM

The 2 KByte EPROM has 2K locations each storing a byte data value. Addressing 2K

locations requires 210 or 10 address lines A0 to A10. Each memory location stores a byte value,

therefore 8 data lines are required. To read data from the EPROM, the chip has to be selected

by setting the chip enable/program CE / PGM signal to active-low and the output enable OE is

set to logic low.

Programming EPROM

Programming the EPROM chip is done by applying a high dc voltage at the VPP pin and

setting the output enable OE to logic high. The data to be programmed is applied at the eight

data lines and the address at which the data is to be programmed is applied at the address

lines. A high level pulse is applied at the enable/program CE / PGM signal to program the data

at the required address. The entire EPROM is programmed by applying data values at the

data lines the corresponding address at the address input lines and high level pulses at the

CE / PGM pin.

EEPROM Electrically Erasable PROM

An electrically erasable PROM is programmed and erased by applying electric pulses.

Since this PROM does not need to be exposed to Ultra Violet light for erasing data therefore

the EEPROM can be rapidly programmed and erased in-circuit.

FLASH Memory

An ideal memory should have high density, have read/write capability, should be non-

volatile, have fast access time and should be cost effective. The ROM, PROM, EPROM,

EEPROM, SRAM and DRAM all exhibit some of these characteristics, however none of these

memories have all the mentioned characteristics except for the FLASH Memory.

FLASH memories have high density, that is, they store more information per unit area

as more storage cells are implemented per unit area. These memories have read/write

capability and are non-volatile and can store data for indefinite time period. The high density

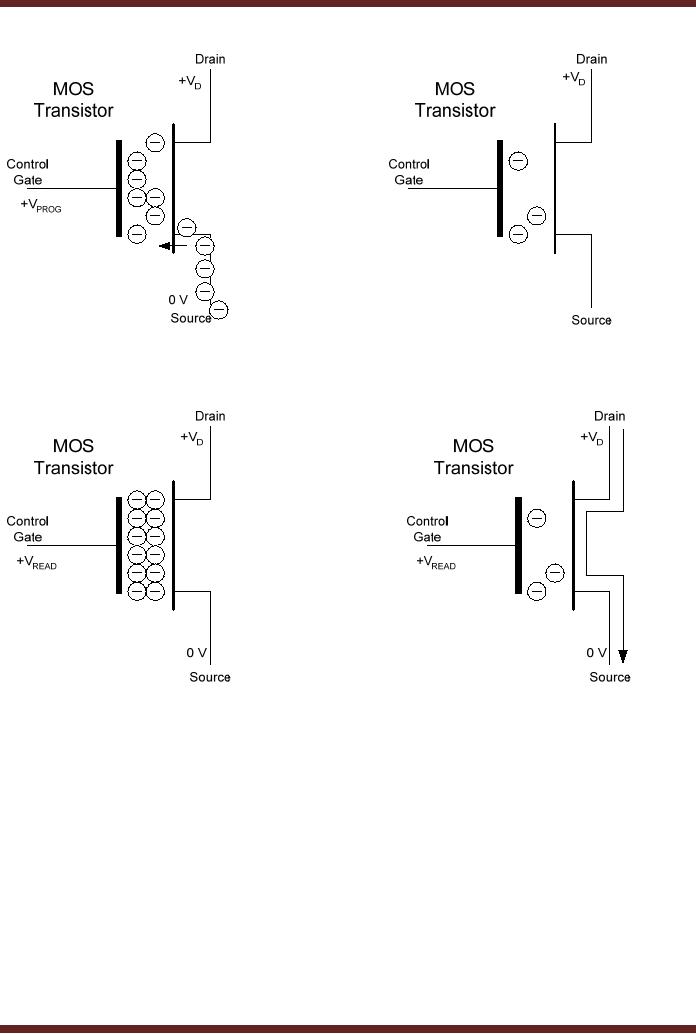

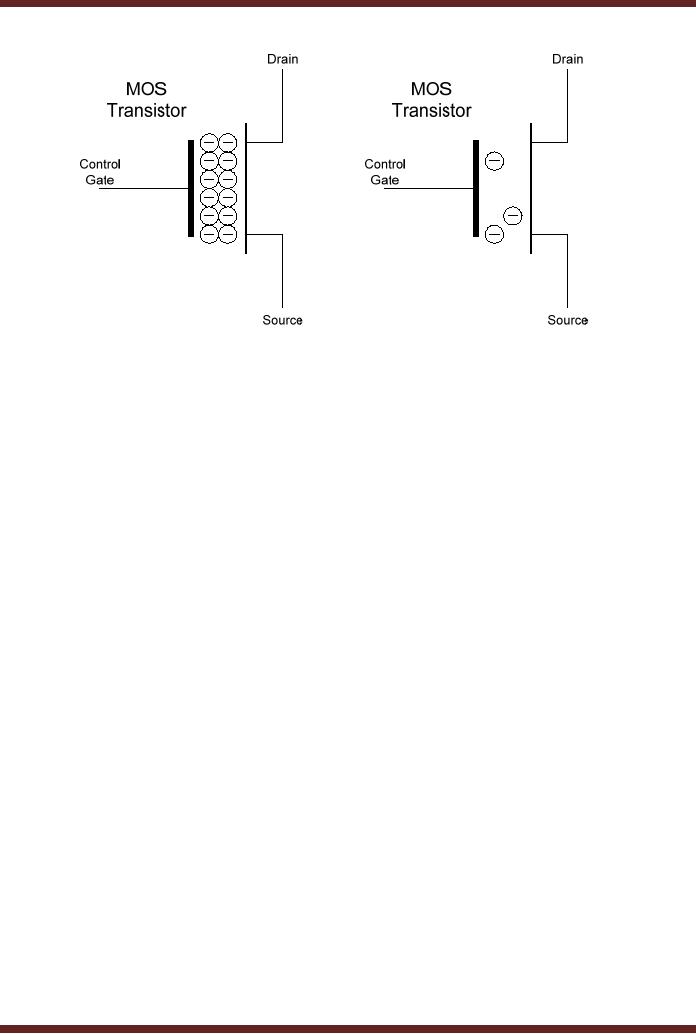

FLASH memory cell is implemented using a single floating-gate MOS transistor. A data bit is

stored as a charge (logic 0) or the absence of a charge (logic 1) on the floating gate. The

amount of charge present o the floating gate determines if the transistor will turn and conduct

current from the drain to the source when a control voltage is applied at the Control rate during

the read operation. Figure 41.9

419

CS302 - Digital Logic & Design

Figure 41.9

MOS transistor with charge (logic 0) and no charge (logic 1)

FLASH Memory Operations

FLASH Memory operations are classified into

· Programming Operation

· Read Operation

· Erase Operation

Programming Operation

Initially, all cells are at the logic 1 state, that is with no charge. The programming

Operations adds charge to the floating gate of those cells that are to store a logic 0. No charge

is added to those gates that are to store a logic 1. The charges are stored by applying a

positive voltage at the Control Gate with respect to the Source which attracts electrons to the

floating gate. Once the gate is charged it, retains the charge for years. Figure 41.10

Read Operation

During the read operation a positive voltage is applied to the MOS transistor control

gate. If a negative charge is stored on the gate then the positive read voltage is not sufficient

to overcome the negative charge therefore the transistor is not turned on. On the other hand if

there is no or small amount of negative charge stored, the positive read voltage is sufficient to

overcome the negative charge turning on the transistor. When the transistor is turned on there

is a current from the drain to the source of the cell transistor. The presence of this current is

sensed to indicate a 1. The absence of this current indicates a 0. Figure 41.10.

420

CS302 - Digital Logic & Design

Figure 41.10 FLASH Memory Cell programmed with logic 0 and logic 1

Figure 41.11 Read operation to read a logic 0 and a logic 1

Erase Operation

During the erase operation charge is removed from the memory cell. A sufficiently

large positive voltage is applied at the source with respect to the control gate. The voltage

applied across the control gate and source is opposite to the voltage applied during

programming. If charges are present on the gate, the positive voltage supply at the source

attracts the electrons depleting the gate. A FLASH memory is erased prior to programming.

Figure 41.12

421

CS302 - Digital Logic & Design

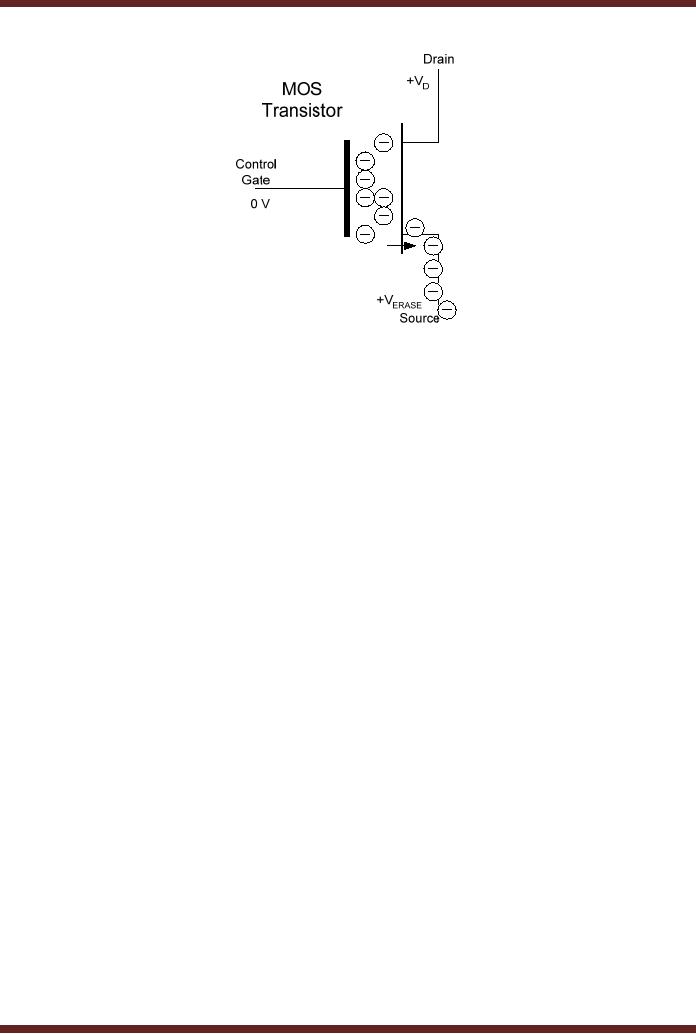

Figure 41.12 The Erase Operation of the FLASH Memory Cell

422

Table of Contents:
